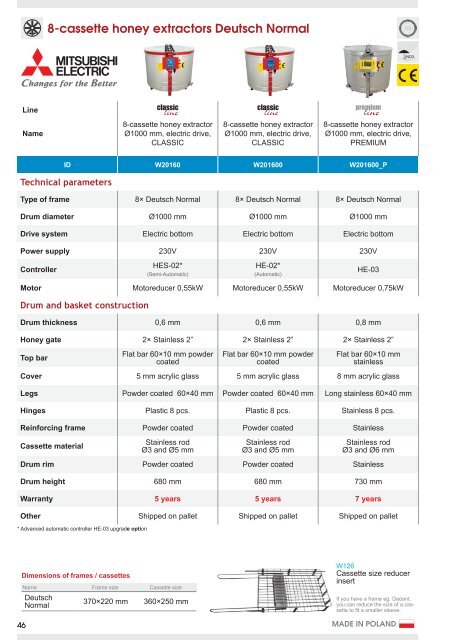

8-cassette honey extractors Deutsch Normal<br />
Line<br />
Name<br />
8-cassette honey extractor<br />
Ø1000 mm, electric drive,<br />
CLASSIC<br />
8-cassette honey extractor<br />
Ø1000 mm, electric drive,<br />
CLASSIC<br />
8-cassette honey extractor<br />
Ø1000 mm, electric drive,<br />
PREMIUM<br />
ID W20160 W201600 W201600_P<br />
Technical parameters<br />
Type of frame 8× Deutsch Normal 8× Deutsch Normal 8× Deutsch Normal<br />
Drum diameter Ø1000 mm Ø1000 mm Ø1000 mm<br />
Drive system Electric bottom Electric bottom Electric bottom<br />
Power supply 230V 230V 230V<br />
Controller<br />
HES-02*<br />
(Semi-Automatic)<br />
HE-02*<br />
(Automatic)<br />
HE-03<br />
Motor Motoreducer 0,55kW Motoreducer 0,55kW Motoreducer 0,75kW<br />
Drum and basket construction<br />
Drum thickness 0,6 mm 0,6 mm 0,8 mm<br />
Honey gate 2× Stainless 2” 2× Stainless 2” 2× Stainless 2”<br />
Top bar<br />
Flat bar 60×10 mm powder<br />
coated<br />
Flat bar 60×10 mm powder<br />
coated<br />
Flat bar 60×10 mm<br />
stainless<br />
Cover 5 mm acrylic glass 5 mm acrylic glass 8 mm acrylic glass<br />
Legs Powder coated 60×40 mm Powder coated 60×40 mm Long stainless 60×40 mm<br />
Hinges Plastic 8 pcs. Plastic 8 pcs. Stainless 8 pcs.<br />
Reinforcing frame Powder coated Powder coated Stainless<br />
Cassette material<br />
Stainless rod<br />
Ø3 and Ø5 mm<br />
Stainless rod<br />
Ø3 and Ø5 mm<br />
Stainless rod<br />
Ø3 and Ø6 mm<br />
Drum rim Powder coated Powder coated Stainless<br />
Drum height 680 mm 680 mm 730 mm<br />
Warranty 5 years 5 years 7 years<br />
Other Shipped on pallet Shipped on pallet Shipped on pallet<br />
* Advanced automatic controller HE-03 upgrade option<br />
Dimensions of frames / cassettes<br />
Name Frame size Cassette size<br />
Deutsch<br />
Normal<br />
370×220 mm 360×250 mm<br />
W126<br />
Cassette size reducer<br />
insert<br />
If you have a frame eg. Dadant,<br />
you can reduce the size of a cassette<br />
to fit a smaller sleeve.<br />
46<br />
MADE IN POLAND
