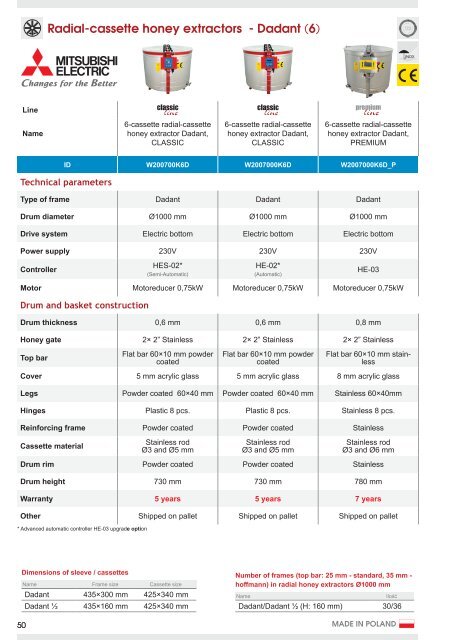

Radial-cassette honey extractors - Dadant (6)<br />
Line<br />
Name<br />
6-cassette radial-cassette<br />
honey extractor Dadant,<br />
CLASSIC<br />
6-cassette radial-cassette<br />
honey extractor Dadant,<br />
CLASSIC<br />
6-cassette radial-cassette<br />
honey extractor Dadant,<br />
PREMIUM<br />
ID W200700K6D W2007000K6D W2007000K6D_P<br />
Technical parameters<br />
Type of frame Dadant Dadant Dadant<br />
Drum diameter Ø1000 mm Ø1000 mm Ø1000 mm<br />
Drive system Electric bottom Electric bottom Electric bottom<br />
Power supply 230V 230V 230V<br />
Controller<br />
HES-02*<br />
(Semi-Automatic)<br />
HE-02*<br />
(Automatic)<br />
HE-03<br />
Motor Motoreducer 0,75kW Motoreducer 0,75kW Motoreducer 0,75kW<br />
Drum and basket construction<br />
Drum thickness 0,6 mm 0,6 mm 0,8 mm<br />
Honey gate 2× 2” Stainless 2× 2” Stainless 2× 2” Stainless<br />
Top bar<br />
Flat bar 60×10 mm powder<br />
coated<br />
Flat bar 60×10 mm powder<br />
coated<br />
Flat bar 60×10 mm stainless<br />
Cover 5 mm acrylic glass 5 mm acrylic glass 8 mm acrylic glass<br />
Legs Powder coated 60×40 mm Powder coated 60×40 mm Stainless 60×40mm<br />
Hinges Plastic 8 pcs. Plastic 8 pcs. Stainless 8 pcs.<br />
Reinforcing frame Powder coated Powder coated Stainless<br />
Cassette material<br />
Stainless rod<br />
Ø3 and Ø5 mm<br />
Stainless rod<br />
Ø3 and Ø5 mm<br />
Stainless rod<br />
Ø3 and Ø6 mm<br />
Drum rim Powder coated Powder coated Stainless<br />
Drum height 730 mm 730 mm 780 mm<br />
Warranty 5 years 5 years 7 years<br />
Other Shipped on pallet Shipped on pallet Shipped on pallet<br />
* Advanced automatic controller HE-03 upgrade option<br />
Dimensions of sleeve / cassettes<br />
Name Frame size Cassette size<br />
Dadant 435×300 mm 425×340 mm<br />
Dadant ½ 435×160 mm 425×340 mm<br />
Number of frames (top bar: 25 mm - standard, 35 mm -<br />
hoffmann) in radial honey extractors Ø1000 mm<br />
Name<br />
Ilość<br />
Dadant/Dadant ½ (H: 160 mm) 30/36<br />
50<br />
MADE IN POLAND
