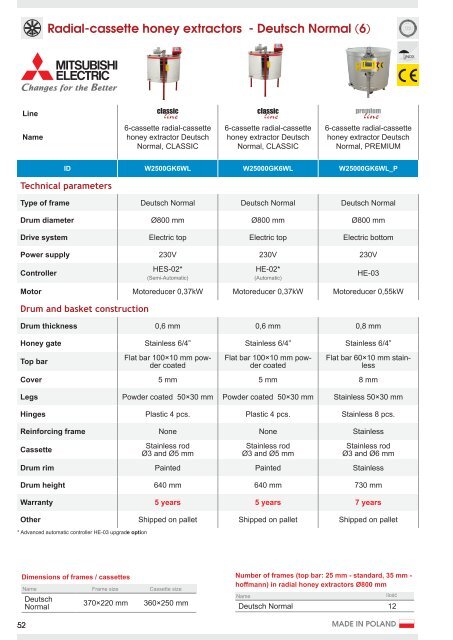

Radial-cassette honey extractors - Deutsch Normal (6)<br />
Line<br />
Name<br />
6-cassette radial-cassette<br />
honey extractor Deutsch<br />
Normal, CLASSIC<br />
6-cassette radial-cassette<br />
honey extractor Deutsch<br />
Normal, CLASSIC<br />
6-cassette radial-cassette<br />
honey extractor Deutsch<br />
Normal, PREMIUM<br />
ID W2500GK6WL W25000GK6WL W25000GK6WL_P<br />
Technical parameters<br />
Type of frame Deutsch Normal Deutsch Normal Deutsch Normal<br />
Drum diameter Ø800 mm Ø800 mm Ø800 mm<br />
Drive system Electric top Electric top Electric bottom<br />
Power supply 230V 230V 230V<br />
Controller<br />
HES-02*<br />
(Semi-Automatic)<br />
HE-02*<br />
(Automatic)<br />
HE-03<br />
Motor Motoreducer 0,37kW Motoreducer 0,37kW Motoreducer 0,55kW<br />
Drum and basket construction<br />
Drum thickness 0,6 mm 0,6 mm 0,8 mm<br />
Honey gate Stainless 6/4” Stainless 6/4” Stainless 6/4”<br />
Top bar<br />
Flat bar 100×10 mm powder<br />
coated<br />
Flat bar 100×10 mm powder<br />
coated<br />
Flat bar 60×10 mm stainless<br />
Cover 5 mm 5 mm 8 mm<br />
Legs Powder coated 50×30 mm Powder coated 50×30 mm Stainless 50×30 mm<br />
Hinges Plastic 4 pcs. Plastic 4 pcs. Stainless 8 pcs.<br />
Reinforcing frame None None Stainless<br />
Cassette<br />
Stainless rod<br />
Ø3 and Ø5 mm<br />
Stainless rod<br />
Ø3 and Ø5 mm<br />
Stainless rod<br />
Ø3 and Ø6 mm<br />
Drum rim Painted Painted Stainless<br />
Drum height 640 mm 640 mm 730 mm<br />
Warranty 5 years 5 years 7 years<br />
Other Shipped on pallet Shipped on pallet Shipped on pallet<br />
* Advanced automatic controller HE-03 upgrade option<br />
Dimensions of frames / cassettes<br />
Name Frame size Cassette size<br />
Deutsch<br />
Normal<br />
370×220 mm 360×250 mm<br />
Number of frames (top bar: 25 mm - standard, 35 mm -<br />
hoffmann) in radial honey extractors Ø800 mm<br />
Name<br />
Ilość<br />
Deutsch Normal 12<br />
52<br />
MADE IN POLAND
