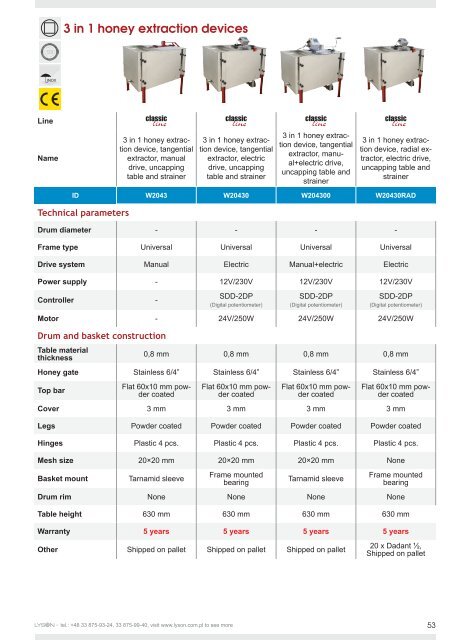

3 in 1 honey extraction devices<br />
Line<br />
Name<br />
3 in 1 honey extraction<br />
device, tangential<br />
extractor, manual<br />
drive, uncapping<br />
table and strainer<br />
3 in 1 honey extraction<br />
device, tangential<br />
extractor, electric<br />
drive, uncapping<br />
table and strainer<br />
3 in 1 honey extraction<br />
device, tangential<br />
extractor, manual+electric<br />
drive,<br />
uncapping table and<br />
strainer<br />
3 in 1 honey extraction<br />
device, radial extractor,<br />
electric drive,<br />
uncapping table and<br />
strainer<br />
ID W2043 W20430 W204300 W20430RAD<br />
Technical parameters<br />
Drum diameter - - - -<br />
Frame type Universal Universal Universal Universal<br />
Drive system Manual Electric Manual+electric Electric<br />
Power supply - 12V/230V 12V/230V 12V/230V<br />
Controller -<br />
SDD-2DP<br />
(Digital potentiometer)<br />
SDD-2DP<br />
(Digital potentiometer)<br />
SDD-2DP<br />
(Digital potentiometer)<br />
Motor - 24V/250W 24V/250W 24V/250W<br />
Drum and basket construction<br />
Table material<br />
thickness<br />
0,8 mm 0,8 mm 0,8 mm 0,8 mm<br />
Honey gate Stainless 6/4” Stainless 6/4” Stainless 6/4” Stainless 6/4”<br />
Top bar<br />
Flat 60x10 mm powder<br />
coated<br />
Flat 60x10 mm powder<br />
coated<br />
Flat 60x10 mm powder<br />
coated<br />
Flat 60x10 mm powder<br />
coated<br />
Cover 3 mm 3 mm 3 mm 3 mm<br />
Legs Powder coated Powder coated Powder coated Powder coated<br />
Hinges Plastic 4 pcs. Plastic 4 pcs. Plastic 4 pcs. Plastic 4 pcs.<br />
Mesh size 20×20 mm 20×20 mm 20×20 mm None<br />
Basket mount<br />
Tarnamid sleeve<br />
Frame mounted<br />
bearing<br />
Tarnamid sleeve<br />
Frame mounted<br />
bearing<br />
Drum rim None None None None<br />
Table height 630 mm 630 mm 630 mm 630 mm<br />
Warranty 5 years 5 years 5 years 5 years<br />
Other Shipped on pallet Shipped on pallet Shipped on pallet<br />
20 x Dadant ½,<br />
Shipped on pallet<br />
tel.: +48 33 875-93-24, 33 875-99-40, visit www.lyson.com.pl to see more<br />
53
