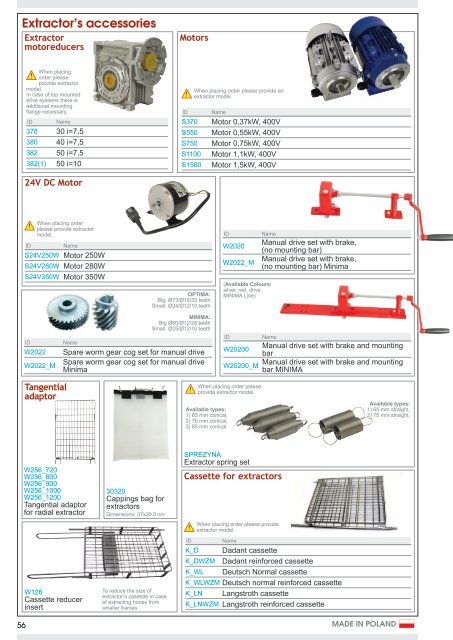

Extractor’s accessories<br />
Extractor<br />
motoreducers<br />
Motors<br />
When placing<br />
order please<br />
provide extractor<br />
model.<br />
In case of top mounted<br />
drive systems there is<br />
additional mounting<br />
flange necessary.<br />
ID<br />
Name<br />
378 30 i=7,5<br />
380 40 i=7,5<br />
382 50 i=7,5<br />
382(1) 50 i=10<br />
ID<br />
S370<br />
S550<br />
S750<br />
S1100<br />
S1500<br />
When placing order please provide an<br />
extractor model.<br />
Name<br />
Motor 0,37kW, 400V<br />
Motor 0,55kW, 400V<br />
Motor 0,75kW, 400V<br />
Motor 1,1kW, 400V<br />
Motor 1,5kW, 400V<br />
24V DC Motor<br />
ID<br />
When placing order<br />
please provide extractor<br />
model.<br />
Name<br />
S24V250W Motor 250W<br />
S24V280W Motor 280W<br />
S24V350W Motor 350W<br />
OPTIMA:<br />
Big: Ø73/Ø15/33 teeth<br />
Small: Ø24/Ø12/10 teeth<br />
ID<br />
W2020<br />
W2022_M<br />
Name<br />
(Available Colours:<br />
silver, red, drive<br />
MINIMA Line)<br />
Manual drive set with brake,<br />
(no mounting bar)<br />
Manual drive set with brake,<br />
(no mounting bar) Minima<br />
ID<br />
W2022<br />
W2022_M<br />
Name<br />
MINIMA:<br />
Big Ø60/Ø12/28 teeth<br />
Small: Ø25/Ø12/10 teeth<br />
Spare worm gear cog set for manual drive<br />
Spare worm gear cog set for manual drive<br />
Minima<br />
ID<br />
Name<br />
Manual drive set with brake and mounting<br />
W20200<br />
bar<br />
Manual drive set with brake and mounting<br />
W20200_M<br />
bar MINIMA<br />
Tangential<br />
adaptor<br />
When placing order please<br />
provide extractor model.<br />
Available types:<br />
1) 65 mm conical,<br />
2) 75 mm conical,<br />
3) 85 mm conical<br />
Available types:<br />
1) 65 mm straight,<br />
2) 75 mm straight,<br />
W256_720<br />
W256_800<br />
W256_900<br />
W256_1000<br />
W256_1200<br />
Tangential adaptor<br />
for radial extractor<br />
W126<br />
Cassette reducer<br />
insert<br />
30320<br />
Cappings bag for<br />
extractors<br />
Dimensions: 37x29,5 cm<br />
To reduce the size of<br />
extractor’s cassette in case<br />
of extracting honey from<br />
smaller frames.<br />
SPREZYNA<br />
Extractor spring set<br />
Cassette for extractors<br />
ID<br />
When placing order please provide<br />
extractor model.<br />
Name<br />
K_D Dadant cassette<br />
K_DWZM Dadant reinforced cassette<br />
K_WL Deutsch Normal cassette<br />
K_WLWZM Deutsch normal reinforced cassette<br />
K_LN Langstroth cassette<br />
K_LNWZM Langstroth reinforced cassette<br />
56<br />
MADE IN POLAND
