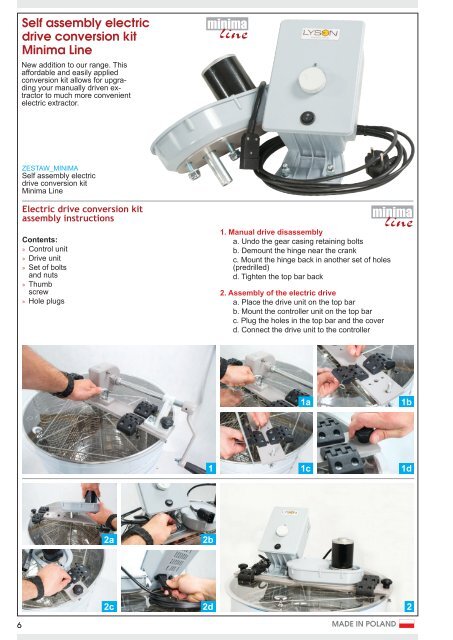

Self assembly electric<br />
drive conversion kit<br />
Minima Line<br />
New addition to our range. This<br />
affordable and easily applied<br />
conversion kit allows for upgrading<br />
your manually driven extractor<br />
to much more convenient<br />
electric extractor.<br />
ZESTAW_MINIMA<br />
Self assembly electric<br />
drive conversion kit<br />
Minima Line<br />
Electric drive conversion kit<br />
assembly instructions<br />
Contents:<br />
»»<br />
Control unit<br />
»»<br />
Drive unit<br />
»»<br />
Set of bolts<br />
and nuts<br />
»»<br />
Thumb<br />
screw<br />
»»<br />
Hole plugs<br />
1. Manual drive disassembly<br />
a. Undo the gear casing retaining bolts<br />
b. Demount the hinge near the crank<br />
c. Mount the hinge back in another set of holes<br />
(predrilled)<br />
d. Tighten the top bar back<br />
2. Assembly of the electric drive<br />
a. Place the drive unit on the top bar<br />
b. Mount the controller unit on the top bar<br />
c. Plug the holes in the top bar and the cover<br />
d. Connect the drive unit to the controller<br />
1a<br />
1b<br />
1<br />
1c<br />
1d<br />
2a<br />
2b<br />
2c<br />
2d<br />
2<br />
6<br />
MADE IN POLAND
