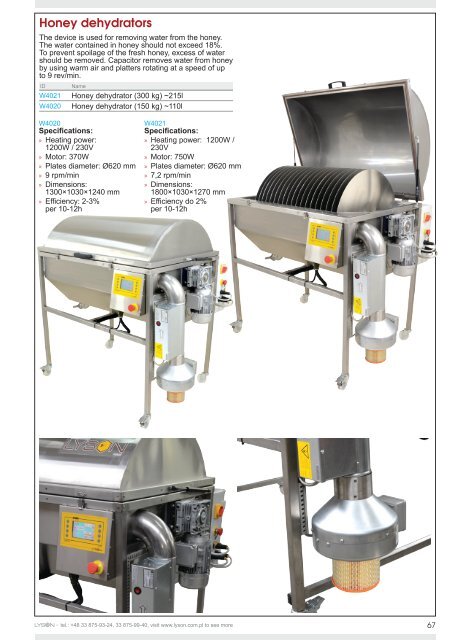

Honey dehydrators<br />
The device is used for removing water from the honey.<br />
The water contained in honey should not exceed 18%.<br />
To prevent spoilage of the fresh honey, excess of water<br />
should be removed. Capacitor removes water from honey<br />
by using warm air and platters rotating at a speed of up<br />
to 9 rev/min.<br />
ID<br />
Name<br />
W4021 Honey dehydrator (300 kg) ~215l<br />
W4020 Honey dehydrator (150 kg) ~110l<br />
W4020<br />
Specifications:<br />
»»<br />
Heating power:<br />
1200W / 230V<br />
»»<br />
Motor: 370W<br />
»»<br />
Plates diameter: Ø620 mm<br />
»»<br />
9 rpm/min<br />
»»<br />
Dimensions:<br />
1300×1030×1240 mm<br />
»»<br />
Efficiency: 2-3%<br />
per 10-12h<br />
W4021<br />
Specifications:<br />
»»<br />
Heating power: 1200W /<br />
230V<br />
»»<br />
Motor: 750W<br />
»»<br />
Plates diameter: Ø620 mm<br />
»»<br />
7,2 rpm/min<br />
»»<br />
Dimensions:<br />
1800×1030×1270 mm<br />
»»<br />
Efficiency do 2%<br />
per 10-12h<br />
tel.: +48 33 875-93-24, 33 875-99-40, visit www.lyson.com.pl to see more<br />
67
