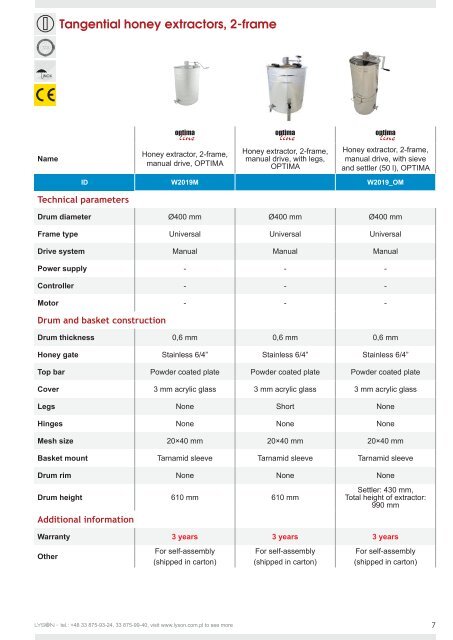

Tangential honey extractors, 2-frame<br />
Name<br />
Honey extractor, 2-frame,<br />
manual drive, OPTIMA<br />
Honey extractor, 2-frame,<br />
manual drive, with legs,<br />
OPTIMA<br />
Honey extractor, 2-frame,<br />
manual drive, with sieve<br />
and settler (50 l), OPTIMA<br />
ID W2019M W2019_OM<br />
Technical parameters<br />
Drum diameter Ø400 mm Ø400 mm Ø400 mm<br />
Frame type Universal Universal Universal<br />
Drive system Manual Manual Manual<br />
Power supply - - -<br />
Controller - - -<br />
Motor - - -<br />
Drum and basket construction<br />
Drum thickness 0,6 mm 0,6 mm 0,6 mm<br />
Honey gate Stainless 6/4” Stainless 6/4” Stainless 6/4”<br />
Top bar Powder coated plate Powder coated plate Powder coated plate<br />
Cover 3 mm acrylic glass 3 mm acrylic glass 3 mm acrylic glass<br />
Legs None Short None<br />
Hinges None None None<br />
Mesh size 20×40 mm 20×40 mm 20×40 mm<br />
Basket mount Tarnamid sleeve Tarnamid sleeve Tarnamid sleeve<br />
Drum rim None None None<br />
Drum height 610 mm 610 mm<br />
Additional information<br />
Settler: 430 mm,<br />
Total height of extractor:<br />
990 mm<br />
Warranty 3 years 3 years 3 years<br />
Other<br />
For self-assembly<br />
(shipped in carton)<br />
For self-assembly<br />
(shipped in carton)<br />
For self-assembly<br />
(shipped in carton)<br />
tel.: +48 33 875-93-24, 33 875-99-40, visit www.lyson.com.pl to see more<br />
7
