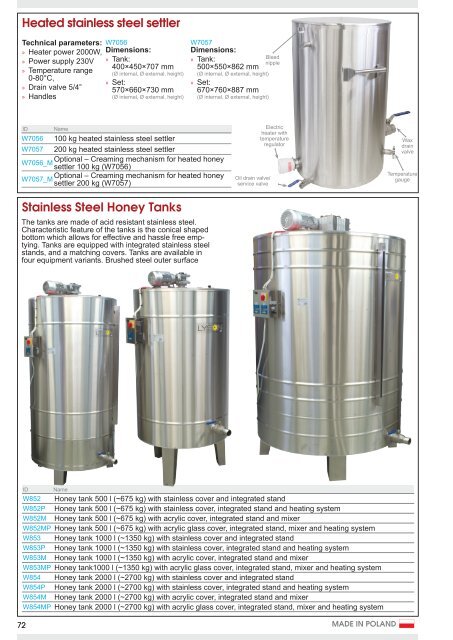

Heated stainless steel settler<br />
Technical parameters:<br />
»»<br />
Heater power 2000W,<br />
»»<br />
Power supply 230V<br />
»»<br />
Temperature range<br />
0-80°C,<br />
»»<br />
Drain valve 5/4”<br />
»»<br />
Handles<br />
W7056<br />
Dimensions:<br />
»»<br />
Tank:<br />
400×450×707 mm<br />
(Ø internal, Ø external, height)<br />
»»<br />
Set:<br />
570×660×730 mm<br />
(Ø internal, Ø external, height)<br />
W7057<br />
Dimensions:<br />
»»<br />
Tank:<br />
500×550×862 mm<br />
(Ø internal, Ø external, height)<br />
»»<br />
Set:<br />
670×760×887 mm<br />
(Ø internal, Ø external, height)<br />
Bleed<br />
nipple<br />
ID Name<br />
W7056 100 kg heated stainless steel settler<br />
W7057 200 kg heated stainless steel settler<br />
Optional – Creaming mechanism for heated honey<br />
W7056_M<br />
settler 100 kg (W7056)<br />
Optional – Creaming mechanism for heated honey<br />
W7057_M<br />
settler 200 kg (W7057)<br />
Oil drain valve/<br />
service valve<br />
Electric<br />
heater with<br />
temperature<br />
regulator<br />
Wax<br />
drain<br />
valve<br />
Temperature<br />
gauge<br />
Stainless Steel Honey Tanks<br />
The tanks are made of acid resistant stainless steel.<br />
Characteristic feature of the tanks is the conical shaped<br />
bottom which allows for effective and hassle free emptying.<br />
Tanks are equipped with integrated stainless steel<br />
stands, and a matching covers. Tanks are available in<br />
four equipment variants. Brushed steel outer surface<br />
ID<br />
W852<br />
W852P<br />
W852M<br />
Name<br />
Honey tank 500 l (~675 kg) with stainless cover and integrated stand<br />
Honey tank 500 l (~675 kg) with stainless cover, integrated stand and heating system<br />
Honey tank 500 l (~675 kg) with acrylic cover, integrated stand and mixer<br />
W852MP Honey tank 500 l (~675 kg) with acrylic glass cover, integrated stand, mixer and heating system<br />
W853 Honey tank 1000 l (~1350 kg) with stainless cover and integrated stand<br />
W853P Honey tank 1000 l (~1350 kg) with stainless cover, integrated stand and heating system<br />
W853M Honey tank 1000 l (~1350 kg) with acrylic cover, integrated stand and mixer<br />
W853MP Honey tank1000 l (~1350 kg) with acrylic glass cover, integrated stand, mixer and heating system<br />
W854 Honey tank 2000 l (~2700 kg) with stainless cover and integrated stand<br />
W854P Honey tank 2000 l (~2700 kg) with stainless cover, integrated stand and heating system<br />
W854M Honey tank 2000 l (~2700 kg) with acrylic cover, integrated stand and mixer<br />
W854MP Honey tank 2000 l (~2700 kg) with acrylic glass cover, integrated stand, mixer and heating system<br />
72<br />
MADE IN POLAND
