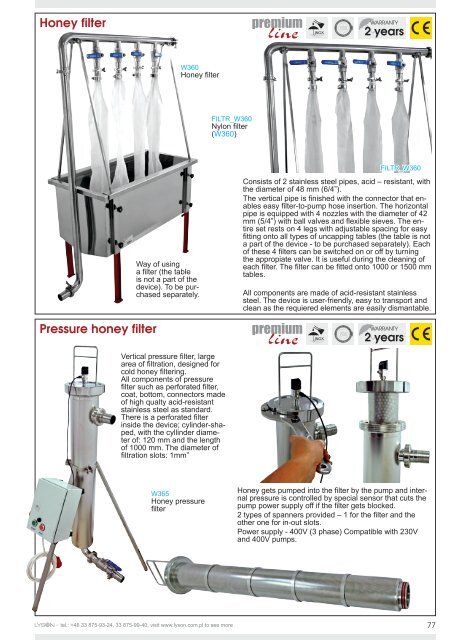

Lyson Catálogo 2017

Honey filter
WARRANTY
2 years
W360
Honey filter
FILTR_W360
Nylon filter
(W360)
FILTR_W360
Pressure honey filter
Way of using
a filter (the table
is not a part of the
device). To be purchased
separately.
Consists of 2 stainless steel pipes, acid – resistant, with
the diameter of 48 mm (6/4”).
The vertical pipe is finished with the connector that enables
easy filter-to-pump hose insertion. The horizontal
pipe is equipped with 4 nozzles with the diameter of 42
mm (5/4”) with ball valves and flexible sieves. The entire
set rests on 4 legs with adjustable spacing for easy
fitting onto all types of uncapping tables (the table is not
a part of the device - to be purchased separately). Each
of these 4 filters can be switched on or off by turning
the appropiate valve. It is useful during the cleaning of
each filter. The filter can be fitted onto 1000 or 1500 mm
tables.
All components are made of acid-resistant stainless
steel. The device is user-friendly, easy to transport and
clean as the requiered elements are easily dismantable.
WARRANTY
2 years
Vertical pressure filter, large
area of filtration, designed for
cold honey filtering.
All components of pressure
filter such as perforated filter,
coat, bottom, connectors made
of high qualty acid-resistant
stainless steel as standard.
There is a perforated filter
inside the device; cylinder-shaped,
with the cyllinder diameter
of: 120 mm and the length
of 1000 mm. The diameter of
filtration slots: 1mm”
W365
Honey pressure
filter
Honey gets pumped into the filter by the pump and internal
pressure is controlled by special sensor that cuts the
pump power supply off if the filter gets blocked.
2 types of spanners provided – 1 for the filter and the
other one for in-out slots.
Power supply - 400V (3 phase) Compatible with 230V
and 400V pumps.
