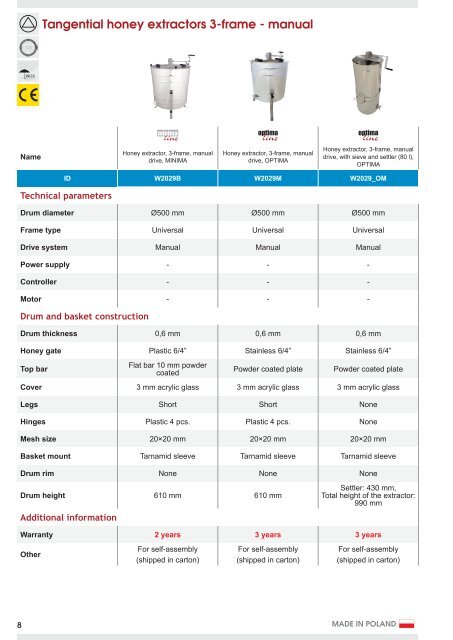

Tangential honey extractors 3-frame - manual<br />
Name<br />
Honey extractor, 3-frame, manual<br />
drive, MINIMA<br />
Honey extractor, 3-frame, manual<br />
drive, OPTIMA<br />
Honey extractor, 3-frame, manual<br />
drive, with sieve and settler (80 l),<br />
OPTIMA<br />
ID W2029B W2029M W2029_OM<br />
Technical parameters<br />
Drum diameter Ø500 mm Ø500 mm Ø500 mm<br />
Frame type Universal Universal Universal<br />
Drive system Manual Manual Manual<br />
Power supply - - -<br />
Controller - - -<br />
Motor - - -<br />
Drum and basket construction<br />
Drum thickness 0,6 mm 0,6 mm 0,6 mm<br />
Honey gate Plastic 6/4” Stainless 6/4” Stainless 6/4”<br />
Top bar<br />
Flat bar 10 mm powder<br />
coated<br />
Powder coated plate<br />
Powder coated plate<br />
Cover 3 mm acrylic glass 3 mm acrylic glass 3 mm acrylic glass<br />
Legs Short Short None<br />
Hinges Plastic 4 pcs. Plastic 4 pcs. None<br />
Mesh size 20×20 mm 20×20 mm 20×20 mm<br />
Basket mount Tarnamid sleeve Tarnamid sleeve Tarnamid sleeve<br />
Drum rim None None None<br />
Drum height 610 mm 610 mm<br />
Additional information<br />
Settler: 430 mm,<br />
Total height of the extractor:<br />
990 mm<br />
Warranty 2 years 3 years 3 years<br />
Other<br />
For self-assembly<br />
(shipped in carton)<br />
For self-assembly<br />
(shipped in carton)<br />
For self-assembly<br />
(shipped in carton)<br />
8<br />
MADE IN POLAND
