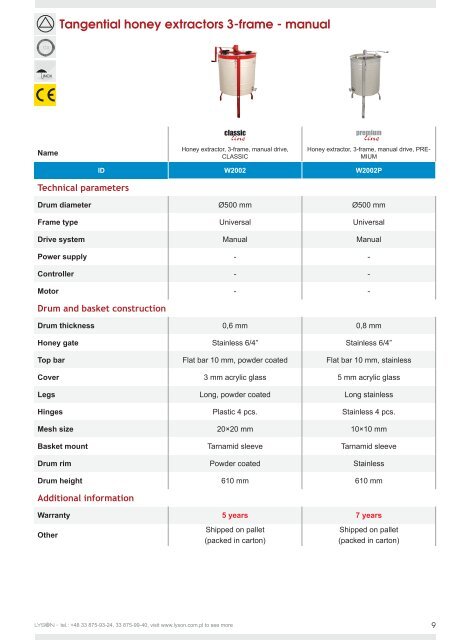

Tangential honey extractors 3-frame - manual<br />
Name<br />
Honey extractor, 3-frame, manual drive,<br />
CLASSIC<br />
Honey extractor, 3-frame, manual drive, PRE-<br />
MIUM<br />
ID W2002 W2002P<br />
Technical parameters<br />
Drum diameter Ø500 mm Ø500 mm<br />
Frame type Universal Universal<br />
Drive system Manual Manual<br />
Power supply - -<br />
Controller - -<br />
Motor - -<br />
Drum and basket construction<br />
Drum thickness 0,6 mm 0,8 mm<br />
Honey gate Stainless 6/4” Stainless 6/4”<br />
Top bar Flat bar 10 mm, powder coated Flat bar 10 mm, stainless<br />
Cover 3 mm acrylic glass 5 mm acrylic glass<br />
Legs Long, powder coated Long stainless<br />
Hinges Plastic 4 pcs. Stainless 4 pcs.<br />
Mesh size 20×20 mm 10×10 mm<br />
Basket mount Tarnamid sleeve Tarnamid sleeve<br />
Drum rim Powder coated Stainless<br />
Drum height 610 mm 610 mm<br />
Additional information<br />
Warranty 5 years 7 years<br />
Other<br />
Shipped on pallet<br />
(packed in carton)<br />
Shipped on pallet<br />
(packed in carton)<br />
tel.: +48 33 875-93-24, 33 875-99-40, visit www.lyson.com.pl to see more<br />
