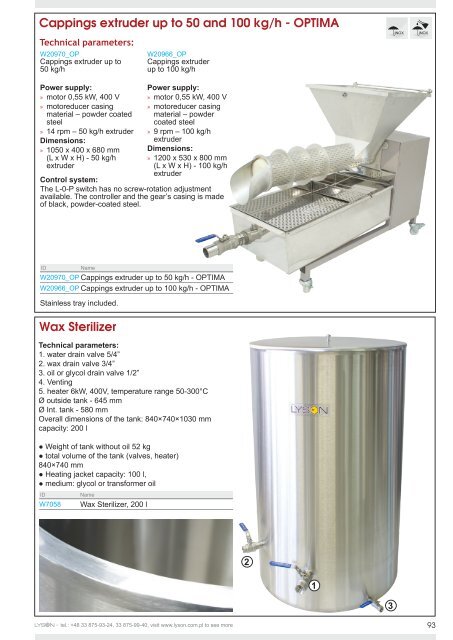

Cappings extruder up to 50 and 100 kg/h - OPTIMA<br />
Technical parameters:<br />
W20970_OP<br />
Cappings extruder up to<br />
50 kg/h<br />
W20966_OP<br />
Cappings extruder<br />
up to 100 kg/h<br />
Power supply:<br />
»»<br />
motor 0,55 kW, 400 V<br />
»»<br />
motoreducer casing<br />
material – powder coated<br />
steel<br />
»»<br />
14 rpm – 50 kg/h extruder<br />
Dimensions:<br />
»»<br />
1050 x 400 x 680 mm<br />
(L x W x H) - 50 kg/h<br />
extruder<br />
Power supply:<br />
»»<br />
motor 0,55 kW, 400 V<br />
»»<br />
motoreducer casing<br />
material – powder<br />
coated steel<br />
»»<br />
9 rpm – 100 kg/h<br />
extruder<br />
Dimensions:<br />
»»<br />
1200 x 530 x 800 mm<br />
(L x W x H) - 100 kg/h<br />
extruder<br />
Control system:<br />
The L-0-P switch has no screw-rotation adjustment<br />
available. The controller and the gear’s casing is made<br />
of black, powder-coated steel.<br />
ID<br />
Name<br />
W20970_OP Cappings extruder up to 50 kg/h - OPTIMA<br />
W20966_OP Cappings extruder up to 100 kg/h - OPTIMA<br />
Stainless tray included.<br />
Wax Sterilizer<br />
Technical parameters:<br />
1. water drain valve 5/4”<br />
2. wax drain valve 3/4”<br />
3. oil or glycol drain valve 1/2”<br />
4. Venting<br />
5. heater 6kW, 400V, temperature range 50-300°C<br />
Ø outside tank - 645 mm<br />
Ø Int. tank - 580 mm<br />
Overall dimensions of the tank: 840×740×1030 mm<br />
capacity: 200 l<br />
● Weight of tank without oil 52 kg<br />
● total volume of the tank (valves, heater)<br />
840×740 mm<br />
● Heating jacket capacity: 100 l,<br />
● medium: glycol or transformer oil<br />
ID<br />
W7058<br />
Name<br />
Wax Sterilizer, 200 l<br />
2<br />
1<br />
3<br />
tel.: +48 33 875-93-24, 33 875-99-40, visit www.lyson.com.pl to see more<br />
93
