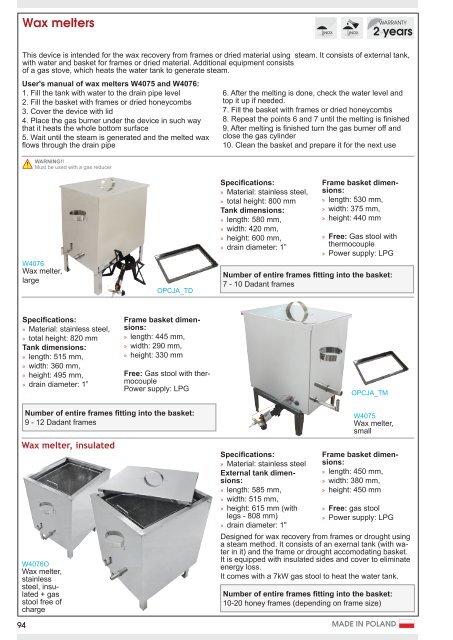

Lyson Catálogo 2017

Wax melters
WARRANTY
2 years
This device is intended for the wax recovery from frames or dried material using steam. It consists of external tank,
with water and basket for frames or dried material. Additional equipment consists
of a gas stove, which heats the water tank to generate steam.
User's manual of wax melters W4075 and W4076:
1. Fill the tank with water to the drain pipe level
2. Fill the basket with frames or dried honeycombs
3. Cover the device with lid
4. Place the gas burner under the device in such way
that it heats the whole bottom surface
5. Wait until the steam is generated and the melted wax
flows through the drain pipe
WARNING!!
Must be used with a gas reducer
6. After the melting is done, check the water level and
top it up if needed.
7. Fill the basket with frames or dried honeycombs
8. Repeat the points 6 and 7 until the melting is finished
9. After melting is finished turn the gas burner off and
close the gas cylinder
10. Clean the basket and prepare it for the next use
W4076
Wax melter,
large
OPCJA_TD
Specifications:
»»
Material: stainless steel,
»»
total height: 800 mm
Tank dimensions:
»»
length: 580 mm,
»»
width: 420 mm,
»»
height: 600 mm,
»»
drain diameter: 1”
Frame basket dimensions:
»»
length: 530 mm,
»»
width: 375 mm,
»»
height: 440 mm
»»
Free: Gas stool with
thermocouple
»»
Power supply: LPG
Number of entire frames fitting into the basket:
7 - 10 Dadant frames
Specifications:
»»
Material: stainless steel,
»»
total height: 820 mm
Tank dimensions:
»»
length: 515 mm,
»»
width: 360 mm,
»»
height: 495 mm,
»»
drain diameter: 1”
Frame basket dimensions:
»»
length: 445 mm,
»»
width: 290 mm,
»»
height: 330 mm
Free: Gas stool with thermocouple
Power supply: LPG
OPCJA_TM
Number of entire frames fitting into the basket:
9 - 12 Dadant frames
Wax melter, insulated
W4076O
Wax melter,
stainless
steel, insulated
+ gas
stool free of
charge
Specifications:
»»
Material: stainless steel
External tank dimensions:
»»
length: 585 mm,
»»
width: 515 mm,
»»
height: 615 mm (with
legs - 808 mm)
»»
drain diameter: 1"
W4075
Wax melter,
small
Frame basket dimensions:
»»
length: 450 mm,
»»
width: 380 mm,
»»
height: 450 mm
»»
Free: gas stool
»»
Power supply: LPG
Designed for wax recovery from frames or drought using
a steam method. It consists of an exernal tank (with water
in it) and the frame or drought accomodating basket.
It is equipped with insulated sides and cover to eliminate
energy loss.
It comes with a 7kW gas stool to heat the water tank.
Number of entire frames fitting into the basket:
10-20 honey frames (depending on frame size)
94
MADE IN POLAND
