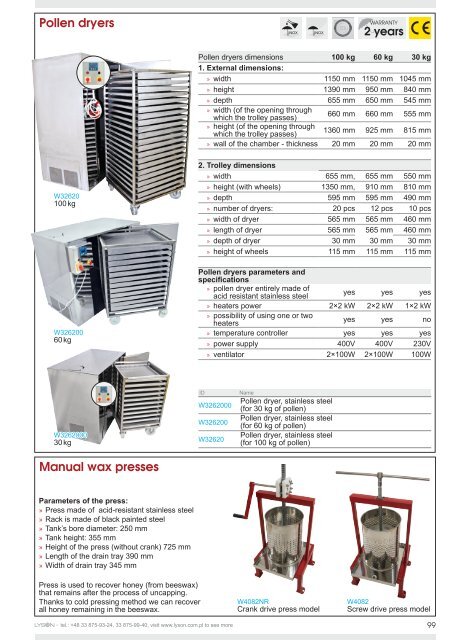

Pollen dryers<br />
WARRANTY<br />
2 years<br />
Pollen dryers dimensions 100 kg 60 kg 30 kg<br />
1. External dimensions:<br />
»»<br />
width 1150 mm 1150 mm 1045 mm<br />
»»<br />
height 1390 mm 950 mm 840 mm<br />
»»<br />
depth 655 mm 650 mm 545 mm<br />
»»<br />
width (of the opening through<br />
which the trolley passes)<br />
660 mm 660 mm 555 mm<br />
»»<br />
height (of the opening through<br />
which the trolley passes)<br />
1360 mm 925 mm 815 mm<br />
»»<br />
wall of the chamber - thickness 20 mm 20 mm 20 mm<br />
W32620<br />
100 kg<br />
W326200<br />
60 kg<br />
2. Trolley dimensions<br />
»»<br />
width 655 mm, 655 mm 550 mm<br />
»»<br />
height (with wheels) 1350 mm, 910 mm 810 mm<br />
»»<br />
depth 595 mm 595 mm 490 mm<br />
»»<br />
number of dryers: 20 pcs 12 pcs 10 pcs<br />
»»<br />
width of dryer 565 mm 565 mm 460 mm<br />
»»<br />
length of dryer 565 mm 565 mm 460 mm<br />
»»<br />
depth of dryer 30 mm 30 mm 30 mm<br />
»»<br />
height of wheels 115 mm 115 mm 115 mm<br />
Pollen dryers parameters and<br />
specifications<br />
»»<br />
pollen dryer entirely made of<br />
acid resistant stainless steel<br />
yes yes yes<br />
»»<br />
heaters power 2×2 kW 2×2 kW 1×2 kW<br />
»»<br />
possibility of using one or two<br />
heaters<br />
yes yes no<br />
»»<br />
temperature controller yes yes yes<br />
»»<br />
power supply 400V 400V 230V<br />
»»<br />
ventilator 2×100W 2×100W 100W<br />
W3262000<br />
30 kg<br />
ID<br />
W3262000<br />
W326200<br />
W32620<br />
Name<br />
Pollen dryer, stainless steel<br />
(for 30 kg of pollen)<br />
Pollen dryer, stainless steel<br />
(for 60 kg of pollen)<br />
Pollen dryer, stainless steel<br />
(for 100 kg of pollen)<br />
Manual wax presses<br />
Parameters of the press:<br />
»»<br />
Press made of acid-resistant stainless steel<br />
»»<br />
Rack is made of black painted steel<br />
»»<br />
Tank’s bore diameter: 250 mm<br />
»»<br />
Tank height: 355 mm<br />
»»<br />
Height of the press (without crank) 725 mm<br />
»»<br />
Length of the drain tray 390 mm<br />
»»<br />
Width of drain tray 345 mm<br />
Press is used to recover honey (from beeswax)<br />
that remains after the process of uncapping.<br />
Thanks to cold pressing method we can recover<br />
all honey remaining in the beeswax.<br />
tel.: +48 33 875-93-24, 33 875-99-40, visit www.lyson.com.pl to see more<br />
W4082NR<br />
Crank drive press model<br />
W4082<br />
Screw drive press model<br />
