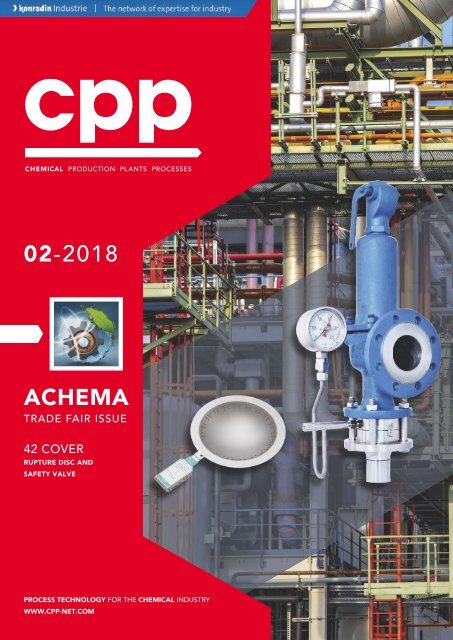

cpp - Process technology for the chemical industry 02.2018

02-2018

ACHEMA

TRADE FAIR ISSUE

42 COVER

RUPTURE DISC AND

SAFETY VALVE

PROCESS TECHNOLOGY FOR THE CHEMICAL INDUSTRY

WWW.CPP-NET.COM

CONTAINMENT

SOLUTIONS

FE55 & FE75 WITH

CONTAINMENT PACKAGE

+ Flat valve for a safe product feed

+ Hermetically-sealed and

automatically-locking window flaps

+ Rapid Transfer Port (RTP) access

points for removing or introducing

components

+ Low-dust tablet discharge

+ Hepa-filter H13

+ Human-Machine-Interface (HMI)

www.fette-compacting.com

VISIT US AT

ACHEMA

11–15 JUNE

HALL 3.0 / BOOTH F3

cpp

EDITORIAL

BUNGARTZ

MASTERPIECES

Achema in the age

of digitalisation

Only a few more days to go now: the global process industry is

looking forward to Frankfurt, where Achema 2018 will open its

doors on June 11 with products, technologies and comprehensive

know-how for the chemical and pharmaceutical industries. Around

3800 exhibitors and 167,000 participants from over 100 countries

will once again turn the Hessian metropolis into the hub of the

process world for five days.

In the same way as at the Hannover Messe, all exhibition groups at

Achema will be characterised by the major trend towards digitalisation.

Efficiency gains as a result of digitalisation and networking

options can be further enhanced by modular plant designs. The

focal topics “Flexible Production” and “Chemical and Pharma

Logistics” are particularly benefiting from this trend because modular

plants and integrated supply chains are inconceivable without

data integration. Smart modularisation concepts by Thyssenkrupp

which reconcile the manufacture of bespoke, customised plants with

standardisation and high efficiency are described on page 23.

Digitalisation, modularity, IT & data security and smart maintenance

– hot topics at the upcoming mega event in Frankfurt – are also the

subject of several articles in this special trade fair issue. We introduce

you to products and technologies inspired by recent advances

in these areas which will be on show in June underneath the

exhibition tower. The range of innovations described is huge!

The entire cpp team will also be present at Achema. You can find us

in Hall 5.1, Booth B92, where you can participate in our photo

campaign and pose for your personal cover picture to take away

with you. See you soon in Frankfurt – we look forward to meeting

you there!

THE TEACHINGS

OF THE SCHOLARS

Representing the groundbreaking special

centrifugal pumps from the Bungartz collection,

series production

There‘s an art to emptying a container

or tank wagon right up to the last drop.

The contemporary Opus VKG is

excellent at this. The dry-running

centrifugal pump is made with great

detail. Form and function become one.

The object dominates the process,

especially when it encounters liquified

petroleum gases.

A worthwhile investment!

Günter Eckhardt, Editor-in-Chief

More under 0211 57 79 05 - 0 and:

www.bungartz.de/masterpieces4

Visit us at ACHEMA 2018,

Hall 8, Stand C 1

cpp 02-2018 3

cpp CONTENTS 02-2018

42 Cover To avoid

having to use far more

expensive valves it is a

good idea to install a

rupture disc upstream of

the safety valve.

23 Thyssenkrupp establishes

smart modularisation

in plant engineering.

60 The drum and container

pumps from Flux

are built with a heart of

steel. Lukas Lehmann

spoke with Klaus Hahn

and Jürgen Rabenseifner.

PLANTS, APPARATUS, COMPONENTS

8 Keeping several balls in the air

Growth concept to make Siebtechnik fit for the future

12 Basis for simultaneous cooperation

Versatile data model eliminates data transfers by

unifying all core disciplines

14 Clean flanges keep tight in a better way

Cleaning of sealing surfaces

PUMPS

55 Liquid ring vacuum pumps

Classic vacuum technology and yet still state of the art

60 Built with a heart of steel

Drum and container pumps with a modular design

64 Shaft protected by whirlwind

Achieving optimum service lives with hydrodynamic

shaft seal

TREND ACHEMA PERSPECTIVES

16 Digitalisation strategy

How Linde Engineering re-invents itself with

start-up methods

23 More than just copy & paste

Thyssenkrupp establishes smart modularisation

in plant engineering

28 Tradition meets modernity

Glass-lined, 3D printed components for

chemical engineering

SAFETY, SECURITY

42 COVER Rupture disc and safety valve

Combination enhances plant availability

46 Physical isolation prevents return supply

Enhanced 24 V(DC) protection

48 Inerting concept for centrifuges

Fulfils the highest quality and safety requirements

50 An end to paper chaos

Software restores order to system safety inspections

INSTRUMENTATION, CONTROL, AUTOMATION

66 One network for every application

Profinet takes on a leading role in future concepts

68 Put the digital plant in the palm of your hand

Mobile solutions deliver the right information

at the right time

70 Braving freezing cold weather

Electrical thermometers for low ambient temperatures

PROCESS ENGINEERING

76 Maximum dispersion at the right moment

Polymer structure undamaged

78 Starting hot into the process

Hot water process controlled by steam

80 Increased demand for efficient processes

Hydrogen chloride recovery system for weak acid

82 The piston is the secret of success

Tubular centrifuges with automatic solids discharge

84 High product quality with a lower temperature

Short path evaporators equipped with optimised

liquid feed distribution

4 cpp 02-2018

86 Flexible production

is a focal topic of Achema

2018. But, what does it

mean in the context of

pharmaceutical product

filling? Bausch+Ströbel’s

answer is the modular Variosys

production system.

Visit us!

ACHEMA, Frankfurt, Germany

June 11 – 15, 2018

Hall 3.0, stand F50

PHARMACEUTICAL ENGINEERING

86 More flexibility for small batches

Machine module for tub opening and

RTU vial denesting

88 Liquid-liquid extraction

The versatile design options are the driver

for the economic feasibility

COLUMNS

3 The Third Page

4 Contents

6 News

32 PRODUCTS ACHEMA



90 Contact the Editors

90 Advertisers

90 Imprint

WWW.CPP-NET.COM

More news, facts, products and

solutions for the process technology

in the chemical industry can be found

on our internet page!

www.cpp-net.com

SOME THINK

FILLING SYS-

TEMS ARE

NOT FLEXIBLE.

WE THINK

DIFFERENT.

At BEUMER Group, we always strive for the optimum. This

is reflected by our innovative, compact high-precision form

fill seal system for chemical and petrochemical products:

BEUMER fillpac® FFS. It combines bag forming, precise product

filling and reliable sealing up to 2,600 bags per hour all in one

system. The robust design and low-vibration operation

minimise wear and tear and maintenance. This system

integrates seamlessly into the overall BEUMER packaging

line concept.

For more information:

www.beumergroup.com



NEWS

Self-calibrating thermometer

ENDRESS+HAUSER WINS HERMES AWARD

Picture: Deutsche Messe

Endress+Hauser wins Hermes Award with

the self-calibrating thermometer iTherm

Trustsense

Endress+Hauser has been recognised by

Hannover Messe with the prestigious

Hermes technology award for iTherm

Trustsens, the world’s first self-calibrating

temperature probe for industrial applications.

The compact thermometer iTherm

Trustsens has been designed especially for

hygienic and aseptic applications in the food

and beverage and life sciences industries.

With automated and fully traceable self-calibration

during production, the sensor eliminates

the risk of undetected non-conformities,

resulting in maximum product safety

and process efficiency. The integrated Heartbeat

Technology additionally allows for continuous

device diagnostics and verification

without interruption of the process.

iTherm Trustsens relies on an integrated reference

sensor. The developers used the socalled

Curie point physics principle, in

which the magnetic properties of a material

abruptly change at a specific temperature

point. This point is determined for the reference

sensor. As soon as the temperature falls

below this value, such as following a steam

sterilisation, both sensors are adjusted. Since

the Curie point remains constant, the reference

sensor as a master provides a stable

comparison value. The probe thus calibrates

itself each time the system is cleaned or sterilised.

The added value for customers is

huge. Large systems often include hundreds

of temperature sensors that have to be calibrated

several times a year. To date, this has

required stopping the process and removing

the instruments. iTherm Trustsens omits that.

“The award-winning product makes a major

contribution to the deployment of the Industrial

Internet of Things throughout the

process industry,” said Jochen Köckler, CEO

of Deutsche Messe. The award was presented

at the opening of Hannover Messe 2018 in

front of many guests, among them Germany’s

Chancellor Angela Merkel. The

Hermes Award is one of the most respected

technology contests worldwide and recognises

products and processes characterised

by innovation, efficiency and application

benefits.

From engineering till comissioning

THYSSENKRUPP TO BUILD POLYMER PLANTS IN TURKEY

Thyssenkrupp Industrial Solutions’ subsidiary Uhde Inventa-Fischer has signed a

contract to build two new world-scale polymer plants for Sasa Polyester Sanayi

A. in Adana, Turkey. One plant is planned to produce 380,000 t/a of PET for

low-viscosity applications. The second plant will use Uhde Inventa-Fischer’s proprietary

patented MTR technology to produce 216,000 t/a of resin for the production

of PET bottles. Both new plants are among the largest single-line production

plants for their respective products. Werner Steinauer, CEO of Uhde Inventa-Fischer:

„We are very proud that Sasa chose us to build another two stateof-the

art PET plants after we were already contracted to build one of the largest

polyester lines last year. Our commercially tried-and-tested MTR process provides

our customers with optimised energy consumption, maximum utilisation

of feedstocks and effective plant operation, thus significantly reducing the total

conversion cost compared with conventional technologies.“

The scope of delivery for both projects will include basic and detail engineering,

the delivery of all necessary components, and technical services for erection,

pre-commissioning and commissioning supervision.

Uhde Inventa-Fischer has signed a contract to build two

new world-scale polymer plants for Sasa in Turkey

Picture: Thyssenkrupp

Largest investment in Germany

EVONIK PLANS NEW POLYAMIDE 12 COMPLEX

Evonik is planning to build a new production

complex for the high-performance

polymer polyamide 12 (PA 12). The Group

intends to increase its overall PA 12 capacity

by more than 50 %. Polyamide 12 is

required in attractive growth markets such

as the automotive industry, oil and gas pipelines,

and in 3D printing. After successful

basic engineering, Evonik plans to invest approximately

400 million euros in the PA 12

complex at its largest site, Marl Chemical

Park in North Rhine-Westphalia. “We are

planning Evonik’s largest investment in Germany,”

says Christian Kullmann, Chairman

of the Evonik Executive Board.

The existing PA 12 production is to be

supplemented with additional manufacturing

facilities for the polymer and its precursors.

The complex is expected to become

operational in early 2021. The investment

will make a substantial contribution to

reaching Evonik’s margin goal and will generate

an annual cash flow in a three-digit

million euro amount over the long term.

The project is to be implemented over the

course of four years as part of the annual

budget for growth investments.


Visit us at

Stand A85, Hall 11.1

11. – 15. June 2018

VISIBLY MORE ENERGY EFFICIENCY.





-






cpp ACHEMA PLANTS, APPARATUS, COMPONENTS

Picture: Lukas Lehmann

Dr. Reinhard Scholz, Director of Siebtechnik GmbH: “I have retained my ability to look at the company as an outsider

sees it. That helps me identify development potential.”

Growth concept to make Siebtechnik fit for the future

Keeping several balls

in the air

Dr. Reinhard Scholz, a Director of Siebtechnik GmbH since 2017, presently has to

keep several balls in the air at once. cpp spoke to Dr. Scholz, who wants to lead this

tradition-minded company from Mülheim an der Ruhr successfully into the future.

Dr. Scholz, you are following in the footsteps of Karl Bongartz and

Horst Dietschreit, who enjoy a very good reputation in the industry

and have managed Siebtechnik very successfully for years. Isn’t

such a successful duo a hard act to follow?

Dr. Reinhard Scholz: Of course, I have respect for my predecessors’

performance and for my new responsibility. However, I am not

alone as company director. I have two experienced colleagues

alongside me who have been managing the company for a long time.

Nor am I exactly a beginner. I have more than 25 years of experience

in the field of solid-liquid separation and associated equipment

construction. In the past, in my various capacities at GEA, I

had already worked with Siebtechnik as a supplier, so I have known

the company and its market partners for many years.

What do you intend to do differently from your predecessors?

Dr. Scholz: I shall continue along the successful route set by my

predecessors. However, I have retained my ability to look at the

company as an outsider sees it. That helps me ask critical questions

in discussions with my colleagues and identify development potential

for the future.

So there is need for action in some areas?

Dr. Scholz: We have specified and prioritised a total of 20 strategic

initiatives to be worked through in the coming five years. Department

heads will be responsible for their implementation.

Five years are a long time.


Dr. Scholz: We’re not exactly declaring a revolution. However, con -

scientious implementation of the strategic initiatives – which, don’t

forget, are interlinked – will take time and has to happen in parallel

with normal business. That is why we settled on five years.

What important strategic initiatives does your growth concept

include?

Dr. Scholz: To start with, we have to change the way the market

sees us. Many of our customers regard Siebtechnik merely as a supplier

of centrifuges. We are also a supplier of solutions, however,

and want to be seen as such. We need to work on that. Furthermore,

Siebtechnik, as a German company, has to respond to the constantly

changing global customer structure. Once upon a time our custom -

ers were local companies that ordered a centrifuge or a decanter

from us. Today about 60 % of all orders are placed by internationally

operating procurement organisations or via EPC contractors.

These engineering consultants are frequently based in Korea, Taiwan

or the USA and build plants which could be anywhere in the world.

Our job consists of coordinating our international sales & market -

ing activities with the requirements of globally operating EPC contractors.

They have to know who we are, what we do and what our

strengths are compared with our competitors. A further initiative

entails optimising our service organisation.

Picture: Siebtechnik

Shortbowl decanting centrifuges have proved themselves in the manufacture

of lactose

What else will you be working on in the next five years?

Dr. Scholz: Siebtechnik is a craft centrifuge-maker. We have ten

different types of centrifuges and decanters in our portfolio that we

tailor precisely to suit each customer’s needs. That is very complicated

and cost-intensive. For this reason, just as people have been

doing successfully in the automotive industry for years, we want to

step up the modularisation of our machines by using standardised

subassemblies without giving up the unique selling feature of our

craft centrifuge-making in the process.

Could you give me an example to illustrate that, please?

Dr. Scholz: The Siebtechnik portfolio features various overhungmounted

machines, like the Conturbex worm screen centrifuges or

the Shortbowl decanting centrifuges. The obvious thing to do here

„Our strength lies in solving complicated

separation tasks that cannot be carried out

using standard centrifuges.“

is to standardise the drive. We shall therefore be developing solutions

in which a standardised drive module can be combined with

different centrifuges. That will make purchasing and storage easier

and production more efficient without the customer-specific char -

acter of the machine parts in contact with the product having to be

modified in any way.

Everyone is talking about Industry 4.0 and digitalisation. Do these

issues play a part in your strategic considerations?

Dr. Scholz: Of course they do. We are looking to see how contact

with our customers can be optimised as a result of digitalisation

and whether it will lead to new business models for us. And I have

set myself the goal of increasing the efficiency of our own business

and production processes with the help of digitalisation.

Picture: Siebtechnik

SHS series pusher centrifuges in action during the manufacture of sodium

carbonate. These machines will be presented in an energy-efficient version

at the Achema show.

You are also planning to build a new technical centre.

Dr. Scholz: Correct. It will go up in the immediate proximity of our

centrifuge technology centre that was put on stream in 2012. The

new building will enable us to operate our numerous trial

machines even more efficiently and in an attractive environment.

How has the workforce responded to your strategic consider -

ations?

Dr. Scholz: We presented our strategic initiatives to the Administrative

Board and the workforce in December last year. Both responded

very positively. It’s a growth strategy that will fit Siebtechnik organisation-wise

and economically for the challenges of the future.

Could you please give us some idea of the industries that Siebtechnik

will be supplying with centrifuges?

Dr. Scholz: The global market for centrifuges is huge. We reckon

that it is worth something like 1.4 billion euros, about half of

which is for decanters. We’ve settled on six sectors as our target

markets: recycling, inorganic salts, fertilisers, organic compounds,

polymers and food & dairy.

In which areas do you see growth potential for Siebtechnik?

Dr. Scholz: For example, in the Chinese recycling industry. The Chinese

are planning to re-equip some 1000 power stations with ZLD

systems in the next few years.



What does ZLD stand for?

Dr. Scholz: It stands for zero liquid discharge. Pusher, decanting and

worm screening centrifuges perform important solid-liquid separation

tasks in these systems, which are designed to recycle and reuse

all waste water and simply discharge solid waste. We have all of

these centrifuge types in our portfolio. We therefore hope to be able

to secure as many orders in this sector as possible. I also believe there

is great growth potential in the area of inorganic salts, namely in

lithium production.

Are you referring to the lithium boom?

Dr. Scholz: Yes, precisely that. The demand for high-performance

batteries is constantly increasing. One reason for that is growing

e-mobility. Lithium is an important constituent of these batteries.

Experts anticipate that the demand for lithium will quadruple to

between 400 and 500 t of lithium carbonate equivalent in the

coming five years.

Which role do Siebtechnik centrifuges play in lithium production?

Dr. Scholz: Lithium occurs naturally only in small concentrations

and in combination with other mineral salts. Its extraction and isolation

are complex and costly, and without high-performance solidliquid

separation they are not even feasible. We are in a position to

supply suitable machines for this purpose.

And what about the polymer segment?

Dr. Scholz: There we are profiting short-term from the rising demand

in Asia for HDPE and PVC. Siebtechnik, with its large decant -

ers, is very successful in this segment. I also think there is interest -

ing growth potential in the field of organic compounds. I’m particularly

referring here to the extraction of methionine and threo -

nine. Demand for these amino-acids and their salts, which are used,

for example, as additives in foodstuffs, is rising steadily. Our Turbo -

screen series screening decanters with their additional filter stage

have proved very effective for this. And lactose manufacturing

PROFILE:

DR. REINHARD SCHOLZ

Dr. Reinhard Scholz was born in Berlin on 25 May

1962. After graduating in Process Engineering at RWTH

Aachen University, he took a PhD in crystallisation. He

gained his first professional experience in various positions

at Messo Chemietechnik, a manufacturer of crys -

tallisation systems, before moving on to Niro Prozess -

technik, where he was company director. In 2005, he

also took responsibility for GEA Messo GmbH, Duisburg.

The next major career step followed in 2015,

when Dr. Scholz was appointed the GEA Group’s Senior

Vice President Separation Technologies. He was responsible

in this capacity for all the Group’s technology-related

activities in the areas of evaporation and concentration,

crystallisation, distillation, membrane processes

and vacuum technologies.

Since January 2017, this experienced solid-liquid sepa -

ration specialist has been a Director of Siebtechnik

GmbH in Mülheim an der Ruhr alongside Dr. Jürg

Pollmanns and Christian Steinhaus.

remains a further important area of application for our worm

screen centrifuges and Shortbowl decanters.

Let’s talk next about the Chinese market. Siebtechnik has been very

successful there in recent years. What does the future have in store

for you in China?

Dr. Scholz: Even if growth slows down, China is, and will continue

to be, our most important export market. However, we also have

our eye on other markets that we want to concentrate on. I am

think ing here especially of the American market, which we have so

far served via our US sales & marketing subsidiary, Tema Systems.

Unfortunately, our American customers have not understood the

split of work between Siebtechnik and Tema. This is shown, for instance,

by the fact that our machines are only known there as Tema

centrifuges. Our job is to ensure a uniform and transparent corporate

image.

Does that apply just to America at present?

Dr. Scholz: No. It applies all over the world. International activities

with our sales & marketing companies must be better coordinated,

so that we are perceived externally as a single company. That will facilitate

contact with the customer and help us leverage growth potential

in our global markets.

Finally, a word about Achema. Which new products will you be

presenting at the show?

Dr. Scholz: We shall be presenting an energy-efficient version of

our SHS series pusher centrifuges. These machines consume about

15 % less electricity. Visitors will also have a chance to see our improved

screening elements.

Could you explain that, please?

Dr. Scholz: Thanks to a special water-jet technology, we are able to

produce screens that have a large free specific screening area and at

the same time offer a high undercut. The latter ensures a considerably

longer service life, especially when processing sticky products

or products that tend to crystallise. We also want to demonstrate the

service-friendliness of our screen baskets, which are made up of a

number of screening segments. This now patented solution offers

users various advantages when it comes to installation or de-installation,

maintenance and storage.

Will the new, uniform company image be a big talking point at

Achema?

Dr. Scholz: The Achema show offers a unique opportunity for this,

of course, but there’s only a short time to go until then.


Online search: cpp0218siebtechnik

Hall 5.0, Booth C72

THE INTERVIEW WAS CONDUCTED BY:

LUKAS LEHMANN

Assistant Editor-in-Chief


GLASS FILTERS

High quality material for demanding

tasks: VitraPOR® glassfilter apparatuses

made from pure borosilicate glass 3.3

fulfill many requirements in chemical

and pharmaceutical labs as well as for

industrial, biological and environmental

technology applications.

Properties such as heat resistance to

over 500 °C and resistance to most

acids, alkalis and solvents make our

VitraPOR® glassfilters, which conform to

international standards, suitable for use

in many chemical, pharmaceutical and

technical procedures.

Custom VitraPOR® sintered elements

according to your specifications are

characterized by their neutral properties

and open-pore structure. They are

suitable for even the most unusual

applications.

VitraPOR® glassfilter apparatuses can

be supplied in different pore size classes,

from smaller than 1 micron to over 500

micron and as custom-made solutions in

many shapes and sizes.

ROBU Glasfilter-Geräte GmbH

Schützenstrasse 13

57644 Hattert

Germany

Made in Germany

www.robuglas.com



Versatile data model eliminates data transfers by unifying all core disciplines

Basis for simultaneous

cooperation

Plant engineering is characterised by a variety of engineering and management

tasks that can take months, and sometimes years, to complete. Since the various

disciplines involved are often developed globally, however, it is also necessary to

connect hundreds of experts together from different time zones and with different

skills, languages, technologies and engineering cultures. Aucotec thus relies on the

cooperative parallelism of all core disciplines from FEED to operation.

The basis for this is the Engineering Base

(EB) update Version 2018, Aucotec’s collaborative

platform. The idea for it was born a

good 18 years ago, and it was designed

from the outset for multi-user capability

and parallelised processes. “We noticed a

great demand in the market to tear down

the workflow obstacles created by toolchains.

Only true parallelisation of the core

tasks results in effective leaps in efficiency

despite increasing complexity. This is why

we’re convinced of the potential of a data

model that unites the engineering disciplines”,

says Uwe Vogt, Member of the Aucotec

AG Management Board. The company has

been operating successfully in the market

for over 30 years now with engineering

software for mechanical and plant engineering,

and has continuously driven the expansion

of EB since its introduction.

“For the time being, it’s ‘mission accomplished’!

EB’s versatile data model integrates

a range of disciplines and achieves collaboration

capability and seamlessness that are

globally unique”, Vogt continues. “ EB 2018

reorganises the workflow in plant engineering:

it eliminates unnecessary waiting times

for data transfers, cross-checks that tie up

expertise, consultations and synchronisation

through highly efficient, simultaneous

working. That’s vital for efficient and consistent

collaboration.”

Pictures: Aucotec

Aucotec will unveil the major upgrade of its EB cooperative platform for plant engineering

at the upcoming Achema

Toolchain as an obstacle

Even the best interfaces and synchronisation

platforms with the most modern

transfer standards do not make a toolchain

any shorter. The chain itself is the

obstacle because forwarding information

takes time, is always a source of error and

prevents parallelisation. “That increases

exponentially with every chain link and

every connection”, explains Pouria G. Bigvand,

Head of Product Management at

Aucotec.

In a toolchain, for example, it is necessary

to specifically ensure that the device designations

are the same in all disciplines

because synchronisation is otherwise impossible.

In addition, inconsistencies result

from the different formats, standards,

languages or engineering methods used

by individual special tools, which a synchronisation

platform cannot even record.

“This means that losses in quality and

time are inevitable. And the more complex

the range of tools, the greater the

risks”, he adds with conviction.


Unity copes with diversity

As Bigvand emphasises, “Our customers’

challenges clearly show that only unity can

cope with diversity”. This is ensured by EB’s

unified plant data model. All core disciplines,

from basic engineering with FEED up to

the pre-commissioning cause & effect

check, use it jointly, in parallel and even

simultaneously. They can base their specifications

directly on the information that colleagues

from other departments have just

created, because they see it immediately

with no need for data transfers and interfaces

or for synchronisation.

It is also much easier to integrate simulation,

ERP or 3D systems, for instance, if

unity exists. A web connection for cloud

and app engineering additionally facilitates

worldwide collaboration and makes it more

flexible.

The universal model in EB represents the basis for all core disciplines of plant

engineering and communication with complementary systems

From FEED to operation

Seamlessness starts with the FEED phase. It

initially benefits from EB’s openness and

automatically imports the results from the

simulation, for example with Aspen or Etap.

PFDs and worksheets immediately take over

the calculations: EB 2018 shows all consequences

of a particular scenario from the

rough flow diagram to the material balance

– automatically and in separate documents.

The process design then “simply” has to add

its specifications to the FEED scenario that is

ultimately commissioned. The P&ID represents

the collaborative core of all relevant

disciplines and its definitions are the starting

point for all further elaborations. “That’s

one more reason to allow all areas to access

this data directly”, Bigvand comments. EB

speeds up the creation of the flow diagram,

amongst other things, with a pipe class-specific

workflow and rule-based engineering.

This ensures, for example, that the entire

equipment assigned to a particular pipe is

automatically adapted to the specifications

for the pipe class concerned, for which TÜV

certification is also available on request.

Central means consistent

A plant is thoroughly tested with the help

of cause and effect documents prior to

commissioning. According to Bigvand, this

phase once again benefits especially from

EB’s versatile data model. C&E tables which

are absolutely reliable are key here. Up to

now, they have been created by compiling

information from different sources and different

disciplines, for example from P&IDs,

logic diagrams or other documents. Several

highly qualified experts spend weeks on this

task every time. EB, on the other hand,

extracts all necessary information from its

central data source and automatically creates

the report matrix. This ensures unprecedented

consistency and frees up important

engineering capacity.

The platform’s seamlessness continues with

support for plant operation, firstly with

web-based maintenance functions in the

form of apps and secondly with special

execution management for major conversion

and expansion projects. This also works

with subcontractors or on multiple contract

levels. EB 2018 additionally ensures that the

new data is restored to the updated “as is”

status in an orderly and consistent way.

All relevant objects are united in a single

model

Advanced change management

At the same time, a uniform data model of

the plant means significantly more efficiency

in the event of changes. With EB, if desired,

every change in every discipline directly

affects all representations of the

changed object in graphics, tables or Explorer

and is visible to all areas. “However,

parallel editing of the model by different

experts and departments calls for advanced

change management”, Bigvand stresses. According

to him, the platform meets this

requirement with a whole host of functions

including a detailed, individually configurable

history log for each individual object

as well as particularly transparent revision

and version management. Furthermore, EB

provides recommendations for attributes,

thus enabling change requests to be checked

before they are implemented.

“The seamlessness and consistency of this

solution result in a completely new level of

efficiency, while also ensuring that it is future-proof

in the sense of smart factories

and Industry 4.0. The combination of parallelised

tasks, central data and openness to

complementary tools sets a new benchmark”,

board member Vogt concludes.


Online search: cpp0218aucotec

Hall 9.2, Booth B12

AUTHOR:

JOHANNA KIESEL

Press and Public Relations,

Aucotec



Cleaning of sealing surfaces

Clean flanges keep tight

in a better way

Flange connections are found at nearly every location in the chemical industry. Of

course, these interfaces must be leak-tight to prevent not only material losses but

also negative effects on human life and the environment. This applies especially if

the fluids in the pipe and hose assemblies are governed by emissions-limiting

measures according to the German Air Quality Control regulations “TA Luft”.

The rated proof of leak-tightness of a

flange system, consisting of a flange, bolts

and gasket, is performed on the basis of

VDI Guideline 2290. Calculating the sealing

system is one thing; implementing it in

reality is another matter. According to the

guideline’s introduction, “Transferring the

sealing system into practice is only possible

if a qualified assembly is ensured”. Qualified

assembly includes, amongst other

things, the use of plane and parallel flanges,

an undamaged gasket, centred installation

of the gasket, correct application of the

torque, lubrication of the friction surfaces

and the provision of clean sealing surfaces.

This last item, in particular, is addressed

below in more detail since clean sealing

surfaces are also critical for tight flange

connections in the long term.

The need for a clean sealing surface has

been addressed in a number of rules, stand -

ards and publications. VDI Guideline 2290

states, for example: “When installing new

gaskets in an old flange connection, cleaning

of the sealing surfaces, e. g. from adhering

gasket residues, is imperative.” The VCI

Guide for the assembly of flange connections

in process plants recommends: “Care

must be taken that the flange sealing surfaces

are clean, undamaged and plane.” Furthermore,

“Care must be taken when replacing

gaskets that the old gasket is completely

removed from the flange sealing surface

without damaging this surface”.

Contamination on sealing surfaces

What form can contamination take on

flange sealing surfaces? Adhering residues of

the old gasket during replacement probably

come to mind first here. This problem can

be prevented or reduced by selecting gaskets

that are already equipped with a release coat

in the standard version to facilitate disman -

tling. However, residues of the operating

medium may also contaminate the sealing

surfaces; these could be liquid, viscous or

solid, e. g. due to crystallisation. Furthermore,

paint splashes or other dirt, such

Pictures: Reinz

Clean sealing surfaces are a

basic prerequisite of an optimally

functioning flange

system. Contamination of the

kind shown here must therefore

be completely removed.


RE-Move can be applied precisely via the

metering unit. A stable, adhering, foam-like

film is hereby produced.

RE-Move does not contain any substances

harmful to health that require GHS/CLP labelling

as dust, may have settled on the sealing surface.

The surfaces may additionally have

been treated with anticorrosive agents, especially

in the case of new flanges. These

agents, too, must be removed prior to assembly.

Cleaning the sealing surfaces

The sealing surfaces can be cleaned me -

chanically with a wire brush or scraper; care

should be taken not to damage them. The

material of the cleaning tool should therefore

be softer than that of the sealing surface.

The cleaning process can be made

easier, and damage to the sealing surfaces

avoided, by utilising liquid cleaning agents.

Cleaning agents must satisfy many requirements.

Applying the correct amount to the

surfaces to be cleaned, for example using a

spray system with an appropriate metering

unit, should be simple and precise. Moreover,

the liquid film that is created should

adhere to the surface to prevent it from

draining off; this will also allow it to be

used on inclined surfaces without any problems.

Stable foam is the key here.

RE-Move cleaning spray from Reinz prepares

the sealing surfaces optimally for assembly:

contamination such as gasket residues

can be removed just as conveniently as

traces of the operating medium. The liquid

active cleaning film can be applied precisely

via the metering unit. A stable, adhering,

foam-like film is hereby produced, which

can also be applied to inclined surfaces. In

addition, a protective coat forms on this

film, preventing premature evaporation of

the solvent. The solvent can therefore act for

a sufficient period of time at the desired location

on the substances to be dissolved, so

that they can be removed easily. Apart from

these functional requirements of the cleaning

agent, the classification of the health

risk for users is another aspect which is important

for any overall consideration.

Identification with pictograms

The classification and labelling of chemicals

follows the United Nations Globally Harmonised

System (GHS). The European implementation

of the GHS is the so-called

CLP (Classification, Labelling and Packaging)

Ordinance. Pictograms indicating a

health hazard include an exclamation mark

and the health hazard symbol. To avoid

health risks for users, care should be taken

when choosing agents for cleaning sealing

surfaces that a hazard-free formulation is

used. This can be easily recognised by the

absence of the above pictograms. RE-Move

does not contain any substances harmful to

health that require GHS/CLP labelling.


Online search: cpp0218reinz

Hall 8.0, Booth G61

AUTHOR:

VOLKER ETZEL

Application Engineer,

Reinz


cpp ACHEMA PERSPECTIVES

Pictures: Linde

How Linde Engineering re-invents itself with start-up methods

DIGITALISATION

STRATEGY

From the initial concept down to the last nut and bolt, it can take engineers

years to plan and construct an industrial plant. This meticulous, step-bystep

process is in sharp contrast to the speed at which disruptive business

models emerge from Silicon Valley. Technology company The Linde Group

is bridging these two worlds by embedding a start-up culture into its

digitalisation strategy.


The Linde Plantserv portal: operators can organise repairs more easily

over the Internet, sourcing spare parts more efficiently and at competitive

prices

Engineers use virtual reality headsets to train future operators of

industrial plants. Algorithms forecast the lifespan of plant components.

Smart glasses help technicians solve issues at distant locations.

These are just three examples of digital projects that Linde

has brought to application maturity over the past year. The Engi -

neering Division of The Linde Group already has several years of experience

in integrating digital technologies. The most notable

examples are its five Remote Operating Centres (ROC), which are

tasked with the remote control and management of about 1000 industrial

plants around the world. What is new, however, is something

typical of the start-up sector – the accelerator process.

Test it all – but decide quickly

Interdisciplinary teams bring together digitalisation experts and engineers

to work on project ideas for three months and then quickly

transition them to the business portfolio if they prove successful.

The team simply drops anything that does not work within this

timeframe (proof of concept). The ideas for new digital projects are

often suggested by employees from Linde Engineering’s established

lines of business. As business owners, they implement the projects

in collaboration with members of the digitalisation team, cooperating

if necessary with an international network of external partners,

most of whom come from the start-up world.

Linde has set up a Digital Base Camp to bundle digitalisation efforts

and anchor them throughout the company. Since August 2016, the

digitalisation team has been working at this hub, located at the

company’s Pullach site near Munich. In February 2018, Linde

opened a second Digital Base Camp in Singapore to harness South

East Asia’s huge potential for innovation and meet local market demands

more effectively.

Whereas other companies house their digitalisation experts in external

offices, Linde prefers to keep its digital innovators close to

the business. Constant and close dialogue between the digitalisation

team and business owners is key to the success of digital projects.

That is why some members of the digitalisation team are former

employees from Linde’s traditional lines of business – complemented

by data specialists, software developers and external digital

experts.

Creative ways to harness data

Many of these digital projects use data that Linde has been collecting

from a variety of sources for years now. Half a million sensors

located at about 1000 industrial plants around the world feed data

ACHEMA 2018, Frankfurt/Main, 11.-15. Juni 2018, hall 6.0, booth B19

COG MAKES ITS MARK:

Brilliant rings for

all occasions.

Precision O-rings for diverse industrial



11 – 15 June 2018



Visit us in: hall 9.0, booth B4

www.COG.de/en



Virtual training simulator: using virtual reality headsets and two controllers, technicians

can immerse themselves in a plant before it is even completed

LindeGo: the camera which is integrated in the smart

glasses transmits the local employee’s field of vision to the

Linde Engineering expert’s screen

on pressure, temperature, flow and vibrations into a new, predictive

maintenance system, for instance. This alerts technicians to possible

failures, so that they can pre-emptively replace parts reaching the

end of their service life before they have a chance to cause trouble.

Since equipment manufacturers often have zero experience on the

operational side, rough estimates are all they can offer as regards

recommended maintenance intervals. This can sometimes result in

parts being replaced even though they are still in good working

order. Conversely, the early replacement of a component that is no

longer fully functional can help to avoid a forced outage. Both

scenarios lead to costs that can be prevented with a better understanding

of the equipment health. Maximising plant availability is

the ultimate aim. In the South-East Asia region alone, Linde expects

to achieve annual savings of four to five million euros by optimising

maintenance cycles.

Plants with a digital twin

Another Digital Base Camp innovation is the Linde Plantserv portal,

which is resonating strongly among customers. This project networks

plants with their digital twin. It makes it easier for operators

to organise repairs over the Internet, sourcing spare parts more efficiently

and at competitive prices.

Industrial plants are complex structures comprising tens of thousands

of components. The Linde Plantserv portal is therefore built

around plant-specific piping and instrumentation diagrams

(P&IDs). Once customers log in to the portal, they can find the diagrams

for their plant and access the related spare parts. A pop-up

window displays each component’s key information. Maintenance

teams can request quotes for the parts they need via a marketplace

and order them at competitive prices. Linde runs the platform and

guarantees that the displayed parts are the right fit for the cus -

tomer’s needs.

Virtual reality operator training

Linde Engineering uses digital twins of its plants to train operating

personnel before the plant is even built. The virtual reality experience

allows customers to become familiar with the plant topology

and learn how to deal with critical procedures. The model is based

on the 3D plant model, which is generated during the engineering

phase. Now Linde has developed the technology to transform this

design data into an immersive virtual world.

All that operators need to step into the virtual plant – their future

workplace – is a virtual reality headset, two controllers and a notebook

with a fast graphics processor.

Remote support with augmented reality

The use of smart glasses for remote plant support is another digital

innovation from Linde. Linde experts can establish a livestream to

local technicians wearing these glasses and help to resolve technical

issues without actually travelling to the site. The camera which is

integrated in the smart glasses transmits the local employee’s field

of vision to the Linde Engineering expert’s screen. The expert can

then provide help and technical information via the audio chat or

by sharing the screen.

This equipment has already been deployed to a number of sites.

Taking into account the travel and accommodation costs, as well as

the time it takes to obtain visas and site permits, LindeGo is a

highly cost- and time-efficient alternative to seconding additional

personnel to work on site.

Second Digital Base Camp in the Far East

The success of the Pullach Base Camp prompted Linde to officially

open an Asia Pacific Digitalisation Hub, including a second Digital

Base Camp in Singapore in February 2018. Linde will invest over 30

million Singapore dollars in the hub, equivalent to around 18.5

million euros.

In many respects, the Asian market is light years ahead of the rest of

the world when it comes to digital technologies, and Linde is keen

to harness this potential.


Online search: cpp0218linde

Hall 9.1, Booth D4

AUTHOR:

JULIEN BRUNEL

Head of Digitalisation,

Linde Engineering



Pictures: Thyssenkrupp

Thyssenkrupp establishes smart modularisation in plant engineering

MORE THAN JUST

COPY & PASTE

Meeting complex customer wishes with tailored individual solutions was for

a long time regarded as the big strength of the European engineering and

construction industry. However, increasing price pressure and growing local

competition call for new solutions. One key to success: smart modularisation

concepts that bring the construction of bespoke, customised plants into

unison with standardisation and high efficiency.



The common copy plant model is being replaced step by step by the modular Pre-Configured Plant Concept at Thyssenkrupp

Meeting complex customer wishes with tailored individual so -

lutions was for a long time regarded as the big strength of the

European engineering and construction industry. However, increasing

price pressure and growing local competition call for new so -

lutions. One key to success: smart modularisation concepts that

bring the construction of bespoke, customised plants into unison

with standardisation and high efficiency. As one of the first engi -

neering companies worldwide, Thyssenkrupp is taking new paths

with the “Pre-Configured Plant Concept” (PCPC).

Modularisation and standardisation are topics everyone is talking

about in the engineering sector. The savings potential is considerable:

utilising existing solutions in new projects is one of the most

effective levers to control costs and product variance in the manufacturing

industry. As yet, machine manufacturers and engineering

companies are still taking different approaches: many of the former

are increasingly using modular product architectures in order to

move from engineer-to-order to configure-to-order.

In the engineering sector, customer solutions are characterised by

immense diversity and functional complexity. For a long time, it

was considered impossible to modularise large plants and configure

them from a digital product system. The term modularisation was

mainly used to describe the splitting up of plants into individual

package units. New plant projects today are commonly put together

from templates of previous projects, copying existing plant elements

(copy plant model).

However, the copy plant model has decisive weaknesses: complexity

increases with each new plant configuration, as there is no transparent

relationship between functions and components. In addition,

new improvements are not automatically incorporated into older

templates. To put it briefly: over time, the copy plant model becomes

a problem rather than a solution.

Modular plant engineering can do more

Challenges such as increasing competition as well as rising price

and margin pressure call for new ideas. If the aims of modularisation

are to optimise reusability, shorten project durations and at

the same time minimise risk factors in the bidding process, the solution

has to be smart.

As a global engineering company Thyssenkrupp Industrial Solutions

designs plants for the chemical industry amongst others. Each plant

is unique, but they all feature a number of functionally identical

components. If you can model the structure of a plant digitally,

these components can be standardised along the lines of a shared

parts strategy. In this way, large plants actually become configurable

– that’s the idea behind functional modularisation.

It was on this basis that Thyssenkrupp Industrial Solutions developed

the Pre-Configured Plant Concept – a smart, digital, modularised

product model for configurable chemical plants. As one of the

first companies worldwide, Thyssenkrupp is taking the path of

functional modularisation in the engineering sector.

The development of the concept began in autumn 2016. Only a

year later the first modular, configurable plant type went into operation.

Today, already, new fertiliser plants are being designed on the

modular system and no longer on the copy plant model.

Learning from machinery manufacturers

The Pre-Configured Plant Concept is based on the so-called Metus

methodology, which has become established above all in the automobile

and machinery sectors over the past 15 years. With the aid

of this methodology, products are split up into functions and components.

Interdependencies and variant drivers are identified and

ultimately the components of a product are grouped into functional

modules. In this way, different customer requirements can be transformed

into a modular product model.

The Pre-Configured Plant Concept offers decisive advantages:

• Despite modularisation and standardisation, individual customer

needs can still be satisfied. Modularisation in this case does not

mean reducing everything to standard configurations. As each

module can display the feature in a customer-specific manner, the

original flexibility is retained – but without the typical disadvantages:

customer-specific costs can now be identified directly and

evaluated early and reliably.


• Clients, too, benefit by being able to select from a modular system

beyond their individual requirements. For example, if a better

standard module is available, clients can choose it for their application

instead of a bespoke solution. Thus, cost advantages can be

achieved and customer value increased.

• Thanks to the Pre-Configured Plant Concept, the well-known advantages

of modular product structures can also be applied to the

engineering and construction sector: standardised interfaces between

the modules ensure lower integration effort and less complexity.

The re-use of modules means development times can be

shortened. This saves costs in the bidding phase and reduces

sources of errors. For instance, tests for certain modules only have

to be carried out once. The result: significant time and cost savings

combined with higher quality and efficiency.

From idea to concept

Owing to the many different types of plants in its portfolio, it was

important for Thyssenkrupp after the project launch to be able to

operate autonomously in its methods and largely independently of

external service providers. One key requirement for the new system

was therefore that plants should be mapped in a digital product

model, which Thyssenkrupp engineers could add to and extend

themselves – a configurable digital twin creating the bridge from

client requirements to product structure.

The project was implemented in conjunction with the Munichbased

solutions company ID-Consult. The collaboration came about

after it was found during the selection process that advice on

modularisation alone would not be enough. Only a complete view

STATEMENT

Dr. Jan Göpfert,

Founder and

Managing Director,

ID-Consult

Modularisation as such is already a promising concept:

Only a modular product can also be a configurable product

– and configuring is usually easier and cheaper than

engineering from scratch. The concept becomes smart

when – as with Thyssenkrupp’s Pre-Configured Plant Concept

(PCPC) – you can have customised add-ons despite

modularisation. The combination of modularisation and

flexibility is what makes the concept smart. But there’s a

lot more to it: What makes the concept special are the

so-called cross-technology modules. Through the functional

description it was realised very early on that the

same functions are needed in different plant types but are

being implemented individually in different ways. PCPC

unlocks this significant standardisation potential by providing

a modular product system that can serve all types

of plant. With every further plant type added to the

system the positive effect is reinforced.

PROCESS

TECHNOLOGY

PELLETING FOR

ECONOMIC

COMPACTING

AND SHAPING

See us:

ACHEMA

Frankfurt Main

Hall 6.0 Stand D18

11 – 15 June

2018

We constantly encounter bulk

products and powdery materials in

everyday life. They come in various

particle sizes – from lumpy to powdery.

Bulk products are processed in many

industries, for example in the chemical

and pharmaceutical industry.

AMANDUS KAHL GmbH & Co. KG

Dieselstrasse 5–9 · 21465 Reinbek

Hamburg, Germany

+49 (0) 40 72 77 10

info@akahl.de · akahl.de



The Metus methodology makes it possible to model different customer requirements in a modular system. Some modules can be used in various plant types

(cross-technology modules).

of the product – from market requirements to product architecture

– and its modelling in software could move the project forward

decisively.

Together, ID-Consult and Thyssenkrupp developed a three-phase

plan. The first phase involved introducing the Metus methodology

initially for engineering nitric acid plants. At the same time, an extensive

know-how transfer was planned in order to ensure knowledge

of methods and tools was passed on to future users. After a

successful first run, further plant types would then be modularised

independently by Thyssenkrupp’s engineers.

Shortly after the start of the project it became apparent that other

areas also wanted to use the new method. The PCPC was therefore

expanded to include a second plant technology (ammonia). This

opened up new possibilities: modularisation could now be considered

across multiple plant types. The advantage of this was that

numerous functions – for example water treatment or the control

pulpit – could be designed as cross-technology modules and utilised

largely identically across different types of plants. Today, Thyssenkrupp

uses the Pre-Configured Plant Concept successfully to design

a variety of plants.

The future lies in smart modularisation

The Pre-Configured Plant Concept developed by Thyssenkrupp is a

functional modularisation concept for chemical plants that saves

time and costs when designing new plants and increases the productivity

of the designer. The digital, modular system delivers engineering

designs that are tailored to individual customer requirements

despite standardisation.

The concept offers three main advantages: increased customer value

thanks to reduced costs and unchanged flexibility, higher quality

because there are fewer error sources and shorter project durations.

Thyssenkrupp uses the Pre-Configured Plant Concept for four different

technologies: nitric acid, ammonia, hydrogen and ammonium

nitrate. And its potential is far from beeing exhausted: further

plant types will follow. In terms of methodology the company operates

independently. The Metus software continues to be used to

model product architectures and their respective interdependencies.


Online search: cpp0218thyssenkrupp


AUTHOR:

JOHANNES

DAMMEIER

Senior Process Engineer

Nitrates & Phosphates,

Thyssenkrupp Industrial Solutions

AUTHOR:

JENS MATHIAK

Head of Process Nitrates & Phosphates,

Thyssenkrupp Industrial Solutions


Visit us:

Achema



TOGETHER

FOR YOUR

SUCCESS

PRESSURE TEMPERATURE LEVEL FORCE FLOW

CALIBRATION

PRESENCE ALL AROUND THE WORLD









concepts for your requirements. www.wika.de



Picture: Carlo Toffolo – Fotolia

Glass-lined, 3D printed components for chemical engineering

TRADITION

MEETS MODERNITY

Glass linings are an excellent solution for protecting metallic surfaces

against chemical corrosion and achieving high surface quality and good

cleanability. New applications for this traditional surface technology are

derived from its use in additively manufactured, 3D printed components.

cpp spoke to Dr. Jürgen Reinemuth, Managing Director & Partner of

Thaletec GmbH, about the connection between these technologies.


Additive manufacturing is currently en vogue. Which method is

used to make components that are suitable for glass lining?

Dr. Reinemuth: In additive manufacturing with metallic materials,

components based on 3D design data are produced in a powder bed

using one or more laser layers. The process referred to as selective

laser melting (SLM) can be compared with multi-layer build-up

welding under a protective gas atmosphere.

Which components can be produced in this way?

Dr. Reinemuth: Due to the manufacturing process, the production

constraints familiar from conventional production methods are to a

large extent no longer valid. For example, additively manufactured

channels no longer have to be circular, as is the case with drill

holes, but can assume a more or less arbitrary shape. The outer

geometry of components can also be freely designed within wide

limits, without having to consider accessibility restrictions for

processing tools. Thus, additive manufacturing is particularly

suitable for process engineering components with the following

characteristics:

• Complex external geometry, for example designed with flow considerations

in mind

• Internal structures and geometries in the form of channels or cavities

which can be used to transfer heat, for instance

• Several technical functions integrated in one component, so that

sealing and joining surfaces are avoided

• Varying material properties, such as deliberately introduced porosities

to accommodate catalysts or perform gassing processes

What other advantages does additive manufacturing offer?

Dr. Reinemuth: The pathway from the designed component or assembly

to the finished, usable version is significantly shorter and

swifter compared with conventional manufacturing. Components

are generally available sooner as a result. The component variations

„Modern selective laser melting in conjunction

with the traditional process of technical

glass lining can lead to innovative engineering

solutions.“

which are often required in the context of process optimisations,

such as different flow cross-sections, alternative dimensions, etc.,

can be additively manufactured quickly and affordably. In particular,

the production of small quantities up to the optimised single piece

is often faster and cheaper with additive manufacturing than when

using conventional methods.

What are the limits of the additive process?

Dr. Reinemuth: On the one hand, limits are imposed by the space

requirements of the selective laser melting facilities which are currently

available. Large components with dimensions exceeding

800 mm in one axis cannot be produced additively in one piece

today, yet they are easily manufactured using conventional joining

methods. At present, component sizes tend to be in the

280 x 280 x 300 mm range. On the other hand, the choice of materials

is still very restricted, although classes which are important for

process engineering applications, such as 1.4404 or 1.4301 stainless

steels and chemically resistant, nickel-based alloys like Inconel

Picture: Theletec

Dr. Jürgen Reinemuth, Managing Director & Partner of

Thaletec GmbH and Jurec dr. Juergen Reinemuth Consulting

728 or NiCr19NbMo, are already available. In addition, the regulations

and procedures that must be adhered to in order to additively

manufacture pressurised components needing certification accord -

ing to the Pressure Equipment Directive have not yet been universally

clarified and formulated.

Does Thaletec’s portfolio include any additively manufactured

components?

Dr. Reinemuth: Thaletec has already developed several products, including

some in collaboration with Jurec, an engineering consultant,

which are manufactured using metal 3D printing. One of these

products is a static mixer which mixes both liquid and highly viscous

media in a piping system in the smallest of spaces while simultaneously

heating or cooling them. In addition, Thaletec offers a

gassing nozzle with a partially porous surface for mixing gases in

liq uids as well as a high-pressure reactor with an integrated heating

or cooling coil.

What are the special features of this static mixer?

Dr. Reinemuth: The integrated system works on the principle of the

helical mixer with spiral mixing elements; it is hollow inside and

can be flowed through by a thermal fluid, such as water or thermal

oil. The wall is very thin to allow optimum heat transfer. The thinwalled,

stainless steel mixing elements are hollow inside and can

only be produced additively.

The individual elements are made additively to order and then

weld ed to the mixer. The connections at the pipe ends are also additively

manufactured and given a streamlined design. To compensate

for thermal expansion, an expansion joint (bellows) has been integrated

into one of the connection heads. The helical mixing elements

are dimensioned and designed to reflect the mixing task.

Additive manufacturing allows each helical mixing element to be

produced quickly yet individually.

What are the hallmarks of the 3D printed high-pressure reactor?

Dr. Reinemuth: The same applies, in essence, to the manufacture of

the high-pressure reactor as to the mixer. A chemically and high-



Picture: Thaletec

Static mixer with hollow mixing elements which can be tempered. The elements were made additively

and individually and then welded together

pressure-resistant pressure vessel was required in order to investi -

gate chemically aggressive, toxic and explosive mixtures. This vessel

needed to be cooled quickly and efficiently. Additive manufacturing

allows the pressure vessel and the cooling jacket to be integrally

designed. The low wall thicknesses which are vital for rapid heat

transfer are hence feasible. The pressure-bearing wall is very thin

and permits good heat transfer, yet the container can be loaded

with up to 300 bar at a medium temperature of 200 °C. It would

not be possible to manufacture the cooling jacket in the form of an

integrated spiral using conventional techniques. Production in one

piece also enables the vessel to be made available promptly and

adapted easily to individual customer requirements. Furthermore,

the surfaces in contact with the product are rendered chemically

resistant with a glass lining.

What are the benefits of the additive process for the production of

gassing nozzles?

Dr. Reinemuth: The fact that gassing in the new solution is initiated

by a deliberately porous printed structure in the liquid flow is particularly

noteworthy. In order to gain the maximum advantage from

additive manufacturing, the conventional design template was analysed

with regard to its technical functions. A functionally integrated

one-piece solution which can be manufactured additively

was then designed on this basis. In contrast to the conventional

mixing nozzle, the additively manufactured version is also selfpriming.

The manufacturing costs were reduced to just 27 % compared

to the original, conventional solution, which was systematically

revamped. Instead of twelve pieces, which must be mechanically

manufactured and assembled, the additively produced so -

lution consists of only a single component.

Can all 3D printed components be glass-lined?

Dr. Reinemuth: Since all these components are made of stainless

steel, they can basically all be glass-lined. 316L and 304 stainless

steels or Inconel 625 and 728, amongst others, are suitable for glass

lining. These are also typical materials for selective laser melting. The

example of the glass-lined high-pressure reactor shows how mod -

ern selective laser melting, in conjunction with the traditional

process of technical glass lining, can lead to innovative engineering

solutions: the glass lining of the high-pressure reactor surfaces in

contact with the product expands the field of chemically corrosive

applications at temperatures up to 230 °C, where the resistance of

the additively manufactured base material would not have been

adequate. The high-pressure reactor consists of a special metal alloy

which is suitable for glass lining and allows particularly thin, but

non-porous and non-diffusive, surfaces with a roughness of less

than 1 micron.

Are there any restrictions on the glass lining material?

Dr. Reinemuth: The technological properties of the glass linings are

adapted to the respective base materials. However, their chemical

resistance and thermal shock behaviour correspond to those of

Thaletec’s normal chemical glass linings. The high-pressure reactor

was glass-lined with Thaletec TPE 2000 pharma glass lining.

What alternative is there to glass lining?

Dr. Reinemuth: Thaletec has developed the new SiOCoat coating

system for components made from standard stainless steels such as

316L (1.4404) or 304 (1.4301). SiOCoat is an inorganic, amorphous

coating which, similar to a glass lining at up to 900 °C, is

merged with the additively produced base material to form a gasand

diffusion-tight layer of approximately 0.2 mm on the surface.

The coating can be either sprayed on or applied by dipping. The

SiOCoat layer is characterised by good chemical resistance to acids

and alkalis, thermal insulation properties and a high surface quality

with a roughness depth of less than 6 μm. Components coated with

SiOCoat can thus open up more applications for additively manufactured

components without needing to lay down special requirements

for the selection of the base material.

Are the 3D printed components already used in practical

applications?

Dr. Reinemuth: Yes, of course. The examples I referred to are just a

small selection of the components which are additively manufac -

tured by Thaletec and then either glass-lined or coated with

SiOCoat. The majority are covered by customer protection. The static

mixer, though, is a Thaletec product. We regularly receive enquiries

and orders to coat components. In many cases, we also redesign

those components together with Jurec in order to optimise them

for additive manufacturing.

Why are additive manufacturing processes not yet widely used?




One-piece, additively manufactured DN 25 gassing nozzle

made of stainless steel with a deliberately introduced

porous area for gassing through-flowing liquids

Additively manufactured high-pressure reactor with an integral tempering channel and

technically glass-lined interior

Dr. Reinemuth: One of the major obstacles to the use of additively

manufactured components is the fact that most of those employed

in process technology are optimised for conventional production

and the design options arising from additive manufacturing are not

taken advantage of. Moreover, these new options are not, or not sufficiently,

known to many design and development engineers. Hence,

they are often unable to translate all the benefits of this new pro-

duction technology into optimum technical solutions. Yet despite

the restrictions and limitations I’ve mentioned, it is already possible

and economical today to develop and use additively manufactured

components in process engineering applications.


Online search: cpp0218thaletec


EXCELLENCE IS:

High Accuracy

in Single Use

OneFerm pH Sensor

18

DRY STORAGE

UP TO 18 MONTH

PRE-CALIBRATED

Achema 2018

Hall 11.1

Booth F43

Hamilton Bonaduz AG | CH-7402 Bonaduz, Switzerland

contact.pa.ch@hamilton.ch | www.hamiltoncompany.com

READY-TO-USE

VERY LOW DRIFT


cpp ACHEMA PRODUCTS

Compact gearbox range

Hygienic allrounder

Picture: Auma

The GQB series of part-turn

gearboxes extends the gearbox

portfolio of electric actuator

manufacturer Auma. Engineered

and manufactured in Germany,

they have been specifically designed

to meet the requirements

for basic 90° applications with

standard industrial valves such

as butterfly and ball valves.

All components within the

power drive, like the worm

wheel and worm shaft, are surface

hardened to further increase

wear resistance. In addition,

all housing parts are

powder-coated using the corrosion-resistant

two-layer

powder coating system.

The housing incorporates a co -

axial primary reduction gear as

well as integral mounting

flanges for the actuator,

handwheel and valve. End stops

to limit the valve travel are

easily accessible next to the output

drive shaft. An overload protection

guarantees safety in case

of excessive torque. The GQB

gearboxes are currently available

in three sizes – GQB 160.1,

GQB 200.1 and GQB 250.1 –

covering torques up to

84 000 Nm.


Online search: cpp0218auma


Cleanline by Eirich is a multifunctional

processor that allows

to mix, coat, disperse, emulsify,

granulate, knead, dissolve or agglomerate

in the same appa -

ratus. The processors have a rotating

container of the type

familiar from other units. This

container feeds the material to

be processed to a mixing tool.

This tool can run at any speed

up to 30 m/s, with or against

the direction of the rotation of

the container. As a result, the

power input into the mixture

can be carefully adapted to the

relevant process and its specific

Picture: Eirich

requirements. The function

principle that is well established

in various industries, is now

also implemented in a hygienic

design. This has been designed

with a focus on ease of cleaning

and short setup times. Where

necessary, heating or cooling

can also be provided during

processing. The first version of

the machine in hygienic design

offers a capacity of 30 l, further

sizes will follow.


Online search: cpp0218eirich


Heat exchanger plates for viscous media

Test method to assess water safety

Researchers investigating nutrient runoff, and water

quality and wastewater treatment operators can now

benefit from a new American Society for Testing and

Materials (ASTM) standard that utilises the powerful

separation capabilities of ion chromatography for the

simultaneous determination of total nitrogen and phosphorous

concentrations.

Developed in conjunction with the ASTM, the “D8001

Test Method for Determination of Total Nitrogen, Total

Kjeldahl Nitrogen by Calculation, and Total Phosphorus

in Water and Waste Water by Ion Chromatography”

allows users to concurrently monitor total nitrogen

(organic nitrogen, ammonia, nitrate and nitrite) as

nitrate and total phosphorus as orthophosphate in unfiltered

water samples.

Thermo Fisher’s method provides a reliable instrumental

method for the determination of the target analytes

in water, in place of traditional multiple and complex

wet chemical methods, with the opportunity for accumulative

errors.


Online search: cpp0218thermofisher

Hall 4.2, Booth F35

Picture: Kelvion

With its NW150L stainless steel heat exchanger

plates, Kelvion complemented its

range of heat exchanger plates for viscous

and particle-containing media. The NW

models have a wider plate gap than those in

the NT series, which allows efficient heat

treatment, with only slight pressure drop, of

viscous media and of liquids with particle

diameters up to 5 mm. In addition, the wide

herringbone plate corrugation, with a gap

width of 10 mm, assures highly turbulent

flow at all points of the plate – which in

turn counters fouling. As a result, the plates

are well suited for applications in the production

of bioethanol, in treatment of industrial

wastewater, and in petrochemical

processes. So-called Posloc assembly means

that re-assembling the heat exchangers after

cleaning or inspection work is easy. Posloc

assures optimal centering of the plate pack

– which positively affects the service life of

the gaskets. The NW150L is compatible

with the frames of the NT150L series.


Online search: cpp0218kelvion



Picture: KSB

High-efficiency motor

Together with scientists from Karlsruhe Institute of

Technology, KSB specialists developed a very compact

22-kW synchronous reluctance motor. Semiconductor

technology facilitates the cooling management that ensures

removal of heat emerging from the power electronics.

The element’s volume could be reduced by

25 %, due to the integrated frequency inverter. The

drive exists as prototype, which was built to demonstrate

the potential of silicon carbide components in

terms of higher motor ratings. While most of the stand -

ardised pumps operate at constant motor speed with an

impeller, that has been mechanically trimmed for the

desired operation point, this motor operates with a

„virtually trimmed impeller“. Thus trimming is even

possible after the pump set has been commissioned.


Online search: cpp0218ksb

Hall 8.0, Booth H14

End-of-the-Line-Powder-Mixing

KoneSlid®-Mixer (patented)

A symbiosis of excellent hygienic

and ergonomic design.

✓

Extremely gentle mixing

process with short cycle

times

✓ Ideal mixture qualities

✓

✓

✓

✓

Filling levels can vary from

10%- 100%.



of stabilizers, nanoparticle

agents, pigments, plant

protection chemicals

and medicine

Mixer available, if desired, with

several large, hygienically designed

CleverCut® inspection doors

Cleaning: comfortable, safe,

ideally ergonomic, wet or dry,

manual or automatic

Additive components

Fluidized bed

dryer and

cooler

Picture: Wika

Replacement service for diaphragm seals

Wika has put together a service

package, with which the longterm

benefit and the overall cost

of diaphragm seals with

mounted process transmitters

can be optimised. In the case of

a failure of such a system, it is

not always necessary to replace

both the diaphragm seal and the

transmitter. As part of the replacement

service, the measuring

system is taken apart, checked,

and its functionality is certified

again. The diaphragm seal will

be replaced by an equivalent

one and a calibration of the new

seal system is made. If necessary,

the mounting and the system

fluid will be optimised and also

the new material test certificates

issued. With this service, the

process transmitter can be fully

utilised over its entire service

life, while diaphragm seals may

be exchanged preventively at

planned shut downs to further

reduce plant downtime.


Online search: cpp0218wika


✓

✓

✓

✓

On request with typeexamination

Ex II 1D

(for Zone 20)

Optionally, the mixer is

manfactured as a pressureshock-resistant,

pressure-resistant

and vacuum-proof version.

All components of the amixon®mixers

are made in Germany.

The production of the machines

takes place exclusively in the

amixon® factory in Paderborn.

Virtually complete discharge in

a few seconds

amixon ® GmbH

Halberstädter Straße 55

33106 Paderborn (Germany)

Tel.: +49 (0) 52 51 / 68 88 88-0

Fax: +49 (0) 52 51 / 68 88 88-999

sales@amixon.com · www.amixon.com

Packaging

Please visit us!

Hall 6.0 Booth C76

June 11-15, 2018

Frankfurt am Main, Germany



© REMBE | All rights reserved

Made

in

Germany

Your Specialist for

EXPLOSION SAFETY

and

PRESSURE RELIEF

SOLUTIONS

Consulting. Engineering. Products. Service.

Gallbergweg 21 | 59929 Brilon, Germany

F +49 2961 50714 | www.rembe.de

T +49 2961 7405-0

info@rembe.de

ACHEMA

Hall 9.1

Stand C4

Feeder with reduced footprint

Coperion K-Tron has designed

the K3-PH-line of loss-in weight

feeders to meet the growing demands

of continuous processing

in the pharmaceutical industry.

The feeder design features a

modular concept and a reduced

overall footprint thanks to a

smaller D4 platform scale incorporating

the patented Smart

Force Transducer weighing technology.

This scale provides an

accurate weight signal with a

resolution of 1:4,000,000 in

80 ms. The modular quick

change design allows the easy

exchange of feeder types and

sizes as well as of hoppers or

agitators using the same scale

and drive. Thus the system may

easily be adjusted to new processes

and formulations and also

ensures easy cleaning and maintenance.

Depending on the application,

the feeder can be

Picture: Coperion K-Tron

equipped with a material flow

aid and with electronic pressure

compensation. The devices are

available in volumetric and

gravimetric, single and twin

screw models.


Online search:

cpp0218coperion


Concentration measurement in containers

Picture: Berthold Technologies

ENGINEERING

SEPARATORS

FOR DECADES.

CUSTOMIZING

SOLUTIONS

DAILY.

SWECO invented the Vibro-Energy®

Round Separator in 1939. Every year

since we have strived to perfect our

equipment by designing systems to

fit our customers’ exact needs.

Contact SWECO today and let us

engineer an innovative solution for

your application.

Vistit us at

ACHEMA

hall 5.0 A34

TM

Round Separator

Berthold offers container probes

for microwave concentration

measurements that have removable

plastic caps with internal

thread, which can be replaced

on site if necessary. The antenna

technology inside the probe has

been completely redeveloped. It

halves the transmission losses by

better matching and field focusing.

This ensures higher

measurement accuracy and provides

more dynamics. The probe

is offered in two versions, with

and without flushing device.

The container probes are delivered

as a standard with a removal

aid. Two large ringbolts

on the front of the probe make

it easy to disassemble. In case of

sugar crystallisers, the probes

are often stuck firmly because

of the process. In this case, the

ring bolts can be replaced by

longer screws for disassembly.

These push the probe out of the

insertion on the customer’s process

flange.


Online search: cpp0218berthold

Hall 11.1, Booth E88

34 cpp 02-2018

We put technology in motion. www.sweco.com

info@sweco.com

Energy efficient vacuum pumps

Leybold has reduced the energy

consumption of their diffusion

pump series DIP and DIJ by applying

intelligent technologies

and optimising the design. Now

a number of optimised models

and accessories are available. The

DIJ family offers connections for

both ANSI and ISO flange components

as well as various electrical

variants. The five-stage

nozzle system of these pumps

has been improved for the

pressure range from 10 -2 to10 -3

bar. The greatest energy savings

potential was achieved by selecting

an improved heating system

and adjusting it to produce

the propellant stream. In addition,

energy is saved by an optimised

arrangement of the heating

elements in the boiler

room, the loss-free energy

transmission and the thermal

insulation. An integrated energy

regulator that is based on monitoring

the oil and heater temperature

in the boiler room

makes sure that the applied propellant

fluid works at its optimum

temperature. In total,

energy savings of up to 50 %

compared to unregulated stand -

ard pumps are possible.


Online search: cpp0218leybold


Picture: Leybold

Precise control of

low flow rates

The Flow-control series by

Bronkhorst is a series of manually

operated, pressure compensated

control valves that are

designed for low flow gas and

liquid applications. The desired

flow rate is set via a needle

valve. Any upstream or discharge

pressure variations are

automatically compensated by a

built-in membrane-operated

valve to ensure a steady, constant

flow. The valves are available in

four different models to control

gas flow rates in the range of

0.02 to 50 l/min (N 2 -equiva-

lent) and liquid flow rates from

3 to 1800 ml/min (for water).

While process connections are

optionally available, the in-line

valve assemblies are usually

equipped with G 1/4" BSPP female

in- and outlet ports.



cpp0218bronkhorst


Picture: Bronkhorst

Welcome to the

World Champion

Pumping · Dosing · Measuring · Controlling

Pumping, dosing, measurement and control – our lineup

is strong. In the age of Industry 4.0, let our team lead your

company to victory with every application!

Visit our team in Frankfurt!

Visit us:

ACHEMA

2018

11.-15.6.2018

Frankfurt a. M.

Hall 8,

Booth J38/J44

Lutz Pumpen GmbH

Erlenstraße 5-7 · D-97877 Wertheim · www.lutz-pumpen.de

Lutz-Jesco GmbH

Am Bostelberge 19 · D-30900 Wedemark · www.lutz-jesco.com



Intelligent electric valve actuators

Sieve analysis made easy

Picture: Badger Meter

Badger Meter launches Seva

(smart electric valve actuator),

which has been designed as

cost-sensitive solution for extreme

conditions. The actuator is

immediately available as 100

and 200 lbf models that have

the ability to replace the former

EVA-1, EVA-100 and EVA-200

models. The actual actuator

offers a Dual Port Industrial

Ethernet card and comes with

an ODVA (Open DeviceNet Vendors

Association) certificate. It

allows for both linear and ring

network topology. The position

accuracy is ±0.1 % of full scale.

In the cases of a loss of power

or a loss of signal power the actuator

features the option to select

one of five and four positions

respectively. Its universal

AC input with voltage protection

will work with 115 and

240 V(AC) as well as with

24 V(DC). The analogue input

signals may be 4...20 mA, 0...5

or 0...10 V.


Online search: cpp0218badger


Hosokawa offers an operating concept for retrofitting

older models of their Alpine air jet sieve e200 LS. These

devices can be equipped with an intuitive touch display

(HMI) and state-of-the-art operating software. The software

offers application-specific functions that facilitate

heavy-duty tasks with high throughputs in the minerals

and cement industry as well as strictly regulated and document-intensive

processes in the pharmaceutical or food industry.

A total of four software packages offer the optimum

solution for every type of process. Clearly understandable

symbols and the choice between ten different languages

ensure high operating comfort. To guarantee trouble-free

operation in even the most rugged production and environmental

conditions, the touch panel is covered with a

layer of safety glass that is 3 mm thick.


Online search: cpp0218hosokawa

Hall 3.1, Booth A27

Picture: Hosokawa Alpine

HOW INDIVIDUAL AND RELIABLE

DO YOU WANT YOUR PROCESS

SOLUTION?

11 - 15 JUNE 2018

FRANKFURT, GERMANY

HALL 8, STAND D38

LET’S TALK

We would be pleased to present you personally how individual and reliable the design of your

process solution can be - with customised engineering and an extensive series of process gas

blowers and compressors made by AERZEN.

Innovative technologies and our special quality standards ensure maximum process reliability

and sustainable plant availability. With worldwide references, the engineering knowledge from

over 150 years of experience and a distinctive consulting competence, AERZEN can implement

your wishes flexibly and individually.


www.aerzen.com

Photo reactions in industrial scale

Picture: Ekato

The agitated photo reactor by

Ekato was designed for multiphase

reactions with liquids,

gases and solids. The reactor is

available in sizes up to 50 m 3

and beyond. As light sources,

mercury lamps or LED are positioned

inside a quartz glass

tube. Between 4 and 20 tubes

are submerged into the reaction

mass, passed through nozzles in

the tank head, where they connect

to the power supply and

the cooling medium. Cooling is

necessary to prevent high surface

temperatures of the tubes,

which might damage the product.

The agitator has to provide

high pumping rates and thereby

a permanent renewal of the

reactants in the irradiation zone.

For reactions with gases,

bubbles are efficiently dispersed

to ensure high conversion rates.

With suspensions, agitation facilitates

heat removal during

reaction. Sealing of the agitator

shaft towards the atmosphere is

obtained by double or triple

acting mechanical seals or by

using hermetic magnetic drives.


Online search: cpp0218ekato


Flexible tripod agitators

Picture: Geppert

Geppert offers complete tripod

agitators, equipped with up-to

date process control. These machines

offer flexibility of application

and are easy to clean and

maintain. Due to the tripod agitators’

stand-alone statics they

may be applied with various

container sizes, shapes or volumes.

Data aquisition and processing

make even online viscosity

measurements possible.

For special requirements arising

from the product or the production

area, tailor-made versions

of the tripod agitators are available.

So the devices can be

delivered as explosion-proof

models according to Atex RL

2014/34/EU for use in hazardous

zones 1 and 2 as well as

containers with zones 0 to 1. In

addition, special designs like tripod

agitators for fixed container

mixers or fully automated

plants, which are used in clean

rooms or areas of nuclear waste

processing, complete the product

range.


Online search: cpp0218geppert




Robot arm for clean rooms

Monitoring pumps from the cloud

Stäubli present their completely

redesigned Scara robot arms,

which are now also suited for

clean room applications. These

four-axis machines are equipped

with the company’s proprietary

hollow shaft drives, which are

characterised by the absence of

any external cabling. All media

and supply lines are located inside

the machine, thus there are

no irregular contours, sources

of mechanical failure or avoidable

particle emissions. Furthermore,

hygienic design is

achieved by completely sealed

housing, the quill optionally

Picture: Stäubli

protected with a cover and affixed

with special screws, concealed

connections under the

robot pedestal (if desired)and

the exclusion of dead spaces.

The robot arm comes in four

sizes with working radii from

400 to 1000 mm. Besides the

standard model, different versions

that are specialised for

pharmaceutical, medical, and

food applications are announced.


Online search: cpp0218stäubli


Picture: KSB

KSB present their pump monitoring

system called KSB guard,

which consists of networked vibration

and temperature sensors

fitted directly to the pump. The

system makes sure that changes

in the operating behaviour of

the machine are detected at an

early stage, and maintenance

work can be better planned,

even from a distance. The system

is ideally suited for retrofitting,

because the battery-powered

sensor unit is attached to the

bearing bracket or the drive lantern

of the pump using a magnet

or adhesive. This can be

done during operation. Every

hour data are transferred in encrypted

form to the company

cloud via a gateway. The current

pump data, recorded trends as

well as additional information

about the pump are available on

mobile phone, tablet, or PC. If

data exceed a pre-defined limit

value, the system creates warnings

or alerts.


Online search: cpp0218ksb

Hall 8.0, Booth H14

3-D metal filter cloth

Mechanical overheat protection

Picture: Haver & Boecker

The Minimesh RPD Hiflo-S filter

medium is manufactured using

a special weaving technology

developed by Haver & Boecker,

which results in a three-dimensional

pore geometry. Compared

to conventional filter cloth having

the same pore size, the

three-dimensional pore geometry

increases the open surface

area significantly. In addition,

the flow conditions are

optimised and turbulence

around the filter cloth is

avoided. The pore size within a

batch can be calibrated from 5

to 40 μm. As this cloth can be

woven from standard diameter

wires, the fabrication is also

opened up for special materials

like Avesta, Hastelloy, Inconel or

titanium. Until now, fabrication

of meshes below 40 μm has not

been possible with these materials.

The depth structure of the

three-dimensional meshes offers

a high separation effect as well

as a high dirt holding capacity

without rapid blending.


Online search: cpp0218haver


Picture: Dr. Thiedig

The temperature protection valve Autosafe from Thiedig

is a simple, mechanical valve that automatically and

reliably closes without any auxiliary power in case of

excessive temperature. After tripping, the valve must be

manually reset for safety reasons. In the first instance, it

is intended to protect persons and equipment and additionally

prohibit an over heating of typically downstreamed

components such as sampling coolers for

example in cases of loss or lack of cooling water. Due to

its compact construction, the function without any auxiliary

power and the pressure resistance also at the valve

outlet up to 310 bar, it is ideally suited for the upgrading

of older systems in order to increase plant safety.


Online search: cpp0218thiedig




Continuous ring layer mixer

The basis of the robust Corimix

continuous ring layer system

from Lödige is the high circumferential

speed of the mixing

unit, which forces the product

into a concentric ring layer. The

process demonstrates its true

strengths wherever liquids have

to be distributed very efficiently

at high to very high throughput

rates. Corimix is offered in a

variety of sizes as both laboratory

and production mixers.

Depending on the product,

throughput of up to 0.50 m³/h

in a laboratory setting and up to

500 m³/h in production can be

achieved, with an effective volume

of between 5 and 3000 l.

The spectrum of applications

ranges from mixing, wetting,

compaction and granulation to

dispersion, gluing, agglomeration,

dissolving and melting.

Liquid components are fed directly

into the product ring

layer separately from the dry

components. This ensures very

even distribution within the

mixture. The system also allows

the mixing chamber to be divided

into zones of different

shearing intensity. The mixing

container is divided centrally

along its entire length and can

be opened out. This makes the

mixing system easy to clean,

maintain and, if necessary, adapt

to new requirements. Optional

linings for the mixing container

also make it possible to process

products with a tendency towards

adhesion or abrasion.


Online search: cpp0218lödige


Picture: Fritsch

Dry and wet particle sizing

The Fritsch laser particle sizer Analysette 22 Nanotec is

used worldwide for measuring the particle sizes in dry as

well as wet dispersions. The device is able to measure particle

sizes from 0.01 to 2100 μm within a short measuring

time that is often less than 1 min. The device consists of a

compact measuring unit that can quickly and easily be

combined with various dispersion units. Operators can

switch between dispersion units by simply changing the

cartridge containing the measuring cell. The measurement

runs fully automatically and the results are directly visible

on the screen. In addition, results can be printed or saved

as reports customised to individual needs.


Online search: cpp0218fritsch

Hall 4.1, Booth J49

Picture: Gebr. Lödige Maschinenbau

Hoses and couplings from one source

Elaflex provides standardised

hoses and couplings for the

transfer of dangerous goods and

sensitive fluids. The Elasil silicone

hose range conforms to

FDA and USP Class VI and meets

the 3-A sanitary standard. The

hose sizes DN 13 to DN 102 are

assembled to customer specification,

with crimped couplings.

The company also produces

stainless steel couplings themselves.

These include female

couplers Easyloc with automatic

lever lock to avoid unwanted

disconnection during operation,

e. g. due to excessive pulsation.

The couplings are available in

sizes DN 13 to DN 50. All cou -

plings are guaranteed to

Picture: Elaflex Gummi Elhlers

EN 14420-7. They are reliable,

leakproof and operationally safe.


Online search: cpp0218elaflex

Hall 8.0, Booth L93

Retrofit solution for valve systems

Gemü has expanded its Conexo

range for lifecycle management

of plants to include a retrofit

solution of existing systems as

well as a cloud connection. The

system actually consists of valves

equipped with RFID chips and a

corresponding IT infrastructure.

Thanks to serialisation, every

relevant component such as the

body, actuator or diaphragm can

clearly be traced using the company

RFID reader. Furthermore

the corresponding app for mobile

devices makes the mainte -

nance process much more transparent

and easier to document.

Finally, the internet portal acts

Picture: Gemü

as a central element, helping to

collect, manage and process

data. The retrofit solution enables

company valves as well as

products from third parties to

be integrated into the system.

Various options are available to

identify the components: plastic

shields with cable tie, adhesive

labels for plastic components,

and captive stainless steel seal.

The cloud connection facilitates

network-independent access to

data without local installation of

the company portal.


Online search: cpp0218gemü



cpp ACHEMA SAFETY, SECURITY

Combination enhances plant availability

RUPTURE DISC AND

SAFETY VALVE

Changes in the law and ever stricter environmental regulations are forcing

plant owners to reduce their emission levels. This also applies to pressure

relief devices such as safety valves. To avoid having to use far more

expensive valves – which are often difficult to retrofit – it is a good idea to

install a rupture disc upstream of the safety valve.


The first step towards fulfilling the regulations was to try and find

better safety valves, which were simple to build into the design of

new valves. However, substantial investments were necessary to upgrade

the older designs of existing plants with newer ones – not an

economical choice in the majority of cases. Even with new plants,

there was a significant increase in safety valve costs in the endeavour

to meet the lower emission levels required for certification and

permits, to be allowed to start up a plant or continue operating it.

Although the capabilities of safety valves were expanded considerably,

they were still not able to comply with the requirements envisaged

for future zero targets. In fact, it was believed that they never

would do and so an alternative solution was needed.

Safety valve versus rupture disc

Rupture discs have been around for decades but have always been

seen as a second-choice alternative for overpressure compared to

safety valves – the poor relation of the safety valve industry, as it

were, a title they do not deserve. This lack of understanding of rupture

discs continues to this day. Discs are a “problem”: they open

and let the pressure out, when in fact that is exactly what they are

designed to do. Many operators remain blissfully unaware that when

the disc performs correctly, this is not the problem but the solution.

So how do rupture discs help safety valves perform better in use?

Well, when it comes to isolation, they partner safety valves and deliver

the superior performance needed to realise zero emissions

which a stand-alone safety valve cannot provide. Although safety

valves can achieve good performance levels on their own, one

hundred percent isolation and better operational stability require

Special safety valves and KUB

Clean are used in hygienic

applications

the use of rupture discs. For several years now, rupture discs have

been regularly installed upstream of safety valves. Operators are

starting to appreciate that a properly engineered rupture disc will

help lower their operating costs and increase plant uptime. The belief

that this arrangement adds more cost to a project has been

proven to be false; in fact, the opposite is true and the costs actually

come down.

Pictures: Rembe

Every child

is one of a kind and unique. Each child needs individual support

according to their needs. Please help us by donating. Thank you!

Tel.: 0800/50 30 300 (free of charge)

IBAN DE22 4306 0967 2222 2000 00

BIC GENO DE M1 GLS

www.sos-kinderdoerfer.de

2016/1

This year

you can not only score

with our valves.

Visit us

at the ACHEMA

and be surprised.

Hall 9.0 | Booth E13

www.ventiltechnik.de

stark im Team

bui

fort en équipe

building successful stark im Team im Team teams

un team fuerte


stark im Team

un stark

stark team im Team

im Team fuerte







un team forte

building un successful

un team team fuerte

un team bui forte

en équipe

teams forte

un team un fuerte team forte



STARK IM TEAM bui







un

stark

team

im Teamforte

stark un team im Team forte GSR Ventiltechnik

stark im Team GmbH & Co. KG

building successful teams un team fuerte

stark im Team

stark im un Team team un fuerte team

bui

Im Meisenfeld 1

fuerte

un

un fort team en

stark im Team fuerte


building successful teams

un stark

D-32602 Vlotho

forte équipe

Phone: +49 5228 779-0

Fax: +49 5228 779-190

bui

im fuerte


info@ventiltechnik.de

un team forte un team Team forte www.ventiltechnik.de



un team forte

un



team fuerte

fort en équipe building successful teams

stark

im

bui

Team

un team building forte successful teams

cpp 02-2018 43

Innovative Valve Technology

GSR-SP-SK-180425


Reverse acting rupture disc KUB clean

In-situ test to check whether the safety valve is functioning correctly

Let us take a typical installation where the safety valve faces a process

condition with a high concentration of corrosive materials,

elevated temperatures and an operating pressure close to the valve’s

set pressure. The safety valve’s limits are put to the test, leading to

poor performance below the expected levels for operational stability

and leakproofness. High maintenance costs are incurred to keep

the valve as close as possible to the original specs, along with increased

downtime for routine valve servicing and/or repairs and

higher manpower costs to handle the work.

The solution suggested by safety valve manufacturers is a valve with

a higher specification, more exotic materials with higher capex

costs and more expensive spares for maintaining the valves. In an

average petrochemical plant with several hundred safety valves, this

capex translates into a dramatic increase in valve inventory costs.

Economical solution

Rupture discs fitted upstream of the safety valve, in a material that

will isolate and withstand the process conditions, let the plant

owner install lower grade materials in the valve while still meeting

all the design requirements, though with a significant reduction in

the safety valve capex.

The costs for the rupture disc and holder are negligible compared

to the capex for an exotic or higher-specification safety valve. If account

is also taken of the lower expenditure on maintenance, the

disc and holder are free of charge. In fact, this is a win-win path

with more production uptime, less emissions, greater safety, lower

overall maintenance costs and reduced inventory.

Yet, we still see safety valves with an upstream rupture disc failing,

needing maintenance and stopping production or causing safety issues.

So what went wrong? Remember that a safety valve also has an

outlet. In many cases, this outlet is not a separate line to discharge

but is manifolded together with other parts of the plant, allowing

process gases or vapour to enter it and provoke safety valve failures.

This is something easily eliminated by a downstream rupture disc,

which prevents any process gases from entering the safety valve on

the outlet side. The rupture disc will also block any back pressure

attempting to enter the safety valve and eliminate such concerns

during valve selection.

With burst sensors installed both upstream and downstream, rupture

discs can be monitored and connected back to the control

room for system reporting across the plant, so that operators know

instantly which valves and discs are in a green or red state.

The rupture disc manufacturer can collaborate with design and process

engineers to select the discs giving the best possible safety and

isolation performance. Unfortunately, this is still a rarity and is a

factor in the rupture disc being blamed for poor performance when

all it is actually doing is what it was designed to do, namely be the

most important safety device in the plant – the only fail-safe device

that always opens when faced with an overpressure situation.

Case history – a practical example

Rembe was approached by a refinery to help overcome serious issues

with its safety valves due to process conditions attacking the

metal structure. The requirement was to enable the plant to be operated

for three years without having to remove the safety valves for

servicing and recertification except in an emergency. When the

safety valves were removed during a scheduled shutdown, several of

them were found to have broken or cracked springs while others

were corroded to failure point. Bellows were corroded and broken.

Several safety valves were so badly affected that the disc and nozzle

were corroded solidly together and the valve was unable to open.

This raised major safety concerns that the plant could no longer

meet its three-year maintenance-free plan and it was decided to return

to the old test method of regular safety valve removal and replacement.

An analysis carried out in conjunction with Rembe showed that aggressive

process gases were present both upstream and downstream

of the valves, and that isolation with rupture discs in a suitable material

would offer the best protection. What’s more, the user would

stand a more realistic chance of meeting the three-year target, with

the ultimate goal of extending this to five years.

In addition, the use of KUB V rupture discs allows for in-situ lift

testing of the safety valves on site during the three-year period, to

ensure that they are still operational. As a further benefit, the costs

are lower because the Rembe rupture discs can be removed, inspected

and reused, and are still in serviceable condition.


Online search: cpp0218rembe


AUTHOR:

ORHAN KARAGÖZ

Business Development Director,

Rembe


Reach the entire European

MedTech industry!

medizin&technik/medicine&technology reveals

the interesting facets of the worldwide medical equipment

and technology industry.

01.2017

www.medizin-und-technik.de

EVK 11,20 €

02.2017

www.medicine-technology.com

RRP 11,20– €

Ingenieurwissen

für die Medizintechnik

Engineering for the

Medical Device Industry

In total

20,000

recipients

in Europe

TITELTHEMA

Health Games

Wie Computerspiele

die Therapie unterstützen

Seite 48

FEATURE

Brain Computer

Interface

Signals from the Head

Page 44

Arbeitsmarkt Medtech

Studierende der Medizintechnik

bauen ihr Netzwerk auf Seite 68

Region Oulu

In Finnland entwickelt sich ein Hot

Spot für Digitale Gesundheit Seite 64

SPECIAL

IT in der Medizin: Spezielle Server,

Big Data und Mobile Health Seite 47

medizin&technik

(in German)

circulation:

10.000 copies in

German-speaking countries

Foreign Market Romania

Private healthcare companies

work on a Western level Page 12

Infection after Surgery

When the source of infection

is a medical device Page 20

TRADE FAIR

MEDICA/COMPAMED

New Products and Trends

13.11.–16.11.2017 Page 25

medicine&technology

(in English)

circulation:

10,000 copies in Europe

Contact:

http://media.industrie.de/medizintechnik

media.industrie@konradin.de



Enhanced 24 V(DC) protection

Physical isolation prevents

return supply

Processing equipment often requires a number of different control rooms and

cabinets as well as sub-distribution boards. The systems are frequently rebuilt or

extended due to the long operating periods. Selecting the correct potentials for

GND and the supply voltage is not always easy. Many design engineers therefore

prefer an electronic solution for protecting a 24 V(DC) power distribution.

The ESS30-S electronic circuit breaker and

the Module 18plus power distribution system

provide a flexible and reliable solution

for applications in process automation. The

advantages of electronic protection compared

to traditional, thermal-magnetic circuit

breakers are significant. When using

switch mode power supplies, the available

current is normally limited to 1.5 times the

rated current. Control cabinets are usually

equipped with switch mode power supplies

rated for 10 to 40 A. This means that in the

event of a short circuit, the maximum current

can briefly reach a value of 15 to 60 A.

This is not sufficient for quick magnetic

disconnection of the thermal-magnetic circuit

breaker. As a result, the power supply is

overloaded. In this case, it protects itself by

reducing the output voltage automatically,

leading to a voltage dip at all connected

loads rather than just the affected circuit.

Hence, the failure of a single device can

cause the whole system to malfunction. The

ESS30-S electronic circuit breaker protects

the power supply against overload and prevents

one small failure from shutting down

a complete system.

The active current limitation limits the current

to 1.2 times the rated value in the event

of a short circuit or overcurrent. Overload

of the power supply is effectively prevented,

as is a breakdown of the entire supply voltage.

If a short circuit occurs, the ESS30-S

Pictures: E-T-A

The ESS30-S electronic circuit breaker: owing to the plugin

design and physical isolation, it is ideal for the chemical

industry

The Module 18plus power distribution system is modular

and flexible and supplies up to 80 A


The ESS30-S provides physical

isolation, interrupting the

load circuit reliably with a

clearance distance

ensures electronic disconnection after

150 ms. The circuit is physically isolated

after 5 s.

Physical isolation

Standard electronic circuit protectors normally

do not offer physical isolation. They are

fitted with a power Mosfet to disconnect or

switch off the load circuit. If the Mosfet is

conductive, its low resistance allows current

to flow through the electronic circuit protector.

If the power Mosfet is blocked, it has

high impedance and thus prevents current

flow. High resistance of the Mosfet, however,

cannot prevent leakage currents from

flowing in the blocked state. In addition,

each semi-conductor switch has an integral

inverse diode. In the event of a linked failure

on the load level, the diode may allow a

direct return supply from this level to the

24 V(DC) level. Additional physical isolation

ensured by the electronic circuit protector

would prevent such a return supply.

This physically isolating switching element

is connected in series with the power Mosfet.

A short circuit causes the Mosfet to first

of all disconnect the circuit electronically

and protects the switch mode power supply

against overload. This happens within

150 ms. The electronic circuit breaker has

an additional mechanical switching element

which opens the load circuit within 5 s in

the event of a failure, creating a clearance so

that the circuit is physically isolated. Hazardous

system conditions are reliably prevented.

In addition, a faulty return supply

to the 24 V(DC) control level can be ruled

out.

Modules increase hazard potential

Modular system and plant designs will become

increasingly prevalent in the chemical

and pharmaceutical industries in the

coming years. The importance of power distribution

and wiring in the field will continue

to grow. In conduits or drag lines,

there are often a large number of cables laid

in parallel. Although separating the different

voltage levels is a requirement, it is very

often not implemented in practice. Particularly

with existing systems, space is limited

and so are the installation options. A return

supply of the 230/400 V(AC) load voltage

to the control voltage level can have catastrophic

consequences. The ESS30-S limits

the failure by means of physical isolation, so

that only one circuit is affected. Damage to

the entire system at once is excluded. The

ESS30-S provides extra safety and increased

system availability. This is the reason why

major German chemical companies request

not only electronic protection in their plants

but also physical isolation. In addition, as

described above, leakage currents may cause

the circuit protector’s visual status indication

to glow. Service technicians are frequently

unsure about what to do in such

cases, so that they eventually decide to replace

the installed devices. Today, the chemical

company in question relies exclusively

on electronic circuit breakers with physical

isolation.

Perfect power distribution

E-T-A’s ESS30-S is ideal for use in the

chemical and pharmaceutical industries because

it combines active current limitation

with physical isolation. It unites the advantages

of an electronic circuit protector with

the added value of physical isolation. It is

due to this function that the ESS30-S is approved

to DIN EN 60934 as a circuit breaker

for equipment protection. In combination

with the Module 18plus, it forms a modular

and flexible power distribution system

which offers a complete overview of the

24 V(DC) supply and allows a modular design,

tailor-made to the plant’s requirements.

Enhanced flexibility and reduced

wiring time are further advantages. The system

also includes a supply module for up to

80 A. A busbar system provides interconnection

of all modules. Owing to the plug-in

design, the individual circuit breakers can

be exchanged at any time and system adjustments

implemented easily. The integral

group signalling rounds off the system.


Online search: cpp0218eta


AUTHOR:

THOMAS KRAMER

Business Field Manager,

Division Automation &

Process Control,

E-T-A



Fulfils the highest quality and safety requirements

Inerting concept for

centrifuges

The Heinkel Centripurge SIL 3 inerting system guarantees compliance with

the latest safety regulations as per TRGS 725 for hazardous, potentially

explosive atmospheres. Developed by the Heinkel Group, this system is

particularly suitable for applications demanding the highest levels of quality

and safety, such as the manufacture of active pharmaceutical ingredients,

agrochemicals or dietary supplements.

Explosion risks in chemical and pharmaceutical

production plants arise due to a

number of factors in work processes such as

filtering, screening, agitating and separating:

the type of substance or medium, for

example solvents or flammable hazardous

substances, as well as handling and processing.

The safety characteristics of these substances

are key for the risk assessment. To

achieve a high safety level in areas exposed

to explosion hazards, plant operators are

obliged to implement the specifications of

the relevant laws, directives, rules and standards.

This includes ensuring a proper operational

condition at all times as well as frequent

maintenance of safety systems by

qualified personnel.

Improved safety in zone 0

Centripurge is a TÜV-tested SIL 3 inerting

concept which makes it easier for operators

to adhere to the applicable safety regulations

and fulfil the requirements of TRGS

725. The design is based on the highest

requirement level, where an explosive atmosphere

and a source of ignition are assumed

to be continuously present in a noninerted

process area (Zone 0). This results in

a SIL 3 monitoring device with a hardware

failure tolerance of 2 (HFT2). In other

words, Centripurge guarantees safe operation

of equipment in explosion-proof areas

in accordance with current statutory

requirements. Operators do not need to

have any validation measures of their own

in place. This standardisation saves time and

money. Centripurge has a modular structure

and can be adapted to suit individual needs,

for instance in Zone 1 or 2, where reduced

safety requirements apply in the process

area. In this case, both the SIL requirement

and the hardware failure tolerance are

lower. Heinkel also has the experience and

know-how to support its customers with

inerting updates for third-party equipment.

Existing installations or obsolete systems

can be retrofitted and modernised using

Centripurge. Furthermore, the manufacturer

provides expert assistance regarding the

legally stipulated annual audit of the inerting

facilities, so that continuous compliance

with all relevant standards and guidelines is

ensured.

Pictures: Heinkel

Typical applications of the Centripurge inerting system

Flow-through inerting

The purpose of inerting systems or parts of

systems is to displace the atmospheric

oxygen content within the equipment by

adding inert gases to the extent that the

formation of an explosive atmosphere is

avoided. These inerting measures have to be

monitored reliably. The use of suitable

measuring and control devices as part of the

explosion prevention measures reduces the

probability of an explosive atmosphere

forming and hence also the risks due to explosive

mixtures and ignition sources. The

reliability of these devices is regulated by

TRGS 725, which was most recently toughened

up in 2016. With several decades of

experience and process know-how from numerous

customer projects, Heinkel has suc-


ceeded in realising an inerting concept for

centrifuges which complies with these strict

standards and guidelines and offers operators

a high degree of flexibility when it

comes to installation-specific requirements.

The Centripurge inerting concept for centrifuges

is based on the principle of flowthrough

inerting and has been awarded a

positive SIL 3 test certificate for its optimal

risk reduction in areas exposed to explosion

hazards. Whereas the inverting filter centrifuge

has a continuous inert gas flow to

avoid condensation, inert gas is only supplied

in other types of centrifuge if the

pressure falls below a set value, in order to

ensure a minimum pressure in the process

area. Plant operators profit from a level of

safety that is virtually unprecedented in

inerting systems. The safety integrity level,

or SIL for short, is used to quantify risk reduction

in connection with functional

safety. It is a safety assessment criterion

which provides information on the reliability

of the safety functions in automation engineering.

The risk associated with each individual

safety function is assessed with reference

to the relevant standards. The SIL is

determined by analysing the failure behaviour

of the components concerned and

checking them for redundancies, continuity

and errors. When the TÜV-tested inerting

concept was developed, the leak tightness of

the process area and the connecting pipework

was tested during a first diagnostic

The various zones during pre-inerting

phase. The system was charged with inert

gas for this purpose. Both the supply of

inert gas and the achievement of the test

pressure are monitored redundantly. The

second step entailed pre-inerting, that is the

expulsion of oxygen in all areas of the centrifuge.

This is time controlled; the flow of

inert gas is monitored redundantly. The final

phase of inerting served to ensure a continuous

supply of inert gas to compensate

for leakage flows. As in the diagnostic

phase, both the supply of inert gas and the

minimum pressure are monitored continuously

as well as redundantly. The protection

concept is realised with a safety instrumented

control system. Heinkel’s inerting

concept – the hardware components, the

TIA/S7 control software and the necessary

documentation – was repeatedly optimised

until finally the fulfilment of all relevant

requirements in all areas was confirmed by

the testing institute.


Online search: cpp0218heinkel


AUTHOR:

TOBIAS HÄNLE

Manager After Sales

Automation,

Heinkel Process Technology

T +49 2961 7405-0 | info@rembe.de

Gallbergweg 21 | 59929 Brilon, Germany

F +49 2961 50714 | www.rembe.de

Your Specialist for

EXPLOSION SAFETY

and PRESSURE RELIEF

ACHEMA

Hall 9.1

Stand C4

Consulting. Engineering. Products. Service.

© REMBE | All rights reserved

Our competence for your success.

Gear pumps for the chemical industry.

Hall 8, Booth F38

Pump Sizes:

0.2 cm 3 /rev up to 12,000 cm 3 /rev

Viscosity:

0.5 up to 1,000,000 mPas

Temperature:

Up to 300 °C (580°F)

Inlet pressure:

Vacuum of max. 15 bar

(215 psig)

WITTE PUMPS & TECHNOLOGY GmbH

Lise-Meitner-Allee 20

25436 Tornesch

Tel. 04120 70 65 9 -0

www.witte-pumps.de

sales@witte-pumps.de



Software restores order to system safety inspections

An end to paper chaos

PEC, the multi-user software, restores order to the paper chaos of system

safety inspections: it can be used very effectively for planning, documenting

and performing essential inspections of all kinds. It integrates and improves

the inspecting of explosion or functional safety as well as other industrial

safety and quality inspections based on all relevant laws and directives, such

as BetrSichV, IEC 60079–17, IEC 61508, IEC 61511 and VDE.

Keeping an industrial plant running is not

that easy. Operators are responsible not only

for smooth production but also, and primarily,

for compliance with a large number

of legal and technical safety regulations.

This involves a multitude of tasks: for

example, system operators are compelled to

carry out regular electrical and mechanical

inspections on hundreds of components,

each of which are subject to their own inspection

schedules. Furthermore, the inspection

results must be analysed and a

proven inspection concept developed on

that basis. To do this, the inspection status of

the entire system has to be reviewed and the

documentation of the safety strategy and inspections

compiled and prepared.

A veritable jungle of rules

The requirements for functional safety and

operating regulations generate a considerable

workload of inspection obligations. In

the case of equipment located in potentially

explosive atmosphere, there are even more

regulations and technical rules in addition to

the complex, underlying set of stand ards.

The German Ordinance on Industrial Safety

and Health (BetrSichV, Annex 2, Section 5.1)

prescribes inspecting of explosion protection

at least every six years for systems in

hazardous areas. Ventilation systems, gas

warning devices and inerting equipment

must be inspected annually (Betr SichV,

Annex 2, Section 5.3) while safety systems

and electrical and mechanical devices must

undergo inspecting every three years in accordance

with Directive 2014/34/EC (BetrSichV,

Annex 2, Section 5.2).

To satisfy all these requirements, system operators

have to collect data from various

sources and incompatible systems – data that

is often only available on paper. Nevertheless,

they bear full responsibility for managing

the entire life cycle of the system reliably.

Picture: Westend61 – Gettyimages

Tablet always to hand: the results are en tered in PEC either immediately online or later

offline and are thus always correct, up-to-date and centrally available

PEC enables smarter working

The PEC (Plant Engineering Centre) software

is an IT solution that makes it much easier to

plan, organise and carry out inspections. It

helps operators of technical systems satisfy

the requirements laid down in laws and

standards in connection with explosion protection,

functional safety and operating

safety and quality. The programme, which is

sold by R. Stahl and was created by software

development firm AGU, is designed for practical

use on mobile devices.

The Plant Engineering Centre stores data

centrally and integrates all interfaces

required for existing IT systems. This ensures

full data consistency, which minimises the

effort for acquisition. The system also has

other advantages: PEC includes an app (PEC

Mobile) for Android and Windows. The software

can be used either online or offline. Its

precisely designed input screens make light

work of inspections. The data is synchronised

with the PEC server application via


ised and saved for reuse. Within PEC-FS, all

phases of functional safety can be documented

– from the safety requirement specification

(SRS) and SIL calculation through

the generation of the inspection plan, the

inspection concept for the safety instrumented

function (SIF) and the inspection

object for mechanical and electrical inspecting

to the scheduler and all the way to

archiving of inspections. The PEC-SQ module,

in turn, allows convenient processing of

mechanical inspections on systems such as

conduits and containers.

Picture: R. Stahl

The extensive device database in the PEC-EX explosion protection module makes

it particularly easy to inspection equipment with different types of protection

USB or WiFi. If desired, the programme can

be set up for multiple users with different

read and edit rights. Data is stored in PEC in

accordance with auditing requirements, enabling

efficient and completely paperless inspecting.

PEC generates time schedules for upcoming

inspection tasks and outputs automatic re -

minders of deadlines, so that users always

have a clear view of when a inspection needs

to be carried out and which specific tasks are

required to complete it. The programme

evaluates the inspections, issues statements

regarding the system status and archives data

records, documents and inspection logs.

Powerful search and reporting functions

simplify audit and attestation discussions.

All objects to be inspected are entered in

PEC. The operators retrieve device (or manufacturer)

data from an integrated database,

in which the data records for devices of the

same design can be maintained centrally.

PEC-EX, the module for inspecting explosion

protection, automatically generates

inspection texts for each device, system

and/or equipments in accordance with its

type of protection and the type of inspection

(visual, close or detailed) as well as

with the current BetrSichV and IEC 60079.

The software can be scaled for all operating

variables.

Various optional modules are available, such

as PEC-FS for checking safety functions in

accordance with IEC 61508, IEC 61511 and

Namur or PEC-SQ for additional operational

inspections. Templates exist for creating object-specific

inspection plans with PEC-FS

and PEC-SQ, which can be edited, custom-

Consulting for system operators

The collaboration between R. Stahl and AGU

combines the latter’s software and problemsolving

expertise with the former’s vast

experience in – and tried-and-tested technology

for – system safety and explosion

protection. R. Stahl’s Services division is

focused on providing customers with comprehensive

support in matters of explosion

protection, functional safety or operational

safety and quality in both safe and hazardous

areas.


Online search: cpp0218rstahl


AUTHOR:

MATTHIAS LANGE

Business Development

Manager Service,

R. Stahl

11. – 15.06.18

Hall 11.1 · A41

Offering diversity.

Ensuring protection.

Perfecting performance.

Electrical Explosion Protection Equipment

Wide range of terminal boxes, control units and

stations, Ex d/Ex de control and distribution

panels as well as many more products and

solutions

Covering Ex d, Ex e, Ex p, and Ex i types of

explosion protection and combined Ex de

solutions

Highest degree of protection for all applications

from the leading authority on explosion protection

www.explosionprotection.com



Picture: Rommelag

Single-use containment provides safety

The Flecotec system (short

name for flexible containment)

was developed by Rommelag for

powder handling procedures to

reliably protect staff and products

from contamination. The

system is based on single-use

containment made from plastic

films. Containment of single

processes like sampling, weighing,

filling and transferring bulk

materials do not affect existing

Dust filtration in small spaces

certificates of plants and processes.

No cost and efforts for

additional validation occur. The

films are disposed off after the

processes are finished. Time

consuming and costly cleaning

and validation processes are

reduced to a minimum.



cpp0218rommelag


The smallest filter systems for de-dusting by Infastaub

are named AJM 150 and INF 150. They have a total

height of 51 cm and a diameter of 17 cm. Due to the

minimum construction height, the filter units can be

installed in areas with height limitations that do not

allow installation of other versions. The type AJM is

equipped with only one cleanable filter bag. The version

INF is designed as non-cleanable secondary filter.

The housings of both are made of stainless steel by

default. On demand, they may be welded absolutely

gap-free or two-sided, for applications in the chemical

or pharmaceutical industry.


Online search: cpp0218infastaub


Picture: Infastaub

Picture:Bosch

Flexible systems for injection solutions

Bosch presents their SVP250 LF processing system together

with the ALF 5000 filling and closing machine

for vials and ampoules in a complete line that enables

the seamless transport of the product from the processing

to the filling machine. The transport can be tracked

by LED visualisation. Data of both machines are fed into

a single system and are made available for an Industry

4.0 application. The processing machine is designed for

small batches from 15 to 250 l. The system features a

module for two-stage sterile filtration for aseptic preparation,

which is located between preparation and storage

vessel. An integrated clean room wall separates the

process vessels completely from the technical area. The

connected filling machine immediately continues to

process the transferred fluid. The filling machine may

be equipped with up to twelve filling heads. A maximum

output rate of 600 containers/min may be

achieved.


Online search: cpp0218bosch


VISIT US! HALL 5.0 - STAND B8

11. – 15. JUNE 2018 | FRANKFURT AM MAIN, GERMANY

OPTIMIZE YOUR PROCESS WITH OUR CORE COMPETENCIES

SUSPENSION

FILTRATE

WET CAKE

DRY PRODUCT

REACTOR

AGITATORS


CENTRIFUGES

MECHANICAL

SOLID-LIQUID

SEPARATION

BSV

FILTER

DRYERS

AGITATORS

BUFFER TANK

AGITATORS

THERMAL

SOLID-LIQUID

SEPARATION

DRYERS

AGITATORS

BSV

Change-over valves with smart coupling

The typical lockable combinations

of change-over valves

available in the market often

have a number of limitations.

Some require the same nominal

size of the change-over valve at

the inlet as at the outlet of the

safety valve. Therefore, the adaption

of different sizes requires

unstandardised modifications by

using additional reducers, weldings

or pipings. The downside to

this solution: overall dimensions

of the installations will grow in

an unpredictable way. There are

no standard solutions for lockable

combinations including

differently sized change-over

valves. With the flexible and optimised

lockable combination

Leser’s change-over valves are

adaptable to different inlet and

outlet sizes of the safety valve.

The unique features of the smart

coupling like standardised

flange distances through different

sets of elbows make it possible

to combine a smaller and

bigger sized change-over valve

also with different pressure ratings

if required. Like this, no

additional reducers, weldings or

pipings are needed.


Online search: cpp0218leser

Hall 8.0, Booth J83

Valve islands for water treatment

The valve islands Airline type

8652 and Airline type 8648 by

Bürkert offer numerous adjustable

monitoring and diagnostic

functions. These functions improve

system availability and

and process reliability, while at

the same time enabling preventive

maintenance. The valve islands

are intended to be applied

in water filtration processes

such as ion exchange or reverse

osmosis. The valve islands are

equipped with integrated displays,

which directly show key

information, e. g. the current

switching statuses or errors

such as cable breaks. The elements

communicate via a

range of common field bus

protocols, e. g. Ethernet/IP,

Profinet IO and Profibus DP. If a

high network availability is

needed, the Media Redundancy

Protocol from Profinet IO may

be used. The valve islands comprise

up to 64 hot-swappable

valves. One-way valves provide

additional safety, because they

prevent pressure peaks in the

vent line. While type 8652 is

particularly compact to fit in

small cabinets, type 8647 is

compatible with the I/O system

Simatic ET 200SP.


Online search: cpp0218bürkert


Picture: Bürkert

Picture: Leser



Picture: Schubert

Automation modules for packaging line

Picture: Windmöller&Hölscher

Windmöller & Hölscher offer an

integrated automation and operating

concept called Easy Control

for their FFS (form, fill, seal)

packaging line. The solu tion consists

of various modules that can

be individually tailored to the

needs of the customer. One of

the modules allows the integration

of third-party equipment,

such as metal detectors,

inkjet printers and weighing

scales, into the line management

systems. Thus the operator has

only to learn one system. Another

module enables making

status alerts available on mobile

devices. The machine can report

upcoming roll change, for

which the most efficient route

can be planned in advance. An

office function offers the opportunity

to pull and analyse all of

the production data in the backoffice.



cpp0218windmöller


Digital platform facilitates service

Schubert offers the digital platform

Grips.world, which opens

up the opportunity for predictive

maintenance of the TLM

packaging machines and communication

with customers. The

platform will enable customers

to access the system production

data from anywhere worldwide.

Data sovereignty lies entirely

with the customer, who has the

opportunity to activate an access

for a service technician. The collected

data help to identify potential

problems at an early

stage, thereby avoiding downtime

and unplanned service

calls. In the future, the system

will forward error messages or

possible causes of an impending

failure to the responsive employee,

e. g. via mobile devices.

The packaging machine is

equipped with a particularly developed

machine interface for

secure remote maintenance and

data transmission.



cpp0218schubert


Picture: Krones

Online monitoring of valve seals

Krones presents an intelligent valve with the option to

monitor the seal’s situation in the installed state. This valve

is an outcome of a development project launched by Evoguard

and Syskron. Seal monitoring is achieved by a sensor

cable connected to the seal for signal interchange. Signal

lamps on the valve that light up in the colour codings

green (OK), amber (schedule replacement) and red (replace)

provide the operator with a visual indication of the

valve’s condition. In parallel, the data additionally obtained

directly from the seal are integrated via an A/D converter

to the data pool of the key performance indicators (KPIs).

They supplement information with regard to a machine’s

performance, such as the number of valve strokes and their

duty time, which are thereupon automatically available in

a cloud solution. The client can then access the data for life

time analysis using an app on a smartphone or tablet. Alternatively,

the valve could automatically send a notification

to the manufacturer that replacement is required

and evoke a purchase order.


Online search: cpp0218krones

Forum 0, Booth E1

Easy to use X-ray powder diffractometer

Aeris from Malvern Panalytical

is an easy to use X-ray powder

diffraction (XRD) instrument. It

is accessible for everyone – its

built-in touch screen with the

intuitive interface directly displays

all results. At the same

time Aeris is designed for low

cost of ownership – it only

requires a single-phase power

outlet and needs neither cooling

water nor compressed air.

Nevertheless, as the instrument

incorporates many technologies

proven on Panalytical’s high-end

systems, its performance is exceeding

typical benchtop X-ray

diffractometer performance.

Data quality and speed of data

acquisition have so far only

been observed on full-power

systems. Additionally, Aeris is

fully automatable and can be incorporated

easily in industrial

production control.



cpp0218malvern


Picture: Malvern


cpp ACHEMA PUMPS

Pictures: Busch Vacuum Pumps and Systems

The Dolphin LM/LT vacuum pumps have been completely redesigned but are based on the proven liquid ring vacuum technology

Classic vacuum technology and yet still state of the art

Liquid ring vacuum pumps

Due to their simple and robust design, liquid ring vacuum pumps are suitable for

generating vacuum in moist gases or vapours. They are used, amongst other things,

for rough vacuum generation in the chemical industry. The modular design of the

new Dolphin series of liquid ring vacuum pumps, which Busch Vacuum Pumps

and Systems will present at Achema, has significantly reduced the number of

components.

The principle behind the liquid ring vacuum

pump was developed back in 1890 as

the “water ring pump”. Due to their simple

and robust design, liquid ring vacuum

pumps are suitable for vacuum generation

in applications where moist gases or vapours

are evacuated or where condensation

inside the vacuum pump tends to take place

during the compression process. They are

therefore ideal for wet processes and are the

system of choice for low vacuum generation

in process technology, the chemical industry

and many other industrial applications.

Operating principle

Liquid ring vacuum pumps use water, or a

liquid which is compatible with the gas or

vapour to be evacuated, as the operating

fluid. Ethylene glycol, mineral oils or organic

solvents are also employed, as are

other liquids that are already part of the

process. The basic principle is the same for

all sizes and versions.

An eccentrically mounted impeller rotates

within a cylindrical housing. This housing is

filled with operating fluid to the extent that

the impeller vanes are immersed in it. The

rotary motion of the impeller and the resulting

centrifugal force cause the fluid in

the housing to form a so-called liquid ring.

The gas is pumped into the spaces between

the individual vanes and the liquid ring.

Thanks to the eccentric arrangement of the

impeller, the volume of these spaces

changes, causing gas to be sucked in, compressed

and discharged again. The liquid

ring seals the individual spaces down to the

cylinder. It is therefore sometimes referred

to as the sealing fluid rather than the operating

fluid.

Mechanism

Due to the operating fluid, this mechanism

can only be used in the rough vacuum

range. The reason for this is that the achievable

vacuum level depends on the vapour

pressure of the operating fluid which is

pumped constantly through the vacuum

pump. This allows a liquid ring vacuum

pump to be operated at relatively low temperatures;

in addition, the temperature rise

of the medium is kept to a minimum during

the compression process. Liquid ring

vacuum pumps are hence perfect for pumping

vapours and gases with a high moisture

content. The low temperatures in the vacuum

pump are favourable for the condensation

of process vapours. To a certain extent,

this means that the vacuum pump

simultaneously functions as a condenser and

because condensation takes place when the



mixture enters the vacuum pump, the volume

is drastically reduced. Apart from the

condensation effect, this also results in an

increase in the nominal pumping speed.

The operating fluid absorbs the heat of

compression and since liquid ring vacuum

pumps are virtually isothermal, they offer

advantages when pumping temperature

sensitive products such as polymers.

One significant benefit of liquid ring vacuum

pumps is that both the operating fluid

and the materials used for the components

can be adapted to fit the medium being

pumped. Corrosive or explosive gases and

vapours can thus be pumped, too. Due to

the low operating temperatures, pumping

explosive materials can, in any case, be considered

much less problematic than with

other mechanical vacuum pumps.

Construction

A basic distinction is made between single

and two-stage liquid ring vacuum pumps.

Cross-sectional view of a

Dolphin liquid ring vacuum

pump compression chamber

ASK THE EXPERT

NEW SERIES OF DOLPHIN PUMPS

Uli Merkle, Head of Marketing Services,

Busch Dienste

Busch is presenting new series

of Dolphin liquid ring vacuum

pumps at Achema. What

changes have you made?

Both series have been completely

redesigned. Visually, it is

immediately obvious that the

flow channel is now integrated

into the pump housing. This and

the directly flange-mounted

motor make the vacuum pumps

more compact, and a base frame

is no longer required. In addition,

these vacuum pumps are

perfectly suited for installation

or as individual vacuum mod-

ules in vacuum systems. Thanks

to the modular design, it was

possible to considerably reduce

the number of components.

What are the main technical

features of the new vacuum

pumps?

The difference between the two

series lies in the ultimate pressure

that can be achieved, i.e. the

maximum vacuum level. With

the Dolphin LM, the two compression

stages work in parallel

on one shaft. This makes it possible

to achieve an ultimate

pressure of 130 hPa (mbar).

With the Dolphin LT series, the

two compression stages are connected

through the flow channel

so that air, gases or vapours

to be extracted go through them

one after the other. This results

in two-stage compression and

therefore means that an ultimate

pressure of 33 hPa (mbar) can

be reached.

What are the special advantages

of the new series?

In order to prevent corrosion

within the vacuum pumps, stainless

steel impellers are used as

standard, while the standard version

of the housing is made of

cast iron. This material configu -

ration allows for a variety of applications

in processing technology

to be covered. We also offer

stainless steel housing for handling

highly corrosive media. All

sizes are also available in different

Atex versions and temperature

classes. As a result, these

vacuum pumps can be used in

almost all processes in the

chemical and pharmaceutical industry,

as well as in many other

branches. All vacuum pumps

from the Dolphin LM/LT series

are equipped with IE3 standard

motors which guarantee energy-efficient

operation. The optimized

shaft seals contribute to a

significant increase in service

life. Depending on the pumped

medium, Viton and FFKM are

available as material variants.

What will Busch‘s other exhibition

focuses be at this year‘s

Achema?

In addition to the new Dolphin

LM/LT series, we will also be

showing solutions for processes

in which the pumped medium

should not condensate inside

the vacuum pump. For this purpose,

we will be presenting a

dry Cobra NC screw vacuum

pump, one that does not use

operating fluids. These vacuum

pumps achieve a considerably

higher vacuum level compared

to Dolphin liquid ring vacuum

pumps. We will demonstrate the

Cobra NC in a vacuum system in

combination with a vacuum

booster. As individual solutions

for vacuum generation are often

required, particularly in chemical

processing technology. We

will round off our presentation

at Achema with an explosion

shock-proofed R 5 RE rotary

vane vacuum pump. They are

designed to convey explosive

gas/air and vapour/air mixtures.

The Atex-certified vacuum

pumps are suitable for extracting

almost all substances from

explosion group IIB3 as well as

petrol vapours.



In the single-stage version, the compression

process described above is performed in

one compression stage. In the two-stage

vacuum pump, the pre-compressed medium

from the first stage is conveyed to a second

stage and compressed again. Ultimate pressures

of 130 hPa (mbar) can be realised

using single-stage liquid ring vacuum

pumps, while two-stage versions can

achieve up to 33 hPa (mbar).

Even the sizes vary significantly. Busch

Vacuum Pumps and Systems has several

different series and versions of the Dolphin

liquid ring vacuum pumps in its portfolio,

with pumping speeds ranging from 25 to

26,500 m³/h.

Variants

The operating fluid can be supplied and removed

in three ways:

• Non-recirculating or once-through operation:

This is the simplest method of operating

a liquid ring vacuum pump and is

possible whenever there is sufficient operating

fluid available. The compression

stage is constantly supplied with fluid,

which is subsequently discharged together

with the gas and the condensate.

• Open fluid circuit or partial recirculation

operation: In an open circuit, the operating

fluid is diverted into a liquid separator

together with the gas after it exits the vacuum

pump. The liquid and the gas are

then separated. The gas is discharged or

transferred while the operating liquid

flows back to the pump. Additional fresh

operating fluid is supplied via the liquid

Gas flow through a two-stage liquid ring

vacuum pump

separator. This guarantees that there is

enough liquid in the circuit and that the

temperature does not rise. An open-circuit

design can reduce the consumption of

fluid by up to 50% compared to non-recirculating

operation.

• Closed fluid circuit or total recirculation

operation: There is also a liquid separator

downstream from the pump in a closed

circuit. Gas is discharged from the sepa -

rator, while the operating fluid is diverted

by means of a heat exchanger prior to reentering

the vacuum pump. The operating

fluid is thus maintained at a constant temperature

and only small amounts of fresh

fluid need to be added via the liquid separator.

A closed circuit is therefore recommended

whenever sufficient operating

fluid is not available or as much fluid as

possible needs to be conserved.

Dolphin liquid ring vacuum pump with an

open operating fluid circuit

Tailored vacuum systems

Liquid ring vacuum pumps are exceptionally

well suited for use as modules in vacuum

systems and installations. Lower ultimate

pressures can be realised in combination

with gas, air or steam ejectors (jets)

or with Roots type vacuum boosters. Technically

and economically optimum solutions

can be achieved using vacuum systems that

are directly tailored to the individual application.

The various Dolphin liquid ring vacuum

pump sizes from Busch are also available

in Atex-certified versions.

www.prozesstechnik-online.de

Suchwort: cpp0218busch


AUTHOR:

ULI MERKLE

Head of Marketing Services,

Busch Dienste

Hall 8, Booth D54

www.dickow.de

Made in

Germany

PRM acc. to API 685

Application range for

oil and gas industry

100% leakproof – the GREEN one!



Pictures: Flux

Lukas Lehmann, Assistant Editor-in-Chief of cpp, interviewing Klaus Hahn, Managing Partner of Flux Geräte GmbH, and his Sales

Manager Jürgen Rabenseifner

Drum and container pumps with a modular design

Built with a heart of steel

Flux originally launched its 400 series of drum pumps in the market sixty years ago.

Today, the series includes eight different drum and container pumps for vertical or

horizontal delivery. Read on for an interview with Klaus Hahn, the company’s Manag -

ing Partner, and his Sales Manager Jürgen Rabenseifner to discover how Flux has continuously

expanded this series over time.

Flux brought the first electric drum pump to market in 1950.

Mr. Hahn, what was the idea behind its development?

Klaus Hahn: Before that, drum pumps were always manually operat -

ed. This was both time-consuming and strenuous. Because of this,

our company had the idea of combining drum pumps with an electric

motor. Flux has traditionally had a high level of competence in

the electric drives area, which is probably why we were able to come

up with this particular invention. That’s how the world’s first electric

drum pump came into being back in 1950. An explosion protected

version followed in 1953. We were also the first supplier in the

world to offer this product. In 1957, we then introduced the 400 series

of pumps, which will celebrate its 60 th anniversary this year.

How did your company gain its expertise in the electric drive

technology field?

Hahn: Flux started out manufacturing electric motors for Progress

vacuum cleaners, which at the time were made in Stuttgart.

Back to the 400 series. These are axial centrifugal pumps. What advantages

does this type of pump offer users?

Hahn: These pumps can be used universally. However, their biggest

advantage is that they work without pulsation, creating a very even

flow.

Over the last sixty years, the company has built an extensive prod -

uct family based on the 400 drum pump series. What was the driving

force behind this family’s consistent expansion?

Hahn: That’s always been our customers, who continue to confront

us with new pumping tasks they want to handle with the 400 series.

For our engineers, this means the pumps regularly need to be

adapted to new process conditions in a wide range of industries.

And that’s how the first 400 series became a product family, which

today comprises eight different drum and container pumps.

Could you give us a quick overview of the various pumps that are

part of the 400 series?

Hahn: The 400 series basically includes drum and container pumps

with or without a mechanical seal for vertical or horizontal pump

delivery. They can be used for different kinds of media.


Could you also describe a few examples of pumps in the series?

Hahn: The F/FP 430 is a pump with a mechanical seal for vertical

standard applications. It is available for submerged depths of up to

3 m. Its counterpart for standard applications without a mechanical

seal is the F/FP 424. Both pumps have their own unique strengths

and fields of use. The F 426 mixing pump is designed for conveying

and mixing non-homogeneous media with a tendency to separate.

And then I’d also like to mention the F/FP 425 residual drainage

pump, whose strength is conveying especially expensive media.

Can you explain that please?

Hahn: This vertical conveying pump with a mechanical seal pro -

vides up to 99.98 % drum drainage. That means just 40 ml remains

in a 200 l drum after the pumping process. A non-return valve that’s

closed before the pump is removed makes this possible. The medium

is prevented from flowing back into the drum.

Do pumps for hygienically sensitive applications in the food and

pharmaceutical industries also exist in the 400 series?

Hahn: Yes, the F/FP 427 for example. This vertical delivery drum

„Our customers continue to confront us

with new pumping tasks for the 400 series.

That’s the driving force behind the development

of these pumps.”

and container pump has a sealless design in the liquid area. It is

manufactured from stainless steel and can be disassembled completely,

which makes it very easy to clean. We also offer it in a 3A sanitary

version for the American market.

Up to now, you’ve only discussed pumps for vertical applications.

Could you please also describe one for horizontal delivery?

Hahn: The Miniflux container pump was developed for horizontal

use on IBCs. Despite its extremely compact design, it achieves a

strong flow rate.

As the examples you’ve mentioned indicate, the pumps in the 400

series are very well tailored to a wide range of tasks. This is due to

their different seal designs and rotor types. What rotor versions

does the portfolio include?

Hahn: Before I come to the rotor types, I’d like to say one more

thing about the seal designs: all our plastic pumps with mechanical

seals have a heart of steel. This is a steel pipe coated on the exterior

with plastic in which the pump shaft is housed, with a mechanical

seal on the bottom end. On the one hand, the steel pipe creates a

defined position for the mechanical seal – even if the temperature

fluctuates. On the other, it stabilises the travel of the pump shaft,

which is a very important factor especially at submerged depths of

over 2 m.

And why is the steel pipe coated with plastic on the outside?

Hahn: To create chemical resistance to the conveyed media.

Versioned catalog production

Perfect project management for highly complex jobs

Tools for an efficient workflow

druck@konradin.de

www.konradinheckel.de

katalog_V5_188x32_1c_en.indd 1 24.01.2011 15:14:15

portable probes

Gas Analysis

11.06. - 15.06.18 / Frankfurt

hall 11, stand A43

Welcome!

cpp 02-2018 61

BUEHLER-TECHNOLOGIES.COM >> product introduction / data sheets / contact person


Let’s get back to the rotors. What kinds of design are available?

Hahn: We equip our pumps with axial or semi-axial rotors, which

are also called centrifugal rotors, depending on the customer’s

needs.

When is which kind of rotor used?

Hahn: We recommend axial rotors for applications where a high

delivery rate is desired. Semi-axial rotors are preferred whenever

the medium needs to be conveyed over long distances at high pressure

or if it has to overcome a big difference in height.

In which materials does Flux offer its 400 series drum and

container pumps?

Hahn: That depends firstly on their resistance to the media to be

conveyed and secondly on whether the pumps will be operated in

explosion hazard areas. The spectrum of possible materials for components

that come into contact with the product ranges from polypropylene

or polyvinylidene fluoride to aluminium and stainless

steel or Hastelloy C.

The F/FP 430 vertical pump with a

mechanical seal can be quickly disassembled

into interior and exterior pipes

Are all pumps approved for use in explosion hazard areas?

Hahn: No. The F/FP 427 hygiene pump, which can be fully disassembled,

and all plastic pumps like the F 430 PP 100/50 container

pump, which is made of polypropylene, must not be used in explosion

hazard areas. Apart from these, all other pumps in the 400 series

and made of stainless steel or Hastelloy C have Atex approval.

Not even the best pumps can function without a drive. What

options does Flux offer for the 400 series?

Hahn: Depending on the customer’s needs, the pumps either have

an electric or a pneumatic drive. Of course, the highest demand is

for electric drives and above all commutator motors.

Which Flux also manufactures in-house.

Hahn: That’s right. We manufacture them ourselves here in Maulbronn.

Why does the company make its own motors?

Hahn: For quality and flexibility reasons. Our customers value the

high quality of our products. By manufacturing our own commutator

motors and implementing our own accompanying quality man -

agement system, we can keep a handle on quality ourselves. In addition,

we can react very flexibly to different country-specific requirements

with respect to the voltage and frequency at which the

motors can be operated.

Jürgen Rabenseifner: By producing our own motors, we’re better

able to react to customer requirements. I’m thinking of one case we

recently handled for customers from the Middle East. They were

looking for an explosion protected pump unit that could be operat -

ed up to an ambient temperature of +60 °C. The Atex approval only

covers a temperature range up to +40 °C. With this requirement in

mind, we developed our explosion protected F 460 Ex commutator

motor to handle the desired ambient temperature. Then we had PTB

certify the entire pump unit, consisting of the F 460 Ex HT motor

and the sealless F/FP 424 (HT) pump, in accordance with Atex requirements.

The 400 series also includes so-called pump sets. Mr. Raben -

seifner, what are these sets exactly?

Rabenseifner: They’re pre-configured units consisting of a pump,

motor, hose and pump nozzle. They offer two major advantages for

In the polypropylene version of the F 430, a

heart of steel in the inner pipe compensates

temperature fluctuations, ensuring that the

mechanical seal remains tight

users: We tailor all the components to the medium to be conveyed

as well as to the application. Secondly, these units can be put into

operation immediately.

Could you describe a typical example of how a 400 series drum

and container pump is used in the chemical industry?

Rabenseifner: That’s quite difficult because these pumps are used in

such a wide range of applications in that industry every day. One

frequent use is delivering hazardous materials such as amines to a

tank, then filling them into holding tanks. The FP 425 Ex S with a

non-return valve is used for this purpose, for example. In conjunct -

ion with a flow meter, an overfill protection device and appropriate

emission control equipment we can create a semi-automatic filling

system that fulfils the highest safety requirements.


Online search: cpp0218flux


THE INTERVIEW WAS CONDUCTED BY:

LUKAS LEHMANN



Industrie

The

network of

expertise

for industry

18 media brands for all major sectors

of industry

Information, inspiration and networking

for professionals and industry executives

Practical knowledge spanning all media

channels: Trade journals, websites, newsletters,

whitepapers, webinars, events

Your qualified partner for future topics

of industry

Discover the appropriate media for

you and your specific industry sector:

konradin.de/industrie

media.industrie.de



Achieving optimum service lives with hydrodynamic shaft seal

Shaft protected by

whirlwind

The horizontal and vertical pumps by Bungartz cope with complicated, difficult

or dangerous process conditions since the company’s very first days.

For each and any specific application, a technically and economically perfect

solution has been developed. The key component is the hydrodynamic shaft

seal, which operates like a whirlwind without wear and tear.

More than 70 years ago, the sturdy slurry

pump MOR conveyed the difficult to handle

medium corn mash for Maizena (now Cargill).

The “M” in the name remained as well

as the numerous benefits characteristically

representing today’s durable horizontal

pumps MOS and UMOS, which are capable

of dry running. One of the fundamental

prerequisites for the success of these centrifugal

pumps is the hydrodynamic shaft

seal. This seal basically consists of a distinctive

blading on the impeller’s rear side.

Thus, the pumping medium is carried away

Circulating pump M-UMOR

with semi-axial impeller for

conveying ammonium nitrate

Pictures: Bungartz

from the shaft opening protecting the

downstream shaft seal system. Depending

on the application case, many of the pump

ranges by Bungartz combine the hydrodynamic

seal as primary seal with a downstream

secondary seal (gland, mechanical or

lip seal, or magnetic coupling). No sealing

(no gland, no mechanical seal) is required

during the operation of the horizontal centrifugal

pumps MOS and UMOS. The hydrodynamic

shaft seal operates without any

friction and wear. It is well known that it is

suitable for solids: “Some time ago a MOR

was removed. It had been working since

1948 and was fully functional all the time,”

tells Frank Bungartz, General Manager of

the company of the same name. This pump

type still has its merits. An example for this

represents the big circulating pump

M-UMOR (900 m 3 /h), which is, for instance,

used to convey ammonium nitrate.

The pumps of the ranges MOS/UMOS and

MOR/UMOR (designs for high/low suction

heads) achieve best results for pumping

media which are corrosive, abrasive, viscid,

gas-laden, crystallising or gelling. Thanks to

their high reliability, very high availability

and low maintenance costs, they are used in

a wide variety of plants. They are used globally

to convey ammonium nitrate, ammonia,

urea solutions or phosphoric acid.

Toxic, outgassing and hazardous

Toxic waste water, hazardous or outgassing

liquids, or solid-laden, sludgy, crystallising

or corrosive media require leak-free pumps

with hermetic seals. Conventional magnetcoupled

centrifugal pumps or canned motor

pumps do not meet these specific requirements.

Usually, they are equipped with

liquid-lubricated slide bearings, which are

not safe to run dry and are subject to high

wear. They require a clean, solid-free liquid

for bearing lubrication. The pumping medium

is typically used for this purpose.

The design of MPCV-AN follows a different

approach. The vertical pumps function

without bearings in the pumping liquid. In

this case the shaft seal concept of the permanently

dry-running pump is also based


®

Sadko Meusel explains the pump principle

of the safe to run dry magnet-coupled

vertical pump MPCV-AN by means of a

functional model

on the completely hydrodynamic relief of

the bearing and seal unit. The concept is

based on permanently grease-lubricated

roller bearings. They are protected against

the product vapours by a gas barrier. An

eddy current-free magnetic coupling seals

the pump hermetically from the surrounding

environment. Roller bearing service

lives of more than five years continuous operation

are the norm. Also thanks to the vertical

orientation of the pump, the bearing

and sealing unit runs entirely without product

contact, even in the event of a sealing

gas failure. Even high volumes of solids and

gases are permitted. Like all pumps in the

V-AN range, the MPCV-AN works with

special control characteristics, i. e. the

pumps adapt automatically to variable feed

rates – without any mechanical or electrical

regulation equipment. And as with all

pumps of the V-AN range, considerable cost

advantages can be achieved through the correct

pump selection. Through early planning,

there is no need for the construction

of pits, scaffolding or vessels, while regulator

valves, signals, etc. can be dispensed

with completely.

On-site operation

Substances are heated to temperatures of up

to 1000 °C and blended at a company. The

resulting highly hazardous medium that

forms hydrochloric acid vapours upon contact

with humidity, ought rather be a job for

the already described pump type UMOR

with hydrodynamic seal. The disadvantage:

This pump type, equipped with mechanical

seals, would have to struggle with chlorine

ions diffusing through the sliding clearances

of the mechanical seals. This type of

seal would reach a service life of approx.

two years. This is why Bungartz counts on

another pump type: the magnetically

coupled pump MPCV-AN was installed in

October 2008. According to the operating

manual, the pump should undergo a maintenance

service after two years. The operator

carried out vibration measurements each

month. No malfunctions on the bearing

were found until that time. This is why the

operator ignored this specification. Even in

the following years no malfunctions or failures

occurred. The reserve pump, which

was acquired at the same time as the MPCV-

AN, has not been put into operation at all. It

is still waiting to be used. In the meantime,

the installed MPCV-AN is running for more

than 50,000 h – permanently and without

any incidents. Eventually, the operator asks

Bungartz what is about to happen with the

necessary reserve pump.

After extensive discussion with the team at

the centrifugal pump manufacturer, the responsible

engineer at the operator’s decides:

The reserve pump is to be activated so that

the used pump could undergo the recommended

maintenance after more than six

years of operation. In the meantime, the

bearings and seals of the reserve pump are

replaced. Thus optimally prepared it takes

over its duties – just as smooth as the removed

pump. Meanwhile, the removed

MPCV-AN, which did not have to experience

an inspection since its installation, is maintained

at the production site in the Eifel region.

Here also, it shows no anomalies.


Suchwort: cpp0218bungartz


AUTHOR:

ANNETTE VAN DORP

Freelancer

Innovations for heating

Flexible

electical

heating technology

• Chemical heated hoses

• Transfer- / delivery hoses

• Ex-heated hoses

• Barrel heaters

• Pipe trace heaters

• Heating plates

• Special solutions

We exhibit at:

Achema 11.–.15. June 2018

hall 11.1. booth E15

We are looking forward to see you!

Hillesheim GmbH

Am Haltepunkt 12

D-68753 Waghäusel • Germany

Phone.: +49 72 54 / 92 56-0

E-Mail: info@hillesheim-gmbh.de

www.hillesheim-gmbh.com


cpp ACHEMA INSTRUMENTATION, CONTROL, AUTOMATION

Profinet takes on a leading role in future automation concepts

One network for every

application

When it comes to cloud connections, modular systems, optimised maintenance

activities, etc., digitalisation is quite simply a must for the process industry. Current

efforts are focused on easy access to sensor and actuator data, and communication

technology is playing an increasingly important role.

Today’s control systems don’t make it easy

to connect supplementary tools, such as

those for optimisation, because an engineering

process is generally necessary for integration.

Accessing a sensor via the control

system’s controller normally entails a lot of

effort. Since it is not desirable to modify an

operable system, most people choose not to

bother. Yet to many users, this situation just

isn’t good enough. At the same time, incorporating

this data in asset management,

condition monitoring or other IT systems

requires higher bandwidths and Ethernet

support. It is very likely that these requirements

will increase again in the context of

digitalisation and Industry 4.0.

This is why a whole host of concepts and

processes enabling access to the data in

question have been developed over the last

few years. One current example of this is

NOA (the Namur open architecture concept),

which allows monitoring and optimisation

applications to be initially integrated

as a prototype, for a limited time

only or permanently without having to engineer

the system.

Ethernet-based communication technologies

like Profinet are a crucial pillar of future

automation designs, as they are responsible

for the secure transmission of information.

By using industry-specific profiles,

Profinet is also able to provide the data

with semantics, so that it takes on useful

meaning. Profinet facilitates the integration

not only of other networks, such as upstream

or downstream production steps like

packaging lines, but also of diagnostic and

maintenance tools or additional, individual

sensors. The advantage here is that Profinet

can work with such a wide variety of networks

whereas the user has only one.

With OPC UA, the connection to higher levels

is very easy to implement without an

additional network on account of the NOA.

For a long time now, PI has been cooperating

with the OPC Foundation with the goal

of utilising OPC UA in PI technologies. The

FDI specification actively promoted by PI in

cooperation with the FieldComm Group

uses OPC UA services, for example. The OPC

UA for Devices specification which is already

established there is also used to map

Profinet. Thanks to the TCP/IP channel in

Profinet networks, which is traditionally

open, OPC UA access to lower-level devices

is possible via the controllers and gateways

or even directly.

An OPC UA Profinet companion specification

targeted for completion in mid-2019

is currently in preparation. Device manufacturers

can continue to integrate proven

Profinet services; information on OPC UA

services can then be displayed in the relevant

devices according to the defined mapping

and depending on the customer’s

requirements.

Profinet offers suitable solution concepts to meet the increased requirements arising from digitalisation

and Industry 4.0

Pictures: Profibus

Process-specific requirements

This isn’t the only way that Profinet has

been adapted to the specific needs of the

process industry over the past five years,

though. Cyclic and acyclic data exchange,

the integration of fieldbus systems using

proxies, time synchronisation and time


APL – Extension of the IEEE 802.3cg standard

for use in the process automation

Architecture of an Ethernet network with APL

stamping, diagnostics and redundancy or

configuration of the system on the fly are

likewise possible. The industry’s characteristic

requirements have meanwhile also

been integrated into Profinet Tester, which

is used to carry out automated test runs at

accredited PI test laboratories by testing

both the interface functionality’s conformity

with the standard and the interoperability

of devices from multiple manufacturers.

New paths in hazardous areas

Every step was carried out in very close cooperation

with Namur. This will also apply

to the next set of tasks when field devices

with a Profinet interface are made accessible

to explosion-protected areas.

A little background information is needed

here: the use of Ethernet-based interfaces

with field devices for process instrumentation,

for example when explosion protection

requirements must be taken into account,

has its limitations. Apart from explosion

protection, the process industry also

needs two-wire communication. Segment

lengths of up to 1000 m are necessary in

large-scale chemical plants, and the process

sensors and actuators must be powered via

the two-wire connection parallel to communication

(loop power).

Since it makes sense to standardise this kind

of development, numerous representatives

from production, process and building

automation, as well as PHY manufacturers,

got together to initiate an IEEE call for interest

in July 2016. Just six months later, the

IEEE 802.3cg Task Force was ready to start

work on the specification of a new standard.

Based on this, ASIC manufacturers can now

develop an Ethernet PHY which is suitable

for an array of applications like the building,

manufacturing and process industries.

The special challenges of explosion protection

cannot be solved by IT experts, however.

This is why the three organisations –

FieldComm Group (FCG), ODVA and PI

(Profibus & Profinet International) – as well

as eleven industry partners of the APL (Advanced

Physical Layer) project have taken up

the gauntlet. On the one hand, an APL interface

with a very low energy requirement is

called for to enable intrinsically safe field

devices to be implemented. DEKRA EXAM is

presently collaborating on this. On the

other, this interface must be designed in

such a way that it is still economical. After

all, there are thousands upon thousands of

very simple temperature and pressure transmitters

at any chemical facility, so that expensive

interfaces simply aren’t realistic

here.

The APL project thus supports the current

work of the IEEE 802.3cg Task Force. The

framework for the new Ethernet standard

has already been defined: a data rate of

10 Mbps, simultaneous transmission and

reception via a two-wire line (full-duplex

communication) and optional an power

supply to connected terminal devices over

the same line (power over data line).

One central task of the APL project team is

to ensure the interoperability of APL components.

This includes specifying intrinsically

safe communication and supply as well

as the associated profiles, so that industrial

Ethernet field devices can be used in

hazardous areas up to Zone 0 or Class 1/

Division 1. Ensuring the conformity of

these devices, and hence their interoperability,

is likewise a top priority.

Working together with users

In the meantime, conformance and EMC

tests are already being defined, guidelines

for installation and test scenarios developed

and reference implementations addressed.

The APL team now needs to install a pilot as

soon as possible, so as to gain experience

with the new technology together with

users. The first certified APL devices are expected

in 2021.


Online search: cpp0218profibus

Hall11.0, Booth C43

AUTHOR:

DR. PETER WENZEL

Executive Director,

PI (Profibus & Profinet

International)



Pictures: Emerson Process Automation

DeltaV Mobile seamlessly integrates with existing platforms in such a way that no additional DCS configuration is required, and there is no separate

database of tags to manage

Mobile solutions deliver the right information at the right time

Put the digital plant in the

palm of your hand

Mobile solutions put plant operations at the fingertips of users, providing access to

real-time process data, diagnostic information, trends and alarms and enabling these

to be monitored by the person best suited at any time, wherever they happen to

be. This 24/7 access to operational intelligence, beyond the confines of the control

room, facilitates quick and well-informed decisions.

Distributed control system (DCS) workstations

in a control room typically allow

operators to access data quickly from

whichever systems fall within their realm of

responsibility. Should a problem arise, the

operator is directed to displays from which

they can troubleshoot and take appropriate

remedial action. However, what happens

when an operator needs assistance from

other plant personnel who are outside the

control room yet require access to the same

data? This is one of the challenges mobile

applications are helping to solve. By securely

delivering the right information to the right

people, well-designed mobile platforms are

transforming the way in which data on the

safety, reliability and performance of devices

and facilities is accessed and consumed.

Data access beyond the control room

In industrial applications, mobile solutions

are being integrated into automation workflows,

in order to increase efficiency and

improve plant operations by making operational

intelligence securely available on demand,

beyond the confines of the control

room. Mobile solutions enable real-time

process values, diagnostics, trends and

alarms from multiple sources to be monitored

by relevant personnel anywhere at any

time. The ability to monitor operations in

this way – without being restricted by regular

business hours or manual reports, and

without being tied to a particular computer

– provides insights that enable faster and

better-informed decisions.

Multilayered mobile solutions that collect

data from historians and other systems

require significant engineering effort for

configuration and maintenance, primarily

because they are not tightly integrated with

a particular DCS or historian. This can pre -

sent a significant barrier to implementing

such solutions. However, platforms like

Emerson’s DeltaV Mobile seamlessly integrate

with existing platforms in such a way

that no additional DCS configuration is

required, and there is no separate database

of tags to manage.

Furthermore, the tight coupling with the

DCS leverages existing configurations,

equipment hierarchies, diagnostics, control

logic and alarm rationalisation by bringing

what has already been configured in the

DCS to simplified, intuitive mobile views.


These mobile platforms provide the same

rich information that is shown on the operator

console – any parameter or alarm that

has been configured in the DCS. The alarms

update in real-time, exactly as they would

on the DCS operator workstation.

Filtered alerts

A wide variety of roles are incorporated

within manufacturing and process industry

organisations; each one requires access to

different information and with varying degrees

of urgency. Well-designed mobile so -

lutions are more than just remote views of

an existing DCS – they simplify information

which is often scattered across various business

systems and databases in intuitive mobile

screens that are easy to read and navigate,

and that are filtered to meet the user’s

specific needs.

Mobile applications provide customisable

filtering via a configurable series of watch

lists and notifications, which can be used to

cover a broad range of equipment, user

roles and times when the user is active in

plant operations. This can include periods

when they are either physically present in

the plant but away from their workstation,

or when they are away from the plant but

still on-call. A customisable interface provides

data filters such as area, unit, equipment,

module or alarm priority. This resolves

the problem of irrelevant nuisance

alerts and allows personnel to receive only

essential, actionable notifications.

Furthermore, the alarm information

supplies important context, such as trends

of relevant process values or recommended

actions. With this added context, users can

make better decisions regarding operational

events that could affect bottom-line business

results.

Extended collaboration

One advantage of mobile applications over

traditional DCS operator workstations is the

way in which they facilitate information

sharing and collaboration. Mobile solutions

connect plant managers, automation supervisors,

process engineers and subject matter

experts with access to essential real-time

data, contextualised alarms and historical

trends that can be shared easily, thereby extending

secure organisation-wide expertise

beyond the plant.

Screenshots of alarm details, process data

and trends can likewise be shared simply by

e-mail or text, even if the recipient does not

have the mobile application. Sharing a link

with other users via an e-mail or text mes -

sage directly connects recipients to the same

live mobile view, so that the sender and recipient

can view the same synchronised information

which is updating simultaneously

in real-time.

Data security

Transferring critical data from the plant

floor in a secure manner is a top priority for

companies everywhere. Thus, cybersecurity

is traditionally a key consideration in the

design of mobile platforms. Data transfer to

mobile devices utilises several crucial aspects

of secure connectivity, including

multi-level segmented architectures, user

authentication and authorisation or data encryption.

Whether viewing lists on a mobile device or

graphics in a web browser, mobile solutions

for monitoring are strictly read-only, preventing

users from inadvertently executing

operations. Process and diagnostic data is

sent to intermediate, secondary servers that

are located above the DCS or automation

control network and isolated by firewalls.

Mobile platforms access these servers via a

secure VPN or Wi-Fi, creating a built-in

means of transferring plant data securely.

Secure mobile platforms also provide

whitelisting and data encryption as part of

their multi-layered network security features.

In addition, users can connect to

multiple DCSs or other systems using OPC

(the interoperability standard for the secure

and reliable exchange of data in the industrial

automation space). This enables them

to obtain real-time data and trends from a

growing number of sources and translate

them into consolidated views.

Improving business results

DeltaV Mobile is reshaping the status quo

by putting the digital plant in the palm of

operators’ hands, wherever they happen to

be located, thus empowering them to improve

operational performance, safety and

reliability. By making it easier for managers

and engineers to share critical information,

it helps to streamline workflows and improve

business results. DeltaV Mobile provides

a number of key benefits in the digital

plant environment, for example operations

managers can maintain high visibility on

operations, monitor critical process values,

KPIs or alarms for the entire site, receive

notifications of critical alarms and communicate

with the team to resolve issues.

Safety engineers can monitor safety-critical

data and alarms for specific responsibilities,

maintain situational awareness by receiving

notifications and view alarms in real time,

monitor safety instrumented functions (SIF)

The mobile solution connects plant

managers, automation supervisors, process

engineers and subject matter experts with

access to essential real-time data, alarms and

historical trends

such as bypasses or partial stroke tests as

well as critical suppressed alarms. Process

engineers can access and view critical realtime

data, alarms and trends in order to

diagnose issues, evaluate what happened by

seeing alarms in context with process information,

obtain notifications for critical

alarms, quickly communicate issues and

troubleshoot with operators and remote experts.

Operators can maintain situational

awareness while away from the control

room by receiving critical notifications, respond

in the right way by always having access

to vital alarm information that includes

relevant process data and recommended actions,

and collaborate easily and securely by

sharing critical alarms and process data with

SMEs, no matter where they are located.


Online search: cpp0218emerson


AUTHOR:

SANJIN BIŠEVAC

Service Sales Manager

Europe,

Emerson Automation

Solutions



Picture: evgenii-stock.adobe.com/Wika

The resistance thermometers from Wika also defy the adverse conditions of the polar regions

Electrical thermometers for low ambient temperatures

Braving freezing cold

weather

Extreme cold is one of the harshest of all ambient conditions. What special design

requirements must electrical thermometers meet if they are to be used to control

and monitor processes at outside temperatures of -50 °C or less? Unfortunately, no

handy thermal jacket exists which can simply be slipped over them.

New oil and gas fields are still being developed

and mined despite far-reaching

concepts for alternative energy sources. The

majority of these activities are concentrated

in parts of Siberia and northern Canada,

where an Arctic climate prevails for several

months of the year. The increase in oil and

gas extraction in these regions and the need

to process it locally have resulted in a growing

demand for electrical thermometers

which are suited for low ambient temperatures,

notably for monitoring and controlling

processes in petrochemical plants.

A glance at the climate chart shows that operators

will not get far with standard products

under these conditions. Resistance thermometers

are normally rated for ambient

temperatures down to -40 °C. In regions

where extreme cold is a common occurrence,

that is not enough. A test temperature

of at least -60 °C is meanwhile used for all

measuring instruments destined for these

latitudes. Developing and specifying suitable

thermometers presents manufacturers with

daunting challenges. The materials, components

and design must ensure permanent

resistance to low temperatures.

In the field or in the control cabinet

At the heart of any resistance thermometer

are the electrics. The measuring resistor

itself – usually a Pt100 sensor – can survive

low ambient temperatures without any

problems. However, it’s a different situation

with the transmitter which converts the

measured value into an interference-free

output signal. In this case, users must decide

whether the transmitter should be integrated

into the measuring instrument’s connection

head or installed in the control

cabinet in the control room.

With head-mounted types, the transmitter

is close to the sensor, so that the resistance

signal’s susceptibility to failure is reduced to

a minimum. On the other hand, it is directly

exposed to the extreme sub-zero temperatures.

Transmitters installed in the control

cabinet work at the specified room tem-


Picture: Wika

Picture: Wika

The instruments are cooled to -70 °C in

special climatic test chambers

Used plastics must be able to withstand the low temperatures. The values shown in the diagram are

approximate and may vary according to the manufacturer and the type of plastic.

perature and hence provide better overall

accuracy. Then again, users must check upfront

for possible impacts on the connection

between the measuring point and the transmitter

and counter them if necessary by

choosing a higher cable quality.

They must also clarify in advance whether a

local indication is required at the measuring

point, because physical effects due to cold

are often observed on thermometers with

an LC display. The crystals start to freeze at

ambient temperatures below -20 °C. If the

temperature rises above this value again, the

display function may be restored following

a time delay, especially with low loop currents.

The LC display must not be destroyed

at temperatures down to at least -60 °C, and

the instrument must work normally again

after the temperature rises.

If the measured values must be indicated

continuously on site, either a second

measuring point with a dial thermometer

must be provided or a mechatronic measuring

arrangement selected. Additional effort

is necessary to specify either of these so -

lutions as low temperature resistant.

Use of suitable materials

The service life and functionality of electrical

thermometers at extreme sub-zero temperatures

are principally determined by the

behaviour of the plastics which are used. As

a rule of thumb, the brittleness of a plastic

increases the lower the ambient temperature.

At a test temperature of -60 °C, standard materials

soon reach their limits and become

brittle. Extensive damage can be caused to

the device in this way, so that the process no

longer functions reliably. Certain components

such as cable glands are often made of

metal from the outset for this reason.

In spite of this, measurement solutions

which are completely devoid of plastic remain

a utopia (take the seals, for example).

The materials which are selected must consequently

be suitable for low ambient temperatures.

Although this condition is nominally

fulfilled by high-quality plastics, right

down to -250 °C, the optimum choice is in

fact guided by the place of use during the

measurement because it is this that determines

the required elasticity. Seals which

work in static environments are less of a

problem.

This does not apply when it comes to the

sheaths for insulating cables, for instance.

These should not normally be moved, in

order to prevent micro-cracks and moisture

ingress. That also includes vibration and

thermal effects (expansion or contraction).

All cables must therefore be laid so that they

are stationary. Outgoing cables should be

laid in ducts along a wall or – provided the

process temperature does not distort the

measured value – the piping.

Apart from seals and cable sheaths, various

other components containing plastics exist

which must likewise be considered, for

example sealing compounds, adhesives or

painted surfaces. Particularly if the devices

are used in hazardous areas, the electrical

conductivity of these materials must be

taken into account as well.

Caution is similarly advised with components

made of metal. Stainless steel poses no

problems whatsoever at low ambient temperatures.

Aluminium alloys are far more

vulnerable, as a comparative drop test

shows: aluminium parts exhibit different

kinds of – and also more severe – damage at

low temperatures than they do at room

temperature. Critical components like connection

heads or cable glands are generally

manufactured from stainless steel for this

reason. Aluminium alloys should only be

used at those measuring points where

physical effects (impact or shock) can be

ruled out.

Complex test series

Complex test series are unavoidable to verify

whether an electrical thermometer is capable

of withstanding the extreme requirements

described here in practice. Both the

ready-to-use measuring instrument and its

individual components undergo tests to determine

their temperature cycling resistance

as per IEC 60079-0 and their IP protection

according to IEC 60529. The fully assembled

device is additionally subjected to an impact

resistance test, which is explicitly carried

out at the weakest points on the outside. A

tool is applied to the surfaces concerned by

a machine to see whether flaking or cracking

is likely. Thermometers intended for

hazardous areas (EAC-Ex) are required to

complete these tests with a “safety margin”:

instead of being tested at an operating temperature

of -60 °C, they are placed in a

special climatic test chamber at -70 °C to

preclude every conceivable risk to process

reliability.

The results of the test series are comprehensively

documented. Once the device has

been approved, this is confirmed to the customer

with a comment in the delivery note.


Online search: cpp0218wika


AUTHOR:

JOACHIM BRÜCKNER

Product Manager

Electrical Temperature

Measurement,

Wika



Cooling circulation thermostats

VISIT US AT

ACHEMA 2018

CONTAINMENT

11–15 JUNE 2018

HALL 3.1

REACH it.

STAND A75

Müller Containment Systems

Does your process comply with the requirements of REACH

in full? By using Müller Containment Systems these special





GMP-compliant Containment Valves MCV



Dustfree Systems with dust extraction

devices



Precise positioning and safe docking





3

(MCV)

REACH it now!

For more information, please contact:

MÜLLER GmbH · Industrieweg 5

79618 Rheinfelden · Germany

+49 7623 969-0

processing@mueller-group.com

www.mueller-group.com

since 1919

Will & Hahnenstein GmbH

The Heating Specialist !

heating and cooling jackets

for standing or lying

blending tanks

tailored to your

specific

requirements

PHARMA DRYERS

HEATING + DRYING + COOLING

for trays, containers,

component cleaning

Options

solvent condensation and recovery,

vacuum operation

L Talbahnstr. 1, D-57562 Herdorf

Tel. +49 (0) 2744 9317-0 - Fax +49 (0) 2744 9317-17

E-Mail: info@will-hahnenstein.de

E www.will-hahnenstein.de

Lauda has extended its PRO

portfolio to include two new

low temperature circulation

thermostats designed for the

specific requirements of test

benches, reactors, climatic

chambers and distillation plants.

With a temperature range of

-90 to 200 °C and a cooling capacity

of 0.8 kW, the RP 290 E

and RP 290 EC low temperature

circulation thermostats are ideal

as a substitute for dry ice in external

low-temperature applications,

for monitoring organometallic

reactions, and as a cooling

source for Brookfield tests,

to name but a few examples. The

RP 250 E and RP 250 EC models

offer a cooling capacity of

1.5 kW. All devices have a heating

output of 2.5 kW. A minimum

filling volume of 2.4 l and

an additional expansion volume

of two liters serve as a buffer to

counteract thermally induced

volume expansion, even on

larger consumers. The standard

use of natural refrigerants and a

Picture: Lauda

Large-scale solvent recycling

Ofru Recycling launches the

ACS-3000, a distillation plant

with which a separation of over

99 % purity can be achieved on

an industrial scale. The system

separates valuable solvents from

impurities such as water or

other liquid chemicals in a

highly-automated 24-h-operation.

A packed column with

Picture: Ofru Recycling

powerful, adjustable pressuresuction-pump

round off the

range of technical equipment

together with a hybrid cooling

system that cools the air of the

refrigerating machine and simu -

ltaneously allows water cooling

to reduce the dissipation of heat

into the environment. All PRO

devices are fitted with a detachable,

intuitively operated control

unit.


Online search: cpp0218lauda


automatic reflux is used to increase

the separation efficiency.

To process sensitive chemicals

carefully, distillation is carried

out under vacuum. Depending

on the substances to be sepa -

rated, the plant allows to recover

up to 10 t/d of liquid

recyclable materials. The benefit

of the plant is that the operator

is able to carry out very economical

treatment on his own

premises, thereby saving high

disposal and transport cost. An

investment of this kind is said to

have an amortisation period of

less than twelve months.


Online search: cpp0218ofru


We exhibit at: ACHEMA, Frankfurt, 11.06.–15.06.2018, hall 4.0, booth B66


Rotating cleaning nozzle with high impact

The Xactclean HP+ from

Lechler is made for higher flow

rates and offers additional

power especially for bigger

tanks. It is based on the same

successful functional principle

like the well known Xactclean

HP. The HP+ closes the gap between

static spray balls or free

spinning nozzles and cost-intensive,

high impact tank cleaning

machines. It enables the cleaning

of tanks and equipment also

at higher pressures up to 10 bar.

Special flat fan nozzles provide a

very uniform cleaning with

high impact. The robust drive

unit enables optimal rotational

speed and reliable function even

by using contaminated cleaning

media. This increases the process

reliability.

The high impact of the nozzles

enables shorter cleaning and ac-

celerates the overall cleaning

process. The Xactclean HP+ is

made of high quality, food

graded materials like stainless

steel 1.4404 and Peek. It can be

used in many applications of the

chemical industry as well as in

diverse processes of the food

and beverage industry.


Online search: cpp0218lechler


Picture: Lechler

FDA compliant

hydrogen ball valve

Picture: Hartmann Valves

Designed for hydrogen and

fitted with a metal-to-metal

sealing between the ball and

seat ring, Hartmann Valves’ ball

valve fulfils a leak rate of A or 0

and also complies with the high

level purity requirements of the

FDA. With FDA conformant

components such as O-rings

and the hard coating of the sealing

system, the valve is also

suitable as a reliable shut-off for

use in the foodstuffs industry.

Additional safety is provided by

the double piston design in the

upper seat ring which constitutes

a second barrier. A leaktightness

check can be made at

any time in the installed state by

means of an integrated drain

valve and injections are also

possible by this means.



cpp0218hartmann


Make your

system smart.

DULCOnneX for digital

fluid management.

June 11.-15.

ACHEMA

Hall 8.0

Booth J94

ProMinent‘s DULCOnneX is an intelligent way to digitally network

your system components. Our innovative fluid management

solution allows you to monitor, analyse and optimise metering

processes with ease.

Find out more www.prominent.com/dulconnex



Picture: Siemans

Integrated platform for IE3 motors

With its Simotics XP motors,

Siemens is providing a technologically

integrated platform

concept encompassing all explosion-proof

low-voltage motors

in efficiency class IE 3.

Based on a modular system, this

platform covers all types of explosion

protection. Standardised

selection and engineering tools

as well as uniform documentation,

which can be flexibly

adjusted to individual requirements,

accelerate the planning.

Process control system

Short delivery times and the

elimination of project-specific

system tests also cut project run

times. In addition, all important

global, country and industryspecific

certificates are already

available. By digitally mapping

the real plant and all its components

to create a digital twin,

the platform becomes a part of

the digital enterprise. The data

matrix code applied to the

motor including all technical

data, the spare parts list and

certificates allows the information

to be displayed in full

using the corresponding app.

Typical applications for the

motor platform include pumps,

fans, compressors, extruders,

mixers and agitators.


Online search: cpp0218siemens


The process control system Aprol R 4.2 from B&R Automation,

contains numerous software functions, including

improved cloud communication via OPC UA and

MQTT. The software functions help to optimize the efficiency

of plants and processes, e. g. by means of asset

performance monitoring, further condition monitoring

features, an extensive business intelligence solution and

optimized alarm management. The process control system

has also been expanded with more features such as

a PID tuning block based on the finite frequency

method. The control system comes with a „dark

style“that is said to give the operator a clean, modern

interface and to make operation easier. The overall state

of a process can be viewed in a radar chart. A full range

of redundancy options at every level are now integrated

as standard features of the system.


Online search: cpp0218bur


Picture: B&R Automation

Picture: Lewa

Modularly designed metering pump

Lewa’s Ecoflow series of diaphragm metering pumps,

which are suited for hazardous, toxic, abrasive, viscous or

critical media, has been supplemented by the 15 kW version

LDZ. This pump fills the gap between the LDG (6 kW)

and LDH (20 kW) sizes. The pump can be used as a single

or multiplex drive unit. Thanks to its modular design, customers

may choose between five different pump head

types, among which there are also designs available for the

use in food or pharmaceutical industries. The pump

achieves a maximum flow rate of 18 m 3 /h, and it can

handle many applications in areas including the chemical

and petrochemical industry in refineries as well as the oil

and gas sector. During development of the pump, special

attention was paid to optimising the components with

regard to the manufacturing process. The company announced

to pass on the resulting cost benefits to the

customers.


Online search: cpp0218lewa


Tablet for hazardous areas

The Pepperl+Fuchs brand Ecom

presents the compact lightweight

industry tablet Tab-Ex 02,

which is suited for hazardous

areas. Compared to predeces -

sors, it allows further applications

like augmented reality.

Based on the Samsung Galaxy

Tab Active 2, the industry tablet

commands the Android 7.1

Nougat operating system and

features a powerful Octa Core

processor with 1.6 GHz and

3 GB RAM. It is suited for IoTcapable

applications and simplifies

data exchange with

Scada/DCS systems, enterprise

resource planning systems, project

management systems and

computer-aided resource planning.

It may be used for a wide

range of tasks such as inventory,

material tracking, maintenance,

and supply chain or asset management.


Online search: cpp0218ecom


Picture: Ecom instruments


cpp ACHEMA PROCESS ENGINEERING

Hygienic mixer for powdery products

Rouge without stripes

Expectations are high when it comes to powdery cosmetic products such as eye

shadow, powder or rouge: they should be easy to apply to the skin, last a long time

and not crumble or create dust. In addition, they have to be treated particularly

hygienically like high-purity pharmaceuticals.

The powder mixture is primarily

composed of talcum powder, colour and effect

pigments and mica powder. Further

components such as powdery or liquid

binding agents are added to make these

powders compressible and extrudable. Adhesion

promoters ensure that the powder

remains on the skin all day long until the

make-up is removed. Colour and effect pigments

have a tendency to agglomerate due

to their fineness. If they are not sufficiently

well distributed in the powder matrix, they

can leave coloured stripes when applied to

the skin. The mixing step must therefore be

performed with a lot of shear energy. The

challenge in the mixing process is to distribute

the components as homogeneously

as possible so that they are deagglomerated,

in order to achieve a reproducible colour

and a fine-powdered end product. Other

components create opalescent and holographic

effects and must be added with particular

care.

High mixing quality fast

Such multi-step operations are guaranteed

in the Amixon mixer by the zero-clearance

circulation. A patented Sinconvex mixing

tool rotates in the centre of the mixing

chamber. The helical blade collects the mixture

at the edge of the chamber and carries

it upwards. When it reaches the top, it flows

downwards again in the centre of the vessel.

The components are optimally mixed at a

slow rotational speed irrespective of their

particle size, bulk density and flow properties.

Technically ideal mixing qualities,

which cannot be improved any further in

practice, are achieved after about 40 to 160

revolutions of the mixing tool. High-shear

blades are used in the Amixon mixers to

avoid agglomerates. They protrude laterally

into the mixing vessel and work at speeds of

up to 3000 rpm, deagglomerating, breaking

up lumps and activating the surfaces.

The cutting rotors also support the next step

in the manufacture of cosmetics: the ultrafine

distribution of the liquid binding

agents. The use of cutting rotors enables

liquid additives to be homogenised particularly

effectively. Highly viscous liquid additives

can be distributed into the powder.

They are injected below the filling level, directly

into the operating area of the cutting

rotor, using a feeding lance. The distribution

of the fluid thus takes place immediately

due to vortex, friction and centrifugal effects

when the energy input is increased.

The lance can optionally be equipped with a

nozzle and tempered if desired.

Discharge rates of up to 99.8 %

Following a short post-mixing time, the

manufacturing process in the mixer is complete.

The mixing chamber is completely

discharged without de-mixing. In practice,

discharge rates of up to 99.98 % or more

can be achieved under ideal conditions. Finally,

automatic wet cleaning can be carried

out using the patented WaterDragon system.

The requirements for a preparation mixer

are always determined by the individual application.

Amixon has over 30 different test

mixers, vacuum dryers and synthesis reactors

available for test trials, ensuring optimal

results. All apparatus have a hygienic

design and meet EHEDG, GMP and FDA

requirements.


Online search: cpp0218amixon


AUTHOR:

MATTHIAS BÖNING

Sales Manager,

Amixon

Pictures: Amixon

Powdery cosmetics are manufactured in

accordance with pharmaceutical standards,

which is why the mixers have to comply

with the same hygienic regulations

Two types of wetting are available: left,

through an injector nozzle and right,

through a multi-component nozzle



Polymer structure undamaged

Maximum dispersion

at the right moment

When polymer powders are added to the surface of the liquid, numerous

agglomerates form which then have to be broken up again through prolonged

dispersion under shear. However, subsequent dispersion damages the structure

of the polymer that has already been hydrated and cross-linked. This loss of

efficiency is typically compensated by an excessive proportion of polymer in the

formulation, which the Conti-TDS dispersing machine renders superfluous.

Polymers in powder form are used as

thickeners, gel forming agents, binders, flocculants

and functional additives in a variety

of applications from pharmaceuticals to

waste-water treatment. Processing polymer

powders in liquids is problematic, as these

products are highly shear sensitive after developing

their polymer structure. They tend

to stick and agglomerate as soon as they

come into contact with liquids. Moreover,

they are very light, fine and often dusty. They

can only be mixed into liquids with difficulty

and are liable to float on the surface. With

the Ystral Conti-TDS, the powder is not

added to the liquid surface. Instead, the machine

is installed outside the vessel; it recirculates

the liquid and inducts and disperses

the powder into the liquid stream.

In a fraction of a second

Powders consist of individual particles,

which contact each other in the unreacted

state. There is, of course, air between these

particles that expands under vacuum. The

Conti-TDS uses this effect to separate the

powder particles before they are mixed into

the liquid. The machine creates an extrapowerful

vacuum directly in the dispersing

zone. The powder is inducted into this zone

precisely. The closer the powder comes to

the dispersing zone, the higher the vacuum

and the larger the distances between individual

particles. No air is added – the air

which was already present in the powder

beforehand simply expands.

The individual powder particles and the

liquid come into contact under maximum

turbulence in the dispersing zone, where

they are fully wetted and colloidally dispersed.

No agglomerates are formed. No

further dispersion is required. At the moment

of wetting the powder is not yet hydrated

and the polymer structure not yet

formed. This means that the product is not

yet shear sensitive. Maximum dispersion is

desirable and encouraged at precisely this

moment; it is no longer wanted afterwards

in a downstream dispersion stage or machine.

The shear forces only last for a fraction

of a second.

Pictures: Ystral

Processing system with the Conti-TDS for polymer powders

Agglomerates broken up

Even if the powders contain hard and dry

agglomerates, they are fully wetted in this

way and the agglomerates are not stabilised

– as they would be if they were simply injected

or stirred in – but broken up. This is

due to the fact that agglomerates also contain

air internally between the particles. This

internal air expands when approaching the

dispersing zone, which is under vacuum.

The air escapes from the agglomerate without

the agglomerate disintegrating. The agglomerate

is fully wetted on the outside in

the dispersing zone. Wetting takes place

under maximum vacuum.

The agglomerate, which is fully surrounded

by liquid, then advances together with the

liquid and emerges from the zone of maximum

vacuum and maximum dispersion


Separation and wetting of the powder particles in the dispersing zone under vacuum

into the zone of maximum excess pressure

and maximum centrifugal effect. The internal

air now contracts similar to an implosion

under the excess pressure acting on it

and draws in the surrounding liquid to its

centre as a result. The agglomerates immediately

disintegrate owing to the simultaneous

strong dispersion.

The air which was previously contained in

the powder, but is now separated from it,

coagulates under the centrifugal effect of

the rotor into large air bubbles and is transported

to the process vessel together with

the liquid, where it escapes via the liquid

surface.

Economical operation

The process is characterised by particularly

gentle, rapid dispersion and maximum wet-

ting of the powder. Manufacturers of paints,

cleaning products, cosmetics and adhesives

are able to reduce the amount of polymer

thickener by 10 to 15 % when using this

machine. Users in water and waste-water

treatment save up to 15 % of their floccu -

lant this way. More than 25 % of the gelling

agent can be dispensed with when manufacturing

medical pain relief gels. This proportion

has always been destroyed by shear

up to now, either in a vacuum process tank

with an integrated disperser or in another

dispersion machine installed downstream.

However, applications also exist where

polymer structures have to be sheared and

dispersed exactly on the spot. This is the

case, for example, with dish-washing detergents

in order to create a silky touch without

sticking, with anti-foaming agents to

avoid wetting failures or with products that

have been adjusted to a high viscosity for

transport but must have a reduced viscosity

for application. Here, too, the Conti-TDS

offers several advantages, as the dispersion

is controlled and dosed in combination

with improved wetting.


Online search: cpp0218ystral


AUTHOR:

DR. HANS-JOACHIM

JACOB

Process and Application

Engineering,

Ystral

20037

Heading for Industry 4.0:

Intelligent, bus-compatible connection system for digital sensors used in liquid analysis – JUMO digiLine

• Modular system for flexible implementation options: from the standalone measuring point to the sensor network with 62 sensors

• Reduction of installation costs as a result of minimized cabling effort

• Reliable process monitoring through digital data transmission

• Reduced startup and maintenance times with the automatic recognition of the

connected sensors (Plug and Play)

• Cost reduction due to reusability of the electronics (only the sensor is exchanged)

• Easy management of the sensor data through JUMO DSM (Digital Sensor Management)

• Mobile monitoring of the process data with the free JUMO Device App

Welcome to JUMO.

http://digiline-en.jumo.info

Visit us at the following trade fairs...

June 14-18 in Frankfurt a.M. (Germany)


Sensor + Test

June 26-28

in Nuremberg (Germany)

Hall 5, Booth 217



Hot water process controlled by steam

Starting hot into the process

Nothing is more unpleasant than standing under the shower in the morning and

being suddenly hit by a harsh, cold stream of water. Just like homes, numerous

processes also need hot water, which is quickly made available at the desired

temperature. This is ensured by the ready-to-connect Steamaqua compact heat

exchanger station.

Pictures: TLV

Many processes with a heating temperature

of around 60 to 90 °C are carried out

using instantaneous water heaters, which

feed water into hot water tanks. These

require both space and constant temperature

control in order to compensate for heat

radiation. In addition, circulator pumps are

often installed. The temperature in a water

tank is frequently also controlled by water

heaters. When the water tank is empty, another

heating period starts; it must finish in

order to reach the right temperature. A heating

coil only heats up water slowly since

this water is not flowing. Hot water mixes

with cold water more slowly as if it were

actively swirling. The heating process is terminated

or cooled either by discarding the

tempered water trap or by the heat radiation

releasing excess energy into the environment

during the waiting period.

Effective use of steam

Steam-powered heat exchanger stations are

primarily used for heating temperatures

above 100 °C. They utilise the high condensation

energy of the steam in order to bring

the media to the desired temperature. Since

this energy exchange is so high, steampowered

building heating systems which

are supposed to reach temperatures of

merely 70 to 80 °C rather than 130 °C need

to have safety devices. Regulation and control

equipment monitors normal operation

and its set switching properties guarantee a

safe shutdown of the system if limit values

are exceeded. Normal operation can then

only be resumed subject to an inspection

and release.

These safety settings are, of course, taken

into account by the Steamaqua heat exchanger

station. This compact stainless steel

unit (water side 316 L & 316 Ti, steam side

304) has a footprint of just 0.7 m 2 . The

station can be placed anywhere using a

fork lift or rollers. The system is delivered

ready to connect and start up. The nominal

temperature is set on the touch panel and

hot water is available following a short heating

phase after having activated the system.

The ready-to-connect Steamaqua heat exchanger

compact station provides hot water

for industrial processes in no time at all

Perfectly conditioned saturated steam sup -

plies energy, and condensate is discharged

quickly and reliable by Steamaqua

Safe condensate removal

Steam, introduced via a regulating valve

with a cyclone separator, is used for heating.

The now dry, perfectly conditioned saturated

steam first flows through the safety


The setpoint temperature is set on the touch panel, which is available after a

short warm-up phase

valve before reaching the spiral heat exchanger.

The condensing steam heats up the

water on the secondary side and the condensate

which builds up is removed quickly

and efficiently via a pump steam trap. Effective

drainage is especially important for operation

at partial loads. This is because,

when the target temperature is reached and

only a small amount of steam is left in the

heat exchanger, the steam condensates and a

vacuum is created in the vertical heat exchanger.

Even though this condensate reaches

the collector thanks to gravity, it still cannot

flow freely. This backlog or stall phenomenon

causes so-called “flooding” in

standard heat exchangers since the heating

surface is filled with water. Steamaqua has

an integrated PowerTrap, which works

either as a steam trap or as a steam operated

pump; by removing any condensate which

occurs, it guarantees trouble-free operation

of the station. The hot condensate is guided

via a preheater and cooled. The residual

energy is transferred to the inflowing water.

This water then flows through the spiral

heat exchanger, the corrugated pipes of

which ensure turbulent flow and maximise

the heat exchange. The steam feed is regulated

by the PLC, so that water leaves the

heat exchanger at the nominal temperature.

It is also possible to start up the station via

Modbus TCP and control the nominal temperature

in this way.

To avoid unwanted overheating, thermostats

and pressure switches are used to monitor

both the water temperature and the water

pressure. The steam feed is interrupted if

limit values are exceeded. The integrated circulation

pump cools the heat exchanger by

introducing cold water into it from the inlet

via a bypass in the counter current, thus

protecting the core of the station from thermal

stress. This symbiosis of TLV components

and expert know-how is why the

Steamaqua compact heat exchanger station

truly stands out. Not only is the station’s

energy balance optimised by the spiral heat

exchanger and preheater; in addition, a

tailored insulation package helps reduce unwanted

heat radiation and simultaneously

serves as touch protection against burns.

Short reaction times

The reaction time is short compared to standard

hot water systems. Fluctuations in the

water circulation intake cause minor differences

in the temperature of the hot water.

The quick response of the steam-regulated

heat exchange station is perfect for controlling

the temperature of water circulation

systems with or without withdrawal. Even if

the hot water is used directly, a constant target

temperature is achieved after a short

warm-up phase, so that the system is suitable

for replacing large water tanks.

An unwanted drop in water temperature

during high-load periods – similar to a

“cold shower” – is thus prevented.


Online search: cpp0218tlv


AUTHOR:

DR. MARIA L.

WINNERTZ

System technology,

TLV Euro Engineering

PROCESS VACUUM

100% CARE FREE

no downtime

chemically

resistant

oil-free

ACHEMA 2018

Hall 8.0 Stand F53

Hall 4.1 Stand K49

www.vacuubrand-process.com



Pictures: SGL Carbon

Liquid distributor made of carbon fibre composites for hydrochloric acid at temperatures greater than 150 °C

Hydrogen chloride recovery system for weak acid

Increased demand for

efficient processes

SGL Carbon is designing an HCl recovery system to recover and purify HCl

gas from a contaminated weak acid based on the pressure swing distillation

concept. This process produces pressurised HCl gas free of impurities. New

materials and an integrated heat recovery concept promise economical

operation and high reliability.

The customer is a leading manufacturer of

refrigerants, fluoropolymers and siliconbased

products in China. Methyl chloride is

an intermediate in the production of silicon.

It is obtained by reacting methanol

and hydrogen chloride. Hydrogen chloride

is typically produced by distilling concentrated

hydrochloric acid. Due to the corrosive

properties of hydrochloric acid, corrosion-resistant

materials such as graphite

and PTFE-lined steel are required for such

applications.

Increasing costs for the disposal of weak

acid are forcing manufacturers to use HCl

recovery systems to produce hydrogen

chloride. For this purpose, SGL Carbon is

implementing a customised system in

China that almost fully recovers hydrogen

chloride from contaminated acid.

Process options

Extractive rectification is typically applied

for the complete separation of hydrochloric

acid. Additives such as calcium chloride or

sulphuric acid are used to selectively increase

the volatility of hydrogen chloride in

order to break the azeotrope. One disadvantage

of this process is that the addition of

the entrainer results in a higher boiling

point in the rectification column. Due to

the limited temperature resistance of the

materials employed, only a lower HCl gas

pressure can be achieved. Consequently, the

subsequent processing of the hydrogen

chloride either requires elaborate compressors

or the lifetime of the equipment is

reduced. Since such processes can only be

operated efficiently with a high salt content,

there is a risk of crystallisation when

using alkaline salts as the extractive compound.

Additionally, impurities such as F - ,

(SO 4

) 2- , etc. may form salts that result in

severe scaling, thus endangering the reliability

of the complete system.

Pressure swing distillation systems avoid


these disadvantages since entrainers are not

required. They include a pressurised column

that generates clean HCl gas free of

impurities and entrainer residuals at elevated

pressure at the top of the column. The

azeotropic acid bottoms of the pressurised

column is further processed in a second

column operating under vacuum. Due to

the pressure sensitivity of the azeotropic

point, it is now possible to distil water at

the head of the column. By using two

columns, hydrochloric acid can be split

completely into hydrogen chloride and

water. One specific advantage of the pressure

swing distillation system is its very

high HCl recovery rate. This is economical

with respect both to high HCl yields and to

wastewater processing, since the impurity

and HCl content in wastewater is increasingly

becoming the focus of tightened

environmental regulations.

Further design developments

Furthermore, SGL Carbon is gradually going

over to carbon fibre composites (Sigrabond

Chemical) for the internals in HCl recovery

systems. This new material is suitable for

use in highly corrosive hydrochloric acid at

a long-term application temperature of

170 °C. In contrast to the heavy-walled carbon

grids which were previously the norm,

the outstanding mechanical properties of

the new materials enable grids to be produced

with huge free cross-sections that are

not subject to hydraulic limitations. This

material can also be employed to design

distributors with complex geometries, leading

to improved liquid distribution on the

packing and minimising energy consumption.

The superior thermal shock resistance

and pseudoplastic fracture behaviour qualify

Sigrabond Chemical as the perfect material

for the harsh conditions of the pressure

column.

Material know-how required

Due to the corrosive properties of the me -

dium, it is important not only to consider

process aspects in the design of the system,

but also to align the process conditions

with the application boundaries of the

selected material. As a specialist for pressure

vessels made of graphite and PTFE-lined

steel materials that is also capable of pro -

viding complete system solutions in the

field of HCl recovery, SGL Carbon combines

historical material expertise and process

know-how.

Accordingly, the process includes columns

and vessels manufactured from the proven

material Polyfluron (PTFE-lined carbon

Selected products used during the pressure swing process

steel). This material is characterised by high

density and crystallinity, which limits HCl

permeation through the liner. Due to

clients’ extensive positive experience with

weldable PTFE material, a loose liner is used

in the equipment, allowing a simpler mechanical

design of the nozzle and correspondingly

higher reliability.

The reboilers selected for the process are robust

shell & tube heat exchangers made of

Diabon impregnated graphite. The tubes and

monolithic tube sheets feature Carboguard

carbon-fibre reinforcement to ensure maximum

operating reliability.

Highly efficient, compact Diabon plate &

frame heat exchangers are installed for HCl

gas cooling. To minimise the water content,

the HCl gas is chilled to double-digit, subzero

Celsius temperatures. The plate & frame

heat exchanger features a design that is corrosion

resistant on both the process and the

service sides. Hence, the equipment is also

perfectly suited as a gas recuperator, utilising

the chilled product gas for additional

cooling and reducing the running costs. At

the same time, the HCl product gas is superheated,

which minimises the risk of acid

condensation and corrosion in the downstream

process.

Thanks to SGL’s HCl process expertise and

state of the art materials, the plant is a customised

solution that meets the customer’s

specific requirements.


Online search: cpp0218sgl


Installation diagram of the pressure swing

process

AUTHOR:

CHRISTIAN WOLTZ

Global Process Design,

SGL Carbon



Tubular centrifuges with automatic solids discharge

The piston is the secret

of success

The Rina SRP AD supercentrifuge is based on the proven, conventional

technology of tubular centrifuges. However, instead of manual solids

discharge, the “AD” features fully automatic solids discharge. The central

element is a special piston inside the rotor.

Rina supercentrifuges are vertical axis machines

fitted with a hanging cylindrical

bowl, which rotates at high speed to generate

a centrifugal force of up to 20,000 g.

They are used for solid-liquid separation,

for instance for solids recovery or the removal

of suspended impurities as well as for

separating immiscible liquids of different

densities. Blood fractioning, gamma globulin

recovery, the separation of plasma and

red cells in human or animal blood and the

separation of viruses and bacteria are typical

applications in the pharmaceutical industry.

The clarification of wine, the separation of

nanoparticle suspensions and cleaning of

used machine oil are other examples.

The machines are characterised by a modern,

sturdy design in conformity with GMP

regulations and are easy to operate. All

models have a wide-opening, hinged casing

to facilitate the withdrawal of the rotor

from the front. Rina SRP supercentrifuges

can also be supplied for use in potentially

explosive atmosphere, in which case they

are Atex certified. Other optional features

such as cooling and heating coils, CIP and

SIP capability or the integration of ancillary

equipment in the control system can be

provided if required by the intended application.

Pictures: Riera Nadeu

The technology of the Rina SRP AD supercentrifuge is based on Riera

Nadeu’s standard tubular centrifuges but with automatic solids discharge

Traditional operating modes

Riera Nadeu offers different rotor types

with different operating modes such as discontinuous

solid-liquid separation (C) or

continuous liquid-liquid separation (S).

Solid-liquid separation works discontinuously

(i. e. in batches), the solid being the

heavy phase. The “C” (clarifier) rotor has


Section through the Rina SRP AD: the piston is

pulled upwards to operate and down again to

discharge the solids

State of the art facility, tailor made

machines, manufactured exclusively in

Western Europe

Until now, the rotor had to be removed for

emptying and opened manually. This can be

problematic, especially with toxic media.

only one liquid outlet for the lighter

(liquid) phase. The solids are retained inside

the rotor. If the product is conveyed directly

from the inlet to the discharge without

clarification, this is an indication that the

rotor’s retention capacity is exhausted and

that the rotor must be emptied or replaced.

If two immiscible liquid media are involved,

the process is continuous. Due to

the differences in density and the centrifugal

force, the heavy phase moves towards

the wall. The lighter phase, the so-called

supernatant, forms a film over the heavy

phase and follows the same upward direction.

At the top of the rotor, a diaphragm

guides the media into two different liquid

outlet devices.

As a third option, an “S” rotor can be used

for discontinuous liquid-liquid-solid sepa -

ration. Solids are retained inside the rotor as

described above. The two immiscible liquid

phases are guided via a diaphragm to two

different liquid outlets according to their

density difference.

Fully automatic solid-liquid separation is

now possible thanks to the Rina SRP AD.

Working principle of the SRP AD

The main working principle of the Rina SRP

AD is the same as for all other supercentrifuges

used for solid-liquid separation, except

that manual intervention is no longer

necessary for the solid discharge. This is carried

out fully automatically with the help of

a piston inside the rotor. The most impor -

tant advantage here is that no additional

mechanical devices are needed in the product

area. The piston is moved up and down

under vacuum and high pressure. To achieve

automatic solid discharge, the piston is

pushed down at high pressure, thus forcing

the solids towards the outside through a

three-way valve. After the solids have been

discharged, the piston returns to its working

position under vacuum pressure. The

switch between high pressure and vacuum

is possible thanks to a special valve located

in the centre of the piston.

This highly complex solution was developed

with the aim of maintaining the proven

working principle and peculiarities of a

tubular centrifuge. It provides several clear

benefits:

• Simple mechanics and hence affordable

manufacturing costs and final product

price

• Compact design (small footprint)

• Machine as a whole is not pressure equipment

even though it works with pressure

and vacuum

• Proven process and operating principle of

the supercentrifuge retained: feeding and

discharging from the bottom, light phase

drained through the top collector on the

upper part of the rotor

• Same solid-liquid separation processes as

are currently performed with conventional

supercentrifuges are also possible with the

new Rina SRP AD

Suitable for difficult products

Apart from applications which have been

the domain of conventional high speed

supercentrifuges until now, the Rina SRP AD

can also be used for processes where a fastrotating

supercentrifuge is desirable but so

far not feasible due to the manual solids discharge,

typically involving toxic products or

ones where extremely high hygienic stand -

ards are stipulated. Riera Nadeu has a SRP

AD supercentrifuge at its own test centre for

trial purposes.

The Rina SRP AD 8 has a solids retention capacity

of 8 l, with a footprint of 750 x 1225

x 2000 mm, and weighs about 950 kg. A

maximum of 18,000 g can be produced.

The wetted parts can be made from AISI

316L, Duplex or titanium. The Rina SRP AD

is suitable for temperatures from -10 to

+60 °C as standard.


Online search: cpp0218rieranadeu


AUTHOR:

CAROLA LANGROCK

Sales Engineer Europe,

Riera Nadeu

AUTHOR:

JÉRÉMIE BARDO

Head of Business

Development,

Riera Nadeu



Short path evaporators equipped with optimised liquid feed distribution

High product quality with

a lower temperature

To achieve high product quality, a homogeneous distribution of the liquid feed is a

central requirement in the production process with short path evaporators. For this

reason, Buss-SMS-Canzler (SMS) has optimised the design of their liquid distribution

system. This results in a very uniform, thin film and optimum usage of the internal

heating surface.

Thermal separation processes like evapo -

ration allow valuable products in a liquid

mixture to be separated or enriched. Different

fuel qualities, pharmaceutical grade glycerine,

ethanol or solvents like acetone are

typical examples of evaporation products.

However, some of these high-boiling products

are very sensitive to heat and cannot be

handled using conventional evaporators. In

this case, they can be treated by means of

short path evaporation.

Pictures: Buss-SMS-Canzler

How short path evaporators work

Pictures 1 and 2 illustrate the working principle

of a short path evaporator, which belongs

to the category of thin film evapo -

rators. It operates at very low absolute

pressure of between 1 and 0.001 mbar in

order to keep the evaporation temperature

as low as possible.

The liquid mixture is fed to the top of the

rotor and distributed to the machine’s

heated jacket surface. The rotor creates a

thin, mechanically agitated product film on

the heating surface inside the body. The

product flows downwards in a spiral path

due to gravity; the volatile portion of it

evaporates in the process. The vapour takes

the shortest route and reaches the internal

condenser with practically no pressure loss.

The non-volatile portion moves to the lower

part of the evaporator and is discharged

Picture 1: One of the industrial size

evaporators from SMS. It can be heated

electrically in order to fit the very specific

demands of the process.


Picture 2: During the process, the distillate condenses on the outer

surface of the tubes, which are supplied with cooling water

Picture 3: The heating surface of the former, conventional SMS design

(left) is only partially used, whereas the flow field for the optimised

model (right) shows a uniform liquid pre-distribution all around the

circumference

through the bottom outlet. The residual vapours

and inert gases flow through the vacuum

nozzle to the vacuum system. The distillate

– the condensate from the condenser

– is removed as a liquid, also at the bottom

of the evaporator.

Useful for a variety of applications

Short path evaporators offer very good results

with evaporation, concentration, distillation

or degassing of high-boiling, temperature

sensitive products. This type of

evaporator is therefore very useful in applications

like:

• stripping isocyanates from pre-polymers

• evaporating oil and wax from petroleum

• distilling monoglycerides from di- and

triglycerides

• concentrating Omega-3 fatty acids

• fractionating waxes into hard and super

hard waxes

• concentrating vitamin E (tocotrienol and

tocopherol)

To match the requirements of all these

applications, the rotor design has to be

adjusted in order to obtain high-quality

end products. SMS can supply short path

evaporators with several different rotor

types for this reason. They are manufactured

in a hygienic design optionally using

PTFE or graphite wiper elements, spring

loaded PTFE wiper elements, metal wiper

elements or polymer or graphite rollers. In

addition, the rotors can be equipped with

specially designed splash guards, protecting

the internal condenser from droplets in the

vapour stream and ensuring high distillate

quality.

Focus on liquid distribution

One of the design challenges with short

path evaporators is the distribution of the

liquid feed on the internal heating surface.

Owing to the working principle, the liquid

has to be fed from the top of the evaporator,

i.e. from the top of the rotor, and then distributed

as uniformly as possible on the internal

heating surface. Non-uniform distribution

can result in the heated surface

not being covered with feed material as well

as in unintended splashing. Heated surfaces

which are not used for the evaporation process

increase the evaporator size and therefore

the cost of the equipment. Severe

splashing creates droplets which can get

into the distillate and lead to a product that

is not properly mixed. Both these effects

should be avoided in the interests of optimum

results.

Due to the importance of the liquid feed

distribution on top of short path evapo -

rators, Buss-SMS-Canzler (SMS) developed

an optimised liquid distribution system.

This system can be designed according to

the process requirements, for example the

material properties of the feed, the operating

temperature and various other param -

eters. Picture 3 shows the liquid flow on the

top cover of the rotor of a short path evaporator;

it was calculated using CFD (computational

fluid dynamics). The flow field on

the left was calculated for the former, conventional

SMS design. The liquid only leaves

the distributor in a very limited section of

the circumference, so that part of the internal

heating surface is not used for evaporation.

Picture 4: The internal condenser of a short

path evaporator is shown here

The flow field on the right-hand side exhibits

a very uniform liquid pre-distribution

all around the circumference. After reaching

the internal heating surface, the entire

liquid can be distributed evenly by the

wiper blades. This results in a very uniform,

thin film and optimum usage of the internal

heating surface. After experimental verification,

the CFD computations were translated

into design equations and the opti -

mised liquid feed distributor incorporated

in the standard SMS rotor design.


Online search: cpp0218Buss-SMS-Canzler


AUTHOR:

DR. BERND

GENENGER

Head of sales & marketing,

Buss-SMS-Canzler


cpp ACHEMA PHARMACEUTICAL ENGINEERING

Pictures: Bausch+Ströbel

Variosys consists of two components: a standardised Skan cleanroom isolator and an interchangeable

machine module by Bausch+Ströbel

Machine module for tub opening and RTU vial denesting

More flexibility for

small batches

Flexible production is a focal topic of Achema 2018. Yet, what does flexible

production mean in the context of pharmaceutical product filling? Bausch+Ströbel’s

answer to this question is the modular Variosys production system, which will

feature a new component in Frankfurt. Thanks to a machine module for fully automatic

tub opening and RTU vial denesting, Variosys is now even more user-friendly.


Thanks to a machine module for fully automatic tub opening and RTU vial denesting,

Variosys is now even more user-friendly

A Variosys module can be easily pushed into the insulator

from behind

Today, Variosys is an established brand

name in the pharmaceutical sector. Developed

in collaboration with Böhringer Ingelheim,

it essentially consists of two components:

a standardised Skan cleanroom isolator

and a similarly standardised, interchangeable

machine module by

Bausch+Ströbel which works on the keylock

principle.

This space-saving modular system owes its

tremendous scope and versatility in part to

the possibility of combining a speciality

isolator with a range of different machine

modules. In addition, multiple isolator

chambers can be linked together to build a

production line in combination with sterilising

tunnels, cleaning machines or a

special GEA freeze-dryer. This means that Variosys

is just as suitable for small-batch processing

in the laboratory as it is as a fully

automatic, low-volume production line.

Variosys machine modules can process vials,

syringes, cartridges and ampoules, both as

RTU containers packed in various makes of

nest, tub or tray and as bulkware, in combination

with a Bausch+Ströbel cleaning machine

and sterilising tunnel. Harro Höf -

liger’s product portfolio includes a suitable

IV bag filling module.

Depending on the application, machine

modules are available with various degrees

of automation – from manual and semiautomatic

to fully automatic. It is even pos -

sible to convert a laboratory system with

manual handling steps into a fully automatic

production line, or vice versa, at any

time.

In-nest processing of vials

Thanks to a newly developed machine module

for fully automatic tub opening and

RTU vial denesting, Variosys is now even

more user-friendly. This module comes

equipped with special cleanroom robots.

When used together with the KSF5105 bulk

filling and closing machine, it offers fully

automatic in-nest opening, denesting, filling,

stoppering, crimp capping and tray

loading of RTU vials over a length of just

four metres, i.e. inside two isolator

chambers. The advantage is that nested vials

can now be processed with 100 % in-process

control (IPC) at maximum machine

output (up to 60 tubs per hour).

The module is designed primarily for processing

RTU vials, but can also be used in

combination with a nest filling module by

deactivating the denesting function.

High-tech in a small package

The modules meet exacting requirements

within a tiny footprint. Although each production

module is only two metres long

and one-and-a-half metres wide, cuttingedge

drive and control systems provide

aseptic-toxic filling and closing of RTU vials

to the same high standard as industrial production

systems – and using identical technology.

This has the benefit that process data

can be transferred between Variosys and

conventional B+S filling systems.

“We use container-specific machine modules

for the production process. This enables

customers to achieve a higher level of process

reliability with less expenditure on validation,

as well as ensuring a highly robust

production process”, explains Heiko

Schwarz, the engineer in charge of Variosys

development in the Product Management

department at Bausch+Ströbel. “Versatility is

always at the top of our minds. We achieve

this, firstly, through fast and simple module

changes but also through short isolator sterilisation

cycle times”, he adds.

Another important consideration for

Schwarz is the system’s ease of expandabil-

Each production module is only two metres

long and one-and-a-half metres wide

ity. “Variosys is not so much a machine but

a system solution. For example, a system

originally used solely for bulk processing

can also be used to process RTU syringes by

adding a nest filling module. What’s more,

the line concept can be expanded subsequently

to include additional isolators, machine

modules and freeze dryers”, he explains.

Low cost thanks to standardisation

As a time and space saving system for smallscale

production, Variosys can not only be

converted easily – it can also combine a

wide variety of components individually or

be adapted simply to new requirements by

adding extensions. Moreover, this can be

done with a minimum of investment as well

as (thanks to standardisation) short qualification

and validation times – a major advantage

in the race to bring new developments

to market.


Online Search: cpp0218bausch



cpp ACHEMA PHARMACEUTICAL ENGINEERING

The versatile design options are the driver for the economic feasibility

Liquid-liquid extraction

The process of liquid-liquid extraction is an economical alternative for

sepa rating compounds that are difficult to purify by distillation. Operation

at low temperatures is beneficial for what are in many cases heat sensitive

products. Careful piloting is a must for successful installation with a short

payback period.

Separation by extraction is based on the

different affinities of components in two

immiscible liquid phases. The feed containing

a desired component is mixed intensively

with an immiscible solvent. This solvent

has a certain affinity to the desired

component. Part of the component is therefore

transferred to it from the feed. One

flow at the outlet (the extract) is enriched

with this component while another (the

raffinate) is depleted of it.

The component and the solvent are sepa -

rated using suitable evaporators. A small

portion of the solvent from the raffinate

stream is stripped out by another evaporator.

The solvent is then recycled back to

the extraction process.

Assembly of a skid mounted modular extraction plant

Pictures: Technoforce

From batch to continuous process

When extraction is carried out conventional

batch kettles, fresh solvent for extraction

is added several times to the same

vessel. Each washing cycle incrementally

extracts the desired product, producing dilute

extract in each subsequent cycle. As a

result, solvent use is high and the large volume

of extract leads to higher recovery

costs.

Changing from a batch to a continuous

process can provide an attractive return on

investment. As one example, an agrochemical

was previously manufactured using an

established batch extraction process where

10 tons of solvent were required to process

7 tons of aqueous mass. A total of five

washes achieved 85 % recovery.

Equilibrium data generated in the labo ra -

tory indicated potential for improvement


Centrifugal extractor (left), asymmetric rotating disc contactor column – ARDC (centre) and sieve tray column (right)

by switching over to continuous and

counter-current extraction. Trials were subsequently

conducted on the pilot ARDC

(Asymmetric Rotating Disc Contactor)

column.

A production scale extractor was designed

and commissioned based on the trial results.

The recovery rate increased from 85

to 93 % while solvent use was reduced

from 10 to 7 tons. These improvements ensured

a payback of less than 12 months.

ARDC and centrifugal extractor

The ARDC column has a stack of mixers and

settlers arranged vertically inside a long vertical

column. The heavy phase enters the

column at the top and the light phase at the

bottom. The desired component is transferred

from one phase to another as these

two phases flow counter-currently through

the series of mixers and settlers. The continuous

operation ensures consistent results.

The column is easy to automate and saves

space.

The large hold-up in the ARDC column

tends to deter customers in the pharmaceutical

industry. A centrifugal extractor

with a very small hold-up and the ability to

change over quickly from one batch to another

addresses their concerns.

The two phases are mixed with a high intensity

in the mixing chamber of the centrifugal

extractor. The mixture then enters a

rotating cylinder, where it experiences high

centrifugal force and quickly separates into

two phases. The accelerated mixing and separation

result in a very small hold-up in the

extractor.

The sieve tray column as extractor

If the feed and solvent have low surface tension

values, the use of an ARDC column or a

centrifugal extractor can result in a stable

emulsion, making these options unviable. A

classical sieve tray column is well suited for

such cases. The sieve tray facilitates controlled

formation of droplets in the dispersed

phase with little shear. An optimised

tray design ensures good mass transfer characteristics

without leading to emulsion

formation.

Piloting is a must

Prior to a new application, careful investigation

in the laboratory will establish the

phase equilibrium data which reveals the

relationship between the number of extraction

stages and the possible feed-to-solvent

ratio. Further data on the densities and surface

tension values gives an idea of the type

of extractor which is best suited for this

particular scenario.

However, it is not advisable to base decisions

solely on laboratory data if unpleasant

surprises are to be avoided. It is important

to validate the design assumptions at the

pilot scale level with scaled-down equipment

geometries which are close to those of

the production scale apparatus.

In view of the significance of this step,

Technoforce has invested in pilot plant test

facilities for all three types of extractor. Customers

are encouraged to use these facilities

extensively to generate confidence in the

design concept. The pilot tests also provide

essential data for the scale-up.

Technoforce generates added value to support

the successful implementation of production

scale projects. The sizing data for an

evaporator and stripper downstream of the

extraction step is likewise determined by

the pilot facilities. After successful piloting,

these two technologies can also be supplied

as a modular system together with the

extractor in a single skid-mounted package.

This integrated system cuts down on the

execution time and costs.


Online search: cpp0218technoforce


AUTHOR:

RAOSAHEB PATIL

Executive Chairman,

Technoforce Solutions



CONTACT THE EDITORS

GÜNTER ECKHARDT

Editor-in-Chief

Phone +49 711 7594-291

guenter.eckhardt@konradin.de

LUKAS LEHMANN


Phone +49 711 7594-290

lukas.lehmann@konradin.de

URSULA FISELY-BUSTORFF

Editor

Phone +49 711 7594-373

ursula.fisely@konradin.de

DANIELA HELD

Editor

Phone +49 711 7594-284

daniela.held@konradin.de

JANOSCH MENGER

Editor

Phone +49 711 7594-287

janosch.menger@konradin.de

DR. BERND RADEMACHER

Editor

Phone +49 711 7594-263

bernd.rademacher@konradin.de

ANGELIKA STOLL

Editor

Phone +49 711 7594-300

angelika.stoll@konradin.de

CARMELINA WEBER

Editorial Assistant

Phone +49 711 7594-415

carmelina.weber@konradin.de

ISSN 0724–1054

Publisher:

Katja Kohlhammer

Publishing House:

Konradin-Verlag Robert Kohlhammer GmbH

Ernst-Mey-Straße 8, 70771 Leinfelden Echterdingen,

Germany

General Manager:

Peter Dilger

Publishing Director:

Peter Dilger

Editor-in-Chief:

Günter Eckhardt (ec), Phone +49 711 7594-291

Assist. Editor-in-Chief:

Lukas Lehmann (le), Phone +49 711 7594-290

Editorial Staff:

Ursula Fisely-Bustorff (fi),

Phone +49 711 7594-373

Dipl.-Ing. Daniela Held (dh),

Phone +49 711 7594-284

B. Eng. Janosch Menger (jm),

Phone +49 711 7594-287

Dr. Bernd Rademacher (br),

Phone +49 711 7594-263

Angelika Stoll (st),

Phone +49 711 7594-300

Editorial Assistant:

Carmelina Weber, Phone +49 711 7594-415, -1415

e-mail: cav.redaktion@konradin.de

Desktop Publishing:

Barbara Geisel, Phone +49 711 7594-258,

Sales Director:

Andreas Hugel, Phone +49 711 7594-472

e-mail: andreas.hugel@konradin.de

Order Processing:

Andrea Haab, Phone +49 711 7594-320

e-mail: andrea.haab@konradin.de

Rate card No. 51, effective October 1, 2017.

Reader Service:

Ute Krämer, Phone +49 711 7594-5850

Fax +49 711 7594-15850

e-mail: ute.kraemer@konradin.de

Subscription price:

Inland 20,70 €, VAT and distribution included;

Foreign countries 20,85 €, VAT and distribution

included

Retail price 5,30 €, VAT included, plus distribution

International Sales Offices:

Great Britain, Jens Smith Partnership, The Court,

Long Sutton, GB-Hook, Hampshire RG29 1TA,

Phone 01256 862589, Fax 01256 862182,

e-mail: media@jens.demon.co.uk,

Switzerland, IFF media ag, Frank Stoll,

Technoparkstr. 3, CH-8406 Winterthur,

Phone 052 6330888, Fax 052 6330899;

e-mail: f.stoll@iff-media.ch

Japan, Mediahouse Inc., Kudankita 2-Chome

Building, 2–3–6, Kudankita, Chiyoda-ku, Tokyo 102,

Phone 03 32342161, Fax 03 32341140;

USA, Kanada, D.A. Fox Advertising Sales,

Inc. Detlef Fox, 5 Penn Plaza, 19th Floor, New York,

NY10001, Phone 212 8963881, Fax 212 6293988,

e-mail: detleffox@comcast.net.

Articles published under the name of an author do

not necessarily constitute the Editor`s opinion.

The Editor cannot be held responsible for unsolicited

reports from industry. Please note that brands

or trade names that are not specifically trademarked

may nevertheless be pro tected.

The Editor reserves the right to condense or enlarge

manuscripts submitted to him. Proofs can regrettably

not be sent.

Place of performance and jurisdiction: Stuttgart

Printed by Konradin Druck GmbH,

Leinfelden-Echterdingen

Printed in Germany

© 2018 by Konradin-Verlag

Robert Kohlhammer GmbH,

Leinfelden-Echterdingen


LIST OF ADVERTISERS

Aerzener Maschinenfabrik GmbH, Aerzen 36

Amixon GmbH, Paderborn 33

AZO GmbH & Co. KG, Osterburken 37

Bausch + Ströbel Maschinenfabrik

Ilshofen GmbH + Co. KG, Ilshofen 57-58

Beumer Group GmbH & Co.KG, Beckum 5

Paul Bungartz GmbH & Co. KG, Düsseldorf 3

Bühler Technologies GmbH, Ratingen 61
