<strong>Cabinet</strong> <strong>suspension</strong> <strong>brackets</strong><br />
SAH 217<br />
ø10<br />
R V<br />
5<br />
8.116<br />
56<br />
32<br />
32<br />
max. 5<br />
max. 5<br />
12,5<br />
20,5 77,5<br />
ø35<br />
Depth adjustable<br />
through 9 mm max.<br />
and support disk<br />
Screw down diagonally using<br />
3,5 x 30 mm chipboard screws<br />
9<br />
max. 5<br />
max. 5<br />
12,5<br />
18<br />
12<br />
min. 16 min. 16<br />
57,5<br />
38<br />

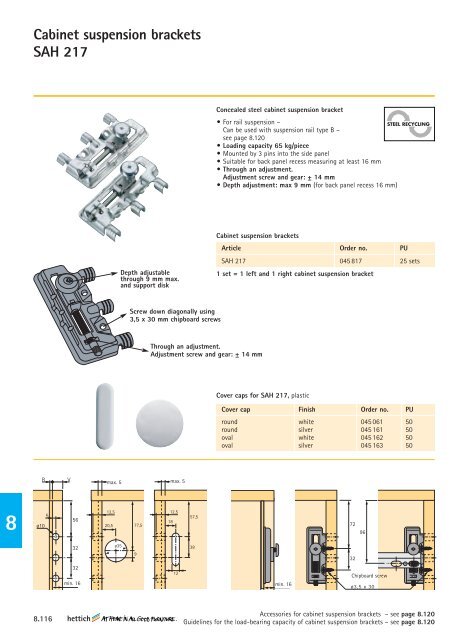

Concealed steel cabinet <strong>suspension</strong> bracket<br />
� For rail <strong>suspension</strong> –<br />
Can be used <strong>with</strong> <strong>suspension</strong> rail type B –<br />
see page 8.120<br />
� Loading capacity 65 kg/piece<br />
� Mounted by 3 pins into <strong>the</strong> side panel<br />
� Suitable for back panel recess measuring at least 16 mm<br />
� Through an adjustment.<br />
Adjustment screw and gear: ± 14 mm<br />
� Depth adjustment: max 9 mm (for back panel recess 16 mm)<br />
<strong>Cabinet</strong> <strong>suspension</strong> <strong>brackets</strong><br />
Through an adjustment.<br />
Adjustment screw and gear: ± 14 mm<br />
Article Order no. PU<br />
SAH 217 045 817 25 sets<br />
1 set = 1 left and 1 right cabinet <strong>suspension</strong> bracket<br />
Cover caps for SAH 217, plastic<br />
Cover cap Finish Order no. PU<br />
round white 045 061 50<br />
round silver 045 161 50<br />
oval white 045 162 50<br />
oval silver 045 163 50<br />
72<br />
32<br />
96<br />
Chipboard screw<br />
ø3,5 x 30<br />
STEEL RECYCLING<br />
Accessories for cabinet <strong>suspension</strong> <strong>brackets</strong> – see page 8.120<br />
Guidelines for <strong>the</strong> load-bearing capacity of cabinet <strong>suspension</strong> <strong>brackets</strong> – see page 8.120
