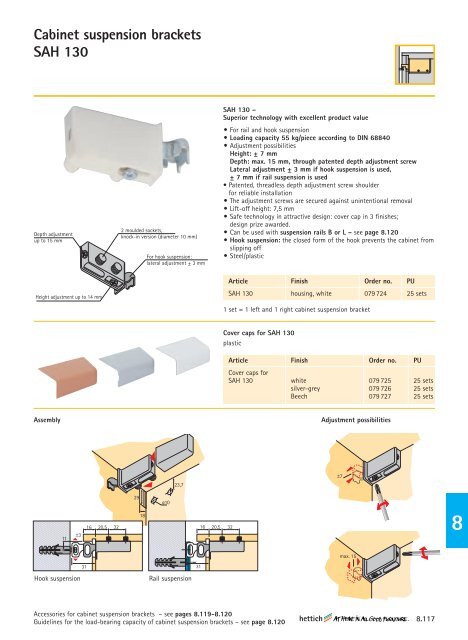

Cabinet suspension brackets
SAH 130
Depth adjustment
up to 15 mm
Height adjustment up to 14 mm
Assembly
11
±3
31
16 20,5 32
2 moulded sockets,
knock-in version (diameter 10 mm)
29
18
For hook suspension:
lateral adjustment ± 3 mm
ø10
23,7
Hook suspension Rail suspension
31
16 20,5 32
SAH 130 –
Superior technology with excellent product value
� For rail and hook suspension
� Loading capacity 55 kg/piece according to DIN 68840
� Adjustment possibilities
Height: ± 7 mm
Depth: max. 15 mm, through patented depth adjustment screw
Lateral adjustment ± 3 mm if hook suspension is used,
± 7 mm if rail suspension is used
• Patented, threadless depth adjustment screw shoulder
for reliable installation
� The adjustment screws are secured against unintentional removal
� Lift-off height: 7,5 mm
� Safe technology in attractive design: cover cap in 3 finishes;
design prize awarded.
� Can be used with suspension rails B or L – see page 8.120
� Hook suspension: the closed form of the hook prevents the cabinet from
slipping off
� Steel/plastic
Article Finish Order no. PU
SAH 130 housing, white 079 724 25 sets
1 set = 1 left and 1 right cabinet suspension bracket
Cover caps for SAH 130
plastic
Accessories for cabinet suspension brackets – see pages 8.119-8.120
Guidelines for the load-bearing capacity of cabinet suspension brackets – see page 8.120
Article
Cover caps for
Finish Order no. PU
SAH 130 white 079 725 25 sets
silver-grey 079 726 25 sets
Beech 079 727 25 sets
Adjustment possibilities
±7
max. 15
