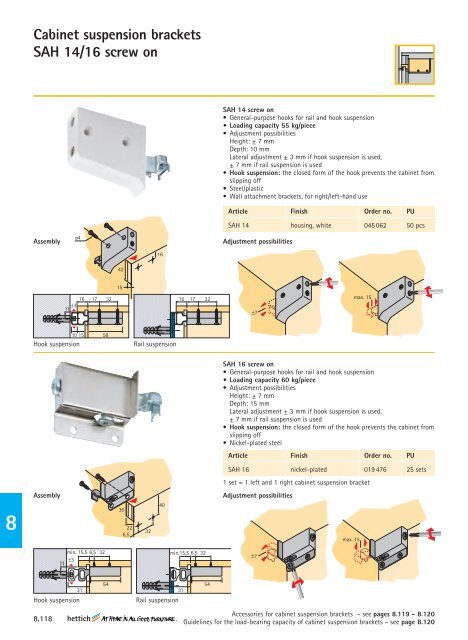

Cabinet suspension brackets
SAH 14/16 screw on
Assembly
ø4
42
15
16
16 17 32
16 17 32
±3
11
10 15 58
Hook suspension Rail suspension
Assembly
8.118
30
22
6,5
min. 15,5 6,5
11
32
min.15,5 6,5 32
±3
min. min.
31
32
40
54 54
31
Hook suspension Rail suspension
SAH 14 screw on
• General-purpose hooks for rail and hook suspension
• Loading capacity 55 kg/piece
• Adjustment possibilities
Height: ± 7 mm
Depth: 10 mm
Lateral adjustment ± 3 mm if hook suspension is used,
± 7 mm if rail suspension is used
• Hook suspension: the closed form of the hook prevents the cabinet from
slipping off
• Steel/plastic
• Wall attachment brackets, for right/left-hand use
Article Finish Order no. PU
SAH 14 housing, white 045 062 50 pcs
Adjustment possibilities
±7
±7
max. 15
max. 15
SAH 16 screw on
• General-purpose hooks for rail and hook suspension
• Loading capacity 60 kg/piece
• Adjustment possibilities
Height: ± 7 mm
Depth: 15 mm
Lateral adjustment ± 3 mm if hook suspension is used,
± 7 mm if rail suspension is used
• Hook suspension: the closed form of the hook prevents the cabinet from
slipping off
• Nickel-plated steel
Article Finish Order no. PU
SAH 16 nickel-plated 019 476 25 sets
1 set = 1 left and 1 right cabinet suspension bracket
Adjustment possibilities
Accessories for cabinet suspension brackets – see pages 8.119 - 8.120
Guidelines for the load-bearing capacity of cabinet suspension brackets – see page 8.120
