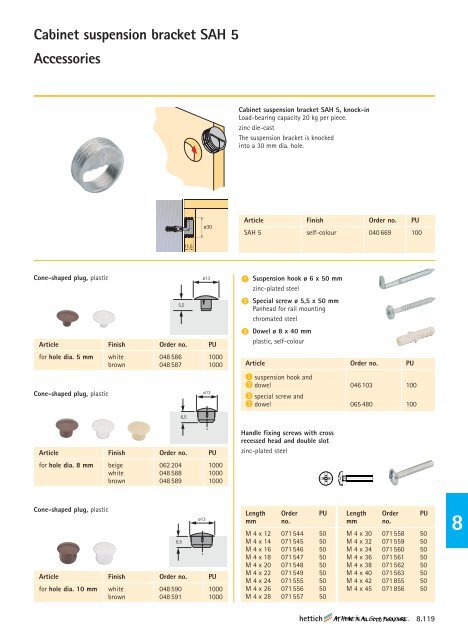

Cabinet suspension bracket SAH 5
Accessories
Cone-shaped plug, plastic
5,5
6,5
11,5
Article Finish Order no. PU
for hole dia. 5 mm white 048 586 1000
brown 048 587 1000
Cone-shaped plug, plastic
Article Finish Order no. PU
for hole dia. 8 mm beige 062 204 1000
white 048 588 1000
brown 048 589 1000
Cone-shaped plug, plastic
Article Finish Order no. PU
for hole dia. 10 mm white 048 590 1000
brown 048 591 1000
6,5
ø13
ø30
ø13
ø13
Cabinet suspension bracket SAH 5, knock-in
Load-bearing capacity 20 kg per piece.
zinc die-cast
The suspension bracket is knocked
into a 30 mm dia. hole.
Article Finish Order no. PU
SAH 5 self-colour 040 669 100
� Suspension hook ø 6 x 50 mm
zinc-plated steel
� Special screw ø 5,5 x 50 mm
Panhead for rail mounting
chromated steel
� Dowel ø 8 x 40 mm
plastic, self-colour
Article
� suspension hook and
Order no. PU
� dowel
� special screw and
046 103 100
� dowel 065 480 100
Handle fixing screws with cross
recessed head and double slot
zinc-plated steel
Length Order PU
mm no.
M 4 x 12 071 544 50
M 4 x 14 071 545 50
M 4 x 16 071 546 50
M 4 x 18 071 547 50
M 4 x 20 071 548 50
M 4 x 22 071 549 50
M 4 x 24 071 555 50
M 4 x 26 071 556 50
M 4 x 28 071 557 50
Length Order PU
mm no.
M 4 x 30 071 558 50
M 4 x 32 071 559 50
M 4 x 34 071 560 50
M 4 x 36 071 561 50
M 4 x 38 071 562 50
M 4 x 40 071 563 50
M 4 x 42 071 855 50
M 4 x 45 071 856 50
