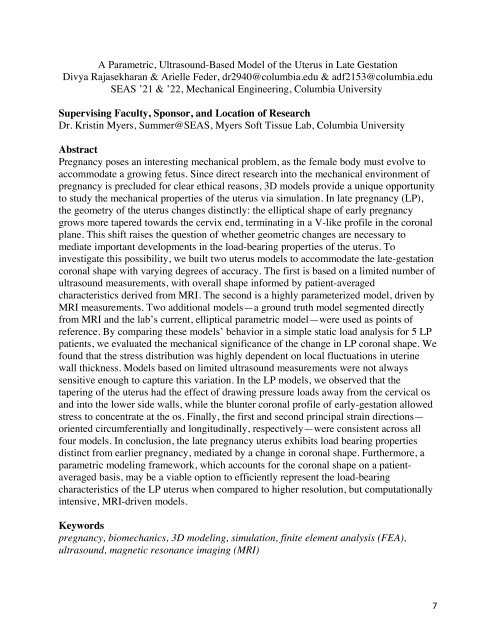

A Parametric, Ultrasound-Based Model of the Uterus in Late Gestation
Divya Rajasekharan & Arielle Feder, dr2940@columbia.edu & adf2153@columbia.edu
SEAS ’21 & ’22, Mechanical Engineering, Columbia University
Supervising Faculty, Sponsor, and Location of Research
Dr. Kristin Myers, Summer@SEAS, Myers Soft Tissue Lab, Columbia University
Abstract
Pregnancy poses an interesting mechanical problem, as the female body must evolve to
accommodate a growing fetus. Since direct research into the mechanical environment of
pregnancy is precluded for clear ethical reasons, 3D models provide a unique opportunity
to study the mechanical properties of the uterus via simulation. In late pregnancy (LP),
the geometry of the uterus changes distinctly: the elliptical shape of early pregnancy
grows more tapered towards the cervix end, terminating in a V-like profile in the coronal
plane. This shift raises the question of whether geometric changes are necessary to
mediate important developments in the load-bearing properties of the uterus. To
investigate this possibility, we built two uterus models to accommodate the late-gestation
coronal shape with varying degrees of accuracy. The first is based on a limited number of
ultrasound measurements, with overall shape informed by patient-averaged
characteristics derived from MRI. The second is a highly parameterized model, driven by
MRI measurements. Two additional models—a ground truth model segmented directly
from MRI and the lab’s current, elliptical parametric model—were used as points of
reference. By comparing these models’ behavior in a simple static load analysis for 5 LP
patients, we evaluated the mechanical significance of the change in LP coronal shape. We
found that the stress distribution was highly dependent on local fluctuations in uterine
wall thickness. Models based on limited ultrasound measurements were not always
sensitive enough to capture this variation. In the LP models, we observed that the
tapering of the uterus had the effect of drawing pressure loads away from the cervical os
and into the lower side walls, while the blunter coronal profile of early-gestation allowed
stress to concentrate at the os. Finally, the first and second principal strain directions—
oriented circumferentially and longitudinally, respectively—were consistent across all
four models. In conclusion, the late pregnancy uterus exhibits load bearing properties
distinct from earlier pregnancy, mediated by a change in coronal shape. Furthermore, a
parametric modeling framework, which accounts for the coronal shape on a patientaveraged
basis, may be a viable option to efficiently represent the load-bearing
characteristics of the LP uterus when compared to higher resolution, but computationally
intensive, MRI-driven models.
Keywords
pregnancy, biomechanics, 3D modeling, simulation, finite element analysis (FEA),
ultrasound, magnetic resonance imaging (MRI)
