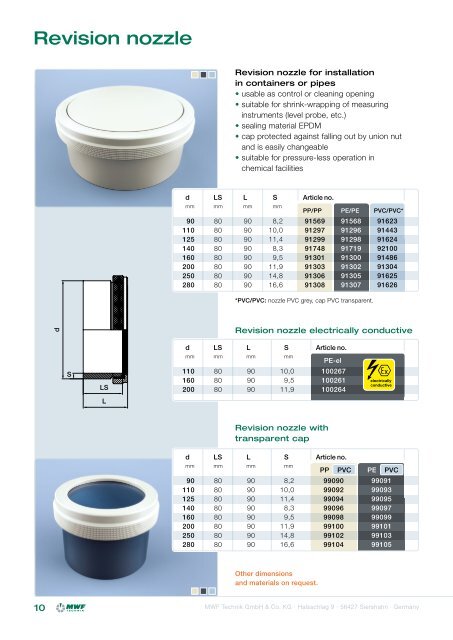

Revision nozzle<br />
Revision nozzle for installation<br />
in containers or pipes<br />
• usable as control or cleaning opening<br />
• suitable for shrink-wrapping of measuring<br />
instruments (level probe, etc.)<br />
• sealing material EPDM<br />
• cap protected against falling out by union nut<br />
and is easily changeable<br />
• suitable for pressure-less operation in<br />
chemical facilities<br />
d<br />
mm<br />
LS<br />
mm<br />
L<br />
mm<br />
S<br />
mm<br />
Article no.<br />
PP/PP PE/PE PVC/PVC*<br />
90<br />
110<br />
125<br />
140<br />
160<br />
200<br />
250<br />
280<br />
80<br />
80<br />
80<br />
80<br />
80<br />
80<br />
80<br />
80<br />
90<br />
90<br />
90<br />
90<br />
90<br />
90<br />
90<br />
90<br />
8,2<br />
10,0<br />
11,4<br />
8,3<br />
9,5<br />
11,9<br />
14,8<br />
16,6<br />
91569<br />
91297<br />
91299<br />
91748<br />
91301<br />
91303<br />
91306<br />
91308<br />
91568<br />
91296<br />
91298<br />
91719<br />
91300<br />
91302<br />
91305<br />
91307<br />
91623<br />
91443<br />
91624<br />
92100<br />
91486<br />
91304<br />
91625<br />
91626<br />
*PVC/PVC: nozzle PVC grey, cap PVC transparent.<br />
d<br />
Revision nozzle electrically conductive<br />
d<br />
mm<br />
LS<br />
mm<br />
L<br />
mm<br />
S<br />
mm<br />
Article no.<br />
PE-el<br />
S<br />
LS<br />
110<br />
160<br />
200<br />
80<br />
80<br />
80<br />
90<br />
90<br />
90<br />
10,0<br />
9,5<br />
11,9<br />
100267<br />
100261<br />
100264<br />
L<br />
Revision nozzle with<br />
transparent cap<br />
d<br />
mm<br />
LS<br />
mm<br />
L<br />
mm<br />
S<br />
mm<br />
Article no.<br />
PP PVC PE PVC<br />
90<br />
110<br />
125<br />
140<br />
160<br />
200<br />
250<br />
280<br />
80<br />
80<br />
80<br />
80<br />
80<br />
80<br />
80<br />
80<br />
90<br />
90<br />
90<br />
90<br />
90<br />
90<br />
90<br />
90<br />
8,2<br />
10,0<br />
11,4<br />
8,3<br />
9,5<br />
11,9<br />
14,8<br />
16,6<br />
99090<br />
99092<br />
99094<br />
99096<br />
99098<br />
99100<br />
99102<br />
99104<br />
99091<br />
99093<br />
99095<br />
99097<br />
99099<br />
99101<br />
99103<br />
99105<br />
Other dimensions<br />
and materials on request.<br />
10<br />
MWF Technik GmbH & Co. KG · Halsschlag 9 · 56427 Siershahn · Germany
