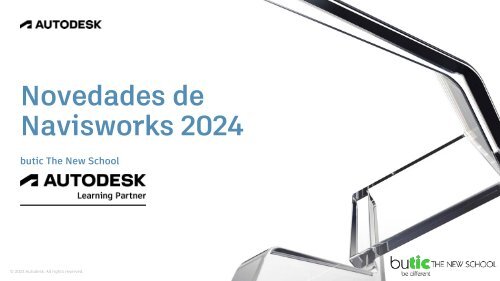

Novedades de Navisworks 2024 - butic The New School

Novedades de
Navisworks 2024
butic The New School
© 2023 Autodesk. All rights reserved.

Key themes
Navisworks 2024
Design optimization
Design productivity

New features and enhancements
Navisworks 2024
• Civil alignment support
• Single point measure tool
• DWG file loader improvements
• Viewpoint report options
• FBX export options
• Message center
• Autodesk material support (Navisworks Freedom)
• Connected Navisworks workflows
o
o
o
o
o
Cloud-managed Navisworks data
New clash engine
Non-clash workspaces
UX improvements for opening cloud models
Batch issue creation

Civil alignment support
Navisworks 2024
• Visualize, navigate, and leverage
alignment data from Civil 3D
corridors to enhance review of
transportation projects
• Display Civil 3D alignments from
DWG/NWC and opened via Model
Coordination
• Visualize alignments and station
labels
• Step or drive along an alignment,
cutting sections at station intervals
• Measure point locations relative to
active alignments
Improve design quality and increase stakeholder buy-in

Single point measure tool
Navisworks 2024
• Identify coordinates of a
single point in the model,
with additional offset data
• New measure tool for Single
Point
• Measure point locations
relative to active civil
alignment station, or grid
intersection for building
projects
• Easily copy measured data to
the Windows Clipboard
Improve design quality and reduce errors and rework

DWG file loader improvements
Navisworks 2024
• Support for Ubiquity properties and
option to control conversion of
overlays.
• Ubiquity is an advance properties
system Ubiquity is an advanced
properties system in AutoCAD,
leveraged by Advance Steel
for example, and increasing thirdparty
vertical apps for custom
property data.
• Option for choosing whether to
Convert Overlays when loading DWG
files (similar to Convert XRefs)
Manage design and project complexity

Viewpoint report options
Navisworks 2024
• Control images included in
exported Viewpoint reports
• Define number of antialiasing
passes, for
example 2, 4, 8, 16, 32, or 64
• Choose between JPG or
PNG format images
• Control height and width of
exported images
Improve data exchange

FBX export options
Navisworks 2024
• Control FBX export optimization
(on/off)
• Default behavior is to export
with optimization (which
reuses duplicate geometry).
Navisworks will read this data
from the FBX file and replicate
the duplicate instances.
• Other apps (ex. Maya) do not
replicate duplicate instances.
This optimization option can be
disabled to export duplicates as
separate items.
Manage design complexity

Message center
Navisworks 2024
• Message Center integration
provides increased visibility of
errors and warnings.
• Report on missing Object Enablers
when loading DWG files.
• Report on failure to load properties
from MDB2 files when opening VUE
files, with prompt to install
Microsoft Access Database Engine
or Microsoft Office.
• Report when plugins from the
Autodesk App Store fail to load.
Reduce errors and rework

Autodesk material support - Navisworks Freedom
Navisworks 2024
• Display Autodesk Materials
when reviewing NWD files
in Navisworks Freedom
• The Autodesk Materials
system is not initialized by
Navisworks Freedom
• Any materials included in
NDW files are rendered
correctly
Improve design quality and satisfaction

Connected
Navisworks workflows
Navisworks Coordination Issues add-in and Model
Coordination in Autodesk Construction Cloud
© 2023 Autodesk. All rights reserved.

Cloud managed Navisworks data
Navisworks 2024
• Save and edit Model Coordination aggregated views
directly from Navisworks
• Automatic NWF management:
o
o
o
Facilitates multi-Navisworks user workflows
Includes Navisworks-data merging
When saving as Model Coordination view
• NWF data restored when re-opening Model
Coordination view
• Prompt to merge NWF data when out of sync with
other Navisworks users working on the same Model
Coordination view
Easy workflow to have multiple users working in parallel with one other

New clash V2 engine
Autodesk Construction Cloud / BIM Collaborate
• New clash engine, utilizing version
change awareness to optimize for delta
object-level clashing with new model
version updates
• Faster update of clashes in Model
Coordination following model version
updates
• V2 is default engine used on new
projects (since Nov 2022)
Get faster update of clashes in Model Coordination

Coordination spaces with auto-clash disabled
Autodesk Construction Cloud / BIM Collaborate
• Ability to turn off automatic clash
detection when creating new
coordination spaces
• Message in Clashes tab informing
that clash detection is unavailable
for this coordination space
Get more control over your coordination workflows

UX improvements for opening cloud models
Navisworks 2024
• Search for projects within your account
• Display model contributor name,
company and profile picture
• Resize columns to focus on specific
data, such as model name
• Select All feature to efficiently select
model (or view) search results
Quickly find the cloud models you want to open

Batch issue creation
Navisworks 2024
• Automatically create Issues for multiple
clashes in Navisworks
• From one or more selected clash or clash
groups, right-click and select “Create issue”
• Populate fields (e.g., assignee, date)
• All created issues get named in sequence
with grouping data
• Issues tool easily accessible through the side
tool panel in Autodesk Construction Cloud
Time saving on creating multiple issues
Navisworks
Autodesk Construction Cloud

Autodesk and the Autodesk logo are registered trademarks or trademarks of Autodesk, Inc., and/or its subsidiaries and/or affiliates in the USA and/or other countries. All other brand names, product names, or trademarks belong to their
respective holders. Autodesk reserves the right to alter product and services offerings, and specifications and pricing at any time without notice, and is not responsible for typographical or graphical errors that may appear in this document.
© 2023 Autodesk. All rights reserved.
