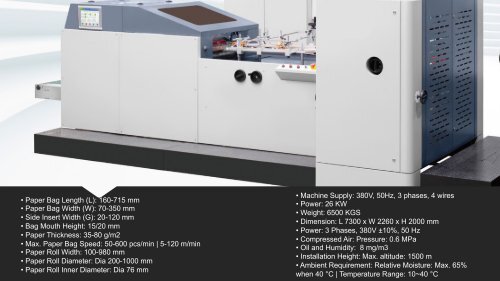

glassine garment bags machine
Transform your PDFs into Flipbooks and boost your revenue!
Leverage SEO-optimized Flipbooks, powerful backlinks, and multimedia content to professionally showcase your products and significantly increase your reach.
• Paper Bag Length (L): 160-715 mm<br />
• Paper Bag Width (W): 70-350 mm<br />
• Side Insert Width (G): 20-120 mm<br />
• Bag Mouth Height: 15/20 mm<br />
• Paper Thickness: 35-80 g/m2<br />
• Max. Paper Bag Speed: 50-600 pcs/min | 5-120 m/min<br />
• Paper Roll Width: 100-980 mm<br />
• Paper Roll Diameter: Dia 200-1000 mm<br />
• Paper Roll Inner Diameter: Dia 76 mm<br />
• Machine Supply: 380V, 50Hz, 3 phases, 4 wires<br />
• Power: 26 KW<br />
• Weight: 6500 KGS<br />
• Dimension: L 7300 x W 2260 x H 2000 mm<br />
• Power: 3 Phases, 380V ±10%, 50 Hz<br />
• Compressed Air: Pressure: 0.6 MPa<br />
• Oil and Humidity: 8 mg/m3<br />
• Installation Height: Max. altitude: 1500 m<br />
• Ambient Requirement: Relative Moisture: Max. 65%<br />
when 40 °C | Temperature Range: 10~40 °C
