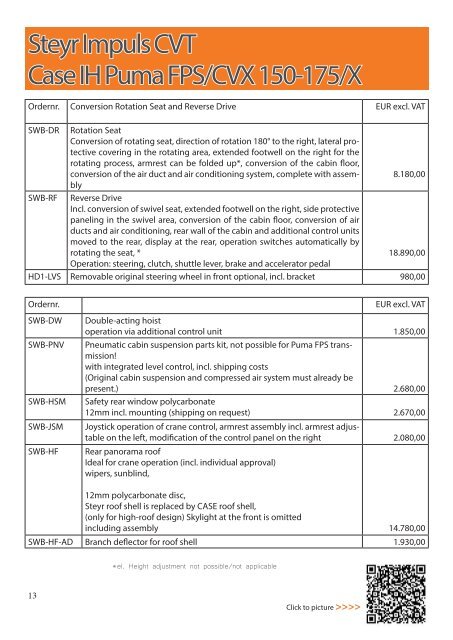

Gesamtkatalog_Steyr_engl_24

Steyr Impuls CVT
Case IH Puma FPS/CVX 150-175/X
Ordernr. Conversion Rotation Seat and Reverse Drive EUR excl. VAT
SWB-DR Rotation Seat
Conversion of rotating seat, direction of rotation 180° to the right, lateral protective
covering in the rotating area, extended footwell on the right for the
rotating process, armrest can be folded up*, conversion of the cabin floor,
conversion of the air duct and air conditioning system, complete with assembly
8.180,00
SWB-RF Reverse Drive
Incl. conversion of swivel seat, extended footwell on the right, side protective
paneling in the swivel area, conversion of the cabin floor, conversion of air
ducts and air conditioning, rear wall of the cabin and additional control units
moved to the rear, display at the rear, operation switches automatically by
rotating the seat, *
18.890,00
Operation: steering, clutch, shuttle lever, brake and accelerator pedal
HD1-LVS Removable original steering wheel in front optional, incl. bracket 980,00
Ordernr.
SWB-DW
SWB-PNV
SWB-HSM
SWB-JSM
SWB-HF
EUR excl. VAT
Double-acting hoist
operation via additional control unit 1.850,00
Pneumatic cabin suspension parts kit, not possible for Puma FPS transmission!
with integrated level control, incl. shipping costs
(Original cabin suspension and compressed air system must already be
present.) 2.680,00
Safety rear window polycarbonate
12mm incl. mounting (shipping on request) 2.670,00
Joystick operation of crane control, armrest assembly incl. armrest adjustable
on the left, modification of the control panel on the right 2.080,00
Rear panorama roof
Ideal for crane operation (incl. individual approval)
wipers, sunblind,
12mm polycarbonate disc,
Steyr roof shell is replaced by CASE roof shell,
(only for high-roof design) Skylight at the front is omitted
including assembly 14.780,00
SWB-HF-AD Branch deflector for roof shell 1.930,00
*el. Height adjustment not possible/not applicable
13
