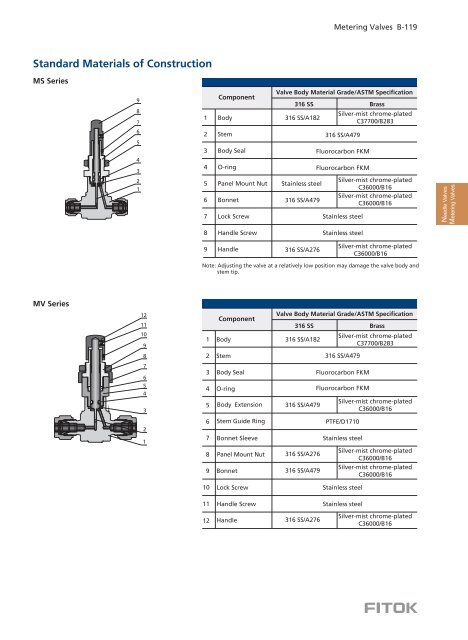

<strong>Metering</strong> <strong>Valves</strong> B-119<br />
Standard Materials of Construction<br />
MS Series<br />
9<br />
8<br />
7<br />
6<br />
5<br />
4<br />
3<br />
2<br />
1<br />
1<br />
2<br />
3<br />
4<br />
5<br />
6<br />
7<br />
Component<br />
Body<br />
Stem<br />
Body Seal<br />
O-ring<br />
Panel Mount Nut<br />
Bonnet<br />
Lock Screw<br />
Valve Body Material Grade/ASTM Specification<br />
316 SS<br />
316 SS/A182<br />
Stainless steel<br />
316 SS/A479<br />
316 SS/A479<br />
Fluorocarbon FKM<br />
Fluorocarbon FKM<br />
Brass<br />
Silver-mist chrome-plated<br />
C37700/B283<br />
Silver-mist chrome-plated<br />
C36000/B16<br />
Silver-mist chrome-plated<br />
C36000/B16<br />
Stainless steel<br />
Needle <strong>Valves</strong><br />
<strong>Metering</strong> <strong>Valves</strong><br />
8<br />
Handle Screw<br />
Stainless steel<br />
9<br />
Handle<br />
316 SS/A276<br />
Silver-mist chrome-plated<br />
C36000/B16<br />
Note: Adjusting the valve at a relatively low position may damage the valve body and<br />
stem tip.<br />
MV Series<br />
12<br />
11<br />
10<br />
9<br />
1<br />
Component<br />
Body<br />
Valve Body Material Grade/ASTM Specification<br />
316 SS<br />
316 SS/A182<br />
Brass<br />
Silver-mist chrome-plated<br />
C37700/B283<br />
8<br />
2<br />
Stem<br />
316 SS/A479<br />
7<br />
6<br />
5<br />
4<br />
3<br />
3<br />
4<br />
5<br />
Body Seal<br />
O-ring<br />
Body Extension<br />
316 SS/A479<br />
Fluorocarbon FKM<br />
Fluorocarbon FKM<br />
Silver-mist chrome-plated<br />
C36000/B16<br />
2<br />
1<br />
6<br />
7<br />
8<br />
9<br />
Stem Guide Ring<br />
Bonnet Sleeve<br />
Panel Mount Nut<br />
Bonnet<br />
316 SS/A276<br />
316 SS/A479<br />
PTFE/D1710<br />
Stainless steel<br />
Silver-mist chrome-plated<br />
C36000/B16<br />
Silver-mist chrome-plated<br />
C36000/B16<br />
10<br />
Lock Screw<br />
Stainless steel<br />
11<br />
Handle Screw<br />
Stainless steel<br />
12<br />
Handle<br />
316 SS/A276<br />
Silver-mist chrome-plated<br />
C36000/B16
