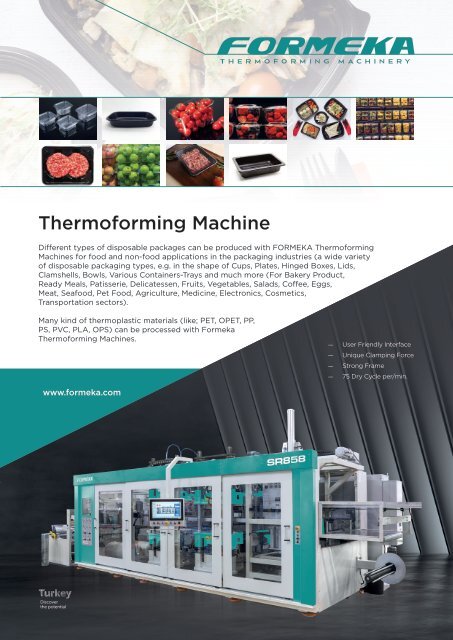

<strong>Thermoforming</strong> Machine<br />
Different types of disposable packages can be produced with <strong>FORMEKA</strong> <strong>Thermoforming</strong><br />
Machines for food and non-food applications in the packaging industries (a wide variety<br />
of disposable packaging types, e.g. in the shape of Cups, Plates, Hinged Boxes, Lids,<br />
Clamshells, Bowls, Various Containers-Trays and much more (For Bakery Product,<br />
Ready Meals, Patisserie, Delicatessen, Fruits, Vegetables, Salads, Coffee, Eggs,<br />
Meat, Seafood, Pet Food, Agriculture, Medicine, Electronics, Cosmetics,<br />
Transportation sectors).<br />
Many kind of thermoplastic materials (like; PET, OPET, PP,<br />
PS, PVC, PLA, OPS) can be processed with Formeka<br />
<strong>Thermoforming</strong> Machines.<br />
— User Friendly Interface<br />
— Unique Clamping Force<br />
— Strong Frame<br />
— 75 Dry Cycle per/min.<br />
www.formeka.com
Equipped With<br />
The Latest Technology<br />
OVERVIEWSR-SERIES<br />
S8060 SR965 SR1075<br />
Air Valves<br />
(Üfleme-Vakum Valfleri)<br />
Servo Motors<br />
(Servo Motorları)<br />
Central<br />
Lubrication Unit<br />
(Merkezi Yağlama Ünitesi)<br />
Valves<br />
(Valfler)<br />
Pneumatic Pistons<br />
(Pinomatik Pistonlar)<br />
Electrical Components<br />
(Şalt Malzemeleri)
Pneumatic Equipment<br />
(Pnömatik Ekipman)<br />
Gearbox<br />
(Redüktörler)<br />
Cartesian Robot<br />
(Kartezyen Robot)<br />
Solid State Relay<br />
(SSR Sürücüler)<br />
Bearings<br />
(Rulmanları)<br />
Hoses<br />
(Hortumlar)<br />
Chain<br />
(Zincir)<br />
Bearings<br />
(Rulmanları)
TECHNICAL TABLE<br />
MODEL <strong>FORMEKA</strong> SR858 <strong>FORMEKA</strong> SR965 <strong>FORMEKA</strong> SR1075<br />
Maks. Kalıp Ölçüleri Max. Mould Sizes mm 800 x 580 900 x 650 1000 x 750<br />
Maks. Çalışma Hızı<br />
Max. Speed<br />
çevrim /<br />
dak. - cycle<br />
60 60 60<br />
Maks. Film Genişliği Max. Sheet Widht mm 840 940 1040<br />
Film Kalınlığı Sheet Thickness mm 0.2 - 1.6 0.2 - 1.6 0.25 - 2<br />
Maks. Form Alanı Max. Forming Area mm 780 x 560 880 x 630 960 x 710<br />
Maks. Ürün Derinliği<br />
Max. Product<br />
Depht<br />
mm<br />
Positif 130 / Negatif 130<br />
Positive 130 / Negative 130<br />
Positif 130 / Negatif 130<br />
Positive 130 / Negative 130<br />
İstasyon Strok Working Stroke mm 150 150 150<br />
Kapama Kuvveti Clamping Force daN<br />
Form İstasyonu<br />
Forming Station<br />
Form İstasyonu<br />
Forming Station<br />
50 000 50 000 60 000<br />
Delme İstasyonu<br />
Punch Station<br />
Delme İstasyonu<br />
Punch Station<br />
60 000 60 000 70 000<br />
Kesme İstasyonu<br />
Cutting Station<br />
Kesme İstasyonu<br />
Cutting Station<br />
75 000 75 000 90 000<br />
Isıtma Tavası Boyu Heaters Lenght mm 2250 2250 2250<br />
Isıtma Tava Genişliği Heaters Widht mm 830 930 1030<br />
Isıtma Tavası Gücü Heaters Power kw 140 165 195<br />
Pressure of the Air Pressure of the Air bar 6 6 6<br />
Vakum Pompası Vacuum Capacity m 3 /h 150 150 200<br />
Kurulu Güç<br />
(3-4 İstasyon )<br />
Installed Power<br />
( 3-4 Stations )<br />
Positif 130 / Negatif 130<br />
Positive 130 / Negative 130<br />
Form İstasyonu<br />
Forming Station<br />
Delme İstasyonu<br />
Punch Station<br />
Kesme İstasyonu<br />
Cutting Station<br />
kw 200-220 225-245 260-290<br />
Yazılım Software mm Formeka Formeka Formeka<br />
Kontrol ünitesi Control Unit mm Sew Eurodrive Sew Eurodrive Sew Eurodrive<br />
Makine Yerleşim<br />
Ölçüleri<br />
Lay-out<br />
Dimensions<br />
mm<br />
3 İstasyon<br />
3 Station<br />
4 İstasyon<br />
4 Station<br />
3 İstasyon<br />
3 Station<br />
4 İstasyon<br />
4 Station<br />
3 İstasyon<br />
3 Station<br />
Uzunluk Lenght 10800 13400 11400 13900 12800 14800<br />
Genişlik Widht 3250 3250 3250 3250 3250 3250<br />
Yükseklik Height 3700 3700 3700 3700 3700 3700<br />
Ağırlık Weight kg<br />
3 İstasyon<br />
3 Station<br />
4 İstasyon<br />
4 Station<br />
3 İstasyon<br />
3 Station<br />
4 İstasyon<br />
4 Station<br />
3 İstasyon<br />
3 Station<br />
4 İstasyon<br />
4 Station<br />
4 İstasyon<br />
4 Station<br />
12400 14800 14600 17400 18800 22400<br />
