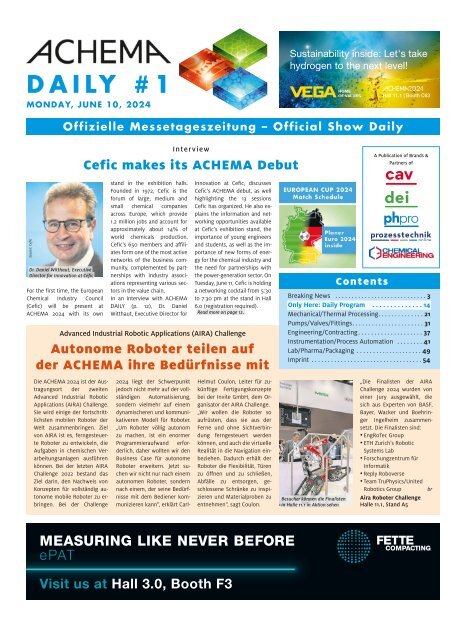

ACHEMA DAILY #1

D A I LY # 1
MONDAY, JUNE 10, 2024
Sustainability inside: Let's take
hydrogen to the next level!
Hall 11.1 | Booth C63
Offizielle Messetageszeitung – Official Show Daily
Interview
Cefic makes its ACHEMA Debut
A Publication of Brands &
Partners of
Source: Cefic
Dr. Daniel Witthaut, Executive
Director for Innovation at Cefic
For the first time, the European
Chemical Industry Council
(Cefic) will be present at
ACHEMA 2024 with its own
Advanced Industrial Robotic Applications (AIRA) Challenge
Autonome Roboter teilen auf
der ACHEMA ihre Bedürfnisse mit
Die ACHEMA 2024 ist der Austragungsort
der zweiten
Advanced Industrial Robotic
Applications (AIRA) Challenge.
Sie wird einige der fortschrittlichsten
mobilen Roboter der
Welt zusammenbringen. Ziel
von AIRA ist es, ferngesteuerte
Roboter zu entwickeln, die
Aufgaben in chemischen Verarbeitungsanlagen
ausführen
können. Bei der letzten AIRA
Challenge 2022 bestand das
Ziel darin, den Nachweis von
Konzepten für vollständig autonome
mobile Roboter zu erbringen.
Bei der Challenge
stand in the exhibition halls.
Founded in 1972, Cefic is the
forum of large, medium and
small chemical companies
across Europe, which provide
1.2 million jobs and account for
approximately about 14% of
world chemicals production.
Cefic’s 650 members and affiliates
form one of the most active
networks of the business community,
complemented by partnerships
with industry associations
representing various sectors
in the value chain.
In an interview with ACHEMA
DAILY (p. 12), Dr. Daniel
Witthaut, Executive Director for
2024 liegt der Schwerpunkt
jedoch nicht mehr auf der vollständigen
Automatisierung,
sondern vielmehr auf einem
dynamischeren und kommunikativeren
Modell für Roboter.
„Um Roboter völlig autonom
zu machen, ist ein enormer
Programmieraufwand erforderlich,
daher wollten wir den
Business Case für autonome
Roboter erweitern. Jetzt suchen
wir nicht nur nach einem
autonomen Roboter, sondern
nach einem, der seine Bedürfnisse
mit dem Bediener kommunizieren
kann“, erklärt Carl-
Innovation at Cefic, discusses
Cefic’s ACHEMA debut, as well
highlighting the 13 sessions
Cefic has organized. He also explains
the information and networking
opportunities available
at Cefic’s exhibition stand, the
importance of young engineers
and students, as well as the importance
of new forms of energy
for the chemical industry and
the need for partnerships with
the power-generation sector. On
Tuesday, June 11, Cefic is holding
a net working cocktail from 5:30
to 7:30 pm at the stand in Hall
6.0 (registration required).
Read more on page 12.
Helmut Coulon, Leiter für zukünftige
Fertigungskonzepte
bei der Invite GmbH, dem Organisator
der AIRA Challenge.
„Wir wollen die Roboter so
aufrüsten, dass sie aus der
Ferne und ohne Sichtverbindung
ferngesteuert werden
können, und auch die virtuelle
Realität in die Navigation einbeziehen.
Dadurch erhält der
Roboter die Flexibilität, Türen
zu öffnen und zu schließen,
Abfälle zu entsorgen, geschlossene
Schränke zu inspizieren
und Materialproben zu
entnehmen“, sagt Coulon.
Bild: AIRA
Breaking News . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Only Here: Daily Program . . . . . . . . . . . . . . 14
Mechanical/Thermal Processing . . . . . . . . . . . . . . 21
Pumps/Valves/Fittings . . . . . . . . . . . . . . . . . . . . . . 31
Engineering/Contracting . . . . . . . . . . . . . . . . . . . . 37
Instrumentation/Process Automation . . . . . . . . 41
Lab/Pharma/Packaging . . . . . . . . . . . . . . . . . . . . 49
Imprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Besucher können die Finalisten
in Halle 11.1 in Aktion sehen
Contents
„Die Finalisten der AIRA
Challenge 2024 wurden von
einer Jury ausgewählt, die
sich aus Experten von BASF,
Bayer, Wacker und Boehringer
Ingelheim zusammensetzt.
Die Finalisten sind:
• EngRoTec Group
• ETH Zurich’s Robotic
Systems Lab
• Forschungzentrum für
Informatik
• Reply Roboverse
• Team TruPhysics/United
Robotics Group br
Aira Roboter Challenge
Halle 11.1, Stand A5
MEASURING LIKE NEVER BEFORE
ePAT
Visit us at Hall 3.0, Booth F3

Together
we reach
beyond
Meet with our experts
in Hall 3.1 Stand C50
Partner with us. Innovative solutions and
service without compromise. Discover
how we deliver beyond expectations.
● Powder Containment & Aseptic Transfer
● Fluid Storage & Management
● Single Use Packaging
● NEW Robotic Powder Handling
thechargepoint.com

ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Breaking News 3
Improve System Performance with High-Performance Valves
How to Select the
Best Hydrogen Valves
The mobility industry is increasingly
searching for alternatives
to traditional fossil fuels, and
hydrogen is rapidly gaining
popularity as a promising option.
However, a current lack of
refueling infrastructure makes
the transition more challenging.
As hydrogen gains traction,
the industry must design
and build the infrastructure to
support it, including leak-tight
systems constructed from highquality
materials. Choosing the
right system components is
paramount because some components
cannot withstand the
sired density, hydrogen must be
stored in on-vehicle tanks at
350 to 700 bar.
Stress and vibration. Systems
must be able to withstand fast
speeds, bumpy roads and inclement
weather conditions.
Safety. The average consumer
must be able to safely operate a
refueling station.
Maintenance. It should also be
easy to remake leak-tight joints
when they need to be serviced.
These four performance parameters
cannot be sacrificed.
Each selected valve should provide
leak-tight performance at
Components used in hydrogen vehicle and refueling infrastructure
must deliver long-term leak-tight performance.
particular stressors involved in
hydrogen distribution systems.
Hydrogen molecules are challenging
to contain because they
are so small and volatile. Each
connection point within a hydrogen
system cannot leak, as
even the smallest leaks pose
safety risks to end users, particularly
when refueling vehicles.
One of the biggest problems
posed by tiny hydrogen
molecules is their ability to diffuse
into some stainless steels,
causing a phenomenon known
as hydrogen embrittlement.
This characteristic can cause
components to weaken over
time as cracks occur and lead to
system failure.
Source: Swagelok
High-Performance Valves
Even under ideal conditions,
hydrogen valves undergo challenges
to their integrity and
performance. As system designers
decide which valves are
most appropriate for their application,
they must consider:
Pressures. To achieve the deall
connection, shutoff and
regulation points.
Hydrogen Ball Valves
Hydrogen systems often contain
ball valves, which start and
stop gas flows from one direction
to the next. Proper hydrogen
ball valves should include
wear-resistant stem-seal
designs. For example, it may
make sense to specify a trunnion-style
ball valve with a direct-load
design, which provides
leak-tight performance
each time it is used. Another
option is a bottom-loaded stem
design, which can be safer than
other valve designs because
such valves are less likely to
blow out their stems. Hydrogen
ball valves may also offer two–
or three-way functionality, different
mounting options and a
range of flow coefficients.
Hydrogen Needle Valves
When fluid flows require fine
adjustments, needle valves are
often the answer. However,
other factors influence whether
needle valves are right for specific
hydrogen applications.
First, they are often made completely
out of metal, meaning it
takes significant force to open
and close them. The amount of
force necessary might eventually
deform the needle and
seat, rendering it incapable of
operating properly. Additionally,
large air actuators typically
open and close the valves,
which can take up to two minutes.
That is why hydrogen
needle valves must be made
from the strongest possible
steel. High-quality 316 stainless
steel, for example, resists deformation
over time and can
withstand the pressures exerted
on valves in hydrogen applications
(usually approximately
350 to 700 bar).
Hydrogen Check Valves
Finally, check valves are essential
to properly functioning hydrogen
compressors in refueling
systems. They control backflow
and keep end users safe as
they refuel vehicles. Most check
valves use strain-hardened
springs, which can be unusually
susceptible to hydrogen embrittlement.
In contrast, using
high-quality 316 stainless steel
reduces the chances of embrittlement
weakening the
springs. Another challenge is
the often severe temperature
and pressure changes common
to hydrogen refueling applications,
which can damage
valves’ elastomer seals. Ideally,
most hydrogen compressors
would use ball check valves
over other nonspecific ones.
For all the valves used in hydrogen
applications, compatibility
with other components is
key. Make sure all components
are designed specifically for hydrogen
use so they work together
in harmony to keep
everyone safe throughout the
process.
Chuck Hayes
Global Technology Lead,
Clean Energy
Swagelok
Hall 8.0, Stand C77
Next Level of
Functional Safety
Digitalization
# safetygoesdigital
Digitalization of
Functional Safety
with Added Value
Safety and
Security
Enduring
Compliance
Effective
Management
of Change
Streamline
Engineering
• Explore safe and secure
remote connections
• Enjoy digital showcases
of live installations
• Discover the HIMA Security
Environment for Functional Safety
• Learn how to reach savings up to
70% by streamlining your processes
www.hima.com/achema2024
HIMA Group
at ACHEMA 2024
Hall 11.1 | Booth E26

4
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Breaking News
The Highlights of ACHEMA 2024
The Heart of Process Technology Beats in Frankfurt
ACHEMA 2024 will take place in Frankfurt from June 10 to 14, 2024. This means that the heart of the process industry will
be beating again at the usual time and in the usual rhythm. ACHEMA DAILY spoke to Dr. Björn Mathes, CEO of DECHEMA
Ausstellungs-GmbH, about the highlights of this year‘s event.
Dr. Mathes, just as the European
Football Championship
brings nations together to
celebrate their passion for
the sport, ACHEMA also
unites professionals from all
over the world around innovations
and progress in the
process industry. Frankfurt is
one of the main venues for
the preliminary round. Thousands
of international fans
will populate the city in the
second half of June. Would
you like the same for your
ACHEMA 2024?
…visit us in
Hall 9.0 Booth E64
https://s.fhg.de/IMM-Cascade-Reactions
Dr. Mathes: ACHEMA 2024 will
once again be the gathering
place for the process technology
community and, unlike the
European Men‘s Football
Championship, we are bringing
together professionals and experts
from all over the world,
far beyond Europe. This year’s
ACHEMA has the highest rate
of international exhibitors ever
and it is becoming apparent
that we might see the same
trend on the attendee side.
Above all, we are registering
high demand from markets
with strong investment potential
such as North America or
the Middle East and North Africa,
as well as the dynamic Asian
markets. This makes Frankfurt
not only one of the host cities
for UEFA Euro 2024, but also
the only place where you can
really feel the heartbeat of the
process industry. And ACHEMA
is much closer in nature to another
major sporting event of
the year: the Olympics.
Can you give us an overview
of the core topics and focal
points of ACHEMA 2024?
Dr. Mathes: The overarching
themes are sustainability, the
path to climate-neutral production
and digitalization. For me
digitalization and digital innovations
are a key enabler, while
the net-zero target for the process
industry is the most ambitious
task in its history. The innovations
developed in the
process industry also have an
impact on other industries and
help them to achieve their sustainability
goals. This makes
the ACHEMA-Community an
important trailblazer towards
climate-neutral production.
Sustainability at ACHEMA is
multi-layered, we talk about
hydrogen, circular economy, industrial
water and wastewater
technology, bioeconomy and
renewable raw materials but
also decentralized energy generation
for production sites. In
addition, ACHEMA will of
course retain its traditional
focus on chemical and pharmaceutical
process engineering
with numerous world firsts that
can be experienced on the
show floor.
Which new trends and technologies
will be highlighted
at ACHEMA 2024?
Dr. Mathes: The ACHEMA Congress
programme is clustered
into six innovation themes:
process, pharma, green, lab,
hydrogen and digital. There are
numerous innovations in all
themes that will influence and
shape the future of the process
industry. These include, among
others, advances in modularization,
networked production
around Ethernet APL, the production
of biopharmaceuticals
or cell and gene therapeutics,
increased automation and robotics,
digitalization and unified
data standards in the laboratory,
as well as the opportunities
around hydrogen for
and in the process industry.
Stereoselective synthesis of
fine chemicals with
cascade reactions in flow
Are you seeking to significantly optimize
your production costs for the synthesis
of fine chemicals and their purity
simultaneously?
Are you interested in an innovative
technology that enables synthesis
processes based on the principles of
Green Chemistry in continuous flow?
Fraunhofer IMM develops with its partner institutes in
the Fraunhofer network novel catalyst systems for the
photochemical-assisted biocatalysis. In addition to these heterogeneous
catalyst materials, we also develop customerspecific
synthesis plants with the objective of achieving the
maximum synergy between chemistry and flow technology
for the sustainable and scalable synthesis of chiral fine
chemicals.
Dr. Björn Mathes, CEO of DECHEMA Ausstellungs-GmbH
How will the exhibition help
to address the challenges of
sustainability and climate
change?
Dr. Mathes: The process industry
faces many challenges. The
goal of climate-neutral production
and defossilization of the
industry is certainly the biggest
and most ambitious challenge
in the history of the process industry
and requires global networks.
This is exactly what the
most international ACHEMA
ever will promote: The numerous
technical discussions at the
stands and around the presentations
will provide the industry
with a sustainability impulse
that will point the way for the
coming years. Many of the technology
trends of recent years
originated at ACHEMA, and that
will be the case again this time.
What role will digital technologies
and artificial intelligence
play at ACHEMA 2024?
Dr. Mathes: They play a major
role. Everyone has been talking
about the digitalization of the
industry for almost a decade. At
Source: DECHEMA / Pietro Sutera
first, it was little more than a big
buzz word, often with examples
from dedicated manufacturing
that were difficult or impossible
to implement in the process industry.
However, our industry
has now embarked on a learning
curve and digitalization continues
to advance. The introduction
of digital innovations such
as smart data analytics or Industry
4.0 technologies is becoming
increasingly important in
order to stay ahead of the competition.
But digitalization is
also in demand as an enabler
for achieving sustainability
goals. This will not be without
its challenges: IT vs. OT, connectivity
vs. security or smart vs.
smart enough – the challenge
for operators is to find exactly
the right configuration for their
company and needs. Solutions
based on artificial intelligence
have become increasingly important
since the media hype
surrounding ChatGPT and are
also playing a role at a number
of ACHEMA stands this year.
Our peer group is currently taking
a critical look at such technologies,
especially in view of
safety and security aspects.

ACHEMA DAILY #1
Breaking News
Renovation work was carried out at
the exhibition grounds for ACHEMA
2022. As a result, the traditional exhibition
groups were somewhat disorganised.
Mechanical Process Engineering,
for example, had to move
to Hall 12. What will it look like in
2024? Who will exhibit where?
Dr. Mathes: Yes, Mechanical Processes
had to temporarily move to Hall 12 due
to the new construction of Hall 5 in
2022 but is now back in Halls 5.0 and
6.0 and will once again form a close
tandem with Thermal Processes.
The exhibition group Pharmaceutical,
Packaging and Storage Techniques has
now been extended to Hall 4.1, giving it
optimal growth prospects.
Laboratory and Analytical Techniques
also has a new home in Hall 12 is thus
moving much closer to process analysis
and automation in Hall 11. Furthermore,
Industrial and Labour Safety will be located
in Hall 11 for the first time.
Are there certain industries or sectors
that will be more strongly represented
at ACHEMA 2024 than in
previous years?
Dr. Mathes: Pharmaceutical, Packaging
and Storage Techniques will be the largest
exhibition group at ACHEMA 2024
for the first time. Although, the technologies
specifically designed for the
life science and pharmaceutical sectors
that will be exhibited at ACHEMA go far
beyond this exhibition group. This once
again underlines the strong standing
that ACHEMA has built up in the global
pharmaceutical industry over the past.
At ACHEMA 2024, we also see that the
topic of decentralized and sustainable
energy generation for the process industry
is coming more into focus and is
playing a major role in achieving climate
neutrality at individual sites.
Hydrogen, digitalisation, modular
production, cybersecurity: the topics
currently affecting the industry are
diverse. Will there be some special
exhibition areas on these topics
again in 2024? What are they and
where can they be found?
Dr. Mathes: Yes, Hall 6.0 is home to
the special show Hydrogen. The smallest
molecule was already the subject of
an ACHEMA special show in 1991. But a
lot has happened since then and the
role of hydrogen in the global energy
system is particularly prominent. In Hall
12.0, the Action Area Digital Lab will
bring the digitalized and connected laboratory
of the future to life. Attendees
can experience on their own how digitalization,
miniaturization, automation
and robotics not only increase added
value in the laboratory, but also close
the data gap between the laboratory
and the production.
I have already mentioned the innovation
themes of ACHEMA. Each one
has its own Innovation Stage with an
extremely exciting and top-class programme.
By industry, for industry. In
addition, the Modular Production and
NOA theme stand in Hall 11.0, the Flow
Chemistry Pavilion in Hall 9.0 and The
SEFA Theatre in Hall 12.0 are three very
exciting industry initiatives that should
not be missed during a visit.
Every attendee should also take a look
at Hall 11.1 and visit the Advanced Industrial
Robotic Applications Challenge.
The teams in the competition will once
again push the boundaries of robot
technology and bring the future of robots
in the chemical industry to life.
This challenge shows how the world of
production and manufacturing in the
process industry could change in the
not-too-distant future and can only be
experienced at ACHEMA.
In 2022, you integrated the ACHEMA
Congress into the exhibition for the
first time. How will the congress be
structured in 2024? Which main
topics or theme days will there be?
Dr. Mathes: The congress is structured
along our six innovation themes, which
will run from Monday to Friday and give
visitors the opportunity to take part in
attractive presentations or discussions
of thought leaders each day either on
one of the Innovation Stages or in Congress
sessions.
Where will the individual stages be
located at the exhibition?
Dr. Mathes: The Zeta Pharma Innovation
Stage is located in Hall 4.1, while
the stages in Hall 6.0 have a clear focus
on climate neutrality: this is where you
will find the EY Green Innovation Stage
and the Siemens Hydrogen Innovation
Stage. The GEA Process Innovation
Stage is located in Hall 9.0 and the
Siemens Digital Innovation Stage can
once again be found in Hall 11.0,
rounded off by the Lab Innovation
Stage in Hall 12.0.
Dr. Mathes, finally a look into the
crystal ball. Who will be European
football champion?
Dr. Mathes: I wish I knew. Of course, I
hope that the German team stays in the
tournament for a long time and plays
for the title with the home advantage. br
The leader in
Energy Optimization.
GEA means worldwide recognized
evaporation, crystallization & distillation
plants, in-house R&D facilities, vast
know-how and expertise. We develop
and design multi-stage TVR & MVR
heated plant concepts tailored to your
specific needs.
Transoforming Tomorrow
Find us in Hall 4
Booth G66

6
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Breaking News
Exclusive Executive Interview
Inline Particle Analysis for Next-Generation Energy Technologies
Trusted Solutions for
Pharma Fill-Finish
Processes
www.rychiger.com
Visit us in
hall 3 booth
#B25
At ACHEMA 2022, particleanalysis
specialist SOPAT made
a major announcement — the
acquisition of Parsum, which
enabled the company to
broaden its technology portfolio
to encompass wet and dry
multi-phase particle analysis.
This combined technology
range will be on display again
to serve the uniquely wideranging
industrial audience of
ACHEMA. “What is very important
to us is that no matter how
specific your particular characterization
need is, we want to
offer a solution, even for particles
in very complex or
chemically aggressive mixtures,”
says Dr. Sebastian
Maaß, CEO of Sopat. The need
for increasing complexity in
particle analysis is driven by diverse
industrial sectors, many
of which are contributing to
the global energy transition.
“The chemical industry will be
one of the key players to provide
energy-storage solutions,
but we are aware the industry
is only as good as the knowledge
available about the processes.
So we will certainly
need process analytical technology
and automation,” says
Maaß.
A particularly important area of
interest for Sopat is in the
manufacture and recycling of
battery materials — specifically
the black mass, which is an intermediate
material in the separation
and recycling of end-oflife
batteries. “Black mass is extremely
viscous, and as the
name implies, very dark, so it is
challenging to visualize anything.
At ACHEMA, we will be
highlighting our successes in
some recent projects where we
are helping battery-recycling
companies with separation and
mixing, as well as flotation applications
and the visualization
of bubbles, in black mass,” says
Maaß.
Beyond the focus on energy
and battery materials, Sopat
will be showcasing an updated
range of software supported by
artificial intelligence, which
will serve users in many sectors,
including oil-and-gas,
Source: Stäubli
Inline particle analysis is crucial for many technologies enabling the
energy transition
food, biopharmaceuticals, mining
and more. “This is the
beauty of our job that we can
provide data for such a broad
application range from micrometer-sized
particles up to
meter-sized rocks on a conveyor
belt,” adds Maaß.
Sopat was founded in 2012 in
Berlin by Dr. Sebastian Maaß
Source: SOPAT
and Jörn Emmerich. For more
than ten years, the team hasdeveloped
and distributed a
photo-optical and image-based
inline analytical measurement
technique that quantitatively
characterizes particulate multiphase
systems.
mpb
Sopat
Hall 11.1, Stand F25
Fuel Cell and Battery Manufacturing
Repeatable and Reliable Robotics
Industrial robots provide many
advantages in manufacturing
environments that require extreme
precision, hygiene and
repeatability, such as in the
production of membrane electrode
assemblies (MEAs) for
fuel cells. Stäubli International
AG has provided robots for
what is said to be the world’s
first fully automated production
line for fuel cells, operated
by Palcan Group in Cixi, China.
MEAs present special challenges
in mass production,
since they are fabricated by
Robotic arms can prove very helpful
in manufacturing applications that
require precision and repeatability, as
in the manufacture of batteries and
fuel cells
stacking hundreds of very thin
layers of expensive and fragile
materials, but robots have
helped to streamline the process.
Robotic arms (photo) not
only position coated carbon
sheets to begin the stacking
process, but also handle films
that must be soaked in a strong
acidic solution, which would
pose hazards to workers.
Stäubli’s robots not only can
handle the extremely acidic environment,
but also high humidity,
without any corrosion.
The company has also supplied
robots for the manufacturing
of lithium-ion batteries, pharmaceuticals
and many other
products. “Emerging applications
and performance improvements
in robotics technology
will enhance the capabilities
of robots in manufacturing
and energy operations,
leading to greater productivity,
cost savings and safety improvements
in industry. As
technology continues to
evolve, businesses in the
chemicals and energy sectors
will likely find new and innovative
uses for robotic systems,”
says Sebastien Schmitt,
robotics director for North
America at Stäubli. Such advancements
on the horizon include
integration with more advanced
algorithms, enhanced
sensory capabilities to give robots
a better understanding of
their environment and increased
mobility in hard-toreach
areas.
mpb
Stäubli TEC-Systems Robotics
Hall 3.1, Stand J72

ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Breaking News 7
Entrepreneurship
ACHEMA Start-Up Award: Here are the 2024 Finalists
Sustainability and digitalization
are megatrends that are not
only shaping the process industry
as a whole, but also the list
of finalists for this year‘s ACHE-
MA Start-up Award. For the
fourth time, DECHEMA, High-
Tech Gründerfonds and the
Business Angels Frankfurt-
Rhein-Main were looking for
entrepreneurial scientists and
founders with an affinity for
technology. The ten finalists
have now been selected to
present their companies and
technologies during this year‘s
event. The companies will present
their technologies in the
start-up area (Hall 6.0, Stand
C74), and at a pitch session on
Wednesday, 12 June at 14:30 on
the EY Green Innovation Stage
in Hall 6.0. This session is to be
followed by an award ceremony,
where the overall
winner will be announced. The
winner of the award will receive
a prize of 15,000 euros.
Finalists of the ACHEMA Startup
Award 2024 are listed here:
· Biosimo AG wants to drive the
transformation of the chemical
industry towards greater
sustainability with basic
chemicals made from renewable
raw materials.
· ChemInnovation has developed
the AI model METIS. It enables
the automated structural
elucidation of unknown molecules
based on mass spectra.
· co2ol catalyst uses a robust
catalyst to produce methanol
from CO2 – even from sources
that could previously only be
used with additional purification
stages.
· eco:fibr has developed an
extraction process with which
pulp for the paper and cardboard
industry can be obtained
from pineapple plant residues.
· Graph-Co offers the digitization
and migration of technical
flow charts for the process
industry under the brand name
Graph-ID.
· Inline Process Solutions
GmbH analyzes particle flows
in plants inline with the help of
image-optical AI-based sensor
technology.
· LABMaiTE GmbH fully automatically
optimizes the culture
media for fermentative bioprocesses
and thus accelerates
their development.
· Nanolope offers versatile heat
storage solutions based on a
phase change material.
· PHABIOC develops innovative
tools, microplates and analyzers
for small-scale screening
on a small scale and with a high
throughput rate in pharmaceuticals
and biotechnology.
· re.solution recycles textiles
containing polyester using a
chemical process with renewable
energy and low water and
chemical consumption.
ACHEMA organizers report a
“significantly higher number of
applications” compared to previous
years. Start-up founders
need a good network, and the
ACHEMA Start-up Award aims
with the zenon
software platform
to contribute to this by putting
start-ups in the spotlight, organizers
say. By participating in
ACHEMA free of charge, they
have the opportunity to present
their technologies and
products to the global community
and to establish contacts
with suppliers, customers and
cooperation partners. scj
ACHEMA Start-up Prize
Hall 6.0, Stand C74
Plug & Produce
Pharmaceuticals and Biotechnology
Zeta Continues Process Automation Growth
Source: ZETA
Partnerships and synergy are enhancing automation offerings for
pharma customers
A series of new process-automation
partnerships is underlining
the proliferation of smart
technologies throughout the
pharmaceutical and biotechnology
sectors. Earlier this year,
engineering contractor and
plant manufacturer Zeta Group
announced its acquisition of
Sigma Process & Automation
GmbH. The acquisition enhances
Zeta’s offerings in the
field of pharmaceutical process
automation, via Sigma’s extensive
professional network, resources
and expertise. The
combined expertise of Zeta and
Sigma is now available to the
industry, drawing upon a
strong network of over 300 experts
in process automation
and digitalization. Sigma’s
automation solutions span
basic planning tasks all the way
through qualified project handover.
The software is structured
in accordance with ISA S88
standards to include commonly
used process control systems
that include formula and path
control for maximum flexibility,
scalability and availability.
In another partnership fostering
Industry 4.0 technology for
the biopharmaceutical sector,
Zeta has acquired a majority
stake in Inosim Software
GmbH, a German company that
specializes in software solutions
for the optimization of
production processes. Inosim‘s
simulation software products
are widely used in optimizing
production processes in various
industries, including
chemical, pharmaceutical, life
sciences, and biotech. Zeta has
already successfully integrated
Inosim‘s software products into
its digital tool landscape, including
Inosim Foresight, a
new platform for predictive
decision support in manufacturing
plant operations.
Zeta has also recently entered a
strategic collaboration with
Rockwell Automation as part of
Rockwell’s Engineering, Procurement,
and Construction
(EPC) Partner Program. By
combining forces, the program
aims to accelerate project delivery,
improve efficiency and
drive greater value for customers.
Products from both Inosim
and Sigma will be showcased at
Zetas‘s stand.
mpb
Zeta Group
Hall 9.0, Stand D14
` Simplify process orchestration
` MTP Standard VDI/VDE/NAMUR
` Deliver ISA-88 batch control
` Data integrity according to FDA/GMP
` Optimize quality assurance and data analysis
HALL 11.1
10-14 June 2024 | Frankfurt am Main
BOOTH E64

8
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Breaking News
Executive Commentary
Digital Twins are Indispensable for H 2 Production
Source: Siemens
Siemens‘ CEO of process automation, Axel Lorenz
The shift to green hydrogen produced using renewable
energy sources is an important step toward
the decarbonization of various sectors. As a result,
companies beyond the process industries are also
becoming part of the hydrogen economy.
The increasing demand for
clean energy sources makes
hydrogen a key element in the
energy transition. Integrating
digital twins into hydrogen
production opens up new opportunities
when it comes to
increasing efficiency and reducing
costs — thus helping to
ramp up hydrogen production
in the face of high production
costs. By using simulation
models that replicate real plant
operation, engineers and operators
can optimize plant designs
before physical components
are built or modified.
This approach makes it possible
to identify and correct potential
problems at an early
stage, resulting in shorter development
times and reduced
costs. For the construction and
operation of digital twins,
however, it is imperative that
the automation technology
and industrial software are optimally
coordinated. Siemens
offers suitable blueprints, preplanned
engineering templates
and libraries for
this purpose.
Standardization is Crucial
Unlike the processes that have
been established for decades to
produce mostly gray hydrogen,
the new technologies for producing
green hydrogen are
typically modular greenfield
plants that consist of different
package units. The resulting
challenge is that each module
has its own manufacturer-specific
logic, programming and
operation. In addition to transmission
protocols, the alarms
and messages generated by the
skids must also be correctly integrated
into the control system.
The same applies to the
visualization of all control parameters.
To ensure seamless interoperability
of these different
systems, standardization is the
key to an open and flexible
automation concept. Only on
this basis can digital twins
achieve their full potential.
Simluation and Design
The first step toward digital
twins in hydrogen production is
the design process for greenfield
plants. To determine optimal
process designs for a plant,
simulations are run using process
modeling software, such
as gPROMS from Siemens,
which captures process knowledge
in mathematical models
that describe the physics and
chemistry of the process flows.
To illustrate and refine the process
engineering concept in the
next step, the previously collected
process data is used for
the process flow diagram (PFD),
after which the more detailed
piping and instrumentation diagrams
(P&IDs) are created. An
engineering tool like COMOS
helps to create the digital twin
for the various disciplines of
plant engineering, such as process,
electrical, systems and
piping and automation.
The entire automation of the
plant must then be designed
and engineered (detailed engineering),
including circuit
diagrams, wiring and the distributed
control system (DCS).
The corresponding DCS hardware,
such as remote IOs or
controllers, must be placed,
wired and configured in the
field. The same holds true for
the DCS software that needs to
be designed and implemented.
The Plant Automation Accelerator
from Siemens provides an
integrated engineering approach
for this. After DCS engineering,
the critical phase of
acceptance testing and commissioning
begins. The SIMIT
software makes it possible to
simulate the DCS behavior for
virtual commissioning. By reusing
the data from the process
control system, Simit, Comos
and gPROMS, the entire system
behavior can be simulated prior
to commissioning. The combination
of these applications
also ensures that the data of
the digital twins is always up to
date. If a 3D model of a plant is
also available, Comos Walkinside
can be used to train operating
personnel at an early
stage using virtual reality. This
approach also makes it easier
to achieve a low-disruption operating
phase. To accomplish
this, it is essential to enrich
plant and operating data as well
as documentation with both
real-time and historical data.
Faster Time to Market
Clearly, digital twins reduce the
time and effort required for onsite
commissioning to a minimum,
minimize error, and can
cut the project costs of a plant
by around 15% — while also decreasing
the commissioning
time by as much as 30%. By
combining the four applications
Comos, gPROMS, Simit
and the DCS system (Simatic
PCS 7 or Simatic PCS neo), it is
possible to ensure that the digital
twin is always current by
continually updating the data.
In engineering, automation and
simulation, plant productivity
and performance are optimized
through the use of predictive
models that are an accurate reflection
of the actual plant.
Electrolyzer Considerations
Electrolyzers are the core component
of a green hydrogen
plant. Their capacity cannot be
scaled at will. Instead, multiple
electrolyzers are operated in
parallel by numbering up to increase
the output of a plant.
Once you have a digital twin of
the electrolyzers, you can
easily design a hydrogen plant

ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Breaking News 9
by using copy and paste or
drag and drop. In the future,
this approach can be used to
copy and replicate entire H2
plants. This digital plant forms
the foundation for scaling up
the electrolysis business. The
previously mentioned simulation
models will then run in
the background in parallel
with plant operation and detect
any deviations from optimum
operation. This ultimately
makes it possible to
find the most efficient and material-friendly
operating
modes for hydrogen plants.
Existing System Integration
Digital twins also facilitate the
integration of H2 production
plants into existing energy systems.
By accurately simulating
plant operation, operators can
better understand how their
plants will respond to a fluctuating
energy supply from renewable
sources and how best
to integrate them into the
broader energy grid. This capability
is critical to maximizing
the role of hydrogen as an energy
storage medium and increasing
the flexibility of the energy
system as a whole. Weather
forecasts can also be fed into
simulation models of plants,
allowing operators to know at
an earlier stage how much electricity
they need to buy from
the market for their plant. This
in turn saves costs.
In short, the entire architecture
of the digital twin is designed
for flexibility that allows plant
operators to set their own priorities
for hydrogen production.
Axel Lorenz,
CEO
Process Automation
Siemens
Hall 11.0, Stand C3
Roadmap für Direct Air Capture and Storage
Beschleunigte CO 2 -Reduktion
Bild: VectorMine – stock.adobe.com
Direct Air Capture and Storage (DACS) kann mittelfristig eine kosteneffiziente
und vielversprechende Technik zur CO2-Reduktion sein
Die Klimaziele werden nur zu
erreichen sein, wenn es gelingt,
Kohlendioxid in großem Maßstab
aus der Atmosphäre zu
entfernen. Wird Direct Air Capture
and Storage (DACS) mittelfristig
eine kosteneffiziente
und vielversprechende Technik
zur CO 2 -Reduktion sein? Im
Helmholtz-Forschungsprojekt
DACStorE, das vom Forschungszentrum
Jülich koordiniert wird,
arbeiten sechs Helmholtz-Zentren
und die TU Berlin gemeinsam
an technischen Lösungen
sowie einer Roadmap für den
schnellen und nachhaltigen
Hochlauf dieser Technologie.
„Die aktive technische Abscheidung
von CO 2 aus der Atmosphäre
und permanente geologische
Speicherung wird voraussichtlich
schon ab 2035 eine
kosteneffektive Option, um
diese verbleibenden Emissionen
auszugleichen. Dies geht
aus wissenschaftlichen Analysen
hervor, die wir begleitend
zu DACStorE erstellt haben“, erklärt
Projektsprecher Prof. Dr.
Detlef Stolten vom Forschungszentrum
Jülich.
Kosten für Direct Air Capture
Im Jahr 2045 müssen in
Deutschland rund 53 Mio. Tonnen
CO 2 aus der Atmosphäre
entfernt werden, wie Analysen
der Jülicher Forscher zeigen.
Die Abscheidekosten von adsorptionsbasierten
DAC-Anlagen
liegen dann im Durchschnitt
voraussichtlich bei etwa
290 Euro/t CO 2 . Die niedrigsten
Kosten im Jahr 2045 sind mit
235 Euro/t CO 2 in Norddeutschland
zu erwarten, wo besonders
viel Windstrom produziert
wird und sich auch geeignete
CO 2 -Speicherstätten befinden.
„Die Abscheidung von CO 2 aus
der Luft wäre damit kostengünstiger
als die Vermeidung
von Emissionen in schwer dekarbonisierbaren
Bereichen
wie der chemischen Industrie“,
sagt der wissenschaftliche Koordinator
von DACStorE Thomas
Schöb aus dem Institut Jülicher
Systemanalyse.
Kohlendioxid-Speicherung
Geeignete geologische Speicher
für abgeschiedenes CO 2 in
Deutschland sind beispielsweise
ausgeförderte Erdgaslagerstätten
oder salzwasserführende
Gesteinsschichten, sogenannte
saline Aquifere. Gemäß
Abschätzungen der Bundesanstalt
für Geowissenschaften und
Rohstoffe bieten diese beiden
Optionen ein Potenzial, um etwa
12 Mrd. t CO 2 aufzunehmen.
Politisch und rechtlich ist es
wichtig, die technikbasierte
CO 2 -Entnahme von anderen klimapolitischen
Maßnahmen abzugrenzen.
Insbesondere muss
klar zwischen der CO 2 -Abscheidung
an fossilen Kraftwerken
oder bei Industrieprozessen
und der direkten Entnahme von
CO 2 aus der Atmosphäre unterschieden
werden, da nur letztere
in Verbindung mit permanenter
Speicherung negative Emissionen
bereitstellt. Das Recht
muss so weiterentwickelt werden,
dass es die effektive, effiziente
und ökologisch nachhaltige
Entwicklung und Anwendung
von DACS unterstützt.
Abscheidung über
Lüftungsanlagen
Zur CO 2 -Abscheidung könnten
Lüftungsanlagen in größeren
Gebäuden zukünftig mit DAC-
Anlagen erweitert werden. Bei
Umsetzung in 15 % aller Bürogebäuden
mit einer Nutzfläche
über 2500 m 2 könnten so 15
Mio. t/a CO 2 aus der Atmosphäre
entfernt werden. Ziel von
DACStorE ist die Entwicklung
von DAC-Technologien, die an
verschiedenen Standorten auf
der ganzen Welt eingesetzt werden
können.
dh
Fast-Forward
to Net Zero
Turning Strategy into Reality
Here at Linde, we are committed to shaping a greener,
more sustainable future. Our comprehensive offering is
designed to help you map your individual, step-by-step
journey towards net zero – starting with decarbonization
technologies to avoid, reduce or capture carbon emissions
and moving towards recycled or fully renewable fuels
such as green hydrogen. We complement our carbon
management offering with a rich decarbonization service
portfolio underpinned by the latest efficiency-enabling
digital breakthroughs.
Tune into our thought-provoking presentations on an
hourly basis and experience our virtual reality training
demo live.
Visit Linde
Booth D4, hall 9.0
www.linde-engineering.com

10
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Breaking News
Continuous Emissions Monitoring
Going Beyond Environmental Protection
Jacques Mulbert, division president, ABB Measurement & Analytics, explains
how continuous emission monitoring systems (CEMS) do more than just protect
the environment
What is the role of CEMS in
environmental protection?
Jacques Mulbert: Tightening
environmental regulations
across the world are forcing
companies to put sustainability
at the heart of their processes,
and accurate emissions monitoring
is key to managing and
mitigating a company’s environmental
impact.
Continuous emission monitoring
systems are one of the ways
in which governments and industry
are mobilizing to tackle
climate change. CEMS provide
constant monitoring and analysis
of effluent gas streams that
result from combustion in industrial
processes. To put it
simply, CEMS tell us the composition
of gases that come out
of industrial chimneys.
However, as well as the headline
pollutants of CO 2
and
methane that form the major
greenhouse gasses, there are
also many other toxic gases
and particulate matter that affect
human health, wildlife,
water and the environment.
These include carbon monoxide,
ammonia and hydrogen
chloride. CEMS operate constantly,
even when the process
is not operational, and measure
all required components.
Can CEMS offer an advantage
in terms of optimizing
production or do they stop
at environmental protection?
Jacques Mulbert, division president, ABB Measurement and Analytics
Mulbert: Unlike many industrial
innovations, the increased
demand for CEMS is not driven
by a desire to seek a competitive
advantage, but by the need
to achieve regulatory compliance.
However, CEMS should
not be seen merely as a boxticking
exercise, as it can also
deliver real benefits to help inform
decision-making and improve
the efficiency and sustainability
of industrial processes.
They can also offer safety
benefits by providing an early
detection system for explosions,
leakage monitoring
and filter monitoring. In addition,
data generated by CEMS
equipment can be used to optimize
combustion to reduce fuel
and lower emissions, increase
plant efficiency and equipment
lifetime and decrease operating
costs by providing operators
with additional intelligence
on process performance.
As well as continuously collecting,
recording and reporting
emissions data for process
monitoring or for compliance
purposes, CEMS can improve
productivity.
What is the direction of recent
developments in CEMS?
Source: ABB
Mulbert: New developments
in CEMS technology are to help
to broaden its capabilities.
Today, the most advanced systems
can measure the lowest
concentrations of exhaust
gases from industrial chimneys.
When new pollutants become
mandatory to measure or
emission limits change, some
systems are so sophisticated
that they can be adjusted by a
mere software upgrade.
The integration of Dynamic QR
(DQR) codes, for instance, can
reflect the real-time status of a
device. When scanned, the
DQR software pulls updated
data and status information
from a central unit, which can
be in control of several discrete
gas-analyzer modules. The DQR
codes also provide a health
check of performance history,
together with access to information
like the device’s serial
number to enable timely
service support. This is particularly
helpful for installations
that require high availability,
remote installations, or installations
that require manual inspection
only.
ond
ABB
Hall 11.1, Stand E62
Batterieindustrie
Starke Partnerschaft
Eirich und Siemens gehen gemeinsame Wege bei der Batteriefertigung
Der Experte für Misch- und
Aufbereitungstechnik Eirich sowie
Siemens Digital Industries
wollen künftig gemeinsam die
Effizienzsteigerung und Verkürzung
der Projektdurchlaufzeiten
für Lithium-Ionen-Batterieprojekte
forcieren. Dabei liefert
Eirich Anlagen, die mit
Hard- und Software-Produkten
von Siemens ausgerüstet sind.
In den nächsten sieben Jahren
sollen sich die Produktionskapazität
von Lithium-Ionen- und
anderen Batterien verzehnfachen.
Es gilt daher, die Produktion
zu optimieren.
„Wir freuen uns, mit einem
starken Partner wie Siemens
gemeinsam in die Zukunft zu
gehen und entscheidende Ver-
Bild: Eirich
änderungen in der Zellproduktion
zu bewirken.“, erklärt Stephan
Eirich, geschäftsführender
Gesellschafter. br
Eirich
Halle 5.0, Stand C86

ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Breaking News 11
Solid-liquid separation and drying
De Dietrich Process Systems Acquires Heinkel Group
With the acquisition of the
Heinkel Drying & Separation
Group, De Dietrich Process Systems
strengthens its industrial
base in Europe. This strategic
merger allows De Dietrich to
enrich and broaden its portfolio
of solutions. Through this
acquisition, the group becomes
the global leader in the fields of
solid-liquid separation and the
drying of active ingredients.
With four additional production
sites in Europe, it allows De
Dietrich Process Systems to become
an undisputed European
leader with a strategic commitment
to local manufacturing
(France, Germany, Netherlands,
Italy, Spain, Switzerland,
Hungary, Czech Republic).
Through its recognized brands,
Heinkel, Comber, Bolz-Summix,
and Jongia, the Heinkel Group
has established itself as a premium
provider of solid-liquid
separation solutions, drying,
and mixing systems, mainly for
the pharmaceutical, chemical,
and food industries. It has
established privileged relationships
with its international
clients through its expertise
and technological innovations.
By complementing its offerings
in emerging markets such as
recycling and the environment,
this structuring acquisition positions
De Dietrich Process Systems
on a continuous growth
trajectory with revenue prospects
exceeding 300 million
euros. Jacques Moulin, President
of De Dietrich Process
Systems, comments: “De Dietrich
Process Systems and
Heinkel Group share common
values, including family values,
and the ambition to preserve a
strong manufacturing industry
in Europe. The technologies
provided by the newly formed
group are essential for the manufacturing
of active ingredients
and vital chemicals in
Europe. We contribute to the
continent‘s economic growth
and reinforce our commitment
to a more local and sustainable
industry.”
dh
De Dietrich Process Systems
Hall 4.0, Stand A53
Heinkel Drying & Separation
Hall 6.0, Stand C49
Jacques Moulin, President of
De Dietrich Process Systems
Source: De Dietrich
Thyssenkrupp Uhde und Johnson Matthey kooperieren
Integrierte Lösung für blauen Ammoniak
Bild: JT Jeeraphun – stock.adobe.com
Visit us at
Hall 9.0, Stand C4
+ our Live-
Demonstrations
(Outdoor area 2,
Stand A1)
Johnson Matthey und Thyssenkrupp Uhde bündeln ihr Know-how, um eine integrierte Technologie zur CO 2 -reduzierten
Herstellung von (blauem) Ammoniak anzubieten
Die Nachfrage nach Ammoniak
steigt, da es sich leichter lagern
und transportieren lässt als reiner
Wasserstoff und der Schlüssel
zur Dekarbonisierung der
weltweiten Energieversorgung,
der Schifffahrt und der industriellen
Prozesse ist.
Thyssenkrupp Uhde und Johnson
Matthey ( JM) haben eine
Absichtserklärung unterzeichnet,
um gemeinsam eine vollständig
integrierte Technologie
für die CO 2 -reduzierte Herstellung
von Ammoniak anzubieten.
Damit bauen beide Unternehmen
auf ihre fast 25-jährige
Beziehung im Bereich Ammoniak
auf.
In dem Bestreben, die
CO 2 -Emissionen zu reduzieren,
hat sich die Rolle von Ammoniak
weiterentwickelt: Von einem
unverzichtbaren Bestandteil zur
Herstellung von Düngemitteln
für die Landwirtschaft hin zu einem
dekarbonisierten Energie-
und Wasserstoffträger, der einfacher
zu speichern und zu
transportieren ist als reiner Wasserstoff.
Der Transport von emissionsarm
produzierten Ammoniak
kann die bestehende Infrastruktur
nutzen und ist damit eine
zentrale Lösung für die Energiewende.
In Form von Ammoniak
lassen sich große Mengen
an Wasserstoff für den Einsatz
in der Energie- und Schifffahrtsbranche
und in industriellen
Wertschöpfungsketten weltweit
speichern und transportieren.
Durch ihre Kooperation können
Thyssenkrupp Uhde und
JM gemeinsam den Markt für
blaues Ammoniak erschließen,
indem sie bewährte Technologien
anbieten, die das Uhde-
Ammoniak-Verfahren und die
Wasserstoff-Expertise von JM
durch die LCH-Technologie
kombinieren. Dies soll die Produktion
von blauem Ammoniak
mit bis zu 99 % CO 2 -
Abscheidung ermöglichen.
Thyssenkrupp Uhde hat seit
1928 weltweit mehr als 130 Ammoniakanlagen
lizenziert, entwickelt
oder gebaut und ist mit
dem Uhde-Zweidruckverfahren
marktführend bei Anlagen mit
mehr als 3000 t/d.
Die LCH-Technologie von JM,
bei der der autotherme Reformer
von JM allein oder in
Verbindung mit dem gasbeheizten
Reformer von JM zum
Einsatz kommt, wurde für mehrere
der weltweit ersten Großprojekte
für blauen Wasserstoff
ausgewählt. Darunter sind
H2Teesside von bp, eine
700-MW-Anlage zur Erzeugung
von kohlenstoffarmem Wasserstoff,
und das H2H-Saltend-
Projekt mit Equinor und Linde
für eine 600-MW-Anlage zur
Erzeugung von emissionsreduziertem
Wasserstoff. br
Thyssenkrupp Uhde
Halle 8.0, Stand H51
REMBE®
Pressure Relief
and
Explosion
Safety.
REMBE ® GmbH Safety+Control
Gallbergweg 21
59929 Brilon, Germany
T +49 2961 7405-0
hello@rembe.de
© REMBE® | All rights reserved

12
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Breaking News
An interview with Dr. Daniel Witthaut, Executive
Director for Innovation at Cefic, the European
Chemical Industry Council
I understand that Cefic is
participating in ACHEMA for
the first time. Why has the
organization decided to do
this now, and not before?
Dr. Daniel Witthaut: The
chemical industry is at a critical
Interview
Cefic makes its ACHEMA Debut
crossroads — we have the ambition
to go climate neutral by
2050. This means changing
how we produce and what we
produce in less than 30 years
while remaining globally competitive.
We call this the double
twin transition: going circular,
going digital, going climate
neutral and transitioning to
safe and sustainable chemicals.
Recognizing the need for innovation
and broader cooperation
across various sectors, Cefic
has chosen to participate in
ACHEMA now.
The challenges we face today
require collaboration across industries,
with policymakers,
academia and society. ACHEMA
provides an excellent platform
for such engagement, bringing
together relevant stakeholders
and fostering key exchanges.
We look forward to combining
these different views for forward-looking
discussions on
how we can achieve the green
and digital transition of our industry
and boost Europe’s journey
as an innovation hub.
Can you give an overview of
the sessions organized by
Cefic?
Dr. Witthaut: Cefic will organize
13 sessions over four
ACHEMA innovation stages focussing
on process, green,
digital and hydrogen innovation.
We will be covering
topics including:
• Hydrogen Economy
• Sustainable Carbon Cycles
• Chemical Recycling
• Safe & Sustainable-by-Design
• Digitalization (AI, quantum
computing, data sharing, and
so on)
• Industrial Biotechnology
• The role of innovation in
achieving a digital and green
transition and moving towards
climate neutrality
We will also dedicate time to
speaking about the Brussels
Ecosystem and how to navigate
the EU funding landscape,
explaining how decisions
made in Brussels impact the
chemical industry. We will explain
EU policies and the positioning
of the chemical sector
within the Brussels framework.
The sessions will bring together
a variety of stakeholders: industry
players, academia, policymakers
from Brussels
(European Commission) and of
course, Cefic experts on the
various topics.
Dr. Daniel Witthaut, Executive Director for Innovation, Cefic
What can visitors learn at
Cefic’s exhibition stand?
Dr. Witthaut: Visitors can
learn about Cefic’s role as the
forum of the chemical industry:
our expertise and services
dedicated to advancing the
chemical industry. Interested
parties can also learn about
Cefic’s membership process.
Our booth provides information
on our initiatives to solve the
challenges of the chemical industry
and how we are shaping
the green and digital transition,
and the role of innovation
throughout. Visitors can find
out about the strides Cefic is
taking with the Antwerp Declaration
for a European Industrial
Deal to complement the EU
Green Deal to safeguard high
quality jobs for European
workers in Europe and to ensure
Europe’s competitiveness.
From there, they can find out
what the digital and green transition
means for our sector and
the Transition Pathway for the
Chemical Industry, a roadmap
bringing together EU institutions,
Member States, industry,
and civil society.
Source: Cefic
Of course, the heart of our
booth is innovation, with a
clear invitation to everyone:
Let’s boost Europe’s journey as
an innovation hub. We invite all
attendees to come chat with us
about how we can continue
furthering the role of innovation
in the chemical industry.
What type of networking
does Cefic hope to achieve
at its exhibition stand?
Dr. Witthaut: We aim to bring
together all stakeholders playing
a role in the chemical industry:
industry, from technical
experts to chief technology officers
(CTOs); supplier industries
to the chemical sector;
academia; policymakers; and
the broader public. Participants
can connect and discuss key
areas shaping the industry. Our
booth will hold a networking
cocktail hour on 11 June.
At ACHEMA, Is Cefic doing
anything special for students?
Dr. Witthaut: Students are the
future of our industry. We in-

ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Breaking News 13
vite university and undergraduates
to come and speak to us
at our booth —bringing academia
and industry together is
key to address the challenges
we are facing.
Other newcomers to this
year’s ACHEMA are a
number of power-generation
companies, such as E.ON. Is
Cefic also forming closer ties
with the energy sector, as
sustainable power becomes
more important as chemical
producers aim for carbon
neutrality by 2050?
Dr. Witthaut: The chemical industry
is the largest industrial
consumer of gas and electricity
in the EU, therefore close
ties to the energy sector are
essential for us. While it has
always been important, our
relationship with the energy
sector is taking on new forms:
traditional chemical companies
are investing in their
own energy generation (such
as wind or solar parks), including
on-site generation, and
are developing new collaborations
(such as Power Purchase
Agreements) with energy
providers.
These new relationships are
driven both by our transition to
climate neutrality, as well as
the persistent high energy
costs which continue to affect
EU industrial competitiveness.
Cefic
ond
Hall 6.0, Stand D19
13 Sessions on Four Stages
Cefic will organize 13 sessions over four ACHEMA innovation
stages focussing on process, green, digital and hydrogen
innovation. Interesting topics are Hydrogen Economy,
Sustainable Carbon Cycles, Chemical Recycling, Safe &
Sustainable-by-Design, Digitalization (AI, quantum computing,
etc.), The role of innovation in achieving a digital and
green transition and moving towards climate neutrality.
Aus enger Zusammenarbeit wird offizielle Beteiligung
Serto steigt bei Archigas ein
Die Archigas-Geschäftsführer Illya Kaufman und Wladimir Barskyi freuen
sich über den Einstieg der Serto AG
Bild: Archigas
Der H 2 -Messpionier und „Hermes
Startup Award 2024“-Gewinner
Archigas freut sich, ab
sofort die Serto AG als Gesellschafterin
mit an Bord zu haben.
Der offiziellen Beteiligung
des geschätzten und weltweit
erfolgreichen Rohrverbindungs-Spezialisten
aus Frauenfeld
in der Schweiz ging bereits
eine jahrelange vertrauensvolle
Zusammenarbeit voraus. So
stellen die hochwertigen Edelstahlgehäuse
und -verschraubungssysteme
ein wesentliches
Merkmal der Sensorinnovationen
von Archigas zur Wasserstoffmessung
dar. „Unsere Lösungen
für eine präzisere,
schnellere und stabilere H 2 -Detektion
sind buchstäblich eng
mit Serto verbunden. Als besonders
erfahrener und engagierter
Experte auf seinem Gebiet
bringt das Unternehmen
unsere Mikrosensorik zur Gasanalyse
quasi in Form. Kurz:
Wir können uns auch in seiner
neuen zusätzlichen Rolle als
Gesellschafter keinen besseren
Partner vorstellen. Auf den
weiteren gemeinsamen Weg
freuen wir uns außerordentlich“,
so die Archigas-Geschäftsführer
Illya Kaufman
und Wladimir Barskyi.
Serto betont anlässlich des Einstiegs
ebenfalls die Gemeinsamkeiten
und Potenziale für
den gemeinsamen Erfolg. „Expertise
und Innovationsgeist
kennzeichnen Archigas in hohem
Maße. Mit diesen Merkmalen
können wir uns hervorragend
identifizieren. Deshalb
und in Anbetracht des interessanten
Wachstumsmarktes, der
mit Wasserstoff einhergeht, haben
wir uns aus ganzer Überzeugung
für einen Einstieg entschieden“,
sagt Kurt Bolliger,
CFO der Serto Group. „Archigas
ist mit seinen neuen Lösungen
zur wichtigen H 2 -Messung sozusagen
aus der Pole Position
gestartet. Wir sind also gerne
mit vorne dabei und freuen uns
über diese seltene Gelegenheit“,
unterstreicht Serto-CEO
Andreas Mühlthaler. br
Serto
Halle 8.0, Stand D95
STÄUBLI FLUID CONNECTORS
Nachhaltige Verbindungslösungen für
den Schutz von Bedienern und Umwelt
In der chemischen Industrie ist eine absolute Kontrolle über Fluidverbindungen unabdingbar.
Welche Herstellungs- oder Verarbeitungsprozesse Sie auch immer anwenden, die hochwertige Qualität der
Schnellkupplungslösungen von Stäubli erfüllt alle Anforderungen an Sicherheit, Zuverlässigkeit und Langlebigkeit.
Mit Stäubli entscheiden Sie sich für ein nachhaltiges Lösungskonzept.
www.staubli.com
Stäubli Tec-Systems GmbH, Tel. + 49 (0) 921 833 0, sales.connectors.de@staubli.com
Stäubli auf der ACHEMA:
Halle 8 | Stand D93

14
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Breaking News
Today‘s Highlights
Get the ACHEMA App and be informed on the go!
The ACHEMA App is available for free via the official
app stores.
www.achema.de/achema-app
13:00, H 4.0 – EUROPA
Highlight Session – Pharma Innovation
Next generation pharma manufacturing
current advances in cell and gene therapy
Speaker: Prof. Dr. Dr. Ulrike Köhl, Director of Fraunhofer Institute for Cell
Therapy and Immunology, Leipzig and Director of the Institute of Clinical
Immunology, University of Leipzig
Sadik H. Kassim, Chief Technology Officer, Genomic Medicines, Danaher
ACHEMA Congress Program
Bild: DECHEMA / Markus Püttmann
ACHEMA fully integrates the congress into the exhibtion programme. All lecture
sessions will take place on the Innovation Stages directly in the exhibition halls or
close to the exhibition groups. The six ACHEMA innovation themes form the thematic
framework: #process, #pharma, #green, #lab, #digital and #hydrogen. The
ACHEMA innovation themes offer solid insights into the most important innovation
drivers in the process industries. Each topic will be highlighted on a dedicated live
stage, as part of the comprehensive congress programme and in visionary highlight
sessions. More information can be found at: www.achema.de/congress

ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Daily Program 15
Symmetrie 2 – 8.1
Consens – 4.C
Entente – 4.C
Alliance – 4.C
Enhancing plant productivity by intelligent
detail engineering
Chair: J. Oeß¹
¹SiCor Engineering Partners GbR, Bönningheim/D
Standardized method for equipment
performance assessment in foulingprone
applications
Chair: K. Church¹
¹Watson-Marlow Fluid Technology Solutions , Falmouth/UK
Industrial biotechnology - Producing
food and processing side streams
Analysis and controlling for hydrogen
technologies
Chair: A. Göbel¹
¹DECHEMA Gesellschaft für Chemische Technik und
Biotechnologie e.V., Frankfurt/D
10:00
Plant productivity and safety boost with
additive manufacturing
L. Stolz¹; D. Urbanczyk¹; P. Thiele¹; F. Ventulett¹
¹ BASF SE, Ludwigshafen/D
Investigation of crystallization fouling on
column internals
K. Inderwies¹; H. Klein¹; S. Rehfeldt¹
¹ Technical University of Munich, Garching/D
Enzymatic and microbial synthesis of
Bioflavours
M. Winkler¹
¹ ACIB GmbH, Graz/D
Measuring the Oxygen Content in
Hydrogen
G. Shahnovsky¹
¹ Modcon Systems, London/UK
10:30
Mixing in “World Scale” Plants
W. Keller¹
¹ EKATO Rühr- und Mischtechnik GmbH, Schopfheim/D
Column fouling: finding preventive measures
using the standard apparatus
H. Winterbauer¹
¹ Pfaudler Normag Systems GmbH, Hofheim/D
Manufacturing and producing alternative
proteins – Repurposing and retrofitting
facilities for use in alternative protein
manufacturing
K. Gasser¹; P. Pandilov²
¹ VTU Top GmbH, Raaba-Grambach/A; ² VTU Engineering
GmbH, Wien/A
Humidity – A Critical Measurement in Fuel
Cells
J. Lehto¹
¹ Vaisala Oyj, Vantaa/FIN
11:00
Defossilization of the utility infrastructure
of chemical sites with power-to-heat and
thermal energy storage systems
T. Bauer¹; M. Prenzel¹
¹ German Aerospace Center (DLR), Cologne/D
Methods for the standardized generation
and quantification of fouling in heat exchangers
P. Pelz¹; C. Meyer²; A. Klinkert²; K. Jasch²; H. Bart¹;
S. Scholl²
¹ Rheinland-Pfälzische Technische Universität Kaiserslautern-Landau,
Kaiserslautern/D; ² TU Braunschweig
, Braunschweig/D
Alternative bio-lubricants from residual
streams of the food industry
M. Platzer¹; S. Kiese²; D. Leistl²; T. Herfellner²
¹ Fraunhofer Institute for Process Engineering and
Packaging IVV, Germany/D; ² Fraunhofer Institute
for Process Engineering and Packaging IVV, Freising/D
How Tunable Diode Laser Spectroscopy
(TDLAS) combined with Artificial Intelligence
support high quality green hydrogen
production with the highest throughput
possible ?
D. Janssens¹
¹ Siemens AG, Karlsruhe/D
11:30
Solid formation through crystallization -
wish and reality - Bernoulli offers a solid
concept -
H. Meldau¹
¹ ehemals Sulzer Escher Wyss. / studied at RWTH,
Aachen, Hannover/D
Considerations of fouling mechanisms in
the hydraulic simulation of separation
columns
V. Engel¹
¹ WelChem GmbH, Eichenau/D
Cascading upgrading of side streams from
food industry
H. Frühwirth¹; C. Klimt²; A. Sprißler²;
B. Bottenbruch²; S. Scheffold²
¹ Hochschule Biberach, Biberach an der Riß/D; ²
Hochschule Biberach, Biberach/D
A Holistic Approach for Automation System
and Field Devices in Green Hydrogen
Production Plant.
F. Thielland¹
¹ Siemens AG, Karlsruhe/D
Korall – 11.0
Encounter – 5.0
EY Green Innovation Stage – 6.0
Facette – 3.Via
Properties of materials for hydrogen
applications
Chair: M. Mann¹
¹DECHEMA e.V., Frankfurt am Main/D
Towards a circular economy of plastics I
Chair: A. Fehling¹
¹DECHEMA e.V., Frankfurt am Main/D
Mastering the Green Transformation
Manufacturing advanced (bio)pharmaceuticals
I
Chair: K. Carter¹
¹DECHEMA – Gesellschaft für Chemische Technik
und Biotechnologie e.V., Frankfurt/D
10:00
Investigation of a high-pressure hydrogen
pipeline made of 1.4462 duplex stainless
steel after 12 years in service
S. Schewe¹; S. Lederer²; M. Rudolphi¹; F. Bosien²;
W. Fürbeth¹
¹ DECHEMA-Forschungsinstitut, Frankfurt am
Main/D; ² TÜV SÜD, Frankfurt am Main/D
BMBF funding measure “Resource-efficient
circular economy - plastic recycling
technologies (KuRT)“
C. Schielke¹; K. Wendler¹
¹ DECHEMA e.V., Frankfurt am Main/D
Green Value Engineering - Sustainability
Strategy And Implementation
A. Rosengart¹
¹ VTU Engineering Italia Srl, Mirano/I
10:30
The importance of the test strategy to
determine the susceptibility of metallic
materials with respect to hydrogen
embrittlement
K. Ohla¹; M. Galetz²; M. Rudolphi²
¹ None, Illerkirchberg/D; ² DECHEMA e.V., Frankfurt/D
Synergies between Mechanical and Chemical
Recycling of Plastics - Consideration of
Economic, Ecological, and Social Aspects
R. Hanich-Spahn¹; P. Majgaonkar¹; P. Brantsch¹; L.
Killinger¹; A. Hofmann²
¹ Fraunhofer ICT, Pfinztal/D; ² Fraunhofer UMSICHT,
Sulzbach-Rosenberg/D
Green Consulting for Process Industries -
Technological Measures and Roadmap
Development for the Sustainable Trans -
formation
B. Vollbrecht¹
¹ Siemens AG, Frankfurt am Main/D
Designing Tomorrow’s ATMP Facility:
How to Leverage Emerging Technologies
N. Kulkarni¹; N. Bahler²
¹ CRB, Boston/USA; ² CRB, Boeblingen/D
11:00
Material Testing for Hydrogen Applications
- Ensuring Safety and Reliability
S. Lederer¹; C. Engler¹; M. Sekura¹
¹ TÜV SÜD, Munich/D
BlueAlp – Accelerating Plastic Recycling
V. de Neve¹
¹ BlueAlp, Eindhoven/NL
Modular ATMP Production - Case Study:
Design & Implementation of a new flexible
(modular) ATMP production facility
D. Steinhaeuser¹
¹ Glatt Ingenieurtechnik GmbH, Weimar/D
11:30
12:00
Enabling the (bio-)chemical recycling of
polycotton textiles with electrochemical
separations
M. Gausmann¹
¹ RWTH Aachen University, Aachen/D
Turning a problem into an opportunity
with CO 2 utilization and reuse of industrial
waste heat
A. Schnitzhofer¹
¹ GIG Karasek GmbH, Gloggnitz/A
Introducing GIC – the Global Impact
Coalition
C. Tan¹
¹ Global Impact Coalition, Geneva/CH
A large-scale controlled perfusion stirredtank-bioreactor
provides continuous manufacturing
of potent human mesenchymal
stromal cells and their extracellular
vesicles as somatic cell therapeutics
L. Tasto¹; D. Salzig¹
¹ Technische Hochschule Mittelhessen (THM) - University
of Applied Sciences, Gießen/D

16
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Daily Program
Siemens Digital
Innovation Stage – 11.0
New digital options in preventing incidents
in the process industry
GEA Process
Innovation Stage – 9.0
Introducing power-to-heat to the process
industry
The SEFA Theatre – 12.0
The SEFA Theatre - Day 1
10:00
10:30
11:00
10:00
10:30
SCADAPack 47xi Remote Smart RTU and Controller
with Integrated Edge Platform
A. Amini¹
¹ Schneider Electric, Hoofddorp/NL
Evaluation of the functional safety of process
plants according to EN 61511–1
C. Weishaar¹
¹ Pilz GmbH & Co. KG, Ostfildern/D
Digitalization of the Functional Safety Lifecycle
Digitalization
P. Sieber¹
¹ HIMA Paul Hildebrandt GmbH, Brühl/D
Siemens Hydrogen
Innovation Stage – 6.0
Transport, Storage, Handling
Transport, storage and handling - key for the
ramp-up of a German
hydrogen economy
F. Gremme¹; F. Graf²; S. Pichlmaier³
¹ RWE AG, Bochum/D; ² DVGW-EBI, Karlsruhe/D; ³ Forschungsstelle
für
Energiewirtschaft e. V., München/D
Lab Innovation Stage – 12.0
EGNATON Solutions for intrinsic lab safety
Intrinsic laboratory safety – a cornerstone of
sustainability
P. Neurieder¹
¹ EGNATON e.V., Bensheim/D
10:00
10:30
11:00
11:30
12:00
12:30
13:00
Flexible electrification of industrial heat
through power-to-heat and
thermal storage - a solution for every temperature
level
A. Vandersickel¹
¹ Deutsches Zentrum für Luft- und Raumfahrt (DLR),
Stuttgart/D
Process heat supply with industrial heat
pumps
T. Staude¹
¹ MAN Energy Solutions SE, Oberhausen/D
Ensuring Safe Operation of Heat Transfer Fluid
Systems:
Key Considerations and Best Practices
M. Schopf¹
¹ Eastman, Lengenfeld /D
Electrification and flexibilization of industrial
processes and infrastructure
S. Diezinger¹
¹ Siemens Energy GmbH, Erlangen/D
Electrifying Thermal Separation Processes
through MVR Technology
H. Mandel¹; J. Schürhoff²
¹ GEA Group / GEA Wiegand, Ettlingen/D; ² GEA Group /
GEA Messo, Duisburg/D
Identify energy saving potential in utilities –
Reduce energy costs and increase productivity
with process instrumentation and inspection
concepts
T. Kaufmann¹
¹ Endress+Hauser (Deutschland) GmbH+Co. KG , Weil
am Rhein/D
Economic potentials of industrial electrification
through intelligent control
C. Mootz¹
¹ E.ON Energy Projects GmbH, Munich/D
Siemens Hydrogen
Innovation Stage – 6.0
Shaping the (global) hydrogen ecosystem
10:00
10:30
11:00
14:30
11:30
12:00
12:30
SEFA Year in Review
D. Sutton¹
¹ SEFA, Columbia, SC/USA
DURCON Epoxy & Phenolic Work Surface
Solutions
K. Jackson¹
¹ DURCON, Taylor, Texas/USA
Bring on the Right Coal - The Invisible Power
in Modern Laboratories
F. Koehler¹
¹ SCAT Europe GmbH, Mörfelden/D
Different Countries, Different Thinking, Different
Priorities for the Same Goals in Laboratory
Design
D. Sutton¹; L. Ashor²; B. Richard³; D. Tonelli⁴; M. Englisch⁵
¹ SEFA, Columbia, South Carolina/USA; ² HOK , San
Francisco, California/USA; ³ Kirksey Architects, Houston,
Texas/USA; ⁴ LaborPlaner Tonelli AG, Gelterkinden/
CH; ⁵ Waldner
Laboreinrichtungen SE & Co., K.G., Wangen/D
Lab Innovation Stage – 12.0
ASECOS on Lab Safety
Combined storage of hazardous substances -
modern, sustainable and safe solutions
S. Kunkel¹
¹ asecos GmbH, Gründau/D
Working sustainably hazardous substances
workplaces - modern technology for even more
safety
M. Zürn¹; M. Zürn¹
¹ asecos GmbH, Gründau/D
Hazards and risks associated with the storage
of pressurized gas cylinders - prevention and
protective measures
D. Reuter¹
¹ asecos GmbH, Gründau/D
11:00
The importance of hydrogen and CO2 for
Decarbonization
M. Brey¹
¹ Ernst & Young GmbH Wirtschaftsprufungsgesellschaft,
Cologne/D
Siemens Digital
Innovation Stage – 11.0
Änderungen des Programms sind kurzfristig
möglich. Das tagesaktuelle Programm finden
Sie in der ACHEMA-App oder unter
https://www.achema.de/kongressprogramm
11:15
12:00
Hydrogen Economy: On track for 2030? –
powered by Cefic
A. Polito¹; L. Haustermans²; E. Leonardi³; L. Keßler⁴
¹ DG ENER, /D; ² Yara International, Zaventem/B; ³ Cefic,
/D; ⁴ Bellona, /D
Reducing time-to-market for green hydrogen
processes
J. Vukas¹
¹ Siemens AG, Karlsruhe/D
11:30
11:45
Cyber Security in Process Industries
Secure or Survive - Understanding OT incidents
in manufacturing environments
P. Ciepiela¹
¹ Ernst & Young Consulting , Warszawa/PL
AI (in)security - Responsible AI
P. Ciepiela¹
¹ Ernst & Young Consulting , Warszawa/PL
Changes to the program are possible at short
notice. You can find the day‘s program in the
ACHEMA app or at https://www.achema.de/
congress-programme
12:30
Resource efficiency through digitally manufactured
equipment - for zero-emission chemical
products and decentralized P2X energy systems
C. Kiener¹
¹ Siemens AG, München/D
12:00
OT security in Cloud for a Process Plant
R. Hanuschke¹
¹ Amazon Web Services (AWS), Munich/D

ACHEMA DAILY #1
Daily Program
Concorde – 4.C
Chances and challenges of Power-to-X in
Argentina, Morocco and South Africa
Chair: H. von Meyer¹
¹International PtX Hub, Berlin/D
10:30
10:45
11:10
11:35
12:00
10:30
10:35
10:55
11:15
11:35
11:55
12:15
Welcome
Green Hydrogen and Ammonia: Academic Insights Driving Industrial
Applications
A. Faik¹
¹ Mohammed VI Polytechnic University (UM6P), Benguerir/MA
PetroSA’s Pathway to Carbon Neutral Fuels and Chemicals: Defossilization
Technology Options
E. Mabaso¹; M. Mdleleni¹; E. Mohiuddin¹
¹ PetroSA Synthetic Fuels Innovation Centre, Bellville/ZA
Challenges and Opportunities in H2/PtX Production in Argentina: Advancements
in Materials Science, Catalysis, and Engineering for New Technologies
L. Mogni¹
¹ Bariloche Atomic Centre, San Carlos de Bariloche/RA
Panel Discussion on the topic "Chances and Challenges of Power-to-X in
Argentina, Morocco and South Africa"
L. Mogni¹; A. Faik²; E. Mabaso³
¹ Bariloche Atomic Centre, San Carlos de Bariloche/RA; ² Mohammed VI Polytechnic University
(UM6P), Benguerir/MA; ³ PetroSA , Bellville/ZA
Symmetrie 3 – 8.1
Smart Multiphase Processes
Chair: M. Schlüter¹; M. Grünewald²¹Hamburg University of Technology (TUHH), Hamburg/D;
²Ruhr-Universität Bochum, Bochum/D
Welcome to the session & introduction
Smart batch processes in the energy system of the future
E. von Harbou¹; R. Ulber¹; D. Görges¹; F. Sahling¹
¹ RPTU Kaiserslautern-Landau, Kaiserslautern/D
Using advanced measurement techniques for analysis and modelling of
multiphase processes
S. Marchini¹; R. Kipping²; P. Wiedemann²; U. Hampel²
¹ Technische Universität Dresden, Dresden/D; ² Helmholtz-Zentrum Dresden-Rossendorf,
Dresden/D
A Smart Catalytic Fixed-Bed Reactor for CO 2 Methanation
R. Zimmermann¹; A. Geschke¹; L. Peterson¹; J. Bremer²; K. Sundmacher³
¹ Max Planck Institute for Dynamics of Complex Technical Systems, Magdeburg/D; ² Clausthal
University of Technology, Clausthal-Zellerfeld/D; ³ Max Planck Institute for Dynamics
of Complex Technical Systems / Otto von Guericke University Magdeburg, Magdeburg/D
Flooding Control and Performance Optimization in Solvent Extraction and
Distillation
Columns Using AI Tools
L. Neuendorf¹; F. Baygi¹; P. Kolloch¹; L. Marsollek¹; N. Kockmann¹
¹ Technische Universität Dortmund, Dortmund/D
SMART Reactors for Future Process
Engineering
M. Schlüter¹
¹ Hamburg University of Technology (TUHH), Hamburg/D
Discussion
----A WORLD LEADER
IN CHEMICAL
SOLIDIFICATION AND
HANDLING SOLUTIONS
Solidification and handling systems
for different kinds of chemicals
including resins, waxes, hot melts,
fat chemicals and stabilisers.
Rotoform – the market-leading rotary
drop depositor.
High performance processing of high and low
viscosity products.
Pastilles of uniform size, shape and quality.
Maximized productivity – on-stream factor of 96%.
Process sustainability – energy efficient, very
low emissions.
GMP compliant systems for cosmetic, food and
pharma applications.
Proven technology – 2500+ systems installed in
40+ years.
Global service / spare parts supply.
10:45
11:15
ZETA Pharma Innovation Stage - 4.1
Resilience in Pharma Industry
ISPE Opening Statement powered by ISPE
T. Hartman¹
¹ ISPE, North Bethesda/USA
Supply Chain Resilience, Drug Shortages and the Health Emergency Preparedness
and Response Authority (HERA) powered by ISPE
J. Duliere¹; W. Philipp²
¹ ISPE, Paris/F; ² European Commission, Brussels/B
Read more at ipco.com/chemicals
See us at Achema 2024
Frankfurt · 10-14.6.24
Stand C24 · Hall 4.0

18
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Daily Program
EY Green Innovation Stage – 6.0
Lab Innovation Stage – 12.0
EY Green Innovation Stage – 6.0
EY Spot on Defossilisation
EGNATON Green transformation: Sustainable
lab facilities and operations
Sustainable Energy Solutions
12:15
12:30
12:45
Inflation reduction act in the US vs EU legislation
& funding
S. Doll¹
¹ EY Tax GmbH Steuerberatungsgesellschaft , Mannheim/D
Circular Ecosystems as basis for Green Energy
& Hydrogen infrastructure
M. Hetzer¹
¹ Ernst & Young GmbH Wirtschaftsprufungsgesellschaft,
Nuremberg/D
How the chemical industry enables decarbonization
of others
S. Fahrenholz¹; V. Ackenhausen²
¹ Ernst & Young GmbH Wirtschaftsprufungsgesellschaft,
Düsseldorf/D; ² Ernst & Young GmbH Wirtschaftsprufungsgesellschaft,
Hamburg/D
Europa – 4.0
#pharma: Highlight Session „Next generation
pharma manufacturing – Current
advances in cell and gene therapy”
14:00
14:10
14:30
14:50
EGNATON – association for sustainability
E. Dittrich¹
¹ EGNATON e.V., Bensheim/D
New ISO/TC 366 Laboratory Design
C. Glanzmann¹
¹ Roche Diagnostics Capital Investment & Real Estate,
Basel/CH
Implementing Sustainable Lab Practices in
University Labs
N. Bruns¹; B. Schell¹
¹ TU Darmstadt, Darmstadt/D
EGNATON Green Transformation Panel:
Sustainable lab facilities and operations
E. Dittrich¹; C. Glanzmann²; N. Bruns³; C. Heinekamp⁴
¹ EGNATON e.V., Bensheim/D; ² Roche Diagnostics Capital
Investment & Real Estate, Basel/CH; ³ TU Darmstadt,
Darmstadt/D, ⁴ dr. heinekamp Labor- und Institutsplanung,
Karlsberg/D
14:00
14:30
15:00
Unlocking Green Savings Through Energy
Assessments and Equipment Upgrades
T. Bastiaansen¹
¹ Flowserve BV, Etten-Leur/NL
Digitally Enhanced Energy Transition
J. Kurrelvink¹
¹ E.ON Energy Projects GmbH, Munich/D
Enabling the future of a fossil-free Chemical
industry by energy-automation-software triad
Y. Yasmine McColl¹; M. Maksim Ageev²
¹ Schneider Electric, Houston, Texas/USA; ² Schneider
Electric, Horgen/CH
ZETA Pharma
Innovation Stage – 4.1
Implementing Digital Technologies
13:00
13:45
14:00
14:15
14:30
14:45
#pharma: Highlight Session „Next generation
pharma manufacturing – Current advances in
cell and gene therapy”
U. Köhl¹; S. Kassim²; B. Müller-Tiemann³; A. Traube⁴
¹ Fraunhofer Institut für Zelltherapie und Immunologie,
Leipzig/D; ² Geonomic Medicines, Danaher/D; ³ Cytiva,
/D; ⁴ KyooBe Tech GmbH, Leinfelden-Echterdingen/D
Siemens Hydrogen
Innovation Stage – 6.0
EY spot on Green Hydrogen
Winning hydrogen funding in EU and UK
S. Doll¹; K. Haase²
¹ EY Tax GmbH Steuerberatungsgesellschaft , Mannheim/D;
² EY Tax GmbH Steuerberatungsgesellschaft ,
Hamburg/D
The market value of green hydrogen in
different sectors
M. Ziehe¹; N. Reinhold²
¹ Ernst & Young GmbH Wirtschaftsprufungsgesellschaft,
Berlin/D; ² Ernst & Young GmbH Wirtschaftsprufungs
gesellschaft, Hamburg/D
The full cost development of green hydrogen
M. Ziehe¹; M. Rusche²
¹ Ernst & Young GmbH Wirtschaftsprufungsgesellschaft,
Berlin/D; ² Ernst & Young GmbH Wirtschaftsprufungs
gesellschaft, Munich/D
Electrolyser costs and impact on green
hydrogen prices (EY proprietary view)
D. Roxby¹
¹ Ernst & Young LLP, London/UK
Biomass vs. Hydrogen – What is best for
renewables?
M. Brey¹
¹ Ernst & Young GmbH Wirtschaftsprufungsgesellschaft,
Cologne/D
14:00
14:30
15:00
15:30
16:00
Siemens Digital
Innovation Stage – 11.0
Cyber Security in Process Industries
Bring OT and IT together with RTLS
C. Wamser¹; H. Balasova²
¹ Siemens AG, Fuerth/D; ² Siemens AG, Praha/CZ
IEC 62443 & CERT@VDE: Solution Strategy for
Cybersecurity in the ICS Environment
A. Harner¹
¹ VDE/DKE, Offenbach/D
Certification for Cybersecurity of Industrial
Control Systems and Products
C. Shaffer¹
¹ FM Approvals, /D
Panel „Digital Tranformation – Data Spaces for
sensible data“, 10. June 2024
K. Beckers¹; E. Winterhalter¹; D. Appelt¹; T. Komenda²; N.
Große³; G. Ristow⁴
¹ Gaia-X Hub Germany / acatech, München/D; ² delta
dao, Hamburg/D; ³ TU Dortmund, Dortmund/D; ⁴ Software
AG, /D
Siemens Digital
Innovation Stage – 11.0
Transformation and Digital Policy
Panel „Transformation and digital policy in
Germany“, 13. June 2024
K. Beckers¹; E. Winterhalter²; F. Kappert²; M. Schuldt³; D.
Senff⁴; T. Hahn⁵; H. Avgoustino⁶; S. Jungbluth⁷
¹ acatech, München/D; ² Gaia-X Hub Germany / acatech,
München/D; ³ Bundesministerium für Wirtschaft und
Klimaschutz, Berlin/D; ⁴ Leiter der Geschäftsstelle Industrie
4.0 / VDI Technologiezentrum, Köln/D;
⁵ Siemens, Berlin/D; ⁶ KIWAI.ai, München/D; ⁷ SmartFactory
KL, Kaiserslautern/D
14:00
14:30
15:00
14:00
14:30
15:00
15:30
Digitalization in Pharma TODAY and
TOMORROW
M. Mayer¹
¹ ZETA GmbH, Lieboch/A
ISPE Pharma 4.0 Baseline Guide
powered by ISPE
C. Wölbeling¹
¹ Körber, Greater Hamburg Area/D
Case Studies for New Technologies in ISPE
Pharma 4.0 powered by ISPE
T. Minero¹
¹ LifeBee & Member of ISPE International Board of
Directors, Milan/I
GEA Process
Innovation Stage – 9.0
Innovative mixing and separation solutions
in chemical processing
Mixing in “Word Scale” Plants
W. Keller¹
¹ EKATO Rühr- und Mischtechnik GmbH, Schopfheim/D
From R&D to process: Turning waste to value
by efficient ingredients extraction and solvent
recovery by distillation
L. Wang¹; C. Abel²
¹ GEA Group / GEA Westfalia Separator, Oelde/D; ² GEA
Group / GEA Wiegand, Ettlingen/D
How to translate your process into mixing
tasks
B. Nienhaus¹
¹ EKATO Rühr- und Mischtechnik GmbH, Schopfheim/D
Crossflow Filtration Solutions Using Asymmetric
Coated Media
P. Hill¹
¹ Mott Corporation, Farmington/USA

ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Daily Program 19
Symmetrie 2 – 8.1
Encounter – 5.0
Entente – 4.C
Karmesin – 11.0
New advances in sensor technology
Chair: P. Bachmann¹
¹Evonik, /D
Towards a circular economy of plastics II
Chair: R. Schulze¹
¹DECHEMA e. V., Frankfurt am Main/D
Industrial biotechnology - Establishing
and scaling-up production
Analytics and optimization in materials
and material processing
14:30
15:00
15:30
16:00
16:30
Advanced Photonics for Process Industries
Optimization
A. Kigel¹
¹ Modcon Systems, London/UK
CIEL*a*b* Color measurement in Process
Analytical Technology (PAT)
A. Meyer¹
¹ Endress+Hauser Liquid Analysis, Gerlingen/D
Solving Level Measurement Challenges in
Chemical Plants
J. Leion¹
¹ Emerson, Boulder/USA
Current state of PAT applications for a reliable
and effective PCM equipment operation
R. Steiner¹
¹ Pharmatech Associates, North Vancouver/CDN
Implications of defossilisation for petrochemical
clusters in Germany. Analysis
from the ongoing research project Green
Feedstock for a Sustainable Chemistry
C. Schneider¹; A. Scholz²; Y. Kloo²; S. Theisen²; M.
Saurat²; D. Stapf³; K. Meisel⁴
¹ University of Kassel, Kassel/D; ² Wuppertal Institut,
Wuppertal/D; ³ KIT - Karlsruher Institut für
Technologie, Eggenstein-Leopoldshafen/D; ⁴ DBFZ
Deutsches Biomasseforschungszentrum gemeinnützige
GmbH, Leipzig/D
Power A Safer, Smarter, Sustainable
Approach to Circularity
D. Fregelette¹; P. Morse²; A. Khanlari³
¹ Emerson, Boulder/USA; ² Aspentech, Bedford/
USA; ³ AspenTech, /USA
Organocatalysis For A Resource-Efficient
And Sustainable Future
P. Majgaonkar¹; R. Hanich-Spahn¹; D. Pico¹; M. Skiborowski²
¹ Fraunhofer ICT, Pfinztal/D; ² Hamburg University
of Technology, Hamburg/D
Integrative resource efficiency and circularity
management for medium-sized
enterprises in the chemical industry
P. Preiss¹; A. Vogt¹; B. Steinhart¹; B. Steinhart¹; C.
Lang-Koetz¹; I. Tietze¹
¹ Pforzheim University, Pforzheim/D
Chemical Polymer Recycling
J. Ulrich¹
¹ EKATO Rühr- und Mischtechnik GmbH, Freiburg/D
Biobutanol Production: From Metabolic
Modeling to Design and Start-up of a Pilot
Plant
P. Götz¹
¹ Berliner Hochschule für Technik, Berlin/D
A new type of process control system for
enzymatic processes utilizing multipleinput/multiple-output
control strategies
J. Schoop-Zipfel¹; C. Appl²; A. Moser²; D. Niehaus³;
M. Schlüter³; R. Pörtner³; V. Hass²
¹ Ingenieurbüro Dr.-Ing. Schoop GmbH, Hamburg/D;
² Furtwangen University, VS-Schwenningen/D;
³ TU Hamburg, Hamburg/D
With Pilot Units and Application Specific
Commercial Scale Agitated Photoreactors
to more Green Technology Routes
K. Epp¹; A. Peschl²
¹ EKATO Rühr- und Mischtechnik GmbH,
Schopfheim/D; ² Peschl Ultraviolet GmbH, Mainz/D
Navigating the Bumpy Road of Industrial
Biotechnology Scale-up
M. Schultz¹
¹ PTI Global Solutions LLC, Indianapolis/USA
Formulation Screening, Parameter Optimization
and Scale-up of Grinding Processes
with Agitator Bead Mills
S. Mende¹
¹ NETZSCH-Feinmahltechnik GmbH, Selb/D
Energy efficiency and sustainability as an
essential criterion for the selection of the
grinding system
S. Mende¹
¹ NETZSCH-Feinmahltechnik GmbH, Selb/D
Additive Manufacturing in Mixing
Technology
J. Gassenschmidt¹; B. Multner¹
¹ EKATO Rühr- und Mischtechnik GmbH,
Schopfheim/D
Inline quantitative elemental analysis
using x-ray fluorescence spectroscopy
M. Ruppert¹
¹ Horiba Europe, Oberursel/D
New advances in the method validation,
extraction methods and measurement uncertainty
for the determination of watersoluble
hexavalent chromium in hydraulic
cement
M. Ramirez Quesada¹; J. Sibaja Brenes²
¹ Universidad Nacional de Costa Rica, heredia /CR;
² Universidad Nacional de Costa Rica, Heredia/CR
Frequenz 1 – Portalhaus
Granat – 11.0
Korall – 11.0
Alliance – 4.C
New measurement techniques of nanoparticles
and online process control
Chair: R. Hass¹
¹PDW Analytics GmbH , Potsdam/Golm/D
Interoperability of plants and processes
Chair: D. Saecker¹
¹Endress+Hauser Wetzer GmbH + Co. KG, Nesselwang/D
Safety for hydrogen applications
Chair: M. Merko¹
¹DECHEMA e.V, Frankfurt am Main/D
Alternative feedstocks and hydrogen
carriers
Chair: D. Blaumeiser¹
¹Hydrogenious, /D
14:30
Innovation in specific surface area, pore
and particle size analysis with Small Angle
X-ray Scattering: a fast, reliable and
powerful tool
F. Lotter¹; C. Scherdel¹; G. Reichenauer¹
¹ Center for Applied Energy Research e.V.,
Würzburg/D
Advanced physical Layer (APL) addresses
the need for high-speed data transfer in
process and chemical industries
C. Johansson¹
¹ ABB, Malmö/S
Safety considerations for new hydrogen
applications
T. Arnhold¹
¹ R. STAHL AG (www.stahl.de), Waldenburg/D
Hydrogen Production in the Age of Decarbonization:
Insights from Digital Simulations.
H. Reges¹; M. Batista¹; H. Bispo¹
¹ Federal University of Campina Grande – UFCG,
Campina Grande/BR
15:00
Mass vs. Diameter – What is the true size
of a nanoparticle?
F. Friebel¹; J. Wieder¹; K. Reavell²
¹ femtoG AG, Zurich/CH; ² Cambustion Ltd., Cambridge/UK
Anlagenbau 4.0: Optimization of detailed
plant engineering by digital integration -
The digital path from component specification
to the construction site
C. Steinkellner¹; R. Schreiner¹
¹ Pörner Ingenieurgesellschaft mbH, Vienna/A
Safety through visibility – Safety in handling
hydrogen
S. Wenderoth¹; B. Schug¹; S. Wintzheimer¹; S.
Wintzheimer²; K. Mandel¹; K. Mandel²
¹ Fraunhofer Institute for Silicate Research,
Würzburg/D; ² Friedrich-Alexander-Universität Erlangen-Nürnberg,
Erlangen-Nürnberg/D
Precious Metal Catalysts: The Key to
Hydrogen Economy; Ruthenium catalysts
enable the efficient conversion of
ammonia into hydrogen
K. Chang¹
¹ Heraeus, Hanau/D
15:30
16:00
Inline particle sizing and process control
for nanoparticle manufacturing processes
(PAT)
R. Besseling¹; C. Schuurmans¹; R. van Tuijn¹; M.
Hermes¹; R. Arribas Bueno²; R. Arribas Bueno²; A.
Gerich¹
¹ InProcess-LSP, Oss/NL; ² TEVA, Haarlem/NL
On-line measurement of quality and impurities
in biomethane
S. Santarpia¹
¹ Endress+Hauser Process Analysis Support Europe,
Lyon, France , Lyon/F
How digital process technology is driving
responsiveness and sustainability in the
process industries
F. Raghdo¹
¹ Siemens AG, London/UK
Interoperability is key: Optimizing pharmaceutical
plant maintenance through
digital twins
J. Komar¹; R. Fischer²; M. Riester³
¹ ZETA GmbH, Lieboch/A; ² Fraunhofer IESE, Kaiserslautern/D;
³ Endress+Hauser (Deutschland)
GmbH+Co. KG, Weil am Rhein/D
Fiscal volume flow measurements of
hydrogen enriched natural gas and pure
hydrogen
M. Siegfried¹
¹ SICK AG, Düsseldorf/D
Combination of OFCEAS analyzer and GC
with SePdd TCD FID detectors for controlling
hydrogen purity following ISO
14687:2019
E. SMITH¹
¹ AP2E, Aix en Provence /F
Green Hydrogen from Biogenic Residues by
Steam Reforming of Raw Biogas
A. Gradel¹
¹ BtX energy GmbH, Hof/D
Ionic Liquids for generation, conversion
and transport of hydrogen
T. Schubert¹; B. Iliev¹
¹ IOLITEC Ionic Liquids Technologies GmbH, Heilbronn/D

20
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Daily Program
Consens – 4.C
Concorde – 4.C
Facette – 3.Via
Heat integration in process industry
through mechanical vapour recompression -
WindaB
Chair: S. Scholl¹
¹TU Braunschweig, Braunschweig/D
Kopernikus P2X – Exploration, validation
and implementation of Power-to-X concepts
Chair: K. Wagemann¹
¹DECHEMA e.V., Frankfurt am Main/D
Manufacturing advanced (bio)pharmaceuticals
II
Chair: L. Tasto¹
¹Technische Hochschule Mittelhessen, Gießen/D
14:30
14:55
15:20
15:45
Heat integration in chemical industry – WindaB,
an approach for the assessment of mechanical
vapor recompression solutions for distillation
columns
K. Jasch¹; F. Lais¹; E. Sobierska-Luckhchoura²; J. Rüther²;
S. Scholl¹
¹ TU Braunschweig, Braunschweig/D; ² BASF SE, Ludwigshafen/D
Short-Cut design approaches of reboilers in
distillation columns to assess mechanical vapor
recompression for heat integration
F. Lais¹; K. Jasch¹; S. Scholl¹
¹ TU Braunschweig , Braunschweig/D
Introduction of a Preliminary Compressor
Design Methodology for Heat Integration in
Process Industries Through Mechanical Vapor
Recompression
L. Hinz¹; J. Goeing¹; J. Friedrichs¹; G. Schumm²
¹ Technische Universität Braunschweig, Braunschweig/D;
² Piller Blowers & Compressors GmbH,
Moringen/D
Ecological and economic assessment of open
heat pump system scenarios
H. Schneider¹; M. Paschetag¹; F. Lais¹; K. Jasch¹; S. Scholl¹
¹ TU Braunschweig , Braunschweig/D
14:30
15:00
15:30
16:00
Kopernikus P2X – Exploration, validation and
implementation of Power-to-X concepts
R. Dittmeyer¹
¹ Karlsruhe Institute of Technology (KIT), Karlsruhe/D
Power-to-kerosene: Background , Issues,
Progress
A. Zschocke¹
¹ Cena Hessen, Frankfurt/D
Power2Polymers – Sustainable polymers for
the chemical industry!
G. Schroer¹
¹ RWTH Aachen University, Aachen/D
Power2ValueChemicals
R. Franke¹
¹ Evonik Operations GmbH, Marl/D
14:30
15:30
16:00
16:30
Advancing Cell and Gene Therapy Manufacturing
with integrated manufacturing platforms
S. Weber¹
¹ Miltenyi Biotec GmbH, Bergisch Gladbach/D
Optimization of static Vero cell expansion and
measles virus production - high cell density
cultivation by lactate-dependent media
exchanges
D. Eckhardt¹; L. Walter¹; J. Klee¹; J. Mueller¹; I. Sardlishvili¹;
S. Fey¹; P. Czermak¹; D. Salzig¹
¹ University of Applied Sciences Mittelhessen,
Giessen/D
ContiUnity® A true modular process platform
for continuous manufacturing
W. Bolt¹
¹ Zeton BV, Enschede/NL
Cleaning considerations for novel drug delivery
systems
P. Lopolito¹
¹ STERIS, St-Louis/USA
16:10
Options and Limits with PILLER blower and
compressor technology
G. Schumm¹
¹ Piller Blowers & Compressors GmbH, Moringen/D
Siemens Hydrogen
Innovation Stage – 6.0
ZETA Pharma
Innovation Stage – 4.1
16:35
15:30
16:00
16:30
15:30
Mechanical vapor recompression – challenges
in existing processes
J. Hammerschmidt¹
¹ Covestro Deutschland AG, Leverkusen/D
EY Green Innovation Stage – 6.0
Green Process Optimization
Green Deal and new requirements – processoptimisation
with analytical measurement
technology
D. Wolter¹
¹ Endress+Hauser (Deutschland) GmbH+Co. KG, Weil am
Rhein/D
How to Optimize your Agitated Process – A
Holistic View
S. Hanselmann¹
¹ EKATO Rühr- und Mischtechnik GmbH, Schopfheim/D
Accelerating Decarbonization with Digital Process
Twins
B. de Groot¹
¹ Siemens AG, London/UK
Lab Innovation Stage – 12.0
Innovative drug discovery – driving the
next life science revolution
Innovative drug discovery – driving the next
life science revolution
S. Kumar¹
¹ ELRIG , Cambridge/UK
15:00
15:30
16:00
16:15
16:30
16:45
17:00
Power-to-X process and applications
Power to Gas: Green hydrogen production and
utilization
J. Hundrieser¹
¹ Endress+Hauser (Deutschland) GmbH+Co. KG, Weil am
Rhein/D
Production of PtL SAF on industrial scale in the
context of a regional hydrogen value chain
M. Haid¹
¹ EDL Anlagenbau Gesellschaft mbH, Leipzig/D
Industrial applications of Power-to-X in
Morocco
M. Bousseta¹
¹ UM6P/OCP , /MA
Argentina’s National Hydrogen Strategy and
green hydrogen applications for local consumption
and export
N. N.N.¹
¹ Secretary of Energy (tbc), N.N./RA
Producing green steel in South Africa
N. N.N.¹¹ N.N., N.N./ZA
Opportunities for Power-to-X production in
Kenya
Antony Langat¹
¹ Kenya Electricity Generating Company PLC, Kenya
Turquoise H 2
M. Brey¹
¹ EY Consulting GmbH , Cologne/D
15:30
16:00
16:00
16:30
17:00
Biopharma: Shaping the future of pharmaceutical
Industry
Breaking boundaries by new concepts – from
lab to industry
T. Maischberger¹
¹ ZETA GmbH, Lieboch/A
Quo vadis, Pharma? Trends and opportunities
in Biopharma
A. Whytock¹; A. Johnston²
¹ Siemens AG, Erlangen/D; ² Biophorum, London/UK
GEA Process
Innovation Stage – 9.0
Engineering of efficient and safe processes
Seallessfirt – A paradigm shift in pump selection.
How removing shaft seals and ball bearings
makes process pumps better at what
matters most to today’s rotating equipment
operators
N. Rentzelos¹
¹ Flowserve Corporation, Addison/USA
The sustainable optimization of plant availability
through intelligent diagnostics and service
L. Piscator¹
¹ SAMSON, Frankfurt/D
Storing and charging lithium batteries safely -
risks, legislation and modern solutions
D. Reuter¹
¹ asecos GmbH, Gründau/D

ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Mechanical/
Thermal Processing
Page 21–26
21
for Process Technology
Visit us!
in Germany
Hall 8.0. Booth A59
https://process-technology-online.com/
Leading sources
Source: Buss-SMS-Canzler
Thin-Film Evaporation
Energy Savings in Sludge-Drying Processes
Buss-SMS-Canzler‘s two-stage dryng process recovers heat from the atmospheric stage
and uses it in the vacuum stage
At ACHEMA 2024, thermal separations
company Buss-SMS-
Canzler is showcasing its twostage
drying process for a variety
of applications, including
the drying of sewage sludge.
The thin-fiilm evaporation system
is designed to reduce heating-energy
consumption by
45% compared to conventional
sludge-drying equipment, the
company says.
Traditional drying techniques
often require a substantial
amount of energy input, mainly
due to the limited utilization of
heating energy. The two-stage
drying process introduced by
Buss-SMS-Canzler capitalizes
on the principle of multiple-effect
evaporation commonly
used in evaporation technology.
Multiple-effect evaporation
is designed to maximize
the use of input energy. By operating
under vacuum conditions
in Stage 1 and atmospheric
conditions in Stage 2,
this process enables a lower
evaporation temperature in
stage 1, resulting in considerable
energy savings, according
to the company.
One of the key advantages of
the design is the recovery of
energy released during the
condensation in stage 2. This
energy is then utilized to heat
stage 1 (see diagram). The twostage
drying process efficiently
applies products in a
thin film on the heated wall
using rotating blades. This approach
not only enhances the
effectiveness of the drying
process, but also makes it suitable
for various applications,
including the drying of sewage
sludge, Buss-SMS-Canzler
says. The dried sludge would
be suitable for a variety of
uses, including gasification,
composting, incineration, fertilizer,
pyrolysis and others.
The company reports that the
two-stage drying technology
has proven to be highly effective,
and it cites the technology
as an example of a more
sustainable waste-management
strategy that helps drive
the transition to a circular
economy.
scj
Buss-SMS-Canzler
Hall 4.0, Stand B24
Vielfältige Einsatzbereiche
Trocknen mit Wärmepumpe
Trocknerhersteller Harter setzt
bereits seit über 30 Jahren auf
Kondensationstrocknung mit
integrierter Wärmepumpentechnik.
Bei Pharmaprodukten
geht es um die vollständige
Trocknung von verpackten Produkten,
bei Wirkstoffen um eine
klar definierte Restfeuchte.
Das gleiche gilt für Lebensmittel,
bei denen Optik, Aroma
und Inhaltsstoffe ebenso eine
große Rolle spielen. Die niedrigen
Temperaturen schonen die
Trocknungsgüter. Der Sprung
zur Trocknung von Industrieund
Klärschlämmen klingt gewagt.
Hier geht es um eine
energiesparende Art dem
Trocknungsgut Wasser zu entziehen.
Was für alle interessant ist:
Trocknung ohne Abluft. Harter-
Diese Trockner arbeiten mit Wärmepumpen
Trockner arbeiten alle im geschlossenen
Luftkreislauf. Damit
sind sie nicht nur abluftfrei
und sehr effizient, sondern machen
Betreiber unabhängig von
Klima und Jahreszeiten. Kühlund
Temperierstufen sind
leicht integrierbar. Der Prozess
ist reproduzierbar.
Das Special bei Harter: die Ideenschmiede
Technikum. Dort
testet der Trocknerhersteller
die Produkte auf Machbarkeit
und alle relevanten Parameter.
Die Ergebnisse sind solide Basis
für eine sinnvolle Lösung.
Die Trocknersysteme gibt es als
Chargentrockner und auch als
kontinuierliche Variante. Harter-Trockner
mit Wärmepumpe
werden staatlich gefördert. br
Harter
Halle 4.1, Stand F36
Bild: Harter
MellapakEvo –
packed for evolution!
Sulzer launches new structured packing at ACHEMA 2024.
Visit us to learn more Hall 4 Stand D48.

22
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Mechanical/Thermal Processing
Powder Wetting and Dispersing
Continuous Powder Wetting Speeds Process
The Ystral Coflow
Source: Ystral
To expand its machine portfolio,
Ystral has developed the continuously
operating Coflow.
In the Ystral Coflow, solids and
liquid components are introduced
in controlled quantities
via solids dosing units or a
liquid pump and combined in a
premixing zone with an oblique
blade agitator. Fine dispersion
then takes place using a rotorstator
system, whereby the
stator can be designed with different
slot widths depending on
the application. „An inducer installed
between the premixing
zone and the rotor-stator zone
is effectuating a pressure increase,“
says Uwe Klaumünzner,
Process and Application Engineer
at Ystral. „This change in
pressure causes the air brought
in with the powder to be separated,
resulting in a lower residual
air content in the product.“
The Ystral Coflow is designed
for a wide range of applications
in various industries. The focus
lies on products with powders
that are easy to process and do
not require post-dispersion, as
well as users with a lean product
portfolio or relatively few
product changes. „Compared to
a classic batch process in a container,
the Ystral Coflow enables
production with a significantly
reduced machine footprint,
faster processing times, better
OEE values and a higher degree
of automation. In addition, the
cleaning of the machine is
much easier due to the smaller
product contact surface,“ says
Raoul Pila Nunninger, Head of
R&D at ystral. For the market
launch, the Ystral Coflow-4 has
a total capacity of 6,000 to
13,500 kg/h. scj
Ystral
Hall 6.0, Stand B49
Filtration
Reliable Crossflow Filter
Dynamic crossflow filter DCF
Source: Andritz
Among its ACHEMA offerings,
Andritz will be highlighting its
Krauss-Maffei dynamic crossflow
filter DCF, an established
technology for the clarification
of liquids and for concentrating
and washing of solids for a
wide variety of chemical and
pharmaceutical products, such
as the solid/liquid separation
step in the production of diabetes-care
products. The technology
is highly reliable, Andritz
says, because the open filtration
area avoids blockages,
eliminating the need for manual
intervention. The filters
work in a way that is completely
enclosed and fully automatic
– right down to the
Cleaning-In-Place (CIP) and
Sterilization-In-Place (SIP) features,
Andritz points out.
The DCF can be combined with
advanced automation and digitalization
solutions to optimize
efficiency and maximize profit,
as shown by the Metris addIQ
digital twin. This is a digital replica
of the physical process
using asset-specific information,
such as actual physical
dimensions and equipment
characteristics, running in parallel
with the plant’s operations,
continuously calculating
key process parameters. One
benefit, specific to the digital
twin for the DCF, is predicting
optimum transmembrane
pressure, Andritz says. scj
Andritz AG
Hall 5.0, Stand B4
Horizontale Mischer überzeugen
wegen ihrer hervorragenden
Mischeffizienz und der geringen
Bauhöhe. In gewissen
Anwendungen besteht das Interesse,
die Mischer nach einem
Mischvorgang restlos zu
Reinigung mit pulsierender Druckluft
Horizontale Mischer ohne Bodenklappe entleeren
entleeren. Dies kann beispielsweise
bei einem Rezepturwechsel
der Fall sein. Große
Bodenklappen sind eine gängige
Lösung, um die Entleerung
zu erleichtern, aber sie sind
auch die Ursache von Leckagen
und erfordern häufige Reinigung
und Wartung.
Mit dem AirCIP-System von Gericke
lassen sich Horizontalmischern
vollständig entleeren
und reinigen, ohne dass große
Bodenklappen oder manuelle
Mit dem AirCIP-System von Gericke lassen sich Horizontalmischer
ohne Bodenklappe vollständig entleeren
Source: Gericke
Eingriffe erforderlich sind. Das
AirCIP-System löst dieses Problem,
indem es mit Druckluft
einen gezielten pulsierenden
Reinigungseffekt erzeugt, der
das Material durch die Auslauföffnung
aus dem Mischer fördert.
Das System reinigt auch
die Paddel und die Innenwände
des Mischers, sodass keine
Rückstände zurückbleiben. Das
AirCIP-System kann auf verschiedene
Produkte und Anwendungen
zugeschnitten werden
und beeinträchtigt weder
die Homogenität noch die Qualität
der Mischung. Die Vorteile
des Systems sind vielfältig: Es
reduziert Produktverluste, verhindert
Kreuzkontaminationen,
spart Zeit und Energie und
macht die manuelle Reinigung
zwischen den Produktwechseln
überflüssig. Das System ist
kompatibel mit den Horizontalwellenmischern
GMS Multiflux
und dem GBM Gericke Batch
Mixer, und kann auch bei bestehenden
Mischern nachgerüstet
werden.
br
Gericke
Halle 3.0, Stand A72

Pope Scientific‘s wiped-film still
Pope Scientific Inc. announced
the launch of its CE-certified
series of wiped-film still systems.
The first unveiling of the
WFC-200 model will take place
at ACHEMA.
CE certification signifies that a
product meets health, safety
Alpine Microburst jet mill
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Mechanical/Thermal Processing 23
Separations
Distillation Technology Receives CE Certification
Source: Pope Scientific
and environmental requirements
for the E.U. Renowned
for their efficiency and precision,
these systems represent a
significant advancement in distillation
technology, Pope says.
The CE-certified series, consisting
of Pope’s 2-, 4– and 6-in.
still sizes, bears the model designations
WFC-200, WFC-400,
and WFC-600 respectively.
The wiped-film still, also known
as a molecular still, short-path
still, and wiped-film evaporator,
serve a crucial role in
separating heat-sensitive materials
effectively. The purpose
of these units is the separation
of materials that demand a
delicate touch in distillation
processes, Pope says.
Pope’s expertise extends across
a wide array of processing industries,
with their stills falling
into two primary categories:
the wiped film molecular (short
path) stills designed for highboiling-point
materials, and the
wiped film evaporators with external
condensers tailored for
lower-boiling-point distillates.
Constructed within heavy-duty
stainless steel portable structures,
the WFC series systems
incorporate all necessary auxiliary
components for seamless
Particle-Size Control
Jet Milling Without Pre-crushing
Hosokawa Alpine AG has developed
a new jet mill where
coarser products can also be
added without pre-crushing.
The company named the spiral
jet mill Alpine Microburst
(AMB) after a weather phenomenon.
„The falling downdraughts
in a microburst are reflected
in the central material
feed of the mill and high energy
input to a clearly limited area,“
explains Hermann Schmidt, Operations
Director Pharma & Lab
Division at Hosokawa Alpine
AG. Even fibrous products,
which previously could only be
crushed with great effort or
hardly at all, can now be finely
milled with the AMB.
With the AMB spiral jet mill,
the company is now presenting
its customers with a valuable
addition alongside its AS spiral
jet mill and the AFG fluidized
bed opposed jet mill. In
Source: Hosokawa Alpine
contrast to traditional spiral jet
mills, its large, central inlet
allows more coarsely ground
products to be processed directly.
Up to now, this required
pre-crushing. While the AFG is
an ideal solution for a steep
particle size distribution, the
AMB offers a compact solution
with lower investment costs
and a simple process. scj
Hosokawa Alpine
Hall 4.1, Stand F37
operation under diverse conditions.
These include condenser
types suitable for molecular
distillation and/or evaporation/
concentration. The turnkey
skids also are provided with
wiper drive, feed/degasser
flask, extra receivers, cold trap,
trap chiller, vacuum pump, vacuum
gauge, heating/chilling
circulators, and a control panel
with a single-point power
connection.
The systems are offered with a
standard glass body, with the
option of 316L stainless steel.
Moreover, body heating can be
achieved via electric bands or
hot oil, with accessibility for
cleaning and system reconfiguration.
With a wide range of applications
spanning pharmaceuticals,
biomaterials, edible
and essential oils,
foods, flavors, vitamins, cosmetics,
liquid silicone
polymers, and beyond,
Pope’s wiped-film still systems
offer unparalleled versatility
and reliability. The
WFC series systems accommodate
a range of capacities
from 0.1 to 20 kg/hr scj
Pope Scientific
Hall 6.1, Stand C78
ENHANCE YOUR
CHEMICAL PRODUCTION
LOWER COSTS, BETTER QUALITY,
HIGHER THROUGHPUT
Upgrade your chemical production with ANDRITZ’s
dewatering and drying solutions. From separation to
purification or recycling, we cater to diverse industries
including petrochemicals, polymers, agrochemicals,
fertilizers, pharmaceuticals, soda ash, and technical salts.
Our range covers centrifuges, belt and filter presses, disc
and drum filters as well as drying/cooling systems. One
solution that particularly stands out is the ANDRITZ pusher
centrifuge ecoOne, designed to reduce operating costs and
the carbon footprint. Its motor design guarantees maximum
electrical efficiency and reduces power consumption by up
to 20%. With our latest automation technology – the Metris
addIQ control system – you can also reap the benefits of
digitalization: increased product quality, improved plant
efficiency, and uninterrupted operations.
VISIT US
AT ACHEMA
FRANKFURT, GERMANY
HALL 5.0, BOOTH B4
JUNE 10-14, 2024
ANDRITZ AG ⁄ Stattegger Strasse 18 ⁄ 8045 Graz ⁄ Austria ⁄ separation@andritz.com

24
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Mechanical/Thermal Processing
Maßnahmen bei abrasiven Schüttgütern
Pulvermischer mit Verschleißschutz
Aluminiumoxid-Beschichtung auf dem Rührwerk
Je abrasiver die Schüttgüter in einem Mischer
sind, umso mehr ist das Innenleben Verschleiß
ausgesetzt. Deshalb müssen konstruktiv Gegenmaßnahmen
ergriffen werden.
Bild: Amixon
Grundsätzlich nimmt der Verschleiß
zu, wenn das Mischgut
hohe Schüttdichten aufweist
oder die Mischgüter schlecht
fließen. Dann muss das Mischwerkzeug
erhöhte Antriebsdrehmomente
aufbringen, weil
sie beispielweise besonders
fein sind oder weil sie möglicherweise
mit einer Flüssigkeit
benetzt sind. Auch schnell rotierende
Mischwerkzeuge, lange
Mischvorgänge oder große
Chargen im Mischer bedingen
erhöhten Verschleiß.
Amixon-Mischer liefern in der
Praxis sehr hohe Mischgüten.
Die Hauptmischwerkzeuge der
Maschinen arbeiten mit geringen
Umfangsgeschwindigkeiten.
Manchmal liegt diese sogar
unter einem Meter pro Sekunde.
Dann sind auch die Relativgeschwindigkeiten
zwischen
Mischwerkzeug und
Mischgut besonders gering.
Das vermeidet Verschleiß und
spart Energie. Die Mischer arbeiten
besonders effizient und
erlauben kurze Mischzeiten.
Die Mischwerkzeuge sind glatt
und haben eine einfache Formgebung.
Insofern können verschiedenste
Schleißschutz-Panzerungen
einfach appliziert
werden. Diese können in der
Regel vom Wartungsteam am
Mischer selbst durchgeführt
werden. Große Inspektionstüren
begünstigen die Instandsetzungsarbeiten,
ohne dass
Mischwerkzeuge demontiert
werden müssen.
Die Hauptmischwerkzeuge der
Amixon-Mischer sind nur oben
angetrieben und gelagert. Die
Wellenabdichtung befindet
sich somit oberhalb des Mischgutes,
ist wenig belastet und
dauerhaft gasdicht.
Sechs Tipps gegen Verschleiß
Die Erfahrung zeigt, dass sechs
verschiedene Lösungen guten
Verschleißschutz sicherstellen.
Die Bauteile, die dem Verschleiß
unterworfen sind, können
wahlweise wie folgt geschützt
werden:
1. Der Mischer/Reaktor besteht
aus einem besonders verschleißfesten
Grundwerkstoff.
2. Die dem Verschleiß unterworfenen
Bauteile werden
durch Hartlegierungs-Auftragsschweißen
gepanzert. Im
Schweißgut sind ultraharte
Wolfram- oder Chromkarbide
eingelagert.
3. Auswechselbare Schleißschutzelemente
werden im Mischer/Reaktor
verschraubt. Es
handelt sich um hochfeste Keramikwerkstoffe,
die nicht
schweißbar sind.
4. Die Mischwerkzeuge werden
hart gepanzert. Eine Aluminiumoxidkeramik
wird in Form
des Plasmaspritzverfahrens
oder in Form des Hochtemperaturflammspritzens
appliziert.
5. Das Mischwerkzeug und
wahlweise auch der Mischraum
werden mit Widia-Hartmetallplättchen
bestückt .
6. Das Mischwerkzeug und
wahlweise auch der Mischraum
werden mit Hochleistungskeramik-Plättchen
beklebt.
Wenn Mischgüter wie Batteriemassen
während des Mischens
nicht mit metallischem Abrieb
kontaminiert werden dürfen,
sollten Mischraum und Mischwerkzeuge
mit einer geeigneten
Oxidkeramik beschichtet
werden. Das funktioniert in der
Praxis sehr gut. Im Amixon-
Technikum stehen 400-Liter-
Mischer für Tests bereit. Sämtliche
produktberührten Teile
sind mit einer Hochleistungsoxidkeramik
beschichtet. Metallischer
Abrieb ist während
des Mischens/Reagierens/
Trocknens ausgeschlossen.
Testen im Technikum
Ein keramisch beschichteter
Mischtrockner-Synthesereaktor
ist im Technikum aufgebaut
und steht für Produktentwicklungen
und Pilotierungen zur
Verfügung. Der Testapparat hat
ein nutzbares Volumen von
100 l. Der Apparat ist vollständig
keramisch beschichtet. Insofern
ist jeglicher metallischer
Kontakt mit dem Mischgut unterbunden.
Die Besonderheit
liegt aber in den Konstruktionsdetails.
Im Mischapparat kann
der Druck von 6 bar (Druck) bis
10 mbar (Vakuum) variieren.
Der Mischraum kann bis zu
350 °C beheizt werden. Die
Testapparat ist trotz hoher
Temperaturen (bis 350°C) gasdicht,
sowohl bei Vakuum als
auch bei Überdruck. br
Amixon
Halle 6.0, Stand C50
Filtration
A Range of Filter Products
Filter bags from Eaton
Source: Eaton
Benefits of carrying out
reactive extrusion.
Rapid mixing of reactants
Targeted and precise temperature control
Unique: The modular design of the
ENTEX Planetary Roller Extruder
High-performance devolatilisation /
degassing
HIGH
THROUGHPUT
IMPROVED
PRODUCT QUALITY
SIMPLIFIED
PROCESS CHANGES
A SECURE
INVESTMENT
Halle 4.0 | Stand B43
Reactive extrusion
processes with the
Planetary Roller
Extruder.
The filtration division of Eaton
Technologies is exhibiting numerous
new filtration products,
including the new Sentinel
Maxpo and Duragaf MaxpoXL
specialty filter bag ranges, the
new simplex and duplex pipeline
basket strainers, the new
Becon Carbon ACF03 activatedcarbon
depth filter sheets and
the new printing set for the
CCS-5 contamination-control
system.
The new Becon Carbon ACF 03
grade is available in flat sheet,
stacked disc cartridge and disposable
capsule designs, which
were developed for the growing
demand for user-friendly
activated carbon sheets tested
for endotoxins for pharmaceutical,
biopharmaceutical
and fine chemical applications.
The activated carbon depthfilter
sheets can be used in
Beco Integra Plate enclosed
plate-and-frame filters, for
which the company is launching
a new cleaning solution. In
addition to the extensive range
of new products, Eaton will also
be showcasing proven filtration
classics from the automatic
self-cleaning filters, bag, cartridge
and stacked disc cartridge
filtration product lines,
as well as hydraulic and lubrication
oil filters.
scj
Eaton Technologies
Hall 5.0, Stand C15

ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Mechanical/Thermal Processing 25
Eirich zeigt auf der ACHEMA u. a. Lösungen für den Laborbereich
Effiziente Mischtechnik
Kontaminationssensible Anwendungen im Fokus
Auf der kommenden ACHEMA
beweist Eirich, dass Tradition
und Innovation ein unschlagbares
Duo sind. Ob es um die
Digitalisierung von Produktionsprozessen
oder das intelligente
Vernetzen von Anlagen
geht, neue Technologien helfen
dabei, die Effizienz zu steigern
und die Industrie für die Zukunft
zu rüsten. „Wir freuen
uns sehr, dass die ACHEMA
wieder ansteht. In diesem Jahr
profitieren die Messebesucher
vor allem von unserem umfangreichen
Portfolio sowie
den vielfältigen Anwendungsmöglichkeiten
unserer Produkte
und Lösungen“, so Jan Malik,
Salesmanager bei Eirich.
Eirich erleichtert den Einstieg
in die Digitalisierung und bietet
Lösungen für Anlagen mit
ganzheitlichem Steuerungskonzept,
Datenanalyse im laufenden
Betrieb sowie einen sicheren
Umgang mit gewonnenen
Daten. Smarte Lösungen,
u. a. basierend auf KI und z. B.
optischer Inline-Produktanaly-
Bild: Eirich
se, ermöglichen autonome
Analyse und intelligente Steuerung
einer Anlage.
Die großen Herausforderungen
des 21. Jahrhunderts, wie Umweltschutz
und Ressourcenschonung,
sind zudem Fokusthemen
bei Eirich. So betrachtet
das Traditionsunternehmen
den Energie- und Technologiewandel
als Chance und bietet
unterschiedliche Lösungsansätze
auf dem Weg in eine klimaneutrale
Zukunft. Die Mischtechnologie
gilt als führend,
Solids Casting
Process Solutions for Solidification
IPCO KD1668 casting machine
Source: IPCO
The process equipment company
IPCO will have a demonstration
model of its flagship
chemical solidification system,
known as Rotoform, on display
at ACHEMA. Rotoform has
more than 2,500 lines installed
worldwide. Solutions are available
for sulfur, hot melts, resins,
waxes, fat chemicals, bitumen,
tar pitch and many
others, the company says.
Rotoform systems are available
for applications such as abrasive
and sedimenting materials
(for example, catalysts and suspensions);
melts requiring a
high feed temperature (such as
bitumen and plastic resins);
subcooling melts (for example,
antioxidants for the tire industry);
and pharmaceuticals
requiring GMP compliance.
Ipco has developed a continuous
film casting system incorporating
an innovative Venturi
drying module for the production
of very thin films to fine
tolerances. A slot die applies
the liquid product directly onto
a polished stainless-steel belt,
which then passes through
controlled drying segments
where the solvent in the liquid
is evaporated.
In addition to dry film casting
to 10 to 300 μm, the process
can also be used to produce
microporous membranes. Applications
include the production
of separator membranes
and ceramic tapes used in Liion
batteries, fuel cells and
solid-state batteries.
Ipco is a leading supplier of
high-productivity systems for
chemical processing, with applications
ranging from chemical
pastillation and film casting
to extrusion and cooling equipment.
The company also
supplies press and scattering
solutions for the production of
composite materials. scj
IPCO
Hall 4.0, Stand 24
wenn es um Effizienz und Energiesparsamkeit
geht und das
Entwicklungsteam arbeitet
kontinuierlich an Optimierungen
für Produkte und Prozesse.
Europa wird als Batteriestandort
immer wichtiger. Im Wettbewerb
mit Asien ist es entscheidend,
eigene Lösungen
und Technologien zu stärken
und Abhängigkeiten zu verringern.
Die notwendige Reduzierung
des CO 2 -Fußabdrucks und
hohe Energiekosten erfordern
maximale Effizienz in der heimischen
Zellenproduktion.
Eirich zeigt in diesem Bereich
neue Technologien für die opti-
VISIT US!
ACHEMA HALL 6.1
BOOTH C78
WWW.POPEINC.COM
mierte Produktion von nassen
bis trockenen Elektrodenmischungen.
Mit dem CleanLine C5 zeigt
Eirich eine Maschine für hygienische
und kontaminationssensible
Bereiche, die u. a. die hohen
Anforderungen von Laboren
im Food- und Chemiebereich
erfüllt. Der Mischer
macht es möglich, mehrere
Verfahrensschritte aufeinanderfolgend
und überlappend
auszuführen. Er gilt als Prozess-
Multitalent für Produktentwicklung
und Kleinproduktion. br
Eirich
Halle 5.0, Stand C86
Pope’s Benchtop
Nustche Filter-Dryer is
an All-In-One Solution
Ernst Büchner Never
Had It So Good!
The logical leap forward from laboratory Büchner
funnels for high purity chemicals & pharmaceutical
intermediates. Nutsches are also available in
Pilot Plant, & Production Scale.

26
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Mechanical/Thermal Processing
Traditionally, many polymerisation
reactions in polymer
production are carried out
batchwise, for example in solution,
emulsion or in a melt.
This procedure reaches its limits
if, for example, the reaction
is very exothermic or the
viscosity increases considerably
during the course of the
reaction. Innovative technologies
are then required. This is
where the planetary roller reactor
(PRR) based on the
planetary roller system offers a
solution.
The PRR is a multi-modular extrusion
system characterized
New Methods in Polymer Production
Planetary Roller Reactor Replaces Reaction Vessel
by targeted mechanical adaptability
and precise thermal process
control. In conjunction
with the special mechanical
working principle of this machine
type, this enables the
realization of sophisticated
mixing, degassing and reactive
extrusion processes, which are
used in the manufacture of a
wide spectrum of products and
often form the basis for new
material innovations.
The PRR offers process engineering
advantages for the preparation
and further chemical
conversion of raw polymerisate.
With the help of the pro-
Source: Entex
Example section through a PRR
process section with feed cylinder
and two roller cylinders
HYDROGENATION UNIT
FOR PHARMACEUTICALS
• „Plug & Produce“ Plant Concept
• Compact Modularity
• Customizable Configuration
• Proven & Affordable Technology
Adaptable, flexible
and efficient!
Hall 6.0 / Stand C19
www.ekato.com
cess-orientated, adaptable process
technology, a wide range
of possibilities can be presented
to modify the properties
of materials through chemical
reactions. In many cases, these
can be realized in a continuous
production process and therefore
cost-efficiently and with a
stable process quality.
Advantages of the PRR
The PRR can mix, homogenize,
degas and gently remove volatile
components even from
highly viscous extrudates. This
system can serve as a continuous
reactor for chemical reactions,
particularly in the area of
highly viscous thermoplastic
melts. The PRR offers various
advantages not only compared
to traditional batch reaction
control, but also compared to
other processing methods.
These advantages include:
• High and widely scalable
throughput from a few kilograms
to more than ten tons
per hour, depending on the
design size
• Greater process safety due to
relatively low total amount of
reactive components in the
process
• High and reproducible product
quality thanks to precisely
controllable reaction
conditions, e.g. precise temperature
and pressure profiles
• Less emissions thanks to very
efficient degassing of gases
and vapours as well as volatile
degradation products
• Compared to stirred vessel
reactors or conventional processing
aggregates, lower
specific energy requirement
for temperature control and
drive
Greatest possible flexibility
Another advantage, especially
in comparison to conventional
single-screw or twin-screw extruders,
is that the PRR can still
be operated without any problems
even when it is only filled
to around 10 %. This gives the
operator the greatest possible
flexibility when adjusting capacity.
For the modification of different
substances, i.e. chemical
conversion, the extruder can be
continuously supplied with
recipe-related amounts of various
solids and liquids in different
process and temperature
control zones. The residence
time in the individual process
zones of the process section
can be controlled mechanically.
This allows that even higher
Example of a
modular PRR
process section
with different
process zones
viscosity materials can be
added into the ongoing process
with good mixing quality.
It is also possible to react
chemicals under pressure or to
induce, control and interrupt
reactions in individual process
zones in a planned manner. A
chemical reaction can also extend
over several process
zones and run through different
pressure and temperature
conditions, which specifically
influence the course of the
reaction.
The modular design of the PRR
modular system allows chemical
processes to be specifically
customised. The mechanically
controllable process zones and
individual temperature control
zones enable targeted and efficient
control in the individual
phases of reaction processes,
allowing certain sequences of
physical and chemical process
steps to run one after the other
in a continuous process. br
Entex Rust & Mitschke
Halle 4.0, Stand B43
Source: Entex

ACHEMA DAILY | JUNE 10.-14., 2024
EUROPEAN CUP 2024
Match Schedule
Dortmund
Signal Iduna Park
Gelsenkirchen
Veltins Arena
Hamburg
Volkspark-Stadion
Berlin
Olympia-Stadion
Düsseldorf
Merkur Spielarena
Cologne
Rheinenergie-Stadion
Leipzig
Red Bull Arena
Frankfurt/Main
Deutsche Bank Park
Stuttgart
MHPArena
Munich
Allianz Arena
Group A
Group B
Group C
Group D
Group E
Group F
Deutschland (GER)
Spanien (ESP)
Slowenien (SVN)
Polen (POL)
Belgien (BEL)
Türkei (TUR)
Schottland (SCO)
Kroatien (CRO)
Dänemark (DEN)
Niederlande (NED)
Slowakei (SVK)
Georgien (GEO)
Ungarn (HUN)
Italien (ITA)
Serbien (SRB)
Österreich (AUT)
Rumänien (ROU)
Portugal (POR)
Schweiz (SUI)
Albanien (ALB)
England (ENG)
Frankreich (FRA)
Ukraine (UKR)
Tschechien (CZE)

ACHEMA DAILY | J
EUROPEAN CUP 202
THE NEW
PROFOX-X
ACTUATORS
The Premier Digitalization Event: Driving Transformation Through Innovation
connectedplantconference.com
profox.auma.com
Hall 8.0 Stand C23
A
B
C
D
1.
1.
1.
1.
2.
2.
2.
2.
3.
3.
3.
3.
4.
4.
4.
4.
GER ■ : ■ SCO
ESP ■ : ■ CRO
SVN ■ : ■ DEN
PO
06-14-2024 – 21.00
Munich
06-15-2024 – 18.00
Berlin
06-16-2024 – 18.00
Stuttgart
HUN ■ : ■ SUI
ITA ■ : ■ ALB
SRB ■ : ■ ENG
A
06-15-2024 – 15.00
Cologne
06-15-2024 – 21.00
Dortmund
06-16-2024 – 21.00
Gelsenkirchen
GER ■ : ■ HUN
CRO ■ : ■ ALB
SVN ■ : ■ SRB
P
06-19-2024 – 18.00
Stuttgart
06-19-2024 – 15.00
Hamburg
06-20-2024 – 15.00
Munich
SCO ■ : ■ SUI
ESP ■ : ■ ITA
DEN ■ : ■ ENG
N
06-19-2024 – 21.00
Cologne
06-20-2024 – 21.00
Gelsenkirchen
06-20-2024 – 18.00
Frankfurt
SUI ■ : ■ GER
CRO ■ : ■ ITA
ENG ■ : ■ SVN
N
06-23-2024 – 21.00
Frankfurt
06-24-2024 – 21.00
Leipzig
06-25-2024 – 21.00
Cologne
SCO ■ : ■ HUN
ALB ■ : ■ ESP
DEN ■ : ■ SRB
FR
06-23-2024 – 21.00
Stuttgart
06-24-2024 – 21.00
Düsseldorf
06-25-2024 – 21.00
Munich
Round of 16 Düsseldorf
07-01-2024 – 18.00 (ROS5)
Round of 16 Frankfurt
07-01-2024 – 21.00 (ROS6)
Round of 16 Cologne
06-30-2024 – 21.00 (ROS3)
Round of 16 Dortmund
06-29-2024 – 21.00 (ROS1)
Round of
07-02-2024
2D
1F
1B
1A
1E
2E
3A/B/C
3A/D/E/F
2C
3A/B/C/D
Quarter-Final Hamburg
07-05-2024 – 21.00 (QF2)
Quarter-Final Stuttgart
07-05-2024 – 18.00 (QF1)
Quarter-F
07-06-2024
Winner ROS5
Winner ROS3
Winner ROS
Winner ROS6
Winner ROS1
Winner ROS
Semi-Final Munich
07-09-2024 – 21.00 (SF1)
Winner QF1
Winner QF2
Final Berlin
07-14-2024 – 21.00
Winner SF1
Winner SF2

UNE 10.-14., 2024
4 Match Schedule
Industrie
Your Service Provider for Lead
Generation, Communication Solutions
and Specialist Information
Your Expert in B2B Direct Marketing
Process solutions for a
sustainable future
160 years of experience
Efficient compressor solutions for
process gases, green gases and process air.
Hall 8.0, Stand D38
A
E
B
F
C
A Publication of Brands &
Partners of
1.
1.
2.
2.
3.
3.
4.
4.
L ■ : ■ NED
06-16-2024 – 15.00
Hamburg
UT ■ : ■ FRA
06-17-2024 – 21.00
Düsseldorf
OL ■ : ■ AUT
06-21-2024 – 18.00
Berlin
ED ■ : ■ FRA
06-21-2024 – 21.00
Leipzig
ED ■ : ■ AUT
06-25-2024 – 18.00
Berlin
A ■ : ■ POL
06-25-2024 – 18.00
Dortmund
ROU ■ : ■ UKR
06-17-2024 – 15.00
Munich
BEL ■ : ■ SVK
06-17-2024 – 18.00
Frankfurt
SVK ■ : ■ UKR
06-21-2024 – 15.00
Düsseldorf
BEL ■ : ■ ROU
06-22-2024 – 21.00
Cologne
SVK ■ : ■ ROU
06-26-2024 – 18.00
Frankfurt
UKR ■ : ■ BEL
06-26-2024 – 18.00
Munich
TUR ■ : ■ GEO
06-18-2024 – 18.00
Dortmund
POR ■ : ■ CZE
06-14-2024 – 21.00
Leipzig
GEO ■ : ■ CZE
06-22-2024 – 15.00
Hamburg
TUR ■ : ■ POR
06-22-2024 – 18.00
Dortmund
CZE ■ : ■ TUR
06-26-2024 – 21.00
Hamburg
GEO ■ : ■ POR
06-26-2024 – 21.00
Gelsenkirchen
16 Munich
– 18.00 (ROS7)
Round of 16 Leipzig
07-02-2024 – 21.00 (ROS8)
Round of 16 Gelsenkirchen
06-30-2024 – 18.00 (ROS4)
Round of 16 Berlin
06-29-2024 – 18.00 (ROS2)
1D
1C
2A
2F
3D/E/F
2B
inal Berlin
– 21.00 (QF3)
Quarter-Final Düsseldorf
07-06-2024 – 18.00 (QF4)
7
Winner ROS4
8
Winner ROS2
Semi-Final Dortmund
07-10-2024 – 21.00 (SF2)
Winner QF3
Winner QF4

Source: Manuel Schönfeld – stock.adobe.com
Frankfurt/Main Skyline
View from the Main Tower
The Main Tower observation
deck is open to visitors until 9
p.m. from Sunday to Thursday
and until 11 p.m. on Fridays and
Saturdays.
Frankfurt Time Travel
The new time travel attraction
Timeride Frankfurt is located
opposite St Paul’s Church. With
virtual reality and multi-sensory
presentations, you can discover
the turbulent history of the city
on the River Main in a completely
new way. Thanks to virtual
reality and detailed backdrops,
you become a contemporary
witness yourself: for example,
you can experience the beginning
of electrification on a virtual
visit to the legendary Electrotechnical
Exhibition of 1891.
Candlelight Spring
The unique live music experience
Candlelight transforms
the most diverse locations in
Frankfurt into breathtaking
concert venues. At 14th of June
2024 there will be music of
Hans Zimmer at the Logenhaus
zur Einigkeit. Get your tickets
and experience the music of
Hans Zimmer surrounded by a
sea of flowers to celebrate
spring!
Alte Oper Frankfurt
Behind the historic façade of
the former Frankfurt Opera
ACHEMA DAILY | JUNE 10.-14., 2024
Things to do in Frankfurt
What to see after ACHEMA
Summer in Frankfurt is more than an ACHEMA show. The Main metropolis
offers a whole host of exciting entertainment, lovely places to be, and a lots
of bars, restaurants and cafes. Here you can find some tips.
House lies a lively concert and
congress centre which, despite
its versatility, has a clear artistic
profile. On 13 June 2024, for
example, the HR Symphony Orchestra
will perform “Das Lied
von der Erde” – a late work by
Mahler that is half song cycle
and half symphony.
Zoo Frankfurt
Frankfurt Zoo is a green oasis
in the center of Main metropolis
and home to more than
5,000 animals from over 450
species. Here you will find the
proud animals of Africa next to
lively seals and majestic lions
in the neighborhood of cheeky
dwarf goblins. In the Grzimekhaus,
day turns into night and
you can immerse yourself in
the mysterious animal world of
Madagascar. Snakes, crocodiles,
colorful fish and frogs romp
around in the exotarium, and in
the Borgori forest you can
meet great apes in a real jungle
atmosphere.
Palmengarten
Over 150 years old and still a
magnet for the public: The
Palmengarten in the heart of
the city Frankfurt. In the early
years of the garden exotic
plants – first and foremost its
namesake, the palm trees – attracted
visitors, today it is a variety
of motifs: Enjoy the lush
greenery, stroll among the flowering
beds stroll around, relax
and unwind. The Palmengarten
also provides a diverse cultural
and event program.
Museum of Modern
Electronic Music
Right in the heart of Frankfurt,
the „MOMEM – Museum of
Modern Electronic Music“ opened
its doors. A revolutionary
new museum and exhibition
concept allows visitors to immerse
themselves fully in the
history and development of
electronic music. The new museum’s
initiators propose to
show the development of electronic
music in all its facets and
influences in a way suited to visitors
of all ages.
Museumsufer
If there is some time left,
Frankfurt’s Museumsufer is a
must. It’s a wonderful place to
stroll along the banks of the
Main and the museums are lined
up with their exhibitions:
• From medieval times to the
present: the Städel Museum’s
permanent exhibition takes
you on a journey through
more than 700 years of art.
On more than 15,000 m 2 of
exhibition space you can take
inspiration from paintings
and sculptures, photographs,
drawings and prints.
Tips
Eating & Drinking in Frankfurt
• Frankfurter Äpfelwein
Botschaft, Eschborner
Landstr. 154, Tel. 069
74305677
• Ban Thai Restaurant, Leipziger
Straße 26, Tel. 069
772675, very good Thai restaurant
in the Bockenheim
district, 1.5 km from the trade
fair center
• Vai Vai, Grüneburgweg 16,
Tel. 069 90559305, Italian
restaurant in urban industrial
design.
• Trattoria Amici, Bettinastr.
17–19, Italian Dolce Vita in
the Westend near the trade
fair center.
• Restaurant Edelweiss,
Schweizer Str. a few hours’
holiday in Austria in the
middle of Frankfurt-Sachsenhausen.
• Margarete, Braubachstr.
18–22, Tel. 069 13066501,
Perfect address for a special
evening in Frankfurt’s old
town.
• Die Werkskantine, Orber
Str. 4a, modern Frankfurt
cuisine in the classic car
district. An urban café-restaurant
with a view of two
classic car workshops.
• Atschel, Wallstr. 7, one of
the oldest and most popular
apple wine taverns in
Sachsenhausen with typical
Hessian specialties.
• Zum Eichkatzerl, Dreieichstr.
29, cosy Frankfurt
cider and food restaurant
in Alt-Sachsenhausen.
• Thai & Turf, Mörfelder
Landstraße 235, Tel. 069
20327525, Thai culinary art
is combined with North
• Everything is film at the
Deutsches Filminstitut &
Filmmuseum Frankfurt. On
two floors and around 800
square metres, the permanent
exhibition presents exciting
exhibits, operable models
of historical equipment
and interactive stations. Large
film projections invite you
to explore the moving image
and experience the fascination
of film as a medium.
Senckenberg Museum
The permanent exhibition in
this large natural history museum
is already impressive.
New additions are the themed
rooms “Nature + Medicine”
and “Coral Reef“. Visitors can
also experience the special exhibition
“Forests – From the
Romantic to the Future”. The
forest as a home to biodiversity;
a romantic utopia for mankind;
an object and subject of
the arts and natural science:
all this is on display in the
exhibition.
dh
American surf and turf tradition
in this quaint restaurant
in Sachsenhausen.
• Alex Skyline Plaza, Europa-
Allee 6, Bar on the roof of
the Skyline Plaza shopping
center directly by the trade
fair. Spectacular view of the
Frankfurt skyline.
• Wacker’s Kaffee Geschäft,
Kornmarkt 9.
• Logenhaus, Finkenhofstr.
17, elegant nostalgia bar in
late classicist building with
cocktails.
• O’Reilly’s Irish Pub, Am
Hauptbahnhof 4, Pub at
the main station with big
screens for watching football
as well as karaoke.
• 22nd Lounge & Bar, Neue
Mainzer Straße 66–68, exclusive
club atmosphere in
the Innside Hotel

Pumps/Valves/
Fittings
Page 31–36
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
BONOMI GROUP
PERFORMANCE AND QUALITY
MADE IN ITALY
31
Hall 8.0 H37
Smart Control Valves and Positioners
This Low-Flow Valve is Very Versatile
Source: Schubert & Salzer
Equipped with the
top-mounted positioner
type 8049,
this valve sets new
benchmarks in
terms of precision
and intelligent
networking
Low-flow valves or needle
valves are used wherever minimal
flowrates or high pressures
have to be controlled with particular
precision or securely
shut off. The Type 7042 lowflow
valve offers minimal Kv
values of 0.0027 to 1.7 and a
nominal pressure of PN320. In
combination with this company’s
optionally integrated
Type 8049 positioner, the lowflow
valve further expands its
potential. In addition to an explosion-protected
and FM version,
the Type 7042 can also be
equipped with an IO-Link connection
or Industrial Internet of
Things (IIoT) module, enabling
it to supply extensive status
data to facilitate predictive
maintenance, error analysis
and commissioning. The continuous
monitoring of the
status data allows even the
slightest irregularities in the
control behavior to be detected.
With IO-link, a single
cable with an M12 plug bundles
the positioning signal, position
feedback, data transmission
and even the power supply. A
further advantage of the Type
7042 is the top-mounted installation
of the integrated positioner.
This design enables the
fast and uncomplicated replacement
of the control unit
and is thus particularly maintenance-friendly.
The new positioner
is automatically configured
with the parameters of
the predecessor via IO-Link. It
is immediately ready to operate
following a brief self-calibration
routine.
The Type 7042 low-flow valve
has a valve body made of stainless
steel, hardened valve
spindles and a replaceable seat
seal made of hardened stainless
steel or carbide to improve
reliability and service life, even
in high-pressure applications.
Thanks to a special high-pressure
packing, high leak-tightness
is achieved even with a
high switching frequency – including
in hydrogen applications.
The precision of the
design and control accuracy
enable the Type 7042 valve, in
conjunction with the Type
8049 valve positioner, to be installed
in an extensive range of
industrial manufacturing
applications.
mpb
Schubert & Salzer Control
Systems
Hall 11.1, Stand E45
Exzenterschneckenpumpen
Drehzahlproportionale
Dosierungsfähigkeit
Exzenterschneckenpumpen der Visco-Serie
Beinlich Pumpen wird ein umfangreiches
Portfolio an Pumpenlösungen
vorstellen. Am
Messestand können sich Besuchende
über die hochpräzisen
Dosier- und Förderpumpen des
Herstellers informieren. Ein besonderes
Highlight sind die
Pumpen der Visco-Serie, die
aufgrund ihrer drehzahlproportionalen
und kontinuierlichen
Dosierungsfähigkeit eingesetzt
werden. Diese Exzenterschneckenpumpen
arbeiten nach
dem volumetrischen Prinzip einer
endlosen Kolbenentleerung,
was eine sehr präzise Dosierung
ermöglicht. Sie eignen
sich besonders für scherempfindliche
Medien mit Füllstoffen,
da sie einen scherarmen
Transport bieten und dank ihrer
pulsationsfreien Technologie in
jeder Anwendung optimale Ergebnisse
liefern. Darüber hinaus
stellt Beinlich seine FDAkonformen
Produkte vor. Dazu
gehören die Außenzahnradpumpe
Cannapump und die Exzenterschneckenpumpe
Viscopharma,
die speziell für die hohen
Anforderungen der Lebensmittel-
und Pharmaindustrie
entwickelt wurden. Die Pumpen
erfüllen strenge Qualitäts- und
Sicherheitsstandards und bieten
maßgeschneiderte Lösungen
für diese Branchen. bec
Beinlich Pumpen
Halle 8.0, Stand G35
Bild: Beinlich Pumpen
YOUR WAY
Engineering excellence since 1917 /
From -196 to 620 o C, -1 to 630 bar, DN 15 to 1200 /
Let’s talk about CONTROL THE FLOW /
TO US:

32
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Pumps/Valves/Fittings
Drive Solutions For the Process Industries
These Robust Gear Units can Handle Heavy-Duty Projects
These gear units can be equipped with an adapter for mixing or agitation
Source: Getriebebau NORD
Whether in the chemical, pharmaceutical,
biotechnology or
food industries, companies
that extract, transport or process
raw materials require industry-specific
and innovative
drive solutions. This company’s
Maxxdrive industrial gear units
power heavy-duty applications,
such as agitators, mixers and
grinders in the production of
foods, cosmetics and more. The
parallel and right-angle gear
units cover a speed ratio range
from 5.54:1 to 400:1 – and with
a first-stage gear unit, even up
to 30,000:1. They feature high
output torques from 15 to
282 kNm for reliable operation
even under extreme conditions.
The units are outfitted
with torsionally rigid, onepiece
Unicase housing for a
longer bearing life and efficient
power transmission. They also
have large low-friction roller
bearings for extremely high
radial and axial load capacities
and a long service life. Furthermore,
high-precision axis
alignment guarantees quiet
running. For mixer and agitator
applications, the industrial
gear units can also be
equipped with a Safomi-IEC
adapter. The adapter is available
for parallel gear units and
in sizes 7 to 11, for maximum
output torques from 25 to
75 kNm. The adapter is compact
and simple in design and
has an integrated oil-expansion
volume. The oil tanks and
hoses, as well as the radial
shaft seal that is subject to
leakage and wear between the
gear unit and the IEC cylinder,
are therefore not required.
Furthermore, many connectivity
options are available for the
company‘s full range of drives
and associated components to
facilitate better monitoring and
control. With the Nordcon APP
for mobile maintenance and
commissioning of its frequency
inverters, NORD enables, via
dashboard-based visualization,
the diagnosis, analysis,
parameterization and monitoring
of drive systems via a mobile
terminal device for service
use. An oscilloscope function is
also included for individually
configurable drive analysis. The
Nordac Access BT is a Bluetooth
stick device that is used
directly with the frequency inverter
– this ensures convenient
mobile access to the drive
data while at the same time access
control.
mpb
Getriebebau NORD
Hall 8.0, Stand B52
Twin-Screw Pumps
Convey Lumpy, Abrasive Media
The Chemspin series of twinscrew
pumps was especially
developed for industrial and
chemical applications. The four
sizes of Chemspin pumps cover
a flow rate range from 30 L/h
to 300 m³/h. The Chemspin
double-flow design allows differential
pressures of up to 50
bars. For non-flowable products,
self-feeding models with
extended feed screws are suitable.
Chemspin twin-screw
pumps are said to be considerably
more flexible than centrifugal,
side-channel or other
displacement pump types, and
can therefore cover the applications
of a whole range of
side-channel pumps. These
pumps can handle viscosities
up to 1,000,000 mPAs and
fluids with solids up to 45-mm
in diameter. Abrasive or lumpy
media can be conveyed and a
suitable shaft seal can provide
dry-run protection. mpb
Jung Process Systems
Hall 8.0, Stand F27
Source: Jung Process Systems
There are four different
pump sizes available in the
Chemspin series
maag.com
Explosion-Proof Pumps
Diaphragm Gas Pumps
Come and visit us
in Frankfurt a.Main
10.-14. 14 6. 2024
HALL 8.0
BOOTH K78
NEW member of
the MAAG Group:
NEXT LEVEL
SOLUTIONS
Integrated Systems for Industrial and
Chemical Applications
MAAG Group is the partner for
chemical applications industry
worldwide. All our integrated
solutions from Pump and Filtration
systems to Pelletizing and Pulverizing
systems and to Recycling
systems have outstanding performance
for demanding customer
requirements.
The N 680.1.2 Ex diaphragm
gas pump is designed for a
maximum flowrate of 220
L/min, a maximum pressure of
3 bars and a vacuum of 150
mbars (absolute). These explosion-proof
diaphragm gas
pumps transfer or compress
gases and vapors and generate
vacuum without contaminating
the media. They are available
with options for application
requirements related to size,
motor, control, voltage, chemical
resistance, safety, vibration,
noise and temperature resistance.
All pump types offer oilfree
operation. Water-cooling
connections are available for
models with a stainless-steel
pump head. The pumps boast
high chemical resistance, high
gas tightness and a flameproof
motor with an intrinsically safe
terminal box for easy installation.
mpb
KNF Neuberger GmbH
Hall 11.1, Stand E85
Source: KNF
These pumps provide fluid transfer
without any contamination

Movitec
Mit Hochdruck zu
grüner Energie
Besuchen Sie uns auf der
Halle 8, Stand H14
Movitec treibt die
Energiewende voran
Unsere bewährte Hochdruck-Kreiselpumpe
hebt die Produktion von grünem Wasserstoff
mühelos auf das nächste Level.
Mehr unter: www.ksb.de

34
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Pumps/Valves/Fittings
This company is showcasing a
variety of blower and compressor
technologies designed for
the biogas sector, whether producing
biomethane, feeding it
into kilometre-long supply networks
or pre-pressure generation
for block-type thermal
power stations. Suitable for
the different required suction
and final pressures required
for biogas processing, these
new equipment include the
Ihr globaler Partner
für komplexes
Fluidhandling
Blowers and Compressors
A Variety of Compressors for Biogas Applications
VMX and VMY Series of oil-injected
screw compressors. The
packages are characterized by
maximum energy efficiency,
system availability and service-friendliness,
as well as a
large variety of types and
many available modification
options. A particular advantage
is the TÜV-certified explosion
pressure shock resistance
up to 12 bars. This means
that the machines are also approved
for operation in processes
with internal ATEX zone
1. The compressors work reliably
in operation 24 hours
per day.
VMX compressors are available
in five sizes to handle volumetric
flowrates ranging from 100
to 2,500 m 3 /h at maximum
pressures up to 15 bars (g). The
system maximizes its efficiency
through optimized lubrication,
cooling and rotor housing/sealing.
The system is also
compact and lightweight,
which makes installation easier.
Operation is low-vibration
and low-noise.
The VMY series of compressors
for biogas and landfill-gas
handling consists of three
sizes. These compressors are
suitable for boosting the intake
pressure of treatment
plants for biogas or as an essential
part of biogas injection
plants. The VMY series can
handle volumetric flowrates
from 150 to 3,000 m 3 /h at a
maximum pressure of 24 bar
(g). The compressors feature
The oil-injected biogas compressors in the VMY series enable a final
pressure of up to 24 bar g
contact-free rotors, and
require no timing gears. VMY
biogas compressors have a
variable volume control by
means of hydraulically operated
control flaps (via gate
control).
All blowers and compressors
can be used in hazardous areas
Source: Aerzener Maschinenfabrik
Zone 1 and in Zone 2, as defined
under ATEX Directive RL
2014/34/EU, as well as the Machinery
Directive, including
the latest safety standard (EN
1012–3) and for Germany, the
DVGW regulation. mpb
Aerzener Maschinenfabrik
Hall 8.0, Stand D38
So fördern Sie komplexe Medien effektiv
Die Wahl der richtigen Pumpe optimiert die Prozesse
und reduziert Energiekosten. NETZSCH bietet Ihnen:
Objektive & individuelle Beratung
Über 70 Jahre Erfahrung
5 verschiedene Technologien
Gemeinsam finden wir für Ihre
Anwendung die optimale Lösung.
Partnerschaft hört bei uns
nicht mit dem Kauf auf
Wir unterstützen Sie von der
Beratung, Wartung bis hin
zur Instand setzung und
Modernisierung Ihrer Pumpe.
Besuchen Sie uns: Halle 8.0, Stand C27
NETZSCH Pumpen & Systeme GmbH
www.pumps-systems.netzsch.com
Unterschiedliche Geschwindigkeiten für Druck- und Saughub
Schrittmotorpumpe verbessert Dosierung
aggressiver Chemikalien
Memdos-Smart-Pumpen arbeiten
mit einem Schrittmotor
Bild: Lutz-Jesco
Herkömmliche Membrandosierpumpen
am Markt arbeiten
meist mit Standardmotoren mit
konstanter Drehzahl. Hubzeiten
der Membran beim Ansaugen
und Ausstoßen sind daher
gleich lang. Das ist unvorteilhaft,
weil in der Phase der Vakuumerzeugung
die Fluidförderung
stillsteht. Diese ständige
Unterbrechung mindert
nicht nur die Effizienz, sondern
führt zur Pulsation, die
schlimmstenfalls zu Beschädigungen
führen kann. Herzstück
der Memdos-Smart-Membran-
Dosierpumpen ist daher ein
Antrieb mit einem von einem
Mikroprozessor geregelten
Schrittmotor. Der Clou: Anders
als bei Standardmotoren ist es
möglich, den Motor asynchron
laufen zu lassen. Bedeutet: Die
Dosierpumpe kann bei Saughub
und Druckhub mit unterschiedlichen
Geschwindigkeiten
arbeiten. So wird es möglich,
den Motor während des
Ansaugens mit höherer Geschwindigkeit
zu betreiben. Es
entsteht ein stärkerer Unterdruck,
der die Flüssigkeit
schneller ansaugt. Die Vakuumphase,
bei Standardmotoren eine
Totzeit, ist auf ein Minimum
reduziert. Nach dem Ansaugen
kann der Schrittmotor dann mit
langsamerer Geschwindigkeit
arbeiten, um die Flüssigkeit
kontrolliert und gleichmäßig
auszustoßen, ohne dass es zu
einem abrupten Druckanstieg
kommt.
br
Lutz-Jesco
Halle 8.0, Stand K86

ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Pumps/Valves/Fittings 35
Source: Maag
Erste gemeinsame Produktentwicklung
Neue Generation von Zahnradpumpen
Chem-X ist die erste Zahnradpumpe
nach gemeinsamer Produktentwicklung
von Maag und Witte
Anfang 2023 begann mit der
Übernahme von Witte durch
Maag ein Weg der Zusammenarbeit:
Die beiden Unternehmen
der Branche haben sich
zusammengeschlossen, um gemeinsam
eine neue Generation
von Zahnradpumpen zu schaffen,
die durch Effizienz, Zuverlässigkeit
und Leistung überzeugt.
Dieser strategische
Schritt bündelt jahrzehntelange
Erfahrung und Forschung.
Die neue Zahnradpumpe
Chem-X ist ein Symbol für diese
synergetische Partnerschaft,
die für die anspruchsvollsten
Anwendungen in verschiedenen
Branchen entwickelt wurde.
Der Schwerpunkt liegt dabei
auf Leistung, Langlebigkeit
und Effizienz.
Die Pumpe verfügt über ein
fortschrittliches Zahnraddesign,
das für minimale hydraulische
Pulsation und maximalen
volumetrischen Wirkungsgrad
optimiert ist. Die Verwendung
resistenter Materialien
stellt sicher, dass die Pumpe
aggressiven Chemikalien und
hohen Temperaturen standhält,
ohne ihre Lebensdauer oder
Leistung zu beeinträchtigen.
Das neue Produkt kann mit einem
intelligenten Steuerungssystem
ausgestattet werden.
Diese Systeme ermöglichen die
Überwachung und Anpassung
in Echtzeit und stellen sicher,
dass die Pumpe unter verschiedenen
Prozessbedingungen
mit höchster Effizienz arbeitet.
Maag/Witte
Halle 8.0, Stand K78
Membrandosierpumpen
Breites Dosierpumpenportfolio
Bei Anwendungen in der chemischen
Industrie müssen Dosierpumpen
hohem Druck und extremen
Temperaturen die Stirn
bieten. Die Hydraulik-Membrandosierpumpen
von Prominent
Bild: Prominent
Hydraulik-Membrandosierpumpen von Prominent
sind dafür sehr gut geeignet,
angefangen von den leistungsstarken
Tripower-Pumpen bis
hin zu den Evolution-mikro-
Pumpen für Kleinstmengendosierung
mit Atex-Zulassung.
Besonderes Augenmerk legt
das Unternehmen auch auf das
Trendthema Wasserstofftechnologie.
Im Bereich Chemical
Handling zeigt Prominent u. a.
mit Dulcodos SAFE-IBC eine
spezielle Dosier- und Entleerungsstation
für Intermediate
Bulk Container (IBC). Damit gelingt
es ganz einfach, Chemikalien
sicher zu lagern, zu entleeren
und unterbrechungsfrei zu
dosieren.
br
Prominent
Halle 8.0, Stand J94
Source: AUMA Riester
ATEX and IECEx Certified
Explosion-Proof Actuators
This company has added an explosion-proof version to
its Profox actuator series
Explosion-proof Profox-X actuators
are designed for ATEX
and IECEx certifications for the
highest gas group IIC T4, which
includes hydrogen, ensure safe
operation in potentially explosive
atmospheres. As with the
whole Profox line, the Profox-X
series includes multi-turn, partturn
and linear actuators, offering
automation solutions for all
valve types in the lower torque
and thrust ranges. Compact design
makes Profox-X fit into
tight spaces, for example in
skid installations. All Pprofox
actuators are optimized for low
energy consumption and high
efficiency, thus minimizing
their carbon footprint. Furthermore,
the wide temperature
range and premium corrosion
protection ensure high
reliability and long service life
under tough process conditions.
The smart actuators are
equally suited to open-cluse
duty and modulating applications.
Motor speed is adjustable,
ensuring fast and precise
positioning. Soft start and soft
stop functionalities increase
valve lifetime. Profox actuators
support fieldbus and Industrial
Ethernet communication, making
host system integration
flexible and easy. Profox actuators
are simple and easy to
use via an app, saving time and
resources during installation
and commissioning. A centrally
placed LED and a position indicator
on the housing clearly
show the actuator status at any
time, even from a distance.
mpb
AUMA Riester
Hall 8.0, StandC23
ACHEMA 2024
Hall 11.1, Booth E85
KNF DIAPHRAGM PUMPS
LEADING SPECIALISTS
Outstanding performance for demanding applications.
Our pumps start with your specs and are then designed to fulfill the
demands and complex challenges of industrial process conditions –
fit for special tasks:
n Uncontaminated transfer, compression and evacuation of valuable
and hazardous processing media at temperatures up to 240 °C
n ATEX-compliant design
n Sample gas pumps for mobile/stationary process gas analysis
knf.com

36
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Pumps/Valves/Fittings
Weiterentwicklung der Nemo-Exzenterschneckenpumpe
Ohne kostenintensives Dichtungssystem
Roger Willis, Global Business Field
Manager Chemical Pulp & Papern
Bild: Netzsch
Als globaler Spezialist für die
Entwicklung, Herstellung und
den Vertrieb von Pumpen und
Systemen bietet Netzsch seit
über 70 Jahren maßgeschneiderte
und anspruchsvolle Pumpenlösungen
speziell für den
Bereich Chemie & Papier. „Wir
unterstützen unsere Kunden
mit patentierten Lösungen, sei
es bei der Förderung von hoch
reaktiven Stoffen, der Dosierung
unterschiedlicher Stoffkomponenten
oder der Entleerung
von Behältern mit Gefahrstoffen“,
sagt Roger Willis, Global
Business Field Manager
Chemical Pulp & Paper. „Wir
zeigen auf unserem Stand vier
verschiedene Pumpentechnologien:
von Exzenterschneckenpumpen,
Drehkolbenpumpen
über Schraubenspindelpumpen
bis hin zu Schlauchpumpen“,
sagt Willis.
Ein besonderes Highlight am
Stand ist für Willis die Weiterentwicklung
der bewährten
Nemo-Exzenterschneckenpumpe,
die im chemischen Bereich,
beispielsweise in der Batterieproduktion,
Anwendung findet.
Diese neue Lösung ist insbesondere
für die Förderung aggressiver,
toxischer und abrasiver
Flüssigkeiten geeignet.
„Mit der Weiterentwicklung unserer
Nemo-Exzenterschneckenpumpe
können sich die
Besucher auf ein echtes Highlight
freuen. Ich möchte nicht
zu viel verraten, aber kostenintensive
Gleitringdichtungen
oder andere Dichtungssysteme
gehören damit der Vergangenheit
an“, so der Global Business
Field Manager Chemical, Pulp
& Paper.
br
Netzsch
Halle 8.0, Stand C27
Convey Sensitive Gases or Vapors
Versatile Vacuum Pumps
This vacuum pump improves
operational efficiency and safety
The Cobra NC 0100 B dryscrew
vacuum pump is designed
for conveying sensitive
and explosive gases or vapors.
Its construction allows safe operation
at ultimate pressures of
0.01 hPa (mbar) without the
risk of contamination from operating
fluids. Its advanced dryscrew
technology, including
self-balancing screws, achieves
high compression efficiency.
The flexibility of the Cobra dryscrew
vacuum pumps enables
an individual configuration
Source: Busch Vacuum
that can be perfectly adapted
to the demands of different
processes. Thanks to their
speed control and oil- and contact-free
operation, they are
particularly environmentally
friendly and energy efficient.
Other equipment offerings
from this company include the
MINK MV 0080 D dry-claw
vacuum pump and the Dolphin
LX 0430 liquid-ring vacuum
pump.
mpb
Busch Vacuum Solutions
Hall 8.0, Stand H38
Explosion Safety
Extended Sizes Available for
Explosion Isolation Valves
Are you looking for a pump that can be
used flexible in your process or which
is highly product resistant?
Both is better!
Adaptability and durability are important
factors when selecting the right pump
for your process. Let‘s talk about your
applications and the use of CHEMSPIN
twin screw pumps at ACHEMA.
ACHEMA Hall 8.0 Booth F27
www.jung-process-systems.com
The Fike DFI Explosion Isolation
Flap Valve is now available
in stainless steel assemblies
for sizes DN100 to
DN800. The company has also
expanded its sizes of DFI up to
DN1000 to meet the needs of
larger dust collectors or other
industrial applications that horizontally
convey organic dust.
The latest stainless-steel execution
is safe for use within food
production and chemical plants
to protect against rust, paint,
or other contaminants from entering
the product.
DFI valves include two flaps on
a vertical center-bar hinge,
which are held open by normal
process flow. When a deflagration
occurs, the pressure reverses
the flow and quickly
closes the lightweight flaps
into a locked position strong
enough to contain the pressure
and flames and protect upstream
equipment. DFI is considered
a “passive” explosion
isolation valve because it is activated
by the pressure itself
and not activated with electronics.
“Because it is designed
for installation in both vertical
and horizontal orientations,
protects against a wide range
of combustible dust hazards,
and is now available in stain-
less steel, Fike DFI is suitable
for most industrial applications
when passive isolation explosion
protection is achievable,”
said Jim Vingerhoets,
Fike Explosion Safety Consultant.
mpb
Fike Deutschland
Hall 9.0, Stand C86a
These valves offer passive protection against explosive dust
Source: Fike

Engineering/
Contracting
Page 37–40
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Engineering Base
Your single source for
Engineering and Operation
37
Hall 9.0, Booth D36
Hall 6.0, Booth C75 Hall 11.0, Booth D51
Bild: Eplan
Erweiterte Service-App
Wenn der digitale Zwilling den realen Schaltschrank überlagert
Mit Eplan eView AR alle Daten im Blick: Splitscreen-Ansicht von Schaltplan
und digitalem Zwilling in Augmented Reality
Die neuen Funktionen der App
„eView AR“ geben per Tablet
oder Smartphone vor allem eines:
Vollen Überblick über verbaute
Komponenten im Schaltschrank
– inklusive Zugang zur
elektrotechnischen Dokumentation.
Durch die Überlagerung
eines realen Schaltschrankes
mit seinem digitalen Zwilling
werden virtuelle und reale Welt
perfekt verknüpft. Diese ARgestützte
Visualisierung steigert
die Informationstiefe: Servicetechniker
werden durch
den Prozess geführt.
Eplan präsentiert in Hannover
erste Einblicke in die erweiterte
App „eView AR“, die das Potenzial
hat, die Welt in Service
und Instandhaltung zu revolutionieren.
Konkret geht es um
die elektrotechnische Dokumentation
von Schaltschränken,
die per Augmented Reality
verfügbar gemacht wird. Nicht
in irgendeinem Projekt, nicht
am Schreibtisch des Elektrotechnikers,
sondern direkt im
Betrieb, also am Schaltschrank.
App führt Servicetechniker
durch den Prozess
Mit der erweiterten App, die ab
Mai 2024 verfügbar sein soll,
können Servicetechniker per
Tablet oder Smartphone den
realen Schaltschrank mit seinem
digitalen Zwilling überlagern.
Kurz: Direkt am Schaltschrank
hat der Techniker den
digitalen Zugriff auf jede einzelne
Komponente. Ein Beispiel:
Ein Motorschutzschalter
soll erneuert werden. Visuell
wird der Servicetechniker per
AR-Highlighting geführt und
weiß genau, wo die Komponente
im Schaltschrank positioniert
ist – selbst bei verschlossener
Schaltschranktür. Gerade
in großen Schränken oder
Schrankanreihungen lassen
sich Komponenten so schnell
lokalisieren. Der Servicetechniker
kann sich dann über den digitalen
Zwilling sämtliche benötigten
Informationen bereitstellen
lassen wie beispielsweise
das Anschlussbild und die
Schaltplanseite mit der Motorstarterkombination.
Das erspart
auch das Suchen in möglicherweise
umfangreichen Papierdokumentationen.
Es führt
den Techniker oder Wartungsmitarbeiter
schnell durch seine
Tätigkeiten in der Instandhaltung.
Änderungen ins Projekt zurückspielen
Ist beispielsweise ein Schütz
auszutauschen, so zeigt der digitale
Zwilling nicht nur die
Herstellerangaben des Bauteils,
sondern verweist auch
auf seine elektrotechnische
Dokumentation. Per Red- oder
Greenlining vermerkt der Techniker
den Austausch dieses
Bauteils und das Engineering
kann die Änderungen einfach
auf allen Seiten der elektrotechnischen
Dokumentation
umsetzen. Falls es Querverweise
zu anderen Schaltplanseiten
gibt, werden diese im Engineering
ebenfalls automatisch aktualisiert.
Das Beste: Die Kollaboration
in Eplan erfolgt dabei
bidirektional – vom Service ins
Engineering und auch umgekehrt.
QR-Code sichert eindeutige
Zuordnung
Ein in Eplan generierter QR-
Code verbindet die Dokumentation
des Schaltschranks mit
dem realen Schrank im Betrieb.
Das Projekt wird in der Eplan
Cloud abgelegt und ist somit
eindeutig zugeordnet. Per AR-
Funktion wird die 3D-Ansicht
des Schaltschrankaufbaus auf
die Montageplatte bzw. den
Schaltschrank selbst überlagert.
Der digitale Zwilling aus
Eplan Pro Panel wird 1:1 auf die
Komponenten im Innenraum
des Schrankes gelegt – und das
einfach per Tablet oder
Smartphone. Mit der AR-App
wird die Projektdokumentation
in 2D als Schaltplan oder in 3D
als virtuelles Abbild des Schaltschranks
visualisiert.
Fehler schnell nachverfolgen
Per Splitscreen-Technologie lassen
sich auf Wunsch Schaltplan
und AR-Modell des Schrankes
auch nebeneinander abbilden.
So kann im Fall des Maschinenstillstands
der Fehler schnell
nachverfolgt werden. Dass Betriebsmittellisten,
Stücklisten,
Kabelübersichten und andere
Auswertungen wie Topologien
über einen Querverweis im Zugriff
sind, ist ein weiterer Praxisvorteil.
Schließlich entfällt
das Blättern durch die Dokumentation.
Über die Eplan
Cloud ist die gesamte Dokumentation
zu jeder Zeit und an
jedem Ort der Welt einsehbar.
Das erleichtert die Kollaboration
auch über Abteilungsgrenzen
hinweg. So wird der Prozess
in Service und Instandhaltung
beschleunigt und vereinfacht.
Hinzu kommt: Die elektrotechnische
Dokumentation
ist immer im Zugriff und immer
aktuell. Das erleichtert auch
kommende Wartungs- oder
Servicefälle.
br
Eplan
Halle 11.0, Stand E44
Schnelle Lokalisierung relevanter Komponenten im Schaltschrank
durch visuelle Überlagerung
Bild: Eplan
Jetzt Partner werden!
6. November 2024
Weitere Informationen:
andreas.hugel@konradin.de
Websession g
Cybersecurity in der Chemieproduktion g

38
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Engineering/Contracting
Datenzentrierung und Modularisierung als wichtige Bausteine in Wasserstoffanlagen
Nachhaltige Lösungen durch kooperatives Engineering
Bild: Aucotec
Die Kooperationsplattform Engineering Base vernetzt Anlagen und die unterschiedlichen Gewerke miteinander
Transparent, flexibel, agil, effektiv: In der immer globaler vernetzten Prozessindustrie
spielt der effiziente Austausch von Daten und Informationen
eine entscheidende Rolle. Datengestützte Technologien unterstützen Unternehmen
dabei, schnell und sinnvoll auf Veränderungen zu reagieren, durch
transparente Prozesse bessere Entscheidungen zu treffen und kürzere Projektzyklen
zu erreichen – der Schlüssel für mehr Nachhaltigkeit.
Die Aucotec AG begegnet diesen
Herausforderungen und
zeigt auf der ACHEMA in Frankfurt
ihre Lösungen für die internationale
Prozessindustrie: im
Anlagenbau, auf der Sonderschau
Wasserstoff und im Digital
Hub. Im Mittelpunkt: die Kooperationsplattform
Engineering
Base.
Daten treiben Prozess -
industrie an
Mit Engineering Base als
Schlüsselkomponente zeigt Aucotec,
wie Anlagen und die unterschiedlichen
Gewerke effizient
miteinander vernetzt
werden und optimal zusammenarbeiten
können. Denn:
Anlagen, Maschinen und Komponenten
werden immer autonomer
und modularer. Zusammengeführte
Anlagen- und
Prozessdaten verbessern dabei
Steuerung, Wartung und Produktionsqualität.
„Engineering Base ist für das
gesamte Anlagenleben konzipiert
– und wird damit schlussendlich
zum Herzstück in Prozessindustrie
und Anlagenbau“,
betont Aucotec-Vorstandsmitglied
Uwe Vogt. „Wir schaffen
die Verbindung zwischen Unternehmensprozessen
durch
eine datenzentrierte Kooperationsplattform.“
Umfangreiche
Erweiterungen der seit vielen
Jahren etablierten Software
konnten Engineering Base in
eine führende Position als echte
‚Single Source of Truth‘ im
Anlagenbau bringen.
Aufgrund der erfolgreichen
technologischen und wirtschaftlichen
Entwicklung von
Aucotec in den vergangenen
Jahren, präsentiert das Unternehmen
seine Konzepte, Ideen
und Antworten für die Prozessindustrie
in diesem Jahr gleich
auf drei Ständen.
Kooperatives Engineering
als Basis
Im Fokus des Aucotec-Hauptstands
im Bereich Anlagenbau
in Halle 9 (Stand D36) steht Engineering
Base als Grundlage
für das kooperative Engineering
zwischen verschiedenen
Gewerken und Abteilungen.
„Unsere Softwareplattform gewährleistet
eine stete Datenkonsistenz
durch disziplinübergreifendes
Engineering auf einer
gemeinsamen, objektorientierten
Datenbasis, der Single
Source of Truth“, erklärt Henry
Bloch, Leiter Produktmanagement
bei Aucotec.
Heißt im Detail: Sobald mehrere
Ingenieure kooperativ zusammenarbeiten,
wird die Objekthistorie
von Ventilen, Pumpen,
Rohrleitungen sowie allen
elektrischen und prozessgesteuerten
Geräten sehr wichtig.
„Hier spielt das Change Management
eine große Rolle, das
höchste Transparenz über das
gesamte Projekt hinweg gewährleistet.
Damit minimieren
unsere Kunden Fehler und verbessern
die Qualität der Daten
und der zugehörigen Dokumentation“,
so Bloch. Aucotec
zeigt auf der ACHEMA, wie Veränderungen
der Anlage innerhalb
des Datenmodells und aller
zugehörigen Diagramme
und Dokumente, einschließlich
des Revisionsmanagements,
zuverlässig verfolgt werden
können. Objekt-Historie, interne
Aufgabenverwaltung und
Bild: Aucotec
Uwe Vogt, Mitglied des
Vorstandes bei Aucotec
Workflow-Assistenz stehen
ebenso im Mittelpunkt.
Nicht zuletzt ist modulares Engineering
mit disziplinübergreifenden
Typicals und Variantenmanagement
mit Engineering
Base möglich – was vor allem
bei Wasserstoffanlagen
entscheidend ist.
Schneller zu grünem Wasserstoff
Bislang gibt es auf dem internationalen
Wasserstoffmarkt
zu wenig Elektrolyse-Kapazitäten
für die benötigten Mengen,
doch das soll sich ändern: Für
das Jahr 2050 wird nach Angaben
des Statistik-Portals statista
eine Produktionsmenge von
weltweit rund 25 Mio. t von
grünem Wasserstoff prognostiziert.
Andere Szenarien zeigen
sogar deutlich höhere Zahlen.
Was Deutschland betrifft, so
wird laut Wasserstoffstrategie
des Bundesministeriums für
Wirtschaft und Energie für das
Jahr 2030 der Ausbau von Elektrolyse-Kapazitäten
auf ein Niveau
von 5 GW geplant.
Das Ziel von Aucotec ist es,
Elektrolyseur-Hersteller zu unterstützen,
ihre Kapazitäten
schneller zu erhöhen und grünen
Wasserstoff in großem
Maßstab zu produzieren. Der
Schwerpunkt liegt auf skalierbaren
Engineering-Prozessen
für kürzere Projektlaufzeiten.
Modularisierung und Standardisierung
von Anlagen senken
den gesamten Engineering-
Aufwand deutlich. Insbesondere
die Datenzentrierung und
Modularisierung sind in Wasserstoffanlagen
wichtige Bausteine
– zum einen um die Projektlaufzeiten
von Elektrolyseuren
zu verkürzen und qualitativ
Bild: Aucotec
Henry Bloch, Leiter Produkt -
management bei Aucotec
hochwertige Daten für die spätere
betriebliche Nutzung zu
erzeugen, zum anderen um in
der Folge die Produktionskosten
von (grünem) Wasserstoff
zu senken. Aucotec zeigt diese
Zukunft des Engineerings in
der Sonderschau Wasserstoff
(Halle 6.0, Stand C75).
Einheitliche Standards für
die Daten
Im Digital Hub in Halle 11,
Stand D51, zeigen die Aucotec-
Experten, wie digitaler Datenaustausch
für integriertes Engineering
funktioniert – und dass
Objektorientierung mit dem
Feed-Engineering einschließlich
des Imports von Simulationsdaten,
der Definition von
Asset 360 Templates in Excel
und der Definition von Datenaustauschformaten
beginnt.
Der Wert von Daten wird für alle
Beteiligten in der Prozessindustrie
immer sichtbarer. Die
Datenmengen nehmen in den
verschiedenen Planungsphasen
einer Anlage, wie Basic-,
Prozess- und Detail-Engineering,
enorm zu. Um sicherzustellen,
dass die Anlagendaten
von Engineering Base ihren
größtmöglichen Wert entfalten,
werden standardisierte Informationsmodelle
implementiert.
Diese und Datenaustauschformate
stehen ebenso
im Mittelpunkt, wie beispielsweise
IEC 81346, IEC 61850,
DEXPI, CFIHOS, OPC UA, Jip 33,
AML oder EBML. Weitere Themen:
Engineering Base Mobile
View, der erweiterte CAD-Import
oder die sogenannte Verwaltungsschale.
„Unsere Software ermöglicht
die Verbindung der Vorteile einer
hochstandardisierten Produktwelt
mit den individuellen
Anforderungen im Bereich Anlagenbau.
Damit garantieren
wir effiziente und nachhaltige
Prozesse und Geschäftsmodelle
in der Branche“, resümiert
Vogt. „Engineering Base ist bereits
heute eine Erfolgsgeschichte
in der Welt der verfahrenstechnischen
Anlagen –
und sie ist noch längst nicht zu
Ende.“
br
Aucotec
Hall 9.0, Stand D36

Source: Flownetics
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Engineering/Contracting 39
A Breakthrough in Process Commercialization
New Continuous-Flow Platform
Introduced at ACHEMA 2024
This continuous flow-chemistry
platform is available as Factoryas-a-Service
model
At ACHEMA 2024, this company
is unveiling the Continuous
Flow Manufacturing Platform,
a groundbreaking endto-end
performance system.
With this modularly designed
platform for the continuous integration
of synthetic processes,
through production to
the end product, this platform
opens the window of many
new possibilities for chemical
production. Continuous synthesis
processes are now integrated
with downstream purification
steps at a commercial
scale. The system effectively
addresses previous industry
challenges, with capabilities for
throughput adjustments, impurity
control and AI-assisted
minimization of process dis-
turbances. the system is designed
as a Factory-as-a-Service
subscription offering. This
model enables companies to
utilize the most advanced continuous
manufacturing technologies
without having to invest
in costly in-house equipment.
This not only improves
process reliability and economic
and ecological efficiency
but also shortens supply chains
and production times, at lower
costs.
mpb
Flownetics Engineering
Hall 9.0, Stand E1
Die Fabrik der Zukunft wird Realität
Robotik für die nachhaltige Fabrikplanung
Das Thema Robotik in der pharmazeutischen
Produktion
adressiert Glatt mit der Pharma
OSD Zukunftsfabrik. In der
schnelllebigen Welt der pharmazeutischen
und biotechnologischen
Produktion sind Automatisierung
und Robotik keine
Optionen mehr, sondern unverzichtbar.
Als Systemintegrator
begleitet Glatt die Kunden
auf dem Weg zur Fabrik der Zukunft.
Am Beispiel einer digital
integrierten Containment Pharma-Prozessanlage
wird die
Spezialisierung der Glatt-Experten
auf die Integration von
Hard- und Softwarefunktionen
in fortschrittliche, ganzheitliche
Automatisierungssysteme
gezeigt, die von MES- und DCS/
Scada-Systemen bis hin zu Roboter-
und FTS-Systemen reichen.
Der Robotereinsatz in der
Pharmaproduktion wurde insbesondere
für feste Formen
völlig neu konzipiert, indem die
Prozessstationen so angeordnet
werden, dass das Robotersystem
die verschiedenen Stationen
optimal bedienen kann
und aufwendige vertikale und
horizontale Handhabungstechniken
entfallen. Neben der Automatisierung
liegt der Schwerpunkt
der Planung auf der Digitalisierung
und Vernetzung von
Prozessen und Systemen. Glatt
kann auf alle Planungsgewerke
In-house zugreifen, um die beste
Lösung für das jeweilige
Kundenprojekt zu entwickeln.
So bietet Glatt Systemintegration
bis zur vollständig beim
Kunden installierten Prozessanlage
aus einer Hand. br
Glatt Ingenieurtechnik
Halle 3.0, Stand H4
Source: Fraunhofer IMM
Process Innovation Platforms
Reactor Engineering
This company is highlighting
some novel pilot reactors
Bild: Glatt
Fabrik der Zukunft wird Realität
Grignard reagents can be formed
continuously in a novel process
window constituted by a
large excess of magnesium that
is activated in-situ. This group
is showcasing a pilot reactor
setup that provides a continuous
feed, not only of the liquid,
but also of the solid component,
rendering the process
truly continuous in nature.
Through continuous processing
quality improvement goes
hand in hand with cost savings,
as well as an increase in production
flexibility. Also highlighted
will be a microreactor
engineered for continuousflow
photochemistry. Microstructured
flow reactors are
ideal for performing photochemical
syntheses. Incident
light is perfectly utilized with
gas and liquid streams and
solid phases in microchannels
or capillaries. Full irradiation of
the reaction solution is combined
with precise control over
the irradiation time as defined
by volume in the channels and
capillaries and flow rate. Microreaction
technology and photochemical
synthesis are most
fruitful partners for the sustainable
production of high
value fine chemicals. mpb
Fraunhofer IMM
Hall 9.0, Stand E64
OPENING
New global framework conditions:
How is the process industry
positioning itself?
10 June 2024, 17:00 – 18:30 h,
Hall 4.0, Room Europa

40
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Engineering/Contracting
Source: ITandFactory
Improved Data Visualization and Utilization
Engineering Collaboration in Practice
Visit this company‘s stand for hands-on demonstrations
of their latest platform release
Seamless collaboration in
multidisciplinary teams is fundamental
to the successful
completion of plant engineering
projects. These requirements
formed the basis for the
further development of Cadison
for its newest version,
R23. The engineering platform
is applicable throughout the
entire plant lifecycle. During
planning, a smooth exchange
of information with project
participants who are not working
with the engineering solution
is crucial. Plant designers
must be able to easily share
the project status and obtain
feedback and approvals in a
straightforward manner. The
following innovations support
these requirements.
In Cadison, all data converges
into a single database during
planning and throughout the
entire lifecycle, creating a socalled
Single Source of Truth.
This data-driven and integrated
approach promotes
seamless collaboration among
the various involved disciplines,
the central data is accessible
to all project partners at
any time and is updated in
real-time. Additionally, this
way of working allows for the
synchronization of P&ID and
3D, reports can be generated
with a click, and integration
with an ERP system supports in
tendering, price calculation
and provides information on
delivery dates.
During ACHEMA, this company
will be offering practice
oriented presentations at its
booth in the Digital Hub in Hall
11.1, including joint sessions
with partner companies Actian
and Microsoft.
mpb
IT and Factory
Hall 11.0, Stand E58
Anlagen- und Behälterreinigung
Programm um Popup-
Rotationsreiniger erweitert
Mit der neuen Düsenbaureihe
Popup Whirly Air Hygienic erweitert
Lechler zur Achema
2024 die breite Produktpalette
an Rotationsreinigern für die
Behälter und Anlagenreinigung.
Bei den Popup-Düsen
handelt sich um eine pneumatisch
ausfahrbare Düse, die
Bild: Lechler
Die Popup Whirly Air Hygienic
Düsen sind selbstentleerend, unabhängig
von der Einbaulage
wandbündig in der Behälterwand
installiert wird. Im Gegensatz
zu rein durch den Flüssigkeitsdruck
betriebenen Düsen
wird diese neue Baureihe
unabhängig vom Flüssigkeitsdruck
eingesetzt. Es sind keine
zusätzlichen Einbauten im Prozessraum
notwendig.
Die Popup Whirly Air Hygienic
Düsen sind selbstentleerend,
unabhängig von der Einbaulage.
Das ist eine wichtige Voraussetzung
für den hygienischen
Betrieb. Zusätzlich sind
die Düsen mit Luft spülbar.
Die neue Düsenbaureihe von
Lechler trägt in vielen in industriellen
Anwendungen dazu
bei, die Effizienz, Qualität und
Sicherheit von Sprühprozessen
zu verbessern und dabei
gleichzeitig Ressourcen zu
schonen.
br
Lechler
Halle 4.0, Stand B23
ACHEMA 2024
Be digital. Be resilient. Be sustainable.
Technology to transform the everyday.
Visit us in
hall 11 at booth E3

ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Instrumentation/
Process Automation
Page 41–48
41
Continuous Online Analysis for Industrial Water Monitoring
Hall 11.1
Booth C13
Smart Connectors
These Connectors Digitalize Transducers
Individual sensor parameters can also be stored in the Almemo 07
Powerful microprocessors have
made it possible to create completely
self-sufficient digital
sensors that function like a
measuring device themselves.
The intelligence of the digital
sensors is located in the connector
plug. In addition to increasing
the flexibility of a digital
sensor, individual sensor parameters,
such as linearization,
scaling, attenuation, averaging,
measuring rate or longer comments
can also be stored in the
intelligent Almemo D7 and D6
connectors. It is even possible
to digitalize sensors from completely
different manufacturers
via the intelligent connector
and connecting them to Almemo
measuring systems.
The digitization of sensors
makes it possible to consider
the measuring device and sensor
separately during a traceable
initial calibration or recalibration.
The device itself no
longer needs to be taken into
account during calibration. Each
digital sensor with an Almemo
D7 or D6 connector forms a selfcontained,
calibratable measuring
chain. This means that the
sensors can be calibrated independently
of the measuring system,
saving time and money. To
avoid possible process downtimes
or high installation costs,
only one additional sensor is
required as a replacement.
Almemo digital technology
makes it possible to connect
devices from different manufacturers,
including scales, centrifuges,
particle counters or
numerous sensors with analog
or digital interfaces and other
communication protocols to
the Almemo data logger. Once
adapted, all data and sensor
Source: Ahlborn
parameters are automatically
detected, immediately visualized
and recorded centrally or
decentrally simply by plugging
the connector into the measuring
device. Measuring devices
that were previously difficult to
implement become highly flexible
everyday measuring aids,
without the need for programming,
parameter changes or
software adjustment.
The separation of an electronic
conversion of analog to digital
signals from the sensor and the
accommodation of the digital
technology in the connector
opens up a multitude of further
metrological advantages. For
example, a digital Almemo D7
or D6 connector offers space
for 10 measurement and calculation
channels.
ond
Ahlborn
Hall 11.1, Stand B64
Aktive Infrastruktur für Ethernet-APL
Qualität und Verfügbarkeit
der Produktion sichern
Ethernet-APL ermöglicht eine
Netzwerkinfrastruktur für den
nahtlosen Zugang von explosionsgefährdeten
Bereichen zum
Kontrollraum oder in die Vorstandsetage
– und damit Einblicke
in Produktionsqualität
und -status. Es handelt sich um
eine flache und zuverlässige
Technologie mit hohem Datendurchsatz,
die es den Anwendern
ermöglicht, auf die Informationen
von hochgradig diagnostizierbaren
und konfigurierbaren
Geräten zuzugreifen.
Über den Ethernet-APL Field
Switch von Fieldconnex können
mehrere Anwendungen
gleichzeitig Informationen aus
dem Feld abfragen. Die Diagnose
über die physikalische
Schicht selbst ermöglicht es
dem Personal, Fehler oder
schleichende Qualitätsverschlechterungen
in der Installation
zu erkennen und zu beseitigen.
Man kann ganz einfach
sagen, dass die Diagnose mit
der Ethernet-APL-Technologie
den Anwendern hilft, die Qualität
und Verfügbarkeit der Produktion
auf hohem Niveau zu
halten. Der Switch meldet Messungen
der physikalischen
Schicht auch für die Glasfaserübertragung.
Speziell entwickelte
SFP-Module verbinden
den Switch mit dem Netzwerk
über Singlemode- und Multimode-Glasfaserkabel
und unterstützen
Kabellängen von bis
zu 30 km. Sie sind als Zubehör
für den Switch zertifiziert und
können in Zone 2/Div. 2 installiert
werden. Pepperl+Fuchs
präsentiert dem interessierten
Publikum Infrastrukturprodukte
für alle Signaltypen, von eigensicheren
Barrieren und Remote
I/ O bis hin zu Feldbus
und Ethernet-APL. Die Experten
des Unternehmens begleiten
Planer und Endanwender
auf dem Weg zur Digitalisierung
des Feldes ihrer Prozessanlagen.
bec
Pepperl+Fuchs
Halle 11.1, Stand A43
Gehäuselösungen in Edelstahl oder Kunststoff mit Zertifizierung für
den explosionsgefährdeten Bereich
Bild: Pepperl+Fuchs
—
Innovation all around you
Smart. Reliable. Sustainable.
ACHEMA, June 10 – 14
Hall 11.1, booth E62

42
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Instrumentation/Process Automation
Von der tragbaren Messgasaufbereitung bis zum hochwertigen Gasanalysator
Umfangreiches Komponentenprogramm
Bild: Bühler Technologies
Neben der Präsentation des Komponentenprogramms
thematisiert
Bühler auf dem Messestand auch
drei Anwendungsbereiche
Die Kunst der Gasaufbereitung
ist das Motto, mit dem sich der
Geschäftsbereich Analysentechnik
des Unternehmens
Bühler Technologies präsentieren
wird. Schon seit seiner
Gründung hat der Hersteller
spezifische Ausrüstung und
Systeme für die technologisch
anspruchsvolle extraktive Gasanalyse
entwickelt. Durch immer
schärfer werdende Anforderungen
infolge sinkender
Grenzwerte sowie zunehmender
Ausdehnung der Anwendungsgebiete
von Umweltschutzstandards
steigen die
fernt vom Aufbereitungssystem.
Deshalb sind z. B. Gasentnahmesonden
mit wirksam
rückspülbaren In-situ-Filtern zu
bevorzugen. Diese reduzieren
den manuellen Wartungsaufwand
erheblich. Ebenso wichtig
ist eine robuste und langlebige
Bauweise, um einen nachhaltigen
Betrieb zu ermöglichen.
Es sind aber nicht nur die
speziellen Komponenten, die
die Zuverlässigkeit des Analyseverfahrens
bestimmen. Große
Bedeutung hat auch die
richtige Konzeptionierung und
Ausführung der Systeme
Anforderungen an die Genauigkeit
der Analyseverfahren.
Damit die Messwerte nicht
durch Fremdeinflüsse und/oder
ungeeignete Materialpaarungen
im Messgasaufbereitungssystem
abgefälscht werden
kommen nur spezifische Komponenten
für diese Anwendungen
in Frage. Dabei steht außer
der technisch/chemischen Eignung
auch der wirtschaftliche
Betrieb im Fokus. Analysesysteme
werden oft an unwirtlichen
Orten betrieben, die Gas -
entnahmestellen liegen schwer
erreichbar und teilweise entselbst.
Neben der Präsentation
des umfangreichen Komponentenprogramms
von der tragbaren
Messgasaufbereitung bis
zum hochwertigen Gasanalysator
thematisiert Bühler Technologies
auf dem Messestand
auch drei Anwendungsbereiche.
So werden exemplarisch
Systempanels zur Überwachung
von Schiffsantrieben,
der Herstellung von Wasserstoff
und der allgemeinen
Emissions-/Prozessüberwachung
gezeigt.
bec
Bühler Technologies
Halle 11.0, Stand E41
Forklifts
Internationally certified EX protection
The newly developed EX-protected drawbar reach truck EXR
Stöcklin Logistik Group is presenting
sustainable EX protection
solutions for forklift trucks
and complete intralogistics systems.
Adapted to the special
hazard potentials, requirements
and EX-protection areas
of application, the company
offers EX protection solutions
under one roof in its in-house
production at the Technology
Center in Laufen, Switzerland.
The range extends from certified
EX protection and INOX-EX
protective forklift trucks to
complete intralogistics system
solutions and long-life services
by trained service technicians.
Experienced explosion-protection
experts use their many
years of expertise to ensure
Source: Stöcklin Logistik
that the specified international
requirements and guidelines
are precisely adhered to and
guaranteed. As an experienced
explosion protection partner,
Stoecklin carries out all necessary
quality controls on the vehicles
and systems and undertakes
the required certifications.
And is the only European
intralogistics system provider
to offer both ATEX and
IECEx certifications as well as
KOSHA certification for EX-protected
forklift trucks.
For example, the patented LiFe-
PO4 battery „LiTEx“ with integrated
energy management
system for EX-protected forklift
trucks is suitable for Zone 1/21
and Zone 2/22 and can be
easily recharged in these zones
using an ATEX-certified, pressurized
charger. This eliminates
the need for time-consuming,
complicated battery changes
outside of the zones, as well as
and outgassing.
The newly developed EX-protected
drawbar reach truck EXR
(photo) will be presented for
the first time at ACHEMA. This
certified EX-protected device
features innovative technology
and user-friendly operation in
the tightest of spaces. The EXprotected
drawbar reach truck
with mast feed is suitable for
picking up closed pallets in
tight rack aisles and containers.
The mast feed ensures that the
load‘s center of gravity always
remains the same. This and additional
intelligent safety features
for the operator also increase
work safety.
Stöcklin is also presenting its
wide-ranging special ATEX-INOX
expertise with an INOX-EX protective
pallet truck with weighing
system designed according
to user requirements, which can
be used in explosion-sensitive
environments with special hygiene
and cleanroom regulations,
thanks to its anti-bacterial,
sterile, stainless-steel surface
and EX-protected design.
ond
Stöcklin Logistik
Hall 11.0, Stand A69

ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Instrumentation/Process Automation 43
Functional Safety
Driving Digitalization of Functional Safety to the Next Level
With a holistic portfolio of solutions
for the digitalization of a
plant’s safety lifecycle, the
HIMA Group has set out to significantly
simplify the compliant
operation of functional
safety in the process industry.
At Achema, HIMA is not only
showcasing its portfolio of
safety-related automation solutions,
but will also be using its
presence in Frankfurt to demonstrate
the next stage of its
digitalization strategy. „Secure
live connections from Frankfurt
to our Customer Solutions
Centers in Brühl and Singapore
illustrate what is already possible
and how we are consistently
driving forward the idea
of digitalizing the safety lifecycle,“
explains Jörg de la
Motte, CEO of the HIMA Group.
Just like at the trade fair, customers
will be able to use secure
connections to HIMA‘s
Customer Solutions Center to
perform tasks such as simulating
the control of safety systems,
testing the automatic inventorying
of their safety assets,
or carrying out automatic
recurrent tests. For example,
they will be able to see how
safety-relevant plant and operating
data can be combined
across site boundaries in order
to meet the IEC 61511 standard‘s
requirements in practice.
„With our trade fair presence,
we are creating a digital showcase
for our Customer Solutions
Center,“ explains Sergej
Arent, director, Applications, at
the HIMA Group. “Customers
will be able to discuss and shed
light on their issues with HIMA
experts in person, and also remotely
in digital workshops.
The resulting solutions can
then be remotely tested and
validated with hardware and
software from the manufacturer
and partner companies in
the Customer Solutions
Centers.”
At Achema, HIMA will be demonstrating
how this works in
practice: In live workshops, the
health and status of products
and solutions will be visible
using video links. In this way,
large plant components such as
block valves for steam turbines,
which would be too
large to transport to Frankfurt
or to customers, can be tested
remotely with at least as much
insight as an in-person test.
Customers at distant locations
can draw on the know-how of
HIMA experts who are connected
from Brühl or Singapore.
Safety experts see HIMA’s
Safety Lifecycle Digitalization
as a holistic process that ranges
from engineering through operations
to expansions and
modifications, and which
makes the management of
safety technology more efficient
and easier for plant operators.
This is significant because
over 80% of accidents in
process industry plants can be
attributed to human error. Digitized
processes, including
automatic tests, not only help
Sergej Arent (left) and Jörg de la Motte (right) of HIMA
Source: HIMA
to eliminate errors and lost information,
but also to enhance
safety thanks to stringent adherence
to processes. The digitized
process also enables new
analysis and optimization options
– for example, by automatically
determining and displaying
key performance indicators
(KPIs). This enables a
real-time feedback loop for operations
and safety experts. In
practice, HIMA customers report
savings of up to 70%. ond
HIMA Paul Hildebrandt
Hall 11.1, Stand E26
We understand how you are challenged every day
to enhance your plant’s safety and performance.
MAXIMIZE
+ CAPITALIZE
You gain more options to fit your needs, build up product
quality, increase safety, reduce costs and minimize risks.
Endress+Hauser helps you to improve your processes:
• With our field instruments that are designed with safety in mind
• With our worldwide industry application know-how
• With technologies and services for performance optimization
Visit us at ACHEMA 2024, Frankfurt am Main
10 – 14 June 2024, Hall 11.1, Stand C27
Do you want to learn more?
www.endress.com/chemical

44
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Instrumentation/Process Automation
Digital Tools minimise Risks and accelerate Projects
Modernisation of Process Control Systems
Guido Wink, General Manager for the
Netherlands and responsible for systems and
software within Emerson in Europe
Source: Emerson
Rob Spilsbury, sales director for the modernisation
business in Europe, Emerson
Many process plants have legacy process control systems. These systems require
special expertise and spare parts to keep them running. The old systems
also usually do not allow the full potential of the plant to be utilised.
Despite these obvious limitations, there is still a reluctance to modernise.
Guido Wink and Rob Spilsbury from Emerson explain how the transition of
legacy process automation systems to new technology can be done efficiently
and without any risk.
Source: Emerson
What is the main reason for
companies to modernise
their process automation
and control systems?
Guido Wink: It‘s a huge pressure
on the industry coming
from economical factors. The
plants need to work more and
more efficient, more data is
required for sustainability reporting,
and if you look at the
work force, old work force is retiring,
and new professionals
are hard to find. What we see in
the companies, is that a lot of
the systems are so old – some -
times 20 to 30 years – that the
technology, and also the knowledge
for a smooth operation is
no longer available. That was
the time of Word Perfect 5.1
and Windows NT and that is
still the technology some of our
customers‘ plants are running
on. So there is an enormous
pressure on the industry to
modernise their control systems
to make data available at
the right place.
Why have the systems not
been modernised for so
long?
Wink: Because it‘s complex to
change the whole process
control architecture. Over these
20 to 30 years, a lot has
changed in the systems, but
the current employees don‘t
know exactly all the changes in
the programming and in the
codes that have been done. Not
every field device is connected
anymore. All this kind of
changes are a huge risk, when
transferring the control system
into a modern one. That‘s why,
in contradiction to IT systems,
they didn‘t want to touch it. It‘s
risky and there are too much
investments required.
However, modern devices
are often already installed at
Find us at
Hall 11.1
Booth A87
YOUR FULL-SERVICE
PROVIDER FOR GAS,
MOISTURE & LIQUID
ANALYSIS
&
Area F2.0
Booth A4
www.process-insights.com

ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Instrumentation/Process Automation 45
the field device level, for
example, so why were
investments made here?
Wink: Yes, regarding the field
devices, they are generally in a
more modern condition, because
it is much easier to re -
place a field device. If the de -
vice didn‘t work anymore it‘s already
been replaced by a version
which e.g. has WirelessHART,
and all the latest technologies.
That has been done
all over the time. But the process
control systems haven‘t
been touched. And so the data
from the field often cannot be
made available in the upper
management levels. It is then
not possible to transfer the data
to the cloud or make it available
for remote applications and
ana lyses. The big challenge for
our customers now is to touch
the legacy obsolete process
control system and replace it
with a modern, cloud-based
system such as DeltaV.
What are the requirements
for modernisation with the
Emerson DeltaV system?
Spilsbury: It doesn‘t matter if
our customers have Emerson
devices or devices from com -
petitors in their field. Also the
obsolete control system can be
an old Emerson system or e.g.
from Honeywell or Siemens.
We can always realise the transition
from the legacy system to
a modern system with low risks
and manageable investment
costs. Tools such as DeltaV
Revamp or DeltaV IO.Connect
help with the migration.
What are the advantages?
Wink: First of all, it is important
to have a look at all assets in the
plant and their status in order to
obtain an accurate picture of
the existing instrumentation
and control technology of the
entire plant. The cloud-based
DeltaV Revamp software so -
lution is helping to analyse the
old code of a field device, for
example. The software offers a
fully integrated digital workflow
that utilises the power of arti -
ficial intelligence. DeltaV
Revamp automatically converts
the logic of the existing control
system into a fully tested and
documented control system database.
The corresponding results
are then fed into the
stand ard project planning platform.
From the results, project
teams can see to what extent
the conversion of the existing
code can be automated and
how much needs to be created
and revised manually. Based on
this data, the transition to complete
DeltaV systems with decentralised
control and safetyoriented
system instrumenta -
tion can then take place.
What role does DeltaV
IO.Connect play in the
migration?
Wink: DeltaV IO.connect uses
the I/O systems of the legacy
system so you don‘t have to
touch certain areas in the
plant, especially in the field,
during the transition process.
In this way, the system can be
migrated in a very short time. If
all the steps have been well
prepared, we are talking about
a few weeks of system down -
time compared to months with
the conventional approach.
What is the feedback you get
from your customers about
the benefits of modernising
with DeltaV?
Spilsbury: The CAPEX investment
really has to pay off as
early as possible and the new
technology then needs to be a
platform for the future. Once
the systems have been implemented,
very often our cus -
tomers give us the feedback
that the investment in DeltaV
technology improves their
efficiency, tied to leading to
better energy management, reduction
in batch cycle times, removing
qualitative defects, and
allowing access to information
that can drive better performance
of the field de vices.
Wink: What we also often see
is: When customers have finished
a modernisation project
and see the benefit, they are
starting a sort of programme
with Emerson to modernise all
their systems world wide. In this
way they certainly can make
sure that in all the plants the
same system is running, with
the same operating philosophy,
There is still a great deal of reluctance to modernise outdated
process control systems. With the right tools, migration can
succeed efficiently and without risk
and the same maintenance
philosophy. If customers are
collecting data worldwide, they
have the benefit to have access
to all the the sides, to see how
the sites are running, and how
the systems are running.
Which sectors do the majority
of customers come from?
Wink: We have programmes
with life science customers, but
also in the chemical industry as
well as in oil and gas and in the
power industry. We are very
strong in all market segments,
so that‘s absolutely a strong
point for us.
Spilsbury: But they all have
their own unique challenges,
e.g. pharmaceutical regulatories,
environments which are
changing, a different philosophy
in terms of sustainability,
so they‘ll all have different
benefits from the technology.
Even if it reduces the risk of
downtime that‘s the minimum
people should accept from an
investment in the new technology.
This means that all customers
want different benefits
from DeltaV technology and we
do our best to fulfil these
requirements.
Can you name a succesful
modernisation project?
Spilsbury: There is a trend towards
greater sustainability in
the chemical industry. Lyondellbasell
in Wesseling, for
example, selected Emerson to
modernise the control systems
and software at the company‘s
Wesseling site in Germany. To
this end, a legacy system was
converted to DeltaV. The driver
behind that was actually that
they‘ve changed from a traditional
feedstock to a green or
sustainable feedstock which
then meant they had to modernise
their control system infrastructure
to support a different
processing philosophy. The
Pressure, Temperature, Level
Everything From a
Single Supplier?
Source: Emerson
implementation of the new
automation technology will help
to improve operations at the
production facility. Daniela Held
Emerson
Hall 11.1, Booth C3
High-Precision Process Measuring
and Control Technology from AFRISO
74-03
Visit us in
hall 11.1
stand E 86
10. – 14.06.2024

46
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Instrumentation/Process Automation
Ethernet APL and More
More Sustainable, Data-Driven Solutions
With Ethernet APL, devices communicate with each other at high speeds
Plant and supply security,
maintaining competitiveness
when switching to new energy
sources, digitalization pressure
and faster product development
times — the list of challenges
is long. „This makes it all
the more important for the process
industry to bring innovation
and practice together
and show how measurement
technology can help to comply
with the strictest safety standards
while increasing efficiency
and profitability,“ says Andreas
Leppert, industry manager
Chemical & Oil at Endress+Hauser
Germany. The
Source: Endress+Hausert
focus here is on supporting the
optimization of CO 2
emissions,
as well as progressive digitalization.
SIL-certified Measuring
Malfunctions in process plants
can have serious consequences
for the environment, people
and machinery. The more complex
the plant, the greater the
risk of safety-relevant malfunctions.
In the chemical, oil and
life sciences sectors in particular,
the process environment
also harbors considerable risks.
For example, the measurement
technology used must not only
withstand extreme corrosion or
temperature, it must also guarantee
safety in potentially explosive
areas. At ACHEMA,
Endress+Hauser will be presenting
SIL-certified measuring
devices and intelligent testing
concepts that systematically reduce
safety risks. This also includes
its Heartbeat Technology
diagnostic and testing concept.
Key Technology Ethernet APL
However, digitalization not only
contributes to greater sustainability,
but also promotes increased
efficiency. This requires
intelligent, seamlessly networked
measurement technology:
„The networking of field
devices offers great potential
for improving system performance.
However, 97% of field
data has so far remained
unused,“ says Leppert. Thanks
to Ethernet Advanced Physical
Layer (APL), it is now possible
for devices in the process industry
to communicate with each
other at high speed and over
distances of up to 1,000 m. „We
want to show on site that Ethernet
APL is a key technology that
closes the gap in the automation
pyramid towards the
field level and thus opens doors
for more efficient processes,“
continues Leppert. ond
Endress+Hauser
Hall 11.1, Stand C27
Allrounder
Handliches Tablet
Neben dem Tablet bietet i.Safe Mobile weitere Produkte an
Das neue 10,1-Zoll-5G-Androidund
Windows-Tablet IS940.1 /
IS945.1 wurde für die Datenkommunikation
in der Prozessindustrie
und in der Automatisierung
konzipiert, um sich
nahtlos in die bestehende Systemlandschaft
im 4G/5G-Campus
oder Wi-Fi-Netz zu integrieren.
Das handliche Tablet
ist mit einem leistungsstarken,
Bild: i.Safe Mobile
IIoT-optimierten Chipsatz ausgestattet,
verfügt über eine
16-polige ISM-Schnittstelle, Wi-
Fi 6, Bluetooth 5.2 und NFC-
Unterstützung und hat einen
austauschbaren, langlebigen
Akku, frei programmierbare
Tasten sowie Haupt- und
Frontkamera.
br
i.Safe Mobile
Halle 11.1, Stand B26
Modulare Einstiegslösung
pH-Sensoren reinigen
Modulares Steuerungssystem
Bild: Knick
Mit der Uniclean-700-Serie liefert
Knick ein Einstiegssystem
für die automatische Reinigung
von pH-Sensoren. Der Reinigungsvorgang
lässt sich durch
ein einfaches Schaltsignal aus -
lösen, zum Beispiel über den
Relaiskontakt eines Stratos
Multi und Protos II oder auch
durch einen einfachen Taster.
Die Serie funktioniert auch herstellerunabhängig
mit fremden
Transmittern oder Armaturen.
Der modulare Aufbau erlaubt
einen einfachen Umbau. Alle
Teile sind einzeln erhältlich, sodass
die Endkonfiguration beim
Uniclean 710 und 720 direkt vor
Ort passieren kann. Das Uni -
clean 730 wird fertig montiert
und einsatzbereit geliefert. br
Knick
Halle 11.1, Stand A45
Erweiterung der Flexi-Flow-Compact-Serie
Vielseitige Massendurchflussmesser/-regler für Gase
Bronkhorst hat seine Flexi-
Flow-Compact-Serie erweitert.
Die aktuelle Version zeichnet
sich durch niedrigere Durchflussbereiche
bis 5 ml n /min
aus. Darüber hinaus umfasst
die Serie nun Instrumente als
Downported-Variante für den
vereinfachten Einbau sowie
Durchflussregler mit integrierten
Absperrventilen, um eine
höhere Dichtheit zu gewährleisten
oder eine Sicherheitsabschaltung
zu ermöglichen.
Eine der wichtigsten Verbesserungen
in der Flexi-Flow-
Compact-Serie ist die Integration
von Ethernet-Kommunikation,
die nahtlose Konnektivität
und Integrationsmöglichkeiten
für moderne, industrielle
Umgebungen bietet.
Die neuen Modelle nutzen wie
bisher einen speziellen Chip-
Sensor in Verbindung mit der
Bypass-Technologie. Die thermischen
Massendurchflussmesser
und -regler bieten eine
hohe Performance und
zeichnen sich durch eine Verringerung
der Baugröße um
35 % im Vergleich aus.
Die fortschrittliche Sensortechnologie
gewährleistet
nicht nur eine stabile Durchflussregelung,
sondern auch
schnelle Reaktionszeiten mit
Settling-Zeiten von weniger
als 150 ms, was eine präzise
Regelung auch bei sehr dynamischen
Prozessbedingungen
ermöglicht. Integrierte Temperatur-
und Drucksensoren
sowie eine integrierte Gasdatenbank
sorgen für hohe Genauigkeit
bei variablen Prozessparametern.
Dadurch lassen
sich die Flexi-Flow-Com-
Flexi-Flow Compact
Bild: Bronkhorst
pact-Instrumente direkt vor
Ort für eine Vielzahl von Anwendungen
anpassen. Darüber
hinaus bieten die Instrumente
umfassende Überwachungs-
und Steuerungsfunktionen,
ein USB-C-Anschluss
für einfache Einrichtung, optionale
Bluetooth-Kommunikation
für verbesserte Zugänglichkeit
sowie eine Namur-Statusanzeige
über farbige
LEDs und digitale Ausgabeparameter.
br
Bronkhorst
Halle 11.1, Stand F3

ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Instrumentation/Process Automation 47
More Sustainable and Data-Driven
Measurement Technology and Industry Solutions
According to the motto
“Sustainable Partner, Sustainable
Success”, Endress+Hauser
will provide a comprehensive
overview of state-of-the-art
measurement technology for
the chemical and life sciences
industry and present practical
industry solutions at ACHEMA.
In the chemical & oil and life
sciences sectors in particular,
the process environment harbors
considerable risks: For
example, the measurement
technology used must not only
withstand extreme corrosion or
temperature, it must also guarantee
safety in potentially explosive
areas. Endress+Hauser
will be presenting SIL-certified
measuring devices and intelligent
testing concepts that systematically
reduce safety risks.
This also includes the Heartbeat
Technology diagnostic and
testing concept, and devices
with Ethernet APL connectivity.
Thanks to Ethernet APL, it is
possible for devices to communicate
with each other at
high speed and over long distances
of up to 1,000 m in explosive
areas.
Endress+Hauser is also focusing
on the topic of sustainability.
As a partner to the process
industry, the company helps its
customers to become climateneutral
and offers the necessary
measurement technology,
solutions and services. The
basis for decarbonization is
digitalization: without valid
data, many applications in the
field of decarbonization cannot
be used and monitored sustainably.
At the trade show,
Endress+Hauser will also be
demonstrating how existing
data streams can be optimally
Measurement technology, solutions and services for a sustainable industry
Source: Endress+Hauser
utilized using digital twins. In
addition, a variety of inline calibration
services offer customers
support in always keeping
their systems in top condition,
thus reducing the need for
maintenance, and extending
Vielseitiges Sensorspektrum
Sensoren für Bioreaktoren und harte Fälle
Hamilton Bonaduz wird auf der
ACHEMA in Frankfurt ein breites
Sensorportfolio für die Prozessindustrie
präsentieren.
„Wir freuen uns über direktes
Kundenfeedback zu unseren
Innovationen und Technologien
im Bereich der Prozessanalytik“,
erklärt Daniel Egger,
Global Marketing Director Process
Analytics bei Hamilton Bonaduz.
Unter anderem können
sich die Fachbesucher vor Ort
den Incyte-Arc-Sensor zur Echtzeitkontrolle
der lebenden Zelldichte
anschauen. Das Sammeln
der Echtzeitdaten ermöglicht
ein schnelles Einschreiten
und verbessert die Kontrollmöglichkeiten
sowie die wünschenswerten
Qualitätsmerkmale.
Zusätzlich zeigt Hamilton
mit Dencytee Arc, einen Sensor
zur Messung der Gesamtzelldichte.
Letztere basiert auf einer
Kombination von Transmissions-
und Reflexionsmessung
calibration intervals in the future.
Digital interfaces enable
seamless integration of the
calibration data into the production
or process control system,
which enables real-time
monitoring and adjustment of
und ermöglicht besonders präzise
Messungen – sowohl in
niedrigen als auch in hohen
Zellkonzentration. Auf diese
Weise wird eine nahezu lückenlose
Prozessüberwachung in
Echtzeit gewährleistet. Als echter
Bestseller hat sich seit seiner
Markteinführung auch der
„CO 2 NTROL-Sensor“ erwiesen.
Anders als bei herkömmlichen
CO 2 -Sensoren basiert die Messung
auf einem optischen Prinzip.
Als markante Vorteile sind
seine Genauigkeit und Stabilität
auch über mehrere Produktionszyklen
hinweg zu nennen,
was einen nahezu wartungsfreien
Betrieb ermöglicht. Weitere
Sensoren zur Messung des
pH-Wertes sowie des Gelöstsauerstoffgehalts
(DO) gehören
ebenfalls zum Hamilton-Portfolio
und werden den Fachbesuchern
am Messestand vorgestellt.
„Darüber hinaus werden
wir auch unsere Single-use-
the measuring devices. This increases
efficiency, reduces production
downtime, and improves
the accuracy of
measurements.
dh
Endress+Hauser
Hall 11.1, Stand C27
Prozesssensoren präsentieren,
die eine einfache Integration in
Single-use Bags und Benchtop-
Bioreaktoren ermöglichen und
somit jedem Single-use-Bioprozess
das volle PAT-Spektrum
zur Verfügung stellen“, erklärt
Egger.
br
Hamilton Bonaduz
Halle 11.1, Stand F43
Vielseitige Sensoren von Hamilton
Bild: Hamilton
One Step
Ahead.
Hazardous Rated
Mobile Devices by
Pepperl+Fuchs
Frankfurt/Main 10-14 June 2024
Visit us on Hall 11.1, Booth A43
Be first in your market—with trendsetting mobile
products and solutions.

48
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Instrumentation/Process Automation
Integration and Networking
SPE, IO-Link and Sensor-to-Cloud
Single Pair Ethernet (SPE) offers considerable advantages
Jumo is on a dynamic-development path towards becoming a leading system and solution provider for
industrial sensor and automation technology. This change is clearly demonstrated by the integration
and networking of modern technologies, such as Single Pair Ethernet (SPE), IO-Link and sensor-tocloud
communication in the Jumo system world.
SPE is a pioneering development
in the world of industrial
communication technologies.
Originally developed in the
automotive industry, SPE offers
considerable advantages for industrial
automation. It uses only
a single wire pair for data transmission,
which enables a leaner,
less-expensive and simpler infrastructure,
while maintaining
high data transmission rates.
SPE supports data rates of up to
1 Gbit/s with a line length of 40
m and enables consistent data
transmission right down to the
field level. Jumo uses the
10BASE-T1L standard with a
lower, but still perfectly adequate,
data transmission rate
of 10 Mbit/s. A line length of up
to 1,000 m can be achieved.
The advantages of SPE include
space and weight savings, easier
installation, cost savings,
longer range, faster data transmission,
and integrated power
supply via PoDL. These features
make SPE ideal for networking
in the context of the
industrial internet of things
(IIoT) and Industry 4.0, as it
meets the requirements for
ever greater networking of devices
and data-driven decisionmaking.
Source: Jumo
Importance of IO Link
IO-Link is a communication
technology that has been part
of Jumo‘s product portfolio for
many years. It ensures seamless
communication between sensors,
actuators and the control
system. As the first standardized
IO technology for communication
with sensors and
actuators, IO-Link enables bidirectional,
digital point-to-point
industrial network logging.
The key features of IO-Link include
bidirectional communication,
device parameterization,
comprehensive diagnostic
capabilities and flexibility
in supporting a wide range
of intelligent Jumo devices. IO-
Link also plays a central role in
the implementation of smart
manufacturing and the fourth
industrial revolution by providing
an intelligent solution for
optimizing production processes
and improving production
efficiency as well as occupational
safety.
Machine-to-machine (M2M)
communication is also a key element
of Industry 4.0. It refers
to the automated exchange of
data between machines, systems,
and devices, often via a
network, without human intervention.
This communication
enables machines to exchange
information, coordinate tasks,
and make decisions based on
real-time data.
M2M-communication refers to
the direct exchange of data between
devices, machines, sensors,
and control systems such
as the Jumo variTRON 500. This
communication usually takes
place via wireless or wired networks
and is a central component
of automation and monitoring
systems in various industries.
The concept is closely linked to
IoT, where the focus is on interaction
between machines. SPE
and IO-Link play a decisive role
in M2M communication. SPE
enables the fast and efficient
transmission of large amounts
of data via a single wire pair,
which can be a great benefit in
complex automation environments.
By integrating SPE, machines
and sensors can communicate
over greater distances
and transmit data more
efficiently. IO-Link technology
scores points by providing a robust
and flexible platform for
the exchange of sensor data
and control signals.
The bidirectional communication
capability of IO-Link enables
detailed diagnostics and
real-time feedback from sensors
and actuators, which is essential
for precise control and
monitoring in M2M networks.
Jumo has recognized these advantages
and successfully integrated
both technologies into
its product portfolio.
Importance of M2M
M2M communication is used in
many areas in which Industry
4.0 is applied, one of which is
production automation. This is
where M2M enables precise
control and monitoring of production
processes. Machines
can exchange status data and
adapt processes based on realtime
information. Another
point is predictive maintenance,
which enables constant
monitoring of device statuses
and triggers preventive maintenance
measures before faults
occur. Energy management
within M2M technology can be
used to monitor and control
energy consumption to increase
efficiency and reduce
costs. In this context, logistics
and supply chain management
enable improved tracking and
management of warehouse
stocks, as well as means of
transportation.
Not only M2M communication,
but also sensor-to-cloud technologies
play a decisive role in
the digital transformation of industrial
automation. They enable
sensor data to be transferred
directly to the cloud,
where it can be used for analysis,
decision-making and process
improvements. This development
is a central component
of Industry 4.0 and IIoT.
At Jumo, sensor-to-cloud refers
to the connection of smart sensors
in industrial environments
directly to the Jumo Cloud. This
connection allows data from
production processes to be acquired
efficiently and converted
into usable information.
Smart sensors play a key role
here, as they can send data directly
to the cloud without the
need for additional components.
This direct data flow enables
production data to be
used quickly and efficiently,
which increases productivity
and reduces costs.
Smart Sensors
The integration of SPE within
these smart sensors significantly
expands sensor-to-cloud
solutions and their possibilities.
SPE in combination with
the JUMO Cloud gateway that
is integrated in the sensor implements
a robust and efficient
connection between information
technology (IT) and
the operation technology (OT)
world. If the connection to the
cloud server is lost, data is buffered
in the smart sensor and
an alarm is triggered.
In summary, it can be said that
Jumo is taking a significant
step towards becoming a comprehensive
system and solution
provider by introducing
innovative technologies, such
as SPE, IO-Link and sensor-tocloud
communication.
Michael Wiener
Product manager for Automation
Systems
Nico Müller
Product manager for Software
Jumo
Hall 11.1, Stand E43

Lab/Pharma/
Packaging
Page 49–54
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
49
June 10th – 12 o’clock
Marchesini Group unveils new Line for
Injectable Sterile Medicines
ACHEMA 2024 will be a special
occasion for Marchesini Group,
as it celebrates its 50th anniversary
this year. In addition to
showcasing a wide selection of
machines and production lines
for the pharmaceutical industry,
the Group will invite
visitors to join the celebrations
and reflect on the future together,
sharing new ideas and
projects.
Extremely fast Line
The stand will host several solutions
produced by various
Group divisions, including an
absolute novelty designed to
enhance the performance of
companies specialised in the
production of injectable sterile
medicines. It is a line under isolator
for sterile filling, capping,
and coding of vials of various
sizes, designed to be extremely
fast: the line can produce up to
500 pieces per minute with
100 % IPC. The line will be unveiled
to the public on the first
day of the event, June 10th, at
12 o’clock.
GMP Compliant
In addition to this innovation
developed by the Aseptic division,
the Group will also exhibit
several machines produced by
the Pharma Process and
Pharma Laboratory divisions,
perfectly compliant with the
rigorous GMP standards. The
stand will also feature two
monoblocks, one for packaging
solid products and one for powdered
products: the first consists
of a blister machine,
equipped with the SEA Vision
Line Clearance system, and a
cartoner with an integrated
Track & Trace module; the second
is a compact solution for
powder filling with 100 %
weight control, developed by
M.A.R, the latest brand to join
Marchesini Group unveils a new line for injectable sterile medicines live at ACHEMA
the Group.
New additions from the Pharma
Packaging division showcased
at the stand include a
line for packaging and labeling
injection pens, featuring a robotic
island that precisely and
flexibly positions the pens inside
a paper tray. This tray, internally
designed by the R&D
department, features a functional
design that enables significant
savings in paper and
glue (-50 % compared to traditional
models on the market).
Finally, there will be a corner
dedicated to the Digital area
featuring the latest innovations
in digital transformation and
artificial intelligence, including
the “Morpheus” predictive
maintenance solution, augmented
reality format changeover,
and the latest technologies
related to robotic applications.
dh
Source: Marchesini Group
TOC/ TN b -Analysatoren
Durchsatzstarke Geräte
erleichtern Laborabläufe
TOC/TN b -Analysatoren für erleichterte Laborabläufe
Bild: Analytik Jena
Analytik Jena bringt die TOC/
TN b -Analysatoren der Multi-
N/C-x300-Serie auf den Markt.
Mit ihrem robusten, nutzerfreundlichen
Design, flexiblen
Automatisierungsoptionen und
einer intuitiven Software liefert
die Multi-N/C-x300-Serie einfach
zu bedienende, durchsatzstarke
und kostenoptimierte
Geräte für die Umweltanalytik
und den pharmazeutischen Bereich.
Die oberste Maxime bei
der Entwicklung dieser Produktserie
bestand darin, den
Anwendern mehr Zeit für ihre
Kernaufgaben zu schenken und
den Aufwand für nicht-wertschöpfende
Tätigkeiten zu reduzieren.
Die intuitive und einfach
zu bedienende Software,
flexible Automatisierungsoptionen
und ein benutzerfreundliches
Design reduzieren die
Aufwände für Probenvorbereitung,
Kalibrierung und Wartung
deutlich. Die Multi-
N/C-x300-Serie steht für einen
hohen Probendurchsatz, Langlebigkeit
und geringe Gesamtbetriebskosten.
Highlight ist
die Bediensoftware mit Live-Ergebnisanzeige.
Sie stellt alle
wichtigen Informationen auf
einen Blick dar, ermöglicht intuitive
Workflows und bietet
pharmakonforme Datenintegrität.
Ein automatisches Diagnose-Tool
überwacht kontinuierlich
wichtige Faktoren wie
Dichtigkeit oder Ofentemperatur.
Da die Proben ausschließlich
unter optimalen Bedingungen
gemessen werden, ist ein
sicherer, unbeaufsichtigter Betrieb
möglich. Die TOC/TN b -
Analysatoren eignen sich besonders
für den Umwelt- und
Pharmabereich. Ob flüssige
oder feste Proben, partikel -
reiche Abwässer, Reinstwasser,
Trinkwasser, salzhaltige, saure
oder alkalische Proben: Die
Multi-N/C-x300-Analysatoren
liefern zuverlässige Ergebnisse.
bec
Analytik Jena
Halle 12.0, Stand E98
October 9-11, 2024
Orlando, FL
Keep Up With the Latest
Hydrogen Developments
and Discover What’s Next
at Experience POWER
REGISTER NOW

50
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Lab/Pharma/Packaging
Pharmaceutical Packaging
GMP-Compliant Drums
Source: Müller Drumtec
Müller Drumtec’s cylindrical
lidded drums are
manufactured in
GMP- compliant pharmaceutical
quality
MBP BIOPROCESSING
PLATFORM
Highly flexible automated solution for
biopharmaceutical production
Müller Drumtec, a leading
manufacturer of specialty containers
and packaging solutions
for the pharmaceutical
industry, will be demonstrating
the quality and reliability of its
proven packaging solutions for
the pharmaceutical industry at
ACHEMA. The company’s cylindrical
lidded drums, which are
manufactured in GMP-compliant
pharmaceutical quality,
are characterized by a blunt,
gap-free weld and enable easy
and residue-free cleaning. The
high stability of the lidded
drums, even under maximum
load, as well as their suitability
for various environmental and
process conditions, exemplify
Müller Drumtec‘s commitment
to providing efficient and safe
solutions for the pharmaceutical
industry. Particularly noteworthy
is the innovative option
of completely emptying liquids
using the FD and FDXXL drum
emptying systems.
In addition to the lidded drums,
Müller Drumtec offers a wide
range of other products including
hoppers, silos, bung drums,
stainless-steel bottles, butterfly
valves, drum emptying systems,
small handling equipment,
as well as special accessories
and special containers.
All of these products are
specially tailored to the needs
of the pharmaceutical industry
and are characterized by their
high level of safety and quality.
Müller Drumtec products can
be flexibly configured with different
seals, lids, handles, label
holders, pivots and labeling options
to meet the diverse
requirements of the pharmaceutical
industry. Finishes such
as electrochemical polishing
and HALAR or PTFE coatings
improve performance and extend
the range of applications
of the products under the stringent
conditions of pharmaceutical
production.
Another important feature of
the manufacturer‘s product
philosophy is sustainability.
The use of robust, durable materials
and well thought-out design
minimizes the ecological
footprint of the products and
maximizes their reusability. dl
Müller Drumtec
Hall 3.1, Stand A6
Nachhaltige Lösung
Membranbasierte Herstellung von
kaltem WFI
Bild: Envirofalk
Herstellung von
WFI durch membranbasierte
Wasseraufbereitung
COME AND SEE MORE AT
BOOTH # C71 HALL 3.1
Envirofalk bietet mit den kalten
WFI-Anlagen auf Memranbasis,
pharmazeutischen Unternehmen
eine überzeugende Möglichkeit
in puncto Nachhaltigkeit
an. Gerade in Zeiten hoher
Energiekosten, wird vielen Unternehmen
deutlich, wie umfangreich
die Kosteneinsparungen
mit kaltem WFI sind, da
das Wasser nicht verdampft
werden muss und keine nachträgliche
Kondensation erforderlich
ist.
Die Wasseraufbereitungsanlagen
für die kalte WFI-Erzeugung
setzen sich aus der Verfahrenskombination
Umkehrosmose,
Elektrodeionisation
und Ultrafiltration zusammen.
Die Umkehrosmose dient als
Barriere für Ionen, organische
Verunreinigungen und Mikroorganismen.
Über die nachgeschaltete
Elektrodeionisation
werden die verbliebenen Ionen
entfernt. Im Anschluss dient
das patentierte Ultrafiltrationsverfahren
als absolute Sicherheitsstufe
für Endotoxine und
Mikroorganismen. Dabei werden
spezielle Keramikmodule
kontinuierlich mit Ozon beaufschlagt.
So wird neben der thermischen
auch eine chemische Sanitisierung
ermöglicht. Zudem kann
die Ozonisierung bis in die Vorbehandlung
geleitet werden
und somit bereits am Speisewassereingang
aktiv möglichen
Kontamination entgegenwirken.
Um im Vorfeld bereits
schädliche Einflüsse komplett
auszuschließen, setzt Envirofalk
auf ein ganzheitliches Hygienic-Design
und eine umfassende
Biofilmkontrollstrategie,
die über den Anforderungen
der einschlägigen Regelwerke
liegen.
dh
Envirofalk
Halle 4.1, Stand D49

ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Lab/Pharma/Packaging 51
Pharmaceutical Robotics
Automating the Gap between Fill-Finish and Freeze Dryer
Automating transportation from the end of the fill-finish line to the freeze dryer is currently a major focus of automation upgrades
Robots in the pharmaceutical
industry must meet strict criteria
beyond the requirements of
most other industries. The
focus is on cleanability and
compatibility with decontamination
media and processes as
defined by good manufacturing
practice (GMP) grades.
A look at the set-up of pharmaceutical
production lines, particularly
fill-finish machines
and freeze dryers, can reveal
key trends in automation. In
new plants, these stations are
usually arranged close to one
another. This is not always the
case at existing plants that
require automation upgrades;
therefore, automating transportation
from the end of the
fill-finish line to the freeze
dryer is currently a major focus
of automation upgrades.
Traditionally, product containers
are moved between filling
and freeze drying stations
either by conveyors or humans.
But a more efficient and
safer alternative is on the horizon:
automated guided vehicles
(AGVs) adapted to the
aseptic requirements of Grade
Source: Stäubli Tec-Systems
A/B environments. Serving as a
link between these cells, a mobile
solution could be the key
to meeting aseptic process
requirements while increasing
production.
According to Rudolf M. Weiss,
Global Head of Life Sciences &
Food at Stäubli Robotics, “We
continuously develop robotic
solutions for all applications
and cleanroom levels in the life
science sector, but the spotlight
will be on hygienic design
mobile robots for highly demanding
mobile applications in
Grade A/B environments,
where rigorous cleaning
requirements apply.”
Stäubli’s pharma robots are already
a major asset on fill-finish
lines. ACHEMA attendees
can witness this for themselves
at Stäubli’s freeze dryer loading/unloading
demo cell, developed
in partnership with
Spanish company Telstar, a
specialist in pharmaceutical
process equipment. The demo
features a stationary Grade
A-compliant TX2–90 Stericlean+
robot loading trays into
a “pizza door” freeze dryer and
handling auxiliary tasks such as
picking up clips and linking the
trays to each other. dl
Stäubli Tec-Systems
Hall 3.1, Stand J72
Your home for turnkey
Filling line, isolator and freeze-dryer
from one partner
Tailor-made turnkey solutions with
filling line, isolator, and freeze dryer
are the result of close collaboration
between your team and ours.
Together, we will achieve your goals.
Matthias Poslovski,
Vice President Sales
Talk to our experts:
Hall 3.0, Booth A73
OPTIMA pharma GmbH | Otto-Hahn-Str. 1 | 74523 Schwaebisch Hall | Germany | pharma@optima-packaging.com | www.optima-packaging.com/pharma

52
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Lab/Pharma/Packaging
Life Cycle Assessment from Syntegon Provides Valuable Insights for Siegfried
Tracking Down Emissions
Source: Syntegon
Siegfried fills a variety of liquid pharmaceuticals on Syntegon equipment
Syntegon has recently developed its own calculation model based on so-called
Life Cycle Assessments (LCA). The method allows the company to evaluate
energy consumption and emissions during the entire life cycle of its
machines.
Companies in the pharmaceutical
industry are increasingly
aiming for resource efficiency
and ecological processes.
Boehringer Ingelheim, for
example, plans to achieve CO 2
neutrality by 2030 (Scope 1 and
2). Bayer AG is aiming for zero
net greenhouse gas emissions
by 2050. There are numerous
ways to achieve those goals:
electricity and compressed air
from ecological sources, alternative
packaging materials, or
modified production processes
can pave the way to more
sustainable production in the
long term.
Data is the Key
However, if technological and
process-related adjustments
are to succeed, they need another
important resource that
is far less obvious than the systems
and products themselves
– data. Quantified consumption
and emissions allow
manufacturers to draw conclusions
and make adjustments
at machine or process level. Besides
sufficient time, comprehensive
data collection
requires a calculation methodology
that is appropriate for
existing systems such as a filling
line for liquid pharmaceuticals.
The approach needs to accurately
record electricity and
media consumption like water
and compressed air, and to allocate
the values to different
operating modes and machines.
This way, it can provide
a holistic overview of consumption
at different times.
Siegfried, a pharmaceutical
contract manufacturer based in
Switzerland and with production
sites in Germany, has
tackled this task together with
a well-versed expert who also
supplies the filling systems.
Syntegon has recently developed
its own calculation model
based on so-called Life Cycle
CO 2 -Footprint for a campaign with four batches
Assessments (LCA). The method
allows the company to evaluate
energy consumption and
emissions during the entire life
cycle of its machines. Following
extensive in-house calculations
based on empirical values, the
experts in processing and packaging
technology have carried
out an LCA using data from the
contract manufacturer.
Practical Implementation
“On the one hand, Siegfried
wanted to determine emission
savings associated with green
energy,” Steffen Carbon, responsible
for sustainable product
design at Syntegon, recalls.
“On the other hand, the company
was eager to understand
Source: Syntegon
the effects of modified production
processes on the overall
emissions at their German site.
After all, the filling line accounts
for around a tenth of
the site‘s energy consumption.
This gave us the opportunity to
carry out LCA calculations with
specific production data for the
first time.”
Siegfried operates several Syntegon
filling lines for various
liquid pharmaceuticals, including
filling, capping, and crimping
machines for glass containers
as well as sterilizing and
cleaning equipment. Process
systems to produce water for
injection (WFI) are also part of
Siegfried’s set-up. The company
switched from conventional
electricity from a local supplier
to certified electricity from renewable
energy sources such
as wind and water to ensure
the ecological operation of all
components. Moreover, a
nearby waste incineration plant
provides steam for WFI production.
An efficient compressed
air system further supplies machine
parts and cleaning systems
with compressed air.
Insightful Findings
“The company didn‘t know
exactly how these adjustments
would affect its emissions. Our
analysis provided transparency,
especially as all the machines
on site are from the vast Syntegon
portfolio. If needed, we
were able to draw on existing
data from our respective production
sites to complete the
analysis,” says Steffen Carbon.
Syntegon’s experts and Siegfried‘s
production specialists
compiled the data over the
course of a week. “We defined
CO 2 -savings with campaign filling
beforehand what information
we needed, such as data on
electricity and steam consumption,
compressed air, and WFI.
We correlated this with material
values from a specialized database
to determine the actual
emissions of each category.”
Up to 80 Percent
The results of the comprehensive
calculations: by using
green electricity, self-generated
steam, and compressed
air, Siegfried reduces its CO 2
emissions by up to 80 %. WFI
generation contributes around
50 %, while the use of electricity
for all machines accounts
for a third. The rest relates to
compressed air generation.
“This is a remarkable result
that proves two things: major
savings can be achieved with
appropriate resource adjustments.
However, we can also
see that a large share of the
emissions is still generated during
the utilization phase when
using green energy, which in
this case still causes two thirds
of the emissions over the life
cycle. This phase is therefore
the most important area for
further reductions.”
Campaign Filling
A second calculation, which focused
on the effects of modified
production processes on
CO₂ emissions, demonstrated
the potential of such a change.
Instead of running several individual
batches, the CDMO
relies on so-called campaign
filling, i. e. several batches in
combination. This reduces
format changes, such as adjustments
to mechanical components,
and cleaning to a mini-
Source: Syntegon

ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Lab/Pharma/Packaging 53
Source: Syntegon
Steffen Carbon, responsible for sustainable product design at Syntegon
mum. The time-saving process
has a noticeable effect on
emissions. “Here, too, we collected
data on the different
production cycles and took a
close look at the operating
modes. How much energy does
the filling line need during operation?
How much in standby
mode?” explains Carbon.
The evaluation of the average
times for individual and campaign
batches reveals that
Siegfried saves up to 20 % in
emissions during campaign operation.
“Significantly reduced
format changes and the oneoff
setting for campaign filling
do the trick,” says Steffen Carbon.
While the specific project
largely focused on ongoing operations,
the expert recommends
that companies evaluate
other modes as well: “Detailed
analyses, for example of
the various standby modes, are
necessary to determine how
much energy is really needed
during non-productive times.
Operators have several options
to effectively control resource
consumption and emissions,”
the expert points out.
The Course for the Future
Syntegon’s analyses provide
key insights in both cases. “We
are currently at the beginning
of evaluating our LCA. Further
adjustments to production processes
could be an option,
based on detailed emission
analyses at product and packaging
material level, which we
can also cover,“ he explains.
Determining the influence of
packaging materials such as
glass on emissions is a further
possibility. The LCA is not an
end in itself but offers important
guidance that companies
can take into account when
carefully planning and fulfilling
regulatory requirements – and
that point the way to a world
with less negative environmental
impact.
Markus Burkert
Product Manager
Pharma Liquid and
Sustainability
Syntegon
Hall 3.1, Stand C71
Etikettierzelle für Pharma- und Healthcare-Produkte
Wenn der Roboter effizienter etikettiert
Wie Robotik anspruchsvolle Etikettierprozesse
zuverlässiger,
kostengünstiger und schneller
macht, zeigt Herma am Messe -
stand. Herma präsentiert dort
die 211 HC RC, eine robotikge -
stützte Etikettierzelle für die
Rundum-Etikettierung. Die Etikettierzelle
ist speziell ausgelegt
für Pharmaprodukte wie
kleine Vials, Pens, Spritzen und
Karpulen. Bei kleinen Losgrößen
wurden solche Produkte
bislang oft in halbautomatischen
Etikettierma schinen gekennzeichnet.
Das erforderte
eine arbeitskraftintensive, manuelle
Zuführung und Entnahme
einzelner Produkte. Außerdem
ging es oftmals einher mit
einer gewissen Fehleranfälligkeit.
Mit der 211 HC RC können
Bedienende ihren Arbeitsablauf
zuverlässig optimieren.
Mithilfe eines intuitiven Schubladensystems
ge langen nicht
etikettierte Produkte direkt in
die Trays der geschlossenen
Etikettierzelle, ohne dass die
Sicherheitsabdeckung geöffnet
werden muss. Dieser innovative
Ansatz steigert nicht nur die
Effizienz, sondern erhöht auch
die Sicherheit und sorgt für einen
rei bungslosen Arbeitsablauf
mit minimalen Unterbre -
chungen. Der Roboter entnimmt
die Produkte dem Tray
und legt sie präzise in die Etikettierstation,
die mit einem
Herma 500 ausgestattet ist.
Nach dem Etikettiervorgang
platziert der Roboter die etikettierten
Produkte unter ein Bildverarbeitungssystem
oder einen
Sensor, um die Anwesenheit
der Etiketten sowie variabler
Daten zu prüfen. Für gut
befundene, also bestätigte Produkte
legt er danach in ein dafür
vorgesehenes Tray oder in
bereitgestellte Umkartons;
nicht bestätigte Produkte kommen
in ein separates Tray.
Pro Minute etikettiert die
211 HC RC etwa 20 Produkte und
ist damit ca. 25 % schneller als
eine vergleichbare halbautomatische
Etikettiermaschine ohne
Robotikeinsatz, und zwar ohne
Konzentrationsverlust über längeren
Zeitraum, selbst bei einer
kontinuierlichen Produktion. Ein
weiterer Vorteil neben dem
Leistungszuwachs: „Indem wir
den gesamten Etikettiervorgang
automatisieren, reduzieren wir
erheblich das Risiko menschlicher
Fehler, die mit manuellen
Etikettieraufgaben verbunden
sind“, sagt Gary Hopkins, der
verantwortliche Robotikspezialist
bei Herma. „Dies verringert
die Gefahr von Produktrückrufen.“
Auch ein wichtiger Compliance-Aspekt:
Die Robotik-Etikettierzelle
kann so programmiert
werden, dass sie bestimmte Etikettiervorschriften
und -normen
automatisch einhält. So
werden alle Produkte stets gemäß
den gesetzlichen Bestimmungen
etikettiert. Eine Vielzahl
von möglichen Konfigurationen
macht diese Etikettierzelle
hochflexibel, um verschiedene
Arten von Etiketten anzubringen
und variable Daten in
Form von Barcodes, Seriennummern
und Verfallsdaten zu drucken.
Dazu lässt sich die
211 HC RC mit gängigen Heißfolien-,
Thermotransfer- und Laserdruckern
ausrüsten. bec
Herma
Halle 4.1, Stand B20
Selbst Pharma- und Healthcare-Produkte, die nicht standsicher sind,
lassen sich mit der Robotik-Etikettierzelle etikettieren
Bild: Herma
Join our
LIVE-Stream
Our speakers on June 10 - 12
Harro Höfliger
Telstar
SKAN
Novo Nordisk
Cellular Origins
www.staubli.com
meets
Stäubli Tec-Systems GmbH
Tel. +49 (0) 921 883 0, sales.robot.de@staubli.com
Scan for
more Info

54
ACHEMA DAILY #1 | MONDAY, JUNE 10, 2024
Lab/Pharma/Packaging
Innovations in Mixing
Novel Magnetic drive
Source: Bioreactors.net
This novel magnetic drive avoids
axial oscillation
This new magnetic drive offers
advantages over traditional
drives with its relatively easy
scalability of construction, convenient
installation and maintenance.
It has been applied in
bioreactors up to 20,000 L, and
can also be used for mixing in
other sterile processes.
The principle of the drive is
based on magnetic rotors
mounted in mixers rotating
around a stationary tube. Inside
the tube are magnetic rotors
with driving magnets,
while on the outside of the
tube, in the mixer, are mounted
driven magnets. The rotational
coupling of the mixer around
the stationary tube is ensured
with the help of SiC and ZrO2
bushings. With this design,
axial oscillation, which is typically
a limiting factor in the
scalability of mixer construction,
is avoided.
dl
Bioreactors.net
Hall 12.0, Stand A4
Oral Solid Dosage Production
Continuous Tablet Manufacturing
Fette Compacting is presenting
new approaches at this year’s
ACHEMA for collaborating with
users to shape the future of
tablet production: from a more
in-depth process understanding
through the development of
formulations in the laboratory
to continuous manufacturing.
The FE CPS continuous system
is at the heart of this approach.
Instead of separate production
steps, continuous manufacturing
(CM) allows ongoing processing
from the powder feedin
to the finished tablet. It
offers an accelerated adaptation
to the changing requirements
in oral solid dosage
(OSD) production. Nowadays,
the system design can be implemented
in a space-saving
manner, with simple installation
and intuitive operation. Thanks
to integrated, controllable processes,
CM is generally also
more reliable and efficient than
many batch-to-batch processes
For tablet production, Fette
Compacting has rethought the
continuous direct compression
process from scratch. The
powder is fed from the FE CPS
continuous processing system
into the tablet press without
additional granulation. Compared
to granulation-based
production, several steps are
eliminated, which reduces
space requirements and energy
consumption and makes the
process leaner overall.
The system is capable of processing
a wide range of ingredients
in a variable throughput
range of 5 to 200 kilograms per
hour. It can dose and mix up to
six powdered raw materials and
transfer them to the downstream
process. The system
unit, together with the tablet
press and terminal, can be installed
on a single level, facilitating
its integration into existing
production environments.
For the first time, Fette Compacting
has also fully integrated
the associated sensors
for quality control into the
system and its control unit.
dl
Fette Compacting
Hall 3.0, Stand F3
Pharma Innovation
At ACHEMA, you will experience the world’s most comprehensive
updates on pharmaceutical technology – from early drug
discovery to the latest packaging line. In addition to the exhibition,
a number of congress sessions on the topic of #pharma
will ensure the best possible communication of topics. The
ZETA Pharma Innovation Stage in Hall 4.1 is the central point
of contact for the pharmaceutical community and will focus on
the following topics, among many others:
• Trends in biopharmaceutical manufacturing
• Equipment and processes for advanced therapy medicinal
products (ATMPs)
• Sustainability in pharmaceutical production and packaging
• Next-level pharma: on the road to 5.0?
The continuous direct compression system consists of FE CPS processing system
(right), FE55 tablet press (left, and operating terminal (center)
Source: Fette Compacting GmbH
EDITORIAL OFFICE:
Editorial Office ACHEMA Daily:
Redaktionsbüro DECHEMA-Haus,
Theodor-Heuss-Allee 25
60486 Frankfurt/Germany
Phone +49 711 7594–424,
achema-daily@konradin.de
Editors:
Dr.-Ing. Ralf Beck (bec),
Dipl.-Ing. Daniela Held (dh),
Scott Jenkins (scj),
Lukas Lehmann (le), Editor responsible under
the German Press Act (V.i.S.d.P.),
Dorothy Lozowski (dl), Editorial Director,
dlozowski@accessintel.com
Gerald Ondrey (ond),
Mary Page Bailey (mpb),
Dr. Bernd Rademacher (br)
Contributing Editors:
Sabine Koll (sk),
Ingo Lau (il),
Tobias Meyer (tb)
Kirsten Seegmüller (ks)
Henriette Steuer (hs)
Company- and Productnames:
Spelling of company names like standard nouns according
to the Duden. Uppercase letters and middle initials
are thus omitted.
PUBLISHERS:
Publisher addresses:
Konradin-Verlag Robert Kohlhammer GmbH & Co. KG,
Ernst-Mey-Straße 8,
70771 Leinfelden-Echterdingen/Germany
Phone +49 711 7594–0
www.prozesstechnik.industrie.de
Access Intelligence LCC (New York Office),
40 Wall Street, 16th floor,
New York, N.Y. 10005,
Phone +1212–621–4900, Fax: 621–4694,
www.chemengonline.com
Group Publisher Konradin:
Katja Kohlhammer
Managing Director Konradin:
Peter Dilger
Group Publisher Chemical Engineering:
Matthew Grant
Layout:
Jennifer Martins,
Ana Turina,
Jonas Groshaupt
Print:
VRM Druck GmbH & Co. KG,
Alexander-Fleming-Ring 2,
65428 Rüsselsheim
Printed in Germany
Place of Fulfillment and Jurisdiction:
Stuttgart/Germany
Manuscripts:
For unsolicited sent manuscripts is no liability accepted.
They will only be returned if return postage is enclosed.
Copyright:
Konradin-Verlag Robert Kohlhammer GmbH & Co. KG
and Access Intelligence LCC. All rights reserved.
Reproduction, digital use of any kind and duplication
only with written approval of the editorial office.
Photocopying of published articles is permitted for incompany
purposes only, if on each sheet a token coin
of Verwertungsgesellschaft Wort, Abt. Wissenschaft,
Untere Weidestraße 5, 81543 München, is pasted according
to the applicable tariff.
SALES:
Information about the advertisement sale:
Sales Director Konradin:
Andreas Hugel
Phone +49 711 7594–472
cav.anzeigen@konradin.de
Chemical Engineering:
Petra Trautes,
Phone +49 69 58604760
PTrautes@accessintel.com
Order Processing Management:
Andrea Haab,
Phone +49 711 7594–320
andrea.haab@konradin.de
FAIR-DISTRIBUTION:
Konradin-Verlag Robert Kohlhammer GmbH & Co. KG,
Ernst-Mey-Straße 8,
70771 Leinfelden-Echterdingen/Germany
Phone +49 711 7594–552
media.industrie@konradin.de

Industrie
Das Kompetenznetzwerk der Industrie
Besuchen Sie uns auf der ACHEMA 2024
Halle 8.0 Stand A59
DAILY
TUESDAY, JUNE 4, 2024
Dr. Björn Mathes is Managing
Director of Dechema Ausstellungs-GmbH
PRE-
SHOW
ADVANCED PROCESS SOLUTIONS
CUSTOMIZED
MIXING SOLUTIONS
FOR FERMENTATION
Offizielle Messetageszeitung – Official Show Daily
Dortmund
Signal Iduna Park
Gelsenkirchen
Veltins Arena
Düsseldorf
Merkur Spielarena
Cologne
Rheinenergie-Stadion
Frankfurt/Main
Deutsche Bank Park
ACHEMA DAILY | JUNE 10.-14., 2024
EUROPEAN CUP 2024
Match Schedule
Stuttgart
MHPArena
Hamburg
Volkspark-Stadion
Berlin
Olympia-Stadion
Leipzig
Red Bull Arena
Munich
Allianz Arena
Source: Dechema / Pietro Sutera
Integrierte Gesamtlösungen
Turnkey-Anlagen aus Abfüllung,
Isolator und Gefriertrocknung
Optima präsentiert auf der
ACHEMA seine integrierten
Gesamtlösungen aus einer
Hand. „Durch unseren Turnkey-Ansatz
mit Abfüllanlage,
Gefriertrockner und Isolator
stellen wir sicher, dass alle
Elemente nahtlos ineinandergreifen
und unsere Kunden
von maximaler Sicherheit profitieren“,
sagt Matthias Poslovski,
Vice President Sales bei
Optima Pharma. „Nur wenn
jede Komponente perfekt aufeinander
abgestimmt ist, läuft
die Produktion rei bungslos
und sicher.“ Das Multiuse-
The Highlights of ACHEMA 2024
The Heart Beats in Frankfurt
Halle 3.0/F25
The chemical industry is
undergoing the biggest transformation
in its history. Since
the European Parliament and
the Council adopted the 2021
Climate Change Act, the climate
targets have also become
legal framework and the
EU interim target for reducing
emissions by 2030 has been
raised from 40 % to at least
55 %. The legislative package
includes regulations that are
intended to put Europe on this
path. Politicians have thus set
the target. The task now is to
achieve this in the coming
years.
Portfolio steht vor allem für
Flexibilität. Von Produkt- und
Prozessentwicklungen im Bereich
F&E über klinische Studien
bis hin zur kommerziellen
Produktion deckt das Anlagenportfolio
alle Anwendungen
und Leistungsklassen ab.
Effizient verarbeitet die Multiuse
unterschiedliche Batchgrößen,
Gebindearten und Behältnisse
wie Vials, Spritzen
und Karpulen.
Auch eine neue Gefriertrocknungslösung
können Besucher
auf dem Messestand von
Optima live erleben. Mit dem
Erleben Sie die neue
FE CPS im exklusiven
Livestream
In line with this facts hydrogen,
sustainability and digitalisation
are the megatrends at ACHEMA
2024. On the one hand, climateneutral
technologies need to be
developed, while on the other
hand, proven processes need to
be designed in such a way that
they fulfil climate protection
criteria. A Herculean task for
which there are many solutions
to be seen at ACHEMA.
ACHEMA DAILY spoke to
Dr Björn Mathes, Managing
Director of Dechema-Ausstellungs-GmbH,
about the highlights
of this year‘s event.
Read the interview on page 4
Lyo-Scale werden Rezeptparameter
für Gefriertrocknungsprozesse
im kleinen Maßstab
entwickelt und für größere
Anlagen passgenau skaliert.
In der Expert Zone erwarten
die Besucher weitere Exponate
zu den Themen Isolatortechnologie
und Digitalisierung.
Zudem stehen Experten
bereit, um in Gesprächen tiefer
in Themen wie Turnkey,
Biodekontamination, Digitalisierung
oder Annex 1 einzutauchen.
br
Optima
Halle 3.0, Stand A73
Continuous Manufacturing
Der Gamechanger für die
kontinuierliche Direktverpressung
EUROPEAN CUP 2024
Match Schedule
Planer
Euro 2024
inside
Contents
A Publication of Brands &
Partners of
Breaking News . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Only Here: Daily Program . . . . . . . . . . . . . . . . 13
Mechanical/Thermal Processing . . . . . . . . . . . . . . 21
Pumps/Valves/Fittings . . . . . . . . . . . . . . . . . . . . . . 31
Engineering/Contracting . . . . . . . . . . . . . . . . . . . . 37
Instrumentation/Process Automation . . . . . . . . 41
Lab/Pharma/Packaging . . . . . . . . . . . . . . . . . . . . 49
Imprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
In der Expert Zone erwarten die Besucher weitere Exponate zu den Themen
Isolatortechnologie und Digitalisierung.
Bild: Optima
Group A
Deutschland (GER)
Schottland (SCO)
Ungarn (HUN)
Schweiz (SUI)
Group B
Spanien (ESP)
Kroatien (CRO)
Italien (ITA)
Albanien (ALB)
Group C
Slowenien (SVN)
Dänemark (DEN)
Serbien (SRB)
England (ENG)
Group D
Polen (POL)
Niederlande (NED)
Österreich (AUT)
Frankreich (FRA)
Group E
Belgien (BEL)
Slowakei (SVK)
Rumänien (ROU)
Ukraine (UKR)
Group F
Türkei (TUR)
Georgien (GEO)
Portugal (POR)
Tschechien (CZE)
Vereinbaren Sie mit uns einen Termin oder kommen einfach vorbei. Wir freuen uns auf Sie!
Dr. Bernd Rademacher
Redakteur cav, dei, phpro
+49 711 7594-263
bernd.rademacher@konradin.de
Daniela Held
Redakteurin cav, dei, phpro
+49 711 7594-284
daniela.held@konradin.de

SAMSON‘s next valve generation.
Explore the potential.
Experience our new modularity.
The next generation of
SAMSON valves.
Available from 2025.
Experience them today.
Visit us and configure
your own new SAMSON valve.
Fully digital.
Hall 8.0 · Booth C74
samsongroup.com
