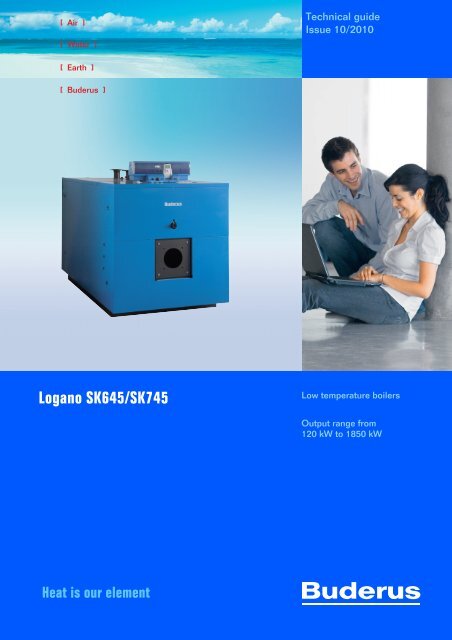

Logano SK645/SK745 - Buderus

Logano SK645/SK745

Heat is our element

Technical guide

Issue 10/2010

Fügen Sie auf der Vorgabeseite

das zur Produktgruppe

passende Bild ein.

Sie finden die Bilder auf

der Referenzseite 14:

Buderus Product groups.

Anordnung im Rahmen:

- Tops

- Left sides

Low temperature boilers

Output range from

120 kW to 1850 kW

Table of contents


1 Low temperature boilers . . . . . . . . . . . . . . . . . . 4

1.1 Types and output . . . . . . . . . . . . . . . . . . . . . 4

1.2 Applications . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.3 Characteristics and special features . . . . . 4

2 Technical description . . . . . . . . . . . . . . . . . . . . . 5

2.1 Equipment level . . . . . . . . . . . . . . . . . . . . . . 5

2.2 Heating water routing . . . . . . . . . . . . . . . . . . 6

2.3 Hot gas routing . . . . . . . . . . . . . . . . . . . . . . . 6

2.4 Dimensions and specification . . . . . . . . . . . 7

2.4.1 Logano SK645 dimensions and

specification . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.4.2 Logano SK745 dimensions and

specification . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.5 Parameters . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.5.1 Pressure drop on the water side . . . . . . . . 12

2.5.2 Boiler efficiency . . . . . . . . . . . . . . . . . . . . . 13

2.5.3 Standby loss and flue gas temperature . . 14

3 Burner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.1 Burner selection . . . . . . . . . . . . . . . . . . . . . 15

3.2 Burner requirements . . . . . . . . . . . . . . . . . . 15

4 Regulations and operating conditions . . . . . 16

4.1 Extracts from the regulations . . . . . . . . . . . 16

4.2 Pressure Equipment Directive (PED) and

Health & Safety at Work Act . . . . . . . . . . . 16

4.2.1 Application range . . . . . . . . . . . . . . . . . . . . 16

4.2.2 Categories in accordance with the

Pressure Equipment Directive 97/23/EC 16

4.2.3 Health & Safety at Work Act regarding

steam and hot water boilers . . . . . . . . . . . 17

4.2.4 Overview of the Health & Safety at Work

Act [Germany] . . . . . . . . . . . . . . . . . . . . . . 17

4.3 Operating conditions . . . . . . . . . . . . . . . . . 18

4.3.1 Operating requirements . . . . . . . . . . . . . . . 18

4.3.2 Operating conditions . . . . . . . . . . . . . . . . . 18

4.4 Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.5 Water treatment . . . . . . . . . . . . . . . . . . . . . 19

4.5.1 Definition of terms . . . . . . . . . . . . . . . . . . . 19

4.5.2 Prevention of corrosion damage . . . . . . . . 19

4.5.3 Prevention of damage through scale

formation . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.5.4 Requirements for fill and top-up water . . . 20

4.5.5 Application limits for boilers made from

ferrous materials . . . . . . . . . . . . . . . . . . . . 21

4.5.6 Recording the amounts of fill and top-up

water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

2

4.5.7 Calculation to determine the permissible

amounts of fill and top-up water . . . . . . . . 23

4.5.8 Chemical heating water additives . . . . . . . 23

4.5.9 Combustion air . . . . . . . . . . . . . . . . . . . . . . 23

5 Heating controls . . . . . . . . . . . . . . . . . . . . . . . . 24

5.1 Logamatic 4000 control system . . . . . . . . 24

5.1.1 Logamatic 4212 control unit . . . . . . . . . . . 24

5.1.2 Logamatic 4321 and Logamatic 4322

control units . . . . . . . . . . . . . . . . . . . . . . . . 24

5.1.3 Logamatic4411 control panel system . . . . 24

5.2 Logamatic telecontrol system . . . . . . . . . . 24

6 DHW heating . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

6.1 Systems for DHW heating . . . . . . . . . . . . . 25

6.2 DHW temperature controller . . . . . . . . . . . 25

7 System examples . . . . . . . . . . . . . . . . . . . . . . . 26

7.1 Information regarding all system examples 26

7.1.1 Hydraulic connection . . . . . . . . . . . . . . . . . 26

7.1.2 Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

7.1.3 DHW heating . . . . . . . . . . . . . . . . . . . . . . . 27

7.2 Safety equipment to DIN-EN 12828 and

DIN-EN 12953-6 . . . . . . . . . . . . . . . . . . . . 27

7.2.1 Requirements . . . . . . . . . . . . . . . . . . . . . . . 27

7.2.2 Arrangement of safety equipment to

DIN-EN 12828; operating temperature

≤ 105 °C; shutdown temperature (high

limit safety cut-out) ≤ 110 °C . . . . . . . . . . 28

7.2.3 Arrangement of safety equipment to

DIN-EN 12953-6; shutdown temperature

(high limit safety cut-out) > 110 °C . . . . . 29

7.3 Sizing and installation information . . . . . . . 30

7.3.1 Boiler circuit pump in the bypass as shunt

pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

7.3.2 Boiler circuit pump as primary circuit

pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

7.3.3 Low loss header . . . . . . . . . . . . . . . . . . . . . 33

7.4 Single boiler system Logano SK645 and

SK745 with boiler control unit . . . . . . . . . 34

7.5 Single boiler system with Logano SK645

and SK745 boilers: Logamatic Boiler and

heating circuit control with hydraulic

separation . . . . . . . . . . . . . . . . . . . . . . . . . . 36


and SK745 with boiler and heating circuit

control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38


and SK745 with boiler and heating circuit

control as well as hydraulic balancing . . . 40

6 720 646 816 (10/2010) – Technical guide Logano SK645 and SK745

7.8 2-boiler system with Logano SK645 and

SK745 with boiler and heating circuit

control plus hydraulic balancing . . . . . . . . 42


SK745 with boiler and heating circuit

control plus hydraulic balancing . . . . . . . . 44


SK745 as well as Logano plus SB315 and

SB615 gas condensing boilers with boiler

and heating circuit control . . . . . . . . . . . . . 46

8 Delivery and installation information . . . . . 48

8.1 Delivery method . . . . . . . . . . . . . . . . . . . . . . 48

8.2 Installation information . . . . . . . . . . . . . . . . . 48

9 Installation location . . . . . . . . . . . . . . . . . . . . . 49

9.1 General requirements of the installation

room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

9.1.1 Combustion air supply . . . . . . . . . . . . . . . . . 49

9.1.2 Siting combustion equipment . . . . . . . . . . . 49

9.2 Handling details . . . . . . . . . . . . . . . . . . . . . . 50

9.3 Installed dimensions . . . . . . . . . . . . . . . . . . 51

10 Additional equipment and accessories . . . . 52

10.1 Additional safety equipment to

DIN-EN 12828 . . . . . . . . . . . . . . . . . . . . . . 52

10.1.1Safety equipment . . . . . . . . . . . . . . . . . . . . . 52

10.2 Additional noise attenuating equipment . . . 54

10.2.1Requirements . . . . . . . . . . . . . . . . . . . . . . . . 54

10.2.2Boiler support with structure-borne noise

insulation . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

10.2.3Flue gas silencer with sealing collar to

insulate against structure-borne noise . . . 56

10.3 Additional accessories . . . . . . . . . . . . . . . . 56

10.3.1Welded flange . . . . . . . . . . . . . . . . . . . . . . . 56

10.3.2Flue sealing collar . . . . . . . . . . . . . . . . . . . . 56

10.3.3Cleaning equipment set . . . . . . . . . . . . . . . 56

11 Flue system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

11.1 General requirements of the flue system . . 57

11.2 Flue gas parameters . . . . . . . . . . . . . . . . . . 58

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59


6 720 646 816 (10/2010) – Technical guide Logano SK645 and SK745 3

4

1 Low temperature boilers

1 Low temperature boilers

1.1 Types and output

With the Logano SK645 and SK745 Buderus offers low

temperature boilers with outputs ranging from 120 kW to

1850 kW. The Logano SK645 is available with outputs

ranging from 120 kW to 600 kW, the Logano SK745

covers the output range from 730 kW to 1850 kW.

These boilers feature reversing combustion to

DIN-EN 303 for oil or gas. They are suitable for fuel oil EL

to DIN 51603-1, natural gas or LPG to DVGW G 260.

The boilers can, as an option, be operated with matching

oil and gas burners to EN 267 and EN 676.

These boilers are made from steel and are suitable for

design temperatures of up to 120 °C (shutdown

temperature of the high limit safety cut-out).

1.2 Applications

The Logano SK645 and SK745 low temperature boilers

are suitable for all heating systems to DIN-EN 12828 and

DIN-EN 12953-6.

They are used for DHW and central heating in apartment

blocks, municipal and commercial buildings, in district

heating centres as well as for indirect heating of

swimming pools.

For DHW heating, these boilers can be combined with

Buderus DHW cylinders.

1.3 Characteristics and special features

High standard seasonal efficiency [to DIN] and

economic viability

The large heating surface of the second pass and high

grade thermal insulation result in excellent heat transfer as

well as low flue gas and standby losses. The result is a

standard seasonal efficiency [to DIN] of up to 93 %.

Minimum circulation volumes are not required.

Quiet operation with clean combustion

The reversing combustion chamber with low combustion

chamber volume loads ensures clean combustion and a

high standard seasonal efficiency.

Boiler supports that act to prevent structure-borne noise

transfer and flue gas silencers result in significantly lower

operating noise.

Easy installation

At the factory, these boilers are fitted with all required

connections, enabling an easy integration into the heating

system. Accessories are matched to these boilers,

ensuring an easy and quick installation. For example, a

safety assembly matched to these boilers safeguards

uncomplicated installation.

Predrilled burner plates make fitting third party burners

easy.

Straight-forward system design

All boilers can be connected simply and in a straightforward

manner to the heating system, since there is no

special need for a minimum flow rate. Not only does this

lead to reduced investment outlay and running costs, but

also less engineering effort.

Supplied fully wired ready for connection

Easy connection to the heating system due to fully

assembled delivery ex works.

Easy maintenance and cleaning

The combustion chamber and the heating surfaces of

these boilers are easily accessible through the large door

at the front that can be pivoted to the left or right. The

smooth steel surfaces of these boilers can be easily

cleaned with the cleaning set supplied as standard.

Easy and convenient operation

The control functions that are matched to the respective

system hydraulics facilitate easy operation. These boilers

can be combined with different Buderus control units.

The equipment level of all control units can be extended

individually with auxiliary modules. All control unit

functions can be adjusted in only a few steps – through

the push & turn – facility.


2 Technical description

2.1 Equipment level

6 720 640 417-01.1il

Fig. 1 Logano SK745 with Logamatic 4321


are tested to EN 303, type-tested and CE-designated.

Quality assurance measures to DIN-EN ISO 9001

contribute to the high manufacturing quality and reliability

of functions. The materials used in the Buderus low

temperature boilers meet the requirements of EN 303 and

EN 14394. As a result, these boilers operate safely and

reliably.

The boilers feature all-round thermal insulation and

painted casing (RAL 5015). The thermal insulation is

60 mm thick. The combustion chamber and the

secondary heating surfaces are easily accessible through

large front doors that can be pivoted to the left or right.

Technical description

Finely stepped output levels

The Logano SK645 boilers are available with the

following output ratings:

• 120 kW

• 190 kW

• 250 kW

• 300 kW

• 360 kW

• 420 kW

• 500 kW

• 600 kW

The Logano SK745 boilers are available with the

following output ratings:

• 730 kW

• 820 kW

• 1040 kW

• 1200 kW

• 1400 kW

• 1850 kW

Available components

• Logamatic 4212, 4321 and 4322 control units in a

modular design

• Drilled burner plate onto which the pressure-jet gas

and oil burner are mounted

• Plenty of matching accessories ( Chapter 10,

page 52 ff.)

6 720 646 816 (10/2010) – Technical guide Logano SK645 and SK745 5

2

6


2.2 Heating water routing

Calculated flow and temperature processes

A simulation program enabled the calculation of

influencing factors, such as heat supply, amount of water,

circulation etc. Subject to these factors, the flow and

updraught characteristics as well as the temperature

distribution within the boiler could be calculated and, step

by step, optimised. The results of this simulation program

were translated into the design of these low temperature

boilers.

2.3 Hot gas routing

Inside the combustion chamber, the hot gases are

reversed and flow towards the front of the boiler, where

they are reversed again by the front door and guided into

the second pass. They flow through the pipes, where they

transfer their heat to the boiler water.

AA

Fig. 3 Hot gas flow inside the Logano SK645 and SK745

AA Flue gas outlet

RK Return

VK Flow

VSL Safety flow

1 Combustion chamber

2 Flue gas collector

3 Pipes of the second pass

1

2

VSL (VK 1) ) VK (VSL 1) )

Fig. 2 Heating water routing through the

Logano SK645 and SK745

RK Return

VK Flow


1 Pipes of the second pass

2 Combustion chamber

The design and geometry of the second pass ensure a

high heat transfer rate from the hot gas to the boiler water.

RK

1)

SK745 with 1400 kW and 1850 kW output

RK

VK

VSL

6 720 646 816 (10/2010) – Technical guide Logano SK645 and SK745

3

6 720 640 417-38.1il

1

2

6 720 640 417-37.1il

2.4 Dimensions and specification

2.4.1 Logano SK645 dimensions and specification

Fig. 4 Dimensions, Logano SK645 120 kW to 600 kW


Boiler size Unit 120 190 250 300 360 420 500 600

Rated output kW 120 190 250 300 360 420 500 600

Rated heat input kW 132 209 274 329 393 459 546 655

Length L G mm 1345 1540 1670 1830 1803 2003 1933 2183

Flue gas collector length L A mm 230

Width B mm 780 840 870 870 940 940 1030 1030

Height incl. control unit

Height excl. control unit

Width for transport

Length for transport

Boiler base frame

Flue gas outlet

B

Combustion chamber

length


diameter

Burner door depth

Burner door height

H

H K

L GR

B GR

D AA

H AA

L FR 1)

D FR 1)

L T 1)

H B

H

H K

H B

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

A 1 A2

1110

880

700

1295

915

700

200

542

865

390

195

427

1170

940

760

1490

1100

760

200

582

1060

420

195

442

Boiler flow 2) VK mm DN65 DN65 DN65 DN65 DN80 DN80 DN100 DN100

Boiler return 2) RK mm DN65 DN65 DN65 DN65 DN80 DN80 DN100 DN100

Flow safety pipe 2) VSL mm DN40 DN40 DN40 DN50 DN50 DN50 DN50 DN50


1200

970

790

1620

1240

790

250

597

1190

450

1200

970

790

1780

1400

790

250

597

1350

DEL Inches

R1¼

Drain

HEL mm

200

Tab. 1 Specification and dimensions Logano SK645 120 kW to 600 kW

L G

BGR LA LGR DEL A 3

VSL VK RK

195

457

450

195

457

1270

1040

860

1773

1373

860

250

632

1260

488

195

477

H F

H AA

H EL

1270

1040

860

1973

1573

860

250

632

1460

488

195

477

D AA

6 720 640 417-02.1il

1360

1130

950

1913

1503

950

300

662

1390

548

195

507

2

1360

1130

950

2163

1753

950

300

662

1640

548

195

507

8


Boiler size Unit 120 190 250 300 360 420 500 600

Flange height

VK/VSL/RK

Flange

VK/VSL/RK

H F mm 1005 1065 1095 1095 1165 1165 1255 1255

A 1

A 2

A 3

mm

mm

mm

290

170

240

320

205

345

Transport weight kg 447 554 642 691 817 899 1063 1158

Water content l 136 203 233 262 323 367 434 502

Gas content l 129 183 238 268 304 350 420 495

Flue gas temperature 3)

Partial load 60 % 4)

Full load

Flue gas mass flow rate,

oil 3)

Partial load 60 %

Full load


gas 3)


Full load

CO 2 content, oil

CO 2 content, gas

Pressure drop on the

hot gas side

°C

°C

kg/s

kg/s

kg/s

kg/s

%

%

150

210

0.0316

0.0527

0.0314

0.0523

150

205

0.0494

0.0824

0.0488

0.0813

320

185

495

150

202

0.0646

0.1076

0.0650

0.1084

480

200

470

150

200

0.0769

0.1282

0.0778

0.1297

13

10

353

225

540

150

200

0.0934

0.1557

0.0929

0.1548

553

225

540

150

200

0.1085

0.1809

0.1068

0.1780

423

365

450

150

200

0.1277

0.2129

0.1301

0.2168

673

365

450

150

200

0.1538

0.2564

0.1556

0.2593

mbar 0.80 1.60 1.54 2.70 3.30 3.90 4.70 5.59

Draught required Pa 0

Maximum permissible

temperature, high limit

safety cut-out 5)

Max. permiss. operating

pressure (boiler)

CE-designation,

product ID

°C 120

bar 6


CE 1015–07

1) Fig. 15, page 15

2) To DIN 2633 (PN 16)

3) Relative to VL80/RL60

4) To DIN-EN 303; the minimum flue gas temperature for the chimney calculation acc. to EN 13384-1 is approx. 12 K lower.

5) Safety limit (high limit safety cut-out); maximum possible flow temperature = safety limit (high limit safety cut-out) - 18 K.

Example: Safety limit (high limit safety cut-out) = 100 °C, maximum possible flow temperature = 100 - 18 = 82 °C


2.4.2 Logano SK745 dimensions and specification

B

A 1 A2



L G


BGR LA LGR DEL B

B GR

H

H K

H B

H

HK H B

L A

A 1


A 3

VSL VK RK

LG A2 A3 VK VSL

RK

L GR

H F

H AA

H EL

H F

H AA

H EL

D AA

6 720 640 417-02.1il

D AA

D EL

2

6 720 640 417-03.1il

10


Boiler size Unit 730 820 1040 1200 1400 1850

Rated output kW 730 820 1040 1200 1400 1850

Rated heat input kW 795 893 1138 1313 1532 2024

Length L G mm 2150 2350 2410 2710 2990 3410

Flue gas collector length L A mm 215 215 215 215 330 330

Max. length, incl. burner L B mm Burner-dependent

Width B mm 1140 1140 1250 1250 1620 1700

Height incl. control unit

Height excl. control unit

Width for transport

Length for transport

Boiler base frame

Flue gas outlet


length


diameter

Burner door depth

Burner door height

Boiler flow 2)

Boiler return 2)

Flow safety pipe 2)

Drain

Flange height

VK/VSL/RK

Flange

VK/VSL/RK

H

H K

L GR

B GR

D AA

H AA

L FR 1)

D FR 1)

L T 1)

H B

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

1470

1240

1060

2130

1700

1060

360

727

1585

624

195

547

1470

1240

1060

2330

1900

1060

360

727

1785

624

195

547

1580

1350

1170

2390

1960

1170

360

797

1845

710

195

592

VK mm DN125 DN125 DN125 DN125 DN150 DN200

RK mm DN125 DN125 DN125 DN125 DN150 DN200

VSL mm DN65 DN65 DN80 DN80 DN80 DN100

D EL

H EL

Inches

mm

R1¼

200

R1¼

200

R1¼

200

H F mm 1365 1365 1475 1475 1612 1732

A 1

A 2

A 3

mm

mm

mm

448

350

620

648

350

620

Transport weight kg 1401 1504 1852 2024 2690 3540

Water content l 607 675 822 942 1339 1655


463

595

620

1580

1350

1170

2690

2260

1170

360

797

2145

710

195

592

R1¼

200

763

595

620


–

1481

1320

2990

2316

1320

400

1070

2120

780

255

635

R1½

196

260

725

725

–

1570

1400

3410

2720

1400

400

1145

2520

860

285

685

R1½

206

260

725

925


Boiler size Unit 730 820 1040 1200 1400 1850

Gas content l 618 693 934 1071 1275 1710

Flue gas temperature 3)

Partial load 60 % 4)

Full load


oil 3)


Full load


gas 3)


Full load

CO 2 content, oil

CO 2 content, gas

Pressure drop on the

hot gas side

°C

°C

kg/s

kg/s

kg/s

kg/s

%

%

150

198

0.1868

0.3113

0.1869

0.3116

150

198

0.2088

0.3480

0.2102

0.3503


150

198

0.2651

0.4418

0.2671

0.4451

13

10

150

195

0.3049

0.5082

0.3089

0.5148

150

195

0.3571

0.5952

0.3600

0.5999

150

195

0.4725

0.7875

0.4761

0.7935

mbar 6.10 6.47 7.25 7.74 7.13 9.17

Draught required Pa 0

Maximum permissible

temperature, high limit

safety cut-out 5)

Max. permiss. operating

pressure (boiler)

CE-designation, product

ID

°C 120

bar 6


CE 1015–07

1) Fig. 15, page 15

2) To DIN 2633 (PN 16)

3) Relative to VL80/RL60

4) To DIN-EN 303; the minimum flue gas temperature for the chimney calculation acc. to EN 13384-1 is approx. 12 K lower.

5) Safety limit (high limit safety cut-out); maximum possible flow temperature = safety limit (high limit safety cut-out) - 18 K.

Example: Safety limit (high limit safety cut-out) = 100 °C, maximum possible flow temperature = 100 - 18 = 82 °C

2

12


2.5 Parameters

2.5.1 Pressure drop on the water side

The pressure drop on the water side is the pressure

differential between the boiler flow and return

connections. It depends on the VK/RK connector size

and the heating water flow rate.

ΔpH (mbar)

100

10

1

1

Fig. 7 Pressure drop on the water side Logano SK645

ΔpH Pressure drop

VH Heating water flow rate

1 SK645: 120 kW

2 SK645: 190 kW, 250 kW, 300 kW

3 SK645: 360 kW, 420 kW

4 SK645: 500 kW, 600 kW

Calculation example for SK645 250 kW:

Given

• ΔT = 15 K

• c = 4.19 kJ/kg × K

• DensityWater = approx. 1000 kg/m 3

ΔP H calculated as follows:

Q = m × c × ΔT

m

m

Q

= --------------c

× ΔT

Result

• m = 14320 kg/h

V H

1 2 3 4

Result

• The intersection of the straight line 2 and V H =

14.3 m 3 /h results in ΔP H = 30 mbar

10

250 kW

= ------------------------------------------------- × 3600 s/h

4,19 kJ/kg K × 15 K

14320 kg/h

1000 kg/m 3

------------------------------ 14,3 m 3 = = /h

100

VH (m3 /h)

6 720 640 417-04.1il

ΔpH (mbar)

100

10

1

10

1 2 3

Fig. 8 Pressure drop on the water side Logano SK745

ΔpH Pressure drop

VH Heating water flow rate

1 SK745: 730 kW, 820 kW, 1040 kW, 1200 kW



1000

VH (m3 /h)


100

6 720 640 417-05.1il

2.5.2 Boiler efficiency

The boiler efficiency h K identifies the ratio between the

rated output and the rated heat input. It is shown subject

to the average boiler water temperature and the boiler

output.

Hi (%)

96

95

94

93

92

91

1

2

90

50 60 70 80

ϑK (°C)

Fig. 9 Boiler efficiency subject to the average boiler

water temperature (average value for the

complete model range) - Logano SK645

Hi Efficiency, net calorific value

ϑK Average boiler temperature

1 Boiler efficiency at stage 1 (partial load 60 %)

2 Boiler efficiency at stage 2 (full load 100 %)

Calculation example for average boiler water temperature:

ϑK Average boiler water temperature

TRK Return temperature

TVK Flow temperature

Hi (%)

96

95

94

93

92

91

1

2

ϑ K

TVK – TRK = ------------------------

2

Fig. 10 Boiler efficiency subject to the average boiler

water temperature (average value for the

complete model range) - Logano SK745



1 Boiler efficiency at stage 1 (partial load 60 %)

2 Boiler efficiency at stage 2 (full load 100 %)

6 720 640 417-06.1il

90

50 60 70 80

ϑK (°C)

6 720 640 417-08.1il


Fig. 11 Boiler efficiency and flue gas temperature

subject to the boiler load at an average boiler

water temperature of 70 °C - Logano SK645


Q/Qmax Relative boiler load

ϑA Flue gas temperature

1 Boiler efficiency

2 Flue gas temperature

Fig. 12 Boiler efficiency and flue gas temperature

subject to the boiler load at an average boiler

water temperature of 70 °C - Logano SK745


Q/Qmax Relative boiler load


1 Boiler efficiency

2 Flue gas temperature


H i (%)

98

96

94

92

90

2

1

ϑ A (°C)

200

180

160

140

120

0 10 20 30 40 50 60 70 80 90

100

100

Q/Qmax (%)

H i (%)

98

96

94

92

90

1

2

6 720 640 417-07.1il

ϑ A (°C)

200

180

160

140

120

0 10 20 30 40 50 60 70 80 90

100

100

Q/Qmax (%)

6 720 640 417-33.1il

2

14


2.5.3 Standby loss and flue gas temperature

The standby loss is part of the rated heat input that is

required to achieve the specified boiler water

temperature. The cause of this loss is the cooling down of

the boiler through radiation and convection during the

standby time (burner idle time).

qB (%)

0,4

0,3

0,2

0,1

Radiation and convection result in part of the output being

transferred continuously from the boiler surface to the

ambient air. In addition to this surface loss, the boiler can

also cool down to a lesser degree through the chimney

draught. The flue gas temperature depends on the

average boiler water temperature and the boiler load.

Fig. 13 Standby loss and flue gas temperature, subject to the average boiler water temperature - Logano SK645

qB Standby loss



1 Flue gas temperature (full load 100 %)

2 Standby loss

3 Flue gas temperature (partial load 60 %)

Fig. 14 Standby loss and flue gas temperature, subject to the average boiler water temperature - Logano SK745

qB Standby loss



1 Flue gas temperature (full load 100 %)

2 Standby loss

3 Flue gas temperature (partial load 60 %)

1

3

2

ϑ A (°C)

0

100

50 60 70 80

ϑK (°C)


200

180

160

140

120

6 720 640 417-09.1il

q B (%) ϑ A (°C)

0,2

0,1

1

2

3

0

50 60 70

100

80

ϑK (°C)

200

180

160

140

120

6 720 640 417-45.1il

3 Burner

3.1 Burner selection

Either pressure-jet oil or gas burners can be used with the

Logano SK645 and SK745 low temperature boilers. The

pressure-jet oil burners must be approved to EN 267, and

the pressure-jet gas burners to EN 676. 2-stage or

modulating burners can be used.

When selecting a burner take into account that the

pressure drop on the hot gas side must be overcome

reliably. When positive pressure at the flue outlet is

required (sizing of the flue system), take this into

consideration in addition to the pressure drop on the hot

gas side.

3.2 Burner requirements

Observe the installation instructions issued by the burner

manufacturer where the burner installation is concerned.

T

1)

D MB

L FR

Fig. 15 Burner installation dimensions

D FR

6 720 640 417-10.1il

DFR Combustion chamber diameter

(dimensions page 7 and page 10)

DMB Maximum diameter

LFR Combustion chamber length

(dimensions page 7 and page 10)

T Burner door depth (dimensions page 7 and

page 10)

1) The blast tube must protrude beyond the lining in the

burner door.

Burner

To make engineering and installation easier, burners and

drilled burner plates are available as accessories for the

Logano SK645 and SK745 boilers. The boilers are

supplied with a dummy plate.

For further details regarding these burners

and associated burner plates, see the current

Buderus heating equipment catalogue. The

selection of a suitable burner for the specific

project can be discussed in detail with the

Buderus sales office.

Logano Boiler

size

SK645


Max. diameter

D MB

[kW] [mm]

120 130

190 240

250 240

300 240

360 290

420 290

500 290

600 290

730 350

820 350

1040 350

1200 350

1400 350

1850 350

Tab. 3 Burner dimensions for Logano SK645 and



3

16

4 Regulations and operating conditions


4.1 Extracts from the regulations


comply with the requirements to EN 303 and EN 14394,

and they are approved in line with the Pressure

Equipment Directive up to ≤ 120 °C. They are suitable for

heating systems in line with the requirements to

DIN-EN 12828 and the additional requirements to

DIN-EN 12953-6.

Observe the following regarding creation and operation of

the system:

• Standard building regulations

• Statutory regulations

• Country-specific regulations

Installation, oil and gas connection, flue gas connection,

commissioning, power supply, maintenance and repair

work must only be carried out by authorised contractors.

Permits

The local gas supply utility may need to be notified of and

approve the installation of a low temperature boiler with

gas burner. We recommend clarifying the match between

boiler and flue system with the relevant bodies at the

planning stage. Where required, inform your local flue gas

inspector prior to commissioning. It may be necessary to

obtain a permit for the flue system at regional level.

Annual inspection and demand-dependent

maintenance

To ensure the reliability of functions and the energetic

quality, the HEVAC sector recommends at least an annual

inspection. If any condition requiring maintenance work is

identified in the course of an inspection, that maintenance

work must be carried out as required. We recommend to

system users to enter into a maintenance and inspection

contract with a heating contractor or the burner

manufacturer.

4.2 Pressure Equipment Directive (PED) and Health & Safety at Work Act

4.2.1 Application range

The Pressure Equipment Directive applies to safety

temperatures > 110 °C; i.e. a boiler equipped with a high

limit safety cut-out 110 °C is excluded from the provision

of the Pressure Equipment Directive and from the Health

& Safety at Work Act [Germany] where the requirements

for products that must be supervised is concerned.

4.2.2 Categories in accordance with the Pressure Equipment Directive 97/23/EC

The Pressure Equipment Directive identifies four

categories, split according to the respective

pressure:volume product, into which boilers fall.

Logano Boiler size Category I Category II Category III Category IV


+ Applicable

– N/A

[kW]

p×V≤ 50 p×V≤ 200 p×V≤ 1000 p×V>1000 V > 1000 or p × V > 3000

120 – – + – –

190–500 – – – + –

600 – – – – +

SK745 730–1850 – – – – +

Tab. 4 Categories in accordance with the Pressure Equipment Directive 97/23/EC


4.2.3 Health & Safety at Work Act regarding steam and hot water boilers

The Health & Safety at Work Act [Germany] enacted on

the 3 October 2002 and applicable to hot water and

steam boiler systems as of 1 January 2003 specifies

demanding requirements, particularly for boilers in

category III and category IV.

Proviso with regard to granting permission

(para. 13 BetrSichV) [Germany]

Assembly, installation and the operation of boilers in

category IV require permission from the relevant authority

[Germany].

Inspection prior to commissioning

(para. 14 BetrSichV)

Boilers category I and II can be checked in situ, i.e. as part

of the system, by an authorised person (master heating

system builder).

4.2.4 Overview of the Health & Safety at Work Act [Germany]

+ Required

– Not required

Proviso with regard

to granting

permission

Regulations and operating conditions

Boilers in categories III and IV must be checked by an

authorised supervisory body in situ, prior to

commissioning.

Repeated inspections (para. 15 BetrSichV)

Boilers in category III with a pressure:volume product

p × V greater than 1000 and boilers in category IV must

be checked regularly by an authorised supervisory body in

situ:

• External inspection no later than after 12 months

• Internal inspection no later than after three years

• Strength test no later than after nine years

The test intervals must be determined by the system user

based on a safety-technical assessment, the result of

which must be checked by an authorised supervisory

body.

Inspection

prior to

commissioning

Repeated

inspections

§13 §14 §15

Boiler category I (up to 50 bar × l) – + 1)

– 1)

Boiler category II (up to 200 bar × l) – + 1)

Boiler category III (up to 1000 bar × l) – + – 1)

Boiler category III (> 1000 bar × l) – + +

Boiler category IV (> 3000 bar × l) + + +

Tab. 5 Overview of the Health & Safety at Work Act [Germany]

1) May be carried out by an authorised person (e.g. master heating system builder)


– 1)

4

18


4.3 Operating conditions

4.3.1 Operating requirements

The operating conditions in Tab. 6 are part of the warranty

conditions for the Logano SK645 and SK745 low

temperature boilers. These operating conditions are

4.3.2 Operating conditions

Logano Minimum

flow rate





No requirements 1)

No requirements 1)

Boiler operating conditions

assured through a suitable hydraulic circuit and boiler

control (hydraulic connection page 26).

Minimum return temperature in °C With operating

interruptions

With oil combustion With gas combustion

Two-stage

burner

Modulating

burner

Two-stage

burner

Modulating

burner

In conjunction with a Logamatic control unit for modulating low temperature operation

50 50 60 60

In conjunction with a Logamatic control unit for constant boiler water temperatures,

e.g. Logamatic 4212 with ZM427, or with auxiliary external control unit

Tab. 6 Operating conditions for Logano SK645 and SK745

1) Ensure that the return temperature sensor FV/FZ is always surrounded by water.

No requirement

The boiler is shut down

automatically by the

Logamatic control unit

50 50 60 60 No requirements


4.4 Fuel

Operation with fuel oil


can be operated with fuel oil EL to DIN 51603.

All boilers can also be used without restriction with

rapeseed oil. Pressure-jet burners for rapeseed oil can be

obtained from burner manufacturers on request.

Operation with gas

All low temperature boilers are suitable for natural gas E

or LL as well as LPG. Observe the burner manufacturer's

details.

The gas quality must comply with the requirements of the

DVGW Code of Practice G 260 [Germany].

To be able to adjust the gas throughput, install a gas

meter that can be checked, even in the lower load range

of the burner. This also applies to LPG systems.

Biogas (e.g. gas from waste disposal or sewerage works)

can also be used. For this, observe special operating

conditions. Pressure-jet burners for biogas are available

from burner manufacturers on request.

Additional operating conditions for the operation

with biogas

The following operating conditions must be met:

• Operate boiler at constant temperature

• Never permit operating interruptions

• Maintain a minimum return temperature above the dew

point (in this case at least 68 °C), i.e. return

temperature raising measures

• Ensure minimum boiler water temperature of 83 °C

• Clean and maintain the boiler regularly, possibly clean

chemically and then preserve

• Combustion of biogas/waste gas (quality in line with

DVGW G262, Tab. 3):

– Proportion of sulphur and sulphur compounds in the

gas up to a maximum of 1500 mg/m 3 (approx. 0.1 %

by vol.)

– Proportion of chlorine and chlorine compounds in

the gas up to a maximum of 50 mg/m 3

– Proportion of fluoride and fluoride compounds in the

gas up to a maximum of 25 mg/m 3

In view of the high degree of corrosiveness, and in

variance from Fig. 8.5 of our general sales, delivery and

payment terms, the warranty period is limited to 2 years.


4.5 Water treatment

As pure water cannot be used for heat transfer, water

quality is important. Poor water quality can lead to

limescale formation and corrosion. Consequently,

particular attention must be paid to water quality, water

treatment and, above all, continuous water monitoring.

Water treatment is an essential factor in ensuring troublefree

operation, availability, a long service life and the

efficiency of the heating system.

4.5.1 Definition of terms

Limescale formation is the formation of hard deposits

on walls inside hot water heating systems. These deposits

are made up of substances contained in the water,

essentially calcium carbonate.

Heating water is any water used for heating purposes in

a hot water heating system.

Fill water is the water used to completely fill the heating

system on the heating water side for the first time and with

which it is then heated up.

Top-up water is any water used to top up the system on

the heating water side after the first time it is heated up.

Operating temperature is the temperature captured at

the flow connector of the heating appliance in a hot water

heating system when operating correctly.

Water volume Vmax is the maximum volume of

untreated fill and top-up water in m 3 that may be

introduced into the system over the entire service life of

the boiler.

Corrosion-inhibiting sealed unvented systems are

heating systems in which no significant amount of oxygen

ingress into the heating water is possible.

4.5.2 Prevention of corrosion damage

In most cases, corrosion plays only a minor role in heating

systems. That is based on the fundamental requirement

that the system is a corrosion-inhibiting sealed unvented

system, i.e. one that prevents a continuous ingress of

oxygen.

Continuous ingress of oxygen leads to corrosion and can

thus cause rusting and the formation of rust sludge.

Sludge formation can not only cause blockages and

therefore a diminished heat supply but also deposits

(similar to limescale deposits) on the hot surfaces of heat

exchangers.

The most important factor with regard to ingress of

oxygen is generally pressure maintenance and, in

particular, the function, correct sizing and adjustment

(pre-charge pressure) of the expansion vessel. Check the

function and pre-charge pressure annually. If continuous

ingress of oxygen cannot be prevented (e.g. due to plastic

pipes that are permeable to oxygen) or if the system

cannot be designed as a sealed unvented system, anticorrosion

measures such as the addition of approved


4

20


chemical additives or system separation by means of a

heat exchanger are necessary.

Oxygen binding agents can be used, for example, to bind

the oxygen.

The pH value of untreated heating water should be

between 8.2. and 9.5. Ensure that the pH level changes

after commissioning, especially due to the separation of

oxygen and limescale. It is recommended to check the pH

level after several months of heating system operation.

The water can be alkalised by the addition of trisodium

phosphate, if necessary.

If additives or antifreeze (where approved by

Buderus) are used in the heating system,

check the heating water regularly in

accordance with the manufacturer's

instructions. Carry out all necessary

corrections ( Chapter 4.5.8, page 23).

4.5.3 Prevention of damage through scale

formation

VDI 2035-1 “Prevention of damage to hot water central

heating systems through limescale formation”, issue 12/

2005 applies to DHW heating systems to DIN 4753 and

hot water central heating systems to DIN 12828 with a

design operating temperature of up to 100 °C.

One of the aims of the current edition of VDI 2035-1 is

simplification of its application. For that reason, standard

values for the amount of limescale-forming substances

(total alkaline earths) for specified heat output ranges are

recommended. The specifications are based on practical

Total boiler output

[kW]

Q ≤ 50 V max : no requirements

experience that shows that damage due to limescale

formation is dependent on the total heat output, the

system volume, the cumulative volume of fill and top-up

water used over the service life of the system and the

boiler design.

The details given below in respect of Buderus boilers are

based on many years of experience and service life tests,

and specify the maximum cumulative amount of fill and

top-up water subject to output, water hardness and boiler

material. This ensures compliance with the aims of

VDI 2035-1 “Prevention of damage through limescale

formation in hot water heating systems”.

Warranty claims in respect of Buderus boilers are only

valid in conjunction with the requirements specified herein

and a fully completed system log.

4.5.4 Requirements for fill and top-up water

To protect boilers against limescale damage over their

entire service life and to ensure trouble-free operation, the

total amount of limescale-forming substances in the fill

and top-up water in heating systems must be restricted.

Therefore, the fill and top-up water has to meet certain

requirements that are dependent on the total boiler output

and the resulting total volume of water in the heating

system ( Tab. 7).

The permissible amount of water based on the fill water

quality can be determined simply with the aid of the

diagrams in Fig. 16 and Fig. 17 or a calculation method to

determine the permissible amounts of fill and top-up water

( page 23).

Requirements regarding water hardness and the amount of fill and top-up

water V max

50 ≤ Q ≤ 600 V max: calculate according to diagrams in Fig. 16 and Fig. 17 as well as formula 1

Q > 600 Water treatment is generally required

independent of output For systems with very large water content (> 50 l/kW), water should generally be treated

Tab. 7 Requirements for fill and top-up water for boilers made from ferrous material


4.5.5 Application limits for boilers made from ferrous materials

V max (m 3 )

12

10

8

6

4

2

Fig. 16 Boilers ≥ 50 kW to 150 kW made from ferrous materials

HW Water hardness

V max Maximum fill and top-up water over the entire service life

of the boiler

1 Boilers up to 150 kW



Example

Given:

• Boiler output Q =105 kW

• System volume VA = approx. 1.1 m 3

Result:

• At a water hardness level of 22 °dH, the maximum

amount of fill and top-up water is approx. 1.8 m 3 .

• This system can be filled with untreated tap water.


0

0 5 10 15 20 25 30

HW (°dH)

6 720 640 417-35.1il

1

2

3

Measures are required above these output

curves; fill with untreated tap water below the

curves. In multi-boiler systems (< 600 kW

total boiler output) the output curves for the

smallest single boiler apply.

One suitable measure for boilers made from

ferrous material is, for example, total

softening ( current Buderus catalogue,

technical customer service, provision of

mobile water treatment systems).


4

22


V max (m 3 )

45

40

35

30

25

20

15

10

5

0

0 5 10 15 20 25 30

6 720 640 417-36.1il

Fig. 17 Boilers > 150 kW to 600 kW made from ferrous materials

HW Water hardness

V max Maximum fill and top-up water over the entire service life

of the boiler







Example

Given:

• Boiler output Q =295 kW

• System volume VA = approx. 7.5 m 3

Result:

• At a water hardness level of 18 °dH, the maximum

amount of fill and top-up water is approx. 6.0 m 3 .

• The amount of fill water is already greater than the

permissible amount of fill and top-up water. Fill the

system with treated water.

1

2

3

4

5

6

Measures are required above these output

curves; fill with untreated tap water below the

curves. In multi-boiler systems (< 600 kW

total boiler output) the output curves for the

smallest single boiler apply.

H W (°dH)

One suitable measure for boilers made from

ferrous material is, for example, total

softening ( current Buderus catalogue,

technical customer service, provision of

mobile water treatment systems).


4.5.6 Recording the amounts of fill and top-up

water

For heating systems > 50 kW, VDI 2035-1 specifies the

fitting of a water meter and the keeping of a system log.

You will find the log with the technical documents

supplied with Buderus boilers. Warranty claims in respect

of Buderus boilers are only valid in conjunction with the

requirements specified herein and a fully completed log.

4.5.7 Calculation to determine the permissible

amounts of fill and top-up water

The fill and top-up water has to meet certain requirements

depending on the total boiler output and the resulting

water volume of a heating system.

Use the following formula to calculate the maximum

amount of fill water for heating systems ≤ 600 kW that

may be introduced without treatment:

Form. 1 Calculation of the maximum amount of water

that may be introduced without treatment

Ca(HCO3)2 Calcium hydrogen carbonate concentration

in mol/m 3

Q Boiler output in kW (in case of multi-boiler

V max

V max

systems the output of the smallest boiler)

Maximum volume of untreated fill and top-up

water in m 3 that may be introduced over the entire

service life of the boiler

Example

Calculation of the maximum permissible amount of fill and

top-up water Vmax for a heating system with a total boiler

output of 420 kW. The analysis values for carbonate

hardness and calcium hardness are quoted in the older

unit °dH.

Carbonate hardness: 15.7 °dH

Calcium hardness: 11.9 °dH

From the carbonate hardness, we obtain:

Ca (HCO3 ) 2 = 15.7 °dH × 0.179 = 2.8 mol/m3 From the calcium hardness, we obtain:

Ca (HCO3 ) 2 = 11.9 °dH × 0.179 = 2.13 mol/m3 The lower of the two values calculated from the calcium

and carbonate hardness is the definitive figure for

calculating the maximum permissible water volume Vmax. V max

Q

= 0,0626 × -------------------------------

Ca( HCO3) 2

420 kW

0,0626

2,13 mol/m 3

× ------------------------------- 12,3 m 3

= =


4.5.8 Chemical heating water additives

If plastic pipes that are permeable to oxygen are used in

underfloor heating systems, the corrosion process can be

prevented by adding chemicals into the heating water. In

such cases, ask the manufacturer of these chemical

additives for a certificate verifying the compatibility with

different parts of the system and the materials used in the

heating system.

Chemical additives for which no such

certificate of compatibility can be issued by

the manufacturer must not be used.

Use of antifreeze

For decades now, antifreeze based on glycol has been

used in heating systems. For example, Antifrogen N made

by Clariant (sold via the Buderus wholesale network).

The use of alternatives is acceptable, subject to such

products being the equivalent of Antifrogen N.

Observe the information supplied by the antifreeze

manufacturer. Follow the manufacturer's details regarding

mixing ratios.

The specific thermal capacity of Antifrogen N antifreeze is

lower than the specific thermal capacity of water. To

enable the transfer of the required heat output, increase

the required flow rate accordingly. This should be taken

into account when sizing system components (e.g.

pumps) and the pipework. In addition, a higher flue gas

temperature results, lowering the boiler efficiency.

As the heat transfer medium has a higher viscosity and

density than water, take the higher pressure drop through

the pipework and other system components into account.

The resistance of all plastic components in the system

must be checked separately.

4.5.9 Combustion air

Where combustion air is concerned, ensure that it is not

heavily contaminated with dust and contains no

halogenated compounds. Otherwise there would be a risk

of damage to the combustion chamber and the secondary

heating surfaces.

Halogenated compounds are highly corrosive. These are

contained, for example, in spray cans, thinners, cleaning &

degreasing agents and in solvents.

Design the combustion air supply so that, for example, no

extract air is drawn in from chemical cleaners or paint

shops. Special requirements apply to the supply of

combustion air in the installation room ( page 49).


4

24

5 Heating controls

5 Heating controls

5.1 Logamatic 4000 control system

A control unit is required to operate boilers. The Buderus-

Logamatic control systems are of modular design. This

enables the system to be matched affordably to the

individual applications and equipment installed in the

intended heating system.

Subject to requirements and the heating system layout,

the following are available for selection as the boiler

control system:

• Logamatic 4212 control unit (ZM427 for boiler

operating conditions)

• Logamatic 4321 and 4322 control units

• Logamatic 4411 control panel system

The power contactors of the burner switched by the

control unit may require a burner control panel. As an

alternative, the power contactors may also be integrated

into the Buderus control panel system.

The technical guide “Modular Logamatic

4000 control system” contains more detailed

information on the Logamatic 4212, 4321

and 4322 control units.

5.1.1 Logamatic 4212 control unit

The conventional Logamatic 4212 control unit is suitable

for operation with a constant boiler water temperature.

Where a higher-ranking control is used, e.g. a

Logamatic 4411 (DDC systems and building

management systems), the Logamatic 4212 transfers

the burner switching commands to the burner.

The standard equipment contains the safety equipment

for a 2-stage burner operation. Boiler circuit actuators and

boiler circuit pumps can be switched with the ZM427

auxiliary module, thereby safeguarding the boiler

operating conditions. Furthermore, the ZM427 module

facilitates an enabling of the burner stages with a higherranking

control using floating contacts.

5.1.2 Logamatic 4321 and Logamatic 4322

control units

The Logamatic 4321 control unit enables the low

temperature operation of these boilers and provides the

operating conditions in conjunction with the 2-stage or

modulating burner in a single boiler system.

Up to eight heating circuits with actuator can be

controlled with corresponding function modules. The

range of functions also includes the complete boiler

circuit control with optional switching of a boiler circuit

actuator and one boiler circuit pump.

2 and 3-boiler systems require a Logamatic 4321 control

unit that functions as “Master” for the first boiler and one

Logamatic 4322 control unit each as lag appliance for the

second and third boiler. The combination of devices with

corresponding function modules can control up to 22

heating circuits with actuator.

5.1.3 Logamatic 4411 control panel system

The Logamatic 4411 control panel system from Buderus

is the comprehensive solution, representing advanced

control technology for complex heating systems that

require a system-specific control.

The local sales office assists with the engineering and

supplies optimum system solutions for each individual

case. This also applies to programmable logic controls

(DDC systems) and building management systems.

5.2 Logamatic telecontrol system

The Logamatic telecontrol system is the ideal addition to

all Buderus control systems. It comprises several

software and hardware components and enables heating

contractors to provide even better customer support and

services via a powerful remote control facility. It can be

used in rental apartment buildings, holiday homes as well

as in medium and large heating systems. The Logamatic

telecontrol system is suitable for remote monitoring,

parameter setting and fault diagnosis in heating systems.

It offers ideal conditions for heat supply concepts and

maintenance and inspection contracts.

The technical guide “Logamatic Telecontrol

system” contains more detailed information.


6 DHW heating

6.1 Systems for DHW heating


can also be used to provide DHW heating. The Buderus

Logalux DHW cylinders that are matched to the boiler

output can be used. These are available as vertical and

horizontal versions in different sizes with 150 l to 6000 l

capacity. Subject to application, they are equipped with

an internal indirect coil or an external heat exchanger

( Fig. 18 and Fig. 19).

Fig. 18 DHW heating according the cylinder principle

with internal indirect coils

VH

RH

VS

RS

Fig. 19 DHW heating according to the primary store

principle with external heat exchangers

Key to Fig. 18 and Fig. 19:

AW DHW outlet

EK Cold water inlet

RH Fuel return (to the boiler)

RS Cylinder return

VH Fuel flow (from the boiler)

VS Cylinder flow

AW

The cylinders can be used singly or in combination with

other cylinders. With the primary store system, different

cylinder sizes and different heat exchanger sets can be

combined. System solutions are therefore available for

any demand and many applications.

EK

6 720 640 417-11.1il

AW

EK

6 720 640 417-12.1il

DHW heating

6.2 DHW temperature controller

The DHW temperature is set and regulated either by

means of a module inside the boiler control unit or via a

separate control unit dedicated to DHW heating. The

control units for DHW heating are specifically matched to

the heating control unit and offer many application

options. For more detailed information in this connection,

see the technical guides “Sizing and selecting DHW

cylinders” and “Modular control system Logamatic 4000”.


6

26

7 System examples


7.1 Information regarding all system examples

The examples in this section show options for

hydraulically connecting the Logano SK645 and SK745

low temperature boilers without safety criteria.

For detailed information regarding the number, equipment

level and control of the heating circuits as well as on the

installation of DHW cylinders and other consumers, see

the respective technical guides.

The DHW heating systems shown can be implemented as

DHW cylinder or primary store system.

This particular system example does not represent a

binding recommendation for implementing a specific

heating network. The practical implementation is subject

to currently applicable technical rules.

Information regarding further options for system layout

and engineering aids are available from the staff in

Buderus sales offices.

7.1.1 Hydraulic connection

Steps for controlling the return and boiler water

temperature

The Buderus Logamatic 4321, 4322 and 4212 control

units with the ZM427 auxiliary module, together with the

corresponding boiler or heating circuit actuators, ensure

the required minimum return temperature.

Alternatively, the Logamatic 4321 and 4322 control units

enable operation with minimum boiler water temperature.

Allow for the temperature sensors required

for raising the return temperature as

immersion sensors.

For demand-dependent system suggestions with

explanations of the respective functions and application

limits, see page 30 to page 46.

Heating circuit pumps

Size pumps in central heating systems in accordance with

current technical rules.

Dirt traps

Deposits in heating systems can lead to local overheating,

noise and corrosion. Any resulting boiler damage falls

outside the warranty obligations.

To remove dirt and sludge deposits, flush the heating

system thoroughly prior to installing and commissioning a

boiler in an existing system. In addition, we recommend

the installation of dirt traps or a blow-down facility.

Dirt traps retain contaminants and thereby prevent

operating faults in control devices, pipework and boilers.

Fit these near the lowest point of the heating system in an

easily accessible position. Clean the dirt traps every time

the heating system is serviced.

Position of strategy flow temperature sensor

In multi-boiler systems with strategy flow temperature

sensor (FVS), the sensor should be located as close to

the boiler system as possible. This rule does not apply if a

low loss header is used to provide hydraulic balance.

Additional time lag due to long distances between the

boiler system and the strategy flow temperature sensor

has a negative effect on the control characteristics,

especially in the case of boilers with modulating-control

burners.


7.1.2 Control

Operating temperatures should be controlled with the

Logamatic control unit taking account of the outside

temperature. The room temperature dependent control of

individual heating circuits (with room temperature sensor

in a reference room) is an option. For this, actuators and

heating circuit pumps are switched constantly by the

Logamatic control unit. Number and version of the

controllable heating circuits are dependent on the

selection and equipment level of the control unit. The

Logamatic control unit also switches the burner,

independently of whether these are 2-stage or modulating

pressure-jet burners. Different burner types can be

combined in multi-boiler systems. 3-phase burner and

3-phase pumps must be electrically connected on site.

These are switched by the Logamatic control unit (230 V).

The technical documents of the control units

include detailed information.

7.2 Safety equipment to DIN-EN 12828 and DIN-EN 12953-6

7.2.1 Requirements

The diagrams and corresponding technical information in

connection with system examples do not cover all

available options. Each system example does not

represent a binding recommendation for a specific

heating network implementation. The practical

implementation is subject to currently applicable technical

rules. Safety equipment shall be installed in accordance

with local regulations.

DIN-EN 12828 specifies the safety equipment for safety

temperatures up to 110 °C. For safety temperatures in

excess of 110 °C refer to DIN-EN 12953-6.

Furthermore, consider the additional requirements

regarding the system operation as specified in the Health

& Safety at Work Act. The schematic diagrams in Fig. 20

to Fig. 23 can be used as engineering aids.

System examples

7.1.3 DHW heating

Given an appropriate design, the DHW temperature

control by means of a Logamatic control unit offers

special functions, such as the switching of a DHW

circulation pump or thermal disinfection to protect against

the growth of legionella bacteria, for example.

In this connection, the technical guide

“Sizing and selecting DHW cylinders”

provides detailed information.


7

28


7.2.2 Arrangement of safety equipment to DIN-EN 12828; operating temperature ≤ 105 °C;

shutdown temperature (high limit safety cut-out) ≤ 110 °C

Boiler ≤ 300 kW; operating temperature ≤ 105 °C;

shutdown temperature (high limit safety cut-out)

≤ 110 °C – direct heating

6/7

11

3 1)

12 13

1

2

4 1)

≤ 300 kW

Fig. 20 Safety equipment to DIN-EN 12828 for boilers

≤ 300 kW with high limit safety cut-out ≤ 110 °C

The figures show the safety equipment to DIN-EN 12828

schematically for the system version – although other

options are available. The practical implementation is

subject to currently applicable technical rules.

5 1)

15

14 15

2 13

10

16

13

17

VK

RK

6 720 640 417-13.1il

Boiler > 300 kW; operating temperature ≤ 105 °C;

shutdown temperature (high limit safety cut-out)

≤ 110 °C – direct heating

8

0,5 %

6/7

11

3 1)

12 13

Fig. 21 Safety equipment to DIN-EN 12828 for boilers

> 300 kW with high limit safety cut-out

≤ 110 °C


RK Return

VK Flow

1 Heat source

2 Shut-off valve, flow/return

3 Temperature controller (TR)

4 High limit safety cut-out (STB)

5 Temperature measuring facility

6 Diaphragm safety valve MSV 2.5 bar/3.0 bar or

7 Lift spring, safety valve HFS ≥ 2.5 bar

8 Flash trap (ET); not required in systems > 300 kW if,

instead, a high limit safety cut-out ≤ 110 °C and a

maximum pressure limiter per boiler is additionally

provided

9 Maximum pressure limiter

10 Pressure gauge

11 Low water indicator (not in systems ≤ 300 kW).

Alternatively one minimum pressure limiter or a

replacement measure approved by the manufacturer is

provided for each boiler

12 Non-return valve

13 Boiler drain & fill valve (KFE)

14 Expansion line

15 Shut-off valve with lockout against unintentional closure,

e.g. by sealed cap valve

16 Drain upstream of diaphragm expansion vessel

17 Diaphragm expansion vessel (DIN-EN 13831)

1) The maximum achievable flow temperature in combination

with Logamatic control units is approx. 18 K lower than the

shutdown temperature (high limit safety cut-out).


1

2

4 1)

> 300 kW

5 1)

15

14 15

2 13

10 9

P

16

13

17

VK

RK

6 720 640 417-14.1il

7.2.3 Arrangement of safety equipment to DIN-EN 12953-6;

shutdown temperature (high limit safety cut-out) > 110 °C

Shutdown temperature (high limit safety cut-out)

> 110 °C, example 1 - direct heating

6 720 640 417-15.1il

Fig. 22 Safety equipment to DIN-EN 12953-6 for

boilers with high limit safety cut-out > 110 °C;

example: Maintaining pressure via a gas buffer

The figures show the safety equipment to DIN-EN 12953-

6 schematically for the system version – although other

options are available.

These figures only show versions where pressure is

maintained via a gas buffer and a pressure maintaining

pump. Additional versions which maintain pressure by

means of various safety equipment can be identified in

DIN-EN 12953-6.

With high limit safety cut-out > 110 °C, long term

requirements (e.g. regular inspections etc.) in accordance

with the Health & Safety at Work Act must be observed.

The practical implementation is subject to currently

applicable technical rules. Implementing the system

engineering with reference to the responsible supervisory

authority is recommended.


Shutdown temperature (high limit safety cut-out)

> 110 °C, example 2 - direct heating

Fig. 23 Safety equipment to DIN-EN 12953-6 for

boilers with high limit safety cut-out > 110 °C;

example: Maintaining pressure via a pressure

maintaining pump


RK Return

VK Flow

1 Hot water boiler

2 Maximum pressure limiter [PSZ+A+]

3 Pressure gauge

4 Water level controller

5 Flash trap

6 Safety valve

7 Minimum water level limiter [LSZ-A]

8 Temperature limiter [TZA+A+]

9 Temperature controller

10 Temperature indicator

11 Fill sample facility for checking the water level

12 Shut-off valve - locked to prevent unintentional closing

13 Sealed unvented expansion vessel

14 Minimum pressure limiter [PSZ-A-]

15 Non-return valve

17 Shut-off valve

18 Pipe to the sealed unvented expansion vessel

19 Feed pump

20 Heating facility

22 Pressure maintaining pump

23 Pressure regulator

24 Automatic shut-off valve (N/C)

25 Water level indicator

26 Open vented expansion vessel

27 Pressure maintaining valve - if N/C or if the actual pressure

is lower than the minimum pressure, then item 24 may be

omitted

28 Shut-off valve with optional connection for test pressure

gauge

30 Minimum temperature controller (if required)

31 Drainage system


7

6 720 640 417-16.1il

30


7.3 Sizing and installation information

7.3.1 Boiler circuit pump in the bypass as shunt pump

Fig. 24 Sample hydraulic circuit for a single boiler system with boiler circuit pump in the bypass for Logano SK645

and SK745

FR Return temperature sensor

KR Check valve

PK Boiler circuit pump

RK Return

SR Actuator, return temperature raising facility

SV Safety valve

V HK Heating circuit flow rate

VK Flow

V PK Boiler circuit pump flow rate


PK KR

VK A B RK

Boiler circuit pump flow rate V PK

The boiler circuit pump, also referred to as a shunt pump,

is required to regulate the return temperature (sensor

flow). The boiler circuit pump can also be used to

optimise the control characteristics. This makes it

possible to minimise the switching events during the heatup

process. This results in lower emissions.

V PK

Form. 2 Calculating the flow rate of the boiler circuit

pump

c Specific thermal capacityc = 1.16 × 10-3 kWh/(l × K) =

1/860 kWh/(l × K)

Δϑ K Temperature differential for sizing the boiler circuit pump

30 K to 50 K (30 K for optimised heat-up characteristics)

Q K Rated heat output in kW

V PK Boiler circuit pump flow rate in l/h

VSL

SV

QK = -------------------

ΔϑK × c

SR

E H

C D

V PK

FR

F

G

V HK

90 °C

70 °C

6 720 640 417-17.1il

Heating circuit flow rate V HK

QHK VHK =

---------------------------------

( ϑV – ϑR) × c

Form. 3 Calculating the flow rate of the heating circuits

c Specific thermal capacityc = 1.16 × 10-3 kWh/(l × K) =

1/860 kWh/(l × K)

QHK Heating circuit heat input demand in kW

ϑR Heating circuit return temperature in °C

ϑV Heating circuit flow temperature in °C

VHK Heating circuit flow rate in l/h


Total boiler flow rate VKges The boiler circuit pump head results from the following:

• Boiler pressure drop at the selected flow rate VPK • Pipework pressure drop

• Individual pressure drop values in the boiler circuit

(Line: A–C–D–B, Fig. 24)

The total boiler flow rate cannot simply be calculated by

adding up the individual flow rates, because of the pump

and system curves. However, as a first estimate, the

simple addition is suitable to get an approximation of a

solution.

Form. 4 Calculating the total boiler flow rate

VHK VKges V PK

Base the sizing of the pipework in the boiler

circuit on a flow velocity of 1 m/s to 1.5 m/s.

VKges ≤

VPK + VHK Heating circuit flow rate in l/h

Maximum total flow rate through the boiler in l/h

(approximation)

Boiler circuit pump flow rate in l/h

Example

Given:

• Rated output QK = 1200 kW

• Heating circuit flow temperature ϑV = 90 °C

• Heating circuit return temperature ϑR = 70 °C

• Temperature differential (selected) ΔϑK = 30 K

Result:

• VPK = 34400 l/h (Line: C–D, Fig. 24)

• VHK = 51600 l/h

(Lines: C–F, D–G and E–H, Fig. 24)

• VKges ~ 86000 l/h

(Lines: A–C and B–D, Fig. 24)



7

32


7.3.2 Boiler circuit pump as primary circuit pump

B G

V PK2

SV

SV

VK A H RK VK A H RK

VSL VSL

Fig. 25 Sample hydraulic circuit for a 2-boiler system with boiler circuit pump as primary circuit pump for


FR Return temperature sensor

FVS Strategy flow temperature sensor


RK Return

SR Actuator, return temperature raising facility

SV Safety valve

V HK Heating circuit flow rate

VK Flow

V PK Boiler circuit pump flow rate


Boiler circuit pump flow rate V PK

For systems with primary circuit pumps (e.g. in the case of

low loss headers or non-pressurised distributors)

installing the boiler circuit pump into the return is

recommended.

Form. 5 Approximation formula with sizing factor for the

flow rate of the boiler circuit pump in a single

boiler system

Form. 6 Approximation formula with sizing factor for the

flow rate of the boiler circuit pump in a 2-boiler

system

Size of calculation for formula 5 and formula 6:

VHK Heating circuit flow rate in l/h

VKges Total flow rate of the boiler circuit in l/h

In 2-boiler systems, split the pump rate of the boiler circuit

pumps according to the respective boiler output. Where

several heating circuits are constantly operated with high

flow temperatures and maximum flow rate, the flow rate of

each boiler circuit pump should correspond to the flow

rate of the heating circuit pumps. For systems with gas

condensing boilers, there are special requirements, e.g.

SR2

PK2

VKges, 1 = VHK × (1,0 ... 1,2)

VKges, 2 =

VHK × (1,2 ... 1,5)

C D

B G

V PK1

F

SR1

PK1

FR2 FR1

E

FVS

90 °C

70 °C

maintenance of as low a return temperature as possible.

The pump rate of the boiler circuit pump may need to be

adjusted to the pump rate of the heating circuits.

Sizing the 3-way valve

Size the 3-way valve for the respectively calculated flow

rate. For this, observe the pressure drop when the valve is

fully open, as the control quality is influenced by the

proportional pressure drop.

Primary circuit pump head

The boiler circuit pump head results from the following:

• Boiler pressure drop at the selected flow rate V PK

• Pipework pressure drop

• Individual pressure drop values in the boiler circuit

(Line: A–D–E–H, Fig. 25)

Example

Given:

• Heating circuit heat input demand SQHK = 4000 kW

• Heating circuit flow temperature ϑV = 90 °C

• Heating circuit return temperature ϑR = 70 °C

• Sizing factor (selected) = 1.3

• Heating circuit flow rate VHK = 172000 l/h

Result:

• VKges = VHK × 1.3 = 172000 l/h × 1.3 = 223600 l/h

(lines: C–D and E–F, Fig. 25)

The total flow rate calculated for the boiler side should be

split according to the rated output (in this case 50/50 %):

• Boiler circuit pump flow rate

VPK = 111800 l/h

(lines: A–C, B–G and F–H, Fig. 25)


V HK

6 720 640 417-18.1il

7.3.3 Low loss header

A low loss header (hydraulic balancing line) is designed to

provide hydraulic separation between the boiler circuit

and the heating circuits.

Installing a low loss header brings many benefits:

• Sizing boiler circuit pump and actuators is made easy.

• Mutual influencing between the heating water flow

inside the boiler and in the heat consumer circuits is

prevented.

• Boiler and heat consumers are only supplied with the

assigned water flow.

• May be used in single and multi-boiler systems, subject

to the heating circuit control system.

• Actuators on both sides of the low loss header provide

optimum operation if they are sized correctly.

• The hydraulic balancing line can also be used as a

sludge trap, subject to being sized correctly

( page 26).

• Where there is a major pressure drop on the water side

and with large distances between boiler and heating

circuits, a split into primary and secondary side is

possible.

Sizing the low loss header

Correct sizing is crucial to the function of the low loss

header. To safeguard a good separation with

simultaneous function as a sludge trap, size the pipework

so that there is practically no pressure drop between the

flow and return. At the nominal amount of water, a flow

velocity of 0.1 m/s to 0.2 m/s can be expected. This also

enables the simultaneous use as a sludge trap. To be able

to capture the heating circuit flow temperature, provide a

sensor well of 200 mm to 300 mm length in the upper

area of the hydraulic balancing line on the heating circuit

side.

D

=

VK,ges 1

-------------- × ------------v

2827

Form. 7 Calculating the size of the low loss header

D Diameter of the hydraulic balancing line in m

v Flow velocity in m/s

VKges Total flow rate of the boiler circuit in m3/h


Example

Given:

• Total flow rate VKges = 223.6 m3 /h

• Flow velocity (assumption) v = 0.2 m/s

Result:

• Diameter of the hydraulic balancing line

D ~ 0.63 m

Fig. 26 Main diagram of a low loss header

RH Heating system return

RK Return

VH Heating system flow

VK Flow

1 Female connection for one air vent valve

2 Female connection for a sensor well ½ "

3 Perforated divider

4 Quick-action shut-off valve


VK

RK

4

D 1

2

3

VH

5 × D

RH

3–4 × D

D

6 720 640 417-19.1il

7

34


7.4 Single boiler system Logano SK645 and SK745 with boiler control unit

Fig. 27 System example Logano SK645 and SK745

FB DHW temperature sensor

FK Boiler water temperature sensor

FV Flow temperature sensor

FZ Auxiliary temperature sensor

HK Heating circuit


PH Heating circuit pump


PS Cylinder primary pump

PZ DHW circulation pump

RK Return

SH Heating circuit actuator

SK Boiler circuit actuator

VK Flow

1) Number and layout of the heating circuits subject to the


The circuit diagram is only a schematic

illustration.

Information for all system examples page 26.

FB

PZ

KR

PS

KR

FK

SK

PK

VK RK

Logano SK645, SK745

FZ

HK1

Application range

• Logano SK645 and SK745 boilers

• Boiler control with a conventional Logamatic 4212

control unit and ZM427 auxiliary module

• Boiler circuit control with Logamatic 4321 control unit

in conjunction with a third party heating circuit

controller or with special applications

Function description

The Logamatic control unit safeguards the minimum boiler

return temperature. If the actual return temperature

captured by the FZ temperature sensor falls below the set

value whilst the burner is switched on, the control unit

reduces the system flow rate towards the boiler by

switching the SK boiler circuit actuator. At the same time,

hot water from the flow is mixed into the cold water

returning from the system to achieve the set return

temperature.

The boiler circuit actuator is opened towards the

consumer circuits once the minimum return temperature

has been reached.

Special engineering information

• This arrangement is ideally suited for a modernised

system where the heating circuit control is provided by

the higher ranking control (third party control unit).

• This requires an FZ auxiliary temperature sensor.


HK2

FV1 FV2

PH1

PH2

SH1

SH2

M M

1)

6 720 640 417-20.1il

Selection of control equipment

Logamatic 4212 control unit

6 720 640 417-41.1il

Logamatic 4212 (possible full complement)

blue auxiliary equipment

Logamatic 42121) conventional control unit for mounting inside the

boiler for operation with a constant boiler water temperature with

TR (90/105 °C) temperature controller; for switching single and

2-stage burners, with adjustable high limit safety cut-out (100/110/

120 °C). Including burner cable, stage 2.

Standard equipment

Safety equipment

ZM425 – Central module as display, incl. thermometer and burner

fault indicator, with two slots for hours run meter for burner stages 1

and 2

Auxiliary equipment

ZM426 – Auxiliary module for the use of a second high limit safety

cut-out, set to 100 °C without flash trap

ZM427 – Auxiliary module to safeguard the boiler operating

conditions for low temperature boilers with minimum return

temperature, for steel boilers and gas condensing boilers with external

condensing heat exchanger (actual flow temperature control) and to

provide a hydraulic shut-off in multi-boiler systems, incl. flow

temperature sensor

ZB – Hours run meter

Sensor well R½ , 100 mm long for Logamatic cylindrical sensors

Tab. 8 Optional equipment for the Logamatic 4212

control unit in connection with the system

example in Fig. 27

1) For boiler water temperatures in excess of 80 °C set the high

limit safety cut-out to 110 °C or 120 °C

The technical documents of the control units include

detailed information.



6 720 640 417-42.1il



Logamatic 43211) for a single boiler system or as the master control

unit for the first boiler in a multi-boiler system, with TR (90/105 °C)

temperature controller and adjustable high limit safety cut-out (100/

110/120 °C), for switching single stage, 2-stage or modulating

burners. Including burner cable, stage 2, boiler water and outside

temperature sensors. Can accommodate up to four function modules.



CM431 – Controller module

ZM432 – Central module for switching burners and boiler circuit

functions; with manual operating level

MEC2 – Digital programming unit for setting parameters and

checking the control unit; integral room temperature sensor and radio

clock receiver




FM441 – Function module for one heating circuit with mixer and

one DHW circuit with DHW circulation pump; incl. DHW temperature

sensor (up to one module per control unit)

FM442 – Function module for two heating circuits with mixer; incl.

one FV/FZ sensor set (up to four modules per control unit)

Room installation set with wall retainer for MEC2 programming unit

and boiler display

Online set with online cable and wall retainer for MEC2 programming

unit

BFU – Remote control incl. room temperature sensor for controlling

a heating circuit from the living space

BFU/F – Remote control like the BFU, but with an integral radio


Separate room temperature sensor for BFU and BFU/F remote

control units

FV/FZ – Sensor set with flow temperature sensor for heating circuits

with mixers or auxiliary temperature sensors for boiler circuit functions;

incl. connection plug and accessories

FG – Flue gas temperature sensor for a digital display of the flue

gas temperature; in a stainless steel sleeve; version suitable for

positive pressure








7


7.5 Single boiler system with Logano SK645 and SK745 boilers:

Logamatic Boiler and heating circuit control with hydraulic separation

Fig. 28 System example for Logano SK645 and SK745 with Logamatic boiler and heating circuit control and hydraulic

separation








RK Return


THV Thermostatic valve

VK Flow

VR Return distributor

VV Flow distributor

WH Low loss header

1) Alternative to low loss header (WH)

36

FK



• Logamatic boiler and heating circuit control

• Hydraulic separation

• Systems are laid out this way, if a feed pump is

required, e.g. as a result of the sizing of the heating

circuit pumps or if several distributor stations are

required or if the distributor stations are installed at

greater distances.

Brief description of the system

• Control of the minimum return temperature by xxxx of

the heating circuit actuators

• 2-stage or modulating burner operation

• Simple layout

KR

PK

VK RK



illustration.


FZ

FK

WH

THV

FV

PH

SH

HK


The heating circuits are controlled via heating circuit

modules. To achieve a raising of the return temperature,

the switching of the heating circuit actuators is given a

higher ranking order. The heating water flow rate to the

boiler remains at a reduced level until the set return

temperature is achieved by the flow water being mixed via

the hydraulic separation. The heating circuit control will

then be enabled again.


• Size the boiler circuit pump for the maximum calculated

flow rate and the pressure drop in the boiler circuit.

Switch the pump to constant operation or with a run-on

time of 60 minutes.

• Allow for a low loss header or, alternatively, a

distributor with bypass and non-return valve.

• In conjunction with Logamatic control units, the

maximum possible flow temperature for a heating

circuit with mixer is 90 °C.


VV

VR

1)

KR

6 720 640 417-46.1il



6 720 640 417-42.1il




























unit






control units

















7

38


7.6 Single boiler system with Logano SK645 and SK745 with boiler and heating circuit

control











RK Return


VK Flow

1)

Number and layout of the heating circuits subject to the


FB

PZ FK VK RK


illustration.


KR

PS

KR


FZ

FV1

PH1

SH1

HK1

FV2

PH2

SH2

M M



• Boiler and heating circuit control (heating circuits with

actuator) with Logamatic 4321 control unit


The Logamatic 4321 control unit safeguards the minimum

boiler return temperature. If the actual return temperature

captured by the FZ temperature sensor falls below the set

value whilst the burner is switched on, the control unit

reduces the system flow rate towards the heating circuit

as a result of the higher ranking switching of the SH boiler

circuit actuators. At the same time, hot water from the flow

is mixed into the cold water returning from the system to

achieve the set return temperature.

When the minimum return temperature has been reached,

the system switches over to heating circuit control.




1)

HK2

6 720 64 0 417-21.1il



6 720 640 417-42.1il




























unit






control units







Sensor well R½ ,100 mm long for Logamatic cylindrical sensors










7

40


7.7 Single boiler system with Logano SK645 and SK745 with boiler and heating circuit

control as well as hydraulic balancing







HW Low loss header






RK Return



VK Flow

1)

FB



PS


illustration.


PZ

KR

KR

FK

PK

VK RK


SK

M

FZ

HW

HK1



• Boiler control with a conventional Logamatic 4212

control unit plus ZM427 auxiliary module

• Heating circuit control and DHW heating by means of

the higher ranking control unit or constant temperature

mode


The Logamatic 4212 control unit safeguards the minimum

boiler return temperature via the ZM427 auxiliary module.

If the actual return temperature captured by the FZ

temperature sensor falls below the set value whilst the

burner is switched on, the control unit reduces the system

flow rate towards the boiler by switching the SK boiler

circuit actuator. At the same time, hot water from the flow


achieve the set return temperature. Once the minimum

return temperature has been reached, the boiler circuit

actuator opens towards the consumer circuits.






• The boiler circuit flow rate must be greater than the

heating circuit flow rate.


HK2

FV1 FV2

PH1

PH2

SH1

SH2

M M

1)

6 720 640 417-22.1il



6 720 640 417-41.1il



Logamatic 42121) conventional control unit for mounting inside the

boiler for operation with a constant boiler water temperature with

TR (90/105 °C) temperature controller; for switching single and

2-stage burners, adjustable high limit safety cut-out (95/100/110/

120 °C). Including burner cable, stage 2.



ZM425 – Central module as display, incl. thermometer and burner

fault indicator, with two slots for hours run meter for burner stages 1

and 2




ZM427 – Auxiliary module to safeguard the boiler operating

conditions for low temperature boilers with minimum return

temperature, for steel boilers and gas condensing boilers with external

condensing heat exchanger (actual flow temperature control) and to

provide a hydraulic shut-off in multi-boiler systems, incl. flow

temperature sensor

ZB – Hours run meter











7

42


7.8 2-boiler system with Logano SK645 and SK745 with boiler and heating circuit

control plus hydraulic balancing

FB

KR














RK Return



VK Flow



2)

Alternative to low loss header

3) Logano SK645 and SK745 with return temperature

raising facility



• Boiler circuit control with Logamatic 4321 and 4322

control units and FM458 strategy module in

conjunction with a third party heating circuit controller

or with special applications

FVS

SK2 SK1

M

M

FZ 3)

PK2 PK1

PZ FK2 VK RK

FK1 VK RK

KR

PS


illustration.


(2)

Logano SK645, SK745 Logano SK645, SK745

(1)

HW

FZ 3)


Both boilers can be hydraulically isolated via the SK boiler

circuit actuator. The boiler sequence can be switched

according to load or time by means of the strategy

module. Sequence reversal and operation in parallel or

series can be selected by means of settings at the control

unit. The lead boiler (1) starts when the actual

temperature captured by the FVS strategy sensor falls

below the set flow temperature. If the heat demand

increases, the lag boiler (2) is automatically started and

the SK boiler circuit actuator opens. With dropping load,

the switching events are reversed.

If the actual return temperature captured by the FZ


burner is switched on, the control unit reduces the system

flow rate towards the boiler by switching the SK boiler

circuit actuator. At the same time, hot water from the flow


achieve the set return temperature.








• A low loss header can also be used to provide sludge

removal.

• A low-pressure distributor with bypass can be used as

an alternative to the low loss header.



HK1

HK2

FV1 FV2

PH1

PH2

SH1

SH2

M

M

1) KR

2)

6 720 640 417-25.1il



6 720 640 417-42.1il




























unit






control units

















6 720 640 417-44.1il



Logamatic 43221) as lag control unit for a second and third boiler in a

multi-boiler system, with TR (90/105 °C) temperature controller and

adjustable high limit safety cut-out (100/110/120 °C), for switching

single stage, 2-stage or modulating burners. Including burner cable,

stage 2 and boiler water temperature sensors. Can accommodate up

to four function modules.






Boiler display to display the boiler water temperature at the control

unit; may be extended with further modules




MEC2 – Digital programming unit in place of the boiler display for

setting parameters and checking the control unit; integral room

temperature sensor and radio clock receiver







unit






control units




FA – Additional outside temperature sensor (up to one per

control unit)











7

44


7.9 2-boiler system with Logano SK645 and SK745 with boiler and heating circuit

control plus hydraulic balancing

FB

PZ

KR

PS

KR




FRS Strategy return temperature sensor








PS Cylinder primary pumps


RK Return


VK Flow

KR

PK2



2) Alternative to low loss header



• Boiler and heating circuit control (heating circuits with

actuator) with Logamatic 4321 or 4322 control unit

and FM458 strategy module


The boiler sequence can be switched on the basis of load

and time by means of the strategy module. Sequence

reversal and operation in parallel or series can be selected

by means of settings at the control unit. The lead boiler (1)

starts when the actual temperature captured by the FVS

KR

PK1

FK2 VK RK

FK1 VK RK

(2)



illustration.


(1)


FRS

HW

FVS

strategy sensor falls below the set flow temperature. The

lag boiler is hydraulically isolated by the KR check valve in

the boiler flow. If the heat demand increases, the lag boiler

(2) is automatically started. With dropping load, the

switching events are reversed.

The Logamatic control unit safeguards the actual return

temperature for both boilers. If the actual return

temperature captured by the FRS strategy return


burner is switched on, the control unit reduces the heating

circuit flow rate towards the boiler as a result of the higher

ranking switching of the SH boiler circuit actuators until

the operating temperature has been reached.


• The PK feed pumps, together with hydraulic balancing

are recommended for several distributor stations or

those that are far apart. A low loss header or,

alternatively, a low-pressure distributor with bypass

and check valve can be used to provide hydraulic

balancing.

• A low loss header can also be used to provide sludge

removal.

• Split the total output 50 % over both boilers. Where a

different output distribution applies, safeguard the

respective flow rates by suitable measures (pipe sizing

and/or balancing valves). Pipework according to

Tichelmann is recommended.

• This requires an FZ auxiliary temperature sensor

(as FRS strategy return temperature sensor).


HK1

FV1

PH1

SH1

M

FV2

PH2

SH2

HK2

M

1)

KR

2)

6 720 640 417-26.1il



6 720 640 417-42.1il




























unit






control units

















6 720 640 417-44.1il




























unit






control units





control unit)











7

46


7.10 2-boiler system with Logano SK645 and SK745 as well as Logano plus SB315 and

SB615 gas condensing boilers with boiler and heating circuit control

FW2

FW3

PZ

KR

Fig. 33 System example Logano SK645 and SK745 as well as Logano plus SB315, SB615 and SB735

EK Cold water inlet



FW DHW temperature sensor







PW Stratification pump


RK Return



VK Flow

WT Heat exchanger

M

PS

KR

FW1

1)



2) Inspection bypass


• Logano plus SB315, SB615 and SB735 gas

condensing boilers


• Boiler circuit control with Logamatic 4321 and 4322

control units and FM447 strategy module, also in

conjunction with a third party heating circuit controller

or with special applications


The boiler sequence can be switched on the basis of load

and time by means of the FM447 strategy module. The

lead boiler (1) starts when the actual temperature

PW

EK

WT

FK2

FVS

PK

VK RK

(2)



illustration.


M

SK

FZ

2)

VK

RK

(1)

FK1

Logano plus

SB315, SB615,

SB735

PH1

SH1

captured by the strategy flow temperature sensor falls

below the set flow temperature. If the heat demand

increases, the lag boiler (2) is automatically started.

If the gas condensing boiler is connected in series to the

low temperature boiler downstream, the required return

temperature raising will be provided mainly by the gas

condensing boiler.

If the actual return temperature captured by the auxiliary

temperature sensor falls below the set value even though

the burner is switched on, the control unit reduces the

system flow rate towards the low temperature boiler by

switching the boiler circuit actuator. At the same time, hot

water from the flow is mixed into the cold water returning

from the system to achieve the set return temperature.





• The boiler sequence cannot be reversed.

• Size the heating circuit pumps in accordance with the

calculated maximum pressure drop in the heating and

boiler circuit. The boiler circuit pump overcomes the

pressure drop in the lag boiler at the maximum boiler

flow rate.

• It is recommended to split the total output in

proportions of 50 % to 60 % for the gas condensing

boiler and 40 % to 50 % for the low temperature boiler.

• This requires an auxiliary temperature sensor.

• Implement the connections so that the boiler can

operate independently to ensure an emergency

provision during service/maintenance.


HK1

FV1 FV2

PH2

SH2

M M

HK2

1)

6 720 640 417-39.1il



6 720 640 417-42.1il




























unit






control units

















6 720 640 417-44.1il




























unit






control units





control unit)











7

48

8 Delivery and installation information

8 Delivery and installation information

8.1 Delivery method

The boiler block can be transported on its base frame, e.g.

using rollers. It is possible to transport the blocks of the

Logano SK645 and SK745 boilers with forklift trucks,

with forks inserted above the base frame. When

transporting the blocks of the Logano SK645 and SK745

boilers with a crane, use only the holes in the gusset

plates.

Content of packaging

Boiler block with burner

door

Logano SK645

and SK745

1 transport unit 1)

Insulated boiler jacket 1 wooden crate

Burner 2)

1 Cardboard box

Control unit2) 1 Cardboard box

Tab. 19 Delivery Logano SK645 and SK745

1) SK745 with 1400 kW and 1850 kW output are respectively

supplied as two packing units each

2) Not part of the standard boiler delivery

8.2 Installation information

Pipework

• Ensure the boiler can be adequately vented.

• In open vented systems, route pipework with a slope

towards the expansion vessel.

• Never allow for pipe reductions in horizontal pipe runs.

• Lay pipes without stress.

Electrical installation

A permanent connection in line with VDE 0100,

VDE 0116 and VDE 0722 is required [in Germany].

Observe local regulations.

• Take care to ensure correct cable and capillary pipe

routing.

Commissioning

Check the quality of the fill and top-up water.

• Flush the entire heating system before filling with

heating water.

Tightness test

Check the system for leaks in accordance with

DIN 18380. The test pressure is 1.3-times the operating

pressure, but at least 1 bar.

• Separate safety valve from expansion vessel (in sealed

unvented systems) before pressure testing.

Handover

On handover, make operators familiar with the system

functions and its operation; and give them the technical

documentation.

• Draw attention to any special considerations regarding

maintenance; a maintenance and inspection contract is

recommended.


9 Installation location

9.1 General requirements of the installation room

9.1.1 Combustion air supply

The installation room and the siting of gas appliances

should meet the conditions specified by the respective

national, regional or local bodies appertaining to boiler

rooms and must comply with relevant fire regulations.

For open flue combustion equipment with a total rated

output in excess of 50 kW, the combustion air supply is

deemed to be ensured if a vent to the outside with a clear

opening of at least 150 cm 2 (plus 2 cm 2 for every kilowatt

output above 50 kW rated output) is provided. The

required cross-section may be split over up to two lines

and must be sized to provide the equivalent air flow rate.

General requirements

• Combustion air vents and lines must never be closed

or covered unless there is special safety equipment

that ensures the combustion equipment can only be

operated if the flow cross-section is unobstructed.

• The required cross-section must not be restricted by a

closure or grille.

• An adequate supply of combustion air can also be

verified by other means.

• Observe special requirements appertaining to

combustion equipment operated with LPG.

9.1.2 Siting combustion equipment

Gas combustion equipment with a total rated output in

excess of 50 kW must only be sited in rooms

• that are not used for any alternative purpose

• that have no opening towards other rooms, except

doors

• the doors of which are tight and self-closing

• that can be vented

The burner and flue supply facilities of the combustion

equipment must be able to be switched off at any time by

means of an emergency stop switch located outside the

installation room. Provide a sign adjacent to the

emergency stop switch that reads as follows:

“EMERGENCY STOP SWITCH - COMBUSTION

EQUIPMENT”.

Notwithstanding these rules, combustion equipment

may also be installed in other rooms, provided that:

• the use of these rooms makes this necessary and the

combustion equipment can be operated safely or

• the rooms are in freestanding buildings that only serve

to operate the combustion equipment and fuel storage.

Installation location

Open flue combustion equipment must not be installed:

• in stairwells, except in residential buildings with no

more than two apartments

• in generally accessible hallways that serve as escape

routes

• in garages

In rooms with systems that extract air

Open flue combustion equipment must only be installed in

rooms equipped with systems that extract air subject to

the following conditions:

• simultaneous operation of the combustion equipment

and the air extractor systems will be prevented by

safety interlocks

• flue gas routing is monitored by appropriate safety

equipment

• flue gas will be routed via the air extractor systems or it

will be ensured that such systems cannot create

dangerous negative pressure.

Gas shut-off facility

A thermally-activated shut-off facility (TAE) must be

installed immediately upstream of the gas combustion

equipment.


9

50

9 Installation location

9.2 Handling details

The stated values correspond to the boiler in its delivered

condition. For tight spaces, the front door can be

removed.

Logano



Boiler

size

Minimum

length

Minimum

width

Minimum

height

Minimum

weight

1) The weight in operation includes the weight of the boiler, its water content, the control unit, burner, gas ramp and fittings

Weight in

operation 1)

[kW] [mm] [mm] [mm] [kg] [kg]

120 1295 700 1005 447 618

190 1490 760 1065 554 792

250 1620 790 1095 642 912

300 1780 790 1095 691 993

360 1773 860 1165 817 1185

420 1973 860 1165 899 1319

500 1913 950 1255 1063 1552

600 2163 950 1255 1158 1715

730 2130 1060 1365 1401 2068

820 2330 1060 1365 1504 2244

1040 2390 1170 1475 1852 2744

1200 2690 1170 1475 2024 3041

1400 2990 1320 1612 2690 4109

1850 3410 1400 1732 3540 5400

Tab. 20 Logano SK645 and SK745 handling dimensions


9.3 Installed dimensions

A S

A V

Fig. 34 Installation room for Logano SK645 and SK745

boilers

1) For the SK745 1400 kW and 1850 kW, the control unit is

mounted on the l.h. or r.h. side

1)

A H

A S

6 720 640 417-27.1il

Logano Boiler size Clearance A H Clearance A V 1)



1) Observe dimension L BR (burner length) relative to clearances A V and A S (on the closure side of the burner door)

Installation location

When installing your boiler maintain the

recommended minimum dimensions. Select

the recommended wall clearances to enable

easy access for installation, maintenance and

service work.

Site the boiler only in rooms that comply with

the local regulations appertaining to the

siting of boilers. The room must be large

enough to ensure access to the boiler in line

with local regulations.

Clearance A S

[kW] [mm] [mm] [mm]

120–300 1000 2000 250 + L BR

360–600 1000 2100 250 + L BR

730–1200 1000 2200 250 + L BR

1400–1850 2)

Tab. 21 Specified wall clearances

2) Allow for an additional 230 mm on the side where the control unit is mounted.

1000 2500 250 + L BR


9

52

10 Additional equipment and accessories


10.1 Additional safety equipment to DIN-EN 12828

DIN-EN 12828 specifies a low water indicator to protect

the boiler against excessive heating.

10.1.1 Safety equipment

In accordance with the currently valid Pressure

Equipment Directive (PED), all facilities and pipework

connected to boilers that are part of heating systems with

safety temperatures in excess of 110 °C are considered

part of the boiler. That means that all components

between the shut off facilities (e.g. slider valves) in the

flow and return as well as the boiler flow and return must

be approved. This also concerns intermediate flow pieces

and valve manifolds to which safety equipment can be

fitted. Subject to the safety level (for this see

DIN-EN 12828 and DIN-EN 12953-6), install different

safety equipment at the various connections.

The boiler safety assemblies are approved to Pressure

Equipment Directive 97/23/EC (TS = 120 °C,

PS = 16 bar). They are suitable in accordance with

DIN-EN 12828 for a maximum operating temperature of


versions

+ Applicable

– N/A

tR ≤ 105 °C, high limit safety cut-out with

shutdown temperature ≤ 110 °C

to DIN-EN 12828

Low water indicator

For the Logano SK645 and SK745 low temperature

boilers install a low water indicator or minimum pressure

limiter in line with DIN-EN 12828.

105 °C. Equipment for higher operating temperatures to

DIN-EN 12953-6 on request.

In systems to DIN-EN 12828, the Logano SK645 and

SK745 low temperature boilers can be equipped with a

safety assembly (accessory). This comprises an

intermediate flow piece, valve manifold, minimum

pressure limiter (low water indicator to DIN-EN 12828),

manostat pipe with shut-off valve and 0–16 bar pressure

gauge. Furthermore, it features three additional available

connections R½ for the connection of further pressure

limiters as well as two additional available connections

R½ at the intermediate flow piece, e.g. for thermometer

and high limit safety cut-out.

Boiler safety assemblies are available in the following

sizes: DN65, DN80, DN100, DN125, DN150 and

DN200.

High limit safety cut-out1) with shutdown

temperature > 110 °C,

≤ 120 °C to DIN-EN 12953-6

Heat source Heat source

≤ 300 kW > 300 kW ≤ 300 kW > 300 kW

Maximum pressure limiter – + + +

High limit safety cut-out set and

maximum pressure limiter

– + 2)

– –

Minimum pressure limiter + 3)

– – –

Minimum pressure limiter – -4) + +

Low water indicator + + – –

Tab. 22 Safety equipment versions for Logano SK645 and SK745

1) It is recommended to implement the system engineering with reference to the responsible supervisory authority. Observe the Pressure

Equipment Directive (PED) and the Health & Safety at Work Act [Germany]

2) Where the flash trap to DIN-EN 12828 is omitted in systems with tR ≤ 105 °C (high limit safety cut-out 110 °C)

3) As manufacturer-tested replacement measure for low water indicator to DIN-EN 12828 in system with tR ≤ 105 °C (high limit safety cut-out

110 °C)

4) Replacement for low water indicator to DIN-EN 12828 in system with t R ≤ 105 °C (high limit safety cut-out 110 °C)

Safety component Make Component ID

Maximum pressure limiter Sauter DSH 143 F 001 SDB.00-331

Minimum pressure limiter Sauter DSL 143 F 001 SDWF00-330

High limit safety cut-out Sauter RAK 13.4040 B STB 10 602 000

Minimum pressure limiter Fatini Cosmi2B01ATF0.8 WB 40 28 65 19

Tab. 23 Approval ID for safety components for the Logano SK645 and SK745


700

H 1

B

Additional equipment and accessories

Fig. 35 Boiler safety assembly with intermediate flow piece Logano SK645 and SK745 (dim. in mm)

1 Pressure gauge 0–16 bar

2 3 available connections R½ for the connecting of

additional pressure limiters

3 Minimum pressure limiter Sauter DSL143-F001

(low water indicator to DIN-EN 12828)

Fig. 36 Intermediate return piece for Logano SK645 and SK745 (dim. in mm)

510

1 Flange connection for expansion line

2 R½ connection for thermometer or temperature sensor

A

1 2 3


4

5

4

H 2

H 3

10

4 Two available connections R½ on the intermediate flow

piece (e.g. for thermometer and high limit safety cut-out

5 Manostat pipe with shut-off valve

160

6 720 640 417-28.1il

Logano Boiler size Type A B H1 H2 H3 [kW] [mm] [mm] [mm] [mm]

120–300 VZ65 DN65/PN 16 450 600 330 500


360–420 VZ80 DN80/PN 16 450 575 330 500

500–600 VZ100 DN100/PN 16 460 555 330 480

730–1200 VZ125 DN125/PN 16 475 555 330 480


1400 VZ150 DN150/PN 16 490 530 330 480

1850 VZ200 DN200/PN 16 515 530 330 480

Tab. 24 Dimensions, boiler safety assembly with intermediate flow piece for Logano SK645 and SK745

2

2

A 1

B

1

A 2

H 2

H 1

160

160

6 720 640 417-29.1il

Logano Boiler size Type A1 A2 B H1 H2 [kW] [mm] [mm] [mm]

120–300 RZ65 DN65/PN 16 DN32/PN 40 135 350 175


360–420 RZ80 DN80/PN 16 DN40/PN 40 145 350 175

500–600 RZ100 DN100/PN 16 DN50/PN 40 160 350 175

730–1200 RZ125 DN125/PN 16 DN65/PN 16 225 350 175


1400 RZ150 DN150/PN 16 DN65/PN 16 240 350 175

1850 RZ200 DN200/PN 16 DN80/PN 16 270 400 200

Tab. 25 Dimensions, intermediate return piece for Logano SK645 and SK745


10.2 Additional noise attenuating equipment

10.2.1 Requirements

Necessity and extent of noise attenuating measures are

subject to the noise level and the disturbance created.

Buderus offers three facilities to attenuate noise that are

specifically tailored to the low temperature boilers; these

can be supplemented by further on-site noise protection

measures. On-site measures include pipe fixings that are

equipped with structure-borne noise insulators,

compensators in the connection pipes and flexible

connections to the building. Noise attenuating facilities

require additional space that must be taken into account

at the engineering stage.

10.2.2 Boiler support with structure-borne noise

insulation

Boiler supports that insulate structure-borne noise

prevent a transfer of structure-borne noise to the

foundations and the building. They comprise U-profile

rails into which Ω-shaped bent longitudinal insulation

brackets have been set ( Fig. 37 and Fig. 38). The

longitudinal insulation brackets are made from spring

steel and are coated with a silencing compound to

prevent the radiation of air-borne noise. Under load these

flex approx. 5 mm. When engineering boiler supports with

structure-borne noise insulating properties, take into

account that the installed height of the boiler and

consequently the location of connections to the pipework

will alter accordingly ( Tab. 26, page 55). To

compensate for the flexing distance of the longitudinal

insulation brackets, and to further minimise the

transmission of sound via the water connections, the

installation of pipe compensators in the heating water

pipes is also recommended.

54

6 720 640 417-30.1il

Fig. 37 Example of boiler supports that insulate against

structure-borne noise


Additional equipment and accessories

Fig. 38 Boiler support that insulates against structure-borne noise for Logano SK645 and SK745 (dim. in mm)

1 Side catch

2 Longitudinal insulation bracket

1) Flex under load approx. 5 mm

1

2

Logano Boiler

size



44

1)

Plinth

dimensions /

Foundation

dimensions

Length

L SO

Width

B SO

A B

B SO

B S

B B


L S

L SO

U-profile rail Dimensions of longitudinal

insulation bracket

Length

L S

Width

B S

Clearance

A B

6 720 640 417-31.1il

10

Lengths Weight

[kW] [mm] [mm] [mm] [mm] [mm] [mm] [kg]

120 915 700 1060 60 700 4 × 250 10.0

190 1110 760 1060 60 760 4 × 250 10.0

250 1240 790 1060 60 790 4 × 250 10.0

300 1400 790 1360 60 790 2 × 250 + 2 × 312.5 15.0

360 1373 860 1385 60 860 4 × 500 20.0

420 1573 860 1385 60 860 4 × 500 20.0

500 1503 950 1480 60 950 2 × 750 + 2 × 500 9.6

600 1753 950 1560 60 950 2 × 1000 + 2 × 500 15.0

730 1700 1060 1560 60 1060 2 × 1000 + 2 × 500 15.0

820 1900 1060 1900 120 1060 4 × 500 15.0

1040 1960 1170 1900 120 1170 4 × 500 15.0

1200 2260 1170 2120 120 1170 4 × 500 21.0

1400 2316 1320 2240 120 1320 4 × 666 23.0

1850 2720 1400 2485 120 1400 4 × 1000 27.1

Tab. 26 Dimensions, boiler support that insulates against structure-borne noise for Logano SK645 and SK745

56


10.2.3 Flue gas silencer with sealing collar to

insulate against structure-borne noise

A substantial proportion of the combustion noise can

transfer to the building via the flue system. Specially

matched flue gas silencers can significantly reduce the

sound level ( Fig. 39).

The silencer shown, for example ( Fig. 39) achieves an

attenuation level of approx. 10 dB(A) to 15 dB(A) in the

flue. The pressure drop caused by the flue gas silencer

can be disregarded when calculating the flue system.

The flue gas silencer features a support ( Fig. 39,

item 3) and a special sealing collar ( Fig. 40, item 1).

This stepped flue sealing collar and the additional packing

cord achieve a separation of the structure-borne noise

between the boiler and the flue system (connection

piece).

1 2

L 4

D 2

D 3

7

L2 L1 3 4 5 6

Fig. 39 Flue gas silencer with sealing collar to insulate

against structure-borne noise

1 Stepped flue sealing collar

2 Packing cord

3 Flue sealing collar ( Fig. 40)

4 Flue outlet

5 Connector for checking the flue gas temperature

6 Boiler casing

7 Threaded female connection for pipe support

Dimensions

at the flue

gas silencer

Unit Connection diameter

DN200 DN250 DN300 DN360 DN400

D1 mm 200 250 300 360 419

D2 mm 220 270 320 380 425

D3 mm 400 600 600 700 660

L1 mm 1000 650 1090 1240 920

L2 mm 650 550 850 1000 800

L3 mm 300 50 160 160 60

L4 mm 50 50 80 80 60

Tab. 27 Dimensions, flue gas silencer for


D 1

L 3

6 720 640 417-32.1il

10.3 Additional accessories

10.3.1 Welded flange

Welded flanges to DIN 2633, PN 16 can be used to

connect commercially available pipes to the boiler flow

and return.

10.3.2 Flue sealing collar

Buderus offers a suitable Flue sealing collar ( Fig. 40)

to provide a safe connection suitable for positive pressure

between the boiler flue outlet and the flue connection

pipe.

The Flue sealing collar is easy to fit and

robust in use. DN200, DN250, DN300,

DN360 and DN400 versions.

6 720 640 417-34.1il 1 2 3

Fig. 40 Flue sealing collar (dim. in mm)

1 Boiler flue outlet

2 Flue sealing collar

3 Flue gas silencer or connection pipe

10.3.3 Cleaning equipment set

The cleaning equipment set comprises a brush with brush

handle. It is used to clean the secondary heating surfaces

and the combustion chamber of the boiler.


60

40

11 Flue system

11.1 General requirements of the flue system

It is essential that the the flue system is sized correctly to

safeguard the correct function and safe boiler operation.

The following recommendations appertaining to the

implementation of flue systems should guarantee troublefree

operation of a combustion system. Non-observation

of these rules can result in substantial operating problems

during combustion and may even result in explosions.

These are frequently acoustic disturbances, impairments

of the combustion stability or excessive vibrations on

assemblies or their components. Low NOx combustion

systems are to be viewed as being more sensitive to

operating faults on account of their combustion control.

Therefore, engineer and implement the flue system with

particular care.

Commonly, the flue system comprises a connection piece

between the heat source and the vertical flue system itself

(chimney).

When sizing and implementing the flue system, comply

with the following requirements:

• Flue systems must be sized in accordance with the

respective national and local regulations and

applicable standards. General requirements relating to

flue systems in and on buildings are specified in the

DIN-EN 1443. The implementation of the flue system

must comply with local building regulations and the

DIN V 18160 [Germany]. Apart from building

regulations, freestanding chimneys are subject to

DIN 1056, DIN 4133 and DIN-EN 13084-1. For flowtechnical

determinations appertaining to size, see the

standards DIN-EN 13384 for flue systems in and on

buildings, and DIN-EN 13084-1 for freestanding

chimneys. Observe country-specific regulations.

• When selecting the material for a flue system, take the

composition and temperatures of the combustion

gases into account to prevent damage and

contamination of the flue parts that are in contact with

flue gas.

• Route flue gases as directly as possible to the chimney

considering the best possible flow characteristics

(e.g. short and with a gradient and the fewest possible

deviations). Provide a separate chimney flue for each

boiler. Take the thermal expansion of the system into

account.

• Implement deviations in the connection pieces as

favourably as possible where flow is concerned by

using bends or deflectors. Connection pieces with

several deviations should be avoided, as they would

have a detrimental effect on air-borne and structureborne

noise as well as the start-up pressure hammer.

Prevent sharp-edged joints between rectangular

connection flanges and the connection pipe. The joint

Flue system


11

angle should not exceed 30°, the same as for any

reducers/expansions that may be required.

• Where possible, connection pieces should be joined to

the chimney in a flow-optimised way (at an angle less

than 45°). Any terminal pieces at the chimney outlet

must ensure the free exit of flue gas into the open air.

• Any condensate must be able to drain freely over the

entire length, treated in accordance with local

regulations (e.g. ATV Code of Practice 251)

[Germany] and drained off in accordance with local

regulations.

• Provide cleaning apertures in accordance with local

regulations (e.g. DIN 18160-1, DIN 18160-5, IVS

guideline 105), possibly in connection with a local flue

gas inspector or chimney sweep.

• The chimney must be separated from the boiler system

(e.g. with compensators) to break the structure-borne

noise transfer.

• Where the flue damper is set into a flue system, a

safety limit switch “OPEN” must be integrated into the

boiler control. Combustion must only be able to start

when the feedback from the limit switch confirms that

the flue damper is fully open. A temperature drop inside

the boiler is possible on account of the time it takes the

actuator to move the damper into position. Implement

the end position “CLOSED” at the flue damper so that

the flue damper never closes fully. This prevents

damage to the integral burner through heat build up.

As a basis for calculation and for sizing the flue system,

apply the details in Tab. 28 and Tab. 29. The

requirements for the flue system and flue gas routing can

be derived from the results of the calculation and should

be discussed with the local flue gas inspector [where

appropriate] prior to constructing the heating system. The

Logano SK645 and SK745 boilers offer the possibility of

raising flue temperatures that are too low by approx.

20 °C to 30 °C. For this, some of the turbulators that are

accessible from the front after opening the boiler door,

must be moved.

58

11 Flue system

11.2 Flue gas parameters

Logano Boiler Level Output Rated heat Flue Required Flue gas

size

input outlet draught temperature1) Fuel

Oil Gas

CO2 Flue gas CO2 Flue gas

content mass content mass

flow rate

flow rate

[kW] [kW] [kW] [mm] [Pa] [°C] [%] [kg/s] [%] [kg/s]

120

2 120


1) Basis for calculation of the flue system to DIN-EN 13384-1 and DIN-EN 13384-2

2)

1 72

132

200 0

198

13

0.0560

10

0.0562

3) 80 138 0.0336 0.0337

190

2 1902) 1 114

209

200 0

193

13

0.0887

10

0.0890

3) 126 138 0.0532 0.0534

250

2 2502) 1 150

274

250 0

190

13

0.1163

10

0.1167

3) 164 138 0.0698 0.0700

300

2 3002) 1 180

329

250 0

188

13

0.1396

10

0.1402

3) 360

2 360

200 138 0.0838 0.0841

2) 1 216

393

250 0

188

13

0.1668

10

0.1674

3) 236 138 0.1001 0.1005

420

2 4202) 1 252

459

250 0

188

13

0.1948

10

0.1955

3) 275 138 0.1169 0.1173

500

2 5002) 1 300

546

300 0

188

13

0.2318

10

0.2326

3) 328 138 0.1391 0.1396

600

2 6002) 1 360

655

300 0

188

13

0.2780

10

0.2790

3) 393 138 0.1668 0.1674

Tab. 28 Flue gas parameters Logano SK645

2) Parameters for the largest value of the rated output range

3) Parameters for a partial load with 60 % of rated output

Logano Boiler Level Output Rated heat Flue Required Flue gas

size

input outlet draught temperature 1)

Fuel

Oil Gas

CO2 Flue gas CO2 Flue gas

content mass content mass

flow rate

flow rate

[kW] [kW] [kW] [mm] [Pa] [°C] [%] [kg/s] [%] [kg/s]

730

2 730


1) Basis for calculation of the flue system to DIN-EN 13384-1 and DIN-EN 13384-2

2)

1 438

795

360 0

186

13

0.3374

10

0.3387

3)

477 138 0.2025 0.2032

820

2 820 2)

1 492

893

360 0

186

13

0.3790

10

0.3804

3)

536 138 0.2274 0.2283

1040

2 1040 2)

1 624

1138

360 0

186

13

0.4830

10

0.4848

3)

1200

2 1200

684 138 0.2898 0.2909

2)

1 720

1313

360 0

193

13

0.5573

10

0.5593

3)

789 138 0.3344 0.3356

1400

2 1400 2)

1 840

1532

400 0

193

13

0.6503

10

0.6526

3)

920 138 0.3902 0.3916

1850

2 1850 2)

1 1110

2024

400 0

193

13

0.8591

10

0.8622

3)

1218 138 0.5155 0.5173

Tab. 29 Flue gas parameters Logano SK745

2) Parameters for the largest value of the rated output range

3) Parameters for a partial load with 60 % of rated output


Index

B

Boiler circuit pump ....................................................... 30–32

Boiler efficiency..................................................................... 13

Burner

Burner requirements ....................................................... 15

Burner selection............................................................... 15

C

Chemical additives ............................................................... 23

Cleaning equipment set ...................................................... 56

Combustion air...................................................................... 23

Combustion air supply......................................................... 49

Control system Logamatic 4000

Control panel system Logamatic 4411 ...................... 24

Logamatic 4212............................................................... 24

Logamatic 4321............................................................... 24

Logamatic 4322............................................................... 24

Corrosion................................................................................ 19

D

Delivery.................................................................................... 48

DHW heating......................................................................... 25

DHW temperature control.................................................. 25

F

Fill and top-up water .................................................... 20–23

Flue gas temperature........................................................... 14

Flue sealing collar................................................................. 56

Flue system .................................................................... 57–58

Fuel .......................................................................................... 19

G

Gas shut-off facility............................................................... 49

H

Health and Safety at Work Act [Germany]..................... 17

Heating water routing ............................................................ 6

Hot gas routing ....................................................................... 6

Hydraulic connection........................................................... 26

Hydraulic separation ............................................................ 36

I

Installation information......................................................... 48

Installation room

Combustion air supply.................................................... 49

Installation of combustion equipment ......................... 49

Installed dimensions............................................................. 51

Index

L

Logamatic-Telecontrol system........................................... 24


Applications ......................................................................... 4

Burner................................................................................. 15

Delivery .............................................................................. 48

Dimensions .................................................................... 7–8

Equipment level................................................................... 5

Features and key benefits................................................. 4

Flue gas parameters ....................................................... 58

Handling details ............................................................... 50

Installed dimensions........................................................ 51

Operating conditions...................................................... 18

Parameters................................................................ 12–14

Specification.................................................................. 7–8

System examples..................................................... 34–47

Types and output................................................................ 4


Applications ......................................................................... 4

Burner................................................................................. 15

Delivery .............................................................................. 48

Dimensions .................................................................. 9–11

Equipment level................................................................... 5

Features and key benefits................................................. 4

Flue gas parameters ....................................................... 58

Handling details ............................................................... 50

Installed dimensions........................................................ 51

Operating conditions...................................................... 18

Parameters................................................................ 12–14

Specification................................................................ 9–11

System examples..................................................... 34–47

Types and output................................................................ 4

Low loss header.................................................................... 33

Low water indicator.............................................................. 52

N

Noise attenuation

Boiler supports......................................................... 54–55

Flue gas silencer with sealing collar ........................... 56

Requirements ................................................................... 54

O

Operating conditions........................................................... 18

P

Pressure drop on the water side....................................... 12

Pressure Equipment Directive (PED)............................... 16

R

Regulations ............................................................................ 16

Return temperature raising facility.................................... 36


Index

S

Safety equipment........................................... 27–29, 52–53

Arrangement of safety equipment........................ 28–29

Boiler safety assembly.................................................... 53

Low water indicator......................................................... 52

Requirements ................................................................... 27

Scale formation ..................................................................... 20

Standby loss .......................................................................... 14

System example

Single boiler system........................................................ 36

System examples.......................................................... 34–47

Boiler circuit pump .................................................. 30–32

Boilers Logano S825L ................................................... 36

Control ............................................................................... 27

DHW heating.................................................................... 27

Hydraulic connection...................................................... 26

Information................................................................. 26–27

Low loss header............................................................... 33

W

Water treatment............................................................ 19–23

Welded flange....................................................................... 56

60


Notes


Notes

62


Notes


Bosch Thermotechnik GmbH

Sophienstrasse 30 - 32

35576 Wetzlar

www.buderus.com

6 720 646 816 (10/2010)

Subject to technical modifications.

Logano SK645/SK745 - Buderus

Transform your PDFs into Flipbooks and boost your revenue!

Delete template?

Save as template ?
