Editorial

Substance over rhetoric

The debate on sustainability in industry often suffers from a familiar pattern: much is said about targets, but too rarely

about concrete implementation in detail. Yet it is precisely here that it is decided whether energy and resource efficiency

actually have an impact – or merely exist on paper.

This issue shows that crucial progress lies not in grand visions, but in the precise optimisation of industrial processes.

Energy-efficient drive systems have long ceased to be a "nice-to-have", but are a direct lever for reducing power

consumption in production and logistics. Those who still work with outdated concepts here leave valuable efficiency

potential untapped.

The situation is similar with regard to resource utilisation. In practice, savings do not arise from sacrifice, but from

better process management. Whether in the precise dosing of processing aids, thermal treatment or the handling

of demanding materials – the decisive factor is the ability to operate processes in a stable, reproducible and low-loss

manner. Modern mixing and preparation technologies contribute to this just as much as specialised components for

aggressive or high-purity media.

This demand becomes particularly clear in biogas production. Here, it is not about image, but about yield, process

stability and energy output. Progress is achieved through improved mixing, optimised substrate preparation and

reliable gas extraction – in other words, through technology that functions permanently even under difficult conditions.

At the same time, new regulations in the biogas sector are increasing the pressure on operators to master processes

cleanly and eliminate technical weak points more quickly. It also shows that without precise measurement and control

technology, any optimisation concept remains piecemeal.

In addition, there is an aspect that is often underestimated: the quality of the electrical infrastructure. Mains disturbances,

an unstable supply or an inadequately coordinated power distribution cause not only downtime, but also hidden energy

losses. Anyone talking about efficiency must therefore always talk about a clean power supply and stable drive systems.

In the end, integration is key. Individual efficient components achieve little if they do not interact intelligently. Automation,

data transparency and robust communication structures are the prerequisites for managing energy and material flows

effectively.

The central insight is uncomfortable but clear: sustainability does not arise from announcements, but from consistent

technical detail work. That is precisely where the real competitive advantage lies.

Anyone wishing to understand sustainable industry will find in these articles a view of what truly matters: implementation.

Silke Watkins

GREEN EFFICIENT TECHNOLOGIES 2026

3


Contents

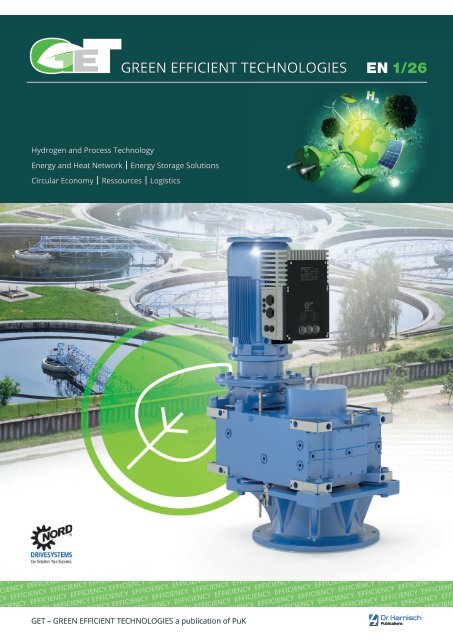

Cover

Efficient drive solutions from NORD DRIVESYSTEMS

for processes in the environmental sector

Reducing costs, increasing efficiency

In (waste)water and recycling manage ment processes, efficiency and

reliability determine operating costs. Naturally, the purchase price is

an important factor with new investments, but it is no longer the sole

purchase criterion. There is also an increasing focus on follow-up costs.

As a system provider, NORD DRIVESYSTEMS offers the right drive solutions

for applications in the environmental sector – as well as the concepts

and services needed to keep the total cost of ownership in mind

when selecting the optimal solution.

Contents

Editorial

Substance over rhetoric 3

Cover story

Efficient drive solutions from NORD DRIVESYSTEMS

for processes in the environmental sector 5

Renewable energy

Small but effective 9

Ressource efficiency

Measures to make steel production more sustainable 13

Durability

Pressure surges in steam systems:

Water hammer as a risk to safety and efficiency 16

CTX & LUCCS Light System:

Cooling solution for novel LED light system 29

Energy efficiency

Energy efficiency in sugar production 20

Minimal motor heating with high-speed converters by SIEB & MEYER 25

Biogas production

Full speed ahead into the heating network 22

Predictive connectivity

PLC diagnostic buffer gains an additional source of information 32

Companies – Innovations – Products 35

Index of Advertisers 39

Brand name register 40

Impressum

Publisher

Dr. Harnisch Verlags GmbH

©

2026, Dr. Harnisch Verlags GmbH

Responsible for content

Silke Watkins

Publishing company and reader service


Eschenstr. 25

90441 Nuremberg, Germany

Tel 0911 2018-0

Fax 0911 2018-100

E-Mail get@harnisch.com

www.harnisch.com

Errors excepted

Reprinting and photomechanical reproduction,even

in extract form, is only possible with

the written consent of the publishers

Editors

Silke Watkins

Anna Totsche

Advertisements/Brand name register

Silke Watkins/Matti Schneider

Technical Director

Armin König

ISSN 2752-2040

4

GREEN EFFICIENT TECHNOLOGIES 2026

Cover story

Efficient drive solutions

from NORD DRIVESYSTEMS for processes in

the environmental sector

Reducing costs, increasing efficiency

The modular products from NORD DRIVESYSTEMS offer numerous components and combinations to keep environmental technology

applications running safely.

Image: NORD DRIVESYSTEMS

In (waste)water and recycling

manage ment processes, efficiency

and reliability determine operating

costs. Naturally, the purchase price

is an important factor with new

investments, but it is no longer

the sole purchase criterion. There

is also an increasing focus on follow-up

costs. As a system provider,

NORD DRIVESYSTEMS offers the

right drive solutions for applications

in the environmental sector – as well

as the concepts and services needed

to keep the total cost of ownership

in mind when selecting the optimal

solution.

Processes in water management,

wastewater treatment, recycling or

biogas production require robust,

reliable and energy-efficient drive

solutions. Modular products from

NORD DRIVESYSTEMS offer a wide

range of system solutions that meet

the special requirements in the field

of environmental technology and are

suited as OEM components in new

installations as well as for retrofit

projects. They include robust electric

motors with stateof-the-art technology

as well as gear units with the

proven one-piece UNICASE design

and various versions such as parallel

shaft gear units, helical bevel

gear units or UNICASE helical in-line

geared motors. A selection of frequency

inverters and modern drive

electronics for installation in control

cabinets or as decentralised solutions

complete the modular product

system.

Industrial gear units for heavy-duty

applications

In shredders or pumps, NORD gear

units with one-piece UNICASE housings

and reinforced bearings ensure

system reliability – even in harsh environments

and during 24/7 operation.

In water screws, 3-stage helical bevel

gear units of the MAXXDRIVE ® XC

industrial gear units’ series offer constant

torques up to 282 kNm. They

even enable large volumes of water

to be transported at low conveying

heights. The NSD5 surface treatment

provides effective protection against

corrosion; the NORD sealing system

prevents the ingress of water.

For use in crushers or shredders,

MAXXDRIVE ® can be equipped with

reinforced input shafts and overload

couplings with the torsionally

rigid one-piece UNICASE housing also

allowing to accommodate large roller

bearings. Even with large shock loads,

high torques and sudden loads that

occur while crushing materials, the

drive remains resistant and ensures

smooth operation.

A biogas plant on the De

Princepeel estate in the Netherlands

serves as a concrete and successful

practical example. A total of

GREEN EFFICIENT TECHNOLOGIES 2026 5

Cover story

Innovative custom solutions –

SAFOMI adapter for MAXXDRIVE ®

industrial gear units

Fig. 1: MAXXDRIVE ® industrial parallel gear units (here: MAXXDRIVE ® XD with large centre

distance) are used when high torques are required; they are also available as ATEX versions.




16 MAXXDRIVE ® industrial gear units

contribute to the production of gas

by driving the agitators’ 4.5-metrelong

shafts. What makes this unique

is that the bunkers are not circular

but have a rectangular floor plan.

Each of the eight bunkers is powered

by two 37 kW industrial gear units

from NORD featuring an ATEXcompliant

design, a speed ratio of 123:1 and

an output torque of approximately

29,000 Nm.

For agitator applications, MAXXDRIVE ®

industrial gear units can be equipped

with a socalled SAFOMI-IEC adapter.

SAFOMI means Sealless Adapter for

Mixers. The IEC adapter combines the

functions of a standard IEC adapter

and an oil expansion tank in a single

component. SAFOMI is available for

helical gear units in sizes 7 to 11 or

for maximum output torques from

25 to 75 kNm. The compact SAFOMI

adapter has a simple structure and

an integrated oil expansion volume.

The advantage: Oil tanks and hoses

as well as the leakage- and wearprone

radial shaft seal between the

Fig. 3: For agitator applications,

MAXXDRIVE ® industrial gear units can be

equipped with a SAFOMI-IEC adapter. It

has a compact and simple structure and

reduces maintenance through fewer wear

parts. Image: NORD DRIVESYSTEMS

gear unit and IEC cylinder can be

omitted. Switching to a SAFOMI-IEC

adapter instead of the standard

IEC adapter on the agitator drive

increases operational reliability and

reduces maintenance. The oil level

as well as the required oil volume is

lower and thanks to fewer attached

components, the installation space is

also reduced.

IE5+ motors and UNIVERSAL motors

Fig. 2: In a biogas plant in the Netherlands, 16 MAXXDRIVE industrial gear units are used,

each driving an agitator with 4.5-metre-long agitator shafts. Image: NORD DRIVESYSTEMS

In the field of water management, the

high-efficiency NORD IE5+ perma-

6


Cover story

nent magnet synchronous motors

are used as drives in screw pumps,

where they offer reliable performance

across the entire adjustment

range, even during 24/7 operation. In

combination with NORD’s low-ratio

gear units, IE5+ motors from NORD

also feature high efficiency and low

energy consumption in the partial

load range.

A practical example of how

UNIVERSAL ASMs from NORD are

used is in poultry processing farms.

The motors used ensure reliable

water treatment at a farm where

freshwater supply would be too

labour-intensive and costly. The

water treatment plant recycles up

to 600 m 3 of water per hour, or

7,500 m 3 per day, for reuse. For comparison:

Conventional slaughterhouses

process approximately

1,000 m 3 of water per day. The

UNIVERSAL motors are particularly

suitable for the drum filters of the

dissolved air flotation systems (internally

referred to as DAF systems).

In combination with NORD’s worm

and helical gear units, they provide

the speed required by the drum to

ensure effective and proper function

of the filter. They are able to

rotate cylinders at a low speed without

affecting the performance. Most

of the models used have powers of

up to 3 kW; control takes place via

centralised control cabinet inverters

from NORD.

Fig. 4: UNIVERSAL asynchronous motors from NORD ensure reliable water treatment in a

poultry processing farm.


error diagnosis via the NORDCON

APP make the service even easier.

Energy efficiency and TCO advice

for optimally matched drives

Like all industrial sectors, companies

in (waste)water and recycling

management encounter high cost

pressure. They are facing a massive

increase in energy costs. Another

issue is environmental and climate

protection and the associated question

of how a company’s carbon footprint

can be reduced. With this in

mind, NORD offers service tools such

as NORD ECO, which is used to analyse

system efficiency, and TCO analysis

(total cost of ownership) – always

with the aim of identifying existing

savings potential and providing concrete

recommendations for action.

TCO analysis for cost reduction

In the field of drive systems, the

follow-up costs of an investment

account for approximately 80 to

NORDAC frequency inverters

With models such as NORDAC PRO

(centralised), NORDAC FLEX, NORDAC

LINK and NORDAC ON (decentralised,

see image), NORD DRIVESYSTEMS

offers a wide portfolio of centralised

and decentralised frequency

inverters that differ in features such

as energysaving functions and various

field bus protocols. The integrated

control of NORDAC frequency

inverters enables continuous condition

monitoring and predictive maintenance,

reducing downtimes and

increasing system efficiency. NORD

provides tools such as the NORDCON

software and app-based Bluetooth

diagnostics for easy installation and

commissioning. Drive monitoring and

Fig. 5: NORDAC ON is available in two variants: for operation with asynchronous motors (in the

foreground) and as NORDAC ON+ for synchronous motors. Image: NORD DRIVESYSTEMS

GREEN EFFICIENT TECHNOLOGIES 2026 7

Cover story

Fig. 6: The NORD ECO box is a mobile control cabinet that enables detailed measurements of both the entire system and individual drives –

the data forms the basis for the efficiency analysis of the NORD ECO service.


85 percent of the total cost of ownership.

In addition to the energy

costs, the follow-up costs also

include costs for administration,

servicing, maintenance and personnel

responsible for spare parts management

and disposal at the end of

the product lifecycle. The concept

of total cost of ownership (TCO)

has proven itself when it comes to

determining the overall costs. It

identifies potential cost drivers of a

system beforehand, brings hidden

costs to light and highlights options

to achieve savings. One key aspect

is variant reduction: the reduction

of differently used sizes within one

system. Preventing overdimensioning

also helps reducing the TCO. An

overdimensioned system results

in increased energy consumption,

as the drives are often running in

inefficient partial load operation.

Other negative consequences are

higher investment, operating and

maintenance costs caused by larger

and therefore more expensive

components.

Efficiency analysis with NORD ECO

The NORD ECO service gives system

operators the opportunity of getting

a detailed view of their systems’

energy efficiency. The core element

of NORD ECO is the NORD ECO box –

a mobile control cabinet that allows

for detailed measurement of both

the entire system and individual

drives, making their energy consumption

transparent. The NORD ECO box

measures voltages and currents,

determines the energy consumption

and stores this data. Afterwards, the

in-house developed NORD ECO software

displays the drive utilisation

and load profiles. The collected data

forms the basis for determining the

most efficient drive solution consisting

of motor, gear unit and inverter.

Optimally matched drive solutions

for environmental processes

With its extensive portfolio of drive

solutions for processes or applications

in the environmental sector –

which is continuously developed and

optimised – NORD DRIVESYSTEMS

focuses on sustainability and

resourcefulness. With individual service

offers such as the TCO analysis

and NORD ECO, NORD customers are

furthermore given the opportunity

of making their environmental processes

more efficient and resourceful

while reducing their costs. NORD

thus makes a valuable contribution

to a more sustainable future – for

current and future generations.

Getriebebau NORD GmbH & Co. KG

Getriebebau-Nord-Str. 1

22941 Bargteheide

Tel +49 4532 289-0

info@nord.com

www.nord.com

8



Small but effective

KBK couplings and shrink discs increase the yield of wind power

and photovoltaic systems

Sven Karpstein

KBK couplings compensate for misalignment in wind energy and photovoltaic systems, dampen vibrations, and transmit high torques

without backlash.

Image: chungking_63980460/AdobeStock

Generating energy from the sun and

wind plays a key role in climate protection.

However, the systems can

only achieve high electricity yields

if the torque is transmitted reliably

and the solar modules are precisely

aligned. Couplings and shrink discs

by KBK Antriebstechnik make an

important contribution to this.

When the huge rotor blades of a

wind turbine rotate at a height of

over 100 meters, they transmit very

high torques to the generator in

the nacelle. To ensure that all of the

mechanical energy arrives there

and can be converted into electrical

energy, the rotor shaft and the hollow

gear shaft must be connected

to each other with a friction-locking,

backlash-free connection. Renowned

manufacturers of wind turbines use

shrink discs from KBK Antriebstechnik

for this task. Thanks to their

compact design, these shaft-hub connections

can reliably transmit high

forces of up to 327,000 N even in

the most confined spaces. They are

characterized by good concentricity

properties and are self-centering and

self-releasing.

KBK manufactures its shrink discs

from high-strength tempered steel as

standard but also offers nickel-plated

versions and stainless-steel variants

on request. The shrink discs are


9


thus creating the conditions for precise

tool guidance. This is essential

for the production of a uniform

flange on the rotor blade, which

must later form a robust connection

between the hub on the nacelle and

the rotor blade. If this work is not

carried out with great precision, it

can have fatal consequences for the

operation of the wind turbine, as the

forces exerted on the rotor by the

wind are enormous.

Lightweight construction increases

efficiency

Fig. 1: Metal bellows couplings by KBK enable the rotor blade angle to be optimally adjusted

to the wind strength. The axially pluggable KB4P with clamping hub (image) is particularly

suitable for applications with complicated installation situations, as in wind energy or PV

systems.

Image: KBK Antriebstechnik GmbH

suitable for shaft diameters from

14 to 280 mm and are available

from a quantity of 1, even as special

solutions.

Couplings have several

important tasks

Metal bellows couplings from KBK are

also used in the drive train of wind

turbines: They enable the rotor blade

angle to be optimally adjusted to

the wind strength but also compensate

for the relative movements that

can occur between the drive shaft,

generator, gearbox, and rotor, e.g.,

due to gusts of wind.

KBK products are also used in the

manufacture of wind turbines. Metal

bellows couplings and other types

of servo couplings from Klingenberg

are installed in drilling and milling

machines used to machine the

rotor blades, among other things.

The couplings ensure backlash-free

torque transmission in the turbines,

Fig. 2: Slit couplings by KBK transmit high torques in confined spaces.




KBK has a total of 25 different series

of metal bellows couplings in its

range, including axially pluggable

designs, variants with expanding

hubs, and length-adjustable models.

The couplings are characterized by

absolute freedom from play and high

torsional rigidity. They not only transmit

maximum torques, but also compensate

for manufacturing-related

axial, angular, or lateral position deviations

on the drive and output shafts.

Users benefit from a significantly

longer bearing service life.

KBK metal bellows couplings cover

torque ranges between 0.05 Nm and

5000 Nm and have bores for shaft

diameters from 1 mm to 100 mm.

Another special feature of the couplings

is their relatively low weight:

since they are made of high-strength

aluminum, they weigh 50 percent less

than comparable steel couplings. This

lightweight design makes the metal

bellows couplings the ideal component

for all applications that need to

be energy efficient and where every

gram of weight counts.

KBK also offers slit couplings for

applications in the renewable energy

sector where high torques need to

be transmitted in extremely confined

spaces. These couplings have a

very compact design thanks to their

special geometry. They are manufactured

in one piece and are available

in versions with clamping hubs (KBFK)

and half-shells (KBFH).

KBFK slit couplings in stainless

steel design transmit torques

between 6 Nm and 240 Nm, while

the aluminum version transmits

torques between 3 Nm and 180 Nm.

10 GREEN EFFICIENT TECHNOLOGIES 2026


High compensating effect and low

restoring forces

Fig. 3: KBK cardan couplings compensate for even high radial and angular misalignment.




The couplings are axially mounted on

the shaft using clamping hubs and

are available with outer dia meters

from 16 mm to 80 mm. They transmit

torque with high precision and

are easy to install even in applications

with complicated installation

situations.

KBFH couplings are available with

outer diameters between 30 mm and

80 mm. They enable the user to precisely

align the shafts before installing

the coupling. KBFH slit couplings can

transmit torques between 25 Nm and

240 Nm (stainless steel) and between

10 Nm and 180 Nm (aluminum).

KBK's cardan couplings are also used

in the manufacturing of wind turbines.

They have very low backlashes and

transmit torques of up to 580 Nm and

forces of up to 13,000 N. In addition,

the cardan couplings compensate for

high radial and angular misalignment

in a very small space, generating only

minimal restoring forces. KBK offers

three series of low-backlash cardan

couplings: the GK for connecting two

components, the GK-T for connecting

shafts, and the GK-TH in a half-shell

design.

Optimal yield for photovoltaic

systems

Manufacturers of photovoltaic

modules also appreciate the high

quality of KBK couplings. Servo insert

couplings are installed in the singleand

dual-axis tracking systems of the

systems, which regulate the position

of the collectors in relation to the sun.

RECIPROCATING

PUMPS TO API 674

- Liquid ammonia pumps

- Reactor feed pumps

- Methanol pumps

- Produced water injection pumps

- Wash water pumps

Pressure:

Flow rate:

50 – 4000 bar

0,1 – 200 m³/h

HAMPRO® HIGH-PRESSURE

PROCESS TECHNOLOGY

Hammelmann GmbH

Carl-Zeiss-Straße 6-8

D-59302 Oelde

+49 (0) 25 22 / 76 - 0

pp@hammelmann.de

www.hammelmann-process.com


Individual service is standard

KBK not only offers manufacturers

of wind energy and photo voltaic systems

standard couplings but also

manufactures customer-specific

designs on request. The family-owned

company provides its customers with

in-depth advice and makes many

things possible that its competitors

cannot offer. For example, fast delivery

of spare parts: within two hours,

KBK equips couplings with application-specific

bores and sends them

on their way by direct courier.

Fig. 4: Servo insert couplings by KBK are equipped with plastic spiders and can therefore

dampen even strong vibrations.


They are located between the gear

motor and the drive spindle, where

they compensate for shaft misalignment

and dampen vibrations that

can occur when adjusting the angle of

inclination of the solar modules. The

use of couplings allows the collectors

to be guided smoothly and precisely,

enabling the systems to achieve the

best possible yield.

KBK Antriebstechnik GmbH

Klingenberg am Main

Sven Karpstein

owner and managing director

KBK Antriebstechnik GmbH

info@kbk-antriebstechnik.de

www.kbk-antriebstechnik.de/en/

Three questions to Sven Karpstein

Mr. Karpstein, you also supply your products to manufacturers

of wind energy and photovoltaic systems.

What is KBK itself doing to promote climate and environmental

protection?

Sven Karpstein: We have done quite a bit in this regard in

recent years. While these are only small changes in themselves,

together they make a difference.

What specifically do you have in mind?

Sven Karpstein: Take our metal bellows couplings, for

example, which we have been manufacturing from highstrength

aluminum instead of steel for some time now.

This saves us 50 percent in weight and enables industries

to build more energy-efficient machines. Thanks to

our couplings, users can employ smaller drives and thus

reduce energy consumption. In addition, the lower weight

reduces the moment of inertia of the couplings. This saves

energy during acceleration and breaking.

That sounds good. But you mentioned further

measures?

Sven Karpstein: Yes, we have introduced a recycling system

for our plastic transport packaging, for example. Until

recently, our customers simply threw it away. Now we collect

it from them after delivering our products and reuse it.


Resource efficiency

Pathways to greener steel

Measures to make steel production

more sustainable

Steel production is one of the largest sources of CO 2 emissions. However, there are several levers that companies can pull to make their

manufacturing processes more sustainable.

Image: Cogne Edelstahl GmbH

Driven not only by growing environmental

and social responsibility, the

sustainability of steel is moving ever

more into focus. Modern processes

and technologies for reducing emissions

and waste offer significant

potential to produce in ways that

are both environmentally and economically

sound. But where exactly

does this potential lie? Which steps

can companies take to achieve a

successful transformation?

Worldwide, steel production is one of

the largest industrial sources of CO 2

emissions. The traditional production

process in blast furnaces releases

large quantities of carbon dioxide.

Recycling steel via lower-emission

electric steel plants, which primarily

use steel scrap as a raw material and

melt it in an electric arc furnace, is

therefore an obvious measure. However,

there are a number of additional

levers companies can pull to make

steel production more sustainable.

Measures to reduce emissions

It is not only the use of an alternative

steel furnace that reduces air pollution.

One way to reduce the emissions

generated during steel production is

also the use of modern exhaust gas

cleaning systems. Electro static precipitators,

fabric filters or dedusting

systems remove pollutants and particles

from the exhaust gases before

they enter the atmosphere. For example,

a special extraction hood for the

AOD (argon-oxygen decarburisation)

area helps to control emissions. Companies

such as Cogne invest continuously

in new equipment as well as

in the modernisation of existing systems

in order to further reduce air

pollution. In addition, state-of-theart

emissions monitoring systems


13


Fig. 1: Steel production using electric arc furnaces offers a lower-emission alternative to the traditional blast furnace process.



Image: Cogne Edelstahl GmbH

ensure precise control and transparency

vis-à-vis the relevant authorities.

The international ISO standards

14001, 50001, 14064 and ISO 14067

play a particular role here, as they

support companies in systematically

improving and transparently documenting

their environmental performance,

energy efficiency and CO 2

emissions.

The CBAM (Carbon Border Adjustment

Mechanism), which has been

mandatory since 1 January 2026, is

an EU-wide regulation establishing a

CO 2 border adjustment system and

also contributes to climate protection.

Under this scheme, emission-intensive

products such as steel are

subject to a CO 2 price, with the aim

of reducing emissions and creating

a level playing field. The EU is thus

seeking to prevent so-called carbon

leakage, i.e. the relocation of CO 2 -intensive

production to countries without

comparable climate protection

measures. For steel, the pricing is

determined by categorising it into

Scope 1 (direct emissions from steel

production), Scope 2 (indirect emissions

from electricity consumption)

and Scope 3 (other indirect emissions,

such as transport routes).

Measures to reduce waste

The production process also ge nerates

large quantities of slag, dust,

sludge and other waste pro ducts.

These are usually disposed of

entirely, which not only entails high

additional costs but also represents

a waste of resources. This is because,

in addition to recycling usable scrap,

there is also the possibility of reusing

some of the by-products. Slag, for

example, can be used as a building

material or as fertiliser in agriculture.

Effective internal waste management

therefore aims to select waste treatment

methods in a targeted manner

and to continuously improve them

in order to maximise the recovery

and recycling of by-products. Investments

in process optimisation technologies

also offer great potential

in this regard. This is because waste

can be reduced at source through

a more efficient use of raw materials.

Recycling is regulated, amongst

other things, by UNI EN ISO 14021,

which sets out transparent requirements

for environmental product

declarations.

Measures to reduce soil

contamination

Reducing waste volumes also

helps to reduce soil contamination.



In steel production, soil contamination

arises primarily from the

improper storage or disposal

of waste and by-products. Environmentally

sound and professionally

managed waste storage

– including proper sealing and

capping – prevents pollutants

from entering soil and groundwater.

And the less waste material

that needs to be stored, the

lower the risk of unintended soil

contamination.

Measures to reduce water

pollution

Alongside the CO 2 footprint,

the so-called water footprint is

equally significant in steel production.

This footprint is an indicator

of the amount of fresh

water that is directly or indirectly

consumed or polluted in the production

of goods and services.

An international standard governing

the management of water

pollution and the calculation of

the water footprint is ISO 14046.

Initially developed for assessing

COGNE

EDELSTAHL

GmbH

Cogne Edelstahl GmbH is the

German sales subsidiary of the

Italian manufacturer of stainless

steel and nickel-based materials,

COGNE ACCIAI SPECIALI S.p.A.,

based in Aosta, Italy. Cogne

Edelstahl distributes the company’s

products throughout German-speaking

regions, with a

focus on Germany, Austria, and

the Benelux countries. Through

its sales offices in Neuss,

Rudersberg am Murr, and Stuhr

near Bremen, the company

supplies customers with long

stainless-steel products manufactured

in Italy, Taiwan, and

Sweden. Furthermore, Cogne

Edelstahl trades in steel, stainless

steel, and other metals that

are not part of the parent company’s

production portfolio.

water resources in the agricultural

sector, it has increasingly

been applied in industrial production

over the last decade.

Companies should therefore

gain an overview of their water

footprint in order to develop a

resource-efficient usage strategy.

One analytical tool for this purpose

is the World Resources

Institute’s “Aqueduct Water Risk

Atlas”. Modern filtration systems

and chemical treatment processes

can be used to reduce

water pollution. These remove

hazardous substances such as

heavy metals, oils and fats from

the water before it enters the

environment. Targeted optimisation

of process flows also helps

to reduce the use of such chemical

additives overall. Closed-loop

water systems likewise help to

protect natural ecosystems while

at the same time increasing production

efficiency by lowering

water consumption.

The opportunities for steel

producers to reduce their environmental

footprint are numerous

and effective. To remain not

only legally compliant and sustainable

but also competitive in

the future, companies should

continuously refine their processes

and adapt to national and

inter national regulatory requirements

at an early stage. Steel

expert Cogne is a prime example

within the industry of continuous

investment in both techno logies

and processes that reduce emissions

and waste, as well as in

relevant certifications.

Cogne Edelstahl GmbH

Carl-Schurz-Str. 2

41460 Neuss

+49 2132 1246 177

vos@cogne.de

www.cogne.de

Ecological

& economical

into the future

EvacTherm ®

Made-to-measure

molding sand

preparation

• Energy-saving

• Low emission

• Conserving resource

Enhance your sustainable

performance with a constant molding

temperature even with variable ambient

conditions.

eirich.com


15

Durability

Pressure surges in steam systems:

Water hammer as a risk to safety and efficiency

Alexander Stark

Water hammer is one of the most

expensive and dangerous phenomena

in steam systems. It can

damage components, destabilise

control loops and increase the risk

of accidents. At the same time,

water hammer is often an indication

that the steam system is also operating

inefficiently from an energy

perspective. For these reasons,

control of condensate drainage is

critical to cope with varying loads

and surges in back pressure.

Banging, crashing, knocking and

vibrations are often accepted as

normal side effects in steam systems.

In reality, they are usually a warning

sign of water hammer.

What is often dismissed as a technical

nuisance can have serious consequences

– from efficiency losses

and damaged components to significant

safety risks for personnel. The

cause is rarely a single trigger. More

often, it points to a wider weakness in

condensate management.

Causes of water hammer

Water hammer occurs when pressure

conditions in a steam system change

suddenly. Two mechanisms are particularly

relevant in this context.

Firstly, water hammer can occur

when accelerated condensate strikes

an obstacle. This kind of liquid slug

forms when hot steam comes into

contact with colder water or accumulated

condensate and carries it

along at high velocity. When the slug

hits valves, pipe bends or fittings, it is

brought to an abrupt stop. Because

water is almost incompressible, the

kinetic energy is converted into a

hydraulic pressure surge that travels

through the pipework as a shock

wave.

Secondly, water hammer can

be caused by the sudden condensation

of steam. When steam comes

into contact with colder surfaces or

Uncontrolled condensate accumulation and sudden pressure surges make water hammer a

key risk in steam systems.

Image: AI generated, EBE-Engineering

larger accumulations of condensate,

an abrupt phase change occurs. The

steam volume collapses within a

very short time. Liquid or following

steam then rushes into the resulting

low-pressure zone at high speed

– again with the potential to trigger a

pressure wave.

Both mechanisms generate

sudden pressure peaks that place

mechanical stress on components. At

the same time, they impair process

stability and reduce the energy performance

of the system.

Consequences of water hammer

“The effects of such pressure surges

are far-reaching. Mechanically, they

can deform or damage pipework,

render valves inoperable, impair

heat exchangers or destroy steam

traps. Pipe supports can come

loose, and connections can start to

leak. In particularly critical cases,

leaks of high-pressure steam or

hot condensate can occur, creating

acute injury risks,” explains Nigel

Egginton, Managing Director of EBE

Engineering.

In addition to this immediate

damage, water hammer often leads

to significant follow-up costs. Unreliable

heat transfer, disrupted control

processes and unplanned maintenance

all increase the operational

burden.

To prevent these consequences

and reduce noise in the pipework

over the long term, one factor is par-


Fig. 1: One of the main causes of steam leaks is

defective mechanical steam traps.



Image: EBE Engineering

ticularly important: condensate must be

removed from the system reliably and

continuously. Only under stable conditions

with low condensate levels can

steam transfer heat efficiently.

Poor condensate drainage

If condensate is not removed consistently,

the steam system suffers in several

ways. Heat transfer surfaces can become

partially blocked, heat exchangers may

flood and control loops respond more

slowly. This impairs process control and

increases steam demand.

Accumulated condensate also

increases back pressure in the system.

The available temperature differential

decreases, efficiency falls and the thermodynamic

conditions become unstable.

“In extreme cases, trapped condensate

can reboil and cause local pressure peaks

that stress the system and destabilise

operation,” explains Nigel Egginton.

There is also a materials-related

effect: standing condensate promotes

corrosion, especially when dissolved carbon

dioxide forms carbonic acid. As a

result, pipework and components age

faster. Thermal fluctuations, pressure

changes and material wear reinforce one

another, further increasing the risk of

water hammer.

Steam traps as a key system

component

Steam traps play a central role in steam

systems. They discharge the condensate

that forms in order to maintain heat

transfer and minimise the risk of water

hammer. The aim must be to remove

condensate, air and CO 2 from the system

as quickly and completely as possible.

A suit able steam trap should provide

a long service life, reliable operation and

low maintenance requirements in order

to safeguard both operational reliability

and efficiency in the long run.

With mechanical traps, however,

this function is often not guaranteed.

“Mechanical steam traps discharge condensate

in waves due to their opening

and closing sealing surfaces. This intermittent

discharge leads to a variable flow

rate, which can cause sudden pressure

changes and increase the risk of water

hammer,” emphasises Nigel Egginton.

Steam leakage is also more common

with mechanical traps. This can cause

pressure to rise in the condensate lines

and ultimately leads to water hammer.

The reason lies in the nature of the

mechanical components. As operating

time increases, so does wear – and with

it the likelihood of leaks. Escaping steam

can further aggravate pressure conditions

in the condensate line and thereby

increase the risk of water hammer.

This behaviour becomes particularly

problematic under fluctuating steam

loads, as mechanical systems respond to

load changes only with a delay. “Under

variable conditions, response time and

discharge capacity become limiting

factors,” says Nigel Egginton, adding:

“Frequent cycling increases wear, and

slow response times allow condensate to

accumulate during peak loads.”

Defective or incorrectly sized steam

traps worsen the problem. “Undersized

traps cause condensate backup, while

oversized or malfunctioning traps promote

frequent cycling, pressure fluctuations

and water hammer.” Under

changing load conditions in particular,

these effects can quickly escalate.

Continuous discharge using the

Venturi principle

An alternative to conventional mechanical

condensate drainage is continuous


FILTECH

June 30 – July 02, 2026

Cologne – Germany

The Filtration Event

www.Filtech.de

Platform

for your

success

600+ Exhibitors

Delivers

solutions for

current

and future

challenges

Your Contact: Suzanne Abetz

E-mail: info@filtech.de

Phone: +49 (0)2132 93 57 60

Durability

plant protecting, but also an important

lever for economical steam operation.

About EBE Engineering

Fig. 2: In mechanical traps with free-float balls, damaged balls can be a consequence of

water hammer. Conversely, a damaged or worn mechanical trap can impair condensate

drainage and thereby indirectly promote water hammer. Image: EBE Engineering

drainage using Venturi orifice steam

traps. These systems have no moving

parts and operate with a fixed

opening.

The operating principle is based

on the different physical properties of

steam and condensate. While steam is

compressible and behaves differently

under pressure, liquid condensate

is virtually incompres sible. The Venturi

orifice exploits these differences.

The differential pressure across the

nozzle automatically adjusts to the

respective operating conditions,

so that the condensate flow regulates

itself. “ECOFLOW Venturi orifice

steam traps discharge condensate

continuously rather than in bursts,”

explains Nigel Egginton. The result

is a steady, stable discharge without

pressure- related peaks. Steam leaks

are also physically impossible with

this design.

This stability has a direct impact

on plant operation. The system

behaves more predictably, especially

with varying load profiles or in batch

processes. This is because higher stability

regarding pressure improves

heat transfer, shortens control cycles

and makes batch times easier to

plan. “Continuous drainage, especially

in batch plants, stabilises conditions,

reduces or even prevents water

hammer completely, especially during

restart or shutdown,” emphasises

Nigel Egginton.

Continuous condensate drainage

improves operational safety, process

stability and energy utilisation at the

same time. Preventing water hammer

is therefore not only a matter of

Fig. 3: Venturi nozzle steam traps do not require any moving parts and operate with a

fixed orifice.

Image: EBE Engineering

EBE Engineering GmbH, based in

Essen, works with customers in the

food and beverage, laundry, tyre and

rubber manu facturing, petrochemical,

chemical and biochemical industries.

These customers use steam

system solutions for a wide range of

process engineering applications.

With a focus on high-quality

design and best-in-class manufacturing,

EBE provides reliable, low-maintenance

solutions that help users

reduce energy costs and CO 2 emissions.

Users also benefit from steam

system analyses and the improvements

that can be implemented as a

result.

The Author

Alexander Stark

Marketing Manager EBE

EBE Engineering GmbH

Rellinghauser Str. 334F

45136 Essen

+49 (0) 201 565 783 00

de.marketing@ebe-eng.com

www.ebe-eng.com

Water hammer

can have catastrophic

effects on

a steam system,

including:

• Mechanical damage: pipe ruptures,

valve failures and damaged heat

exchangers.

• System inefficiencies: reduced

steam flow, impaired heat transfer

and increased energy waste.

• Safety hazards: leaks of high-pressure

steam or hot condensate, creating

a burn hazard for personnel.

• Operational downtime: unplanned

maintenance, production interruptions

and higher repair costs.


PROCESS TECHNOLOGY&COMPONENTS

© GEA

The cross-sectoral media platform

for suppliers and users in two languages:

German and English


DE 1/26

Exclusive information around the pump

and compressor industry as well as

systems and components

Wasserstoff und Prozesstechnik

Energie- und Wärmenetzwerke Speichertechnik

Kreislaufwirtschaft Ressourcen Logistik

Developments and trends

First-hand future technology

Targeted at international trade

shows for 2026

EFFICIENCY EFFICIENCY


EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY

EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY



EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY



EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY


EFFICIENCY EFFICIENCY EFFICIENCY


Unabhängiges Fachmagazin für richtungsweisende Technologien

New since 2022:

„Green Efficient Technologies“

is published 4 times a year

Dr. Harnisch Verlags GmbH · Eschenstr. 25 · 90441 Nuremberg · Tel.: +49 (0) 911 - 2018 0 · info@harnisch.com · www.harnisch.com


Energy efficiency in sugar production

innovative cleaning technologies for deposit control

In sugar production, heat exchangers

and evaporators are used to

gradually remove water from the

juice, increasing the sugar concentration

and preparing it for crystallization.

During this process, organic

and inorganic deposits such as calcium

oxalate, silicates, and organic

char frequently accumulate on

equipment surfaces, reducing heat

transfer efficiency and increasing

energy consumption. These deposits

must be removed regularly to

maintain product quality, prevent

equipment damage and ensure

efficient plant operation. Modern

cleaning technologies address this

challenge by using advanced additives

while reducing the need for

caustic solutions and acids.

Laboratory work in chemical research and development.

Image: Hardy Welsch

Sugar is one of the key raw materials

in the global food industry and its

production involves several thermal

processing steps during which deposits

can form. In particular, calcium

salts and silicates tend to precipitate

during evaporation. These deposits

impair heat transfer efficiency, resulting

in higher energy consumption

and additional downtime for cleaning.

The issue affects both beet sugar

and cane sugar factories, although

the approaches to removal differ.

Modern surfactant–chelating formulations

such as DEFOCLEAN ® R2

from Levaco Chemicals support both

approaches: they enhance chemical

cleaning in beet sugar factories and

improve alkaline pre-treatment in

cane sugar plants, facilitating the subsequent

mechanical cleaning process

significantly.

Beet sugar – cleaning additives

enhance chemical cleaning

Beet sugar factories already prevent

deposit formation during operation

by using anti-scaling agents such as

DEFOSCALE ® OK. When combined

with chemical cleaning directly after

the production campaign, substantial

energy savings can be achieved.

Deposits in beet sugar factories

often consist of calcium oxalate,

which typically requires alkaline

cleaning with soda additives followed

by acidic cleaning for complete

removal. The combination of surfactants

and chelating agents significantly

shortens cleaning times while

reducing cleaning temperatures as

well as the consumption of alkalis

and acids. These measures improve

overall efficiency and contribute to

lower energy use and reduced CO 2

emissions.

Benefits of cleaning additives in

beet sugar factories

• Shorter cleaning times

• Reduced energy consumption

• Lower CO 2 emissions

Cane Sugar – cleaning additives

simplify mechanical cleaning

Cane sugar factories experience considerably

heavier deposit formation

in evaporators. Depending on the

evaporation stage within the process,

these deposits may consist of

different calcium salts such as phosphates,

oxalates or aconitates. They

are removed through regular cleaning

procedures, which often involve

alkaline pre-treatment followed by

mechanical cleaning using brushes or

high-pressure water jets.

Mechanical cleaning inside confined

evaporator spaces presents

a significant safety risk, particularly

when high-performance pressure

washers are used. Water pressures

of up to 1,000 bar combined with

restricted working conditions have

repeatedly led to serious injuries and

even fatalities.

Alkaline pre-treatment is designed

to swell the deposits, making them

easier to remove mechanically. This

is where Levaco’s DEFOCLEAN ® R2

makes a real difference. Thanks to

its blend of surfactants and chelating

agents, the additive penetrates

deep into the deposit layers. The

active ingredients allow the cleaning

solution to undercut the deposits

and detach them from the inner

walls of the heating tubes. As a result,

the time required for mechanical

cleaning can be reduced drastically.

The use of high-pressure systems



Fig. 1: Precise laboratory work: A sample is

prepared and analyzed under controlled

conditions.

Bild: Hardy Welsch

can be minimized or in some cases,

manual cleaning can be eliminated

altogether.

Benefits of cleaning additives in

cane sugar factories

• Maximum plant availability

through reduced cleaning times

• Lower energy consumption and

CO 2 emissions

• Reduced safety risks for personnel

Key requirements for cleaning

additives

To deliver these benefits, modern

cleaning additives must combine

several critical performance characteristics:

• Excellent wetting properties with

low foaming behavior:

Effective wetting improves contact

between the deposits and the

cleaning solution, enabling deeper

penetration into the scale layers.

At the same time, excessive foaming

must be avoided, as foam can

create pumping problems and

overflow issues in closed systems.

• Strong chelating performance

without environmental drawbacks:

Chelating agents help remove

components such as calcium from

the deposits, weakening their

structure. However, highly persistent

chelates such as EDTA create

wastewater treatment challenges

and are replaced increasingly in

modern cleaning formulations.

• High dispersing capability:

Small fragments of loosened

deposits must remain suspended

in the cleaning solution to prevent

redeposition. Complete dissolution

of the deposits, which

would require large quantities of

chemicals, is often unnecessary.

Loosening and dispersing the

deposits is usually sufficient for

effective cleaning.

• Resistance to acids, alkalis, and

high temperatures:

Depending on deposit composition,

the use of acids or alkalis

cannot always be avoided.

Elevated temperatures are also

commonly required to shorten

cleaning times. Although cleaning

additives reduce the need for

harsh chemicals, they must remain

stable and effective under these

demanding conditions.

• Compliance with regulatory

requirements:

Depending on the application,

requirements range from

com pliance with EU chemicals

legislation to kosher or halal certification

for use in food production

environments.

Cleaning additives beyond the

sugar industry

Modern cleaning additives function

as versatile all-in-one solutions. They

can be used both as performance

boosters in alkaline or acidic cleaning

systems and as standalone cleaning

solutions. This not only improves

operational efficiency but also

enhances workplace safety.

Another advantage is their easy

integration into existing cleaning processes.

They can either supplement

existing formulations or replace several

individual formulation components

altogether. The results

are reduced water and energy use,

shorter cleaning times and lower

operating costs.

To achieve the best results, plant

maintenance teams should work

closely with cleaning solution suppliers

to address the specific requirements

of their equipment and

processes. This collaboration can

include everything from deposit analysis

to recommendations for optimized

cleaning procedures.

At the same time, plant operators

should remain aware of the limitations

of chemical cleaning additives.

Extremely hard or dense deposits,

as well as certain equipment design

constraints, can limit additive performance

and increase chemical

demand. Blockages are particularly

challenging, as they often require

complete dissolution of the deposit,

something that may not be achievable

with every type of scale.

Even under these demanding

conditions, modern additives such

as DEFOCLEAN ® R2 can significantly

improve cleaning performance and

therefore reduce cleaning times.

Fig. 2: Laboratory technology in use: modern systems for sample analysis and processing.



Image: Hardy Welsch

Levaco Chemicals

Johannes-Kepler-Str. 20

51377 Leverkusen, Germany

www.levaco.com


21


Full speed ahead into the heating network

Tobias Boeckh and Michael Mörixmann

Tobias Boeckh from Continental Industrie GmbH and Michael Mörixmann (Bioconstruct) in front of the biogas plant in Melle (From left to right).



Image: Continental Industrie GmbH

“We are Bioconstruct. Here, we say

'Moin' (a regional greeting used all

day long).” Bioconstruct GmbH from

Melle-Riemsloh publicly presents

itself with a strong commitment to

authenticity and reliability. Since its

foundation in 2001, the owner-managed

company has focused on sustainability

and down-to-earth values

in every department, from diligent

accounting to carefully selected

stainless steel screws.

A prime example of this approach is

its own biogas plant in Krukum, Melle.

It supplies regional companies, public

institutions and households with

heat and electricity. These include a

nursery, a school, several industrial

properties and households, as well

as the Bioconstruct GmbH company

building.

area of nine kilometres within three

weeks.

This maize silage is used to power

the biogas plant‘s continuous annual

operation. In accordance with legal

requirements, up to 18,000 tons of

renewable raw material can be processed

each year. Around 80 tons of

silage are fed in per day in winter,

corresponding to a power output of

around 1.6 megawatts.

“Optimal preparation of the

maize material is an essential part

of the process. For the highest possible

amount of energy output, the

maize kernels within the silage must

be broken down mechanically –

as they proportionally contain the

largest amount of energy-rich starch,”

says Dirk Meyerdrees, Operations

Manager at Bioconstruct GmbH.

Twice a day, the delivered material

is fed into the 60-tonne feeding

system using a wheel loader. A push

floor then moves the silage within

the feed bunker before a screw conveyor

transports it to the mixing area.

There, the fresh silage is mixed with

the recirculated digestate from the

fermenter. The resulting liquid-solid

mixture is then pumped into one

of the two fermenters by a central

pump.

Each of the two bioreactors is

6.40 meters high and 23 meters in

diameter, resulting in a capacity of

From delivery to gas production

Bioconstruct relies on the efficient

and sustainable use of renewable

raw materials for biogas production.

In 2024, a total of 23,000 tons of

maize silage were ensiled, with every

single maize plant being chopped up

completely. The raw biomass stems

from surrounding agricultural land

and was collected from a catchment

Fig. 1: The feeding unit for charging the maize silage has a capacity of 60 tons.





High-performance plastics

for climate neutral

H 2 technologies.

Fig. 2: 23,000 tons of maize silage formed the original stock for the annual operation of the biogas

plant in Melle.




2,500 cubic meters each. They each have

six heating circuits and heat the substrate

to 55 degrees Celsius to reach the

thermophilic range. This ensures highyield

fermentation. Once the fermenter

is completely filled, the material remains

inside for an average of around 80 days.

Large agitators ensure that the substrate

is evenly mixed while the produced biogas

is temporarily collected in large double-membrane

storage tanks for several

hours.

The biogas produced consists of

52 % methane, 45 % CO 2 and a small

amount of oxygen. It is extracted from

the fermenter via a compressor and then

further processed for energetic usage. A

precise PLC system regulates the entire

substrate flow via the pumps, thereby

streamlining plant operations.

By precisely calculating the subs trate

tonnage, the production of biogas can be

controlled to ensure maximum energy

generation.

“We know exactly how much gas is

produced from a given amount of substrate.

This enables us to supply the optimal

quantity of renewable raw material

on a daily basis or over a specific period,

depending on the requirements to run

the plant at peak performance,” says

Meyerdrees.

Hydrogen needs strong partners – that’s why

we develop innovative and convincing solutions.

Individual products made from high-performance

plastics for the entire H 2 value chain:

H 2 production, compression, storage &

transportation through to application. E.g.

customized seals up to 3.000 mm diameter for

large scale electrolysis – Powerful. Durable.

Efficient. Rely on our expertise!

HYDROGEN Technology Expo

Hamburg, October 20-22, 2026

Hall 7, booth H46

www.ek-kt.de/elektrolysis

hydrogen.ekt@elringklinger.com

phone +49 7142 583-712

A new blower provides

more pressure

Fig. 3: In front of the six-stage blower from

Continental Industrie, which has been used for

biogas transport since 2010 (from left: Tobias

Boeckh and Michael Mörixmann).


With a rise in the number of combined

heat and power plants (CHP) in the surrounding

villages, the demands on Bioconstruct‘s

biogas distribution also

increased. To efficiently feed the gas into

the grid, more powerful blowers were

required.

“If the pipelines and distances

remain unchanged while more CHP

plants are connected, the only remaining

option is to increase the pressure,”

explains Tobias Boeckh, Managing Director

of Continental Industrie GmbH in

Dormagen.

Until 2010, Bioconstruct relied on

single-stage blowers, but these could

no longer keep pace with the growing

periphery. The solution was a six-stage

gas transport blower, which replaced



The plant is used more intensively in

winter than in summer, so seasonal

flexi bility is pre-programmed.

Depending on the fluctuating demand

for heat or electricity, the plant has

sufficient room for adjustment.

The Authors: Tobias Boeckh and

Michael Mörixmann

Continental Industrie GmbH

Blower and Exhaust Fan Technology

Dormagen, Germany

info@continental-industrie.de

www.continental-industrie.de

Fig. 4: A close-up view of the six-stage blower from Continental Industrie.




the single-stage blowers and met

the increased requirements for volume

flow and pressure. “Multi-stage

blowers are the best way to handle

satellite systems and increased flow

rates,” explains Boeckh. “Recently, we

have seen a general trend towards

larger blowers for higher plant capacities”.

Collaborating with Continental

Industrie is an important part of this

development for Bioconstruct. “Communication

is always straightforward

and smooth. There has been a seamless

exchange of information and

support for 15 years,” emphasizes

Michael Mörixmann, Head of Design

at Bioconstruct.

Bioconstruct now operates two

heating networks, supplying around

160 to 170 properties in the surrounding

area, including private

households and public buildings. All

of the biogas is used for electricity

generation in the connected CHP

plants. Thanks to intelligent heat utilisation,

excess heat can be temporarily

stored in buffer tanks or

supplied directly to customers.

“Farmers can use it to heat their

farm buildings and stables – since

the heat is produced anyway, it only

makes sense to utilise it,” explains

Mörixmann.

A key factor for continuous

energy production is the availability

of raw materials. “You have to ensure

a sufficient supply of renew able raw

materials – even if this results in

longer transport distances.” After

fermentation, the remaining digestate

is a nutrient-rich substrate that

is returned to agriculture. “It can be

separated into solid and liquid components

to individually address the

needs of the soil,” says Mörixmann,

“yet another product in the value

chain.”

With its new blower techno logy,

Bioconstruct is well equipped for

future expansion. In the next stage, an

eight-stage blower might be required

to supply even more households with

environmentally friendly energy.

Biogas eliminates the risk of

Dunkelflaute

Biogas plants reliably generate

electricity at all times – regardless

of the time of day or solar radiation.

The gas as well as the electricity output

can be adjusted flexibly through

targeted control of the feed. These

adjustments take between three

and five days from input to output

change, and sufficient buffer storage

is avail able at the Melle site in any

case. Even in the unlikely event that

there is no immediate demand from

gas consumers, Bioconstruct can

store the gas for up to 20 hours.

24 years of

Bioconstruct –

rapid growth

Since its foundation, Bioconstruct has

become a leading specialist in renewable

energies. In its first year, the

company implemented the “Region

Regenerativ Melle” project, combining

wind power, biogas and photovoltaics.

With the subsequent implementation

of the Frotheim/Isenstedt wind

farm (2003) and the first large 3 MW

biogas plant in Kaarßen (2005), the

company experienced continuous

growth. In 2009, Bioconstruct entered

the international market with a 6.5

MW biogas plant in the Netherlands.

In 2015, Bioconstruct built one of

the largest waste-processing biogas

plants in England (5 MW). Three years

later, the company invested over €14

million in a biomethane injection

plant in Saxony-Anhalt.

To date, Bioconstruct has implemented

over 380 biogas projects

worldwide, as well as numerous wind

and solar power plants. The company

focuses on the development of sustainable

energy concepts.

With around 165 employees

backing this extensive international

track record, Bioconstruct is now a

leading player in the industry.



Minimal motor heating with

high-speed converters by SIEB & MEYER

Cool performance in sustainable applications

Markus Finselberger

Innovative applications that were developed due to the energy transition also benefit greatly from multilevel technology. SD4M, for example,

ensures a significant increase in the efficiency of rotating energy storage units (flywheel).

Image: SIEB & MEYER AG

Keeping the motor cool is essential

for the operation of high-speed

motors. These are not only the heart

of machining centers and machine

tools but also con tribute to the

energy transition when used in turbo

compressors and flywheel energy

storage units amongst others. The

frequency converters of the SD4x

product family by SIEB & MEYER

minimize converter-based motor

losses, which results in low motor

heating and improved system efficiency.

Besides saving energy and

costs, users benefit from outstanding

manufacturing quality.

About 90 % of the power losses

caused by the converter occur in

the rotor. These losses result in heat

that can damage the motor. Due to

the typically small rotor volume of

high-speed motors, the temperature

rise becomes even more problematic.

This was precisely the challenge

that SIEB & MEYER focused on when

developing the SD4x product family.

With a suitable control techno logy

and a well thought-out topology,

the high-speed converters of the

Lueneburg-based high-speed experts

enable motor currents with minimal

harmonic frequency components.

Compared to competitive products,

the losses are reduced by up to 90 %,

which also reduces motor heating

correspondingly. The low temperatures

in turn extend the service life

of the ball bearings typically used in


25


Fig. 1: The three-level technology of the SD4M series by SIEB & MEYER combined with device-dependent switching frequencies of up to 32 kHz

ensures excellent current quality, which reduces motor losses and increases the efficiency accordingly.

Image: SIEB & MEYER AG & Parsudi-AdobeStock-1384279135

machining spindles and also improve

the manufacturing quality.

The objective:

the perfect sine curve

How to generate a motor current

with the desired high quality? “To

answer this question, it is important

to know that all currents that

differ from the ideal sinusoidal

shape produce losses in the motor,”

explained Torsten Blankenburg, CTO

at SIEB & MEYER AG. “This part of the

motor current is generated by the converter

and is called ripple current. The

ripple current overlays the sinusoidal

motor current.” The generated ripple

current depends on the switching frequency,

the DC voltage of the converter

and, above all, the motor inductance.

Low inductances cause consider able

ripple currents. This is especially problematic

with high-speed synchronous

motors, as they have inherently small

inductances. The resulting rotor heat

can have an enormous impact on

rotor stability, permanent magnets

and bearings. Particularly at high

rated motor speeds, these problems

become apparent.

As a countermeasure, standard

converters with two-level pulse width

modulation (PWM) and low switching

frequency are often used in combination

with LC filters. These customized

solutions are based on passive electronic

components that allow either

smoothing the switching edges of the

output pulse pattern via dv/dt filter or

even an approximation of sinusoidal

motor voltages and currents. However,

using LC filters comes with

additional costs, increased space

requirement, more weight as well as

losses in efficiency. In addition, the

prior dimensioning of the filter for

the specific application requires time

and flexibility.

The solution: three-level technology

and higher switching frequencies

Fig. 2: With frequency converters of the SD4x family by SIEB & MEYER, users benefit from a

significant increase in the efficiency of turbo compressors and blowers that are used e.g. for

wastewater treatment.

Image: SIEB & MEYER AG

Another option is to increase the

switching frequency for PWM. The

rule of thumb here is that doubling

26 GREEN EFFICIENT TECHNOLOGIES 2026


Fig. 3: Perfect sine curve: Compared to standard converters, the three-level technology combined with higher switching frequencies reduces

the harmonic current parts (ripple current) to 10 % so that the converter-based rotor losses are significantly lower. Image: SIEB & MEYER AG

the frequency will reduce the ripple

current by half. There are technical

and economical limits, though.

On the one hand, high-frequency

power transistors are more expensive

for higher voltage ranges. On

the other hand, the switching losses

in the output stage increase drastically,

which has a negative impact on

the efficiency and the cooling effort.

Apart from that, not all motors can

cope well with increased switching

frequencies. In some cases, especially

with synchronous motors without

segmented permanent magnets,

increasing the frequency reduces the

motor losses only marginally.

An alternative is the threelevel

technology as implemented,

for example, in the SD4M by

SIEB & MEYER. Compared to twolevel

technology, only half the voltage

is supplied to the power semiconductors

of the output stages. This makes

the use of power semiconductors for

lower voltages possible and these

can switch faster. The result: there

are fewer switching losses in the

output stage and the switching frequency

can be increased significantly.

At the same time, the motor is loaded

with only 50 % of the voltage jumps

compared to two-level technology.

Three-level technology can reduce

the losses generated in the rotor by

about 75 %. Combining three-level

technology with a higher switching

frequency reduces the rotor losses by

up to 90 % and, in many cases, eliminates

the need for LC filters.

More efficient climate-friendly

applications

The effects on efficiency, CO 2

emissions and costs when using

a SIEB & MEYER frequency converter

become clear with the practical

example of a wastewater

treatment plant ventilated by turbo

compressors or turbo blowers. This

application is characterized by roundthe-clock

operation of the compressors

or blowers; 365 days a year.

Therefore, the plant efficiency is an

important factor and keeping the

Fig. 4: The combination of a flywheel energy storage unit with a fast charging station contributes

to the mobility transition in structurally weak areas. The flywheel rotor works in a

high vacuum, which requires the lowest possible motor heating. Image: Adaptive Balancing


27


motor heating as low as possible constitutes

a big challenge. SIEB & MEYER

meets these requirements with the

SD4M and its multilevel output stage,

which increases the efficiency of the

turbo compressors or blowers by

several percentage points.

Another application example for

the SD4M series by SIEB & MEYER is

a solution for fast-charging stations

in areas with a weak grid structure.

The fast-charging station works in

combination with a flywheel energy

storage unit that provides the energy

required for charging the vehicle and

stores energy between the charging

processes.

The big challenge of this application

is that the rotor of the flywheel

works in a high vacuum. With

the resulting high insulation effect,

the heat can only dissipate as radiant

heat. Moreover, this system uses

magnetic bearings, i.e. without contact,

so that the rotor heat cannot be

transferred outward via the bearings.

“That means, this system requires

the lowest possible heating to work

properly,” summarized Torsten

Blankenburg. “Our frequency converters

generate minimal heat and

can therefore optimally support such

applications and even make them

possible in the first place.”

Optimized control of IPM motors

Another talent of the SD4x family is

the optimized control of IPM motors.

IPM motors make significantly higher

demands on the frequency converter.

For one, the current angle in dependence

of the operating point must be

optimally applied to the machine

to achieve the maximum possible

torque at each operating point. In

addition, the frequency converter

must consider the depen dency of the

motor inductance on the current and

frequency to reach optimal efficiency.

Using special control structures,

the SD4x frequency converters can

accurately determine the described

dependencies and optimally control

them at the respective operating

point, which results in the optimal

torque at the lowest pos sible motor

current. This minimizes the losses in

the motor and converter, improves

the energy balance and reduces CO 2

emissions.

SD4x: development platform for a

future-proof device series

Already some time ago, SIEB & MEYER

introduced the development platform

SD4x. On this basis, the company

now continuously develops a

future-proof device series. The frequency

converters support new

interfaces and offer a number of

additional functions. Users benefit

from higher speeds and from a significantly

enhanced performance.

Thanks to an integrated position

controller, SD4x converters can now

execute highly precise positionings.

The speed and current controller

have remained unchanged compared

to the well-established SD2x series.

“Our aim is to drive high-speed

motors dynamically and with even

less power losses,” said Blankenburg.

“Therefore, we now support

PWM switching frequencies of 24 and

32 kHz.” For an even finer modulation

of the sine-wave signal, a commutation

angle control for 32, 48 and

64 kHz is also integrated. The result is

an almost optimal sine with nearly no

harmonic currents. The power loss

caused by the PWM can be reduced

to a small fraction.

“Optimized performance, higher

speeds as well as the lower motor

heating without sine-wave filter –

these are substantial advantages of

the SD4x product family,” summarized

Blankenburg. “The enhancements

allow optimizing the production

quality for existing applications and,

beyond that, exploring completely

new fields of application.”

SIEB & MEYER AG, Lüneburg

Markus Finselberger

Head of Sales Drive Technology

Drive electronics

info@sieb-meyer.de

www.sieb-meyer.com


Durability

CTX & LUCCS Light System:

Cooling solution for novel LED light system

The light that remains

Thomas Windeck

The visible profile heat sink and the housing made of brushed aluminum turn this industrial light into a design object



Image: CTX Thermal Solutions / LUCCS Light Systems

It is certainly rare for a heat sink to

be part of the product design. However,

this is precisely the case with

the lights from LUCCS Light Systems.

The core of their LED system are

heat sinks from CTX, furnishing the

system with exceptional durability.

A lot will change on the ceilings of

industrial halls in the near future.

Following the EU ban on T5 and

T8 fluo rescent lamps – commonly

referred to as “neon tubes” – in 2023,

companies are now looking to install

more sustainable light sources.

Reasons for the ban are the high

power consumption of the models as

well as the use of toxic substances in

their production. As far as Thorsten

Steinig and Jürgen Nordhoff are concerned,

the sustainability of alternative

light sources must be considered

on a level that reaches even further.

Their approach: Above all, LED lighting

systems need to be long-lasting.

“Built for generations” is the

slogan the fledgling LUCCS Light

Systems company has therefore chosen

for the “Adilia” series of lights

they developed and are now distributing.

The product line includes LED

industrial lights boasting high-quality

materials and a modular design.

If they develop a defect, individual

parts can easily be replaced. “After all,

there is nothing sustainable about an

LED system that has to be disposed

of as a whole due to the failure of one

singular component,” states Thorsten

Steinig. Long service life, easy maintenance

and an appearance that underlines

the premium quality of the lights

were placed front and center during

product development. A key role in

this regard was played by the thermal

management of the LED lights.

First contact at eye level

It seems obvious that LUCCS Light

Systems quickly found the right partner

for their concept in CTX Thermal

Solutions. Actually, one should say

that it was Steinig and Nordhoff who

found their partner, as the company

had not yet been founded when

design planning started. In their

capacity as management consultants

and electrical engineering technicians,

the two at first only harbored

the idea of sustainable LED lighting

when they began their search

for implementation partners. “We

attached prime importance to personal

contact,” relates Steinig. “We

needed our counterpart to under-


29

Durability

Fig. 1: The profile heat sink with its fins delivers heat dissipation over

a large surface, endowing the lights with a long service life.



Image: CTX Thermal Solutions / LUCCS Light Systems

Fig. 2: The extrusion method also allows for the manufacture of

complex heat sink geometries at economical costs per unit.



Image: CTX Thermal Solutions

stand what we were talking about.”

And CTX turned out to be the perfect

partner for the topic of thermal

manage ment.

Aside from large corporations,

droves of start-up businesses place

their trust in the heat sink manufacturer

from Nettetal in North

Rhine-Westphalia. “Young companies

benefit from having someone at their

side who covers the entire supply

chain, from development to sample

and series production as well as logistics,”

points out Patrick Zelenka, Sales

Manager at CTX and in charge of

the “Adilia” project. Thorsten Steinig

adds: “Another crucial aspect for us

was to find a partner who could meet

us at eye level and help us realize our

new concept for sustainable industrial

lighting.”

Heat sink as the centerpiece

The two founders already used one

of the initial meetings to pitch their

concept on the basis of drawings and

planned operating data, for which

CTX then developed the appropriate

cooling solution. The heat sink is

the central component of the “Adilia”

light. Both the LED panel and the

parts of the housing, front and rear

plate, are attached to it. The components

can be replaced with ease

thanks to the screw joint. The heat

sink geometry consists of a base plate

with a fin profile, allowing for natural

convection. The cooling element was

created from a standard profile using

the extrusion method. During this

process, aluminum heated to around

500 °C is pressed through a die; the

individual heat sinks are then cut

down from the extruded section. The

aluminum extruded alloy commonly

used for this process is distinguished

by its excellent thermal conductivity

of approx. 210 W/mK. Thanks to this

property and the low cost per unit,

extrusion proved to be the ideal manufacturing

process for the “Adilia”

cooling solution.

“We made the deliberate choice

of oversizing the heat sink,” explains

Jürgen Nordhoff of LUCCS Light Systems.

The goal was to keep the operating

temperature of the lights in a

range between 40 and 50 °C, and

thus nearly 50 percent below the

junction temperature of LED lights.

“The service life of the lights starts

decreasing at 90 °C,” declares Nordhoff.

“The cooling solution we have

devised thus achieves a delta to this

critical temperature range that is

great enough to make overheating

practically impossible.”

Components of the lights’ design

To allow for effortless cleaning with

compressed air, the profile heat sink

is housed so that it is visible and

easily accessible through openings in

the housing. It thus became an integral

part of the luminaire's design,

which is why its surface is anodized

at CTX. Aside from harmonizing

the appearance of the heat sink

with the housing, this treatment also

improves the cooling element's corrosion

protection.

The housing is also supplied by

CTX. Housing technology is part of

the manufacturer's portfolio, which

they can – as required – design as

protection against environmental

Fig. 3: The fin density and the installation position can be used as a means to adjust the

capacity of a profile heat sink.



Durability

Fig.4: Housing technology is an inherent fixture in CTX’s portfolio The components can be

tailored to the customer’s specific needs in terms of function and design.




influences, mechanical loads, and

electrostatic discharge or as a solution

that provides cooling. For this

purpose, CTX uses manufacturing

processes capable of producing custom

designs, such as die casting,

extrusion and stamping and forming

technology. The manufacturer uses

such finishing processes as painting,

powder coating, anodizing or printing

to make the housing surface robust

and visually appealing.

The two U-shaped profiles of the

“Adilia” housing are created using the

extrusion method and a forming tool

that was developed by CTX; the surface

is brushed and anodized. Since

the front and rear plates of the light

are supplied by another manufacturer,

the development requirements

imposed on the dimensional accuracy

of the components as well as on

the surface treatment were particularly

high. “These matters required

quite a few coordination meetings

before the light could be unveiled

as a seamless product that seems to

stem from a single source and guarantees

reliable heat dissipation at the

same time”, recalls Zelenka.

Time to market of only

a few months

The project partners succeeded in

overcoming all development obstacles

within an exceptionally short

time. CTX was one of the first to be

contacted by the founders of LUCCS

Light Systems in October 2024. It only

took CTX four weeks to present the

first heat sink samples, allowing Thorsten

Steinig and Jürgen Nordhoff to

create the first experimental setups

of their lights. After minor adjustments,

which CTX implemented via

CNC machining, the heat sink went

into series production. It was not

until the turn of the year that LUCCS

Light Systems was formally founded,

but their business took off as early as

spring 2025 when they launched their

“Adilia” series.

The lights are in demand in various

industries. They are already used

in warehouses and in mechanical

engineering. Delivering a light output

of 172 lm/W, they are also found

in work areas that require intense

brightness, such as special purpose

machinery manufacturing or quality

control. Industrial woodworking is

another area where the use of these

LED systems is permitted. “Our effective

cooling enables 'Adilia' lights to

achieve a low surface temperature,”

asserts Nordhoff. This ability is confirmed

by the D mark and the IP50

rating. “This means that our LED

lights are approved for use in premises

where flammable dust is generated.”

Additional areas of application

could follow, such as exhibition halls,

office buildings, shopping arcades or

others. As the next step, however,

the company is focusing on expanding

the “Adilia” series by the next

two sizes, for which CTX is currently

adapting heat sinks and housings. In

addition, the sales territory is gradually

being extended beyond the borders

of Germany. CTX is geared up for

these moves. “The production of the

'Adilia' components can be ramped

up at any time,” claims Patrick Zelenka

of CTX. “After all, it makes sense for

start-ups if the supplier not only has

the ability to produce small quantities

during the initial phase, but can also

scale up the production if the product

is successful.”

The Author:

Thomas Windeck

Head of Sales, CTX Thermal Solutions

Fig 5: CTX boasts a portfolio of heat sinks and manufacturing processes that can be used to

develop cooling solutions suitable for every application requirement.




CTX Thermal Solutions GmbH

Lötscher Weg 104

D-41334 Nettetal

www.ctx.eu


31


Focusing on the essentials during commissioning

PLC diagnostic buffer

gains an additional source of information

Andy Carius, Nora Crocoll

Almost every machine builder

knows the scenario during commissioning:

instead of performing

loop checks and functional tests,

or being able to start the machine,

you first have to deal with sporadic,

non- reproducible events in

PROFINET communication. The

causes are usually unclear, and the

PLC diagnostic buffer provides no

precise information. The typical

workaround is to replace connectors,

cables, or network components

step by step. This situation is frustrating,

time-consuming, and often

feels like “fishing in murky waters”.

It would be far better to have clear

information available in order to

quickly identify and eliminate the

causes and then be able to fully concentrate

on commissioning.

It is not unusual for errors to

occur, or become visible, during commissioning.

This is normal and can be

generalised graphically (the “bathtub

effect,” Fig. 1). The fact that error frequency

is very high at the beginning

is not surprising whether in electrics,

mechanics, or networking. It is to be

expected, and an appropriate timeframe

for transferring a machine or

system into continuous operation

should be planned. Problems arise

when this period extends unexpectedly

because sudden, non-reproducible

effects occur in the control

system and no structured approach

can be applied.

A common commissioning scenario

unfolds as follows: after

mechanical and electrical installation,

hardware and software commissioning

starts step by step, followed by

functional testing. It becomes problematic

when systems that have

already been tested suddenly show

irregularities. For example, PROFINET

communication, normally a negligible

element during commissioning, suddenly

“speaks up” and fails sporadically.

To restore operation quickly,

the affected devices, reported as

failed in the PLC, are declared defective

and replaced. This often repeats

several times until the actual cause,

such as a defective backbone cable

Fig. 1: The bathtub effect: at the beginning, failures occur due to various deficiencies (product,

installation and software errors), which must be rectified with planned effort. After long

system operation, failures increase again due to ageing and wear of components.



Image: Indu-Sol

is identified. In many cases, the software

specialist never even reaches

the stage of testing PLC programs

because unexplained network disturbances

keep occurring. Frequently,

hand sketches (Fig. 2a+b) are used

to trace the cause. In practice, such

investigations can consume an entire

working week (Fig. 2c).

PLC provides too little

diagnostic clarity

The PLC usually monitors the

PROFINET application. To determine

the cause of device failures,

the software specialist consults the

PLC diagnostic buffer, which provides

extensive information. However, in

this context the buffer only distinguishes

between two states: “working”

or “not working”, or as shown in

Fig. 3a, “green” or “red”.

Assuming that apart from power

loss there is no sudden, unforeseeable

failure without warning, the

question arises: how can a failure be

predicted, narrowed down or better

described? To clarify this, a deeper

look at PROFINET communication

is necessary. Each device requires a

certain transmission time to deliver

its information (update time). To

ensure reliable transmission, communication

provides an additional

time buffer (watchdog time), typically

three times the update time. If transmission

fails even within this buffer,

the system enters a safe state, communication

with the device stops.

Detectability is possible by identifying

telegram gaps: each missed transmission

leaves a gap at the receiver.

By default, the PLC tolerates up

to three gaps and therefore does not

record them in the diagnostic buffer.

In other words: “Everything is fine no

irregularities.” Only more than three

telegram gaps lead to an error state

(loss of communication with the



Fig. 2a+b: Hand sketches based on ePlan and diagnostic buffer data assist in fault diagnosis.




device), triggered by exceeding the

watchdog.

Using the traffic-light metaphor,

it becomes clear that the “yellow”

range is missing (Fig. 3b), even

though a parameter exists that could

make it visible. Whenever two or

three tele gram gaps occur, there is

already likely to be a communication

problem with the affected device. In

practice, several devices are usually

affected, to varying degrees. If the

PLC programmer or service engineer

also had this “yellow information”

available in the PLC, sporadic network

faults could be addressed more

precisely.

Intermediate-state data enables

early intervention

This is where Indu-Sol’s PROFINET

Agent “Agent Blond” comes in (Fig. 4).

Integrated into the network as a

passive measuring point, it monitors

PROFINET communication.

Karl-Heinz Richter, Managing Director

of Indu-Sol, explains: “Such measuring

points (TAPs) are already installed

in many systems. Our idea was to add

intelligence to them so that telegram

gaps in PROFINET communication

can be detected per device.” Thanks

to a GSDML file, the intelligent measuring

point can be easily configured

in the PLC using common engineering

tools such as TIA Portal.

Integration into the PLC and use

of the diagnostic buffer ensures that

the familiar reporting path (Fig. 5)

remains unchanged for PLC programmers,

service engineers and

future maintenance staff. The product

includes a GSDML file and a

function block for generating cyclic

values. It is then up to the PLC programmer

whether to store the information

internally, display it on the

HMI in relation to topology, or keep

it retrievable in the diagnostic buffer.

This means that during commissioning,

additional useful network

information is available within the

familiar PLC environment, making it

possible to trace sporadic network

errors. The acquisition cost is negligible;

compared with the potential

time lost (Fig. 2c), the product often

pays for itself by the afternoon of the

first day.

Leaving the site with confidence

Anyone who has commissioned a

system is familiar with the uneasy

feeling when leaving a site: faults

were acknowledged, did not

reoccur, and the network seemed

stable — but no one really knew

why. With Agent Blond installed,

the actual state of PROFINET communication

is clear, enabling engi-

Fig. 2c: Finding the root cause of faults can often take an entire working week.



33


Fig. 3a: A PLC diagnostic log only indicates “working” or “not working”.


Fig. 3b: With the added “yellow” intermediate-state information, root causes can be rectified more quickly.


Prepared for the future

Fig. 4: Indu-Sol’s Agent Blond is integrated into the network as a passive measuring point to

monitor PROFINET communication. The captured information is fed into the PLC diagnostic log.




neers to focus on other projects.

If problems arise during the warranty

period requiring intervention,

the available data allows for faster

response. If the operator permits

secure remote access to the PLC,

issues can be identified remotely,

enabling corrective action or ensuring

that engineers arrive on site

fully prepared.

Machine builders can also offer their

customers an additional benefit:

throughout the entire system lifecycle,

maintenance staff gain valuable

insight into PROFINET quality.

Once installed, the intelligent measuring

point can also be expanded

with additional Indu-Sol diagnostic

tools, providing a significant advantage

for reliable plant operation and

extending fault-free runtime (horizontal

line in Fig. 1).

Ultimately, digitalisation can only

progress if access to data is systematically

enabled. Indu-Sol’s solutions

help machine and plant builders

structure their networks benefiting

both commissioning and long-term

operation. Richter concludes: “We

are currently talking a lot about OT

security and the necessary implementation

of the Cyber Resilience Act

(CRA). The basis of all these measures

begins with knowledge of the network

and the applications required

for it. At present, there is a major

shortcoming here — or conversely, a

considerable need to catch up.”

The Authors

Andy Carius

CTO at Indu-Sol GmbH

Dipl.-Ing. (FH) Nora Crocoll

Redaktionsbüro Stutensee)

Indu-Sol GmH, Schmölln,

Deutschland

info@indu-sol.com

www.indu-sol.com

Fig. 5: PLC diagnostic log with additional information from Agent Blond.



Companies - Innovations - Products

Peace of mind when buying pre-owned

eBikes: Certified by Bosch creates trust

in the second-hand market

A digital Bosch certificate makes the condition of eBike systems

transparent

• More transparency when buying pre-owned: A digital Bosch

certificate ‘Certified by Bosch’ shows the condition of the drive unit,

battery and eBike system

• Protection against counterfeiting: authenticity can be verified online

via QR code

• Rebike becomes first partner: eBikes with a Bosch certificate available

from July 2026

• Extension to specialist retailers: from the beginning of 2027,

specialist bicycle retailers will be able to issue the certificate

• Environmentally conscious choice: pre-owned eBikes conserve

resources

Pre-owned or refurbished eBikes are becoming an increasingly attractive

option for many people. 1 However, potential buyers are often

unsure about the condition of pre-owned models and therefore want

more transparency for peace of mind when making a purchase decision.

With ‘Certified by Bosch’, Bosch eBike Systems is the first manufacturer

of eBike drive systems to create a digital certification for the

pre-owned market. The certificate digitally displays the condition of

the battery and drive unit of the smart system, shows important information

about the model and confirms that the eBike has not been

reported as stolen in the eBike Flow app. From July 2026, refurbishment

specialist Rebike will be the first partner to certify all eBikes with

a Bosch system and issue them with the ‘Certified by Bosch’ certificate.

From the beginning of 2027, Bosch will also use the certificate to support

specialist bicycle retailers in the sale of pre-owned models.

“Our products are designed to a high quality and for a long service

life, making them ideally suited for a second life in the pre-owned

market. This market is important: it makes eBikes accessible to more

people and contributes to first refurbishment partner, we are establishing

a transparent and professional offering that provides buyers

and sellers alike with a high level of trust,” says Claus Fleischer, CEO of

Bosch eBike Systems.

Certified by Bosch: clarity about battery, drive unit and

system condition

Anyone buying a pre-owned eBike is faced with a challenge: it is difficult

to realiably assess the condition of the battery and drive unit

from the outside or compared with other offerings. At the same time,

these components significantly determine the value and thus the purchase

price. This is precisely where ‘Certified by Bosch’ provides clarity:

the digital certificate for the smart system records the condition of

the battery and drive unit at the time of certification and displays it

in an intuitive star-based rating display, with a higher number of stars

reflecting a better condition. 2 For the battery, information such as the

number of charge cycles and the remaining capacity in percent can

be displayed. For the drive unit, values such as the distance already

travelled and the power used so far are included in the rating. The

certificate also shows important model information such as brand,

model year and frame number and confirms that the eBike has not

been reported as stolen in the eBike Flow app and that there are no

indications of tuning. By comparing the serial numbers of the battery

and drive unit with the serial numbers displayed in Certified by Bosch,

it is possible to ensure that the certificate actually belongs to the eBike

being sold. To better protect eBikers against fraud, authenticity can

also be easily checked using a QR code.

Widespread availability: Rebike to become the first partner from July

2026 Rebike is the first partner to rely on Certified by Bosch: refurbished

eBikes with the Bosch certificate will initially be available in

Germany, Austria, Switzerland, France and the Netherlands from July

2026. The certified models will be available in the Rebike online shop,

in the company's own stores, on partner marketplaces and in selected

shop-in-shop areas at Decathlon. Belgium, Spain, Italy and other

European markets are also set to follow.

“Our customers appreciate the security we offer as a professional provider

when buying a refurbished eBike. In addition to our own services,

such as our TÜV-certified Premium Refurbishment Programme and

the two-year Rebike warranty on the motor and battery, with Certified

by Bosch we are creating even more transparency about the condition

of our models with the Bosch system. Together, we are strengthening

confidence in refurbished eBikes and making the pre-owned market as

a whole even more attractive,” says Sven Erger, COO and co-founder of

Rebike. From 2027, Bosch eBike Systems will also be using the Bosch

certificate to support specialist dealers in Europe with their pre-owned

eBike sales. Digitally certified eBikes will be available at more contact

points and the transparent second-hand market will continue to grow.

Buying pre-owned eBikes: an environmentally conscious choice

Buying a pre-owned eBike with a Bosch system is a conscious decision

for the environment. Compared to the new production of a

similar model, CO 2 and CO 2 equivalents savings of up to 208 kg can be

achieved. 3 This corresponds to around 80% of the emissions of a new

eBike. The reason: no new materials are required and no new components

are manufactured.3 Buying second-hand conserves valuable

resources and saves money. With Certified by Bosch, eBikers don't

have to compromise on safety and transparency when buying a preowned

bike.

35


References

[1] Source: ZIV market data 2025, last accessed on 15/04/2026.

[2] The following information is displayed: certification information

(certificate creator, creation date, certificate ID, overall star

rating), eBike information (model, brand, model year, total distance

and frame number), registration (confirmation that the

eBike is not marked as stolen in the eBike Flow app. If the eBike

is marked as stolen, a Bosch certificate will not be issued. The

theft status is checked solely on the basis of the messages in

the eBike Flow app. A comparison with police search databases

or other external registers does not take place); information on

whether components are locked and registered, the drive unit

(product name, product code, serial number, supported distance,

tuning detection (no certificate is issued in the case of tuning),

star rating, potentially logged faults), the battery (product name,

product code, serial number, number of charge cycles, remaining

capacity in percent, star rating, potentially logged faults), the system

and services (software status, star rating, potentially logged

system faults); the star rating is based on Bosch's own evaluation

criteria.

[3] Bosch eBike Systems has considered the effects of CO 2 as well as

other greenhouse gases and climate-relevant substances, insofar

as these are relevant to the analysis. For ease of reading, Bosch

eBike Systems uses CO 2 synonymously with CO 2 equivalents. The

basis for calculating the carbon footprint of an eBike is a Trekking

eBike with a Performance Line CX, PowerTube 500 and Kiox 300

and a mileage of 11,000 km. The remaining 20% is made up of

transport, packaging, recycling and use. The calculation was carried

out by TÜV Rheinland (as of April 2024).

Robert Bosch GmbH

P.O. Box 10 60 50

70049 Stuttgart, Germany

www.bosch-ebike.com

CVS engineering Launches

SKL eMotion-Pack for Electric

and Hybrid Trucks

Electric drive solution for efficient unloading of bulk goods

CVS engineering GmbH, based in Rheinfelden, develops and manufactures

oil-free compressors for installation in commercial vehicles. With

the new SKL eMotion-Pack, CVS has now collaborated with fleet operators

to create a powerful, zero-emission compressor unit for electric

trucks. The mobile unit is designed for unloading bulk goods such

as construction materials, food, chemicals, and plastics – without the

need for stationary power connections or compressed air units. The

unit draws power from the electric truck’s battery, so no engine needs

to be running during unloading.

Greater kingpin load, greater swing-through clearance

The compact design makes the SKL eMotion-Pack ideal for electric

vehicles – not least because it maximizes the kingpin load and space

utilization. It also takes up less space behind the cab. This allows the

fifth-wheel coupling to be positioned flexibly to distribute the drawbar

load optimally across the axles. “At the same time, there is sufficient

swing-through space for the trailer, so that semi-trailers with standard

EURO dimensions can also be used, depending on the type of truck,”

adds Andrea Dente, the responsible Product and Sales Manager.

Low noise level

Additional benefits include quiet operation: Compared to diesel

engines, the noise level during unloading is significantly lower. Another

plus for users: The direct drive system requires neither hydraulic oil nor

mechanical shafts, which simplifies maintenance and reduces operating

costs. The cooling system for the SKL eMotion Pack from CVS consists

of an efficient oil cooler for the operating oil and a compressed air

aftercooler, particularly for temperature-sensitive goods. In addition,

an intake filter with an integrated maintenance indicator ensures good

air quality. Any potential overloads are prevented by a special safety

valve and a pressure silencer with an integrated check valve.

Read real-time data

“The other system features are also impressively user-friendly,” adds

Andrea Dente: “For example, power is transmitted via a flexible coupling

between the ePTO motor and the screw compressor.” The ePTO

(electric Power Take-Off) is a complete unit featuring a liquid-cooled,

speed-regulated electric motor and control system. All values, such as

temperature or torque, can be read at any time as needed.

Easy installation on vehicles

Installing the SKL eMotion Pack on vehicles is straightforward and is

done directly on the chassis using specially adapted mounts. In addition,

two compressed air outlets ensure easy and flexible unloading.

All in all, the SKL eMotion Pack is well-suited for the growing market

of mobile unloading of electric silo trucks whose mechanically driven

compressor units are not compatible with electric trucks. Following the

market launch of the SKL eMotion Pack, CVS engineering plans further

model and functional enhancements to be able to offer the system for

all truck brands.

36


Key benefits at a glance

• Suitable for all temperature-sensitive bulk and free-flowing materials

such as food, plastics, animal feed, chemicals, or construction

materials

• Optimized for mounting on a truck chassis

• Operating pressure up to 2.5 bar(g)

• Maintenance-friendly design

• The complete system solution with e-PTO for your electric truck.

CVS engineering GmH

Großmattstr. 14

78618 Rheinfelden, Germany

www.cvs-eng.com

HORIBA Air Quality Monitor AP-380

series achieves certification from

leading international organizations

including the U.S. EPA and the German Federal Environment Agency

jointly with TÜV Rheinland

HORIBA Europe GmbH (hereinafter “HORIBA”), a leading provider

of measuring and testing solutions for a wide range of applications,

proudly announces that the group companies AP-380 air quality monitor

series has received type approvals from certification bodies including

the German Federal Environment Agency (UBA) jointly with TÜV

Rheinland Energy GmbH 1 (TÜV), CSA Group Testing UK Ltd 2 (CSA Group)

on behalf of the UK Environment Agency (EA), the U.S. Environmental

Protection Agency (U.S. EPA), South Korea’s National Institute of

Environmental Research (NIER), and the State Administration for Market

Regulation of the People’s Republic of China (SAMR). These approvals

enable the analyzers to be sold to national and local governments,

and other public institutions, primarily focused on Europe, Americas,

the Middle East, East Asia, and Southeast Asia.

The AP-380 series is now being expanded at an accelerated pace to

further contribute to enhancing the air quality monitoring processes

required by national and local governments and private companies in

the course of assessing and addressing air pollution. HORIBA will continue

to meet the diverse range of measurement needs in pursuit of a

sustainable global environment.

The AP-380 series air quality monitors continuously measure the concentration

of carbon monoxide, sulfur dioxide, ozone, nitrogen oxides,

and hydrocarbon gases at high precision ranging from ppb 3 to ppm 4 .

In addition to ambient air monitoring, the series addresses a diverse

range of other measurement needs, such as detecting molecular contaminants

in environments where semiconductors, sensors, and other

electronic parts are manufactured, as well as monitoring impurities

during industrial gas production processes. Each gas component analyzer

is designed to be modular to enable integration into systems

and facilities in line with customer requirements. The analyzers are

also equipped with user-friendly software, and all functions can be

operated remotely from a variety of devices, thereby enhancing work

efficiency.

The modular design is a method of designing products by functional

units, enabling easy replacement and customization. By adopting a

modular design for each gas component analyzer, the AP-380 Series

can be integrated into various systems and facilities to customize for

stationary, wall-mounted, mobile or portable installations.

Dr. Michael Kamphus Product Manager Air Quality says: “With more

than 60 years of experience in air pollution monitoring equipment,

HORIBA has consistently met its customers' demand for air quality

monitoring. Receiving certification from the U.S. EPA, UBA and TÜV,

and other international organization represents a major milestone

for us as a solution provider. The European certification 5 tests conducted

by TÜV Rheinland confirmed that the AP-380 series, is in line

with HORIBA’s tradition of excellence and demonstrated a high level

of stability. Notably, the APNA-380 delivered a significant performance

improvement compared to its predecessor 6 . We will continue to contribute

to a sustainable global environment by providing the AP-380

series along with a diverse range of additional analysis and measurement

solutions.”

This certification covers models within the AP-380 Series that are

designed to meet measurement requirements for ambient air monitoring.

Please see the table below for details.

Certification Body Certified Product Models

U.S. EPA

APNA-380 (for measuring nitrogen oxide)

UBA and TÜV APOA-380 (for measuring ozone)

EA and CSA Group APMA-380 (for measuring carbon monoxide)

NIER

APSA-380 (for measuring sulfur dioxide)

SAMR

APSA-380, APNA-380



Image: © HORIBA

[1] TÜV Rheinland Energy GmbH: Part of TÜV Rheinland Group, a

leading global certification body, headquartered in Germany with

over 150 years of history.

[2] CSA Group Testing UK Ltd: Part of CSA Group, a leader in standards

development and in testing, inspection and certification

around the world.

[3] Parts per billion. For gas components, 1 ppb indicates that 1 liter

of the target substance is present in 1 billion liters of gas.

[4] Parts per million. For gas components, 1 ppm indicates that 1

liter of the target substance is present in 1 million liters of gas.

[5] Certification name: QAL1

37


[6] In QAL1 certification testing to EN14211:2012 and EN14211:2024,

the relative expended uncertainty was reduced by more than

a factor of two. For further details, please refer to the QAL1

certificate.

Find more information here:

AP-Series - Air Quality Monitoring

APNA-380 - nitrogen oxide monitor

APOA-380 - ozone monitor

APMA-380 - carbon monoxide monitor

APSA-380 - sulfur dioxide monitor

APHA-380 - hydrocarbon monitor

HORIBA Europe GmbH

Hans-Mess-Str. 6

61440 Oberursel, Germany

www.horiba.com

Plasma solves key surface challenges

in battery manufacturing

Efficient surface treatment with plasma

How can scrap rates be reduced, sensitive battery areas be cleaned

reliably, and stable bonding and coating processes be ensured

simultaneously? These questions, with a focus on surface quality,

were at the heart of Plasmatreat’s booth D10 in hall 3 at The Battery

Show Europe 2026. Plasmatreat, a Steinhagen, Germany-based

company that specializes in developing and manufacturing atmospheric

and low-pressure plasma systems, will showcase practical

applications for battery production. These applications range from

ultra-fine cleaning and activation to removing stubborn residues

and applying functional coatings for durable bonds and corrosion

protection. The focus is on in-line capable technologies that can

efficiently integrate into modern production lines and solve challenges

in the battery industry.

Process reliability throughout the battery value chain

The demands placed on modern battery systems continue to grow.

Higher energy densities, more compact designs, and greater demand

for service life and safety simultaneously put pressure on production

processes. Throughout the entire battery value chain, reproducible,

environmentally friendly processes, reliable adhesion and stable

corrosion protection are becoming increasingly important. Surface

pretreatment is emerging as a critical quality factor.

deliver consistent results, and eliminate the need for additional chemicals

or energy-intensive process steps.

Atmospheric plasma as an inline-capable process solution

At Battery Show Europe 2026, Plasmatreat presented solutions

designed to address the challenges of battery production. In hall 3,

booth D10, the company demonstrated current applications of atmospheric

plasma technology for battery production, including cleaning,

activation, and functional surface coating.

Openair-Plasma technology operates at atmospheric pressure and

can be integrated directly into existing production lines. Surfaces are

treated selectively and contact-free at high process speeds. Unlike traditional

wet chemical or primer processes, this method only requires

compressed air and electrical power. This reduces the number of process

steps and eliminates the need for VOC-containing chemicals. Controlled

surface treatment is particularly important in modern battery

designs featuring a variety of material combinations. Plastics, metals,

and hybrid materials can be prepared specifically for subsequent processes.

This treatment improves surface wettability and creates stable

conditions for bonding, sealing, and coating processes.

Specific applications of plasma

Applications range from cell treatments and pre-cleaning of battery

cells before electrical insulation via foiling to activation during cellto-cell

bonding and reliable cleaning of contact and connection surfaces.

Furthermore, plasma technology opens up new possibilities for

alternative insulation concepts. For instance, coatings for cell insulation

can be applied directly to replace traditional foil wrapping, making

processes more efficient. At booth D10 in hall 3, Plasmatreat demonstrated

automated, selective plasma processes on prismatic and

cylindrical battery cells.

In addition to traditional surface activation, Plasmatreat showcased

HydroPlasma applications at the trade show. This process was specifically

developed for challenging cleaning tasks and is ideal for removing

electrolyte residues or particulate contaminants from sensitive components.

The advantage lies in its ability to clean effectively while gently

treating materials. Even sensitive surfaces can be cleaned in line without

the use of additional chemical cleaning agents. For battery manufacturers,

this means less rework, lower scrap rates, and more stable

downstream processes.

Invisible contaminants or residues on surfaces can be particularly problematic.

Even the slightest particulate contamination, oil, release agent,

electrolyte residue, or organic contaminant can negatively affect bonding,

sealing, or coating processes, potentially leading to delamination,

corrosion, or scrap. In highly automated production lines especially,

the reproducibility of such processes becomes a decisive factor.

Defects often only become apparent in later manufacturing steps or

during operation, resulting in high costs. Therefore, many OEMs and

battery manufacturers are looking for technologies that can be integrated

into production lines, provide process control and reporting,

Cleaning of battery cells prior to coating or film wrapping before thermal insulation.



Image: © Plasmatreat GmbH

38


Corrosion protection and durable bonds

Another highlight of the booth was the PlasmaPlus AntiCorr coating,

which provides selective corrosion protection for metal components

and battery housings. This dry, inline-compatible process is an alternative

to traditional methods, such as waxing or electroplating, and

it requires no chemical baths or additional drying steps. The ultrathin

coating reliably protects against crevice corrosion and is ideal for

battery housings and structural bonding applications. The process has

been extensively tested and passed standard environmental and salt

spray tests such as PV1209 and MeKo-S.

Focus on industrial feasibility

The primary focus is on industrial application, in addition to the technology

itself. Plasmatreat accomplishes this by combining a wide range

of control, regulation, and monitoring functions to ensure consistently

high quality and reproducibility in plasma treatment. The systems are

designed for automated production environments and can be flexibly

integrated into existing lines. Plasmatreat's portfolio is complemented

by global service and application expertise. With international locations

and application-specific process development, Plasmatreat supports

battery manufacturers worldwide, from feasibility analysis to

series integration.

“The demands of battery production are constantly rising. At the

same time, manufacturers expect cost-effective, sustainable solutions

that can be reliably integrated into existing processes,” explains

Lukas Buske, Plasmatreat’s managing director. “This is precisely where

modern plasma processes create real added value—from cleaning and

activation to functional coating.”

Plasmatreat GmbH

Queller Str. 76-80

33803 Steinhagen, Germany

www.plasmatreat.com

Index of Advertisers

BAUER KOMPRESSOREN GmbH page 40

EIRICH Maschinenfabrik Gustav Eirich GmbH & Co KG page 15

FILTECH Exhibitions Germany page 17

Hammelmann GmbH page 11

ElringKlinger Kunststofftechnik GmbH page 23

Getriebebau NORD GmbH & Co KG

Cover page

39

Brand name register

BAUER KOMPRESSOREN GmbH

Stäblistr. 8

81477 München/Germany

Phone: +49 (0)89 78049-0

Fax: +49 (0)89 78049-167

E-mail: industrie@bauer-kompressoren.de

Website: www.bauer-kompressoren.de

BAUER KOMPRESSOREN is one of the leading

manufacturers of medium and high-pressure system

for the compression of air and gases worldwide.

- Medium and high-pressure compressors

- 25 – 500 bar, 2.2 – 315 kW

- Air and gas treatment

- Storage systems

- Air and gas distribution

- Gas measurement systems

- Controls

For current trade fairs please visit:

www.bauer-kompressoren.de/

news-events/trade-show-dates/

Maschinenfabrik Gustav Eirich

GmbH & Co KG

Walldürner Str. 50

74736 Hardheim/Germany

Phone: +49 6283 51-0

Fax: +49 6283 51-325

E-mail: eirich@eirich.de

Website: www.eirich.de

Delivery program:

As a leading manufacturer of machines and systems,

Eirich has been pioneering advanced technologies

for mixing, granulating, dispersing and more since

1863. “Eirich digital” also offers numerous services,

from smart spare parts systems to AI-based process

analysis.

For current trade fairs, please visit

our homepage:

www.eirich.de/de/

ElringKlinger Kunststofftechnik GmbH

Etzelstr. 10

74321 Bietigheim-Bissingen/Germany

Phone: +49 7142 583-712

E-mail:

hydrogen.ekt@elringklinger.com

Website:

https://www.elringklingerengineered-plastics.com/applications/

hydrogen

The product portfolio contains a wide range of

materials and components for PtX applications –

from electrolysis to mobile use. Innovative

H2-Enginering-Solutions, such as large-scale gaskets

up to 3 m Ø, bellows, pipes and tubes, spring

energized seals, guide rings, ElroSeal Rotary Shaft

Seal etc.

For exhibition-participation

please visit our homepage

https://www.elringklingerengineered-plastics.com/newsroom/

events

Hammelmann GmbH

Carl-Zeiss-Str. 6–8

59302 Oelde/Germany

Phone: +49 (0)2522 76-0

E-mail: mail@hammelmann.de

Website: www.hammelmann.de

High-pressure plunger pumps

Process pumps

Sewer cleaning pumps

Mining pumps (deep mining industry)

Hot water appliances

Operating pressure up to 4,500 bar

Flow rate up to 4,250 l/min

Applications systems for cleaning, removing,

cutting, coating removal, decorning, deburring

with high pressure water

Worldwide participations in trade

fairs,for current trade fairs, please

visit our homepage:

www.hammelmann.com

We are looking forward to your visit!

40

Come and see for yourself:

www.harnisch.com

Perfectly

positioned.

The international specialist magazines from Dr. Harnisch Publications

In addition to the haptic charm of

classic print magazines, we also

offer newsletters, news, events and

subscriptions on our magazine

websites in addition to the digital

editions that can be read free of charge.

Take a look at www.harnisch.com

for all relevant content.

Our publications include:

- Technology & Marketing -


Eschenstraße 25

90441 Nuremberg, Germany

Phone + 49 (0) 911 2018-0

Fax + 49 (0) 911 2018-100

E-Mail GET@harnisch.com

Internet www.harnisch.com

NCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY

FFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFIC

NCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENC


IENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIEN


IENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIEN

FICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EF

Y EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIE

ENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY E

FFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICI

Y EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY

CIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFIC


CY EFFICIENCY EFFICIENCY EFFIC

CIENCY EFFICIENCY

EFFI

GET – GREEN EFFICIENT TECHNOLOGIES EN 1/26

Transform your PDFs into Flipbooks and boost your revenue!

GET – GREEN EFFICIENT TECHNOLOGIES EN 1/26

Transform your PDFs into Flipbooks and boost your revenue!

Delete template?

Save as template ?
