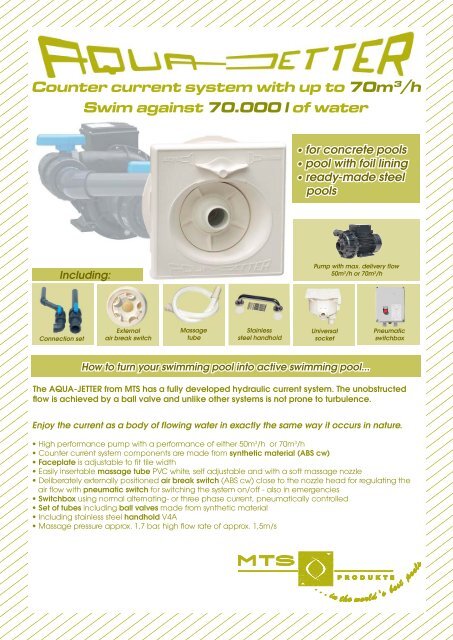

Counter current system with up to 70m 3 /h<br />
Swim against 70.000 l of water<br />
Including:<br />
Connection set<br />
External<br />
air break switch<br />
Massage<br />
tube<br />
Stainless<br />
steel handhold<br />
•• for for concrete concrete pools pools<br />
•• pool pool with with foil foil lining lining<br />
•• ready-made ready-made steel steel<br />
pools pools<br />
Pump with max. delivery flow<br />
50m 3 /h or 70m 3 /h<br />
Universal<br />
socket<br />
How How to to turn turn your your swimming swimming pool pool into into active active swimming swimming pool... pool...<br />
Pneumatic<br />
switchbox<br />
The AQUA-JETTER from <strong>MTS</strong> has a fully developed hydraulic current system. The unobstructed<br />
fl ow is achieved by a ball valve and unlike other systems is not prone to turbulence.<br />
Enjoy the current as a body of flowing water in exactly the same way it occurs in nature.<br />
• High performance pump with a performance of either 50m 3 /h or 70m 3 /h<br />
• Counter current system components are made from synthetic material (ABS cw)<br />
• Faceplate is adjustable to fit tile width<br />
• Easily insertable massage tube PVC white, self adjustable and with a soft massage nozzle<br />
• Deliberately externally positioned air break switch (ABS cw) close to the nozzle head for regulating the<br />
air flow with pneumatic switch for switching the system on/off - also in emergencies<br />
• Switchbox using normal alternating- or three phase current, pneumatically controlled<br />
• Set of tubes including ball valves made from synthetic material<br />
• Including stainless steel handhold V4A<br />
• Massage pressure approx. 1,7 bar, high flow rate of approx. 1,5m/s
• 50.000 l or<br />
70.000 l<br />
• for pools with<br />
foil lining and<br />
concrete pools<br />
• free flow, therefore<br />
stronger current<br />
• 360° tiltable nozzle<br />
• according to the 2004/03<br />
guidelines of the BSW<br />
• made from of certified<br />
corrosion resistant<br />
synthetic material<br />
Deliverable models:<br />
You buy these products from:<br />
COUNTER COUNTER SWIMMING SWIMMING SYSTEM SYSTEM<br />
Components:<br />
• Air break pneumatic switch<br />
• Soft line massage tube<br />
• Stainless steel handhold<br />
• Ball Stop valve<br />
Item no. Description<br />
for ready-made pools and<br />
pools with foil lining: 35061 AQUA JETTER KS VGB 50m3 230V 2,2 kW<br />
35062 AQUA JETTER KS VGB 70m3 400V 3,4 kW<br />
35054 AQUA JETTER Bronze VGB 50m3 230V 2,2 kW<br />
35055 AQUA JETTER Bronze VGB 70m3 400V 3,4 kW<br />
for concrete pools: 30061 AQUA JETTER KS BEB 50m3 230V 2,2 kW<br />
30062 AQUA JETTER KS BEB 70m3 400V 3,4 kW<br />
30054 AQUA JETTER Bronze BEB 50m3 230V 2,2 kW<br />
30055 AQUA JETTER Bronze BEB 70m3 400V 3,4 kW<br />
Pumps: 300611 AQUA JETTER Pump 50m3 230V 50Hz 2,2 kW<br />
300622 AQUA JETTER Pump 70m3 400V 50Hz 3,4 kW<br />
<strong>MTS</strong>-<strong>Produkte</strong> <strong>GmbH</strong> • Postfach 4361 • 40854 Ratingen • An den Dieken 61<br />
40885 Ratingen • Telefon (0 21 02) 3 30 67 / 68 • Fax (0 21 02) 3 30 60<br />
www.mts-produkte.com • e-mail: info@mts-produkte.de
