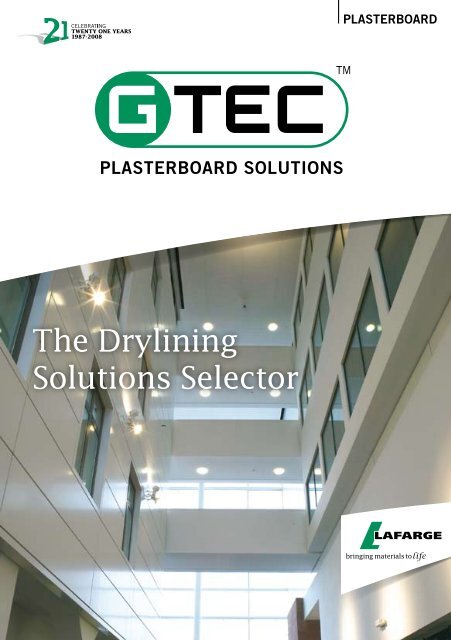

The Drylining Solutions Selector

The Drylining

Solutions Selector

PLASTERBOARD

T H E D R Y L I N I N G S O L U T I O N S E L E C T O R | L A F A R G E | P A G E

Introduction

GTEC – The dynamic new face

of Lafarge Plasterboard

We all know that an innovative company

always stays one step ahead and continuously

adapts to the changing market.

Our customers have told us that our branding

is unclear. In response, we are delighted

to present GTEC – the exciting new

commercial brand from Lafarge.

GTEC provides a more simplified structure,

making it easier for customers to source

and purchase the right Lafarge products

and systems.

It brings further clarity to the Lafarge offer,

delivering confidence along with the Lafarge

brand to everything we do, symbolising

highest quality products, recognised technical

expertise, sustainable initiatives such as our

waste offer and excellent customer service,

all backed by the peace of mind delivered

by the Lafarge GTEC System Warranty.

From April onwards GTEC will be launched

into the marketplace, bringing a fresh new

look to our packaging, point of sale material,

literature and merchandising reinforcing the

quality and service you receive from Lafarge.

The launch of the GTEC Commercial

brand will result in the renaming of our

product range.

For example Lafarge Cormet C Stud

will now be GTEC C Stud.

A detailed product comparison table is

available from Literatureline on

0 75 77 58 .

Standard

Specialist

Performance

EXAMPLE:

GTEC Fire Board

MASTERBRAND

COMMERCIAL BRAND

COMMERCIAL RANGES

BOARD

FINISH

Jointing Compounds

Joint Tapes

Beads

Sealers

Textures

Cove

Cove Adhesive

Profiles

Tools

EXAMPLE:

GTEC Joint Filler (previously Fast Set)

Studs

Tracks

Channels

Angles

Accessories

EXAMPLE:

GTEC C Stud

Adhesives

Renders

Drywall Screws

Nails

FRAME

FIX

EXAMPLE:

GTEC Bonding Compound

Introduction

Lafarge Plasterboard is the gypsum division

of the Lafarge Group, a world leader in the

manufacture and supply of building materials.

Lafarge GTEC Plasterboard Drywall Systems

provide economic, high performance options

to meet a wide range of building requirements.

They are ideally suited to today’s fast-track

construction schedules, which must control

costs whilst maintaining the highest quality

standards. Our plasterboard range and

drywall systems meet the practical and

performance needs of all new-build and

refurbishment projects.

Specialist Help

Lafarge Technical Enquiryline

This unique service combines the skills of our

Technical Advisors with advanced computer

and CAD systems to provide fast answers to all

your drywall specification, performance and

installation enquiries.

T. 0 75 77789

F. 0 75 77456

E. enquiryline@lafarge-gypsum.lafarge.com

Call Literatureline on 0 75 7758 for your

free copy of the GTEC Installation Handbook

and to discuss further training opportunities.

P A G E | L A F A R G E | T H E D R Y L I N I N G S O L U T I O N S E L E C T O R T H E D R Y L I N I N G S O L U T I O N S E L E C T O R | L A F A R G E | P A G E

Introduction

How to use this booklet

How to use this booklet

This guide is designed as a quick and simple reference to the wide range

of Lafarge plasterboard products and drywall systems available. We have

also included some handy tips to help you when the job is underway.

BOARD

GTEC Plasterboard Range 6

An introduction to the full range of standard

and performance plasterboards to suit a variety

of building needs, including an easy to use

Plasterboard Selector guide.

An introduction to the range of taping and jointing

products and methods, including details of Premier

Taping Tools.

Drylining Solutions

FINISH FIX

Introducing the range of Lafarge GTEC

Drywall Systems:

Floors & Ceilings 4

Wall Linings 8

Partitions 5

GTEC Finishing Range 64 GTEC Fixing Range 74

An introduction to the range of GTEC Fixings.

Including details on choosing the right screws for

each application.

GTEC Deco System 76 Part E 78

An introduction to the unique pre-sealed GTEC Deco

plasterboard, fixings and finishings.

Part L 9

Find the likely U-value requirements under the Part L

Regulation 2006.

Find out what you need to know as well as

recommended solutions for walls, ceilings and floors.

An easy to use Plasterboard Selector pull-out section can be found at the back of this booklet on page 96.

Get in training for the year ahead – full details on training courses on page 97.

P A G E 4 | L A F A R G E | T H E D R Y L I N I N G S O L U T I O N S E L E C T O R T H E D R Y L I N I N G S O L U T I O N S E L E C T O R | L A F A R G E | P A G E 5

How to use this booklet

The Plasterboard Range

BOARD

The GTEC Board Range

Lafarge offers a wide range of standard plasterboards and high performance

plasterboards for all your drylining needs, providing higher levels of

protection against impact, sound, moisture and fire.

Standard Plasterboards

Key:

Internal Wall

R

✔ NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR ✔ GTEC Standard Board

R

✔ NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR GTEC Plank

✔

R

✔ NR Partition ✔

• Ivory face is suitable for seamless jointing

• Ivory face is suitable for the application of gypsum skim plasters

• Available in a variety of lengths from 1800mm to 3600mm

• Available in 900mm and 1200mm widths

• Provided in thicknesses of 9.5mm, 12.5mm and 15mm

GTEC Plank has one ivory face available with either a tapered edge

or square edge profile and a grey faced back liner.

• Available in a 2400mm length

• Available in a 600mm width

• Provided in a thickness of 19.0mm

R

✔ NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR ✔ GTEC Contour

Used for curved walls and ceilings.



• Provided in a thickness of 6mm

R

✔ NR Ceiling ✔

R

✔ NR R

✔ ✔ NR R

Floor ✔ ✔ NR Shaft ✔

R

✔ NR Residential ✔

R ✔ NR ✔ Non-Residential Key:

Performance Plasterboards


Internal Wall

R

✔ NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR GTEC Vapour Board

✔

R


Used as a lining where there is a risk of condensation. The board has

a metallised film bonded to one face which acts as a vapour control

layer and can also give improved thermal performance in some

circumstances.

• Vapour Board film can be applied to most plasterboards



• Provided in thicknesses of 9.5mm, 12.5mm and 15mm

R

✔ NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR ✔ GTEC Moisture Board

Silicone wax treated plasterboard for use in bathrooms, kitchens and

garages – resistant to the effects of moisture and humidity. Also an

ideal base for ceramic tiling.



• Provided in thicknesses of 12.5mm and 15mm

• Available with additional fire and sound properties

R

✔ NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR GTEC Fire Board

✔

Used where high levels of fire resistance are required. The pink

face is suitable for direct decoration.




R

✔ NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR ✔ GTEC E Board

A 10 kg/m² plasterboard that meets the requirements of the Building

Regulations Approved Document E.

• Available in lengths of 2400mm and 2700mm



R

✔ NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR ✔ GTEC dB Board

Dense plasterboard to improve sound insulation for separating walls

and ceilings.




R


R

✔ NR R

✔ ✔ NR R


R


R ✔ NR ✔ Non-Residential

The Plasterboard Range

The Plasterboard Range

Key:

Internal Wall

R

✔ NR R

✔ ✔

NR R

✔ ✔

NR ✔ GTEC Acoustic Homespan Board

R

✔ NR R

✔ ✔

NR R

✔ ✔

NR GTEC Thermal Board

✔

R


GTEC Acoustic Homespan Board has one decorative ivory face

available with either a tapered edge or square edge profile and a

grey faced back liner suitable for the construction of the Lafarge

GTEC Acoustic Homespan system.




R

✔ NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR ✔ GTEC Universal Board

A heavy duty, multi-purpose impact resistant plasterboard used in

high traffic areas, such as corridors and hospitals etc.




(previously Multicheck Wallboard)

A tapered edge, white faced plasterboard bonded to expanded

polystyrene. Available with a vapour board membrane to order.



• Provided in thicknesses of 22mm to 50mm

R

✔ NR R

✔ ✔

NR R

✔ ✔

NR ✔ GTEC Thermal XP Board

A tapered edge, blue faced plasterboard bonded to extruded

polystyrene. Available with a vapour board membrane to order.




R

✔ NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR ✔ GTEC Thermal K Board

A tapered edge, peach faced plasterboard, bonded to phenolic foam

to give the ultimate performance. A vapour control layer is provided

as standard.




R


R

✔ NR R

✔ ✔ NR R


R


R ✔ NR ✔ Non-Residential Key:

Specialist Plasterboards

GTEC Pregybel

GTEC Pregybel is a range of perforated plasterboards which combine

sound absorption performance with an aesthetic design. GTEC

Pregybel is mainly used in ceiling applications in retail centres,

offices, apartments, hospitals, schools, showrooms, auditoriums,

cinemas and galleries to provide a high quality environment.




NEW PRODUCT

NEW PRODUCT


Internal Wall

R

✔ NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR ✔ GTEC Megadeco

R

✔ NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR ✔

R


GTEC Megadeco has one decorative pre-sealed white face with

tapered edges and a grey faced back liner, suitable for drylining

systems that require superior acoustic, fire and impact performance.


and 1200mm width


R

✔ NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR ✔ GTEC Hydrodeco

R

✔ NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR ✔

R

✔ NR R

✔ ✔

NR R

✔ ✔

NR ✔

GTEC Hydrodeco has one decorative white face with tapered edges

and a green faced back liner, suitable for drylining systems that

require superior moisture resistance such as bathrooms.




GTEC Aqua Board

Superior fire, sound insulation and impact resistance. Ideal as a tile

backer for bathrooms, laundries and shower rooms and for wet areas

such as swimming pools and plant rooms

• Available in a 2400mm and 2700mm length



Synia

• Synia is a unique plaster board design which, once fixed, reveals

a four tapered edges for the ultimate flat ceiling.




R


R

✔ NR R

✔ ✔ NR R


R



The Plasterboard Range

Plasterboard Selector

A comprehensive range

of plasterboards to meet

all applications

The GTEC Board Selector is also shown as a pull-out section at the back of this booklet.

See Page: 6 7 6 7 7 7 7 8 8 8 9 9

GTEC

Standard Board

Tapered or square

edges available

in a wide

range of sizes

GTEC

Vapour Board

Vapour control

lining for ceilings

and external walls

BS EN 14190

GTEC

Plank

19mm board for

walls, ceilings and

partitions

GTEC

Moisture Board

Use in bathrooms,

kitchens and high

moisture areas

GTEC

Fire Board

When you need

high levels of

fire protection

GTEC

E Board

Designed for

use in dwellings

as defined

by Approved

Document E

Regulations

GTEC

dB Board

Superior acoustic

performance

GTEC

Acoustic

Homespan

Board

Superior acoustic

performance

GTEC

Universal

Board

Multi-purpose,

combining

fire sound

and impact

resistance

GTEC

Thermal Board

Bonded to

different types

of insulation

to suit a variety

of thermal

requirements

BS EN 13950

GTEC

Aqua Board

Water and

mould resistant.

Used in wet

and high

humidity areas

BS EN 5 0 : 005 Type A N/A A H1 D, F D D, I D D, F, I, R N/A A D, F, I, R

BS 0: 985 Type 1 1 1 3&4 5 1 1 1 5 N/A 1 5

WALL Linings

GTEC Direct Bond ✓ ✘ ✘ ✘ ✓ ✓ ✓ ✓ *

GTEC Dryliner ✓ ✓ ✘ ✓ ✓ ✓ ✓ ✓ *

GTEC Independent Wall Lining ✓ ✓ ✘ ✓ ✓ ✓ ✓ ✓ *

GTEC Linings to Timber Frame ✓ ✓ ✓ *

PArtitions

BOARD

GTEC Board Selector

✘ ✓ **

GTEC

Megadeco

Fire, sound

and impact

resistance with

one decorative

white face with

a colour matched

jointing system

✘ ✓ *

✓ ✓ ✓ ✓

✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✘ ✓ ✓ ✓ ✓

GTEC Metal Stud Partitions ✓ ✘ ✓ ✓ ✓ ✓ ✓ ✓ *

✓ ✘ ✓ ✓

GTEC Acoustic Homespan ✘ ✘ ✘ ✘ ✘ ✘ ✘ ✓ ✘ ✘ ✘ ✘

GTEC Timber Stud Partitions ✓ ✘ ✓ ✓ ✓ ✓ ✓ ✘ ✓ ✘ ✘ ✓

FLoors & CeiLings

GTEC Acoustic Floor ✘ ✘ ✓ ✘ ✓ ✘ ✓ ✘ ✓ *

GTEC Dryliner Ceiling ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✘ ✓ *

GTEC Suspended MF Ceiling ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✘ ✓ *

GTEC T-Bar Flat Ceiling & Corridor ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✘ ✓ *

GTEC Direct to Timber Ceiling ✓ ✓ ✓ *

meAsurements***

✓ ✓ ✓ ✓ ✘ ✓ *

✘ ✘ ✓ *

✓ ✓ ✓

✓ ✓ ✓

✓ ✓ ✓

✓ *

✓ *

✓

Thickness (mm) 9.5, 12.5, 15.0 9.5, 12.5, 15.0 19.0 12.5, 15.0 12.5, 15.0 12.5 12.5, 15.0 15.0 12.5, 15.0 22–70 12.5 12.5, 15.0

Width (mm) 900, 1200 900, 1200 600 1200 900, 1200 1200 1200 900 1200 1200 1200 1200

Length (mm) 1800 – 3600

* Not a typical application.

** GTEC Universal Bonding Compound must be used.

*** Not all combinations are available.

1800, 2350, 2400,

2700, 3000

2400

2400,

2700, 3000

1800, 2400,

2700, 3000

P A G E 0 | L A F A R G E | T H E D R Y L I N I N G S O L U T I O N S E L E C T O R T H E D R Y L I N I N G S O L U T I O N S E L E C T O R | L A F A R G E | P A G E

2400, 2700

2400,

2700, 3000

1800, 2400

2500, 2700

2400,

2700, 3000

NEW PRODUCT

2400 2400, 2700

2400,

2700, 3000

Technical Other technical boards are available: for further details, please contact our Technical Enquiryline on 0 75 77789

Plasterboard Selector



Floors & Ceilings

GTEC Acoustic Floor 4

GTEC Suspended MF Ceiling

GTEC T-Bar Corridor Ceiling

A free floating, sound

insulating floor system for

structural joist framing.

Designed as a separating

floor between and within

dwellings. Exceptional

airborne and impact

resistance.

Providing a high

performance ceiling with

sound insulation and fire

protection. Lafarge GTEC

Suspended MF Ceiling

System can be used to

upgrade and protect

existing structures.

The GTEC T-Bar Corridor

Ceiling System is unique

to Lafarge and is the latest

addition to the ceiling range.

It has been designed to

provide the contractor with

a faster, labour saving, high

performing one-stop-shop

ceiling solution.

NEW PRODUCT

P A G E | L A F A R G E | T H E D R Y L I N I N G S O L U T I O N S E L E C T O R

GTEC Dryliner Ceiling 8

A quick and simple

system providing high

levels of fire protection

and sound reduction and

accommodating services.

Providing a flat ceiling

despite uneven timber joists.

GTEC T-Bar Flat Ceiling 8

The GTEC T-Bar Flat Ceiling

System is unique to Lafarge

and is the latest addition

to the ceiling range. It has

been designed to provide

the contractor with a

faster, labour saving, high

performing one-stop-shop


NEW PRODUCT

GTEC Direct to Timber Ceiling 6

Direct to timber is the

method for attaching

plasterboard to the

underside of timber floor

joints and roof trusses.

Wall Linings

GTEC Direct Bond 8

GTEC Independent Wall Lining 46

Partitions

Used for attaching

plasterboard and GTEC

Thermal Board directly onto

masonry backgrounds.

A quick and cost effective

system to install with no

mechanical fixings required.

Designed to be installed

clear of a variety of existing

backgrounds, allowing

space for services and for

high levels of thermal and

acoustic insulation.

GTEC Metal Stud Partitions 5

An economical friction-fit

system to assemble frames

for strong, compact, lightweight,

non-loadbearing

partitions. Quick to erect,

light-weight and clean.

Timber Stud Partitions 6

Frequently used in

timber frame houses, in

small renovation projects

and home extensions.

Plasterboard provides a

ready means of meeting

Building Regulations in

respect to sound, thermal

and fire performance.

GTEC Dryliner 4

Suitable for drylining new

and existing uneven internal

masonry backgrounds and

concealing services. A dry,

quick and cost effective

system using secure

mechanical fixings.

Linings to Timber Frame 50

Timber frame housing calls

for a fast, efficient lining

solution. Plasterboard

provides a ready means of

meeting Building Regulations

in respect to sound, thermal

and fire performance.

GTEC Acoustic Homespan 58

A technically advanced metal

stud designed to provide

at least 40 R w dB sound

performance without the

requirement of insulation,

used with GTEC Acoustic

Homespan Board.

T H E D R Y L I N I N G S O L U T I O N S E L E C T O R | L A F A R G E | P A G E

Drylining Solutions

Floors & Ceilings: GTEC Acoustic Floor

GTEC Acoustic Floor

The Lafarge GTEC Acoustic Floor System is a free-floating, sound

insulating floor system for structural joist framing, designed as a separating

floor between and within houses.

Features & Benefits

Where to use

• New-build, conversion and

improvement work.

• For the remedial treatment of

existing floors.

GTEC Plank

or GTEC dB Board

100mm mineral

wool quilt

GTEC Acoustic Floor Clip

Benefits

• Sound absorption within minimal

overall thickness.

• Exceptional airborne and impact

resistance sound insulation.

• 60 minutes fire resistance.

P A G E 4 | L A F A R G E | T H E D R Y L I N I N G S O L U T I O N S E L E C T O R

GTEC Resilient Tape

GTEC Metal Angle

Flooring

(22mm minimum)

Ceiling: two layers

of GTEC Fire Board

GTEC Resilient

Bar Deep

Installation

Step One

Place GTEC Acoustic Floor

Clip over joist and hold

against joist side. Secure by

driving the serrated edge of

the clip into the top of the

joist with a hammer.

Space clips either side of the

joist at 400mm centres.

Step Two

Lay GTEC Metal Angle

with the short leg into the

clips. GTEC Metal Angle

joints should be kept to a

minimum. Where the joins

occur, butt joint and support

ends with a clip. Where joists

are not true, cut Metal Angle

to suit.

Step Three

Cut lengths of GTEC 9mm

Plank or GTEC 5mm dB

Board 4mm shorter than

the space between the

joists, ensuring you keep

both bound edges intact.

Maintaining an even gap

between board and joist,

place the boards on the

GTEC Metal Angle supports

throughout.

Step Four

Fix self adhesive GTEC

Resilient Tape along the

length of each joist over the

GTEC Acoustic Floor Clips

and along intermediate

full depth and perimeter

noggings.

Step Four

Lay the flooring across the

joists at right angles. Tongueand-groove

chipboard edges

must be glued with PVA

wood glue. Leave a 3mm

gap between flooring and the

perimeter wall and seal the

gap with GTEC Intumescent

Acoustic Sealant before

skirtings are fitted. Screw fix

through flooring and boards

into GTEC Metal Angle using

GTEC Acoustic Floor screws at 300mm centres.

Step Six

The screws, when screwed

home and countersunk,

pull the GTEC Metal Angles

out of the clips to clamp

the board to the underside

of the flooring and create

a completely free-floating

floor supported on the GTEC

Resilient Tape.

For further detailed installation instructions call Literatureline on 0 75 7758 for your

free copy of the Lafarge GTEC Installation Handbook and to discuss training opportunities.

T H E D R Y L I N I N G S O L U T I O N S E L E C T O R | L A F A R G E | P A G E 5

Floors & Ceilings: GTEC Acoustic Floor

Floors & Ceilings: GTEC Acoustic Floor

GTEC Acoustic Floor

GTEC Metal Accessories

GTEC Resilient Bar Deep

Acoustic isolation bar for improving the sound performance and

minimising the risk of joints cracking due to timber movement during

the drying out of the timber.


Metal clip used in the Lafarge GTEC Acoustic Floor system.


Galvanised versatile metal section used in a number of systems.


Self adhesive acoustic isolation tape.

GTEC Intumescent Acoustic Sealant

Gun applied water based sealant for use as an acoustic sealant,

resilient adhesive, decorators caulk or as intumescent mastic to seal

air gaps at system perimeter. NEW - now also available in foil refills.

Coverage Guide: 32 LM per litre, based on a 6mm bead.

Shelf Life: 12 months.

GTEC Fixings

GTEC Boards

GTEC Acoustic Floor Self Tapping

For use with the Lafarge GTEC Acoustic Floor system.

• Available in a size of 63mm

• Box quantity 500 screws

GTEC High Thread

For fixing GTEC Resilient Bar Deep to ceiling joists.

• Available in sizes from 32 to 96mm

• Typical quantities from 200 to 1000 screws

GTEC Self Tapping

For fixing plasterboard to light gauge metal, GTEC Resilient Bar Deep

and ceiling systems.


• Typical quantities 200–1000 screws

GTEC Trim Head Self Tapping

For attaching wood trims to metal with self embedded screws.


• Typical quantities 500 screws

The complete range of GTEC fixings are detailed on page 74.

GTEC Plank

GTEC Plank has one ivory face available with either a tapered edge

or square edge profile and a grey faced back liner.




GTEC dB Board

Dense plasterboard to improve sound insulation for separating walls

and ceilings.





Used where high levels of fire resistance are required. The pink face

is suitable for direct decoration.





Floors & Ceilings: GTEC Acoustic Floor

Floors & Ceilings: GTEC Dryliner Ceiling

GTEC Dryliner Ceiling

The Lafarge GTEC Dryliner Ceiling system is a simple and quick-dry ceiling

system, providing high levels of fire protection and sound reduction, and the

accommodation of services.


Where to use

• Any internal application where services

must be accommodated.

• To upgrade and protect existing structures.

GTEC Joist Connector

GTEC Dryliner Channel

GTEC Dryliner Track to

ceiling perimeter

Joist

Benefits

• Can produce a flat ceiling despite uneven

timber joists.

• Allows a cavity width of 25mm to 120mm

with GTEC Joist Connectors or up to

130mm with GTEC XR Brackets.

• Suitable for direct decoration or textured

finish.

GTEC Channel Connector


Mineral wool batts

Installation

Step One

Mark position on walls for

desired clear space/ceiling

height, taking into account

the thickness and number of

layers of plasterboards to be

used. Fix the GTEC Dryliner

Track to walls and around

columns etc at 600mm

maximum centres.

Step Two

Set levels and secure

the GTEC Dryliner Joist

Connecter to side of joist,

on line of the GTEC Dryliner

Channel with two 32mm

GTEC High Threads. Ensure

the GTEC Joist Connectors

are level and use a maximum

of 900mm centres for single

boarding and 600mm

centres for double boarding.

Step Three

Offer one edge of the GTEC

Dryliner Channel to the

GTEC Joist Connector. Once

it is located in the fixing plug,

push the opposite edge of

the Channel into position.

Where necessary extend the

length of the GTEC Dryliner

Channel by connecting two

lengths of the GTEC Dryliner

Channel together with the


Connector.

Step Four

Cut the GTEC Dryliner

Channel at maximum 5mm

shorter than the length of the

ceiling required and locate

the GTEC Dryliner Channel

into the GTEC Dryliner Track.

Step Five

Fix plasterboards with the

long edges at right angles

to the GTEC Dryliner

Channels. Screw-fix boards

to GTEC Dryliner Channels

at 230mm maximum centres

and 150mm maximum

centres at perimeters of

room and the cut ends of

board. With two layers of

plasterboard, stagger all

joints between layers.




Floors & Ceilings: GTEC Dryliner Ceiling

Floors & Ceilings: GTEC Dryliner Ceiling

GTEC Dryliner Ceiling

GTEC Channel GTEC Fixings

GTEC Track



Galvanised steel furring channel for plasterboard fixing.

It is used in the GTEC Dryliner system.

GTEC Dryliner Track

Galvanised metal J shaped section used as a track or perimeter

channel in the GTEC Dryliner system.

GTEC Dryliner Channel Connector

Galvanised clip used to join the GTEC Dryliner Channels.

GTEC Joist Connector

Galvanised steel pressed section used to join the GTEC Dryliner

Channels to timber and used in the GTEC Dryliner Ceiling systems.

GTEC Standard Reach Bracket

GTEC Standard Reach Brackets can be used as an alternative to joist

connectors. Steel section used to brace dryliner channels to substrate

in the GTEC Dryliner system. Also available as a GTEC XR Bracket.

GTEC Boards


For attaching plasterboard to light gauge metal and ceiling systems.







GTEC Pan Head Self Tapping

For connecting light gauge metal components.




GTEC Plasterboards

GTEC Plasterboard Solutions offer a wide range of standard

plasterboards and high performance plasterboards for all your drywall

needs, providing higher levels of protection against impact, sound,

moisture and fire.


Floors & Ceilings: GTEC Dryliner Ceiling

Floors & Ceilings: GTEC Suspended MF Ceiling


The Lafarge GTEC Suspended MF Ceiling System is ideal for commercial

applications, providing a high performance ceiling with sound insulation

and fire protection.


Where to use

• Where services must be accommodated.

• To upgrade and protect existing

structures.

Benefits

• Ceiling height may be varied.

• Suitable for direct decoration.

GTEC Edge Channel fixed at

600mm centres

GTEC Ceiling Channels at 400 or 450mm

centres, secured by clips to Primary

Channels

Note:

Orientation of GTEC Connecting Clips

reversed alternatively along GTEC

Primary Channels*

Tips

Suspend heavy loads, air ducting, lighting

units etc. directly from structural soffit to

avoid loading of the suspension framing.

Always alternate GTEC Connecting Clips

on GTEC Primary Channels.*

GTEC Soffit cleat

GTEC Primary Channels

All hangers should be double screwed

*if the ceiling weight exceeds 20kg/m 2 or is a double boarded system it is recommended they are screw fixed.


Minimum 150mm overlap

GTEC Rigid Angle Hangers at

1200mm centres along GTEC

Primary Channel

MFCSTRAP 25mm strap

may be used on ceiling

drops up to 1m deep

Installation

Step One

Mark position on walls for

finished ceiling height taking

into account the thickness

and number of layers of

plasterboard to be used. Fix

the GTEC Edge Channels to

walls at 600mm maximum

centres. Mark location of the

GTEC Primary Channels at

recommended centres.

Step Two

Attach the GTEC Soffit

Cleats to the structural soffit

at 1200mm centres along the

centre lines for GTEC Primary

Channels.

Cut lengths of GTEC Metal

Angle equal to the vertical

distance from the GTEC

Soffit Cleats to the top of

the edge channels. Fix GTEC

Metal Angle to GTEC Soffit

Cleats with appropriate nuts

and bolts. Fix GTEC Metal Angle direct to timber joists with

a minimum overlap of 50mm using a minimum of two GTEC

High Thread screws.

Step Three

Fix the GTEC Primary

Channel to the GTEC Metal

Angles with two GTEC Pan

Head Self Drilling screws.

Where necessary, join the

GTEC Primary Channel by

overlapping 150mm back

to back & fixing with two

appropriate nut and bolts.

Step Four

Secure the GTEC Ceiling

Channels at right angles

to the underside of the

GTEC Primary Channels at

recommended centres, using

GTEC Connecting Clips

or GTEC Wafer Head Self

Drilling screws for weight that

exceeds 20kg/m 2 or double

boarded systems.

For the entire length of each

GTEC Primary Channel,

alternate the GTEC Connecting

Clips on each side.

Step Five

Position boards with bound

(long) edges at right angles

to the GTEC Ceiling Channel

sections, with adjoining

edges lightly butted. End

joints must occur at the

centre of the GTEC Ceiling

Channel section, staggered

by half a board length

whenever possible.

Step Six

Across field of board, screwfix

plasterboard at 230mm

max. centres with GTEC Self

Tapping screws.

Screw fix cut edges of the

plasterboard at 150mm max.

Centres to the GTEC Ceiling

Channel. Similarly screw fix

all edges to the GTEC Edge

Channel at 150mm centres.




Floors & Ceilings: GTEC Suspended MF Ceiling



GTEC Channels

GTEC Ceiling Channel

Galvanised steel channel used to form the Lafarge GTEC

Suspended MF Ceiling System.

GTEC Primary Channel

Galvanised steel channel used to support the ceiling channel in the

Lafarge GTEC Suspended MF Ceiling System. Heavy gauge also

available.

GTEC Edge Channel

Galvanised steel channel used to form the perimeter support

of the Lafarge GTEC Suspended MF Ceiling System.



Versatile metal section used in a number of systems.

GTEC Phonissimo Acoustic Hanger

An acoustic suspended ceiling hanger for use with the

GTEC Suspended MF Ceiling System.

GTEC Phonistar Acoustic Hanger

This product is a heavy duty acoustic suspended ceiling hanger

bracket for use with the Lafarge GTEC Suspended MF Ceiling

System. This bracket is capable of supporting services and a

secondary ceiling.

GTEC Strap Hanger

May be used in lieu of GTEC Metal Angle for ceiling depths

up to 1 metre.


Floors & Ceilings: GTEC Suspended MF Ceiling



GTEC Fixings









GTEC Pan Head Self Drilling

For connecting heavy gauge metal components.



GTEC Wafer Head Self Drilling

For connecting heavy gauge metal components beneath

plasterboard.








GTEC Metal Accessories Continued

GTEC Boards

GTEC Connecting Clip

Galvanised steel clip used as a hanger for the Lafarge GTEC

Suspended MF Ceiling system.

GTEC Soffit Cleat

Galvanised steel bracket used to fix angle brackets or strap hanger

to the substrate for the GTEC Suspended MF Ceiling system. To be

used with appropriate nut and bolt.



resilient adhesive, decorators caulk or as intumescent mastic to seal air

gaps at system perimeter. NEW - now also available in foil refills.


GTEC Plasterboard Solutions offer a wide range of standard

plasterboards and high performance plasterboards for all your drywall

needs, providing higher levels of protection against impact, sound,

moisture and fire.




Floors & Ceilings: GTEC Suspended MF Ceilings

Floors & Ceilings: GTEC T-Bar Flat Ceiling

GTEC T-Bar Flat Ceiling

The Lafarge GTEC T-Bar Flat Ceiling System is unique to Lafarge and

is the latest addition to its ceiling range. It has been designed to provide

the contractor with a faster, labour saving, high performing one-stop-shop



Where to use

• Ideal for commercial and residential

applications, whether new build

or renovation.

• Where services must be accommodated.

• To upgrade and protect existing

structures.


(Screwed) or Wire

Fixed to GTEC T-Bar

Edge detail

5-10mm Gap

1200mm

400mm

Hanger fixing

Benefits

• Ceiling height may be varied - minimum

ceiling void of 45mm

• Fire tested to BS 476: Part 23

• Strong steel construction

• Quick to install

Tips

• Suspended heavy loads, air ducting,

lighting units etc directly from structural

soffit to avoid loading of the suspension

framing.

Typical ceiling opening

made from GTEC Edge

Channels (hanger may

be required)

FREE DVD

Order your GTEC Metal Stud Solutions DVD free by calling Lafarge Literatureline on 0 75 7758


1200mm

GTEC Edge

Channel

GTEC T Bar Cross

T connection

Installation

Step One

Mark the position on walls

for the finished ceiling height,

taking into account the

thickness and number

of layers of plasterboard to

be used. Fix the GTEC T-Bar

Edge Channels to walls at

600mm maximum centres

(short length uppermost).

S Step Two A

Attach the GTEC Soffit

Cleats to the structural soffit

at 1200mm or 900mm

centres depending on the

load along the axis of the

Main T.

Cut lengths of the GTEC

Metal Angle equal to the

drop of the ceiling, from the

GTEC Soffit Cleats to the

start of the horizontal flange

(minimum drop 50mm).

S Step Two B

Fix the GTEC Metal Angle to

the GTEC Soffit Cleats with

the appropriate nuts and

bolts (GTEC Soffit Cleat is

not required for timber joist

floors).

Step Three

Fix the GTEC Main T-Bar

to the GTEC Metal Angles

with GTEC Pan Head Self

Tapping screws. To fix two

Main T’s, simply connect

together.

It is not necessary to stagger

the GTEC Main T-Bar

connection.

Step Four

S Step Five

Fix the GTEC T-Bar Primary

Cross T-Bar to the GTEC

Main T-Bar at typical 400mm

centres to form grid pattern.

Push-fit until clip is locked

into position, with the triangle

shape (spring side) of the

clip visible on each side.

To remove the GTEC Cross

T, press on end of connector

clip and pull out (may

require some slight twisting).

Screw fix the plasterboard

at 230mm max centres and

150mm at room perimeter

and cut edges with the GTEC

Self Tapping screws on

the GTEC Cross T, 10mm

minimum from the edge of

the board.




Floors & Ceilings: GTEC T-Bar Flat Ceiling

Floors & Ceilings: GTEC T-Bar Flat Ceiling


GTEC Channels


GTEC T-Bar Primary Main T

Provides the primary structural support similar to the MFCP44.

GTEC T-Bar Cross T

Clips into TP3700 to create the grid frame on a flat ceiling system,

performing a similar function to the MFCC50 top hat section.

GTEC T-Bar Edge Channel

Creates the perimeter for both flat ceiling and corridor ceiling systems.


May be used in lieu of GTEC Metal Angle for ceiling depths up to

1 meter.


Galvanised steel bracket used to fix angle brackets or strap hanger

to the substrate for the Lafarge GTEC Suspended MF Ceiling System.

To be used with appropriate nut and bolt.

GTEC Fixings

GTEC Board

GTEC T-Bar Metal Angle


GTEC Suspension Wire








For use with the Lafarge GTEC Acoustic Floor System.



SYNIA Board

NEW PRODUCT

Synia is a unique plasterboard design from Lafarge that provides the

ultimate flat ceiling in drylining.

Traditionally, drylining plasterboards are manufactured with 2 tapered

edges in order to create a seamless finish when jointed.

Synia has been created with a unique edge design which, once fixed,

reveals a 4 tapered edge for jointing. This offers the installer a faster,

easier solution, resulting in the ultimate flat ceiling.


Floors & Ceilings: GTEC T-Bar Flat Ceiling

Floors & Ceilings: GTEC T-Bar Corridor Ceiling


The Lafarge GTEC T-Bar Corridor Ceiling System is a unique system to

Lafarge and is the latest addition to its ceiling range. It has been designed to

provide the contractor with a faster, labour saving, high performing one-stopshop



Where to use

• Ideal for commercial and residential

applications, whether new build or

renovation.

• Where services must be accommodated..

• To upgrade and protect existing structure.

s.

• For corridor spans up to 2.05m (with

12.5mm standard plasterboard at 300mm

centres - See Load/Span Table).

Edge detail


fixed to Corridor Wall

5-10mm

Gap

Benefits

• No hanger required for spans

of up to 2m.

• Ceiling height may be varied.

• Fire tested to BS 476: Part 23.

Tips

• It is important that the maximum size

of a ceiling without either a supporting

partition, joint or break should be 15m x

15m (225m2). into existing background

is essential when installing this system.


Typical ceiling opening made

from GTEC Edge Channels/

GTEC Metal Angle Hanger

TS2000 GTEC Corridor T-Bar

Spanning Corridor at max

450mm centres

Installation

Step One

Mark the position on walls

for the finished ceiling height

taking into account the

thickness and number of

layers of plasterboard to be

used. Fix the GTEC T-Bar

Edge Channels to walls at

600mm maximum centres

(short length uppermost).

Step Two

Cut the GTEC T-Bar Corridor

Span T as required to the

corridor width and slide

into the GTEC T-Bar Edge

Channel, at recommended

centres (400 or 450mm).

If hangers are required (see

span table), fix the GTEC

Corridor T-Bar to the GTEC

Metal Angle with 2 GTEC

Pan Head Self Tapping

screws.

Step Three

Position the boards with long

edges typically parallel to the


with adjoining edges lightly

butted. End joints must occur

at the centre of the GTEC

Corridor Span T section,

staggered by half a board

length whenever possible.

Screw fix the plasterboard

at 230mm max centres with

GTEC Self Tapping screws

on the GTEC Span T. Screw

fix the cut edges of the

plasterboard at 150mm max.

centres to the GTEC T-Bar

Corridor Span T.

Screw fit all perimeter edges

to the GTEC T-Bar Edge

Channel at 150mm centres.

It is also possible to fix the

plasterboard with long edges

parallel to the GTEC T-Bar

Corridor Span T with a

joining edges lightly butted.




Floors & Ceilings: GTEC T-Bar Corridor Ceiling

Floors & Ceilings: GTEC T-Bar Corridor Ceiling


GTEC Channels

GTEC Accessories


Creates the perimeter for both flat ceiling and corridor ceiling systems.

GTEC T-Bar Corridor Span T

Spanning T for corridors with no end connectors.


May be used in lieu of GTEC Metal Angle for ceiling depths up to

1 meter.


Galvanised steel bracket used to fix angle brackets or strap hanger to

the substrate for the Lafarge GTEC Suspended MF Ceiling System.

To be used with appropriate nut and bolt.

GTEC Suspension Wire





GTEC Fixings

GTEC Board









SYNIA Board

NEW PRODUCT

Synia is a unique plasterboard design from Lafarge that provides the

ultimate flat ceiling in drylining.

Traditionally, drylining plasterboards are manufactured with 2 tapered

edges in order to create a seamless finish when jointed.

Synia has been created with a unique edge design which, once fixed,

reveals a 4 tapered edge for jointing. This offers the installer a faster,

easier solution, resulting in the ultimate flat ceiling.

GTEC Pregybel

GTEC Pregybel is a range of perforated plasterboards which combine

superior sound absorption performance with an aesthetic design.

Mainly used in ceiling applications for retail centres, offices,

apartments, hospitals, schools, showrooms, auditoriums, cinemas and

galleries, GTEC Pregybel provides high quality, functional, beautiful

environments.


Floors & Ceilings: GTEC T-Bar Corridor Ceiling

Floors & Ceilings: GTEC Direct to Timber Ceiling

GTEC Direct to Timber Ceiling

The Lafarge GTEC Direct to Timber System is the method for attaching

plasterboard to the underside of timber floor joists and roof trusses.


Where to use

• Lining new ceilings, typically for

domestic use.

• Lining existing ceilings.

• Provides fire resistance and sound

insulation where required.

GTEC Noggins

With two layers of boarding, stagger

joints and fixings between layers

Benefits

• Quick and simple to install.

• When taped and jointed it provides

a smooth finish for direct decoration.

• Forms a ready base for gypsum plaster

or textured finishes.

Stagger joints between cut (short)

edges and centre over joists or

noggins

Installation

Standard Installation

Fix noggings around the ceiling perimeter and, if required, to support any board edges not already supported

by joists.

Offer up plasterboards with their paper bound (long) edges at right angles to the joists. Butt board edges

lightly against each other with a maximum allowable gap of 3mm. Working from the centre of each board,

fix with nails at 150mm centres or screws at 230mm centres, and 150mm centres at perimeter and the cut

ends of board. Fixings should be no closer than 10mm to the bound edges and 13mm to the cut edges of

the boards. The fixings should also be at least 6mm in from edges of timber framing.

GTEC Resilient Bar Deep Installation

When GTEC Resilient Bar Deep is required to achieve added acoustic performance, fix the bars at right

angles to the joists at 450mm maximum centres, 400mm for 2400mm wallboard, through prepunched holes

in the flange using 32mm GTEC High Thread. Set out the Resilient Bars as close as possible to the room

perimeter. Do not let the GTEC Resilient Bars touch the perimeter wall. Joint the bars by overlapping directly

over joists, with a minimum 200mm overlap.

Fix plasterboards with long edges at right angles to GTEC Resilient Bars using GTEC Self Tapping, ensuring

screws are not in contact with the joists. For two layer boarding layouts, stagger the outer layer and fix short

edges of the boards to GTEC Resilient Bars.

Plasterboard Selection and Finishing

Where there may be risk of interstitial condensation, use GTEC Vapour Board as the inner layer of the ceiling,

with the metallised film facing the joists. If GTEC Fire Board is used it must always be used as the outer layer.


GTEC Fixings






For attaching plasterboard to timber framework.










Floors & Ceilings: GTEC Direct to Timber Ceiling

Wall Linings: GTEC Direct Bond

GTEC Direct Bond

The Lafarge GTEC Direct Bond System is used for attaching

plasterboard, including the GTEC Thermal Board range directly onto

masonry backgrounds.


Where to use

• Lining new masonry walls for

domestic and commercial use.

• Lining old masonry walls which

have an uneven background.

Benefits

• Quick and cost effective to install.

• Can correct minor irregularities

in the existing background.

• Mechanical fixing is not needed

with standard board.

Bonding dab spacings

Continuous ribbon of GTEC Universal

Bonding Compound around wall

perimeter required on external walls

Use of GTEC Universal Bonding Compound

Board

thickness

across

(mm)

Board

width

(mm)

Vertical

centres

(mm)

9.5 900 450 3

9.5 1200 400 4

12.5 900 450 3

12.5 1200 600 3

Number

of dabs

across

board

Tips

• GTEC Universal Bonding Compound

must harden before jointing - allow

8 hours.

• Only use on walls which are free

from damp.


Installation

Step One

Apply a chalk line to floor

and ceiling, allowing for

the thickness of selected

plasterboard or thermal

laminate, plus a minimum

10mm of GTEC Universal

Bonding Compound.

Step Two

Starting from a window, door

reveal or internal angle, mark

wall vertically with chalk for

the rows of dabs at the

required centres.

Allow for dabs at 25mm in

from vertical edges of board.

Step Three

On external walls apply

continuous perimeter ribbon

of GTEC Universal Bonding

Compound at 50mm below

ceiling line and 50mm above

floor level.

A continuous perimeter

should also be applied

around any service cut

out i.e. light switches.

Step Four

Apply vertical dabs at

required centres on the chalk

lines. Dabs should be 50 to

75mm wide, about 250mm

long at 300mm centres and

between 10 to 25mm thick.

The contact area of dabs

must be at least 20% of the

board area.

Step Five

Press plasterboard back

firmly against the dabs, fitting

the board tight against the

ceiling. Temporarily wedge

the bottom edge in position

using offcuts.

At corners, align

as shown in the application

details. Ensure tight butt

joints at junctions.

Step Six

Tap board into alignment

with floor and ceiling chalk

lines using a straight edge.

Remove wedges when the

compound has dried (allow

8 hours).

For thermal laminates,

secure with two GTEC

Nailable Plugs after

GTEC Universal Bonding

Compound has set.




Wall Linings: GTEC Direct Bond

Wall Linings: GTEC Direct Bond


GTEC Adhesive & Renders

GTEC Fixing

GTEC Boards

GTEC Universal Bonding Compound

Gypsum based compound for direct bonding plasterboard and

thermal boards to walls, or bonding GTEC Metal Furing to walls.

(Previously Bonding Compound)

GTEC Drywall Sealer

Ivory, pre-decoration sealer for plasterboard. Equalises the suction

of the entire surface accross board and joint. Enables the stripping

of wallpaper. Can also provide a vapour check (15MNs/g), if two coats

are applied to the plasterboard. Does not include a stain inhibitor.

GTEC Ecoat

NEW PRODUCT

A gypsum based acoustic render mix for use on party walls prior

to direct bonding.

GTEC Nailable Plugs

For the mechanical fixing of GTEC Thermal Boards.


• Typical quantities: from 50 to 100 nails


Lafarge GTEC Plasterboard Solutions offer a wide range of standard

boards and high performance plasterboards for all your drywall needs,

providing higher levels of protection against impact, sound, moisture

and fire.

See page 64 Taping & Joining section for a range of finishing solutions.

GTEC Ecoat

GTEC Ecoat is designed to meet Part E requirements for party walls

in the UK. The product seals porous holes in blockwork walls to

improve the acoustic performance prior to drylining.


The new GTEC Ecoat product is gypsum

based and is a superior product to sand

and cement. Robust Detail status, for more

information please contact our Technical

Enquiryline on 01275 377789.

Benefits

• 5m² coverage per 25kg bag (offers twice

the coverage of traditional sand and

cement options).

• Easy to handle bagged product.

• Superior workability.

GTEC Ecoat

NEW PRODUCT

GTEC Universal

Bonding Compound 12.5mm GTEC

Standard Board

P A G E 4 0 | L A F A R G E | T H E D R Y L I N I N G S O L U T I O N S E L E C T O R T H E D R Y L I N I N G S O L U T I O N S E L E C T O R | L A F A R G E | P A G E 4

Wall Linings: GTEC Direct Bond

Wall Linings: GTEC Dryliner

GTEC Dryliner

The Lafarge GTEC Dryliner System is a system suitable for drylining

both new and existing masonry backgrounds, and for the concealment

of services.


Where to use

• For cavity width between wall

and back of plasterboard lining

ranging from 25mm to 130mm.

• Lining masonry walls which

are uneven.

Benefits

• Simple, quick, cost effective and

suitable for fixing all types of board.

• A completely dry system using

secure mechanical fixings.

GTEC Dryliner Track fixed to soffit

GTEC Dryliner Channels screw fixed

to drylining brackets as required

All joints taped and filled

GTEC Dryliner Bracket as required

GTEC Dryliner Track fixed to floor

• Surface-mounted services can

be easily accommodated.

• Mineral wool can be incorporated

within the cavity for thermal

or acoustic insulation.

Tips

• Remember to treat walls

for any damp before insulation.

• Secure fixing into existing

background is essential.

Installation


Step One

Fix GTEC Dryliner Track at

600mm centres to the floor

using suitable fixings. Allow

for required cavity width

(25mm to 130mm).

Step Two

Fix GTEC Dryliner Track to

ceiling with a suitable fixing,

ensuring GTEC Dryliner Track

at ceiling is plumb with that

on the floor. For 12.5mm

plasterboard mark horizontal

lines at 800mm centres

and vertical lines at 600mm

centres (400mm for GTEC

Thermal Boards). Mark lines

50mm from external corners.

Step Three

Starting at centre of wall

height, position GTEC

Dryliner Brackets directly

to wall at maximum 800mm

vertical centres on the

marked lines. Secure each

bracket to wall with a suitable

fixing.

Step Four

Cut each GTEC Dryliner

Channel 5mm shorter than

the floor to ceiling height.

Locate GTEC Dryliner

Channel into GTEC Dryliner

Track at floor and ceiling.

Step Five

Ensure channel is plumb,

and secure to each bracket

leg using GTEC Pan Head

Self Tapping screws. Where

necessary bend back the

legs of the bracket so they do

not protrude past the face of

the channel.

Step Six

Butt plasterboard edges

lightly against each other and

centre the edges over the

channels. Fix plasterboard to

framing with GTEC Drywall

Self Tapping screws at

300mm centres. Where the

height of the lining is greater

than the plasterboard length,

use GTEC Fixing Channel (or

GTEC Flat Strap for double

boarded systems) to support

the horizontal cut edges of the plasterboards.



Wall Linings: GTEC Dryliner

Wall Linings: GTEC Dryliner

GTEC Dryliner

GTEC Channels

GTEC Tracks


GTEC Drylining Channel

A galvanised steel furring channel for plasterboard fixing. It is used

in the Lafarge GTEC Dryliner system.

GTEC Fixing Channel

Galvanised metal channel used in linings and partitions to provide

support plasterboard joints and heavy fixtures. Also provides a

fire stop.

GTEC Drylining Track

Galvanised metal J shaped section used as a track or perimeter

channel in the Lafarge GTEC Dryliner system.

GTEC Drylining Channel Connector

A galvanised clip used to join GTEC Dryliner Channels.



GTEC SR Bracket

Steel section used to brace dryliner channels to substrate in the

Lafarge GTEC Dryliner System. Also available as an GTEC XR

Bracket.

GTEC Fixings

GTEC Boards

GTEC Insulation Hold

Metal supports used with timber and metal framing for holding mineral

wool insulation.

GTEC Flat Strap

Galvanised metal flat strap used in linings and partitions to provide

support for plasterboard joints. Also provides a fire stop.









GTEC Wafer Head Self Tapping

For connecting light gauge metal components beneath plasterboard.








and fire.

P A G E 4 4 | L A F A R G E | T H E D R Y L I N I N G S O L U T I O N S E L E C T O R T H E D R Y L I N I N G S O L U T I O N S E L E C T O R | L A F A R G E | P A G E 4 5

Wall Linings: GTEC Dryliner

Wall Linings: GTEC Independent Wall Linings

GTEC Independent Wall Lining

The Lafarge GTEC Independent Wall Lining Systems combine the features

of other GTEC Metal systems to give high strength and quickly assembled

drylining solutions.


Where to use

• Designed to be installed clear of a variety

of existing backgrounds.

• Drylining reinforced concrete walls, steel

framed walls, and renovation work where

existing walls may form an unsuitable

substrate for other systems.

Benefits

• The systems allow space for services,

and also for high levels of thermal and

acoustic insulation.

GTEC U Track snipped and bent

upwards or downwards to form

door head member. Fixed to

GTEC C studs with GTEC Wafer

Head Self Drilling screws.

GTEC C Stud

150mm

Minimum 10mm gap

• The systems offer a range of GTEC

I Stud widths of 50mm, 60mm, 70mm,

90mm to accommodate a wide range of

height requirements and can achieve a

maximum height without bracing of 5.4m.

The systems are suitable for fixing all

types of plasterboard.

Tips

• Treat walls for any damp before

installation.

• Secure fixing at the head and base track

into existing background is essential when

installing this system.

GTEC U Track

P A G E 4 6 | L A F A R G E | T H E D R Y L I N I N G S O L U T I O N S E L E C T O R

600mm or 400mm

GTEC I Stud

Internal corners

300mm

Installation

Step One

Set out the System inside

the existing wall; allow a

minimum cavity width of

10mm between external wall

and the back of the metal

framing, or to the insulation.

Fix GTEC U Track to floor

at 600mm centres using

suitable fixings.

Step Two

Install a GTEC C Stud using

a spirit level to plumb,

upright on end wall, and fix

at 600mm centres using

suitable fixings.

Step Three

Install ceiling GTEC U Track

onto the end wall GTEC C

Stud, using a GTEC I Stud (as

a temporary prop) and spirit

level. Plumb the opposite end

of the ceiling GTEC U Track to

align with floor GTEC U Track.

Screw-fix the ceiling GTEC U

Track into position at 600mm

centres or less.

Now fix the opposite end wall

GTEC C Stud at 600mm

centres.

Step Four

Using a disc cutter, drop-saw

or angle grinder, cut GTEC

I Studs to length (5mm

shorter than the floor to

ceiling height) whilst they are

in a pack. If ceiling or floor

are very uneven, you will

need to cut GTEC I Studs

separately.

Step Five

Insert the stud into the floor

and ceiling tracks and twist to

lock. Position them at 600mm

centres for 1200mm wide,

12.5mm thick plasterboard.

Once the GTEC I Studs are

friction-fitted, fix the end GTEC

C Studs to head and floor

GTEC U Tracks with GTEC

Wafer Head Self Drilling

screws or crimping tool.

Step Six

Cut the plasterboard 5 to

8mm shorter than the floorto-ceiling

height, butt firmly

against the ceiling and fix

to the framing with GTEC

Drywall Self Drilling screws

at 300mm centres.

Butt board edges lightly

against each other and

centre the edges over the

studs.



T H E D R Y L I N I N G S O L U T I O N S E L E C T O R | L A F A R G E | P A G E 4 7

Wall Linings: GTEC Independent Wall Linings

Wall Linings: GTEC Independent Wall Linings

GTEC Independent Wall Lining

GTEC Studs

GTEC Tracks

GTEC I Stud

Galvanised I Shaped metal section used with GTEC U Track to

provide a metal frame for the main run of wall linings.


• Widths provided from 50mm to 90mm

• Gauge from 0.52mm to 0.7mm

GTEC C Stud

Galvanised C shaped metal section used with GTEC U Track

to provide framework for wall linings and partitions.




GTEC U Track

Galvanised U shaped metal section used with GTEC C Studs



• Widths available from 45mm to 148mm

GTEC U Track Deep Flange

Used for partitions with heights up to 4.2m, or at the soffit where a

deflection head is required.

• Available in 3 metre lengths


• Gauge of 0.52mm

• GTEC U Track Extra Deep Flange also available in 0.7mm and

0.9mm gauge respectively


GTEC Fixings

GTEC Boards







gaps at system perimeter. NEW - now available in foil refills.



GTEC Self Drilling

For attaching plasterboards to heavy gauge metal wall

and ceiling systems.

• Available in the following sizes: 25mm, 32mm, 38mm,

44mm, 67mm

• Typical box quantities: 500 to 1000 screws

GTEC Wafer Head Self Drilling

For connecting heavy gauge metal components beneath

plasterboard.








and fire.


Wall Linings: GTEC Independent Wall Linings

Wall Linings: Linings to Timber Frame

Linings to Timber Frame

In timber framed housing the Lafarge Lining to Timber Frame System

offer easy fixing to light-weight constructions. The high strength and rigidity

of Lafarge plasterboards make them suitable for use in the assembly of

prefabricated panels which are braced with sheathing ply or similar.


System Assembly

• Typically, timber framed external walls

have studs set out at 400mm or 600mm

centres to maximise economical use of

the lining materials.

• Use 12.5mm GTEC Boards with a vapour

control layer. This prevents interstitial

condensation forming in the wall cavity.

Insulation

• Insulation should be supported using

GTEC Insulation Hold strips 150mm below

the wall head and at 1200mm centres

down the height of the wall.

Minimum 50mm cavity between

sheathing and external wall

cladding

Breather membrane to BS 4016

Insulation quilt

GTEC Thermal

Sheathing Board

Boarding

• For internal linings, lightly butt

plasterboard edges against each other:

the maximum permissible gap is 3mm.

Fix the boards with GTEC High Thread

screws at 300mm centres. Fixings should

be no closer than 10mm to the bound

edges and 13mm to the cut edges of the

boards.

GTEC Resilient Bars

• Where the GTEC Resilient Bar Deep is

to be fixed to timber studs the following

centres apply:

• 400mm centres for single layer boarding.

• 600mm centres for double layer boarding.

Framing studs at

600mm centres


incorporating a vapour

control layer secured to

timber framing


GTEC Fixings

GTEC Board














GTEC Drywall High Thread

For attaching plasterboard to light gauge Lafarge GTEC Metal

and Ceiling systems.

• Available in sizes from 25mm to 86mm

• Typical box quantities from 200 to 1000 screws

GTEC Drywall Self Tapping





GTEC Vapour Board

Used as a lining where there is a risk of condensation. The board has

a metallised film bonded to one face which acts as a vapour control

layer and can also give improved thermal performance in some

circumstances.

• Vapourcheck film can be applied to most plasterboards




Wall Linings: Linings to Timber Frame

Partitions: GTEC Metal Stud Partitions

GTEC Metal Stud Partitions

The Lafarge GTEC Metal Stud Partitions system is an economical friction-fit

system to assemble frames for strong, compact and light-weight non-loadbearing

partitions.


Where to use

• Partitioning for domestic and

commercial use.

• Heights up to 12 metres with various

range of track and stud widths.

Benefits

• Quick to erect, light-weight, clean and

services are easy to accommodate.

• Metal stud is dimensionally accurate

and will not twist or bow.

GTEC Intumescent Acoustic

Sealant around perimeter

Single layer boarding: joints on opposite

faces offset, all joints taped and filled

Floor track fixed at 600mm centres

Timber sole plate is required on uneven floors

• Mineral wool can easily be installed

for improved sound insulation.

Tips

• GTEC U Tracks and GTEC C Studs are

cold rolled galvanised steel and can be

stored outside under cover for short

periods without deterioration.

• An electrical or battery operated

Drywall Screw Gun is recommended

for speed and accurate installation.

FREE DVD

Order your GTEC Metal Stud Solutions DVD free by calling Lafarge Literatureline on 0 75 7758


Installation

Step One

From a fixed point

mark out the line

of partition. Fix

GTEC U Track to timber

or concrete floor along

the setting out line of the

partition using suitable

fixings. Cut GTEC U Track

and GTEC C Stud using

tin snips. Ensure GTEC C

Studs are cut 5mm shorter

than floor to ceiling height.

Step Two

Install a GTEC C Stud

using a spirit level to

plumb on end wall. Place

ceiling GTEC U Track into

wall GTEC C Stud, plumb

opposite end and screw-fix

into position at 600mm

centres. Plumb and screwfix

opposite end wall

GTEC C Stud.

Step Three

Locate intermediate

GTEC C Studs at required

centres. Use extra GTEC

C Studs at openings,

corners, T junctions and

stop ends. Fix these studs

with GTEC Wafer Head

Self Tapping or crimping

tool.

Step Four

Form the door header by

using a piece of GTEC U

Track. Secure header

onto GTEC C Studs.

Step Five

Form a timber background

construction to create a

secure fixing for the door

frame by placing a suitably

sized timber insert into the

back of door frame Studs

and header Track. Secure

these timbers using GTEC

High Thread screws.

Step Six

Install plasterboard to

one side of partition. Cut

plasterboard 5mm to 8mm

shorter than floor-to-ceiling

height, butt firmly against

the ceiling and fix with GTEC

Self Tapping screws at

300mm centres.




Partitions: GTEC Metal Stud Partitions



GTEC Studs

GTEC C Stud

Galvanised C shaped metal section used with GTEC U Track





GTEC I Stud

Galvanised I Shaped metal section used with GTEC U Track to

provide a metal frame for the main run of wall linings.




GTEC Omega Acoustic Stud

A unique galvanised omega shaped stud which, when used in

a Lafarge GTEC Partition system, gives up to 3 RwdB increased

acoustic insulation over standard 70mm GTEC Metal Studs with the

same board linings. See product literature for performance details.


• Widths provided 70mm, 90mm and 146mm


GTEC Tracks

GTEC Channel

GTEC U Track






Used for partitions with heights up to 4.2m, or at the soffit where a


• Available in 3 metre lengths



• GTEC U Track Extra Deep Flange also available in 0.7mm and

0.9mm gauge respectively

GTEC Flex Track Deep Flange

Flex track is designed to allow easy construction of curved partitions.

It is a galvanised 0.7mm metal angle used in place of standard metal

U track. It is supplied pre-cut to allow a minimum radius of 600mm to

be achieved.

• Available length of 3000mm

• Dimension of 50mm x 23mm


Galvanised metal channel used with linings and partitions to provide

support plasterboard joints and heavy fixtures. Also provides a

fire stop.








GTEC Flat Strap

Galvanised metal flat strap used in linings and partitions to provide

support for plasterboard joints. Also provides a fire stop.








GTEC Fixings

GTEC Boards









GTE C High Thread




The complete range of GTEC Screws are detailed on page 74.





and fire.



Partitions: GTEC Acoustic Homespan

GTEC Acoustic Homespan

The Lafarge GTEC Acoustic Homespan system is a light-weight,

non-loadbearing metal stud partition system primarily intended for domestic

applications. The system is designed to take one layer of 15mm x 900mm

wide GTEC Acoustic Homespan Board fixed to each side.


The Lafarge GTEC Acoustic Homespan

system combines purpose designed sound

absorbing boards with technically advanced

metal GTEC C Studs to provide at least

40 R w dB sound performance without the

requirement for insulation.

Readily meeting the requirements of Building

Regulation Part E. The Lafarge GTEC

Acoustic Homespan system can also be

used to match still more demanding

specifications. The introduction of a 25mm

19 kg/m³ mineral wool insulation increases

performance to 43 R w dB.

GTEC U Track snipped and

bent downwards to form door

head member. Fixed to starter

studs with GTEC Wafer Head

Self Tapping

Studs at 450mm centres

Where to use

• Primarily intended for domestic

applications.

• Light-weight, non-loadbearing.


Benefits

• Achieves 40 R w dB sound rating without

insulation.

• Cost-effective compared with timber stud.

• Eliminates nail popping and cracking.

Installation

Step One

Mark out the line of the

partition. Fix GTEC U

Track to floor along the

setting out line at 600mm

centres. Cut the GTEC U

Track (and GTEC Acoustic

Homespan Studs) to

length as necessary using

tin snips. Studs should be

cut 5mm shorter than the

floor to ceiling height.

Step Two

Fix GTEC Starter Stud to

the end wall at 600mm

centres. Place ceiling GTEC

U Track on top of the end

wall Stud. Then, using a


Stud and spirit level, ensure

opposite end of ceiling

GTEC U Track is plumb

with the floor GTEC U Track

and screw-fix it into position

at 600mm centres.

Step Three

Insert the GTEC Acoustic

Homespan Studs into the

GTEC U Tracks at 450mm

centres and twist to lock.

The intermediate Studs

should all face the same

way. To allow adjustment

when fixing plasterboard

studs should not be screw

fixed.

Step Four

Use GTEC Starter Studs

at door openings, corners,

T junctions and stop ends.

These must be fixed to

ceiling and floor GTEC U

Tracks with GTEC Wafer

Head Self Tapping or

a crimping tool. Form

door header from GTEC

U Track, allowing for a

minimum 150mm at each

end to be cut and folded

down. Secure the header to the GTEC Starter Studs using a

crimping tool or GTEC Wafer Head Self Tapping.

Step Five

Form a timber background

construction to create a

secure fixing for the door

frame by placing a suitably

sized timber insert into the

back of door frame Studs

and header Track. Secure

these timbers using GTEC

High Thread.

Step Six

Fix GTEC Acoustic

Homespan Board to one

side of the partition. Cut

the board 5mm to 8mm

shorter than the floor to

ceiling height, butt firmly

against the ceiling and

fix with 25mm GTEC

Self Tapping at 300mm

centres. When one side is

complete, repeat for the

other side of the partition,

ensuring that the joints are staggered by 450mm. To

maximise the acoustic performance use GTEC Intumescent

Acoustic Sealant and seal around system perimeter.



T H E D R Y L I N I N G S O L U T I O N S E L E C T O R | L A F A R G E | P A G E 5 9

Partitions: GTEC Acoustic Homespan

Partitions: GTEC Acoustic Homespan


GTEC Studs

GTEC Tracks

GTEC Accessory

GTEC Acoustic Homespan C Stud

GTEC Acoustic Homespan is a 75mm nominal width metal stud

partitioning system using 44mm/50mm GTEC Acoustic Homespan

C Studs at 450mm centres and one layer of GTEC Acoustic Homespan

Board each side to give a laboratory result of 40 R w dB.


• Widths provided in 44mm and 50mm


GTEC Acoustic Homespan Starter Stud

GTEC Acoustic Homespan Starter Studs are used at wall abutments

and at door openings as part of the Lafarge GTEC Acoustic

Homespan system.




GTEC U Track







Used for partitions with heights above 4.2m, or at the soffit where a


• Available in a length of 3000mm

• Width provided 52mm








GTEC Fixings

GTEC Boards









GTE C High Thread




The complete range of GTEC Screws are detailed on page 74.

GTEC Acoustic Homespan Board

GTEC Acoustic Homespan Board has one decorative ivory face

available with either a tapered edge or square edge profile and a

grey faced back liner suitable for the construction of Lafarge GTEC

Acoustic Homespan systems.

GTEC Acoustic Homespan Board complies with BS 1230 Type 1

and BS EN 520 Type D.

GTEC Acoustic Homespan MR Board

GTEC Acoustic Homespan MR Board has one decorative ivory face

available with tapered edges and a green faced back liner suitable for

the construction of Acoustic Homespan partitions that require superior

moisture resistance.

GTEC Homespan MR Board complies with BS 1230 Type 3 and BS

EN 520 Type D and H1.


Partitions: GTEC Acoustic Homespan

Partitions: GTEC Timber Stud Partitions

GTEC Timber Stud Partitions

The Lafarge GTEC Timber Stud Partitions system are typically for domestic

use either loadbearing or non-loadbearing.


Where to use

• Typically for domestic use.

• Can provide fire resistance and sound

insulation where required.


around perimeter

In the case of single layer boarding, joints on opposite faces offset, all

joints taped and filled

Timber studs

Cross noggin at mid height

Timber sole plate

Benefits

• When taped and jointed it provides

a smooth finish for direct decoration.

• Forms a ready base for gypsum plaster

or textured finishes.

300mm at

end of partition

Studs at 400mm,

450mm or 600mm centres



Installation

GTEC Boards

Metal Components & Fixings

Step One

Install timber sole plate and framing members to end walls and ceiling.

Ensure all framing is straight, plumb and true, and will provide a firm

support for the plasterboards.

Step Two

Fix intermediate vertical studs to the timber floor and ceiling plates at

maximum 400mm centres for 9.5mm plasterboard, and at 600mm centres

for 12.5mm and 15mm plasterboard. Framing should be arranged so as to

avoid plasterboard widths of less than 300mm. Plasterboard edges must be

supported at all openings, junctions and corners. All framing should provide

a minimum bearing width for the plasterboard of not less than 38mm. Note:

For all 900mm wide plasterboards, stud centres should be at 450mm.

Step Three

Cut plasterboard 5mm to 8mm shorter than the floor-to-ceiling height,

butt firmly against the ceiling and fix with GTEC Drywall Nails at 150mm

centres or GTEC High Thread at 300mm centres. Butt plasterboards

lightly against each other, centring joints over the studs. With double layer

boarding, the vertical joints should be staggered between layers.





and fire.













Partitions: GTEC Timber Stud Partitions

GTEC Finishing Solutions

FINISH

Taping & Jointing Applications

Tapered Joints

External Angles

Internal Angles

The Finishing Solution brochure is a

comprehensive guide to the Lafarge GTEC

Finish product range. It provides information

for selecting the right finishing product for

the job, application instructions to creative

solutions such as GTEC Cove and GTEC

Profiles.

The Lafarge GTEC Taping & Jointing system

is used to create continuous seamless joints

when drylining walls and ceilings. Covering

three and two step application methods,

Lafarge has the right finishing product for

any drylining system.

Taping and jointing does not involve as much

labour or drying out time as a traditional

plaster skim. All our jointing compounds

finish white, are exceptionally smooth and

easy to sand for a very fine finish.

Tapered Edge Board Jointing

GTEC Joint Tape bedded

in Jointing Compound

Compound struck off

flush with the face of

plasterboard

Second coat of jointing

compound feathered out 50

to 60mm beyond first coat

Final coat of jointing

compound feathered out

50 to 60mm beyond

second coat

GTEC Universal Sealer

or GTEC Drywall Sealer

Jointing Compounds

There are three different types of Jointing Compounds:

GTEC Setting Compounds

Traditional compounds used for filling

and bedding joints for a 3 coat application.

Not suitable as a finishing coat.

GTEC Air-drying Compounds

Air-drying compounds used for bedding

joints and as a finishing coat for either

a 3 or 2 coat application.

Lafarge offer both powder and ready

mixed products which can also be used

for machine application. Air-drying

compounds are not suitable for

bedding external corners, always

use a setting compound.

Jointing Compounds Product Selector

Product Type Bedding Tape Filling Coat Finishing Coat

* Whilst air drying compounds are suitable for filling joints, it is necessary to leave adequate

drying time between each coat.


Classic Range

Xtra Range

Deco Range

GTEC Joint Filler Setting ✔ ✔ ✘

GTEC Joint Cement Air Drying ✔* ✔ ✔

GTEC Smartmix Air Drying ✔* ✔ ✔

GTEC Allset Xtra

Setting/

Air Drying

GTEC Setting / Air-drying

Combined

A combined air-drying and setting compound

used as an all in one jointing compound for a

2 coat application.

✔ Not Required ✔

GTEC Joint Cement Xtra Air Drying ✔* Not Required ✔

GTEC Smartmix Xtra Air Drying ✔* Not Required ✔

GTEC Deco Joint Cement Air Drying ✔* Not Required ✔

GTEC Deco Machine Air Drying ✔* ✔ ✔

GTEC Deco Filler Setting ✔ ✔ ✘

GTEC Finishing Solutions


FINISH

GTEC Setting Compound

GTEC Joint Filler

GTEC Air-drying Compounds

Gypsum based joint compound

with 90 minute setting time

for bedding tapes by hand

application. Also used for

bedding external corner

protection.

(Previously known as Fast Set)

GTEC Joint Cement

Air-drying joint cement for

bedding tapes and finishing

joints by hand or machine.

(Previously known as New Pure

Velvet)

GTEC Joint Cement Xtra

Light-weight, air-drying joint

cement offering superior

coverage and easy sanding.

Can be used for bedding tapes

and finishing joints in a 2-stage

application. Also suitable for

machine application.

(Previously known as Rapid Sand)

Coverage Guide:

12.5kg bag

25m² Bedding & Filling Only

37m² Bedding Coat Only

Shelf Life:

4 months


25kg bag

55m² Full Taping Operation

165m² Finishing Coat Only

Shelf Life:

6 months


22.5kg bag



Shelf Life:

6 months

GTEC Air-drying Compounds Ready-mixed

GTEC Smartmix

Ready-mixed, mid-weight joint

compound offering better

coverage and workability

than standard ready-mixed

compounds. Can be used for

bedding and finishing by hand

or machine.

(Previously known as Fineform)

GTEC Smartmix Xtra

Ready-mixed, light-weight

compound offering superior

coverage and easy sanding.

Can be used for bedding

tapes and finishing joints in a

2-stage application. Ideal for

machine application.

(Previously known as

Readymix Lite)

GTEC Setting / Air-drying Combined

GTEC Allset Xtra

Combined setting and

air-drying compound, allows

a single compound to be used

for bedding all tapes and

finishing.

Can be used in a 2-stage

application.

(Previously known as

Easy Finish)


20kg bucket




20kg bucket




Shelf Life:

6 months

Shelf Life:

6 months


10kg bag


47m² Bedding Coat Only

Shelf Life:

4 months



FINISH

GTEC Tapes, Beads & Sealers

Tapes & Beads

GTEC Joint Tape

White perforated, cross fibre paper

tape. Suitable for hand or mechanical

application with Lafarge GTEC

Jointing Compounds. Provides

superior level of joint reinforcement.

GTEC Flex Tape

Cross fibre paper tape with heat

bonded, zinc coated steel strips for the

protection of external corner angles.

GTEC Corner 90º External

Paper tape beads reinforced with

galvanised metal, provides clean,

crisp angles, wax coated to reduce

paper burr.

Uses:

• Flat joints (on walls

or ceilings)

• Internal corners

• Roll length 150m

Uses:

• Hand applied

• Protection of external

angles (including splayed

angles and curves)

• Roll length 33m - in an

easy to dispense box

Uses:


• Protection of 90° external

angles

• 2.4m and 3.0m lengths

• Cut to required length

using tin snips

Sealers & Textures

GTEC Duo & Edging Beads

Galvanised steel beads for drywall

corner and edge reinforcement.

GTEC Universal Sealer

For use on plasterboard prior to

paint and wallpaper application.

Improved whiteness and covering

power. Equalises the suction of the

entire surface across board and

joint. Enables the stripping of

wallpaper. Prevents plasterboard

from staining. Does not provide

a vapour check.

GTEC Drywall Sealer

Ivory, pre-decoration coat for

plasterboard. Equalises the suction

of the entire surface across board

and joint. Enables the stripping of

wallpaper. Can also provide a vapour

check (15NMs/g), if two coats are

applied to the plasterboard. Does not

include a stain inhibitor.

Uses:


• Duo bead provides

reinforcement for

external corners

• Edging bead provides

a finish to plasterboard

edges

• GTEC Duo Beads

available in 2.4m and

3.0m lengths

• GTEC Edging Bead

available in 3.0m lengths

• Cut to required length

using tin snips


10ltr Bucket

100m² One Coat, 70m²

Two Coats

Shelf Life: 12 months

Drying Time: 1-2 hours


10ltr Bucket

100m² One Coat,

70m² Two Coats

Shelf Life: 12 months

Drying Time: 1-2 hours

For further installation details call Lafarge Literatureline on 0 75 7758 for your free copy

of the Lafarge GTEC Installation Handbook and to discuss further training opportunities.




FINISH

GTEC Cove & Cove Adhesive

GTEC Cove is a simple and cost-effective way

of adding attractive and distinctive features to

wall and ceiling junctions.

Used on its own, or in combination with plasterboard

strips, GTEC Cove can complement many different

room styles.

To reproduce the appearance of traditional plaster cornices at a small fraction

of the cost, plasterboard strips can be positioned between the coving and wall

and/or ceiling.

GTEC Cove comes in two sizes

Girths mm Lengths mm

90 3000

120 3000, 3600, 4200

Must be fixed with GTEC Cove Adhesive, gypsum

based with 40 minute setting time.

Available in 12.5kg and 5 x 5kg bags.

Image courtesy of Bovis Homes.

Cove 0

Now Lighter!

GTEC Cove 0 is now even

lighter, so installation is

easier than ever!

GTEC Cove Adhesive


Gypsum based

adhesive with

40 minute

setting time

for fast fixing

of cove.

For further installation details call Lafarge Literatureline on 0 75 7758 for your free copy

of the Lafarge GTEC Installation Handbook and to discuss further training opportunities.

Installation

Step One

Using a chalk line strike

guidelines on ceiling and

wall to the correct projection

and depth: 64mm for 90mm

GTEC Cove, 84mm for

120mm GTEC Cove.

Step Two

Using the guidelines on

the wall drive in nails at

1500mm centres to act as

a temporary support while

the cove adhesive sets.

Step Three

Using a fine-toothed saw cut

all the pieces of cove

to length and mitre to fit the

corners of the room. The

mitres can be cut using a

mitre block or template.

Templates are available from

Lafarge Literatureline or

www.lafargeplasterboard.

co.uk

Step Seven

Using GTEC Cove Adhesive fill any gaps between the cove

and the wall or ceiling. Make good all internal and external

junctions.

Step Eight

Remove all temporary nails once the cove adhesive has

set and fill nail holes.

Step Four

Mix the GTEC Cove

Adhesive as per instructions

on the bag. Apply the

adhesive to the back of the

cove along its full length on

the surfaces that meet wall

and ceiling.

Step Five

Sit the lengths of cove

on the nails and press

into position between the

guidelines, carefully lining

up joints and intersections.

Step Six

Clean off surplus adhesive

with filling knife and smooth

using a sponge.

Step Nine

Using a damp sponge, clean off any adhesive residue from

the walls, ceiling and cove surface.

Step Ten

Apply one coat of GTEC Universal Sealer, or if a vapour

control layer is required use two coats of GTEC Drywall

Sealer, and decorate as required.




FINISH

Premier Taping Tools

Premier Taping Tools with GTEC Plasterboard

Solutions offers tool design expertise and are the

first choice for drywall tools.

Careful precision engineering makes Premier Taping Tools

tough, reliable and built to last, making the job easier and

more profitable for you.

Premier Automatic Taper

Applies tape and jointing compound to flat joints and all inside

corner joints.

Premier Corner Roller with Handle

Embeds tape into 90º inside corner joints on walls and ceilings.

Premier Corner Finisher ” & ”

Feathers jointing compound evenly to plasterboard in all 90º internal

corner joints after using Premier Corner Roller.

Premier Corner Finisher with Handle

Used with both 2” and 3” Premier Corner Finishers.

Manufactured by Premier Taping Tools

Premier Mudrunner

Applies the jointing compound to corner joints before and after taping,

used with GTEC Corner Finisher and GTEC Mudheads.

Premier Corner Applicator with Handle

Used with either the 2” or 3” GTEC Corner Finisher to apply finishing

coat to all 90º internal corner joints.

Premier Flat Box 7”, 0” & ”

Distributes the correct amount of jointing compound over flat joints

automatically ‘crowning’ the joint.

Premier Flat Box Handles

Use with GTEC Flat Boxes. Various lengths to suit.

Premier Easyclean Pump

Loads all Premier Taping Tools with air-drying

jointing compounds.

Premier Gooseneck

GTEC Easyclean Pump attachment for filling the GTEC Automatic Taper.



GTEC Fixing Range

FIX

GTEC Fixing Range

GTEC Fixing Range are designed to meet the needs of drywall installation

and system performance. Precision heads, threads and points mean fast,

accurate fixing.

GTEC Fixing Range are purpose-designed to allow efficient fixing of plasterboard to metal and

timber studs. The extensive range allows for exactly the right screw to be selected for each

application. That means easier and faster installation and reduced waste.

Features &

Benefits

• Pro-fit recess, no wobbles or

cam out

• Exclusive Scavenger Head

eliminates paper burrs

• Consistent heat treatment

• Screw heads don’t shear off

• Extra high grade steel for

extra holding power

• Sharper threads for optimum

driveablity

• Designed to exceed

worldwide building

standards

• 23º streaker point for quick

starting.

GTEC Self Tapping screws

For attaching plasterboard to light gauge metal

wall and ceiling systems.

• GTEC Self Tapping

• GTEC Megadeco Self Tapping

• GTEC Collated Self Tapping

GTEC High Thread screws

For attaching plasterboard to timber framework.

• GTEC High Thread

• GTEC Collated High Thread

GTEC Self Drilling screws

For attaching plasterboard to heavy gauge

metal and wall ceiling systems

• GTEC Self Drilling

• GTEC Pan Head Self Drilling

• GTEC Wafer Head Self Drilling

GTEC Specialist Self Tapping screws

• GTEC Acoustic Floor Self Tapping

• GTEC Trim Head Self Tapping

• GTEC Pan Head Self Tapping

• GTEC Wafer Head Self Tapping

Tips on Installation

Manufactured by Grabber


10 10

Up to 3mm gap between plasterboards

Fix positions at bound edges

of boards

13 10


Fix positions at bound edge/

cut edge joint

13 13


Fix positions at cut edges

of boards

GTEC Fixing Solutions have a unique bugle head

design for fixing plasterboard which eliminates

paper burrs and provides a flush finish. Extrasharp

points and high-grip threads result in fast

penetration through the plasterboard and stud.

The screws are black phosphate coated and

lightly oiled for protection against corrosion.

GTEC High Thread screws are used for attaching

plasterboard to timber framework.

GTEC Self Tapping screws are for attaching

plasterboard to light gauge metal up to 0.7mm thick.

GTEC Self Drilling screws are for heavy gauge metal

from 0.7mm to approximately 2.0mm thick.

Installation

Drive Screws:

• at least 10mm in from paperboard edges of plasterboard

• at least 13mm in from cut edges of plasterboard

• at least 6mm in from edges of timber framing

• at least 3mm in from edges of metal framing

Screws spacing: Partitions, maximum 300mm. Ceilings,

maximum 230 in the field of the plasterboard, 150mm at

cut edges and perimeter. Linings, maximum 300mm.

Drive screws squarely through board and into framing until

screw head is just recessed. Spot screw heads with jointing

compound to provide a flush surface.

GTEC Pan Head screws and GTEC Wafer Head screws are

used primarily for fixing metal studs and other metal framing

components together: Self-tapping for light gauge metal and

self-drilling for heavy gauge metal.

GTEC Fixing Range

GTEC Deco System

The Lafarge

GTEC Deco System

The Lafarge GTEC Deco System is a complete high quality lining and finishing

system, saving time and money. The pre-sealed plasterboard with the Deco range

of joint cements gives a consistent white finish ready for decoration. Use of Deco

eliminates the requirement for separate sealing of the wallboard prior to decoration.

Where to use

Anywhere that uses standard, fire resistant,

sound resistant, moisture resistant or

impact resistant board.

Benefits

• Eliminates the need for sealer

• Ready for direct decoration

• Saves labour

• Saves time

The Deco System is unique to Lafarge GTEC Plasterboard Solutions.

GTEC Deco Boards

Key:

Internal Wall

R

✔ NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR ✔ GTEC Megadeco

R


GTEC Megadeco has one decorative white face with tapered edges

and a grey faced back liner, suitable for drylining systems that require

superior acoustic, fire and impact performance.




R

✔ NR R

✔ ✔

NR R

✔ ✔

NR R

✔ ✔

NR ✔ GTEC Hydrodeco

GTEC Hydrodeco has one decorative white face with tapered edges

and a green faced back liner, suitable for drylining systems that

require superior moisture resistance such as bathrooms.




R


R

✔ NR R

✔ ✔ NR R


R



GTEC Deco Setting Compound

GTEC Deco Filler

GTEC Air-drying Compounds Ready-mixed

GTEC Fixing

GTEC Deco Filler is a gypsum

based compound designed

for bedding and filling joints

by hand when using the

Lafarge GTEC Deco system.

GTEC Deco Joint Cement

GTEC Deco Joint Cement is a

light-weight, ready-mixed compound

which must be used for the final

coat of the jointing process and

can be used for bedding and filling

when using the Lafarge GTEC Deco

system.

GTEC Deco Machine

GTEC Deco Machine is a lightweight,

ready-mixed compound

formulated for use with Premier

International Taping Tools. As with

GTEC Deco Joint Cement, GTEC

Deco Machine must be used for

the final coat of the jointing process

when using the Lafarge GTEC

Deco system.

The complete range of GTEC Fixings are detailed on page 74.


12.5kg Bag

25m² Bedding & Filling Only


20 kg Bucket

50m² Full Taping



Shelf Life:

4 months

Shelf Life:

6 months


20 kg Bucket

50m² Full Taping


Shelf Life:

6 months

GTEC Megadeco Self Tapping screws

A zinc coated drywall screw specifically designed for fixing Megadeco

wallboard to light gauge metal and ceiling systems.

• Available in the following sizes from 25mm to 44mm

• Box quantity: 1000 screws

GTEC Deco System

Part E: What you need to know


Part E of the Building Regulations are the new legal

requirements governing the quality of acoustics in

buildings where people sleep.

Part E puts the onus on the builder to demonstrate that

the stated acoustic rating has been achieved.

Part E - How to comply

If you are looking to build...

• semi detached

• terraced housing

• apartments

• hotels, hostels

• residential rooms

Your separating walls, ceiling and floors must

adhere to the new acoustic rating.

There are 2 routes you can take

Pre-Completion Testing (PCT)

The requirement of Part E calls for sample pre-completion testing of separating

walls and floors prior to handover. The number of tests required will depend on the

number of dwellings in each development. Part E states that a minimum of one

set of tests is required for every ten dwellings of each construction type on a

development.

Steps:

1. You will need to contact a test body which has the appropriate

third party accreditation.

2. They will visit and complete acoustic field testing of 10% of all

separating walls and floors.

3. Compliance with these performance requirements will be checked

by Building Control.

For further information on the PCT, including how to apply for PCT,

please refer to an acoustic consultant for guidance or Building Control.

Robust Details Ltd (RDL)

The use of Robust Details provides an alternative to pre-completion testing. RDL will

give you a choice of possible construction solutions to comply with Part E. However

this only applies to new build houses and flats.

Steps:

1. Register the property’s use with RDL for each plot and pay a plot registration fee.

2. Registration documents are then sent to you.

3. Once the separating walls and floors in each house are completed, fill in the compliance certificate and

hand it to the Building

Control body.

4. Provided the constructions are built correctly this will be accepted by all building control bodies.

For more information on the Robust Details scheme, including how to apply, contact Robust Details Limited.

T. 0870 240 8209 Technical

T. 0870 240 8210 General

www.robustdetails.com


Part E: What you need to know


Lafarge has an in-depth and practical understanding

of what the builder needs – we lead the way in system

innovation, providing exciting new solutions to ever more

demanding construction challenges and we strive

to continually improve and expand our GTEC products

and systems range.

Our drywall systems provide

economic, high performance

options to meet a wide range

of building requirements.

They are ideally suited

to today’s fast-track

construction schedules,

which must control costs

while maintaining the

highest quality standards.

Our plasterboard range and

drywall systems can meet the

practical and performance

needs of all new build

and refurbishment projects.

This guide is designed as a

quick and simple reference

to the wide range of the

Lafarge GTEC products

and systems. We have also

included some handy tips.

If you would like more

information on our stepby-step

guides or on our

products and systems

contact:

Literatureline

01275 377582

Technical Enquiryline

01275 377789

www.lafargeplasterboard.co.uk

Projects Affected


New Build

Dwelling-houses and flats 45dB 2 40dB 1 - 62 3 40dB 1

Residential rooms, hotels, hostels, student

accommodation

Conversion - formed by a material change of use

45dB 2 40dB 1 - 62 3 40dB 1

Dwelling-houses and flats 43dB 2 40dB 1 - 64 3 40dB 1

Residential rooms, hotels, hostels, student

accommodation

Domestic Extension

Separating Walls & Floors

Internal Partitions

External Walls

Internal Floors & Ceilings


43dB 2 40dB 1 - 64 3 40dB 1

Upgrading of separating wall adjoining to property 43dB 2 40dB 1 - - -

New separating wall adjoining property 43dB 2 40dB 1 - - -

The terms that are used

Domestic Extension

dB (decibel) A measure of sound reduction

L nw

R w

D nT,w + C tr

L nT,w

Laboratory measures of airborne sound transmission

(higher figure = better performance)

Site measure of airborne sound with low frequency correction applied

(higher figure = better performance)

Site measure of the impact sound level (lower figure = better performance)

Laboratory measure of the impact sound level (lower figure = better performance)

Part E: What you need to know

Part E: Separating Walls

Part E:

Separating Walls (Robust Detail)

Cavity Masonry New Build / Conversion

Sound Insulation Requirements Airborne (min)

Purpose built dwelling-houses and flats 45 D nT,w + C tr

Dwelling-houses and flats formed by a material change of use 43 D nT,w + C tr

Make sure...

E-WM-4

or

E-WM-6

ROBUST DETAIL APPROVED

You keep cavity and wall ties free from mortar

droppings and debris. All blockwork joints are

fully filled with mortar.

There is no connection between the two leaves

except for wall ties and foundation. Chases for

services are kept to a minimum and filled well with

mortar. Ensure that 8mm render is applied to the

complete face of each leaf with a scratch finish.

• Overall: nominal thickness 316mm

with maximum height 5.2m

• Blocks: (E-WM-4) double leaf 100mm

light-weight aggregate concrete density

1350-1600 kg/m³ or (E-WM-6) double leaf

100mm aircrete blocks 600-800 kg/m³

• Cavity: 75mm tied with ‘Tie type A’

(as Approved Document Part E)

• Render: GTEC Ecoat

• Linings: one layer 12.5mm GTEC Standard

Board or 12.5mm GTEC Megadeco (minimum

weight 8 kg/m²) or 12.5 mm GTEC E Board

(minimum weight 10 kg/m²) on GTEC

Universal Bonding Compound dabs

Components

GTEC Ecoat

GTEC Universal Bonding Compound

GTEC Megadeco

GTEC Standard Board

GTEC E Board

Part E:

Separating Walls

GTEC Metal Stud Partitions New Build / Conversion




Make sure...


RSP

8- 00*

LPL RECOMMENDED SYSTEM

The quilt covers the whole wall area without gaps.

The quilt is compressed between the twin frames.

You stagger joints in wall linings to avoid air paths.

You seal all perimeters with GTEC Intumescent

Acoustic Sealant.

The wide range of the Lafarge GTEC Metal Stud

Partitions system allows a repeatable, high level of

performance across a broad range of applications

from apartments, cinemas and factories to hospitals,

museums and schools.



• Studs: two 50mm GTEC C Studs at

600mm centres braced horizontally every

1.5m with GTEC Acoustic V Brace

• Facings: two layers 15mm GTEC

dB Board both sides

• Insulation: 25mm glass mineral

wool density 16 kg/m³

Components

GTEC C Stud

GTEC U Track

GTEC V Brace

GTEC dB Board

Part E: Separating Walls

Part E: Separating Walls

Part E:

Separating Walls

GTEC Timber Stud Partitions New Build / Conversion




Make sure...

Wall linings are at least 240mm apart.

RFL 050*


The quilt or batts cover the whole lining area,

fitting tight between studs without sagging.

There is no connection between the two leaves,

except where ties are necessary for structural

reasons.

Timber Stud Partitions are frequently used in timberframe

houses, in small renovation projects and in

home extensions where they may be load bearing or

non-load bearing, depending on specification.

It is recommended that for superior fixing

plasterboards be screw fixed direct to timber rather

than nailed.



• Studs: pairs of studs 89 x 38mm at 600mm

centres forming two separate frames set

50mm apart, braced at every 1.8m height

with GTEC Fixing Channel or GTEC V Brace

• Facings: two layers of 15mm GTEC Fire Board

• Insulation: two layers of 50mm glass

mineral wool density 16 kg/m³

Components


GTEC U Track

GTEC V Brace

GTEC dB Board

* Separating wall solutions not defined as Robust Details may require pre-completion acoustic testing.

Please refer to an acoustic consultant for guidance.

Part E:


GTEC Acoustic Homespan New Build / Conversion

Sound Insulation Requirements

For all non-separating partitions 40 R w dB

Make sure...

Wall linings are at least 240mm apart.


AHSP

00


The quilt or batts cover the whole lining area,

fitting tight between studs without sagging.

There is no connection between the two leaves,

except where ties are necessary for structural

reasons.

The Lafarge GTEC Acoustic Homespan system

provides a single solution for all modern domestic

partition requirements.

The sound dispersing C Studs provide better acoustic

performance than timber and the system requires no

cross-noggings, contributing to reduced installation

time.



• Studs: 44mm wide GTEC Acoustic

Homespan C Studs at 450mm centres

• Facings: one layer 15mm GTEC Acoustic

Homespan Board both sides

• Fire resistance (mins) to BS 476: 30

• BS 5234 grade: Medium

• Sound insulation: 40 R w dB

Components

GTEC Acoustic Homespan C Stud

GTEC U Track


Part E: Internal Partitions

Part E: Internal Partitions

Part E:


GTEC Metal Stud Partitions New Build / Conversion



The wide range of the Lafarge GTEC Metal Stud Partition system allows repeatable, guaranteed performance

to be achieved across a broad range of applications from apartments, cinemas and factories

to hospitals, museums and schools.

RSP

006


REP

00




• Studs: 50mm wide GTEC

C Studs at 600mm centres

• Facings: one layer 12.5mm

GTEC E Board both sides


wool density 16 kg/m³






• Studs: 70mm wide GTEC

C Studs at 600mm centres

• Facings: one layer 12.5mm

GTEC dB Board both sides




Components

GTEC C Studs

GTEC U Track

GTEC E Board

Part E:


GTEC Timber Stud Partitions New Build / Conversion



The Lafarge GTEC Timber Stud Partition system are frequently used in timber-frame houses, in

small renovation projects and in home extensions where there may be load bearing or non-load bearing,

depending on specification. Plasterboard can be nailed directly to timber or screw fixed, which offers

superior performance.

Make sure...

P A G E 8 6 | L A F A R G E | P A R T E : T H E D R Y L I N I N G S O L U T I O N S E L E C T O R T H E D R Y L I N I N G S O L U T I O N S E L E C T O R | L A F A R G E | P A G E 8 7

ETP

00


You apply GTEC Intumescent Acoustic Sealant

to the back of the GTEC U Tracks and end GTEC

C Studs before fixing to wall, floor and ceiling.

You must ensure the mineral wool quilt thickness

and density otherwise this will reduce the acoustic

performance.

The mineral wool quilt is installed with no gaps at

the joints and butted up tightly at the perimeter

- gaps will allow the sound to travel straight through

rather than being partially absorbed.



• Studs: 63 x 38mm timber studs at

600mm centres

• Facings: one layer of 12.5mm

GTEC E Board both sides

• Insulation: 25mm glass mineral wool

insulation density 16 kg/m³




Components

GTEC E Board

GTEC U Track

Part E: Internal Partitions

Part E: Floors & Ceilings

Part E:


GTEC Acoustic Floor New Build / Conversion

Sound Insulation Requirements Airborne (min) Impact (max)

Purpose built dwelling-houses and flats 45 D nT,w + C tr 62 L nT,w dB

Dwelling-houses and flats formed by a material change of use 43 D nT,w + C tr 64 L nT,w dB

RAF

050


The Lafarge GTEC Acoustic Floor system is a highly

efficient means of creating a fully floated construction

offering excellent protection against airborne and

impact sound transfer.

This makes it the preferred choice for multioccupancy

dwellings, particularly refurbishments.

• Floor: GTEC Acoustic Floor system using

18mm tongue and groove chipboard plus

single layer of 15mm GTEC dB Board

• Joists: 50 x 200mm at 450mm centres


wool density 10.5kg/m³

• Ceiling: two layers of 15mm GTEC dB Board

or GTEC Fire Board on GTEC Resilient

Bar Deep at maximum 450mm centres

Note: In this system, using 18mm tongue and

groove chipboard, 57mm gteC trim Head screws

should be used to fit flooring through plasterboard

to gteC metal Angle. In cases using 22mm tongue

and groove chipboard 67mm gteC Acoustic Floor

screws are recommended.

Components





GTEC dB Board

Ceiling and separating floor solutions not defined as Robust Details may require pre-completion acoustic testing.

Please refer to an acoustic consultant for guidance.

Part E:


Timber Separating Floor New Build / Conversion

Sound Insulation Requirements Airborne (min) Impact (max)

Purpose built dwelling-houses and flats 45 D nT,w + C tr 62 L nT,w dB

Dwelling-houses and flats formed by a material change of use 43 D nT,w + C tr 64 L nT,w dB

RTC

050


In new build and renovation, fixing plasterboard

to timber joists provides a fast and effective means

of creating ceilings. Boards can be nailed directly

to timbers, although screw-fixing provides superior

performance.

Incorporation of a GTEC Resilient Bar Deep between

the board and joist offers further enhanced acoustic

performance and helps prevent timber movement

causing cracking along board joints.

• Floating floor: 18mm tongue and groove

chipboard bonded with GTEC Wall Lining

Adhesive to 15mm GTEC dB Board on

25mm Rockfloor on 15mm Sterling OSB

• Joists: 200 x 50mm timber

joists at 600mm centres


density 10 kg/m³ in joist cavity

• Ceiling: two layers of 15mm GTEC dB Board

on GTEC Resilient Bars at 400mm centres

Components


GTEC Wall Lining Adhesive

GTEC dB Board


Part E: Floors & Ceilings

Part E: Floors & Ceilings

Part E:


GTEC Direct to Timber Ceiling New Build / Conversion


Purpose built dwelling-houses and flats 40 R w dB

Dwelling-houses and flats formed by a material change of use 40 R w dB

Make sure...

RTC

0 8


The floor joists are correctly braced with noggings as

specified - if not adequately restrained, the floor will

be structurally weak and more prone to ‘squeaking’.

The holes and notches for services are correctly

positioned - in the wrong position holes and notches

will weaken the floor joists.

When using the GTEC Resilient Bars make sure

that the board fixing screws do not coincide with the

floor joists.

Mark the position of floor joists on adjoining walls

so that screw fixings can be positioned either side

of the joists.

In new build and renovation, fixing plasterboard

to timber joists provides a fast and effective means

of creating ceilings. Boards can be nailed directly

to timbers, although screw-fixing provides superior

performance.

Components


GTEC E Board

• Joists: 22mm tongue and groove

chipboard, 47 x 200mm at

600mm centres with noggings


wool density 10.5 kg/m³

• Ceiling: one layer of

12.5mm GTEC E Board

• Fire resistance (mins) to BS 476

insulation to ceiling void: 0

• Fire resistance (mins) to BS 476

integrity to ceiling void: 30

• Sound insulation

airborne: 40 R dB w

The mineral wool quilt between the joists is the

correct thickness and density.

The mineral wool quilt is butted up tightly against the

sides of the joists - gaps will allow the sound to travel

straight through rather than being partially absorbed.

Part E:


GTEC Resilient Bar Deep New Build / Conversion


Purpose built dwelling-houses and flats 40 R w dB

Dwelling-houses and flats formed by a material change of use 40 R w dB

Make sure...

RTC

06


The correct type of GTEC plasterboard has been

used - the wrong type of wallboard will affect

performance. GTEC plasterboard are colour

coded to make life easier.

The GTEC plasterboard is supported between

the joists at the perimeter. Battens should be

used to support the edge of the wallboard to

prevent sagging.

All joints are taped and jointed using

GTEC Joint Cement Xtra and perimeters

sealed using GTEC Intumescent Acoustic Sealant.

You plan the board layout to avoid both layers of

board having coincident joints on the same joist/

GTEC Resilient Bar Deep.

• Joists: 18mm tongue and

groove chipboard, 47 x 200mm

timber joists (minimum) at

maximum 600mm centres

Components

• Ceiling: one layer of 15mm

GTEC Standard Board or GTEC

Megadeco on GTEC Resilient Bars

at maximum 450mm centres

The floor deck is isolated from the surrounding

walls with a resilient layer - this will improve

sound performance.

The joints in the chipboard are glued together.


GTEC Megadeco Board



Part E: Floors & Ceilings

Part L: What do you need to know?

Part L:

What do you need to know?

Part L regulation was effective as of the 6 April, 2006. New Part L is an

upgrade of the Building Regulations 2000 broken down into 4 sections.

1. L1A is work in new dwellings

2. L1B is work in existing dwellings

3. L2A New buildings other than

dwellings

4. L2B is work in existing buildings

not dwellings

Part L - Focus is on:

• Conservation of fuel and power

• Further reducing carbon emissions

However the whole building envelope must be considered not just individual

elements. For drywall industry the following two criteria are the most important:

• Calculate the CO 2 Dwelling Emission Rate (DER),

based on a Standard Assessment Program (SAP

2005), is no greater than the Target Emission

Rate (TER) using a formula which takes into

account all energy consumption, including the

effect of solar gain.

• Limits on design flexibility (limiting U value) and

fixed building services are compliant.

Also to be considered are:

• Part F Air Tightness - Supply air permeability

test certificate.

• In conjunction with Part L, Part F also changed

at the same time because it worked together

to ensure the overall energy efficiency of the

building.

Installation

• Installers must ensure junction details are

installed correctly especially at ceilings

and wall junctions.

Part L:

Likely U-value requirements

Likely U-value requirements Min

Residential and non-residential new build

Pitched roof with insulation between rafters 0.13 0.20

Pitched roof with insulation between joists 0.13 0.16

Flat roof 0.13 0.25

Wall 0.20 0.30

Floor 0.10 0.22

Windows, door & roof lights 1.50 1.80

Air permeability 5 10

In summary

• Greater cost in professional fees

• Thermal calculation based on entire envelope

rather than any individual element

• Potentially increased use of thicker insulation

• More emphasis on sealing drafts and air leaks

Due to the complexity of the building envelope we suggest you contact our Technical Enquiryline

0 75 77789 to discuss your requirements. Please have your U-value requirements available prior

to calling to reduce delay. Examples using GTEC Thermal K Boards designed to help meet Part L

requirements are detailed on page 94 and 95.

GTEC Plasterboard Solutions has an in-depth and practical understanding of what the builder needs - we

lead the way in system innovation, providing exciting new solutions to ever more demanding construction

challenges and we strive to continually improve and expand our products and systems range.

Our drywall systems provide economic, high performance options to meet a wide range of building

requirements. They are ideally suited to today’s fast-track construction schedules, which must control costs

while maintaining the highest quality standards. Our plasterboard range and drywall systems can meet the

practical and performance needs of all new build and refurbishment projects.

This guide is designed as a quick and simple reference to the wide range of Lafarge Plasterboard’s products

and systems. We have also included some handy tips.

If you would like more information on our step-by-step guides or on our products and systems contact:

Literatureline 01275 377582

Technical Enquiryline 01275 377789



Max

Part L: Likely U-value requirements

Part L: External Wall Linings

Part L:

External Wall Linings

GTEC Dryliner system New Build / Conversion

Thermal Insulation Achieved RDS 06 0.30 W/m²K

RDS 05 0.30 W/m²K

RDS 006


RDS 005


The Lafarge GTEC Dryliner system provides a simple

means of achieving a flat surface irrespective of the

condition of the substrate. It also allows the creation

of a cavity from 20mm to 150mm to accommodate

services.


• External wall: 100mm standard concrete

blocks with 50mm cavity and render finish

• Internal wall: 100mm standard concrete blocks

• Lining: 60mm GTEC Thermal K Board on GTEC

Dryliner Channels at 400mm wider centres


density 16 kg/m³


• External wall: 215mm Celcon

Standard or equivalent blocks with

25mm cavity and render finish

• Lining: 50mm GTEC Thermal K Board

on GTEC Dryliner Channels at 400mm centres

Components

GTEC SR Bracket


GTEC Dryliner Track

GTEC Thermal K Board

Part L:

External Wall Linings

GTEC Direct Bond New Build

Thermal Insulation Achieved RDL 02 0.27 W/m²K

Note: Rock mineral wool density 33 kg/m 2 may be used in lieu of glass mineral wool as


RDL 00


Make sure...

The dabs for the wallboard lining are continuous at

the wall perimeter and to door and window frames

- this helps to seal airpaths behind the wallboard.

There are continuous dabs of plaster around the

socket outlets.

The gap at the base of the wallboard is filled with

GTEC Intumescent Acoustic Sealant.

Direct bonding of plasterboard provides a fast,

efficient means of lining masonry and offers a dry

solution calling for skills more readily acquired than

traditional plastering. Extensively used in volume

house building and smaller projects for more than

30 years it continues to provide a highly cost-effective

means of complying with Building Regulations.



• External wall: 100mm brickwork

with 75mm cavity

• Internal wall: 100mm Celcon

Solar Blocks or equivalent

• Lining: 60mm GTEC Thermal K Board on

Direct Bond system with 10mm cavity, using

GTEC Universal Bonding Compound.

The thermal lining is the correct insulation type

and thickness. The different types of insulation

vary significantly in performance. Installing the

wrong type and thickness could seriously

increase heat loss.

The mineral wool installed between studs

is the correct thickness, and free from gaps.

Components

GTEC Thermal K Board

Part L: External Wall Linings

Plasterboard Selector

A comprehensive

range of

plasterboards

to meet all

applications

Technical: Other technical boards are available.

For further details, please contact our

Technical Enquiryline on 01275 377789

See Page: 6 7 6 7 7 7 7 8 8 8 9 9


Tapered or square edges available

in a wide range of sizes

GTEC Vapour Board

Vapour control lining for ceilings

and external walls

GTEC Plank

19mm board for walls, ceilings and partitions

GTEC Moisture Board

Use in bathrooms, kitchens and high moisture areas


When you need high levels of fire protection

GTEC E Board

Designed for use in dwellings as defined by Approved

Document E regulations.

GTEC dB Board

Superior acoustic performance


Superior acoustic performance

GTEC Universal Board

Multipurpose, combining fire sound

and impact resistance

GTEC Thermal board

Bonded to different types of insulation

to suit a variety of thermal requirements

GTEC Aqua Board NEW PRODUCT

Water and mould resistant. Used in wet

and high humidity areas

GTEC Megadeco

Fire, sound and impact resistance with one decorative

white face with a colour matched jointing system

BS EN 520 : 2005 Type A N/A A H1 D, F D D, I D D, F, I, R N/A A D, F, I, R

BS1230: 1985 Type 1 1 1 3&4 5 1 1 1 5 N/A 1 5

WALL Linings


system

✓ ✘ ✘ ✘ ✓ ✓ ✓ ✓ *

GTEC Dryliner system ✓ ✓ ✘ ✓ ✓ ✓ ✓ ✓ *

GTEC Independent

Wall Lining system

GTEC Linings to

Timber Frame system

PArtitions

GTEC Metal Stud

Partitions system

GTEC Acoustic

Homespan system

GTEC Timber Stud

Partitions system

FLoors & CeiLings

GTEC Acoustic

Floor system

GTEC Dryliner

Ceilings system

GTEC Suspended

MF Ceilings system


& Corridor

GTEC Direct to

Timber Ceilings system

meAsurements***

Thickness (mm)

Width (mm)

Length (mm)

✓ ✓ ✘ ✓ ✓ ✓ ✓ ✓ *

✓ ✓ ✓ *

✘ ✓ **

✘ ✓ *

✓ ✓ ✓ ✓

✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✘ ✓ ✓ ✓ ✓

✓ ✘ ✓ ✓ ✓ ✓ ✓ ✓ *

✓ ✘ ✓ ✓

✘ ✘ ✘ ✘ ✘ ✘ ✘ ✓ ✘ ✘ ✘ ✘

✓ ✘ ✓ ✓ ✓ ✓ ✓ ✘ ✓ ✘ ✘ ✓

✘ ✘ ✓ ✘ ✓ ✘ ✓ ✘ ✓ *

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✘ ✓ *

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✘ ✓ *

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✘ ✓ *

✓ ✓ ✓ *

9.5,

12.5,

15.0

900,

1200

1800–

3600

9.5,

12.5,

15.0

900,

1200

1800,

2350,

2400,

2700,

3000

19.0

✓ ✓ ✓ ✓ ✘ ✓ *

12.5,

15.0

600 1200

2400

2400,

2700,

3000

* Not a typical application.

** GTEC Universal Bonding Compound must be used.

*** Not all combinations are available.

12.5,

15.0

900,

1200

1800,

2400,

2700

3000

12.5

12.5,

15.0

15.0

12.5,

15.0

✘ ✘ ✓ *

✓ ✓ ✓

✓ ✓ ✓

✓ ✓ ✓

✓ *

✓ *

22–70 12.5

✓

12.5,

15.0

1200 1200 900 1200 1200 1200 1200

2400,

2700

2400,

2700,

3000

1800,

2400,

2500,

2700

2400,

2700,

3000

2400

2400,

2700

2400,

2700,

3000

P L A S T E R B O A R D S E L E C T O R | L A F A R G E | P A G E 9 6

Plasterboard Selector

Lafarge Training

Get in training

for the year ahead

Lafarge offers a wide range of training packages

for our products and systems, either at our fully

equipped Drywall Training Centre in Bristol or

with our mobile units we can come to you.

If required, courses can be tailored to individual

company requirements. Why not keep abreast

of the latest drywall developments and installation

techniques and book today.

To keep on top of drywall developments and

ensure your skills are up to date why not book

into one of Lafarge Plasterboard’s forthcoming

training courses at our Drywall Training Centre.

Contractor Training Courses

• Lafarge GTEC Direct Bond System

• Lafarge GTEC Metal Stud Partition System

• Lafarge GTEC Taping and Jointing System

• Mechanical Taping and Jointing

• Lafarge GTEC Suspended MF Ceilings System

• Lafarge GTEC Dryliner Wall Lining System

• Lafarge GTEC T-Bar Flat Ceiling System

• Lafarge GTEC T-Bar Corridor System

Specialist Training Courses

• Drywall Awareness

• Technical Support

• Drywall Site Management

• Residential, Schools, Hospitals and Cinemas

For further details please contact our Drywall Training Centre on:

Tel: 01275 377581

Email: training@lafarge-gypsum.lafarge.com

Fax: 01275 377402



Housing - New Building Systems

• Lafarge GTEC Direct Bond System

• Lafarge GTEC Metal Stud Partition System

Refurbishment Courses

• Lafarge GTEC Independent Wall Lining System

• Lafarge GTEC Dryliner Wall Lining System

• Lafarge GTEC Acoustic Floor System

Commercial Courses

• Lafarge GTEC Suspended MF Ceiling System

• Lafarge GTEC Column and Beam Clip System

• Lafarge GTEC Shaftwall System

Specialist Courses

• Drywall Site Management, Drywall Awareness,

Customer Service Technical Support

The Backing of a World Leader

Lafarge is the world’s largest producer of construction materials, including gypsum

products, aggregates and cement. The preservation of natural resources and respect for

the needs of people and the environment are fundamental to the organisation’s business

approach and philosophy.

GB Orderline

For placing orders, delivery enquiries

and local stockists etc.

Tel: 0800 7 6 6

Fax: 0 75 77700

Email: orderline@lafarge-gypsum.lafarge.com

Literatureline

For next day delivery of Lafarge literature.

Tel: 0 75 7758

Fax: 0 75 7740

Email: literatureline@lafarge-gypsum.lafarge.com

Technical Enquiryline

Technical advisory service.

Tel: 0 75 77789

Fax: 0 75 77456

Email: enquiryline@lafarge-gypsum.lafarge.com

Certificate No. FM 13594 Certificate No. EMS 75024

LAFARGE PLASTERBOARD LTD

Marsh Lane, Easton-in-Gordano

Bristol BS 0 0NF

Tel: 0 75 7777

Fax: 0 75 777 7


Plasterboard, jointing and associated products made in the

United Kingdom by Lafarge Plasterboard are manufactured

in accordance with management systems certified to

BS EN ISO 9001: 2000 (quality) and BS EN ISO 14001:

2004 (environment)

Ireland Orderline

For placing orders, delivery enquiries

and local stockists etc.

Tel: + 5 (0) 6 0 4

Fax: + 5 (0) 6 0 7

Email: irelandorders@lafarge.com

The Technical Training Centre

For all drywall training needs from basic

introduction to advanced skills and development.

Tel: 0 75 7758

Fax: 0 75 7740

Email: training@lafarge-gypsum.lafarge.com

Wasteline

Gypsum waste management enquiries.

Tel: 0 75 77579

Fax: 0 75 7740

Email: wasteline@lafarge-gypsum.lafarge.com

LAFARGE PLASTERBOARD (IRELAND) LTD

Unit 8, Fonthill Industrial Park,

Clondalkin, Dublin

Tel: + 5 (0) 6 6 60

Fax: + 5 (0) 6 6 679


The information given in this publication is correct to the best of the publisher’s knowledge at the

time of print, but users must satisfy themselves as to the suitability of any particular product or

detail for a specific application.

DSS / 0408 / AJA

The Drylining Solutions Selector - Howarth Timber

Transform your PDFs into Flipbooks and boost your revenue!

The Drylining Solutions Selector - Howarth Timber

Transform your PDFs into Flipbooks and boost your revenue!

Delete template?

Save as template ?
