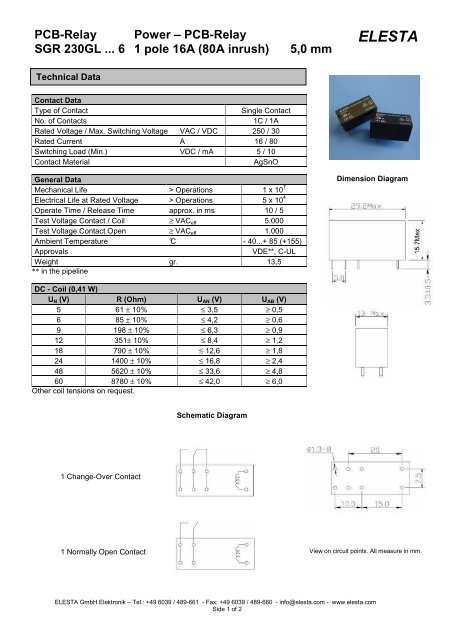

<strong>PCB</strong>-<strong>Relay</strong> Power – <strong>PCB</strong>-<strong>Relay</strong><br />
<strong>SGR</strong> <strong>230GL</strong> ... 6 1 <strong>pole</strong> <strong>16A</strong> (<strong>80A</strong> <strong>inrush</strong>) 5,0 mm<br />
Technical Data<br />
Contact Data<br />
Type of Contact Single Contact<br />
No. of Contacts 1C / 1A<br />
Rated Voltage / Max. Switching Voltage VAC / VDC 250 / 30<br />
Rated Current A 16 / 80<br />
Switching Load (Min.) VDC / mA 5 / 10<br />
Contact Material AgSnO<br />
General Data<br />
Mechanical Life > Operations 1 x 10<br />
Spule bei + 20°C<br />
Nennspannung VDC 5...60<br />
Nennleistung (DC - Spule) ca. W 0,41<br />
Max. Betätigungsspannung (+20°C) VDC 1,3 x U N<br />
7<br />
Electrical Life at Rated Voltage > Operations 5 x 10 4<br />
Operate Time / Release Time approx. in ms 10 / 5<br />
Test Voltage Contact / Coil ≥ VACeff 5.000<br />
Test Voltage Contact Open ≥ VACeff 1.000<br />
Ambient Temperature °C - 40...+ 85 (+155)<br />
Approvals VDE**, C-UL<br />
Weight<br />
** in the pipeline<br />
gr. 13,5<br />
DC - Coil (0,41 W)<br />
UN (V) R (Ohm) UAN (V) UAB (V)<br />
5 61 ± 10% ≤ 3,5 ≥ 0,5<br />
6 85 ± 10% ≤ 4,2 ≥ 0,6<br />
9 198 ± 10% ≤ 6,3 ≥ 0,9<br />
12 351± 10% ≤ 8,4 ≥ 1,2<br />
18 790 ± 10% ≤ 12,6 ≥ 1,8<br />
24 1400 ± 10% ≤ 16,8 ≥ 2,4<br />
48 5620 ± 10% ≤ 33,6 ≥ 4,8<br />
60 8780 ± 10% ≤ 42,0 ≥ 6,0<br />
Other coil tensions on request.<br />
1 Change-Over Contact<br />
1 Normally Open Contact<br />
Schematic Diagram<br />
ELESTA <strong>GmbH</strong> Elektronik – Tel.: +49 6039 / 489-661 - Fax: +49 6039 / 489-660 - info@elesta.com - www.elesta.com<br />
Side 1 of 2<br />
ELESTA<br />
Dimension Diagram<br />
View on circuit points. All measure in mm.
<strong>PCB</strong>-<strong>Relay</strong> Power – <strong>PCB</strong>-<strong>Relay</strong><br />
<strong>SGR</strong> <strong>230GL</strong> ... 6 1 <strong>pole</strong> <strong>16A</strong> (<strong>80A</strong> <strong>inrush</strong>) 5,0 mm<br />
Order Type<br />
<strong>Relay</strong> Type<br />
ELESTA <strong>GmbH</strong> Elektronik – Tel.: +49 6039 / 489-661 - Fax: +49 6039 / 489-660 - info@elesta.com - www.elesta.com<br />
Side 2 of 2<br />
ELESTA<br />
<strong>SGR</strong> 230 GL 012VDC 1C 6 ASO 1<br />
Coil Voltage<br />
005VDC = 5VDC...060VDC = 60VDC<br />
Type of Contact<br />
1A = 1 Normally Open Contact<br />
1C = 1 Change-Over Contact<br />
Construction<br />
6 = Raster 5,0mm to 16 A<br />
V = Sealed (without = washproof)<br />
Q = high temperature-resistant (-40C ~ +155C)<br />
H = High Current Model (<strong>inrush</strong> current 20ms = max. 80 A)<br />
(only in construction 1A = 1 normally open contact possible)<br />
Contact Material<br />
ASO = AgSnO²<br />
RoHS<br />
1 = RoHS conform
