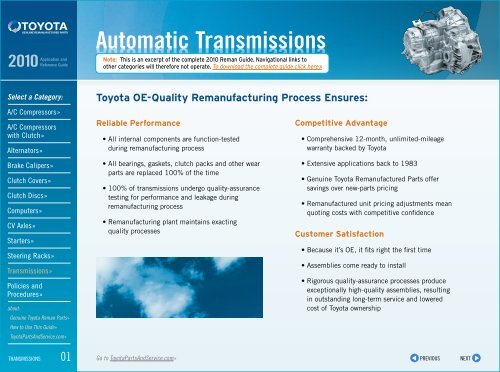

Transmissions
Automatic Transmissions
Automatic
Toyota OE-Quality Remanufacturing Process Ensures:
Reliable Performance
• All internal components are function‑tested
during remanufacturing process
• All bearings, gaskets, clutch packs and other wear
parts are replaced 100% of the time
• 100% of transmissions undergo quality‑assurance
testing for performance and leakage during
remanufacturing process
• Remanufacturing plant maintains exacting
quality processes
Competitive Advantage
• Comprehensive 12‑month, unlimited‑mileage
warranty backed by Toyota
• Extensive applications back to 1983
• Genuine Toyota Remanufactured Parts offer
savings over new-parts pricing
• Remanufactured unit pricing adjustments mean
quoting costs with competitive confidence
Customer Satisfaction
• Because it’s OE, it fits right the first time
• Assemblies come ready to install
• Rigorous quality‑assurance processes produce
exceptionally high-quality assemblies, resulting
in outstanding long-term service and lowered
cost of Toyota ownership
TRANSmiSSioNS 01 Go to ToyotaPartsAndService.com» PREVioUS NEXT

2010
Application and
Reference Guide
Select a Category:
A/C Compressors»
A/C Compressors
with Clutch»
Alternators»
Brake Calipers»
Clutch Covers»
Clutch Discs»
Computers»
CV Axles»
Starters»
Steering Racks»
Transmissions»
Policies and
Procedures»
about:
Genuine Toyota Reman Parts»
How to Use This Guide»
ToyotaPartsAndService.com»
HomE»
Transmissions
Automatic Transmissions
Automatic
AVALON
PREVioUS NEXT
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
0707- GSX30 NAP..u660E, (L) 2GRFE V6, 3.5L U660E 30510‑07020‑84
0501- GSX30 2GRFE V6, 3.5L U151E 30510‑07010‑84
9908-0501 MCX20 4FC 1MZFE V6, 3.0L A541E 30510‑41130‑84
9908-0501 MCX20 4HC 1MZFE V6, 3.0L A541E 30510‑41140‑84
9608-9908 MCX10 4FC 1MZFE V6, 3.0L A541E 30510‑41031‑84
9608-9908 MCX10 4HC 1MZFE V6, 3.0L A541E 30510‑41041‑84
9511-9608 MCX10 4FC 1MZFE V6, 3.0L A541E 30510‑33095‑84
9409‑9608 MCX10 4HC 1MZFE V6, 3.0L A541E 30510‑41013‑84
CAmRY
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
0902‑0903 ACV40 NAP…5FC 2AZFE I 4, 2.4L U760E 30510‑33630‑84
0901‑0902 ACV40 JPP...5FC 2AZFE I4, 2.4L U760E 30510‑33620‑84
0709- GSV40 NAP..u660E, (L) 2GRFE V6, 3.5L U660E 30510‑07020‑84
0601- GSV40 U660E..JPP 2GRFE V6, 3.5L U660E 30510‑33470‑84
0601- ACV30 NAP 2AZFE I4, 2.4L u250E 30510‑3X450‑84
0601-0609 ACV40 5FC 2AZFE I4, 2.4L u250E 30510‑33460‑84
0406‑ MCV31 NAP 3MZFE V6, 3.3L U151E 30510‑33450‑84
0307‑0601 MCV31 JPP 3MZFE V6, 3.3L U151E 30510‑33450‑84
0301‑0308 MCV30 1MZFE V6, 3.0L U151E 30510‑06030‑84
0301‑0307 MCV30 1MZFE V6, 3.0L U151E 30510‑33381‑84
0107‑0310 ACV30 2AZFE I4, 2.4L u241E 30510‑33360‑84
0107‑0301 MCV30 1MZFE V6, 3.0L u140E 30510‑33350‑84
9607-0107 MCV20 1MZFE V6, 3.0L A541E 30510‑33211‑84
9607-0107 SXV20 5SFE I4, 2.2L A140E 30510‑33150‑84
9408‑9608 MCV10 SE 1MZFE V6, 3.0L A541E 30510‑33203‑84
9408‑9608 MCV10 DLX, XLE, LE 1MZFE V6, 3.0L A541E 30510‑33095‑84
9309‑9508 SXV10 5SFE I4, 2.2L A140E 30510‑33140‑84
9308‑9408 MCV10 DLX, XLE, LE 1MZFE V6, 3.0L A541E 30510‑33300‑84
9308‑9408 MCV10 SE 1MZFE V6, 3.0L A541E 30510‑33310‑84
9202‑9309 VCV10 SE, LE, (CND) SPORT PKG 3VZFE V6, 3.0L A540E 30510‑33060‑84
9106‑9309 SXV10 5SFE I4, 2.2L A140E 30510‑33021‑84
9106‑9309 VCV10 DLX, XLE, LE 3VZFE V6, 3.0L A540E 30510‑33055‑84
9105-9109 VZV21 2VZFE V6, 2.5L A540E 30510‑32461‑84
8808-9105 SV25 3SFE I4, 2.0L A540H 30510‑32480‑84
8802‑9105 VZV21 2VZFE V6, 2.5L A540E 30510‑32460‑84
8708-9109 SV21 STD 3SFE I4, 2.0L A140L 30510‑32450‑84
8608-9109 SV21 DLX, LE 3SFE I4, 2.0L A140E 30510‑32440‑84
8208‑8608 SV11 ECT 2SELC I4, 2.0L A140E 30510‑32340‑84
CELICA
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
9908-0507 ZZT231 2ZZGE I4, 1.8L u240E 30510‑2B800‑84
9908‑0208 ZZT230 1ZZFE I4, 1.8L u341E 30510‑2B810‑84
9309‑9905 ST204 5SFE I4, 2.2L A140E 30510‑2B420‑84
8708-8908 ST162 ST, GT 3SFE I4, 2.0L A140L 30510‑20360‑84
TRANSmiSSioNS 02 Go to ToyotaPartsAndService.com»
PREVioUS NEXT

2010
Application and
Reference Guide
Select a Category:
A/C Compressors»
A/C Compressors
with Clutch»
Alternators»
Brake Calipers»
Clutch Covers»
Clutch Discs»
Computers»
CV Axles»
Starters»
Steering Racks»
Transmissions»
Policies and
Procedures»
about:
Genuine Toyota Reman Parts»
How to Use This Guide»
ToyotaPartsAndService.com»
HomE»
Transmissions
Automatic Transmissions
Automatic
COROLLA/mATRIX
PREVioUS NEXT
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
0801- ZRE142 NAP..4FC (COROLLA ONLY) 2ZRFE I4, 1.8L u341E 30510‑12C60‑84
0801- ZRE142 4FC (MATRIX ONLY) 2RZFE I4, 1.8L u341E 30510‑12C10‑84
0801- AZE144 2AZFE u140F 30510‑12C90‑84
0712‑ ZRE142 JPP.. (COROLLA ONLY) 2ZRFE I4, 1.8L u341E 30510‑12C60‑84
0405‑ ZZE130 1ZZFE I4, 1.8L A245E 30510‑12A00‑84
0405‑ ZZE132 1ZZFE I4, 1.8L A246E 30510‑12A30‑84
0405‑0607 ZZE134 NAP 1ZZFE I4, 1.8L u341F 30510‑12A20‑84
0201‑ ZZE134 1ZZFE I4, 1.8L u341F 30510‑1A810‑84
0201‑0305 ZZE133 2ZZGE I4, 1.8L u240E 30510‑1A830‑84
9908‑0201 ZZE110 3FC 1ZZFE I4, 1.8L A131L 30510‑1A630‑84
9908‑0201 ZZE110 4FC 1ZZFE I4, 1.8L A245E 30510‑1A640‑84
9708-9908 ZZE110 4FC 1ZZFE I4, 1.8L A245L 30510‑1A400‑84
9708-9908 ZZE110 3FC 1ZZFE I4, 1.8L A131L 30510‑1A360‑84
9508-9708 AE101 JPP, CND, NAP 4AFE I4, 1.6L A131L 30510‑1A270‑84
9505-9708 AE101 JPP, USA 4AFE I4, 1.6L A131L 30510‑1A070‑84
9408‑9708 AE102 7AFE I4, 1.8L A245E 30510‑12811‑84
9206‑9708 AE101 JPP, STD, AXC = ‑06A 4AFE I4, 1.6L A131L 30510‑1A150‑84
9206‑9508 AE101 JPP, CND, NAP 4AFE I4, 1.6L A131L 30510‑12820‑84
9206‑9505 AE101 JPP, USA 4AFE I4, 1.6L A131L 30510‑12860‑84
9206‑9408 AE102 7AFE I4, 1.8L A245E 30510‑12810‑84
8909‑9209 AE92 3FC, EFI, JPP, CND, NAP, SED, wG, AXC = ‑552 4AFE I4, 1.6L A131L 30510‑12541‑84
8908‑9206 AE92 4FC, EFI 4AFE I4, 1.6L A240L 30510‑12610‑84
8908‑9206 AE92 3FC, EFI, JPP, uSA, AXC = ‑552 4AFE I4, 1.6L A131L 30510‑12691‑84
8809-8909 AE92 CBR, NAP, SED, wG, 3FC, AXC = ‑552 4AF I4, 1.6L A131L 30510‑12200‑84
8809-8909 AE92 4FC, CBR 4AF I4, 1.6L A240L 30510‑12330‑84
8802‑8908 AE92 3FC, CBR, AXC = ‑602 4AF I4, 1.6L A131L 30510‑12430‑84
8708-8910 AE92 3FC, CBR, SED, wG, JPP, uSA, AXC = ‑552 4AF I4, 1.6L A131L 30510‑12350‑84
8708-8910 AE92 3FC, CBR, CPE, AXC = ‑552 4AF I4, 1.6L A131L 30510‑12350‑84
8609-8808 AE82 FX(D), 3FC 4ALC I4, 1.6L A131L 30510‑01021‑84
8308‑8707 AE82 3FC (EXC. 87 CND) 4ALC I4, 1.6L A131L 30510‑12032‑84
CRESSIDA
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
8808-9108 MX83 7MGE I6, 3.0L A340E 35010‑2A400‑84
8808-9108 MX83 w/ABS 7MGE I6, 3.0L A340E 35010‑2A470‑84
8408‑8608 MX7# 5MGE I6, 2.8L A43DE 35010‑2A350‑84
ECHO
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
9908-0109 NCP12 1NZFE I4, 1.5L u340E 30510‑52110‑84
Fj CRuISER
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
0707- GSJ15 1GRFE V6, 4.0L A750F 35010‑35B40‑84
0707- GSJ10 1GRFE V6, 4.0L A750E 35010‑35B30‑84
0601- GSJ15 ATM 1GRFE V6, 4.0L A750F 35010‑35B10‑84
0601- GSJ10 1GRFE V6, 4.0L A750E 35010‑35B20‑84
TRANSmiSSioNS 03 Go to ToyotaPartsAndService.com»
PREVioUS NEXT

2010
Application and
Reference Guide
Select a Category:
A/C Compressors»
A/C Compressors
with Clutch»
Alternators»
Brake Calipers»
Clutch Covers»
Clutch Discs»
Computers»
CV Axles»
Starters»
Steering Racks»
Transmissions»
Policies and
Procedures»
about:
Genuine Toyota Reman Parts»
How to Use This Guide»
ToyotaPartsAndService.com»
HomE»
Transmissions
Automatic Transmissions
Automatic
HIGHLANDER
PREVioUS NEXT
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
0811-0911 ACu20, 25 2AZFE I4, 2.4L U760E 30510‑73010‑84
0705- GSu40 2GRFE V6, 3.5L U151E 30510‑48250‑84
0705- GSu45 2GRFE V6, 3.5L U151F 30510‑48260‑84
0602‑ MCu23 3MZFE V6, 3.3L U151E 30510‑48130‑84
0407‑0609 ACu20 2AZFE I4, 2.4L u241E 30510‑48220‑84
0308‑ MCu23 3MZFE V6, 3.3L U151E 30510‑48130‑84
0308‑0407 ACu20 2AZFE I4, 2.4L u241E 30510‑48191‑84
0011‑0308 MCu20 1MZFE V6, 3.0L u140F 30510‑48080‑84
0011‑0308 MCu25 1MZFE V6, 3.0L u140E 30510‑48100‑84
0011‑0308 ACu20 2AZFE I4, 2.4L u241E 30510‑48120‑84
LAND CRuISER
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
0505- UZJ100 2uZFE V8, 4.7L A750F 35010‑60A40‑84
0209‑0308 UZJ100 TRANSFER ASSY NOT INCLuDED 2uZFE V8, 4.7L A750F 35010‑6A141‑84
0008‑0208 UZJ100 2uZFE V8, 4.7L A343F 35010‑6A020‑84
9803‑9908 UZJ100 TRANSFER ASSY NOT INCLuDED 2uZFE V8, 4.7L A343F 35010‑60611‑84
9603‑9801 FZJ80 TRANSFER ASSY NOT INCLuDED 1FZFE I6, 4.5L A343F 35010‑60541‑84
RAV4
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
0603‑ ACA38 2AZFE I4, 2.4L u241E 30510‑42230‑84
0601- GSA38 2GRFE V6, 3.5L U151E 30510‑42190‑84
0601- GSA33 2GRFE V6, 3.5L U151F 30510‑42200‑84
0511- ACA33 2AZFE I4, 2.4L u140F 30510‑42220‑84
0307‑ ACA28 2AZFE I4, 2.4L u241E 30510‑42170‑84
0307‑ ACA23 2AZFE I4, 2.4L u140F 30510‑42160‑84
0008- ACA26 1AZFE I4, 2.0L u241E 30510‑42110‑84
0008- ACA21 4wD (TRANSFER ASSY NOT INCLuDED) 1AZFE I4, 2.0L u140F 30510‑42100‑84
9709- SXA15,16 3SFE I4, 2.0L A247E 30510‑42070‑84
9709-0008 SXA10,11 4wD (INCLuDES TRANSFER ASSY) 3SFE I4, 2.0L A540H 30510‑42030‑84
9608-9709 SXA15,16 3SFE I4, 2.0L A241E 30510‑42020‑84
SCION xA
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
0507-0508 NCP61 1NZFE I4, 1.5L u340E 30510‑52361‑84
0304‑ NCP61 1NZFE I4, 1.5L u340E 30510‑52280‑84
SCION xB
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
0304‑ NCP31 1NZFE I4, 1.5L u340E 30510‑52280‑84
SCION tC
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
0702‑ ANT10 4FC 2AZFE I4, 2.4L u241E 30510‑21172‑84
0405‑0605 ANT10 4FC 2AZFE I4, 2.4L u241E 30510‑21170‑84
TRANSmiSSioNS 04 Go to ToyotaPartsAndService.com»
PREVioUS NEXT

2010
Application and
Reference Guide
Select a Category:
A/C Compressors»
A/C Compressors
with Clutch»
Alternators»
Brake Calipers»
Clutch Covers»
Clutch Discs»
Computers»
CV Axles»
Starters»
Steering Racks»
Transmissions»
Policies and
Procedures»
about:
Genuine Toyota Reman Parts»
How to Use This Guide»
ToyotaPartsAndService.com»
HomE»
Transmissions
Automatic Transmissions
Automatic
SCION xD
SOLARA
PREVioUS NEXT
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
0706- ZSP110 4FC 2ZRFE I4, 1.8L u341E 30510‑52440‑84
SEQuOIA
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
0711- USK60 TOWING PKG 3uRFE AB60E 35010‑0C250‑84
0711- USK65 TOWING PKG 3uRFE AB60F 35010‑0C270‑84
0408‑ uCK35 2uZFE V8, 4.7L A750E 35010‑0C020‑84
0408‑ uCK45 2uZFE V8, 4.7L A750F 35010‑0C030‑84
0209‑ uCK35 2uZFE V8, 4.7L A340E 35010‑34270‑84
0209‑ uCK45 4wD (TRANSFER ASSY NOT INCLuDED) 2uZFE V8, 4.7L A340F 35010‑34280‑84
0009‑0209 uCK35 2uZFE V8, 4.7L A340E 35010‑34170‑84
0009‑0209 uCK45 4wD (TRANSFER ASSY NOT INCLuDED) 2uZFE V8, 4.7L A340F 35010‑34180‑84
SIENNA
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
0301‑ MCL25 3MZFE V6, 3.3L U151F 30510‑08020‑84
0301‑0409 MCL20,23 3MZFE V6, 3.3L U151E 30510‑08010‑84
0008‑0301 MCL10 1MZFE V6, 3.0L A540E 30510‑45020‑84
9708-0008 MCL10 1MZFE V6, 3.0L A540E 30510‑45010‑84
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
0601- ACV30 5FC 2AZFE I4, 2.4L u250E 30510‑3X450‑84
0501- MCV31 3MZFE V6, 3.3L U151E 30510‑33450‑84
0307‑0310 ACV30 2AZFE I4, 2.4L u241E 30510‑33360‑84
T100
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
9408‑9708 VCK21 4wD (TRANSFER ASSY NOT INCLuDED) 5VZFE V6, 3.4L A340F 35010‑34101‑84
TACOmA
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
0708- GRN265,270 5FC 1GRFE V6, 4.0L A750E 35010‑04030‑84
0708- GRN245,250 5FC 1GRFE V6, 4.0L A750F 35010‑04040‑84
0409‑ GRN245,250 1GRFE V6, 4.0L A750F 35010‑04020‑84
0409‑ GRN265,270 1GRFE V6, 4.0L A750E 35010‑04010‑84
0409‑ TRN225 4FC 2TRFE I4, 2.7L A340E 35010‑35A20‑84
0409‑ TRN220 2TRFE I4, 2.7L A340E 35010‑35A20‑84
0409‑ TRN220 4FC 2TRFE I4, 2.7L A340E 35010‑35A30‑84
0209‑0409 RZN196 2wD 3RZFE I4, 2.7L A340E 35010‑3G350‑84
0209‑0409 VZN170 4wD, 4FC (TRANSFER ASSY NOT INCLuDED) 5VZFE V6, 3.4L A340F 35010‑3G340‑84
0209‑0409 VZN195 2wD 5VZFE V6, 3.4L A340E 35010‑3G330‑84
0109‑0209 RZN191 2wD 3RZFE I4, 2.7L A340F 35010‑3G310‑84
0109‑0209 RZN196 2wD 3RZFE I4, 2.7L A340F 35010‑3G300‑84
0109‑0209 VZN195 2wD 5VZFE V6, 3.4L A340F 35010‑3G320‑84
tacoMa continued
TRANSmiSSioNS 05 Go to ToyotaPartsAndService.com»
PREVioUS NEXT

2010
Application and
Reference Guide
Select a Category:
A/C Compressors»
A/C Compressors
with Clutch»
Alternators»
Brake Calipers»
Clutch Covers»
Clutch Discs»
Computers»
CV Axles»
Starters»
Steering Racks»
Transmissions»
Policies and
Procedures»
about:
Genuine Toyota Reman Parts»
How to Use This Guide»
ToyotaPartsAndService.com»
HomE»
Transmissions
Automatic Transmissions
Automatic
TACOmA continued
TRuCk/4RuNNER
PREVioUS NEXT
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
0009‑0409 RZN140,150 4wD, 4FC 2RZFE I4, 2.4L A340E 35010‑3G080‑84
0009‑0209 VZN170 4wD, 4FC (TRANSFER ASSY NOT INCLuDED) 5VZFE V6, 3.4L A340F 35010‑3G110‑84
9908-0009 RZN161,171 4wD, 4FC (TRANSFER ASSY NOT INCLuDED) 3RZFE I4, 2.7L A340F 35010‑3D820‑84
9908-0009 RZN196 2wD 3RZFE I4, 2.7L A340F 35010‑3G130‑84
9908-0009 VZN170 4wD, 4FC (TRANSFER ASSY NOT INCLuDED) 5VZFE V6, 3.4L A340F 35010‑3D850‑84
9908-0009 VZN170 4wD 5VZFE V6, 3.4L A340F 35010‑3D800‑84
9908-0009 VZN195 2wD 5VZFE V6, 3.4L A340E 35010‑3D840‑84
9908-0009 VZN195 2wD 5VZFE V6, 3.4L A340F 35010‑3D810‑84
9802‑9908 RZN19# 2wD 3RZFE I4, 2.7L A340E 35010‑3D730‑84
9802‑9908 VZN195 2wD 5VZFE V6, 3.4L A340E 35010‑3D720‑84
9706-9908 RZN161,171 4wD, 4FC (TRANSFER ASSY NOT INCLuDED) 3RZFE I4, 2.7L A340F 35010‑3D640‑84
9706-9908 VZN170 4wD, 4FC (TRANSFER ASSY NOT INCLuDED) 5VZFE V6, 3.4L A340F 35010‑3D630‑84
9501-9706 RZN140,150 2wD, 4HC 2RZFE I4, 2.4L A43D 35010‑3D310‑84
TERCEL
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
9712‑9907 EL53 3FC 5EFE I4, 1.5L A132L 30510‑16610‑84
9409‑9907 EL53 4FC 5EFE I4, 1.5L A242L 30510‑16660‑84
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
0408‑ uZN210 2uZFE V8, 4.7L A750E 35010‑35A40‑84
0408‑ uZN215 2uZFE V8, 4.7L A750F 35010‑35A50‑84
0408‑ GRN210 1GRFE V6, 4.0L A750E 35010‑35A60‑84
0408‑ GRN215 1GRFE V6, 4.0L A750F 35010‑35A70‑84
0211‑0408 GRN215 A340F/5SPD 1GRFE V6, 4.0L A340F 35010‑6A110‑84
0211‑0408 GRN210 1GRFE V6, 4.0L A340E 35010‑3G400‑84
0208‑0308 uZN210 2uZFE V8, 4.7L A750F 35010‑3G460‑84
0208‑0308 uZN215 2uZFE V8, 4.7L A750F 35010‑3G470‑84
0008‑0208 VZN180 5VZFE V6, 3.4L A340E 35010‑3G160‑84
0008‑0208 VZN185 4wD (TRANSFER ASSY NOT INCLuDED) 5VZFE V6, 3.4L A340F 35010‑3G170‑84
9908-0008 VZN180 5VZFE V6, 3.4L A340E 35010‑3D890‑84
9908-0008 VZN180 CA SPEC 5VZFE V6, 3.4L A340E 35010‑3G010‑84
9908-0008 VZN185 4FC, 4wD (TRANSFER ASSY NOT INCLuDED) 5VZFE V6, 3.4L A340F 35010‑3G030‑84
9908-0008 VZN185 4FC, 4wD (TRANSFER ASSY NOT INCLuDED)
CA SPEC
5VZFE V6, 3.4L A340F 35010‑3G040‑84
9908-0008 RZN180 3RZFE I4, 2.7L A340F 35010‑3G020‑84
9807-9908 VZN180 CA SPEC 5VZFE V6, 3.4L A340E 35010‑3D740‑84
9807-9908 VZN185 4FC, 4wD (TRANSFER ASSY NOT INCLuDED) 5VZFE V6, 3.4L A340F 35010‑3D770‑84
9603‑9908 VZN185 4FC, 4wD (TRANSFER ASSY NOT INCLuDED) 5VZFE V6, 3.4L A340F 35010‑3D550‑84
9511-9908 VZN180 5VZFE V6, 3.4L A340E 35010‑3D350‑84
9511-9908 RZN180 4FC 3RZFE I4, 2.7L A340E 35010‑3D440‑84
8808-8908 VZN110,13# SR5, 4wD (INCLuDES TRANSFER ASSY) 3VZE V6, 3.0L A340H 35010‑35480‑84
8808-8908 VZN105,110 DLX, 4wD (INCLuDES TRANSFER ASSY) 3VZE V6, 3.0L A340H 35010‑35470‑84
8711‑8903 VZN6# 4wD (INCLuDES TRANSFER ASSY) 3VZE V6, 3.0L A340H 35010‑35300‑84
8708-8908 VZN6# 4wD (INCLuDES TRANSFER ASSY) 3VZE V6, 3.0L A340H 35010‑35300‑84
8608-8808 RN55,75 HVY, 4HC (RN75 88) 22REC I4, 2.4L A43D 35010‑35333‑84
8508-8608 RN55,75 1 TON HVY 22REC I4, 2.4L A43D 35010‑35262‑84
TRANSmiSSioNS 06 Go to ToyotaPartsAndService.com»
PREVioUS NEXT

2010
Application and
Reference Guide
Select a Category:
A/C Compressors»
A/C Compressors
with Clutch»
Alternators»
Brake Calipers»
Clutch Covers»
Clutch Discs»
Computers»
CV Axles»
Starters»
Steering Racks»
Transmissions»
Policies and
Procedures»
about:
Genuine Toyota Reman Parts»
How to Use This Guide»
ToyotaPartsAndService.com»
HomE»
Transmissions
Automatic Transmissions
Automatic
TuNDRA
VAN
PREVioUS NEXT
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
0904‑ uPK50, 51, 52 (2wD) 1URFE V6, 4.0L A760E 35010‑0C290‑84
0904‑ UPK55, 56, 57 (4wD) 1URFE V6, 4.0L A760F 35010‑0C300‑84
0701- uSK50,51,52 3uRFE V8, 5.7L AB60E 35010‑0C170‑84
0701- USK55,56,57 3uRFE V8, 5.7L AB60F 35010‑0C190‑84
0611- uCK50,51,52 2uZFE V8, 4.7L A750E 35010‑0C070‑84
0611- UCK55,56,57 2uZFE V8, 4.7L A750F 35010‑0C080‑84
0611- GSK5# 1GRFE V6, 4.0L A750E 35010‑0C090‑84
0408‑ uCK4# 2uZFE V8, 4.7L A750F 35010‑0C030‑84
0408‑ GSK30 1GRFE V6, 4.0L A750E 35010‑0C040‑84
0408‑ uCK3# 2uZFE V8, 4.7L A750E 35010‑0C050‑84
0309‑0408 VCK30 5VZFE V6, 3.4L A340E 35010‑34290‑84
0309‑0408 uCK3# 2uZFE V8, 4.7L A340E 35010‑34300‑84
0208‑ uCK30 2uZFE V8, 4.7L A340E 35010‑34250‑84
0208‑ uCK40 4wD (TRANSFER ASSY NOT INCLuDED) 2uZFE V8, 4.7L A340F 35010‑34260‑84
0208‑0408 VCK30 4HC 5VZFE V6, 3.4L A340E 35010‑34230‑84
0008‑0208 VCK40 4HC 5VZFE V6, 3.4L A340F 35010‑34200‑84
0008‑0208 4HC A340F/4SPD 2uZFE V6, 4.0L A340F 35010‑34200‑84
0008‑0208 VCK30 4HC 5VZFE V6, 3.4L A340E 35010‑34190‑84
0710- USK50,51 TOWING PKG 3uRFE V8, 5.7L AB60E 35010‑0C250‑84
0710- uSK52 3uRFE V8, 5.7L AB60E 35010‑0C250‑84
0710- USK55,56 TOWING PKG 3uRFE V8, 5.7L AB60F 35010‑0C270‑84
0710- USK57 3uRFE V8, 5.7L AB60F 35010‑0C270‑84
0008‑0208 uCK30 2uZFE V8, 4.7L A340E 35010‑34210‑84
0008‑0208 uCK40 4wD (TRANSFER ASSY NOT INCLuDED) 2uZFE V8, 4.7L A340F 35010‑34220‑84
0008‑0208 VCK40 4HC 5VZFE V6, 3.4L A340F 35010‑34200‑84
9902‑0008 uCK30 2uZFE V8, 4.7L A340E 35010‑34130‑84
9902‑0008 uCK40 4wD (TRANSFER ASSY NOT INCLuDED) 2uZFE V8, 4.7L A340F 35010‑34140‑84
9902‑0008 VCK30 4HC, CA SPEC 5VZFE V6, 3.4L A340E 35010‑34110‑84
9902‑0008 VCK30 4HC 5VZFE V6, 3.4L A340E 35010‑34150‑84
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
8608-8808 YR2# 4YEC I4, 2.2L A44DL 35010‑28230‑84
8508-8608 YR2# 4YEC I4, 2.2L A44DL 35010‑28150‑84
8408‑8508 YR2# 3YEC I4, 2.0L A44DL 35010‑28071‑84
8308‑8408 YR2# 3YEC I4, 2.0L A44DL 35010‑28070‑84
VENZA
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
0901- AGV15 2AZFE I4, 2.7L U760F 30510‑73020‑84
0901‑0902 AGV10 2AZFE I4, 2.7L U760E 30510‑73010‑84
0811- GGV15 2GRFE V6, 3.5L U660F 30510‑0T021‑84
0811-0906 GGV15 2GRFE V6, 3.5L U660F 30510‑0T021‑84
YARIS
Prod. dates aPPlication remarks engine engine size tyPe reman P/n
0602‑ NCP91,NCP94 u340..ATM 1NZFE I4, 1.5L 30510‑52321‑84
0508- NCP91,NCP93 u340E.4FC 1NZFE I4, 1.5L 30510‑52321‑84
TRANSmiSSioNS 07 Go to ToyotaPartsAndService.com»
PREVioUS NEXT

Application and 2010 Reference Guide
Select a Category:
A/C Compressors»
A/C Compressors
with Clutch»
Alternators»
Brake Calipers»
Clutch Covers»
Clutch Discs»
Computers»
CV Axles»
Starters»
Steering Racks»
Transmissions»
Policies and
Procedures»
about:
Genuine Toyota Reman Parts»
How to Use This Guide»
ToyotaPartsAndService.com»
& Procedures
Policies & Procedures
Policies
Core Return Policies:
Select a Section:
Section 1:
A/C Compressors
Variable Compressors
A/C Compressors with Clutch
Alternators
Brake Calipers
Clutch Covers
Clutch Discs
Starters
Section 2:
Computers
Section 3:
Automatic Transmissions
Section 4:
Steering Racks
Section 5:
CV Axles
To order remanufactured products
from Toyota Dealers, please
have the Vehicle Identification
Number (VIN) available to expedite
processing.
Toyota Dealers: For Warranty,
Policies and Procedures, please
reference the FMPC or Policy
4.15 from Toyota’s Policy and
Procedures Manual.
PoLiCiES AND
PRoCEDURES 01 Go to ToyotaPartsAndService.com» PREVioUS NEXT

2010
Application and
Reference Guide
Select a Category:
A/C Compressors»
A/C Compressors
with Clutch»
Alternators»
Brake Calipers»
Clutch Covers»
Clutch Discs»
Computers»
CV Axles»
Starters»
Steering Racks»
Transmissions»
Policies and
Procedures»
about:
Genuine Toyota Reman Parts»
How to Use This Guide»
ToyotaPartsAndService.com»
HomE»
& Procedures
Policies & Procedures
Policies
CORE RETuRN
GuIDELINES FOR:
To assure core credit,
all cores must be:
100% Core Credit
Will Be Received unless:
Automatic Transmissions
PREVioUS NEXT
• Complete assembled ATM core, not missing any components.
• Genuine Toyota parts that are part of the reman program.
• Returned in the Genuine Toyota Remanufactured ATM shipping container.
• When a Reman ATM has been used in a warranty repair, the yellow Toyota Warranty
Parts Tag (tag: 00404-PRETN-TAGS) must be completed and attached to the core.
TRANSMISSIONS — ACCEPTABLE CORE In correct container, core credit
paperwork attached and complete core, including Torque Converter.
• Disassembled or partially disassembled.
• Missing major components (valve body, torque converter, differential assembly,
transfer case, oil pump, etc.).
• Externally damaged core resulting from an external force such as a vehicle accident
(deformation, cracks, holes, etc.).
• ATM model not part of the Remanufactured Program.
• ATM core not from the vehicle being repaired (junk yard core or other vehicle).
• ATM part number has been discontinued or was sold without core value.
TRANSMISSIONS — Cracked case
TRANSMISSIONS — Partially
disassembled
TRANSMISSIONS — Not in AWTEC
returnable container
TRANSMISSIONS — Missing
Torque Converter
TRANSMISSIONS — Not in AWTEC
returnable container
3 SecTIon 3
Section
continued
PoLiCiES AND
PRoCEDURES 09 Go to ToyotaPartsAndService.com»
PREVioUS NEXT

2010
Application and
Reference Guide
Select a Category:
A/C Compressors»
A/C Compressors
with Clutch»
Alternators»
Brake Calipers»
Clutch Covers»
Clutch Discs»
Computers»
CV Axles»
Starters»
Steering Racks»
Transmissions»
Policies and
Procedures»
about:
Genuine Toyota Reman Parts»
How to Use This Guide»
ToyotaPartsAndService.com»
HomE»
& Procedures
Policies & Procedures
Policies
CORE RETuRN GuIDELINES FOR AuTOmATIC TRANSmISSIONS continued
PREVioUS NEXT
Dealers will receive 100% core credit, unless a core is inspected and can de described under any one of the following core rejection
explanation codes:
CODE 1 NOT RETuRNED IN THE GENuINE TOYOTA REmANuFACTuRED ATm CONTAINER.
CODE 2 DISASSEmBLED OR PARTIALLY DISASSEmBLED CORE OR mISSING mAjOR COmPONENTS — Disassembled
or partially disassembled cores or missing major components such as the valve body, torque converter, differential
assembly, transfer case, oil pump, etc.
CODE 3 NON-GENuINE TOYOTA CORE
CODE 4 EXTERNALLY DAmAGED CORE — Damage to the case, differential or transfer case resulting from an external force
such as a vehicle accident (deformation, cracks, holes, etc.)
CODE 5 ATm mODEL NOT PART OF REmAN PROGRAm
CODE 6 ATm CORE NOT FROm THE VEHICLE BEING REPAIRED — Core received is not the core from the vehicle being
repaired (junk yard core, or other vehicle)
Any automatic transmission core that is rejected has no core or scrap value and will not be returned to the shipper unless previously
requested in PRS. Therefore, it is your responsibility to ensure the cores conform.
Core credit is given on a one-for-one purchase basis. YOu muST RETuRN CORES ImmEDIATELY AFTER REPLACEmENT. Do not
hold for warranty inspection.
Toyota Dealers: Instead of sending CRCR forms, please use the new Parts Recovery System (PRS) to initiate Remanufactured
Returns. The Parts Recovery System application can be found on Dealer Daily.
ATm CORE VALuES
PRODUCT CORE VALuE
Front wheel Drive 4 x 2 or Full Time 4
Wheel Drive without transfer case
$1,000.00
Full Time 4 wheel Drive with transfer case $1,400.00
Rear wheel Drive 4 x 2 or Rear wheel
Drive 4 x 4 without transfer case
$1,000.00
Rear wheel Drive 4 x 4 with transfer case $1,400.00
PART NuMBERS SOLD wITHOuT CORE VALuE
35010‑2A190‑84 35010‑35231‑84
35010‑28070‑84 35010‑35232‑84
35010‑28071‑84 35010‑35233‑84
35010‑28150‑84 35010‑35260‑84
35010‑35150‑84 35010‑35262‑84
35010‑35160‑84 35010‑35263‑84
35010‑35210‑84 35010‑35264‑84
35010‑35212‑84 35010‑35331‑84
35010‑35220‑84 35010‑35350‑84
35010‑35230‑84 35010‑35380‑84
CORE PREPARATION
• Completely drain all applicable fluids from the core (e.g., transmission,
differential, transfer case)
• Transfer all plastic/rubber shipping plugs from the Remanufactured ATM to the
correct holes in the core
• Secure the torque converter to the ATM case using the bracket and bolts supplied
with the Remanufactured ATM
• Return the following parts attached to the core:
• Torque converter
• Speed sensor or governor assembly
• Throttle cable and wiring harness
• Breather assembly
• Differential assembly (Front Wheel Drive models)
• Left-side engine mounting bracket (Front Wheel Drive models)
3 SecTIon 3
Section
• Transfer case (4x4 models) if the remanufactured unit was supplied with a
transfer case
PoLiCiES AND
PRoCEDURES 010 Go to ToyotaPartsAndService.com»
PREVioUS NEXT

Application and 2010 Reference Guide
Select a Category:
A/C Compressors»
A/C Compressors
with Clutch»
Alternators»
Brake Calipers»
Clutch Covers»
Clutch Discs»
Computers»
CV Axles»
Starters»
Steering Racks»
Transmissions»
Policies and
Procedures»
about:
Genuine Toyota Reman Parts»
How to Use This Guide»
ToyotaPartsAndService.com»
GENUiNE ToyoTA
REmAN PARTS 01
Genuine Toyota Reman Parts
Good for Your Business. Good for the Environment.
The Genuine Toyota Remanufactured Parts line
continues to expand, featuring environmentallyfriendly
products that embrace Toyota’s
global environmental philosophy.
And this growth means an increased opportunity
to service more Toyota vehicles using quality,
cost-effective parts remanufactured to meet
original Toyota specifications.
Go to ToyotaPartsAndService.com»
Over 1,795 Part Numbers… and Counting
This Reference Guide is designed to
help you quickly and easily identify
the Remanufactured Parts you need
for Toyota models dating back to 1981.
Quality Repairs Start with Quality Parts
Toyota owners know and expect quality. That’s why
they purchased a Toyota in the first place.
With Genuine Toyota Remanufactured Parts,
you can be sure you’re meeting that
expectation of quality, because Genuine
Toyota Remanufactured Parts provide the
proper fit, factory-specified performance and reliability.
All of which add up to a quality repair, with minimal
comebacks and maximum opportunity for you.
continued
PREVioUS
NEXT

Application and 2010 Reference Guide
Select a Category:
A/C Compressors»
A/C Compressors
with Clutch»
Alternators»
Brake Calipers»
Clutch Covers»
Clutch Discs»
Computers»
CV Axles»
Starters»
Steering Racks»
Transmissions»
Policies and
Procedures»
about:
Genuine Toyota Reman Parts»
How to Use This Guide»
ToyotaPartsAndService.com»
GENUiNE ToyoTA
REmAN PARTS 02
Genuine Toyota Reman Parts
GENuINE TOYOTA REmAN PARTS continued
The Business Opportunity
Is at an All-Time High
The number of Toyota vehicles in operation is at an
all-time high. And so is the opportunity for your
business, with the broadest lineup of Genuine Toyota
Remanufactured Parts ever.
Thanks for Your Part
Everyone involved in the service and repair of Toyota
vehicles plays an important part in fulfilling the high
expectations of Toyota owners, and enhancing
customer loyalty.
With your continued support, and our
continued commitment to building the
highest-quality products, Toyota Units in
Operation will continue to grow. That’s good
for your business — and ours!
Go to ToyotaPartsAndService.com»
Facts About Genuine Toyota
Remanufactured Parts
• Remanufactured,
not rebuilt, using original
Toyota components
• Backed by a 12‑month,
unlimited-mileage warranty
• High quality at a lower cost than OE parts
• Environmentally‑friendly — cores are recycled
rather than discarded so resources are conserved
and landfill is reduced
For more info about Toyota Genuine Parts,
go to ToyotaPartsAndService.com»
PREVioUS
NEXT

Application and 2010 Reference Guide
Select a Category:
A/C Compressors»
A/C Compressors
with Clutch»
Alternators»
Brake Calipers»
Clutch Covers»
Clutch Discs»
Computers»
CV Axles»
Starters»
Steering Racks»
Transmissions»
Policies and
Procedures»
about:
Genuine Toyota Reman Parts»
How to Use This Guide»
ToyotaPartsAndService.com»
How To USE
THiS GUiDE 01
to Use This Guide
How to Use This Guide
How
using the Home Page
2010
Go to ToyotaPartsAndService.com»
Toyota Genuine Remanufactured Parts
Application and Reference Guide
Select a Category:
A/C Compressors»
A/C Compressors
with Clutch»
Alternators»
Brake Calipers»
Clutch Covers»
Clutch Discs»
about ToyotaPartsAndService.com»
about Genuine Toyota Reman Parts»
HOW TO USE THIS GUIDE
Computers»
CV Axles»
Starters»
Steering Racks»
Transmissions»
Policies and
Procedures»
Quick Tip: You can also press “Page Down” or “Page Up”
on your keyboard to cycle through pages quickly.
NEXT
Reman Category
Navigation
Select a category to view
remanufactured parts
information for all
available models.
Page Advance Navigation
Arrows on each page advance
you to the next page or to the
previous page.
PREVioUS
NEXT

Application and 2010 Reference Guide
Select a Category:
A/C Compressors»
A/C Compressors
with Clutch»
Alternators»
Brake Calipers»
Clutch Covers»
Clutch Discs»
Computers»
CV Axles»
Starters»
Steering Racks»
Transmissions»
Policies and
Procedures»
about:
Genuine Toyota Reman Parts»
How to Use This Guide»
ToyotaPartsAndService.com»
How To USE
THiS GUiDE 02
to Use This Guide
How to Use This Guide
How
using a Category Page
Return to the
Home Page
Click on the logo in the
top left to return to the
home page at any time.
This link appears on
every page.
Category Navigation
Navigate to any category
in the guide by clicking
on the category name.
These links appear on
every page.
Quick Tip: The bottom
left corner displays the
section and page number.
Go to ToyotaPartsAndService.com»
Application and 2010 Reference Guide
Select a Category:
A/C Compressors»
A/C Compressors
with Clutch»
Alternators»
Brake Calipers»
Clutch Covers»
Clutch Discs»
Computers»
CV Axles»
Starters»
Steering Racks»
Transmissions»
Policies and
Procedures»
about:
Genuine Toyota Reman Parts»
How to Use This Guide»
ToyotaPartsAndService.com»
Compressors with Clutch
A/C Compressors with Clutch
A/C
���������������������������������������������������
��������������������
������������������������������������������������������
�����������������������
��������������������������������������������������������
����������������
����������������������������������������������������
����������������
��������������������������������������������������
������������������������������������������
�����������������������
���������������������
����������������������������������������������
�����������������������������������
������������������������������������������������
����������������������������������������������������
��������������������������������������������������
����������������
���������������������
������������������������������������������������������
����������������
�����������������������������������������
��������������������������������������������������
���������������������������������������������������������
�������������������������������������������������
A/C COMP. W/ CLUTCH 01 Go to ToyotaPartsAndService.com» PREVIOUS NEXT
Quick Tip: These useful links
appear on every page.
Page Advance Navigation
Arrows on each page advance you to
the next page or to the previous page.
PREVioUS
NEXT

Application and 2010 Reference Guide
Select a Category:
A/C Compressors»
A/C Compressors
with Clutch»
Alternators»
Brake Calipers»
Clutch Covers»
Clutch Discs»
Computers»
CV Axles»
Starters»
Steering Racks»
Transmissions»
Policies and
Procedures»
about:
Genuine Toyota Reman Parts»
How to Use This Guide»
ToyotaPartsAndService.com»
How To USE
THiS GUiDE 03
to Use This Guide
How to Use This Guide
How
using Application Pages
Return to the Home Page
Click on the upper left corner to
return to the home page at any time.
This link appears on every page.
Category Navigation
Navigate to any category in the guide by
clicking on the category name. These
links appear on every page.
Go to ToyotaPartsAndService.com»
Quick Tip: These useful links
appear on every page.
Page Advance Navigation
Arrows on each page advance you to the
next page or to the previous page.
Quick Tip: The bottom left corner displays the
section and page number. You can also click on
the Home link to return to the home page.
2010
Application and
Reference Guide
Select a Category:
A/C Compressors»
A/C Compressors
with Clutch»
Alternators»
Brake Calipers»
Clutch Covers»
Clutch Discs»
Computers»
CV Axles»
Starters»
Steering Racks»
Transmissions»
Policies and
Procedures»
about:
Genuine Toyota Reman Parts»
How to Use This Guide»
ToyotaPartsAndService.com»
HOME»
Compressors w/ Clutch
A/C Compressors w/ Clutch
A/C
������
������
PREVioUS
PREVIOUS NEXT
PROD. DATES APPLICATION REMARKS ENGINE ENGINE SIZE TYPE REMAN P/N
��������� ����� ����� ����� �������� ��������������
��������� ����� ����� ����� �������� ��������������
��������� ����� ����� �� ������� ��������������
�����
PROD. DATES APPLICATION REMARKS ENGINE ENGINE SIZE TYPE REMAN P/N
����� ����� ����������� ����� �������� ��������������
��������� ����� ������� ����� �������� ��������������
��������� ����� ����� �������� ������ ��������������
��������� ����� ����� ����� �������� ��������������
��������� ����� �������������� ����� �������� ��������������
��������� ����� ����������� ����� �������� ��������������
��������� ����� ������� ���� �������� ��������������
��������� ����� ������� ����� �������� ��������������
��������� ����� ����� �������� ������� ��������������
��������� ����� ����������������������������� ���� �������� ��������������
��������� ����� ������������ ���� �������� ��������������
PROD. DATES APPLICATION REMARKS ENGINE ENGINE SIZE TYPE REMAN P/N
��������� ������ ������ ����� �������� ��������������
��������� ����� ���������� ���� �������� ������� ��������������
��������� ����� ���������� ���� �������� ��������������
��������� ����� ������� ���� �������� ��������������
��������� ����� ����� ���� �������� ������� ��������������
��������������
PROD. DATES APPLICATION REMARKS ENGINE ENGINE SIZE TYPE REMAN P/N
��������� ������ ������ ����� �������� ��������������
��������� ������ ������� ����� �������� ��������������
��������� ����� ������������ ���� �������� ��������������
����
PROD. DATES APPLICATION REMARKS ENGINE ENGINE SIZE TYPE REMAN P/N
��������� ����� ����� �������� ��������������
��������� ����� ����� �������� ������ ��������������
��������� ����� ����� �������� ������ ��������������
����������
PROD. DATES APPLICATION REMARKS ENGINE ENGINE SIZE TYPE REMAN P/N
����� ����� ����� �������� ������ ��������������
����� ����� ����� �������� ��������������
����� ����� ����� ����� �������� ��������������
��������� ����� ������ ����� �������� ��������������
A/C COMP. W/ CLUTCH 02 Go to ToyotaPartsAndService.com»
PREVIOUS NEXT
Quick Tip: This useful link appears on every page.
NEXT

Application and 2010 Reference Guide
Select a Category:
A/C Compressors»
A/C Compressors
with Clutch»
Alternators»
Brake Calipers»
Clutch Covers»
Clutch Discs»
Computers»
CV Axles»
Starters»
Steering Racks»
Transmissions»
Policies and
Procedures»
about:
Genuine Toyota Reman Parts»
How to Use This Guide»
ToyotaPartsAndService.com»
How To USE
THiS GUiDE 04
to Use This Guide
How to Use This Guide
How
Viewing and Printing PDFs
View at Full Window Width
Select “Fit Width” to view the pages
at the full window width. Useful if
Application pages appear too small
to view detail comfortably.
Open the print settings
Click on the printer icon in the upper
left corner of the page.
Go to ToyotaPartsAndService.com»
Page Scaling
Select “Fit to Printable Area.”
PREVioUS
NEXT

Application and 2010 Reference Guide
Select a Category:
A/C Compressors»
A/C Compressors
with Clutch»
Alternators»
Brake Calipers»
Clutch Covers»
Clutch Discs»
Computers»
CV Axles»
Starters»
Steering Racks»
Transmissions»
Policies and
Procedures»
about:
Genuine Toyota Reman Parts»
How to Use This Guide»
ToyotaPartsAndService.com»
TPAS.com 01
ToyotaPartsAndService.com
Your Direct Connection to Toyota Parts and Repair Resources.
Go to ToyotaPartsAndService.com»
ORDER»
Fast-Moving Parts
Online.
ACCESS»
Vin-Based Electronic
Ordering using the
Toyota Electronic Parts
Catalog (EPC).
COmmuNICATE»
With your personal
message center.
TIS LIbRARy STAndARd PRofeSSIonAL
dIAGnoSTIc
SecURITy
PRofeSSIonAL
Service Bulletins l l l
Repair manuals l l l
wiring Diagrams l l l
other Technical information l l l
Scan Tool / Reprogramming
Techstream Software l l
ECU Calibrations l l
Security
Key Codes l
immobilizer / Smart Reset l
SEARCH»
Factory-Recommended
Maintenance Schedules.
kNOW»
Get the information
you need to service
most Toyota vehicles
from 1990 to the
latest models.
www.ToyotaPartsAndService.com »
Register for your free MyPARTS account to access
valuable technical information and resources for
your business. Sign up today!
PREVioUS
NEXT
