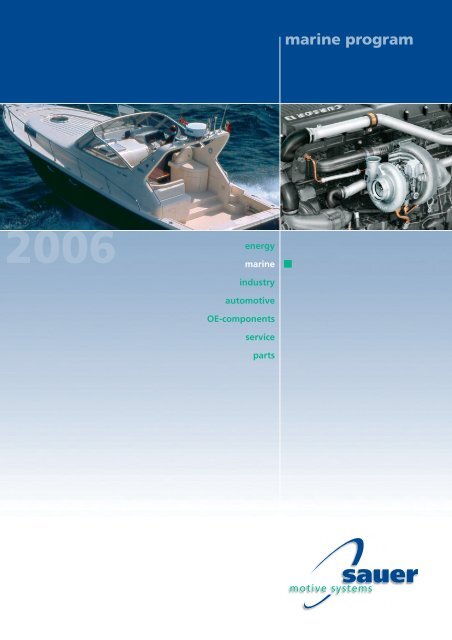

marine program - Sauer & Sohn

2006
energy
marine
industry
automotive
OE-components
service
parts
marine program

MARINE DIESEL TECHNOLOGY
MARINE DIESEL TECHNOLOGY: SHOW
Following the latest trends, Sauer motive systems with its more
than 60 years of engine experience represents those enterprises
that are causing sensations in the fields of main and auxiliary
drives as well as of on-board power generators, and that are
continuously providing proof of their engines and aggregates.
IVECO MOTORS
In the future, Fiat Power Train Technologies (FPT), with a production
output of 2,200,000 engines per year, one of the most innovative,
significant and outstanding companies in the world of
engines located in Pregnana Milanese/Italy.
GUASCOR
One of the noblest small engine shops and gearbox producers for
commercial shipping with its headquarters in Zumaia/Spain.
MASE
The on-board power generator manufacturer with the widest
product range and most versatile power generator program with
its domicile in Cesena/Italy.
The power output of the entire program of drive units and aggregates
for pleasure and commercial shipping represents a bandwidth
from 15 to 1,621 kW. These are all power units which have
been considerably optimized in terms of efficiency and torque
owing to the use of ultra-modern diesel technology, at the same
time having a reduced fuel consumption, thus giving less emission
of exhaust gases.
All engines have been certified in accordance with the IMO Marpol and
the ZKR Guidelines, Chapter 8a (ZKR = Central Committee for
Rhine Shipping).

NG THE WAY FORWARD TO SHIPPING

PLEASURE SHIPPING
NEW DIMENSIONS: DIESEL TECHN
IVECO MOTORS
While the well-tried, conventional 8000 engine series
is fading into the background step by step, the current
NEF, CURSOR and VECTOR series are now in the
focus of pleasure shipping.
This new generation of engines integrates a variety of
progressive diesel technologies, thus ensuring environment-friendly
and high-performance power units.
Modern four-valve technology, pump-nozzle and
common-rail injection systems of the second generation
as well as electronic engine management are
employed in this connection.
IVECO N40 ENT D 20
The technological developments made in terms of
power and torque allow for considerable power unit
optimization, which reduces both fuel and oil consumption
as well as noise and exhaust gas emission.
Compared with conventional engines, such power
units offer by far higher performance potentials, with
their weight and volume having been reduced at the
same time. Moreover, they meet current and future
exhaust gas emission requirements. The Vector 16
with its 1621 kW represents the final stage.
COMMON RAIL
The high-pressure injection technology
used in the VECTOR series works within
the range of 1,600 bar and contributes to
reducing fuel consumption and exhaust
gas emission.
MULTI TURBO
Owing to its dual-flow charging principle,
the dual turbocharger of the CURSOR 13
provides an elastic torque behaviour.

OLOGY PAR EXCELLENCE
Manufac- Model Cylinder Capacity Power A / Speed Power B / Speed Dimensions Weight Coolingturer
Design Litres kW HP rpm kW HP rpm L x W x H mm kg ZK KK
IVECO 4021 M 20.00 2L 0.6 15 20 3600 - - - 560 x 488 x 522 99 • -
IVECO 4031 M 30.00 3L 0.9 22 30 3600 - - - 643 x 488 x 522 115 • -
IVECO 4041 M 40.00 4L 1.2 29 40 3600 - - - 726 x 488 x 549 133 • -
IVECO 4341 M 60 4L 2.2 44 60 3600 - - - 931 x 540 x 540 240 • -
IVECO 4341 SRM 87 4L 2.2 64 87 3200 - - - 931 x 540 x 642 255 • -
IVECO N 45 MNA M 10 4L 4.5 74 100 2800 66 90 2800 830 x 683 x 830 410 • -
IVECO N 67 MNA M 15 6L 6.7 110 150 2800 99 135 2800 1071 x 780 x 869 500 • -
IVECO N 67 MNS M 22 6L 6.7 162 220 2800 147 200 2800 1236 x 780 x 793 560 • -
IVECO S 30 ENT M 23 4L 3.0 169 230 4000 129 176 3500 973 x 691 x 757 350 • -
IVECO N 40 ENT M 25 4L 3.9 184 250 2800 147 200 2800 983 x 780 x 785 440 • -
IVECO N 67 MNT M 28 6L 6.7 206 280 2800 191 260 2800 1236 x 780 x 793 605 • -
IVECO N 60 ENT M 37 6L 5.9 272 370 2800 243 330 2800 1333 x 805 x 774 595 • -
IVECO N 60 ENT M 40 6L 5.9 294 400 3000 272 330 3000 1333 x 805 x 774 595 • -
IVECO C 78 ENT M 50 6L 7.8 368 500 2600 294 400 2600 1771 x 1000 x 1077 910 • -
IVECO C 78 ENT M 55 6L 7.8 405 550 2600 331 450 2600 1771 x 1000 x 1077 910 • -
IVECO C 13 ENT M 77 6L 12.9 567 770 2300 442 600 2300 2015 x 1090 x 1039 1330 • -
IVECO V 08 ENT M 12 8V 20.1 883 1200 2300 750 1020 2200 1900 x 1220 x 1201 1900 • -
IVECO V 12 ENT M 18 12V 30.1 1325 1800 2300 1152 1565 2200 2489 x 1223 x 1181 2900 • -
IVECO V 16 ENT M 22 16V 40.1 1621 2200 under preparation
Conventional IVECO range New IVECO range ZK = double-circuit cooling
M = aspirating engine MNA = aspirating engine KK = keel-pipe cooling
SRM = turbocharger with charge cooling MNS = turbocharger L = vertical inline cylinders
MNT = turbocharger with charge cooling V = V 90 cylinders
ENT = turbocharger with charge cooling
and electronic control
Power category A: power for pleasure shipping operation
Power category B: power for semi-continuous operation

COMMERCIAL
TRADITION AND MODERN DESIGN: C
IVECO MOTORS – GUASCOR
Two engine concepts of different nature.
While IVECO MOTORS has dedicated to innovative diesel
technology and is pushing ahead the use of intelligent
engine management solutions, high-pressure
injection systems and ultra-modern production processes,
GUASCOR is going the conventional way.
GUASCOR refines and optimizes the traditional drive
engine, using approved multi-cylinder injection tech-
GUASCOR SF240TA-SP
nology and, as IVECO MOTORS does, also meets the
requirements of the IMO Marpol and ZKR exhaust gas
emission standards. Also, both drives are available in
classified GL, RINA, DNV or other designs which are in
conformity with the regulations applicable to commercial
shipping.
The use of the different engine concepts by IVECO
and GUASCOR depends on the user's individual requirements
and on their respective applications.
PUMPE-DÜSE-EINHEIT
The CURSOR series high-pressure injection
is based on the pump-nozzle principle and
achieves optimized fuel consumption
and exhaust gas emission figures.
WARTUNGSZUGANG
The GUASCOR engine has maintenance
openings on either side, thus facilitating
better access.

ONVENTIONAL VERSUS INNOVATION
Manufac- Model Cylinder Capacity Power C / Speed Power D / Speed Dimensions Weight Cooling
turer Design Litres kW HP rpm kW HP rpm L x W x H mm kg ZK KK
IVECO 8035 M 06.01 3L 2.9 - - - 42 57 2500 821 x 660 x 905 351 • •
IVECO 8045 M 08.00 4L 3.9 59 80 2500 56 76 2500 937 x 660 x 905 430 • •
IVECO N 45 MNA M 10 4L 4.5 63 85 2800 63 85 2800 830 x 683 x 830 410 • •
IVECO 8065 M 12.01 6L 5.9 85 115 2500 81 110 2500 1100 x 660 x 905 530 • •
IVECO N 67 MNA M 15 6L 6.7 92 125 2800 92 125 2800 1071 x 780 x 869 500 • •
IVECO N 67 MNS M 22 6L 6.7 132 180 2800 110 150 2800 1071 x 780 x 793 560 • •
IVECO N 40 ENT M 25 4L 3.9 125 170 2800 - - - 983 x 780 x 785 440 • -
IVECO N 67 MNT M 28 6L 6.7 147 200 2800 132 180 2500 1236 x 780 x 793 605 • •
IVECO N 60 ENT M 37 6L 5.9 199 270 2800 - - - 1333 x 805 x 774 595 • •
IVECO N 60 ENT M 40 6L 5.9 199 270 3000 - - - 1333 x 805 x 774 595 • -
IVECO C 78 ENT M 30 6L 7.8 243 330 2000 220 300 2000 1771 x 935 x 1033 900 • •
IVECO 8210 SRM 36.32 6L 13.8 - - - 220 300 1800 1365 x 920 x 1157 1265 - •
IVECO C 78 ENT M 50 6L 7.8 257 350 2600 - - - 1771 x 1000 x 1077 910 • •
IVECO 8210 SRM 36.12 6L 13.8 265 360 1800 243 330 1800 1365 x 920 x 1157 1290 • •
IVECO C 78 ENT M 55 6L 7.8 294 400 2600 - - - 1771 x 1000 x 1077 880 • -
IVECO 8210 SRM 45.10 6L 13.8 331 450 1800 294 400 1800 1698 x 1051 x 1156 1290 • •
IVECO C 13 ENT M 77 6L 12.9 397 540 2300 - - - 2015 x 1090 x 1039 1330 • •
IVECO C 13 ENT M 50 6L 12.9 441 600 2000 368 500 2000 2015 x 1090 x 1039 1330 • •
IVECO V 08 ENT M 68 8V 20.1 552 750 1800 500 680 1800 1900 x 1220 x 1201 1900 • •
IVECO V 08 ENT M 12 8V 20.1 635 863 2100 - - - 1900 x 1220 x 1201 1900 • •
IVECO V 12 ENT M 11 12V 30.1 956 1300 1800 846 1150 1800 2489 x 1223 x 1181 2900 • •
IVECO V 16 ENT M 20 16V 40.1 1474 2000 under preparation
GUASCOR F180-SP 6L 17.9 - - - 184 250 1800 1832 x 911 x 1303 2570 • •
GUASCOR F180TB-SP 6L 17.9 - - - 294 400 1800 1832 x 945 x 1459 2580 • •
GUASCOR F180TA-SP 6L 17.9 - - - 331 450 1800 1884 x 945 x 1459 2620 • •
GUASCOR F180TAB-SP 6L 17.9 - - - 368 500 1800 1884 x 945 x 1459 2700 • •
GUASCOR SF180TA-SP 6L 17.9 - - - 433 589 1800 1884 x 945 x 1459 2750 • •
GUASCOR F240TA-SP 8L 24.1 - - - 441 600 1800 2304 x 945 x 1459 3400 • •
GUASCOR F240TAB-SP 8L 24.1 - - - 478 650 1800 2304 x 945 x 1459 3445 • •
GUASCOR SF240TA-SP 8L 24.1 - - - 577 785 1800 2304 x 945 x 1459 3490 • •
GUASCOR F360TA-SP 12V 36.1 - - - 662 900 1800 2656 x 1408 x 1738 4630 • •
GUASCOR F360TAB-SP 12V 36.1 - - - 735 1000 1800 2656 x 1408 x 1738 4650 • •
GUASCOR SF360TA-SP 12V 36.1 - - - 865 1177 1800 2656 x 1408 x 1738 4700 • •
GUASCOR F480TA-SP 16V 48.1 - - - 934 1270 1800 3126 x 1408 x 1738 5450 • •
GUASCOR F480TAB-SP 16V 48.1 - - - 1029 1400 1800 3126 x 1408 x 1738 5500 • •
GUASCOR SF480TA-SP 16V 48.1 - - - 1155 1571 1800 3126 x 1408 x 1738 5500 • •
Conventional IVECO range New IVECO range GUASCOR ZK = double-circuit cooling
M = aspirating engine MNA = aspirating engine T = turbocharger KK = keel-pipe cooling
SRM = turbocharger with charge cooling MNS = turbocharger TA = turbocharger with charge cooling L = vertical inline cylinders
MNT = turbocharger with charge cooling V = V 90 cylinders
ENT = turbocharger with charge cooling
and electronic control
Power category C: power for medium operation / Power category D: power for unrestricted continuous operation

ON-BOARD POWER SUPPLY
VARIOUS STRATEGIES: PERFECTLY
IVECO MOTORS – GUASCOR – MASE
Three different on-board power supply concepts, each
of them with its own intention.
With its on-board power generators, MASE mainly
covers pleasure shipping within the power range of
up to 66 kVA. Sound-insulated and extremely lownoise
systems with conventional engines and innovative
generator conceptions.
IVECO is going to extend the on-board power supply
sector up to a power range of 1,550 kVA for big
yachts and for commercial shipping. Power generators
as non-enclosed systems on the basis of the
MASE IS 6.5
technological up-to-date NEF, CURSOR and VECTOR
engines.
GUASCOR feels to keep obliged to its tradition to
deliver heavy-duty on-board power generators up to
1,275 kVA for continuous operation in commercial
shipping. Generator sets without sound insulation
and in conventional fashion in a maintenance-friendly
overall conception.
Upon request, the entire on-board power generator
program is available in any common classifications
and in accordance with the regulations applicable to
commercial shipping.
CRANKCASE VENTILATION
On the NEF 280, the crankcase ventilation
has been designed as a self-contained
separating system.
ENGINE MANAGEMENT
This electronic engine management keeps
control over the entire power unit economy
and is responsible for the engine parameters.

PROPORTIONED ENERGY
Manufac- Model Cylinder Capacity Power Speed Voltage Dimensions Weight Cooling
turer Design Litres kW kVA rpm Frequency L x W x H mm kg ZK KK
MASE IS 2.5 1L 0.21 1.7 - 3000 230V-50Hz 403 x 510 x 465 65 • -
MASE IS 3.5 1L 0.29 2.7 - 3000 230V-50Hz 406 x 590 x 515 96 • -
MASE IS 5.0 1L 0.40 4.0 - 3000 230V-50Hz 468 x 675 x 565 130 • -
MASE IS 10.8 3L 1.65 10.8 - 3000 230V-50Hz 510 x 950 x 625 185 • -
MASE IS 6.5 3L 1.65 5.7 - 1500 230V-50Hz 530 x 760 x 625 230 • -
MASE IS 8 3L 1.65 7.2 - 1500 230V-50Hz 568 x 837 x 688 295 • -
MASE IS 9 3L 1.65 8.2 - 1500 230V-50Hz 568 x 837 x 688 295 • -
MASE IS 12 4L 1.65 10.2 - 1500 230V-50Hz 585 x 985 x 730 344 • -
MASE IS 16 4L 2.19 13.9 - 1500 230V-50Hz 585 x 1115 x 730 400 • -
MASE IS 18 4L 2.77 18.0 - 1500 230V-50Hz 1225 x 710 x 810 625 • -
MASE IS 21 4L 2.77 21.0 - 1500 230V-50Hz 1225 x 710 x 810 625 • -
MASE IS 24 4L 3.33 24.0 - 1500 230V-50Hz 1225 x 710 x 810 625 • -
MASE IS 27 4L 3.33 27.0 - 1500 230V-50Hz 1225 x 710 x 810 635 • -
MASE IS 35 4L 4.50 35.0 - 1500 230V-50Hz 1820 x 800 x 985 900 • -
MASE IS 10T 3L 1.02 7.2 10 1500 230/400V-50Hz 837 x 586 x 688 295 • •
MASE IS 14.5T 3L 1.65 10.2 14 1500 230/400V-50Hz 985 x 585 x 730 344 • •
MASE IS 20T 4L 2.19 13.9 19 1500 230/400V-50Hz 1115 x 585 x 730 400 • •
MASE IS 30T 4L 2.77 22.4 31 1500 230/400V-50Hz 1460 x 675 x 830 520 • •
MASE IS 34T 4L 3.33 27.2 34 1500 230/400V-50Hz 1225 x 630 x 810 625 • •
MASE IS 44T 4L 4.50 32.5 44 1500 230/400V-50Hz 1820 x 800 x 985 900 • •
MASE IS 66T 4L 5.90 48.0 60 1500 230/400V-50Hz 2075 x 800 x 1000 980 • •
IVECO GE 8035 M06 3L 2.90 24 30 1500 230/400V-50Hz 1562 x 700 x 1205 660 • •
IVECO GE 8045 M08 4L 3.90 32 40 1500 230/400V-50Hz 1677 x 700 x 1205 860 • •
IVECO GE 8065 M12 6L 5.90 48 60 1500 230/400V-50Hz 2031 x 700 x 1225 1075 • •
IVECO GE 8210 SRM36 6L 13.80 160 200 1500 230/400V-50Hz 2876 x 1110 x 1650 2520 • •
IVECO GE 8210 SRM45 6L 13.80 240 300 1500 230/400V-50Hz 2876 x 1110 x 1650 2520 • •
GUASCOR F180-SG 6L 17.96 160 200 1500 230/400V-50Hz 3257 x 850 x 1077 3570 • •
GUASCOR F180T-SG 6L 17.96 210 275 1500 230/400V-50Hz 3257 x 1006 x 1077 3580 • •
GUASCOR F180TB-SG 6L 17.96 240 300 1500 230/400V-50Hz 3257 x 1006 x 1077 3580 • •
GUASCOR F180TA-SG 6L 17.96 265 335 1500 230/400V-50Hz 3257 x 1006 x 1077 3580 • •
GUASCOR F180TAB-SG 6L 17.96 290 365 1500 230/400V-50Hz 3314 x 1006 x 1077 3700 • •
GUASCOR F240TA-SG 8L 23.96 350 440 1500 230/400V-50Hz 3700 x 1006 x 1077 4445 • •
GUASCOR SF180TA-SG 6L 17.96 383 480 1500 230/400V-50Hz 3300 x 850 x 1077 3750 • •
GUASCOR F240TAB-SG 8L 23.96 385 480 1500 230/400V-50Hz 3729 x 1006 x 1077 4445 • •
GUASCOR SF240TA-SG 8L 23.96 510 640 1500 230/400V-50Hz 3729 x 945 x 1077 4445 • •
GUASCOR F360TA-SG 12V 35.93 539 660 1500 230/400V-50Hz 4081 x 1148 x 2619 5630 • •
GUASCOR F480TA-SG 16V 47.90 760 950 1500 230/400V-50Hz 4551 x 1148 x 2619 6500 • •
GUASCOR SF360TA-SG 12V 35.93 765 950 1500 230/400V-50Hz 4081 x 1148 x 2619 5700 • •
GUASCOR SF480TA-SG 16V 47.90 1020 1275 1500 230/400V-50Hz 4551 x 1198 x 2619 6550 • •
L = vertical inline cylinders IVECO GUASCOR ZK = double-circuit cooling
V = V 90 cylinders M = aspirating engine T = turbocharger KK = keel-pipe cooling
SRM = turbocharger with charge cooling TA = turbocharger with charge cooling

MARINE SERVICE
UNCOMPROMISING SERVICE: ENG
Sauer motive systems – a division of Sauer & Sohn KG
– is a name that stands for 60 years of experience in
engine technology and is a guarantor for your enginerelated
safety and satisfaction in the maritime sector.
Within its service spectrum, Sauer motive systems
supports you in the following fields:
ENGINE OVERHAUL
ENGINE MODIFICATIONS
ENGINE AND AGGREGATE SERVICE
In partnership with IVECO Motors, GUASCOR and
MASE, Sauer motive systems has a German-wide
service network with more than 100 different locations.
Specifically skilled and trained personnel are in
action for qualified engine service in commercial and
pleasure shipping.
In cooperation with selected partners, the service
quality of the parent company in Dieburg is a circumstantial
evidence of yacht owners, marine shipping
offices, owners of passenger or river boats as well as
the fishing industry being convinced of drive units
from Sauer motive systems.
ENGINE OVERHAUL
Grinding and polishing a crankshaft is
the most delicate skill in engine overhauling.
ENGINE MODIFICATIONS
All modified drive units are subjected
to extensive engine test bench runs.
ENGINE SERVICE
The maintenance of stationary
systems is covered in the same way as
servicing mobile drive units.

INE TECHNOLOGY IN PERFECTION
SERVICE-HOTLINE
+49 174 - 90 60 400

www.sauerundsohn.de
Head Office:
Groß-Zimmerner-Straße 51
D-64807 Dieburg, Germany
Telephone +49 (0) 60 71 - 20 60
Telefax +49 (0) 60 71 - 20 63 00
E-Mail info@sauerundsohn.de
Branch Office:
Wernsdorfer Straße 47
D-09322 Penig-Wernsdorf, Germany
Telephone +49 (0) 3 73 81 - 8 22 53
Telefax +49 (0) 3 73 81 - 8 22 61
Office:
72 Hounslow Road
TW14OAX Feltham, Middlesex, UK
Telephone +44 (0) 181 - 7 51 07 31
Telefax +44 (0) 181 - 8 90 34 18
Office:
Arbift Tower, Suite 708
Deira, Dubai, UAE
Telephone +9 71 - 4 - 22 23 14
Telefax +9 71 - 4 - 22 81 47
Our maritime engine technology partners
© Copyright by Sauer motive systems 1/2006
Our acknowledgements go to the following
companies who have kindly supported us in the
selection of the photographic material used in
this brochure:
Katamaran Konstruktions GmbH, Dr. Mai, Wien
Schiffstechnik Buchloh GmbH & Co. KG, Unkel
