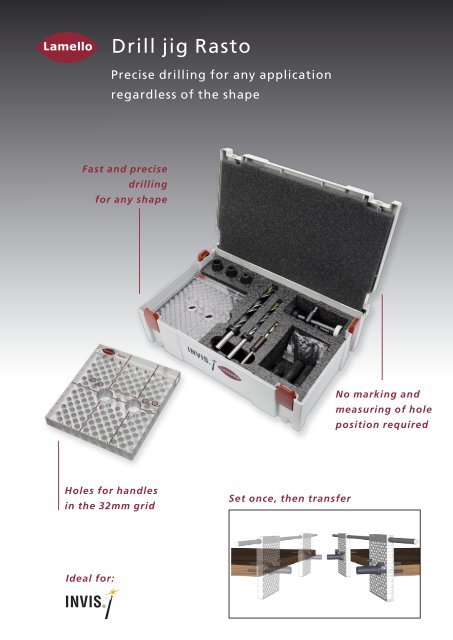

Ideal for:<br />
Precise drilling for any application<br />
regardless of the shape<br />
Fast and precise<br />
drilling<br />
for any shape<br />
Holes for handles<br />
in the 32mm grid<br />
<strong>Drill</strong> <strong>jig</strong> <strong>Rasto</strong><br />
Set once, then transfer<br />
No marking and<br />
measuring of hole<br />
position required
<strong>Drill</strong> <strong>jig</strong> <strong>Rasto</strong><br />
16 mm 19 mm<br />
<strong>Rasto</strong><br />
19 16<br />
16 19<br />
Central drilling of 16 and 19 mm boards<br />
Mitre joint connections<br />
Ø 8: 6160008<br />
Ø 12: 6160012<br />
32<br />
8 8<br />
16<br />
Rows of holes 8 and 12mm by moving the <strong>jig</strong><br />
96 mm<br />
6100066<br />
6100066<br />
<strong>Rasto</strong><br />
19 16<br />
16 19<br />
<strong>Rasto</strong> offers a multitude of applications<br />
■ Kitchen work tops<br />
■ Furniture<br />
■ Hand rails<br />
Scope of delivery:<br />
32<br />
<strong>Rasto</strong><br />
19 16<br />
16 19<br />
32<br />
64 32<br />
96<br />
128<br />
6160001<br />
<strong>Rasto</strong> Mono <strong>Rasto</strong> Duo<br />
<strong>Rasto</strong><br />
19 16<br />
16 19<br />
Central drilling of all work piece thicknesses<br />
Middle walls Rows of holes 5mm by moving the <strong>jig</strong><br />
■ Stair cases<br />
■ Corner joints<br />
■ Middle walls<br />
1 Perforated plate<br />
3 Pins 5x40 mm<br />
1 each, reference pin 8/12mm<br />
1 each, drill bush 5/8/12mm<br />
1 each, drill for bush 5/8/12mm<br />
1 Clamping screw<br />
1 Side stop<br />
Art. No. 126001<br />
Manufacturer:<br />
<strong>Lamello</strong> AG<br />
Joining Technology<br />
Hauptstrasse 149<br />
CH-4416 Bubendorf<br />
Tel. +41 (0)61 935 36 36<br />
Fax +41 (0)61 935 36 06<br />
info@lamello.com<br />
www.lamello.com<br />
32<br />
32 mm<br />
X/2<br />
X/2<br />
X<br />
Holes for handles and<br />
holes in the 32 mm grid<br />
■ Any type of work piece<br />
■ Surface connections<br />
■ Mitre joint connections<br />
2 Perforated plates<br />
6 Pins 5x40 mm<br />
1 each, reference pin 8/12mm<br />
2 each, drill bush 5/8/12mm<br />
1 each, drill for bush 5/8/12mm<br />
2 Clamping screws<br />
1 Connection rod<br />
1 Side stop<br />
Art. No. 126002<br />
<strong>Rasto</strong> Plus<br />
Example: Installation<br />
of hand rail with<br />
1.<br />
Peg out the shape with 3 pins<br />
and drill the holes<br />
2.<br />
Transfer the shape, align the <strong>jig</strong><br />
and drill the holes<br />
3.<br />
Insert Invis-connector and<br />
dowel<br />
4.<br />
5.<br />
Connect the two parts<br />
with the MiniMag<br />
Finished!<br />
1 Perforated plate<br />
3 Pins 5x40mm<br />
1 each, drill bush 5/8/12mm<br />
1 Clamping screw<br />
1 Connection rod<br />
Art. No. 126003<br />
<strong>Rasto</strong> 04/08 Art.-Nr. 68907C002GB
