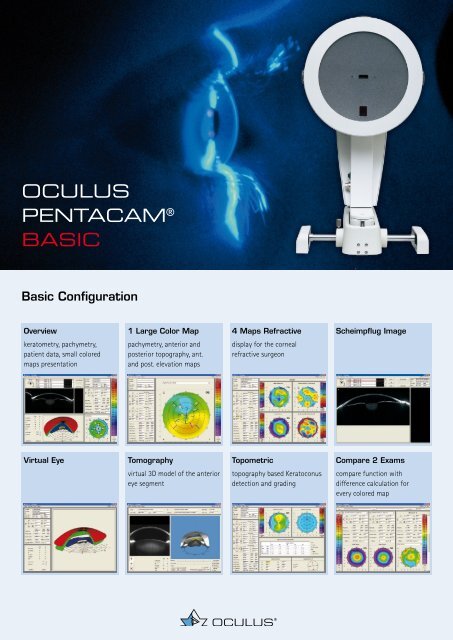

<strong>OCULUS</strong><br />
PENTACAM ®<br />
<strong>BASIC</strong><br />
Basic Configuration<br />
Overview<br />
keratometry, pachymetry,<br />
patient data, small colored<br />
maps presentation<br />
1 Large Color Map<br />
pachymetry, anterior and<br />
posterior topography, ant.<br />
and post. elevation maps<br />
Virtual Eye Tomography<br />
virtual 3D model of the anterior<br />
eye segment<br />
4 Maps Refractive<br />
display for the corneal<br />
refractive surgeon<br />
Topometric<br />
topography based Keratoconus<br />
detection and grading<br />
Scheimpflug Image<br />
Compare 2 Exams<br />
compare function with<br />
difference calculation for<br />
every colored map
Software Package | Refractive<br />
Various Reference<br />
Bodies for<br />
Elevation Maps<br />
Show 2 Exams<br />
display with selectable maps to<br />
show right and left eye on one<br />
screen<br />
Optional<br />
Modules<br />
Refractive<br />
overview, íncl. pachymetric<br />
progression and topography<br />
based keratoconus detection<br />
Show 2 Exams Pachy<br />
display of the corneal thickness<br />
progression for left and right<br />
eye<br />
Holladay Report and<br />
EKR Detail Report<br />
ultimate overview and EKR’s for<br />
advanced IOL calculation<br />
Pachymetric<br />
corneal thickness progression<br />
for early keratoconus detection<br />
Show 2 Exams Topo<br />
display of topography and corneal<br />
asphericity incl. topography<br />
based keratoconus detection<br />
Belin/Ambrosio<br />
unique tool for early keratoconus<br />
detection<br />
4 Maps Selectable<br />
4 free selectable maps can be<br />
displayed<br />
Compare 4 Exams<br />
compare function with<br />
difference calculation for<br />
every colored map<br />
Contact Lens Fitting<br />
simulation program for<br />
RGP lenses incl. a huge<br />
pre-programmed data base
True Net Power Map<br />
true corneal power, considering<br />
anterior and posterior surface<br />
Distance Measurement<br />
in Scheimpflug Image<br />
manual measurement in any<br />
direction<br />
Compare 4 Exams<br />
compare function with<br />
difference calculation for<br />
every colored map<br />
PNS and<br />
3D Densitometry<br />
quantification of the<br />
densitometry in 3 dimensions<br />
ACD Map<br />
colored map displaying the<br />
distance between endothelium/<br />
epithelium and iris/lens<br />
Show 2 Exams<br />
display with selectable maps to<br />
show right and left eye on one<br />
screen<br />
2D Densitometry<br />
quantification of the<br />
densitometry in 2 dimensions<br />
Software Package | Cataract<br />
4 Maps Topometric<br />
display for the optometrist<br />
Show 2 Exams Pachy<br />
display of the corneal thickness<br />
progression for left and right<br />
eye<br />
PNS and<br />
3D Densitometry<br />
quantification of the<br />
densitometry in 3 dimensions<br />
4 Maps Chamber<br />
display for the cataract surgeon<br />
Show 2 Exams Topo<br />
display of topography and corneal<br />
asphericity incl. topography<br />
based keratoconus detection<br />
Zernike Display<br />
corneal wavefront of the<br />
anterior, posterior and whole<br />
cornea, incl. Z40 and HO-RMS
All features at a look<br />
Feature<br />
Overview � � �<br />
1 Large Color Map � � �<br />
4 Maps Refractive � � �<br />
Scheimpflug Image � � �<br />
Virtual Eye � � �<br />
Tomography � � �<br />
Topometric � � �<br />
Compare 2 Exams � � �<br />
Show 2 Exams — � � � �<br />
Show 2 Exams Pachy — � � � �<br />
Show 2 Exams Topo — � � � �<br />
Compare 4 Exams — � � � �<br />
Various Reference Bodies for Elevation Maps — � — � �<br />
4 Maps Selectable — � — � �<br />
Refractive — � — � �<br />
Pachymetric — � — � �<br />
True Net Power Map — — � � �<br />
ACD Map — — � � �<br />
4 Maps Topometric — — � � �<br />
4 Maps Chamber — — � � �<br />
Measurement in the Scheimpflug Images — — � � �<br />
2D Densitometry — — � � �<br />
Zernike Display — — � � �<br />
Additional Software License � — — 2 2<br />
Optional Modules<br />
PNS and 3D Densitometry � — � � �<br />
Holladay Report and EKR Detail Report � — — � �<br />
Belin/Ambrosio Enhanced Ectasia � — — � �<br />
Contact Lens Fitting � — — � �<br />
3D pIOL Simulation — — — — �<br />
� included � optional — not available<br />
0123<br />
According to Medical Device Directive 93/42/EEC, annex IIa<br />
WWW.<strong>OCULUS</strong>.DE<br />
Pentacam ®<br />
Basic<br />
Software<br />
Package:<br />
Refractive<br />
Software<br />
Package:<br />
Cataract<br />
<strong>OCULUS</strong> Optikgeräte GmbH<br />
Postfach • 35549 Wetzlar • GERMANY<br />
Tel. +49-641-2005-0 • Fax +49-641-2005-295<br />
E-Mail: export@oculus.de • www.oculus.de<br />
<strong>OCULUS</strong> Inc., USA<br />
#112 • 2125 196th Street SW • Lynnwood • WA 98036<br />
Oculus is certified by TÜV according to<br />
Toll free 1-888-284-8004 • Fax +1-425-670-0742<br />
DIN EN ISO 13485:2003/DIN EN ISO 9001:2000 E-Mail: sales@oculususa.com • www.oculususa.com<br />
18/0409/e/Fr<br />
Pentacam ®<br />
Classic<br />
Pentacam ®<br />
HR<br />
Specification, accessories and design are subject to change without notification and may vary depending on region.
