Welding Helmet LAX Code Technical Features Cartridge dimensions mm Lens dimensions mm Switching speed Shade density Sensitivity Dark to light Delay time Optical Sensor Operating temperature Storage temperature Power supply SI031MA 110x90x5 96x46 Light to Dark 0,2 mS Dark state: #9 ~ #13 – Light state: #4 HI: sensitive LO: insensitive Dark to light: 0.1 ~ 0.5 sec 2 sensors -5°C ~ +55°C -20°C ~ +65°C Solar Cell LAX Maschesa autooscurante per saldatura ad alta velocità, con standard europei e con filtro variabile grado DIN 4-9/13 e fisso grado 4-11 con differenti dimensioni. Standard European high speed autodarkening welding mask with filters variable shade DIN 4 - 9/13 and fixed shade DIN 4-11 in different dimensions. Description

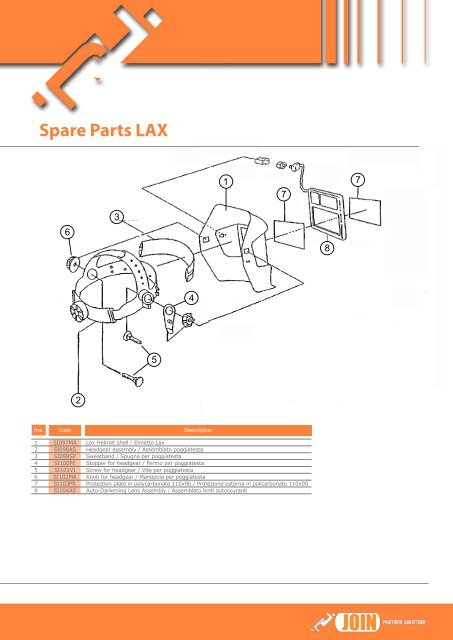

Spare Parts LAX 6 2 3 Pos. Code Description 5 4 1 MACH1 1 SI097MA Lax Helmet shell / Elmetto Lax 2 SI098AS Headgear assembly / Assemblato poggiatesta 3 SI099SP Sweatband / Spugna per poggiatesta 4 SI100FE Stopper for headgear / Fermo per poggiatesta 5 SI101VI Screw for headgear / Vite per poggiatesta 6 SI102MA Knob for headgear / Manopola per poggiatesta 7 SI103PR Protection plate in polycarbonate 110x90 / Protezione esterna in policarbonato 110x90 8 SI104AS Auto-Darkening Lens Assembly / Assemblato lenti autoscuranti 7 AVEV110 8 AVEF11QFIX11 7
Page 1: Date: 23/04/09 Rev. 03
Page 4 and 5: J-ARC 140 / J-ARC 160 Sono saldatri
Page 6 and 7: J-TIG 185P AC/DC / J-TIG 300P AC/DC
Page 8 and 9: J-CUT 40 / J-CUT 70 Sono macchine d
Page 10 and 11: NOTE ______________________________
Page 12 and 13: Code Tension Class MIG/MAG Welding
Page 14 and 15: TIG Welding Torches Code Tension Cl
Page 16 and 17: TIG Welding Torches Code Tension Cl
Page 20 and 21: Welding Helmet ACE Code Technical F
Page 22 and 23: DIN 9 WELDING MASK FILTER GLASSES D
Page 24: Date: 23/04/09 Rev. 03
