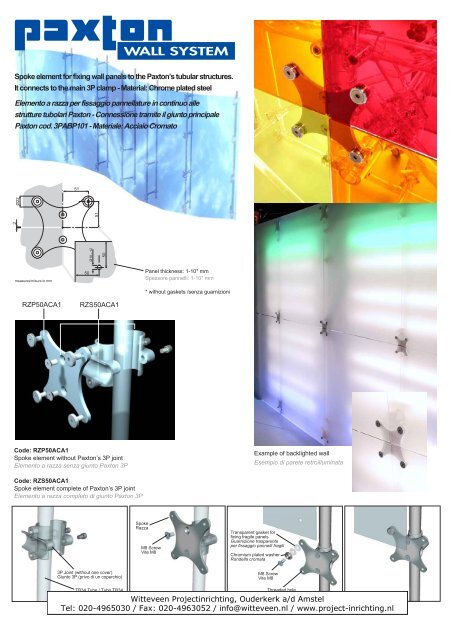

<strong>Spoke</strong> <strong>element</strong> <strong>for</strong> <strong>fixing</strong> <strong>wall</strong> <strong>panels</strong> <strong>to</strong> <strong>the</strong> Pax<strong>to</strong>n’s <strong>tubular</strong> structures.<br />
It connects <strong>to</strong> <strong>the</strong> main 3P clamp - Material: Chrome plated steel<br />
Elemen<strong>to</strong> a razza per fissaggio pannellature in continuo alle<br />
strutture tubolari Pax<strong>to</strong>n - Connessione tramite il giun<strong>to</strong> principale<br />
Pax<strong>to</strong>n cod. 3PABP101 - Materiale: Acciaio Croma<strong>to</strong><br />
51<br />
Ø10 - 12<br />
50<br />
2<br />
51<br />
Ø22<br />
measures/misure in mm<br />
RZP50ACA1<br />
50<br />
RZS50ACA1<br />
Panel thickness: 1-10* mm<br />
Spessore pannelli: 1-10* mm<br />
* without gaskets /senza guarnizioni<br />
Code: RZP50ACA1<br />
<strong>Spoke</strong> <strong>element</strong> without Pax<strong>to</strong>n’s 3P joint<br />
Elemen<strong>to</strong> a razza senza giun<strong>to</strong> Pax<strong>to</strong>n 3P<br />
Example of backlighted <strong>wall</strong><br />
Esempio di parete retroilluminata<br />
Code: RZS50ACA1<br />
<strong>Spoke</strong> <strong>element</strong> complete of Pax<strong>to</strong>n’s 3P joint<br />
Elemen<strong>to</strong> a razza comple<strong>to</strong> di giun<strong>to</strong> Pax<strong>to</strong>n 3P<br />
<strong>Spoke</strong><br />
Razza<br />
M8 Screw<br />
Vite M8<br />
Transparent gasket <strong>for</strong><br />
<strong>fixing</strong> fragile <strong>panels</strong><br />
Guarnizione trasparente<br />
per fissaggio pannelli fragili<br />
Chromium plated washer<br />
Rondella cromata<br />
3P Joint (without one cover)<br />
Giun<strong>to</strong> 3P (privo di un coperchio)<br />
M8 Screw<br />
Vite M8<br />
TB34 Tube / Tubo TB34<br />
(Transparent-Aluminium)<br />
Threaded hole<br />
Foro filetta<strong>to</strong><br />
Witteveen Projectinrichting, Ouderkerk a/d Amstel<br />
Tel: 020-4965030 / Fax: 020-4963052 / info@witteveen.nl / www.project-inrichting.nl
3P CLAMP (less one cover)<br />
GIUNTO 3P<br />
(priva<strong>to</strong> di un coperchio)<br />
THREADED HOLE<br />
FORO FILETTATO<br />
TRANSPARENT GASKET<br />
(<strong>for</strong> <strong>fixing</strong> fragile <strong>panels</strong>)<br />
GUARNIZIONE TRASPARENTE<br />
(per fissaggio pannelli fragili)<br />
CHROME PLATED WASHER<br />
RONDELLA CROMATA<br />
M8 SCREW<br />
VITE M8<br />
<strong>Spoke</strong> <strong>element</strong> <strong>for</strong> <strong>fixing</strong> <strong>panels</strong> with 90° angle <strong>to</strong> <strong>the</strong> Pax<strong>to</strong>n’s<br />
<strong>tubular</strong> structures. It connects <strong>to</strong> <strong>the</strong> main 3P clamp -<br />
Material: Chrome plated steel<br />
Elemen<strong>to</strong> a razza per fissaggio pannellature<br />
con angolo 90° alle strutture tubolari Pax<strong>to</strong>n - Connessione tramite<br />
il giun<strong>to</strong> principale Pax<strong>to</strong>n 3P - Materiale: Acciaio Croma<strong>to</strong><br />
M8 SCREW<br />
VITE M8<br />
TB34 PAXTON TUBE<br />
(TRANSPARENT/ALUMINIUM)<br />
TUBO PAXTON TB34 (TRASPARENTE/<br />
ALLUMINIO)<br />
50<br />
51<br />
50<br />
Ø10-12<br />
Fixing <strong>panels</strong> / Fissaggio pannelli<br />
A single spoke <strong>element</strong> allows <strong>to</strong> fix <strong>the</strong> vertex of<br />
N°4 <strong>panels</strong> having thickness ranging from 1 <strong>to</strong><br />
10* mm<br />
Ogni singolo <strong>element</strong>o consente di fissare i vertici<br />
di n°4 pannelli con spessore da 1 a 10* mm<br />
*without gaskets / senza guarnizioni<br />
2<br />
51<br />
measures in mm / misure in mm<br />
Code: RZA50ACA1: <strong>Spoke</strong> <strong>element</strong> without 3P Clamp /<br />
Elemen<strong>to</strong> a razza senza giun<strong>to</strong> 3P<br />
1 2<br />
Code: RZZ50ACA1: <strong>Spoke</strong> <strong>element</strong> with 3P Clamp /<br />
Elemen<strong>to</strong> a razza con giun<strong>to</strong> 3P<br />
3 4<br />
