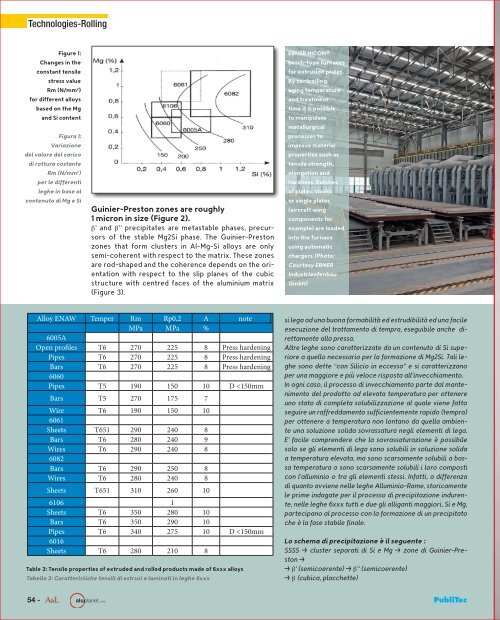

0052-0055 3<br />
Technologies-Rolling<br />
Figure 1:<br />
Changes in the<br />
constant tensile<br />
stress value<br />
Rm (N/mm 2 )<br />
for different alloys<br />
based on the Mg<br />
and Si content<br />
Figura 1:<br />
Variazione<br />
del valore del carico<br />
di rottura costante<br />
Rm (N/mm 2 )<br />
per le differenti<br />
legheinbaseal<br />
contenuto di Mg e Si<br />
Guinier-Preston zones are roughly<br />
1microninsize(Figure2).<br />
β’andβ’’ precipitates are metastable phases, precursors<br />
of the stable Mg2Si phase. The Guinier-Preston<br />
zones that form clusters in Al-Mg-Si alloys are only<br />
semi-coherent with respect to the matrix. These zones<br />
are rod-shaped and the coherence depends on the orientation<br />
with respect to the slip planes of the cubic<br />
structure with centred faces of the aluminium matrix<br />
(Figure 3).<br />
EBNER HICON®<br />
batch-type furnaces<br />
for extrusion plates.<br />
By controlling<br />
aging temperature<br />
and treatment<br />
time it is possible<br />
to manipulate<br />
metallurgical<br />
processes to<br />
improve material<br />
properties such as<br />
tensile strength,<br />
elongation and<br />
hardness. Batches<br />
of plates, stacks<br />
or single plates<br />
(aircraft wing<br />
components for<br />
example) are loaded<br />
into the furnace<br />
using automatic<br />
chargers (Photo:<br />
Courtesy EBNER<br />
Industrieofenbau<br />
GmbH)<br />
Alloy ENAW Temper Rm Rp0,2 A note<br />
MPa MPa %<br />
6005A<br />
Open profiles T6 270 225 8 Press hardening<br />
Pipes T6 270 225 8 Press hardening<br />
Bars T6 270 225 8 Press hardening<br />
6060<br />
Pipes T5 190 150 10 D
