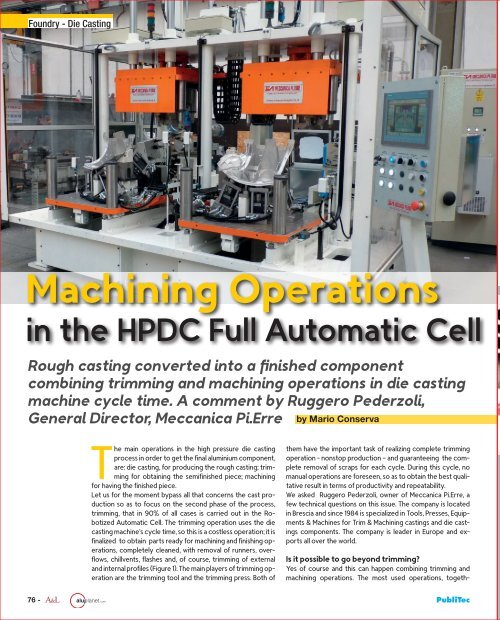

Foundry - Die Casting
Machining Operations
in the HPDC Full Automatic Cell
Rough casting converted into a finished component
combining trimming and machining operations in die casting
machine cycle time. A comment by Ruggero Pederzoli,
General Director, Meccanica Pi.Erre by Mario Conserva
The main operations in the high pressure die casting
process in order to get the final aluminium component,
are:diecasting,forproducingtheroughcasting;trimming
for obtaining the semifinished piece; machining
for having the finished piece.
Let us for the moment bypass all that concerns the cast production
so as to focus on the second phase of the process,
trimming, that in 90% of all cases is carried out in the Robotized
Automatic Cell. The trimming operation uses the die
casting machine’s cycle time, so this is a costless operation; it is
finalized to obtain parts ready for machining and finishing operations,
completely cleaned, with removal of runners, overflows,
chillvents, flashes and, of course, trimming of external
and internal profiles (Figure 1). The main players of trimming operation
are the trimming tool and the trimming press. Both of
them have the important task of realizing complete trimming
operation - nonstop production – and guaranteeing the complete
removal of scraps for each cycle. During this cycle, no
manual operations are foreseen, so as to obtain the best qualitative
result in terms of productivity and repeatability.
We asked Ruggero Pederzoli, owner of Meccanica Pi.Erre, a
fewtechnicalquestionsonthisissue.Thecompanyislocated
in Brescia and since 1984 is specialized in Tools, Presses, Equipments
& Machines for Trim & Machining castings and die castings
components. The company is leader in Europe and exports
all over the world.
Is it possible to go beyond trimming?
Yes of course and this can happen combining trimming and
machining operations. The most used operations, togeth-
