Elasticity<br />

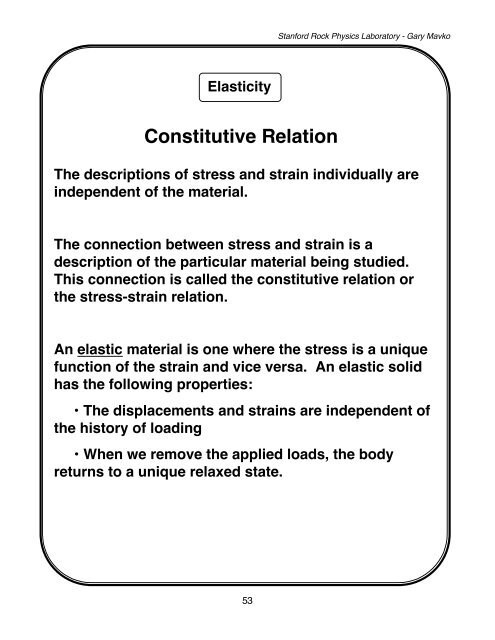

Constitutive Relation<br />
53<br />
Stanford Rock Physics Laboratory - Gary Mavko<br />
The descriptions of stress and strain individually are<br />
independent of the material.<br />
The connection between stress and strain is a<br />
description of the particular material being studied.<br />
This connection is called the constitutive relation or<br />
the stress-strain relation.<br />
An elastic material is one where the stress is a unique<br />
function of the strain and vice versa. An elastic solid<br />
has the following properties:<br />
The displacements and strains are independent of<br />
the history of loading<br />
When we remove the applied loads, the body<br />
returns to a unique relaxed state.
strain<br />
Elasticity<br />
54<br />
Stanford Rock Physics Laboratory - Gary Mavko<br />
Example of an Elastic Medium: there is a unique<br />
relation between stress and strain.<br />
stress<br />
Inelastic medium: non-unique relation that may<br />
depend on rate or loading history.<br />
strain<br />
stress
Elasticity<br />
55<br />
Stanford Rock Physics Laboratory - Gary Mavko<br />
Linear Elastic Material: Hookean Solid<br />
A special case is when the stresses and strains are<br />
linearly related:<br />
σij = Σ cijkl εkl kl<br />
stiffnesses<br />
(moduli)<br />
εij = Σ Sijkl σkl kl<br />
compliances<br />
Since there are 9 stress components and 9 strain<br />
components, there are 81 elastic constants.<br />
However, because of the symmetry of stress and<br />
strain, plus some other thermodynamic conditions<br />
there are at most 21 independent constants.<br />
c ijkl<br />
S ijkl<br />
The elastic stiffness and compliances are<br />
exactly equivalent. They are tensor inverses of each<br />
other.
Elasticity<br />
56<br />
Stanford Rock Physics Laboratory - Gary Mavko<br />
Isotropic Linear Elastic Solid<br />
For an isotropic material, only two unique<br />
constants are needed.<br />
c ijrs = λδ ij δ rs + µ δ ir δ js + δ is δ jr<br />
in simpler form:<br />
σ ij = λδ ij ε kk +2µε ij<br />
where λ and µ are the Lamé constants. µ is also<br />
known as the shear modulus.
Elasticity<br />
57<br />
Stanford Rock Physics Laboratory - Gary Mavko<br />
Linear Isotropic Elasticity: the Bulk Modulus<br />
Hooke’s Law<br />
σij = λεααδij +2µεi or<br />
σxx = λεαα +2µεxx σyy = λεαα +2µεyy By adding the first three equations:<br />
σ 0 = 1<br />
3 σ αα =<br />
σ zz = λε αα +2µε zz<br />
σ xy =2µε xy<br />
σ yz =2µε yz<br />
σ xz =2µε xz<br />
σαα =3λ +2µ εαα<br />
For convenience we define<br />
K=<br />
3λ +2µ<br />
3<br />
σ0 =Kεαα<br />
3λ +2µ<br />
3<br />
ε αα<br />
Here, K is the bulk modulus and gives the ratio of<br />
hydrostatic stress to volumetric strain.
Elasticity<br />
σ xx = λε αα +2µε xx<br />
σ yy = λε αα +2µε yy<br />
σ zz = λε αα +2µε zz<br />
σ xy =2µε xy<br />
σ yz =2µε yz<br />
σ xz =2µε xz<br />
58<br />
Stanford Rock Physics Laboratory - Gary Mavko<br />
Linear Isotropic Elasticity: the Shear Modulus<br />
In a simple shear experiment, only a single shear<br />
strain εxy is non-zero.<br />
ε xy<br />
Then Hooke’s law states:<br />
σ xy<br />
σ xy =2µε xy<br />
µ is the shear modulus, which gives the ratio of<br />
shear stress to shear strain.<br />
y<br />
x
σ xx = λε αα +2µε xx<br />
σ yy = λε αα +2µε yy<br />
σ zz = λε αα +2µε zz<br />
σ xy =2µε xy<br />
σ yz =2µε yz<br />
σ xz =2µε xz<br />
Elasticity<br />
59<br />
Stanford Rock Physics Laboratory - Gary Mavko<br />
Linear Isotropic Elasticity: the Young’s Modulus<br />
In a uniaxial stress experiment,<br />
only the axial normal stress<br />
is non-zero.<br />
Then from Hooke’s law we can derive:<br />
σ xx =<br />
But it is convenient to define<br />
E=<br />
σxx<br />
µ 3λ +2µ<br />
λ + µ<br />
σxx =Eεxx<br />
µ 3λ +2µ<br />
λ + µ<br />
ε xx<br />
σ xx<br />
This is Young’s modulus, which gives the ratio of<br />
axial stress to axial strain in a uniaxial stress state.<br />
y<br />
x<br />
z
Elasticity<br />
60<br />
Stanford Rock Physics Laboratory - Gary Mavko<br />
Linear Isotropic Elasticity: the Poisson’s Ratio<br />
Similarly, in the uniaxial stress state we can derive<br />
the ratio of lateral strain to axial strain:<br />
ε yy =–<br />
And it is convenient to define Poisson’s ratio:<br />
ν =<br />
λ<br />
2 λ + µ ε xx<br />
λ<br />
2 λ + µ<br />
ε yy =–νε xx<br />
Ideally ν must lie within the limits –1 ≤ ν ≤<br />
Practically it is almost always between<br />
when or<br />
We can interpret this as a fluid state or as an<br />
incompressible state.<br />
1 2<br />
0 ≤ ν ≤ 1 2<br />
ν → 1 µ → 0 K → ∞<br />
2
Elasticity<br />
Uniaxial Strain<br />
61<br />
Stanford Rock Physics Laboratory - Gary Mavko<br />
Consider the case when displacements occur only in<br />
the x direction:<br />
This can occur in the laboratory by putting rigid<br />
lateral constraints, or in a plane P-wave.<br />
Then we can derive:<br />
σxx = λ +2µ εxx<br />
So we can define a new modulus M for this<br />
experiment that we will call the uniaxial strain<br />
modulus, or the “P-wave” modulus.<br />
M= K+ 4µ = λ +2µ<br />
3<br />
This gives the ratio of axial stress to axial strain in<br />
a uniaxial strain situation.<br />
x<br />
z
Mineral Density<br />
Quartz 2.6500<br />
Calcite 2.7100<br />
Dolomite 2.8700<br />
Clay (kaolinite) 1.5800<br />
Muscovite 2.7900<br />
Feldspar (Albite) 2.6300<br />
Halite 2.1600<br />
Anhydrite 2.9800<br />
Pyrite 4.9300<br />
Siderite 3.9600<br />
gas 0.00065000<br />
water 1.0000<br />
oil 0.80000<br />
densities in g/cm 3<br />
moduli in GPa<br />
velocities in km/s<br />
Elasticity<br />
62<br />
Stanford Rock Physics Laboratory - Gary Mavko<br />
Examples of Elastic Moduli<br />
Young's Modulus<br />
95.756<br />
84.293<br />
116.57<br />
3.2034<br />
100.84<br />
69.010<br />
37.242<br />
74.431<br />
305.85<br />
134.51<br />
0.0000<br />
0.0000<br />
0.0000<br />
Bulk Modulus<br />
36.600<br />
76.800<br />
94.900<br />
1.5000<br />
61.500<br />
75.600<br />
24.800<br />
56.100<br />
147.40<br />
123.70<br />
0.00013000<br />
2.2500<br />
1.0200<br />
Shear Modulus<br />
45.000<br />
32.000<br />
45.000<br />
1.4000<br />
41.100<br />
25.600<br />
14.900<br />
29.100<br />
132.50<br />
51.000<br />
0.0000<br />
0.0000<br />
0.0000<br />
Vp<br />
6.0376<br />
6.6395<br />
7.3465<br />
1.4597<br />
6.4563<br />
6.4594<br />
4.5474<br />
5.6432<br />
8.1076<br />
6.9576<br />
0.44721<br />
1.5000<br />
1.1292<br />
Vs<br />
4.1208<br />
3.4363<br />
3.9597<br />
0.94132<br />
3.8381<br />
3.1199<br />
2.6264<br />
3.1249<br />
5.1842<br />
3.5887<br />
0.0000<br />
0.0000<br />
0.0000<br />
Poisson's Ratio<br />
0.063953<br />
0.31707<br />
0.29527<br />
0.14407<br />
0.22673<br />
0.34786<br />
0.24972<br />
0.27888<br />
0.15417<br />
0.31876<br />
0.50000<br />
0.50000<br />
0.50000<br />
C.1
λ+2µ /3<br />
Eµ<br />
3(3µ–E)<br />
λ 1+ν<br />
3ν<br />
µ 21+ν<br />
3 1–2ν<br />
λ<br />
µ 3λ+2µ<br />
λ+µ<br />
9K K–λ<br />
3K–λ<br />
9Kµ<br />
3K+µ<br />
1+ν 1–2ν<br />
ν<br />
2µ(1+ν)<br />
3K(1–2ν)<br />
Elasticity<br />
K–2µ /3<br />
µ E–2µ<br />
(3µ–E)<br />
3K 3K–E<br />
9K–E<br />
µ 2ν<br />
1–2ν<br />
3K ν<br />
1+ν<br />
63<br />
λ<br />
2 λ+µ<br />
λ<br />
3K–λ<br />
3K–2µ<br />
23K+µ<br />
E/(2µ)–1<br />
3K–E<br />
6K<br />
Stanford Rock Physics Laboratory - Gary Mavko<br />
Relationships Among Elastic Constants in an Isotropic Material<br />
K E λ ν M µ<br />
-<br />
-<br />
-<br />
-<br />
E<br />
3 1–2ν<br />
-<br />
-<br />
-<br />
-<br />
-<br />
-<br />
Eν<br />
1+ν 1–2ν<br />
-<br />
-<br />
-<br />
-<br />
λ+2µ<br />
3K–2λ<br />
K+4µ /3<br />
µ 4µ–E<br />
3µ–E<br />
3K 3K+E<br />
9K–E<br />
λ 1–ν<br />
ν<br />
µ 2–2ν<br />
1–2ν<br />
3K 1–ν<br />
1+ν<br />
E 1–ν<br />
1+ν 1–2ν<br />
-<br />
3K–λ /2<br />
-<br />
-<br />
3KE<br />
9K–E<br />
λ 1–2ν<br />
2ν<br />
-<br />
3K 1–2ν<br />
2+2ν<br />
E<br />
2+2ν
