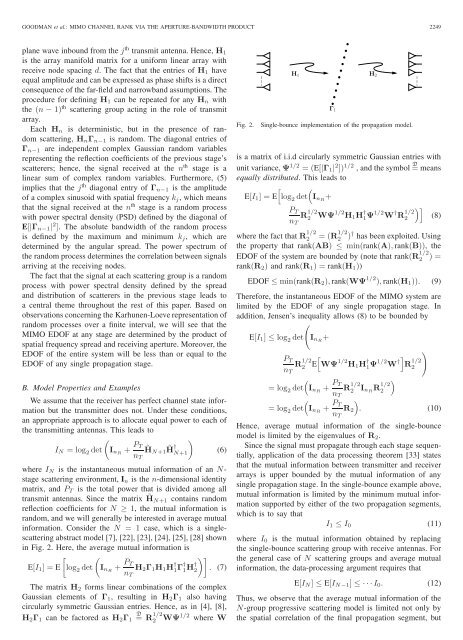

GOODMAN et al.: <strong>MIMO</strong> CHANNEL RANK VIA THE APERTURE-BANDWIDTH PRODUCT 2249<br />
plane wave inbound from <strong>the</strong> j th transmit antenna. Hence, H1<br />
is <strong>the</strong> array manifold matrix for a uniform linear array with<br />
receive node spacing d. The fact that <strong>the</strong> entries of H1 have<br />
equal amplitude and can be expressed as phase shifts is a direct<br />
consequence of <strong>the</strong> far-field and narrowband assumptions. The<br />
procedure for defining H1 can be repeated for any Hn with<br />
<strong>the</strong> (n − 1) th scattering group acting in <strong>the</strong> role of transmit<br />
array.<br />
Each Hn is deterministic, but in <strong>the</strong> presence of random<br />
scattering, HnΓn−1 is random. The diagonal entries of<br />
Γn−1 are independent complex Gaussian random variables<br />
representing <strong>the</strong> reflection coefficients of <strong>the</strong> previous stage’s<br />
scatterers; hence, <strong>the</strong> signal received at <strong>the</strong> n th stage is a<br />
linear sum of complex random variables. Fur<strong>the</strong>rmore, (5)<br />
implies that <strong>the</strong> j th diagonal entry of Γn−1 is <strong>the</strong> amplitude<br />
of a complex sinusoid with spatial frequency kj, which means<br />
that <strong>the</strong> signal received at <strong>the</strong> n th stage is a random process<br />
with power spectral density (PSD) defined by <strong>the</strong> diagonal of<br />
E[|Γn−1| 2 ]. The absolute bandwidth of <strong>the</strong> random process<br />
is defined by <strong>the</strong> maximum and minimum kj, which are<br />
determined by <strong>the</strong> angular spread. The power spectrum of<br />
<strong>the</strong> random process determines <strong>the</strong> correlation between signals<br />
arriving at <strong>the</strong> receiving nodes.<br />
The fact that <strong>the</strong> signal at each scattering group is a random<br />
process with power spectral density defined by <strong>the</strong> spread<br />
and distribution of scatterers in <strong>the</strong> previous stage leads to<br />
a central <strong>the</strong>me throughout <strong>the</strong> rest of this paper. Based on<br />
observations concerning <strong>the</strong> Karhunen-Loeve representation of<br />
random processes over a finite interval, we will see that <strong>the</strong><br />
<strong>MIMO</strong> EDOF at any stage are determined by <strong>the</strong> product of<br />
spatial frequency spread and receiving aperture. Moreover, <strong>the</strong><br />
EDOF of <strong>the</strong> entire system will be less than or equal to <strong>the</strong><br />
EDOF of any single propagation stage.<br />
nT<br />
H2Γ1H1H †<br />
1 Γ†<br />
1 H†<br />
2<br />
The matrix H2 forms linear combinations of <strong>the</strong> complex<br />
Gaussian elements of Γ1, resulting in H2Γ1 also having<br />
circularly symmetric Gaussian entries. Hence, as in [4], [8],<br />
D<br />
H2Γ1 can be factored as H2Γ1 = R 1/2<br />
2 WΨ1/2 where W<br />
H1<br />
Fig. 2. Single-bounce implementation of <strong>the</strong> propagation model.<br />
Γ1<br />
is a matrix of i.i.d circularly symmetric Gaussian entries with<br />
unit variance, Ψ1/2 =(E[|Γ1| 2 ]) 1/2 , and <strong>the</strong> symbol D = means<br />
equally distributed. This leads to<br />
<br />
E[I1] =E log2 det InR+<br />
PT<br />
nT<br />
where <strong>the</strong> fact that R 1/2<br />
2<br />
H2<br />
R 1/2<br />
2 WΨ1/2H1H †<br />
1Ψ1/2W † R 1/2<br />
2<br />
<br />
(8)<br />
=(R1/2<br />
2 ) † has been exploited. Using<br />
<strong>the</strong> property that rank(AB) ≤ min(rank(A), rank(B)), <strong>the</strong><br />
EDOF of <strong>the</strong> system are bounded by (note that rank(R 1/2<br />
2 )=<br />
rank(R2) and rank(R1) =rank(H1))<br />
EDOF ≤ min(rank(R2), rank(WΨ 1/2 ), rank(H1)). (9)<br />
B. Model Properties and Examples<br />
We assume that <strong>the</strong> receiver has perfect channel state information<br />
but <strong>the</strong> transmitter does not. Under <strong>the</strong>se conditions,<br />
an appropriate approach is to allocate equal power to each of<br />
<strong>the</strong> transmitting antennas. This leads to<br />
<br />
IN =log2det InR + PT ˜HN+1<br />
nT<br />
˜ H †<br />
<br />
N+1 (6)<br />
where IN is <strong>the</strong> instantaneous mutual information of an Nstage<br />
scattering environment, In is <strong>the</strong> n-dimensional identity<br />
matrix, and PT is <strong>the</strong> total power that is divided among all<br />
transmit antennas. Since <strong>the</strong> matrix ˜ HN+1 contains random<br />
reflection coefficients for N ≥ 1, <strong>the</strong> mutual information is<br />
random, and we will generally be interested in average mutual<br />
information. Consider <strong>the</strong> N = 1 case, which is a singlescattering<br />
abstract model [7], [22], [23], [24], [25], [28] shown<br />
in Fig. 2. Here, <strong>the</strong> average mutual information is<br />
<br />
E[I1] =E log2 det InR + PT<br />
Therefore, <strong>the</strong> instantaneous EDOF of <strong>the</strong> <strong>MIMO</strong> system are<br />
limited by <strong>the</strong> EDOF of any single propagation stage. In<br />
addition, Jensen’s inequality allows (8) to be bounded by<br />
<br />
E[I1] ≤ log2 det InR+<br />
PT<br />
R<br />
nT<br />
<br />
. (7)<br />
1/2<br />
2 E<br />
<br />
WΨ 1/2 H1H †<br />
1Ψ1/2W †<br />
R 1/2<br />
<br />
2<br />
<br />
=log2det InR + PT<br />
R<br />
nT<br />
1/2<br />
<br />
1/2<br />
2 InRR2 <br />
=log2det InR + PT<br />
<br />
R2 . (10)<br />
nT<br />
Hence, average mutual information of <strong>the</strong> single-bounce<br />
model is limited by <strong>the</strong> eigenvalues of R2.<br />
Since <strong>the</strong> signal must propagate through each stage sequentially,<br />
application of <strong>the</strong> data processing <strong>the</strong>orem [33] states<br />
that <strong>the</strong> mutual information between transmitter and receiver<br />
arrays is upper bounded by <strong>the</strong> mutual information of any<br />
single propagation stage. In <strong>the</strong> single-bounce example above,<br />
mutual information is limited by <strong>the</strong> minimum mutual information<br />
supported by ei<strong>the</strong>r of <strong>the</strong> two propagation segments,<br />
whichistosaythat<br />
I1 ≤ I0<br />
(11)<br />
where I0 is <strong>the</strong> mutual information obtained by replacing<br />
<strong>the</strong> single-bounce scattering group with receive antennas. For<br />
<strong>the</strong> general case of N scattering groups and average mutual<br />
information, <strong>the</strong> data-processing argument requires that<br />
E[IN ] ≤ E[IN−1] ≤···I0. (12)<br />
Thus, we observe that <strong>the</strong> average mutual information of <strong>the</strong><br />
N-group progressive scattering model is limited not only by<br />
<strong>the</strong> spatial correlation of <strong>the</strong> final propagation segment, but
