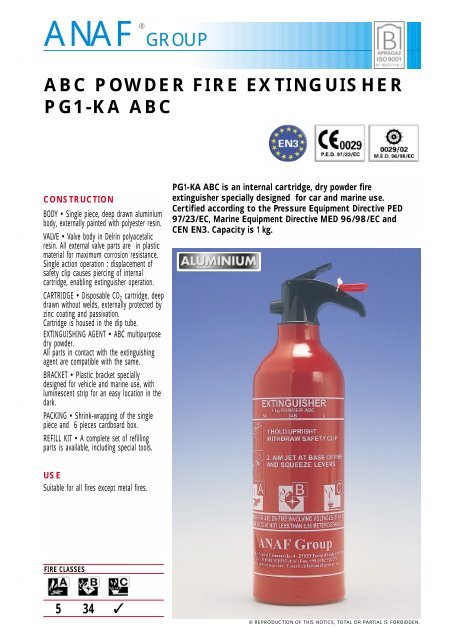

ABC POWDER FIRE EXTINGUISHER<br />
PG1-KA ABC<br />
CONSTRUCTION<br />
BODY • Single piece, deep drawn aluminium<br />
body, externally painted with polyester resin.<br />
VALVE • Valve body in Delrin polyacetalic<br />
resin. All external valve parts are in plastic<br />
material for maximum corrosion resistance.<br />
Single action operation : displacement of<br />
safety clip causes piercing of internal<br />
cartridge, enabling extinguisher operation.<br />
CARTRIDGE • Disposable CO 2 cartridge, deep<br />
drawn without welds, externally protected by<br />
zinc coating and passivation.<br />
Cartridge is housed in the dip tube.<br />
EXTINGUISHING AGENT • ABC multipurpose<br />
dry powder.<br />
All parts in contact with the extinguishing<br />
agent are compatible with the same.<br />
BRACKET • Plastic bracket specially<br />
designed for vehicle and marine use, with<br />
luminescent strip for an easy location in the<br />
dark.<br />
PACKING • Shrink-wrapping of the single<br />
piece and 6 pieces cardboard box.<br />
REFILL KIT • A complete set of refilling<br />
parts is available, including special tools.<br />
PG1-KA ABC is an internal cartridge, dry powder fire<br />
extinguisher specially designed for car and marine use.<br />
Certified according to the Pressure Equipment Directive PED<br />
97/23/EC, Marine Equipment Directive MED 96/98/EC and<br />
CEN EN3. Capacity is 1 kg.<br />
USE<br />
Suitable for all fires except metal fires.<br />
FIRE CLASSES<br />
5 34 ✓<br />
© REPRODUCTION OF THIS NOTICE, TOTAL OR PARTIAL IS FORBIDDEN.
<strong>ANAF</strong><br />
®<br />
<strong>GROUP</strong><br />
12.025A.01.01.2003.A<br />
TECHNICAL CHARACTERISTICS<br />
MODEL<br />
PG1-KA ABC<br />
FIRE CLASSES 5 A - 34 B<br />
CHARGE 1 kg ± 5%<br />
PROPELLING AGENT CO 2 (carbon dioxide) 11,5 g<br />
EXTINGUISHING AGENT 40 % monoammonium phosphate base ABC dry powder<br />
DISCHARGE Discharge time: 7,27 s<br />
Average throw:<br />
4 m<br />
BOTTLE Material of construction: aluminium alloy 3003<br />
Manufacturing process: deep drawing<br />
External painting: polyester resin, minimum thickness 75 µm<br />
Corrosion resistance: 480 h minimum according to ISO 9227:1990<br />
PRESSURES Operating pressure, 20 °C: 9 bar<br />
Operating pressure, 60 °C: 11 bar<br />
Operating pressure, –20 °C: 6 bar<br />
Bottle test pressure: 22 bar<br />
Bottle burst pressure: over 55 bar<br />
DIMENSIONS Bottle OD: 82 mm<br />
Overall height:<br />
295 mm<br />
MASSES Empty mass / Charged Mass: 0,35 kg / 1,35 kg<br />
PACKING SPECIFICATIONS Standard packing: 6 pieces cardboard box<br />
Carton size: B x L x H: 265 x 200 x 320 mm<br />
Volume: 0,017 m 3<br />
Mass per carton: 8,8 kg<br />
Pallet:<br />
90 cartons (540 pieces)<br />
Pallet size: B x L x H: 800 x 1200 x 1745 mm<br />
Pallet volume: 1,68 m 3<br />
Mass per pallet:<br />
792 kg net / 812 kg gross (including pallet)<br />
DATA AND CHARACTERISTICS SHOWN ON THIS TECHNICAL SPECIFICATION MAY THEREFORE BE MODIFIED IN ANY MOMENT WITHOUT NOTICE<br />
1<br />
3<br />
A complete set of refilling parts is available, including<br />
special tools.<br />
The bracket made of polypropylene and polyethylene<br />
ensures assembly on any surface thanks to different<br />
fastening points available at the back.<br />
2<br />
4<br />
The luminous safety strip ensures a better identification<br />
at night, fastens the fire extinguisher to the support,<br />
making it perfectly stable, also in case of violent impacts<br />
or jerks.<br />
5<br />
www.anaf-group.com – E-mail: info@anaf-group.com<br />
6<br />
➀ The indestructible Valve is made of polyacetal resin to ensure<br />
perfect protection against corrosion. - ➁ The spindle<br />
acetal resin allows a better sealing. - ➂ The safety pin, of large<br />
diameter, ensures a fast hold also when the operator is wearing<br />
work gloves. - ➃ The Spring made of steel is protected<br />
against the internal corrosion. - ➄ Disposable CO2 cartridge is<br />
housed in the dip tube. - ➅ The single piece, deep drawn aluminium<br />
body ensures maximum sealing and is very light and<br />
malleable as well.<br />
