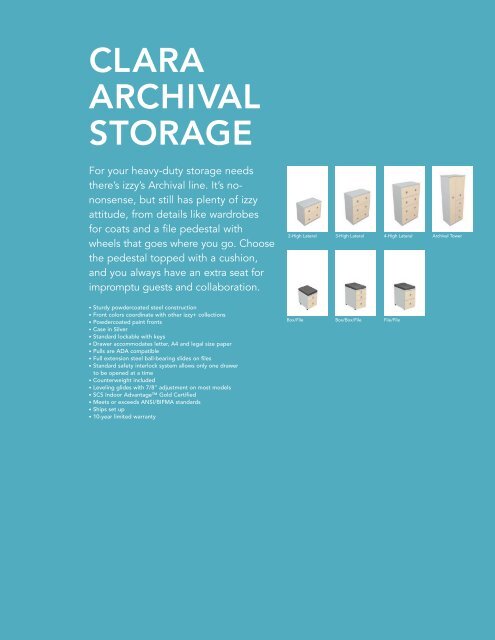

CLARA<br />
ARCHIVAL<br />
STORAGE<br />
<strong>Storage</strong><br />
For your heavy-duty storage needs<br />
there’s izzy’s <strong>Archival</strong> line. It’s nononsense,<br />
but still has plenty of izzy<br />
attitude, from details like wardrobes<br />
for coats and a file pedestal with<br />
wheels that goes where you go. Choose<br />
the pedestal topped with a cushion,<br />
and you always have an extra seat for<br />
impromptu guests and collaboration.<br />
2-High Lateral 3-High Lateral 4-High Lateral <strong>Archival</strong> Tower<br />
Sturdy powdercoated steel construction<br />
Front colors coordinate with other izzy+ collections<br />
Powdercoated paint fronts<br />
Case in Silver<br />
Standard lockable with keys<br />
Drawer accommodates letter, A4 and legal size paper<br />
Pulls are ADA compatible<br />
Full extension steel ball-bearing slides on files<br />
Standard safety interlock system allows only one drawer<br />
to be opened at a time<br />
Counterweight included<br />
Leveling glides with 7/8" adjustment on most models<br />
SCS Indoor Advantage Gold Certified<br />
Meets or exceeds ANSI/BIFMA standards<br />
Ships set up<br />
10-year limited warranty<br />
Box/File Box/Box/File File/File
CLARA ARCHIVAL STORAGE<br />
COLOR/MATERIALS<br />
Choose powdercoated drawer and file front color.<br />
Seat pad and case colors are standard.<br />
FRONT COLORS<br />
P06 Silver<br />
P07 White<br />
P08 Oatmeal<br />
P09 Charcoal<br />
P10 Black<br />
<strong>Storage</strong><br />
2-High Lateral<br />
Model Number Dimensions List <strong>Price</strong> w/Laminate<br />
CLA ACH 2HL 283018 30W x 18D x 28H $846 n/a<br />
CLA ACL 2HL 283018 30W x 18D x 28H n/a $1153<br />
Two drawer lateral storage with a little izzy attitude.<br />
Inner frame: 18 gauge<br />
Side panels: 20 gauge<br />
Back panels: 22 gauge<br />
Top panel: 21 gauge<br />
Drawer bin sides: 18 gauge<br />
Drawer bin bottom: 20 gauge<br />
Drawer fronts: 20 gauge<br />
Shipping Information<br />
Set up / 1 per carton<br />
75 lbs.<br />
UPS<br />
3-High Lateral<br />
Model Number Dimensions List <strong>Price</strong> w/Laminate<br />
CLA ACH 3HL 403018 30W x 18D x 40H $1231 n/a<br />
CLA ACL 3HL 403018 30W x 18D x 40H n/a $1669<br />
Three drawer lateral storage with a little izzy attitude.<br />
Inner frame: 18 gauge<br />
Side panels: 20 gauge<br />
Back panels: 22 gauge<br />
Top panel: 21 gauge<br />
Drawer bin sides: 18 gauge<br />
Drawer bin bottom: 20 gauge<br />
Drawer fronts: 20 gauge<br />
Shipping Information<br />
Set up / 1 per carton<br />
112 lbs.<br />
UPS<br />
4-High Lateral<br />
Model Number Dimensions List <strong>Price</strong> w/Laminate<br />
CLA ACH 4HL 523018 30W x 18D x 52H $1601 n/a<br />
CLA ACL 4HL 523018 30W x 18D x 52H n/a $2173<br />
Four drawer lateral storage with a little izzy attitude.<br />
Inner frame: 18 gauge<br />
Side panels: 20 gauge<br />
Back panels: 22 gauge<br />
Top panel: 21 gauge<br />
Drawer bin sides: 18 gauge<br />
Drawer bin bottom: 20 gauge<br />
Drawer fronts: 20 gauge<br />
Shipping Information<br />
Set up / 1 per carton<br />
161 lbs.<br />
Residential delivery fee may apply<br />
98 <strong>Storage</strong>: <strong>Clara</strong> <strong>2012</strong> izzy <strong>Price</strong> <strong>Guide</strong> 866.499.9968
CLARA ARCHIVAL STORAGE<br />
3 Drawer Tower<br />
Model Number Dimensions List <strong>Price</strong> w/Laminate<br />
CLA ACH 3DT 642424 24W x 24D x 64H $2454 n/a<br />
CLA ACL 3DT 642424 24W x 24D x 64H n/a $3437<br />
Multipurpose unit provides closet space, file drawers, and shelves<br />
Wardrobe includes coat closet with hanging rod<br />
Wardrobe door left handed only<br />
25"h cupboard with one adjustable shelf in 2" increments<br />
Three 12"h x 19"d files<br />
Four leveling glides with 1 5/8" adjustment<br />
Nickel-plated concealed door hinges swing 110°<br />
Top and side channels: 18 gauge<br />
Center and side channels: 20 gauge<br />
Back panel: 22 gauge<br />
Top panel: 21 gauge<br />
Fixed and adjustable shelves: 18 gauge<br />
Drawer bins: 22 gauge<br />
Coat and cupboard doors: 22 gauge<br />
Drawer fronts: 22 gauge<br />
Shipping Information<br />
Set up / 1 per carton<br />
205 lbs.<br />
Residential delivery fee may apply<br />
<strong>Storage</strong><br />
Mobile File/File Pedestal<br />
Model Number Dimensions List <strong>Price</strong> w/Laminate<br />
CLA ACH MFF 271518 15W x 18D x 27.5H $711 n/a<br />
CLA ACL MFF 271518 15W x 18D x 27.5H n/a $1296<br />
Mobile, go anywhere storage<br />
Two locking casters in front, two non-locking in rear<br />
Casters easy to install using Phillips screwdriver<br />
Will not fit under <strong>Clara</strong> tables unless specified with pin-set legs<br />
Inner side channels: 21 gauge<br />
Top and bottom channels: 18 gauge<br />
Over-the-top wrapper: 22 gauge<br />
Back panel: 22 gauge<br />
Drawer bin bottom and sides: 22 gauge<br />
Drawer fronts: 20 gauge<br />
Shipping Information<br />
Set up / 1 per carton<br />
54 lbs.<br />
UPS<br />
Mobile Box/Box/File Pedestal<br />
Model Number Dimensions List <strong>Price</strong> w/Laminate<br />
CLA ACH MBBF 271518 15W x 18D x 27.5H $731 n/a<br />
CLA ACL MBBF 271518 15W x 18D x 27.5H n/a $1457<br />
Mobile, go anywhere storage<br />
Two locking casters in front, two non-locking in rear<br />
Casters easy to install using Phillips screwdriver<br />
Will not fit under <strong>Clara</strong> tables unless specified with pin-set legs<br />
Boxes equipped with .75" extension steel ball bearing slides<br />
Inner side channels: 21 gauge<br />
Top and bottom channels: 18 gauge<br />
Over-the-top wrapper: 22 gauge<br />
Back panel: 22 gauge<br />
Drawer bin bottom and sides: 22 gauge<br />
Drawer fronts: 20 gauge<br />
Shipping Information<br />
Set up / 1 per carton<br />
65 lbs.<br />
UPS<br />
Mobile Box/File Pedestal<br />
Model Number Dimensions List <strong>Price</strong> w/Laminate<br />
CLA ACH MBF 221518 15W x 18D x 22H $662 n/a<br />
CLA ACL MBF 221518 15W x 18D x 22H n/a $961<br />
Mobile, go anywhere storage<br />
Two locking casters in front, two non-locking in rear<br />
Casters easy to install using Phillips screwdriver<br />
Fits under standard worksurface<br />
Box equipped with .75" extension steel ball bearing slides<br />
Add seat pad to double as guest seat<br />
Inner side channels: 21 gauge<br />
Top and bottom channels: 18 gauge<br />
Over-the-top wrapper: 22 gauge<br />
Back panel: 22 gauge<br />
Drawer bin bottom and sides: 22 gauge<br />
Drawer fronts: 20 gauge<br />
Shipping Information<br />
Set up / 1 per carton<br />
54 lbs.<br />
UPS<br />
Pedestal Seat Pad<br />
Model Number Dimensions List <strong>Price</strong><br />
CLA ACH MBF SEAT 031522 15W x 18D x 3H $186<br />
Instantly converts mobile box file into guest seat<br />
Attaches to mobile box/file top with self-adhesive Velcro ® included<br />
Standard in 0159 Perk Pewter textile or choose from the izzy+ flavors<br />
textile collection. Call Customer Support for pricing<br />
COM also welcome<br />
Com Requirements<br />
1 pad / 1 yd.<br />
Shipping Information<br />
4 lbs.<br />
UPS<br />
866.499.9968 <strong>2012</strong> izzy <strong>Price</strong> <strong>Guide</strong> <strong>Storage</strong>: <strong>Clara</strong> 99
CLARA ARCHIVAL STORAGE<br />
Pencil Tray<br />
Model Number Dimensions List <strong>Price</strong><br />
CLA ACH PENCLTRAY 011306 12.75W x 5.5D x 1H $20<br />
Use in mobile pedestals to organize and utilize space<br />
Suspends from sides of drawer and file compartments<br />
Standard in black<br />
Shipping Information<br />
1 lbs.<br />
UPS<br />
<strong>Storage</strong><br />
Pedestal Dividers<br />
Model Number Dimensions List <strong>Price</strong><br />
CLA ACH PEDDVDR2 051201 12W x 1D x 4.5H $20<br />
CLA ACH PEDDVDR2 101201 12W x 1D x 9.4H $25<br />
Creates compartments and divides space within mobile pedestals<br />
Fits between sides of drawer and file compartments<br />
Standard in black<br />
Each model includes two dividers<br />
Shipping Information<br />
2 lbs.<br />
UPS<br />
Lateral File Conversion Bars<br />
Model Number Dimensions List <strong>Price</strong><br />
CLA ACH FTBBARS 2 .125W x 16D x 1H $20<br />
Use in lateral file to convert side-to-side filing into front-to-back filing<br />
Suspends from front and back hanging bars<br />
Standard in black<br />
Includes two bars<br />
Shipping Information<br />
2 lbs.<br />
UPS<br />
100 <strong>Storage</strong>: <strong>Clara</strong> <strong>2012</strong> izzy <strong>Price</strong> <strong>Guide</strong> 866.499.9968
How to Order <strong>Clara</strong> <strong>Archival</strong> <strong>Storage</strong><br />
1. MODEL/SIZE<br />
Refer to product pages.<br />
2. FRONT COLORS<br />
Choose a front color. Case standard in Silver.<br />
P06 Silver<br />
P07 White<br />
P08 Oatmeal<br />
P09 Charcoal<br />
P10 Black<br />
3. PULL TYPE<br />
CS <strong>Clara</strong> Silver pull<br />
Audrey Silver pull<br />
22 Standard pull<br />
<strong>Storage</strong><br />
Example:<br />
1. MODEL/SIZE<br />
CLA ACH 2HL 283018<br />
2. COLOR<br />
P07<br />
3. PULL TYPE<br />
CS<br />
866.499.9968 <strong>2012</strong> izzy <strong>Price</strong> <strong>Guide</strong> <strong>Storage</strong>: <strong>Clara</strong> 101
