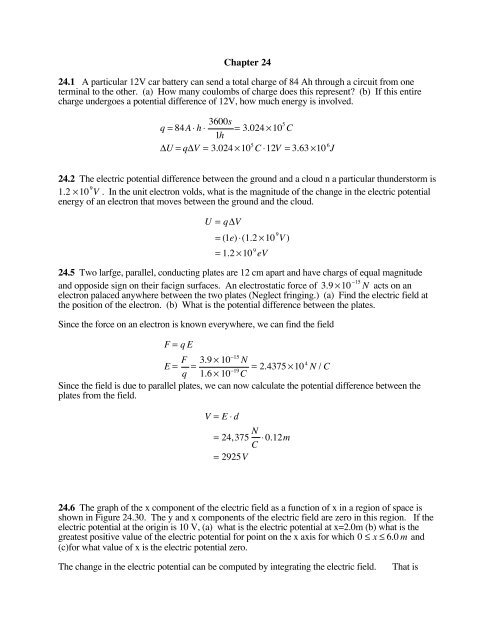

<strong>Chapter</strong> <strong>24</strong><br />
<strong>24</strong>.1 A <strong>particular</strong> <strong>12V</strong> <strong>car</strong> <strong>battery</strong> <strong>can</strong> <strong>send</strong> a <strong>total</strong> <strong>charge</strong> of 84 Ah through a circuit from one<br />
terminal to the other. (a) How many coulombs of <strong>charge</strong> does this represent? (b) If this entire<br />
<strong>charge</strong> undergoes a potential difference of <strong>12V</strong>, how much energy is involved.<br />
q = 84A ⋅ h ⋅ 3600s = 3.0<strong>24</strong> ×10 5 C<br />
1h<br />
ΔU = qΔV = 3.0<strong>24</strong> ×10 5 C ⋅<strong>12V</strong> = 3.63 ×10 6 J<br />
<strong>24</strong>.2 The electric potential difference between the ground and a cloud n a <strong>particular</strong> thunderstorm is<br />
1.2 ×10 9 V . In the unit electron volds, what is the magnitude of the change in the electric potential<br />
energy of an electron that moves between the ground and the cloud.<br />
U = qΔV<br />
= (1e) ⋅(1.2 ×10 9 V )<br />
= 1.2 ×10 9 eV<br />
<strong>24</strong>.5 Two larfge, parallel, conducting plates are 12 cm apart and have chargs of equal magnitude<br />
and opposide sign on their facign surfaces. An electrostatic force of 3.9 ×10 −15 N acts on an<br />
electron palaced anywhere between the two plates (Neglect fringing.) (a) Find the electric field at<br />
the position of the electron. (b) What is the potential difference between the plates.<br />
Since the force on an electron is known everywhere, we <strong>can</strong> find the field<br />
F = q E<br />
E = F q = 3.9 × 10−15 N<br />
1.6 × 10 −19 C = 2.4375 ×10 4 N / C<br />
Since the field is due to parallel plates, we <strong>can</strong> now calculate the potential difference between the<br />
plates from the field.<br />
V = E ⋅ d<br />
= <strong>24</strong>,375 N C ⋅ 0.12m<br />
= 2925V<br />
<strong>24</strong>.6 The graph of the x component of the electric field as a function of x in a region of space is<br />
shown in Figure <strong>24</strong>.30. The y and x components of the electric field are zero in this region. If the<br />
electric potential at the origin is 10 V, (a) what is the electric potential at x=2.0m (b) what is the<br />
greatest positive value of the electric potential for point on the x axis for which 0 ≤ x ≤ 6.0 m and<br />
(c)for what value of x is the electric potential zero.<br />
The change in the electric potential <strong>can</strong> be computed by integrating the electric field.<br />
That is
ΔV = −<br />
x f<br />
∫<br />
x i<br />
<br />
E ⋅ d r<br />
<br />
In this problem, the only non-zero field is in the x direction, so we <strong>can</strong> simplify<br />
ΔV = −<br />
x f<br />
∫<br />
x i<br />
E x<br />
d x<br />
This integral just represents the area under the curve. We <strong>can</strong> find the potential at x = 2m<br />
V(2) −V (0) = −Area undercurve between x = 0 and x = 2<br />
V(2) −10V = −( 1 2 ⋅ 2m ⋅ −20 N C ) = +20V<br />
V(2) = 30V<br />
Notice that as positive areas will make the potential decrease. So to get the largest final potential,<br />
we need to find the largest possible negative area. This leads us to part b. The largest negative area<br />
is between x=0 and x=3.<br />
V(x) −V (0) = −Area undercurve between x = 0 and x<br />
V(3) −10V = −( 1 2 ⋅ 3m ⋅ −20 N C ) = +30V<br />
V(2) = 40V<br />
To find where the potential reaches zero, we must find and area such that the final potential is zero.<br />
V(x) −V (0) = −Area undercurve between x = 0 and x<br />
0 −10V = −Area undercurve between x = 0 and x<br />
( )<br />
10 = (Area from 0 to 3) + (Area from 3 to 4) + (Area from 4 to x f<br />
d = x f<br />
− 4<br />
10 = ( 1 2 ⋅ 3m ⋅ −20 N C ) + (1 2 ⋅1m⋅ 20 N ) + (d ⋅ 20)<br />
C<br />
10 = −30 +10 + (d ⋅ 20)<br />
30 = (d ⋅ 20)<br />
d = 3 2 m<br />
x f<br />
= 4 + 3 2 = 5.5m
<strong>24</strong>.10 As a space shuttle moves through the dilute ionized gas of the Earth’s ionosphere, the<br />
shuttle’s potential is typically changed by −1.0V during one revolution. Assuming the shuttle is a<br />
sphere of radius 10m, estimate the amount of <strong>charge</strong> that it collects.<br />
V =<br />
q<br />
4π ε 0<br />
a<br />
q = 4π ε 0<br />
aV<br />
= −1.11×10 −9 C<br />
<strong>24</strong>.12 Consider a point <strong>charge</strong> q =1.0µC , point A at a distance d 1<br />
= 2.0m from q and point B at a<br />
distance d 2<br />
=1.0m . (a) If these points are diametrically opposite each other as in <strong>24</strong>-31a, what is<br />
the electric potential difference V A<br />
−V B<br />
? (b) What is the electric potential difference if points A<br />
and B are located as in 25-31b.<br />
The potential at points A and B only depend on how far those points are from q, not the direction.<br />
V A<br />
−V B<br />
=<br />
The result is the same for both (a) and (b).<br />
=<br />
q<br />
4πε 0<br />
r A<br />
−<br />
q<br />
4πε 0<br />
r B<br />
q<br />
4πε 0<br />
( 1 r A<br />
− 1 r B<br />
)<br />
= 1×10−6 C<br />
4πε 0<br />
( 1<br />
2m − 1<br />
1m )<br />
−4.5 ×10 3 V<br />
<strong>24</strong>.15 In Fig <strong>24</strong>-33, what is the net potential at point P due to the four point <strong>charge</strong>s if V=0 at<br />
infinity.<br />
V = +q<br />
4πε 0<br />
d + +q<br />
4πε 0<br />
d +<br />
−q<br />
4πε 0<br />
d +<br />
= +q<br />
4πε 0<br />
d + −q<br />
4πε 0<br />
2d = +q<br />
4πε 0<br />
⋅ 2d<br />
= 5.62 ×10 −4 V<br />
−q<br />
4πε 0<br />
2d<br />
<strong>24</strong>.19 The ammonia molecule NH3 has a permanent electric dipole moment equal to 1.47D<br />
Calculate the electric potential due to an ammonia molecule at a point 52nm away along the axis of<br />
the dipole<br />
V =<br />
pcosθ<br />
4πε 0<br />
r = 1.47 × 3.34 ×10−30 cos0°<br />
=1.63 ×10 −5 V<br />
2<br />
4πε 0<br />
(52 ×10 −9 ) 2
<strong>24</strong>.21 (a) Figure 25-36a shows a positively <strong>charge</strong>d plastic rod of length L and uniform <strong>charge</strong><br />
density λ. Setting V=0 at infinity and considering Fig 25-13 and Eq 25-35, find the electric<br />
potential at point P without written calculation. (b) Find the potential due to the second rod.<br />
This problem is the problem worked out in the book with different limits... We <strong>can</strong> work it again.<br />
Write an expression for the electric potential due to a small <strong>charge</strong> dq at the point p?<br />
dV =<br />
dq<br />
4πε 0<br />
r =<br />
dq<br />
4πε 0<br />
x 2 + d 2<br />
Write an expression for the dq and the r in terms of x and the distance y.<br />
The potential at the point indicated?<br />
dq = λdx<br />
V =<br />
L / 2<br />
λdx<br />
∫ = λ<br />
4πε 0<br />
x 2 + d 2 4πε 0<br />
−L / 2<br />
L /2<br />
∫<br />
− L /2<br />
= λ ⎡<br />
⋅ ln L / 2 + (L / 2)2 + d 2 ⎤<br />
⎢<br />
⎥<br />
4πε 0 ⎣ ⎢ −L / 2 + (L / 2) 2 + d 2<br />
⎦ ⎥<br />
dx<br />
x 2 + d 2<br />
The potential for the second drawing is zero, since the equal and opposite <strong>charge</strong> contributions<br />
<strong>can</strong>cel exactly.<br />
<strong>24</strong>.23 A plastic rod has been formed into a circle of radius R. It has a positive <strong>charge</strong> +Q<br />
uniformly distributed along one quarter of its circumference and a negative <strong>charge</strong> of -6Q<br />
uniformly distributed along the rest of the circumference. With V=0 at infinity, what is the electric<br />
potential at the center of the circle and (b) at point P, which is on the central axis of the circle at a<br />
distance z form the center?<br />
We will begin with (b) since (a) is a special case of b. We proceed in the usual way by defining r<br />
and dq for bits of <strong>charge</strong> on the rod. We then integrate and simplify.
dV =<br />
dq<br />
4πε 0<br />
r =<br />
dq = λdl = λRdθ<br />
dq<br />
4πε 0<br />
R 2 + z 2<br />
+Q<br />
λ +<br />
=<br />
2πR / 4<br />
λ −<br />
=<br />
−6Q<br />
6πR / 4<br />
π / 2<br />
λ<br />
V =<br />
+<br />
Rdθ<br />
∫ +<br />
0 4πε 0<br />
R 2 + z 2<br />
=<br />
=<br />
=<br />
=<br />
=<br />
2π<br />
∫<br />
π / 2<br />
λ −<br />
Rdθ<br />
4πε 0<br />
R 2 + z 2<br />
λ +<br />
R ⎡ π<br />
4πε 0<br />
R 2 + z 2 ⎣<br />
⎢<br />
2 −0 ⎤<br />
⎦<br />
⎥ + λ −<br />
R ⎡<br />
2π − π ⎤<br />
4πε 0<br />
R 2 + z 2 ⎣<br />
⎢<br />
2 ⎦<br />
⎥<br />
λ +<br />
R ⎡ π⎤<br />
4πε 0<br />
R 2 + z 2 ⎣<br />
⎢<br />
2⎦<br />
⎥ + λ −<br />
R ⎡ 3π ⎤<br />
4πε 0<br />
R 2 + z 2 ⎣<br />
⎢<br />
2 ⎦<br />
⎥<br />
+Q<br />
2πR / 4 ⋅ R ⎡ π⎤<br />
4πε 0<br />
R 2 + z 2 ⎣<br />
⎢<br />
2⎦<br />
⎥ +<br />
−6Q<br />
6πR / 4 ⋅R ⎡ 3π<br />
4πε 0<br />
R 2 + z 2 ⎣<br />
⎢<br />
2<br />
+Q<br />
4πε 0<br />
R 2 + z + −6Q<br />
2 4πε 0<br />
R 2 + z 2<br />
−5Q<br />
4πε 0<br />
R 2 + z 2<br />
⎤<br />
⎦<br />
⎥<br />
We set z=0 to get the solution to part (a).<br />
V =<br />
−5Q<br />
4πε 0<br />
R<br />
<strong>24</strong>.28 Figure <strong>24</strong>-44 shows a thin plastic rod of length L = 12.0 cm and a uniform positive <strong>charge</strong><br />
of Q = 56.1 f C lying on the x-axis. With V=0 at infinity, find the electric potential at point P1 on<br />
the axis at a distance d = 2.50cm from one end of the rod.<br />
This problem is the problem worked out in the book with different limits... We <strong>can</strong> work it again.<br />
Write an expression for the electric potential due to a small <strong>charge</strong> dq at the point p?<br />
dV =<br />
dq<br />
4πε 0<br />
r = dq<br />
4πε 0<br />
(x + d)<br />
Write an expression for the dq and the r in terms of x and the distance y.
The potential at the point indicated?<br />
dq = λdx<br />
λ = 56.1 f C<br />
0.12m = 4.675 ×10−13 C / m<br />
L<br />
λ dx<br />
V = ∫ = λ<br />
0<br />
4πε 0<br />
(x + d) 4πε 0<br />
= λ ⎡<br />
⋅ ln L + d ⎤<br />
4πε 0<br />
⎣<br />
⎢<br />
d ⎦<br />
⎥<br />
= 7.39 ×10 −3 V<br />
L / 2<br />
∫<br />
−L / 2<br />
dx<br />
(x + d)<br />
<strong>24</strong>.31 The electric potential at points in an xy plane is given by<br />
V = (2.0V / m 2 ) x 2 − (3.0V / m 2 ) y 2<br />
In unit-vector notation, what is the electric field at the point (3.0 m, 2.0m).<br />
E x<br />
= − ∂V<br />
∂x = −(4.0V / m2 ) x<br />
E y<br />
= − ∂V<br />
∂y = (6.0V / m2 ) y<br />
<br />
E = −(4.0V / m 2 ) x ˆ i + (6.0V / m 2 ) y ˆ j<br />
= −(<strong>12V</strong> / m) i ˆ + (12.0V / m) ˆ j<br />
<strong>24</strong>.37 How much work is required to set up the arrangement of Fig. <strong>24</strong>-46 if q = 2.30 ×10 −12 C ,<br />
a = 64.0cm and the particles are initially infinitely fare apart and at rest.<br />
The work required to assemble the <strong>charge</strong>s is the energy stored in the <strong>charge</strong> array. We <strong>can</strong><br />
calculate this by summing over all the energies of all the pairs of <strong>charge</strong>s.<br />
U =<br />
= 2 ⋅<br />
(+q)( +q)<br />
4π ε 0<br />
( 2a) + (−q)(−q)<br />
4 π ε 0<br />
( 2a) + ( +q)(−q)<br />
4π ε 0<br />
a<br />
+ (+q)(−q)<br />
4π ε 0<br />
a<br />
+ (+q)(−q)<br />
4 π ε 0<br />
a + (+q)(−q)<br />
4π ε 0<br />
a<br />
q 2<br />
4π ε 0<br />
( 2a) − 4 ⋅ q 2<br />
= −1.92 ×10 −13 J<br />
W = −U =1.92 ×10 −13 J<br />
4π ε 0<br />
a
<strong>24</strong>.45 Two electrons are fixed 2.0 cm apart. Another electron is shot from infinity and stops<br />
midway between the two. What is its initial speed.<br />
This is an energy conservation problem. The energy at infinity is all kinetic. The energy of the<br />
stopped electron is all potential We <strong>can</strong> used conservation of energy to find the initial velocity at<br />
infinity.<br />
a<br />
a<br />
E i<br />
= 1 2 mv2<br />
E f<br />
=<br />
E f<br />
= E i<br />
1<br />
2 mv2 =<br />
v =<br />
q 2<br />
4π ε 0<br />
a + q 2<br />
4π ε 0<br />
a<br />
q 2<br />
4π ε 0<br />
a + q 2<br />
4π ε 0<br />
a<br />
q 2<br />
mπ ε 0<br />
a<br />
= 318.3m / s<br />
<strong>24</strong>.54 An empty hollow metal sphere has a potential of +400V with respect to ground What is the<br />
electric potential at the center.<br />
Since there is no electric field inside the sphere, the potential must remain constant throughout the<br />
sphere. So the potential at the center =potential at the surface =400V<br />
<strong>24</strong>.57 A metal sphere of radius 15 cm has a net <strong>charge</strong> of 3.0 ×10 −8 C . (a) What is the electric<br />
field at the sphere’s surface? (b)( If V=0 at infinity , what is the electric potential at the sphere’s<br />
surface? (c) At what distance from the sphere’s surface has the electric potential decreased by<br />
500V?<br />
We <strong>can</strong> treat this sphere as a point <strong>charge</strong> so long as we are outside. After finding the voltage on<br />
the surface, we <strong>can</strong> subtract 500V and solve for r. Note that the answer in the back of the book<br />
shows the change in r, not the r.<br />
E =<br />
V =<br />
q<br />
4π ε 0<br />
a 2<br />
=11983.4V / m<br />
q<br />
4π ε 0<br />
a = 1797.5V<br />
1297.5V =<br />
q<br />
4 π ε 0<br />
r ⇒ r = 20.8cm
