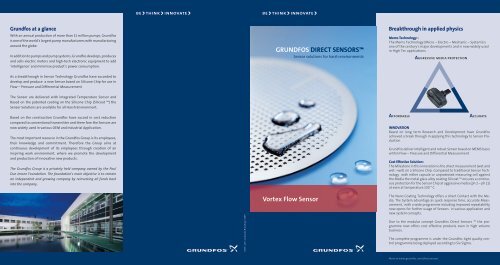

GRUNDFOS DIRECT SENSORS™ Vortex Flow Sensor
GRUNDFOS DIRECT SENSORS™ Vortex Flow Sensor
GRUNDFOS DIRECT SENSORS™ Vortex Flow Sensor
You also want an ePaper? Increase the reach of your titles
YUMPU automatically turns print PDFs into web optimized ePapers that Google loves.
Be responsible<br />
Think ahead<br />
Innovate<br />
Grundfos at a glance<br />
With an annual production of more than 11 million pumps, Grundfos<br />
is one of the world’s largest pump manufacturers with manufacturing<br />
around the globe.<br />
In addition to pumps and pump systems, Grundfos develops, produces<br />
and sells electric motors and high-tech electronic equipment to add<br />
‘intelligence’ and minimise product’s power consumption.<br />
<strong>GRUNDFOS</strong> <strong>DIRECT</strong> SENSORS<br />
<strong>Sensor</strong> solutions for harsh environments<br />
Breakthrough in applied physics<br />
Mems Technology :<br />
The Mems Technology (Micro – Electro – Mechanic – System) is<br />
one of the century’s major developments and is now widely used<br />
in High Tec applications.<br />
AGGRESSIVE MEDIA PROTECTION<br />
As a breakthrough in <strong>Sensor</strong> Technology Grundfos have succeded to<br />
develop and produce a new <strong>Sensor</strong> based on Silicone Chip for use in<br />
<strong>Flow</strong> – Pressure and Differential Measurement<br />
The <strong>Sensor</strong> are delivered with integrated Temperature <strong>Sensor</strong> and<br />
Based on the patented coating on the Silicone Chip (Silicoat ) the<br />
<strong>Sensor</strong> Solutions are available for all Harsh Environment.<br />
Based on the construction Grundfos have succed in cost reduction<br />
compared to conventional transmitter and there fore the <strong>Sensor</strong>s are<br />
now widely used in various OEM and Industrial Application.<br />
The most important resource in the Grundfos Group is its employees,<br />
their knowledge and commitment. Therefore the Group aims at<br />
continuous development of its employees through creation of an<br />
inspiring work environment, where we promote the development<br />
and production of innovative new products.<br />
The Grundfos Group is a privately held company owned by the Poul<br />
Due Jensen Foundation. The foundation’s main objective is to remain<br />
an independent and growing company by reinvesting all funds back<br />
into the company.<br />
AFFORDABLE<br />
ACCURATE<br />
INNOVATION<br />
Based on long term Research and Development have Grundfos<br />
achieved a break through in applying this technology to <strong>Sensor</strong> Production<br />
Grundfos deliver intelligent and robust <strong>Sensor</strong> based on MEMS basis<br />
within <strong>Flow</strong> – Pressure and Differential Measurement<br />
Cost Effective Solution:<br />
The Milestone in this innovation is the direct measurement (wet and<br />
wet –wet) on a Silicone Chip. Compared to traditional <strong>Sensor</strong> Technology<br />
with either capsule or unprotected measuring cell against<br />
the Media the metal glass alloy coating Silicoat ensures a continuous<br />
protection for the <strong>Sensor</strong> Chip at aggressive media (ph 2 – ph 11)<br />
at even at temperature 100 ° C<br />
0305 \ GB \ Corporate Branding \ 6169<br />
<strong>Vortex</strong> <strong>Flow</strong> <strong>Sensor</strong><br />
The Nano Coating Technology offers a direct Contact with the Media.<br />
The System advantage as quick response time, accurate Measurement,<br />
with a wide programme including improved repeatability<br />
now opens for further usage of <strong>Sensor</strong>s in various application and<br />
new system concepts.<br />
Due to the modular concept Grundfos Direct <strong>Sensor</strong>s the programme<br />
now offers cost effective products even in high volume<br />
business.<br />
The complete programme is under the Grundfos tight quality control<br />
programme being deployed according to Six Sigma.<br />
More at www.grundfos.com/directsensors
<strong>Sensor</strong> principle<br />
By combining the established vortex principle (von Karman, 1912)<br />
with an unique metal-glass coating from Grundfos an affordable,<br />
accurate and direct flow sensor for aggressive media is now<br />
available. The flow sensor is without moving parts, which can<br />
deteriorate or commence clogging.<br />
The <strong>Vortex</strong> Street generate two series of turbulence (vortices)<br />
shedding behind a bluff body<br />
At increasing flow the frequency of the Vortices will increase and<br />
the frequency increase indicate the increase flow situation.<br />
The Grundfos <strong>Vortex</strong> <strong>Sensor</strong> consist of <strong>Flow</strong> Pipe – <strong>Sensor</strong> – and<br />
<strong>Vortex</strong> Element were the vortices are generated.<br />
Grundfos Semiconductor<br />
The <strong>Sensor</strong> detect the Pressure Pulsation generated by the vortices<br />
and convert the pulsation to an electrical output signal<br />
Red: <strong>Flow</strong> response (pin2)<br />
Yellow: Temperature response (pin1)<br />
The Frequency of the Pressure Pulsation is a measurement for the<br />
Velocity and in the defined flow pipe the actual flow is measured.<br />
Advantage:<br />
Application:<br />
4<br />
The <strong>Flow</strong> <strong>Sensor</strong> is with integrated temperature <strong>Sensor</strong><br />
<strong>Vortex</strong> <strong>Flow</strong> <strong>Sensor</strong><br />
Ranges<br />
Measuring range 1.3-20/2-40/5-100/<br />
10-200 litre/min.<br />
Response time, flow<br />
Accuracy (20-100°C)<br />
Temperature<br />
Measuring range<br />
< 1 sec.<br />
1.5% FS<br />
0-100°C<br />
Accuracy 1°C<br />
Response time, temperature/flow<br />
Supply voltage (current consumption)<br />
< 2 sec.<br />
+5V PELV ( 100 ° C<br />
Excellent Price – Preformance<br />
Aprroved for Drinking Water applications<br />
Unique metal – glass coating Silicoat <br />
Boiler<br />
Solar Plant<br />
Drink water station<br />
Heat Pump<br />
Cooling & Refrigeration Technology<br />
Cooling & Temperature System<br />
Pump Control<br />
Water Systems<br />
Dosing<br />
Filter plant<br />
Valves & Controls<br />
Output signal (V)<br />
3<br />
2<br />
1<br />
0<br />
0 25 50 75 100<br />
Range (%)
