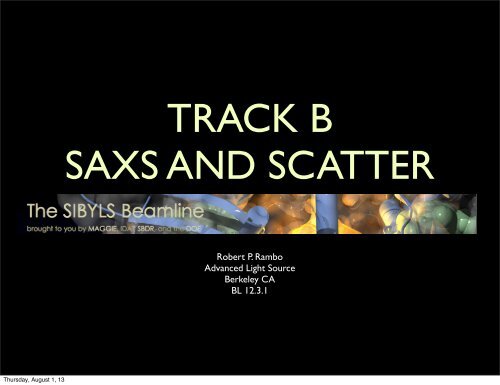

TRACK B<br />
<strong>SAXS</strong> AND SCATTER<br />
Robert P. Rambo<br />
Advanced Light Source<br />
Berkeley CA<br />
BL 12.3.1<br />
Thursday, August 1, 13
<strong>SAXS</strong><br />
Small Angle X-ray <strong>Scatter</strong>ing<br />
How does <strong>SAXS</strong> relate to structure?<br />
Source<br />
scattering angle<br />
Sample<br />
log I(q)<br />
∫<br />
I molecule<br />
(q)= p(r)⋅<br />
sin(q ⋅ r)<br />
q ⋅ r<br />
dr<br />
q, Å -1<br />
Set of all distance vectors<br />
within the particle<br />
€<br />
P(r) ~ Pair Distance Distribution Function<br />
Thursday, August 1, 13
<strong>SAXS</strong><br />
Small Angle X-ray <strong>Scatter</strong>ing<br />
What can you derive directly from a single curve?<br />
•Radius-of-gyration, Rg (real <strong>and</strong> reciprocal space)<br />
•Porod exponent, PE<br />
•Volume-of-correlation, Vc<br />
•Particle volume, V<br />
•Surface-to-volume ratio, S/V<br />
•correlation length, lc<br />
•mass<br />
•particle shape<br />
Thursday, August 1, 13
<strong>SAXS</strong> Invariants<br />
(structural parameters derived directly from <strong>SAXS</strong>)<br />
Q, Porod Invariant<br />
Directly related to mean square electron density of particle.<br />
Requires convergence in Kratky plot (q 2 I(q) vs q).<br />
Vp, Porod Volume<br />
Requires Q<br />
lc, correlation length<br />
Q acts as a normalization constant <strong>and</strong> corrects for:<br />
1.concentration<br />
2.instrumentation parameters<br />
3.contrast, (Δρ) 2<br />
Rg, radius-of-gyration<br />
Does not require Q<br />
Concentration independent<br />
Contrast independent (as long as structure does not<br />
change)<br />
Essentially normalized to I(0)<br />
Thursday, August 1, 13
Porod Invariant<br />
Assessing flexibility<br />
G. Porod deduced an integral constant contained within a <strong>SAXS</strong> curve:<br />
Assumption:<br />
1.defined Δρ exists between particle <strong>and</strong> solvent<br />
2.scatterer has homogenous electron density<br />
Integration of data transformed as q 2 • I(q) should be constant<br />
Q = 1<br />
2π 2 ∫ ∞<br />
0<br />
q 2 · I(q) dq<br />
Q =2π 2 · (∆ρ) 2 · V<br />
Q is the direct product of the excess scattering<br />
electrons of the particle <strong>and</strong> Vparticle<br />
Q =2π 2 · c · (∆ρ) 2 · V<br />
Regardless of beamline, source, or wavelength;<br />
Data should have the same constant with the same sample at the same concentration.<br />
Thursday, August 1, 13
Porod Invariant<br />
Assessing flexibility<br />
Q = 1<br />
2π 2 ∫ ∞<br />
0<br />
Kratky Plot<br />
q 2 · I(q) dq<br />
• visualization of Q<br />
• used to interpret samples with flexibility<br />
A plot of q 2 • I(q) vs q should show a curve that captures a<br />
defined area, hence the integral.<br />
Defined area means transformed data converges.<br />
Asymptotic behavior predicted by Debye<br />
equation for a Gaussian r<strong>and</strong>om coil<br />
RNA riboswitch (+/- Mg 2+ )<br />
flexible-unfolded<br />
compact-folded<br />
Defined, captured area<br />
predicted by Q<br />
q, Å<br />
Unfolded particle does not capture a defined area (flexible, unfolded, gaussian chain like)<br />
Folded particle converges at higher q in Kratky plot (folded, compact particle)<br />
Thursday, August 1, 13
Defining a new Invariant<br />
Kratky Plot<br />
flexible-unfolded<br />
compact-folded<br />
q, Å<br />
plot differently<br />
q, Å<br />
Data converges for both<br />
• compact - folded<br />
• flexible - unfolded<br />
7<br />
Thursday, August 1, 13
The Volume-of-Correlation<br />
= =<br />
independent of:<br />
1. contrast<br />
2. concentration<br />
1. substitute for I(q)<br />
lc is the expected correlation length<br />
2. collect like terms<br />
5. collect like terms<br />
3. integrate by parts<br />
∞<br />
4. substitute P(r) = 4π r 2 γ(r)<br />
0<br />
correlation function<br />
Thursday, August 1, 13
Pair-distance Distribution Function<br />
Set of all distances measured within the particle.<br />
∑<br />
= ∑ ∫<br />
r ij =<br />
internal distances<br />
ρ(r) dr<br />
logically this must be Vparticle<br />
p(r) = 0 when r > d max<br />
• defined in real space<br />
•<br />
V particle =<br />
no negative values (R + )<br />
• zero except for defined distances<br />
• expected to be smooth as r → dmax<br />
peak ⇒〈r〉 =<br />
∫<br />
r · ρ(r) dr<br />
∫ dmax<br />
0<br />
ρ(r) =r 2 γ(r)<br />
ρ(r) dr<br />
implies p(r) has units of Å 2<br />
γ(r): correlation function<br />
R g 2 = 1 2 ·<br />
∫<br />
r2 · ρ(r) dr<br />
∫<br />
ρ(r) dr<br />
P(r)<br />
Knowing P(r):<br />
1. Determine Vparticle<br />
2. Rg (real space)<br />
3. Correlation function<br />
r<br />
Thursday, August 1, 13
Correlation Function<br />
Debye <strong>and</strong> Bueche (1947)<br />
Thursday, August 1, 13
Correlation Function<br />
• displace particle by a small distance, ∆r<br />
Debye <strong>and</strong> Bueche (1947)<br />
Thursday, August 1, 13
Correlation Function<br />
• displace particle by a small distance, ∆r<br />
Debye <strong>and</strong> Bueche (1947)<br />
Thursday, August 1, 13
Correlation Function<br />
• displace particle by a small distance, ∆r<br />
• calculate how well the particle correlates with its previous self<br />
Debye <strong>and</strong> Bueche (1947)<br />
Thursday, August 1, 13
Correlation Function<br />
• displace particle by a small distance, ∆r<br />
• calculate how well the particle correlates with its previous self<br />
increase Δr<br />
Debye <strong>and</strong> Bueche (1947)<br />
Thursday, August 1, 13
Correlation Function<br />
• displace particle by a small distance, ∆r<br />
• calculate how well the particle correlates with its previous self<br />
increase Δr<br />
Debye <strong>and</strong> Bueche (1947)<br />
Thursday, August 1, 13
Correlation Function<br />
recalculate<br />
• displace particle by a small distance, ∆r<br />
• calculate how well the particle correlates with its previous self<br />
increase Δr<br />
Debye <strong>and</strong> Bueche (1947)<br />
Thursday, August 1, 13
Correlation Function<br />
recalculate<br />
• displace particle by a small distance, ∆r<br />
• calculate how well the particle correlates with its previous self<br />
increase Δr<br />
Debye <strong>and</strong> Bueche (1947)<br />
Correlation Function<br />
γ(r)<br />
r, Å<br />
Maximum self-correlation occurs at r = 0<br />
Correlation decays to 0 at r > dmax<br />
Thursday, August 1, 13
Correlation Function<br />
recalculate<br />
• displace particle by a small distance, ∆r<br />
• calculate how well the particle correlates with its previous self<br />
increase Δr<br />
Debye <strong>and</strong> Bueche (1947)<br />
Correlation Function<br />
ρ(r) =r 2 γ(r)<br />
Pair-distance Function<br />
γ(r)<br />
P(r)<br />
r, Å<br />
r, Å<br />
Maximum self-correlation occurs at r = 0<br />
Correlation decays to 0 at r > dmax<br />
Thursday, August 1, 13
Correlation Function<br />
recalculate<br />
• displace particle by a small distance, ∆r<br />
• calculate how well the particle correlates with its previous self<br />
increase Δr<br />
Debye <strong>and</strong> Bueche (1947)<br />
Correlation Function<br />
ρ(r) =r 2 γ(r)<br />
Pair-distance Function<br />
γ(r)<br />
P(r)<br />
r, Å<br />
r, Å<br />
Maximum self-correlation occurs at r = 0<br />
Correlation decays to 0 at r > dmax<br />
l c , mean width of γ(r)<br />
l c = l2 ave<br />
l ave<br />
Thursday, August 1, 13
Developed in JAVA 1.6 using:<br />
• Mac 10.6.8 <strong>and</strong> greater (RPR)<br />
• Windows XP <strong>and</strong> LINUX (Ivan R. )<br />
SCÅTTER<br />
Software for <strong>SAXS</strong> Analysis<br />
Free for academic, non-profit, <strong>and</strong> industry!<br />
Specific to <strong>SAXS</strong> <strong>and</strong> biological materials but can be used with SANS data <strong>and</strong> non-biological samples.<br />
Reads in 3 column delimited by /[\s\t]+/ or *.brml (Bruker files)<br />
• if you have problems, remove header or footer or email me at irodic@lbl.gov!<br />
Want users to know they have bad data! (minimal automation)<br />
Available for download at SIBYLS <strong>and</strong> BioIsis:<br />
• http://www.bioisis.net/tutorial<br />
• http://bl1231.als.lbl.gov<br />
try 1 st !<br />
Thursday, August 1, 13
Tutorial links at BIOISIS<br />
Thursday, August 1, 13
SCÅTTER<br />
Software for <strong>SAXS</strong> Analysis<br />
Go to website<br />
start <strong>Scatter</strong><br />
Load data show basics are automatic<br />
Thursday, August 1, 13
Detecting Flexibility<br />
Debye P. Molecular-weight Determination by Light <strong>Scatter</strong>ing (1947) J. of Physical <strong>and</strong> Colloid Chemistry<br />
<strong>Scatter</strong>ing by a Gaussian Coil<br />
I(q) = 2(e−R2 g·q2 + R 2 g · q 2 − 1)<br />
(R 2 g · q 2 ) 2<br />
ASYMPTOTIC CHARACTERISTIC<br />
lim I(q) ·<br />
q→∞ q2 =<br />
2 R 2 g<br />
(<br />
1 − 1<br />
q 2 · R 2 g<br />
)<br />
q 2 · I(q) ≈ K<br />
within a limited q range<br />
where q 2 •Rg 4
Kratky Plot<br />
Qualitative Assessment of flexibility<br />
for q•Rg > 1.3, the scattering decays as 1/q 2<br />
A plot of q 2 •I(q) vs. q<br />
should approach a constant<br />
Data must be collected<br />
to sufficiently high q with<br />
good S-to-N ratio<br />
Thursday, August 1, 13
Porod’s Law<br />
Porod, G. (1951). Kolloid-Z. 124, 83<br />
Fourth Power law (Porod’s Law)<br />
I particle (q) =V ·<br />
∫ dmax<br />
0<br />
ρ(r) ·<br />
sin(q · r)<br />
q · r<br />
dr<br />
ASSUMING:<br />
•compact particle<br />
•discrete en - contrast<br />
S<br />
V<br />
= π · limI(q)<br />
· q4<br />
Q<br />
I(q) =∆ρ 2 V · 1<br />
l · 8π<br />
q 4<br />
I(q) =k ·<br />
1<br />
q 4<br />
q 4 · I(q) =constant<br />
I(q) decays as q -4 scaled by a constant value<br />
q 4 • I(q) becomes constant at high q<br />
k proportional to surface area (V/l)<br />
Thursday, August 1, 13
Power Law Relationship<br />
log vs. log plot<br />
if particle is compact, should see a plateau in q 2 • I(q) vs. q<br />
Porod<br />
q 4 · I(q) =constant<br />
Debye<br />
constant ≈ q 2 · I(q)<br />
if particle is compact, should see a plateau in q 4 • I(q) vs. q <strong>and</strong> q 4 • I(q) vs. q 4<br />
Defines a power law relationship!<br />
I(q) = 1<br />
q P · S′<br />
where 2 ≤ P ≤ 4<br />
lnI(q) =−P · ln(q)+ln(S ′ )<br />
Does this work?<br />
Does a plateau form?<br />
Can it be quantified?<br />
Thursday, August 1, 13
Power Law Relationship<br />
log vs. log plot<br />
if particle is compact, should see a plateau in q 2 • I(q) vs. q<br />
Porod<br />
q 4 · I(q) =constant<br />
Debye<br />
constant ≈ q 2 · I(q)<br />
if particle is compact, should see a plateau in q 4 • I(q) vs. q <strong>and</strong> q 4 • I(q) vs. q 4<br />
Defines a power law relationship!<br />
I(q) = 1<br />
q P · S′<br />
where 2 ≤ P ≤ 4<br />
lnI(q) =−P · ln(q)+ln(S ′ )<br />
Does this work?<br />
Does a plateau form?<br />
Can it be quantified?<br />
Thursday, August 1, 13
SCÅTTER<br />
Software for <strong>SAXS</strong> Analysis<br />
Perform PE Fit:<br />
•HRP (7 kDa)<br />
•GI (173 kDa)<br />
link at BIOISIS<br />
“Characterizing flexible <strong>and</strong> intrinsically unstructured biological macromolecules by SAS using the Porod-Debye law”<br />
Biopolymers 95: 559-571 Rambo, R.P. <strong>and</strong> Tainer, J.A.<br />
Thursday, August 1, 13
Single to Many Particle <strong>Scatter</strong>ing<br />
I macromolecules<br />
(q) = I macromolecule<br />
(q)⋅c⋅ I e ⋅ N l ⋅ P ⋅ d<br />
M ⋅ a 2<br />
substitute constants for k<br />
c - concentration (gm/cm 3 )<br />
I e – 7.9 x 10 -26 (cm 2 )<br />
N L - 6.0223 x 10 23 (mol -1 )<br />
P – total energy over the irradiated area<br />
d - sample thickness (cm)<br />
M – molecular weight (gm • mol -1 )<br />
a – distance to detector (cm)<br />
€<br />
€<br />
I macromolecules<br />
(q) = I macromolecule<br />
(q)⋅c⋅k<br />
rearrange<br />
1<br />
k ⋅ 1 c ⋅ I macromolecules (q) = I macromolecule (q)<br />
divide observed intensities by concentration<br />
extrapolates to single particle<br />
€<br />
I sin gle particle<br />
(q) = k'⋅ 1 c ⋅ I sample (q)<br />
limit as q → 0<br />
I sin gle particle<br />
(0) = (Δρ) 2 ⋅ V 2 = (Δη e<br />
) 2<br />
Allows for the determination of M.W. by either:<br />
1. St<strong>and</strong>ard curve with proteins of known M.W.<br />
• assume particles have same packing density<br />
2. Determination of I(0) on an absolute scale.<br />
• convert signal into number of electrons<br />
Thursday, August 1, 13
<strong>Scatter</strong>ing Contrast<br />
Mass Estimation <strong>and</strong> I(0)<br />
I particle (0) = (∆ρ) 2 V ·<br />
∫ dmax<br />
0<br />
P (r) · 1 dr =(∆ρ) 2 · V 2<br />
In real experiments, Iparticle(0) has to be scaled by concentration, c<br />
I particles (0) = c · I particle (0) = c · (∆ρ) 2 · V 2<br />
Estimated by<br />
Guinier method<br />
I particles (0)<br />
c<br />
divide both sides by c = [particle]<br />
=(∆ρ) 2 · V 2<br />
For a given protein, ratio is a constant at a specific (Δρ) 2<br />
Mass, kDa<br />
I particles (0)<br />
c<br />
=(∆ρ) 2 · V 2 ∝ Mass<br />
This relationship can be used to make a st<strong>and</strong>ard curve to determine:<br />
• mass of either protein, RNA or particles of same composition<br />
• requires accurate knowledge of concentration<br />
I(0)/c<br />
20<br />
Thursday, August 1, 13
<strong>Scatter</strong>ing Contrast<br />
Alternative method for mass determination from I(zero)<br />
• use a single st<strong>and</strong>ard (xylanase)<br />
• do a dilution series (e.g., 2/3rds)<br />
• determine slope<br />
Performed as a 2/3rds dilution series:<br />
Xylanase in Two Different Buffers<br />
52 ul sample<br />
34 ul sample<br />
17 ul buffer<br />
34 ul sample<br />
17 ul buffer<br />
34 ul sample<br />
17 ul buffer<br />
∆I protein (0)<br />
∆c<br />
= m protein ∝ Mass<br />
I(0)<br />
Mass unkn = m unkn<br />
m std<br />
· Mass std<br />
<strong>SAXS</strong> data must be collected in same buffer as sample.<br />
relative concentration<br />
21<br />
Thursday, August 1, 13
Vc: A Novel SAS Ratio<br />
“Accurate Assessment of Mass, Models <strong>and</strong> Resolution by SAS” Nature, 496, 477-481 Rambo, R.P. <strong>and</strong> Tainer, J.A.<br />
Vc<br />
MD simulation of SAM-1<br />
• 8 different protein <strong>and</strong> RNA samples<br />
• 4 to 7 different concentrations<br />
67% variance is contained within 2% mean<br />
Vc sensitive to conformational state like Rg<br />
CONCENTRATION INDEPENDENCE!<br />
22<br />
Thursday, August 1, 13
Direct Mass Determination<br />
the power law distribution<br />
9446 PDB entries range from 8 to 400 kDa (protein only)<br />
• QR scales with mass, linear via power-law distribution.<br />
• Using actual data, 9% mass error with previously frozen samples.<br />
• Linear relationship covers a large mass range 20 to 1,000 kDa.<br />
• Effective for RNA samples 5% error.<br />
Simulated <strong>SAXS</strong><br />
Use to infer mixtures:<br />
...expect 26 kDa <strong>and</strong> get 40 kDa<br />
• monomer ↔ dimer?<br />
Protein<br />
taken from BioIsis.net<br />
purified via SEC-MALS<br />
RNA<br />
purified via SEC-MALS<br />
23<br />
Experimental <strong>SAXS</strong><br />
Thursday, August 1, 13
SCÅTTER<br />
Software for <strong>SAXS</strong> Analysis<br />
Perform MW<br />
•HRP (7 kDa)<br />
•preQ1 (25 kDa)<br />
link at BIOISIS<br />
“Characterizing flexible <strong>and</strong> intrinsically unstructured biological macromolecules by SAS using the Porod-Debye law”<br />
Biopolymers 95: 559-571 Rambo, R.P. <strong>and</strong> Tainer, J.A.<br />
Thursday, August 1, 13
Distance Distribution Function<br />
2° Structure Molecular Envelope Distance Distribution P(r) Function<br />
p(r)<br />
r, Ǻ<br />
Goal is to recover<br />
(decode) signal<br />
b<strong>and</strong>-limited function (signal)<br />
I particle (q) =V ·<br />
∫ dmax<br />
0<br />
ρ(r) ·<br />
sin(q · r)<br />
q · r<br />
dr<br />
Properties of P(r)<br />
P(-r) = - P(r) thus P(r) is an “odd” function i.e., f(x) = x 3 , sin(x),...<br />
Defined on 0 < r < dmax<br />
How do we calculate P(r) from I(q) data?<br />
Thursday, August 1, 13
Indirect Fourier Transform<br />
A measured <strong>SAXS</strong> curve determines a unique P(r)-distribution.<br />
A P(r) distribution (from a model) can be used to determine a scattering curve.<br />
GNOM (Svergun)<br />
• guess at the distribution<br />
• uses L2 regularization<br />
GIFT (Glatter’s method)<br />
• uses cubic splines<br />
Expect a smooth curve<br />
Minimal oscillations<br />
No negative values<br />
Iterative process in determining dmax<br />
Moore’s Method<br />
• uses Fourier sine series<br />
• true propagation of I(q)<br />
uncertainties<br />
My Method<br />
• use Shannon theorem<br />
Implemented in <strong>Scatter</strong><br />
Developing L1 regularization<br />
26<br />
Thursday, August 1, 13
Information Content<br />
Using Shannon Sampling theorem, P. Moore determined the number<br />
of independent parameters that can be extracted from a single <strong>SAXS</strong><br />
curve.<br />
N<br />
I(q) = 8π ⋅ a n<br />
⋅ 1 q ⋅ π ⋅ n ⋅ d max<br />
(−1) n +1 N<br />
⎡⎡<br />
⋅ sin(d max<br />
⋅ q) ⎤⎤<br />
⎛⎛<br />
∑ ⎢⎢<br />
⎥⎥<br />
p(r) = 8π ⋅ r ∑ a n<br />
⋅ sin π ⋅ r ⋅ n ⎞⎞<br />
⎜⎜ ⎟⎟<br />
⎣⎣ (π ⋅ n) 2 − (d max<br />
⋅ q) 2<br />
⎦⎦<br />
n=1 ⎝⎝ d max ⎠⎠<br />
Moore, P.B. J. Appl. Cryst. (1980). 13, 168-175<br />
n=1<br />
How large should N be?<br />
Represent <strong>SAXS</strong> data using a Fourier sine series<br />
€<br />
Consider the denominator…<br />
(π ⋅ n) 2 −(d max<br />
⋅ q) 2 ⇒ (π ⋅ n) 2 ≠(d max<br />
⋅ q) 2<br />
q max d max<br />
n<br />
0.32 71 7<br />
The inequality naturally limits the expansion.<br />
Notice, increasing d max naturally increases n (same for q max )<br />
0.32<br />
240<br />
25<br />
Noisy coding channel theorem<br />
Recovery of <strong>SAXS</strong> signal is largely independent of noise<br />
Δq<br />
xylanase (dmax: 43) <strong>and</strong> S-to-N: 0.9 C = 0.068 bits per Å -1<br />
Δq at SIBYLS ~ 0.006
I/σ 1.06<br />
I/σ 3.3<br />
Recover identical P(r)<br />
distributions (overlay)<br />
Dependence on how the recovery (decoding) is achieved!<br />
i.e., GNOM, SCATTER, FOXS, CRYSOL<br />
28<br />
Thursday, August 1, 13
SCÅTTER<br />
Software for <strong>SAXS</strong> Analysis<br />
link at BIOISIS<br />
Thursday, August 1, 13
Dimensionless Kratky<br />
scale free analysis<br />
Receveur-Brechot V, Dur<strong>and</strong> D. How r<strong>and</strong>om are intrinsically disordered proteins? A small angle scattering perspective.<br />
Curr Protein Pept Sci. 2012 Feb;13(1):55-75.<br />
Dur<strong>and</strong> D, et al. J Struct Biol. 2010 Jan;169(1):45-53.<br />
Multiply I(q) by (q•Rg) 2 <strong>and</strong> divide by I(0)<br />
I(q) is scaled by c <strong>and</strong> V<br />
I macromolecules<br />
(q) = I macromolecule<br />
(q)⋅c⋅ k<br />
€<br />
Divide by I(0)<br />
I particles (0) = c · I particle (0) = c · (∆ρ) 2 · V 2<br />
I(q) is independent of concentration <strong>and</strong><br />
normalized to V<br />
q, Å<br />
Still have units of Å -2 , multiply by Rg 2<br />
What does it all mean?<br />
Use Guinier approximation to get some insights...<br />
30<br />
Thursday, August 1, 13
Dimensionless Kratky<br />
Guinier approximation relates scattering to Rg<br />
Derivation shows all particles that can be<br />
approximated by Guinier relation should have a<br />
peak value occurring at: q•Rg = 1.732<br />
peak value of 3•e -1 = 1.104<br />
Really about particles that can be<br />
approximated by the same correlation function<br />
such as:<br />
31<br />
Thursday, August 1, 13
Dimensionless Kratky<br />
only a button away<br />
unfolded-flexible<br />
RAD51-AP1<br />
1.104<br />
SAM riboswitch (-Mg 2+ )<br />
xylanase<br />
(21 kDa)<br />
MBP-RAD51-AP1<br />
SAM Riboswitch (-SAM)<br />
SAM Riboswitch (+SAM)<br />
folded-compact<br />
√3<br />
glucose isomerase (173 kDa)<br />
Flexible, unfolded bounded: 1.104 < peak < 2 (Debye equation Gaussian chain)<br />
32<br />
Thursday, August 1, 13
Dimensionless Kratky<br />
using Volume-of-Correlation<br />
q 2 ⨯Vc I(q)/I(0)<br />
glucose isomerase (173 kDa)<br />
xylanase (21 kDa)<br />
SAM Riboswitch (+SAM)<br />
SAM Riboswitch (-SAM)<br />
SAM riboswitch (-Mg 2+ )<br />
similar shapes but not exactly.<br />
GI is more spherical than XY<br />
MBP-RAD51-AP1<br />
RAD51-AP1<br />
Thursday, August 1, 13<br />
q 2 ⨯Vc<br />
Peak is inversely proportional to S-to-V ratio<br />
Max value is 0.82 (sphere)<br />
For a fixed molecule, any decrease suggests increase in surface area<br />
Illustrate differences better than previous (see SAM)<br />
Fully unfolded particle should have largest S-to-V ratio (low on graph)<br />
(Presented in our <strong>SAXS</strong> database paper in 2013)<br />
33
SCÅTTER<br />
Software for <strong>SAXS</strong> Analysis<br />
Perform DK<br />
•HRP (7 kDa)<br />
•preQ1 (25 kDa)<br />
link at BIOISIS<br />
Thursday, August 1, 13
References<br />
“Super-Resolution in <strong>SAXS</strong> <strong>and</strong> its application to Structural Systems Biology”<br />
Annual Review of Biophysics, Volume 42, 415-441 Rambo, R.P. <strong>and</strong> Tainer, J.A.<br />
“Accurate Assessment of Mass, Models <strong>and</strong> Resolution by SAS”<br />
Nature, 496, 477-481 Rambo, R.P. <strong>and</strong> Tainer, J.A.<br />
“Small-Angle <strong>Scatter</strong>ing for Structural Biology — exp<strong>and</strong>ing the frontier while<br />
avoiding the pitfalls.”<br />
Protein Sci. 2010 19(4):642-57. Jacques DA, Trewhella J.<br />
“Small Angle X-ray <strong>Scatter</strong>ing”<br />
Book circa 1982 Glatter O. <strong>and</strong> Kratky O. (very technical, freely available online)<br />
“Structure Analysis by Small-angle X-ray <strong>and</strong> Neutron <strong>Scatter</strong>ing”<br />
Book circa 1987 Fiegin LA. <strong>and</strong> Svergun DI. (very technical, freely available online)<br />
35<br />
Thursday, August 1, 13
