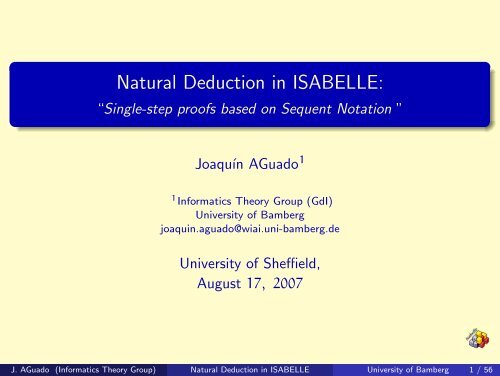

<strong>Natural</strong> <strong>Deduction</strong> <strong>in</strong> <strong>ISABELLE</strong>:

“S<strong>in</strong>gle-<strong>step</strong> <strong>proofs</strong> <strong>based</strong> on Sequent Notation ”

Joaquín AGuado 1

1 Informatics Theory Group (GdI)

University of Bamberg

joaqu<strong>in</strong>.aguado@wiai.uni-bamberg.de

University of Sheffield,

August 17, 2007

J. AGuado (Informatics Theory Group) <strong>Natural</strong> <strong>Deduction</strong> <strong>in</strong> <strong>ISABELLE</strong> University of Bamberg 1 / 56

Outl<strong>in</strong>e

1 MA-101: Logic

Lecture (Vorlesung)

Tutorial (Übung)

Laboratory (Praktikum)

2 The Gospel of Isabelle

She who Rules, Unifies . . .

And this is Her Resolution:

Lift Up the Stone, and You will F<strong>in</strong>d Me There

3 Isis Bella

Variations on Resolution

More Methods and Commands

Examples


Formal Logic

Generally, a Logic is captured by a Formal System consist<strong>in</strong>g of two

components:

1 A Formal Language:

A f<strong>in</strong>ite set of symbols which can be used for construct<strong>in</strong>g formulae

(signature Σ, sorted family of variables X).

A way of construct<strong>in</strong>g well-formed-formulas: Term Σ (X), Atom Σ (X) and

Form Σ (X) (e.g., grammars, syntax rules).

2 A Proof System:

A particular set of rules.

General pr<strong>in</strong>ciples on of how rules are grafted together to build trees

(called derivations).


The Language: A Signature for Lists

ToyList

Σ = (S, OP, REL)

S = {a, list}

OP = { nil : list,

cons: a list 7→ list,

app: list list 7→ list,

rev: list 7→ list }

REL = { is <strong>in</strong>: ha listi,

sublist: hlist listi }

X = {x : a, xs : list}


The Language: FOL Syntax

Well-Formed Terms (i.e., Term Σ(X)):

x 2 X s

(T1)

x : s

t 1 : s 1 t 2 : s 2 . . . t n : s n f : s 1 s 2 . . . s n → s 2 OP

f(t 1 , t 2 , . . . , t n ) : s

(T2)

Well-Formed (Atomic) Formulas (i.e., Atom Σ(X)):

(A1)

> : hi

(A1)

: hi

t 1 : s t 2 : s

t 1 = t 2 : hi

(A2)

t 1 : s 1 t 2 : s 2 . . . t n : s n R : hs 1 s 2 . . . s n i 2 REL

R(t 1 , t 2 , . . . , t n ) : hi

Well-Formed Formulas (i.e., Form Σ(X)):

(A3)

ϕ : hi ψ : hi

(ϕ ∧ ψ) : hi

(F1)


(ϕ ∨ ψ) : hi

(F1)


(ϕ → ψ) : hi

(F1)


(ϕ ↔ ψ) : hi

(F1)

ϕ : hi

(¬ϕ) : hi

(F2)

x 2 X ϕ : hi

(8x ϕ) : hi

(F3)

x 2 X ϕ : hi

(9x ϕ) : hi

(F3)


The Language: A Well-Formed Formula

x : a xs : list is <strong>in</strong> : ha listi 2 REL

is <strong>in</strong>(x, xs) : hi

(A 3 )

x : a

xs : list

rev : list 7→ list 2 OP

(T 2 )

rev(xs) : list

is <strong>in</strong>(x, rev(xs)) : hi

is <strong>in</strong> : ha listi 2 REL

(A 3 )

xs 2 X

is <strong>in</strong>(x, xs) : hi is <strong>in</strong>(x, rev(xs)) : hi

x 2 X is <strong>in</strong>(x, xs) → is <strong>in</strong>(x, rev(xs)) : hi

9x is <strong>in</strong>(x, xs) → is <strong>in</strong>(x, rev(xs)) : hi

8xs 9x is <strong>in</strong>(x, xs) → is <strong>in</strong>(x, rev(xs)) : hi

(F 1 )

(F 3 )

(F 3 )


Semantics, Meta-logical Approach & Motivation

Logic maybe formulated abstractly by its own sake, but it usually has an

<strong>in</strong>tended <strong>in</strong>terpretation represent<strong>in</strong>g a description of some doma<strong>in</strong> of

<strong>in</strong>terest (Semantics).

A Meta-logic is a logic that is used to formalise syntax, proof system,

semantics and meta-properties (soundness, completeness) of another logic

called the object-logic.

Here we will focus on the deductive mach<strong>in</strong>ery and implicitly assume

syntax, semantics and meta-theorems.

Mechanis<strong>in</strong>g Logical <strong>Deduction</strong> (Motivation)

By formalis<strong>in</strong>g patterns of reason<strong>in</strong>g, it is possible for such reason<strong>in</strong>g to be

checked or even carried out by a computer.


Proof System: <strong>Natural</strong> <strong>Deduction</strong>

Isabelle is a generic (<strong>in</strong>teractive) theorem prover designed around <strong>Natural</strong>

<strong>Deduction</strong>. It has been <strong>in</strong>stantiated to support reason<strong>in</strong>g <strong>in</strong> several

object-logics.

<strong>Natural</strong> <strong>Deduction</strong> is an approach to Proof Theory that attempts to

provide a formal model of logical reason<strong>in</strong>g as it “naturally” occurs.

we make (temporary) assumptions.

we derive new formulae by apply<strong>in</strong>g basic rules.

there is a mechanism for discharg<strong>in</strong>g assumption.

S<strong>in</strong>ce the logic’s syntax and the <strong>in</strong>ference rules are specified declaratively,

this allows s<strong>in</strong>gle-<strong>step</strong> proof construction.


Inference

In Isabelle, <strong>proofs</strong> are constructed us<strong>in</strong>g <strong>in</strong>ference rules. The most familiar

is (probably) modus ponens:

P → Q

Q

P

(mp)

Derivations are trees, where the leaves are called assumptions.

[A → (B → C)] [A]

B → C

C

(mp)

[B]

(mp)

<strong>Natural</strong> <strong>Deduction</strong> <strong>proofs</strong> build derivations under (possibly temporary)

assumptions. A proof is a derivation with no open assumptions.


Intuitionistic FOL Rules I

¬P abbreviates P →

P ↔ Q abbreviates (P → Q) ∧ (Q → P)

P Q

P ∧ Q

(conjI)

P ∧ Q

(conjunct1)

P

P ∧ Q


Q

[P]

[Q]

P

P ∨ Q

(disjI1)

Q

P ∨ Q

(disjI2)

P ∨ Q

.

R

R

.

R

(disjE)

[P]

.

Q

P → Q

(impI)

P → Q

Q

P

(mp)



P

(FalseE)


Intuitionistic FOL Rules II (Includ<strong>in</strong>g Equality)

[P]

P

8x.P

(allI) 1 £

8x.P

P[t/x]

(spec)

P[t/x]

(exI)

9x.P

9x.P

Q

.

Q

(exE) 2 £

(refl)

t = t

t = u

P[u/x]

P[t/x]

(subst)

Eigenvariable conditions:

1 £ : (8I) provided x is not free <strong>in</strong> any assumption on which P depends.

2 £ : (9E) provided x is not free <strong>in</strong> Q or any assumption except P.


Paper & Pencil

Lemma 1

(A ∧ (B ∧ C)) → (A ∧ C)

Proof.

[A ∧ (B ∧ C)] £

[A ∧ (B ∧ C)] £ (conjunct2)

B ∧ C


A

C

A ∧ C

(A ∧ (B ∧ C)) £ → (A ∧ C)



(impI)


A “Theorem Checker” Dialog

You

lemma “A ∧ (B ∧ C) −→ A ∧ C”

apply (rule impI)

apply (rule conjI)

apply (rule conjunct1)

apply (assumption)

apply (conjunct2)

apply (conjunct2)


done

Isabelle

1. A ∧ B ∧ C −→ A ∧ C

1. A ∧ B ∧ C =⇒ A ∧ C

1. A ∧ B ∧ C =⇒ A

2. A ∧ B ∧ C =⇒ C

1. A ∧ B ∧ C =⇒ A ∧ Q 2

2. A ∧ B ∧ C =⇒ C

1. A ∧ B ∧ C =⇒ C

1. A ∧ B ∧ C =⇒ P 3 ∧ C

1. A ∧ B ∧ C =⇒ P 4 ∧ P 3 ∧ C

No more Goals . . .


Derivability Judgment

All assumptions <strong>in</strong>

A → (B → C)

B → C

C

A

(mp)

B

(mp)

are open.

We can write A → (B → C), A, B ` C (derivability judgment) to assert

that C can be derived <strong>in</strong> this proof system under the given assumptions

A → (B → C), A, B.

It is possible to make such derivability judgments the central object of a

deduction system. The notation Γ ` A is called Sequent Notation.


<strong>Natural</strong> <strong>Deduction</strong> Us<strong>in</strong>g Sequent Notation

For the → /∧ fragment:

A 2 Γ

Γ ` A

(assumption)

Γ ` B

A, Γ ` B

(weaken)

Γ ` A Γ ` B

Γ ` A ∧ B

(∧ I )

Γ ` A ∧ B

Γ ` A

(∧ EL )

Γ ` A ∧ B

Γ ` B

(∧ ER )

A, Γ ` B

Γ ` A → B

(→ I )

Γ ` A → B Γ ` A

Γ ` B

(→ E )

More rules can be derived.


Ref<strong>in</strong>ement Style with Metavariables

A ∧ (B ∧ C) 2 Γ

A ∧ (B ∧ C) ` P 4 ∧ (P 3 ∧ C)

A ∧ (B ∧ C) ` P 3 ∧ C

A ∧ (B ∧ C) ` C


(∧ ER )

(∧ ER )

A ∧ (B ∧ C) 2 Γ


A ∧ (B ∧ C) ` A ∧ Q 2

(∧ EL )

A ∧ (B ∧ C) ` A

A ∧ (B ∧ C) ` A A ∧ (B ∧ C) ` C

A ∧ (B ∧ C) ` A ∧ C

` A ∧ (B ∧ C) −→ A ∧ C

(∧ I )

(→ I )

Solution for Q 2 (B ∧ C) and P 3 B and P 4 A.


Meta-Logic

The Isabelle’s meta-level connectives are implication, the universal

quantifier, and equality:

The implication φ =⇒ ψ means ‘φ implies ψ’, and express logical

entailment.

The quantification V x.φ means ‘φ is true for all x’, and express

generality <strong>in</strong> rules and axiom schemes.

The equality a b means ‘a equals b’, for express<strong>in</strong>g def<strong>in</strong>itions.

Isabelle also provides schematic variables (unknowns) for unification.

Logically, these are free variables. But while ord<strong>in</strong>ary variables rema<strong>in</strong>

fixed, unification may <strong>in</strong>stantiate the schematic variables (i.e., they can be

replaced by arbitrary formulas).


Object-Level Rules as Meta-Level Axioms I

[P; Q] =⇒ P ∧ Q


P ∧ Q =⇒ P P ∧ Q =⇒ Q (conjunct1, 2)

[P ∨ Q; P =⇒ R; Q =⇒ R] =⇒ R

(disjE)

P =⇒ P ∨ Q Q =⇒ P ∨ Q (disjI1, 2)

(P =⇒ Q) =⇒ P −→ Q

[P −→ Q; P] =⇒ Q

(impI)

(mp)

False =⇒ P

(FalseE)


Object-Level Rules as Meta-Level Axioms II

(^ x. P x) =⇒ 8x. P x (allI)

(8x. P x) =⇒ P x

(spec)

P x =⇒ 9x. P x (exI)

[9x. P x;

^

x. P x −→ Q] =⇒ Q (exE)

[s = t; P s] =⇒ P t

(subst)

The object-level quantifier (8) is def<strong>in</strong>ed us<strong>in</strong>g V . But, it is not required

to have meta-level counterparts of all the connectives of the object-logic!


Unification

Unification refers to the process of mak<strong>in</strong>g two terms identical

(possibly) by substitut<strong>in</strong>g their schematic variables by terms.

Unification is equation solv<strong>in</strong>g:

The simplest case is when the two terms are already the same.

Next simplest is pattern-match<strong>in</strong>g which replaces variables <strong>in</strong> one of

the terms.

In the most complex case, variables <strong>in</strong> both terms are replaced.

Unification supports quantifier reason<strong>in</strong>g by allow<strong>in</strong>g the schematic

variables to be <strong>in</strong>stantiate later, possibly <strong>in</strong> stages.

Higher-Order Unification (HU) is equation solv<strong>in</strong>g for typed

λ-terms.


Higher-Order Unification: Imitation

Isabelle uses Huet’s Search Procedure (HSP) which solves equations by

Imitation and Projection. For example, to solve the equation:

P(t) αβη g(u 1 , . . . , u k ) (1)

Imitation makes P apply the lead<strong>in</strong>g symbol of the right-hand side. So,

to solve equation (1), HSP guesses:

P λx. g(h 1 (x), . . . , h k (x))

Now, assum<strong>in</strong>g there are no other occurrences of P, equation (1)

simplifies to the set of equations: h 1 (t) αβη u 1 . . . h k (t) αβη u k .

If the processes solves these equations <strong>in</strong>stantiat<strong>in</strong>g h 1 , . . . , h k , then it

yields an <strong>in</strong>stantiation for P.


Higher-Order Unification: Projection

Projection makes P apply one of its argument. So, to solve equation:

P(t) αβη g(u 1 , . . . , u k ) (1)

If t expects m arguments and delivers a result of suitable type, HSP

guesses:

P λx. x(h 1 (x), . . . , h m (x))

Assum<strong>in</strong>g there are no other occurrences of P, equation (1) simplifies to

the equation:

t(h 1 (t), . . . , h m (t)) αβη g(u 1 , . . . , u k )


HSP Features

1 Equations with no functions unknowns are solved us<strong>in</strong>g first-order

unification, extended to treat bound variables.

2 An occurrence of the term P(x, y, z), where the arguments are

dist<strong>in</strong>ct bound variables, causes no difficulties. Its projections can only

match the correspond<strong>in</strong>g variables.

3 Even an equation such as P(a) αβη a + a is all right. It has four

solutions, but Isabelle evaluates them lazily, try<strong>in</strong>g projection before

imitation:

P αβη λx. x + x, P αβη λx. a + x, P αβη λx. x + a, and

P αβη λx. a + a.

4 Equations such as P(x, y) αβη t and P(g(x)) αβη t admit vast

number of unifiers, and must be avoided.


Proof by Resolution

Resolution is the basic mechanism for transform<strong>in</strong>g proof states <strong>in</strong>

Isabelle <strong>in</strong> order to construct a proof. It is convenient for derive simple

rules and for reason<strong>in</strong>g forward from facts.

Forward proof work by unify<strong>in</strong>g theorems with the premises of a rule,

deriv<strong>in</strong>g a new theorem.

Resolution, <strong>in</strong> particular, is convenient for backward proof.

Intuitively

Backward proof works by unify<strong>in</strong>g a goal with the conclusion of a rule,

whose premises become new subgoals.

So, we start with a goal and ref<strong>in</strong>e it to progressively simpler subgoals until

all have been solved.


Theorems (Rules and Proof States) for Resolution

Isabelle works with meta-level theorems of the form [φ 1 ; . . . φ n ] =⇒ φ.

We can view this as the <strong>Natural</strong> <strong>Deduction</strong>’s rule with premises

φ 1 , . . . , φ n and conclusion φ. Also, it can be viewed as the proof state

with subgoals φ 1 , . . . , φ n and ma<strong>in</strong> goal φ.

Let [ψ 1 ; . . . ; ψ m ] =⇒ ψ and [φ 1 ; . . . ; φ n ] =⇒ φ be two Isabelle theorems.

If ψ and φ i have a higher-order unifier, then there is some substitution s

such that (ψ)s αβη (φ i )s. In short,

Def<strong>in</strong>ition 2 (Resolution)

[ψ 1 ; . . . ; ψ m ] =⇒ ψ [φ 1 ; . . . ; φ i ; . . . ; φ n ] =⇒ φ

((ψ)s αβη (φ i )s)

([φ 1 ; . . . ; φ i−1 ; ψ 1 ; . . . ; ψ m ; . . . φ n ] =⇒ φ)s


Backward Proof

To prove the formula φ, take φ =⇒ φ as the <strong>in</strong>itial proof state. This

assertion is, trivially, a theorem.

At a later stage <strong>in</strong> the (backward) proof, a typical proof state is

[φ 1 ; . . . ; φ n ] =⇒ φ. This is a theorem, ensur<strong>in</strong>g that the subgoals

φ 1 , . . . , φ n imply φ.

If n = 0 then we have proved φ outright. Otherwise, to ref<strong>in</strong>e subgoal φ i

of a proof state by a rule [ψ 1 ; . . . ; ψ m ] =⇒ ψ perform resolution.

In this form, the subgoal φ i is replaced by m new subgoals (the rule’s

<strong>in</strong>stantiated premises).

If some unknowns are left un-<strong>in</strong>stantiated, they become new unknowns <strong>in</strong>

the (new) proof state.


Beh<strong>in</strong>d the Scenes (Unification)

You

lemma “A ∧ (B ∧ C) −→ A ∧ C”

Isabelle

1. A ∧ B ∧ C −→ A ∧ C


(P =⇒ Q) =⇒ P −→ Q

A ∧ B ∧ C −→ A ∧ C =⇒ A ∧ B ∧ C −→ A ∧ C

(impI)

(state1)

Substitution s for (P −→ Q)s αβη ( A ∧ B ∧ C −→ A ∧ C)s

Solution P A ∧ B ∧ C and Q A ∧ C


Beh<strong>in</strong>d the Scenes (Resolution)

You

lemma “A ∧ (B ∧ C) −→ A ∧ C”


Isabelle

1. A ∧ B ∧ C −→ A ∧ C

1. A ∧ B ∧ C =⇒ A ∧ C

(P =⇒ Q) =⇒ P −→ Q A ∧ B ∧ C −→ A ∧ C =⇒ A ∧ B ∧ C −→ A ∧ C

((P =⇒ Q) =⇒ A ∧ B ∧ C −→ A ∧ C)s

But ((P =⇒ Q) =⇒ A ∧ B ∧ C −→ A ∧ C)s after substitution becomes:

(A ∧ B ∧ C =⇒ A ∧ C) =⇒ A ∧ B ∧ C −→ A ∧ C (state2)


Lift<strong>in</strong>g a Rule <strong>in</strong>to a Context

The rules impI and allI may seem unsuitable for resolution.

They have non-atomic premises, namely P =⇒ Q and V x. P x, while

the conclusions of all the rules are atomic.

Isabelle gets round this problem, through a meta-<strong>in</strong>ference called Lift<strong>in</strong>g.

Def<strong>in</strong>ition 3 (Lift<strong>in</strong>g over Assumptions)

[φ 1 ; . . . ; φ n ] =⇒ φ

[θ =⇒ φ 1 ; . . . ; θ =⇒ φ n ] =⇒ (θ =⇒ φ)

Lift<strong>in</strong>g over θ =⇒ is clearly sound.

Typically, the θ i are assumptions <strong>in</strong> a <strong>Natural</strong> <strong>Deduction</strong> proof; lift<strong>in</strong>g

copies them <strong>in</strong>to a rule’s premises and conclusion.


Lift<strong>in</strong>g Over Assumptions

In our proof example, Isabelle is now display<strong>in</strong>g: A ∧ B ∧ C =⇒ A ∧ C

and the proof state is:

(A ∧ B ∧ C =⇒ A ∧ C) =⇒ A ∧ B ∧ C −→ A ∧ C

We want to apply [P; Q] =⇒ P ∧ Q. But for this, the rule must be

lifted over assumption A ∧ B ∧ C, as follows:

Lift<strong>in</strong>g over A ∧ B ∧ C =⇒

[P; Q] =⇒ P ∧ Q

[A ∧ B ∧ C =⇒ P; A ∧ B ∧ C =⇒ Q] =⇒ (A ∧ B ∧ C =⇒ P ∧ Q)


The Next Step <strong>in</strong> the Proof

Us<strong>in</strong>g the follow<strong>in</strong>g nomenclature for l<strong>in</strong>ear notation:

D 11

D 1 D 2

D

D : [A ∧ B ∧ C =⇒ A; A ∧ B ∧ C =⇒ C] =⇒ A ∧ B ∧ C −→ A ∧ C

D 1 : [A ∧ B ∧ C =⇒ P; A ∧ B ∧ C =⇒ Q] =⇒ (A ∧ B ∧ C =⇒ P ∧ Q)

D 11 : [P; Q] =⇒ P ∧ Q

D 2 : (A ∧ B ∧ C =⇒ A ∧ C) =⇒ A ∧ B ∧ C −→ A ∧ C

From the lifted rule (D 1 ) and proof state (D 2 ).

For (A ∧ B ∧ C =⇒ P ∧ Q αβη A ∧ B ∧ C =⇒ A ∧ C)s, we use s: P A

and Q C.

Then by resolution, and after substitution we get a new state (D).


Lift<strong>in</strong>g Over Parameters

An analogous form of Lift<strong>in</strong>g handles premises of the form V x . . . . Here,

lift<strong>in</strong>g prefixes an object-rule’s premises and conclusion with V x . . . . At

the same time lift<strong>in</strong>g <strong>in</strong>troduces a dependence upon x.

It replaces each unknown P <strong>in</strong> the rule by P 0 x, where P 0 is a new

unknown (by subscript<strong>in</strong>g) of suitable type (necessarily a function type).

In short:

Def<strong>in</strong>ition 4 (Lift<strong>in</strong>g over Parameters)

[φ 1 ; . . . ; φ n ] =⇒ φ

[ V x. φ x 1 ; . . . ;V x. φ x n] =⇒ V x. φ x

where φ x stands for the result of lift<strong>in</strong>g unknowns over x <strong>in</strong> φ. It is not

hard to see that this meta-<strong>in</strong>ference is sound.


A Quantifier Proof: For All Introduction

You

8x. P x −→ P x ∨ Q y

Isabelle

8x. P x −→ P x ∨ Q y =⇒ 8x. P x −→ P x ∨ Q y

answers: 8x. P x −→ P x ∨ Q y

You

apply (rule allI)

( V x. P x) =⇒ 8x. P x

( V x. P x) =⇒ 8x. P x 8x. P x −→ P x ∨ Qy =⇒ 8x. P x −→ P x ∨ Q y

(( V x. P x) =⇒ 8x. P x −→ P x ∨ Qy)s


A Quantifier Proof: Lift<strong>in</strong>g Over Parameters

Isabelle

V x. P x −→ P x ∨ Q y =⇒ 8x. P x −→ P x ∨ Q y

answers: V x. P x −→ P x ∨ Q y

You

apply (rule impI) (P =⇒ Q) =⇒ P −→ Q

And then . . .

Lift<strong>in</strong>g over V x

(P =⇒ Q) =⇒ P −→ Q

( V x. P 0 x =⇒ Q 0 x) =⇒ V x. P 0 x −→ Q 0 x


A Quantifier Proof: Unification

D

: ( V x. P x =⇒ P x ∨ Q y) =⇒ 8x. P x −→ P x ∨ Q y

D 1 : ( V x. P 0 x =⇒ Q 0 x) =⇒ V x. P 0 x −→ Q 0 x

D 11 : (P =⇒ Q) =⇒ P −→ Q

D 2

V

: x. P x −→ P x ∨ Q y =⇒ 8x. P x −→ P x ∨ Q y

V x. P

0

x −→ Q

0

x



αβη

V x. P x −→ P x ∨ Q y

P 0

x αβη P x

Q 0 x αβη P x ∨ Q y:


A Quantifier Proof: Disjunction Introduction

Isabelle

( V x. P x =⇒ P x ∨ Q y)=⇒ 8x. P x −→ P x ∨ Q y

answers: V x. P x =⇒ P x ∨ Q y

You

apply (rule disjI1) P =⇒ P ∨ Q

Isabelle

Lift<strong>in</strong>g over: V x. P x =⇒

Produces: ( V x. P x =⇒ P 0 x) =⇒ ( V x. P x =⇒ P 0 x ∨ Q 0 x)

( V x. P x =⇒ P x)=⇒ 8x. P x −→ P x ∨ Q y

answers: V x. P x =⇒ P x


And then by Assumption . . .

In the course of a proof, parameters x 1 , . . . , x m and assumptions

accumulate form<strong>in</strong>g a context for each subgoal (<strong>in</strong> normal form):

V

x1 , . . . , x m [φ 1 ; . . . ; φ k ] =⇒ φ

It says that φ follows from φ 1 , . . . , φ k for arbitrary x 1 , . . . , x m . This is

trivially true if φ equals of any of φ 1 , . . . , φ k , or is unifiable with any of

them .

Isabelle

answers: V x. P x =⇒ P x

You




Rule Application Methods (Tactics): rule & assumption

Tactics perform backward proof. A tactic is a function that takes a proof

state and returns a sequence (lazy list) of possible successor states. Basic

tactics execute a meta-rule on a given subgoal.

Method rule R

Ord<strong>in</strong>ary resolution attempts to reduce the current subgoal φ i by unify<strong>in</strong>g

it with the conclusion of the rule R : [ψ 1 ; . . . ; ψ m ] =⇒ ψ. The subgoal is

then replaced by m new subgoals <strong>in</strong>stances of the premises of the rule.

Method assumption

If the goal φ i is of the form [ϕ 1 ; . . . ; ϕ k ] =⇒ ϕ. The assumption method

tries to unify ϕ with ϕ j for some (1 j k). This models proof by

assumption <strong>in</strong> <strong>Natural</strong> <strong>Deduction</strong>.


Example: rule with Sequent Notation

Isabelle

answers: [A −→ C; B −→ C] =⇒ A ∨ B −→ C

Γ, P ` Q

Γ ` P −→ Q

(rule impI)

[A −→ C; B −→ C; A ∨ B] ` C

[A −→ C; B −→ C] ` A ∨ B −→ C

(rule impI)

Isabelle

answers: [A −→ C; B −→ C; A ∨ B] =⇒ C


Rule Application Methods (Tactics): erule

In pr<strong>in</strong>ciple, resolution and assumption suffice to prove all theorems.

However, specialised forms of resolution are helpful for work<strong>in</strong>g with some

classes of rules.

Method erule R

Consider the rule R : [ψ 1 ; . . . ; ψ m ] =⇒ ψ and subgoal φ i of the form

[ϕ 1 ; . . . ; ϕ k ] =⇒ ϕ. Then erule would try simultaneously: (i) to reduce

the goal φ i as with ord<strong>in</strong>ary resolution, and (ii) to solve the first premise

ψ 1 of the rule R by assumption, with some assumption ϕ j of φ i .

The subgoal is then replaced by m − 1 new subgoals <strong>in</strong>stances of the

premises of the rule ψ 2 ; . . . ; ψ m where the match<strong>in</strong>g assumption ϕ j has

been deleted.


Example: erule with Sequent Notation

Isabelle

answers: [A −→ C; B −→ C; A ∨ B] =⇒ C

Γ ` P ∨ Q Γ, P ` R Γ, Q ` R

Γ ` R

(rule disjE)

Γ, P ` R Γ, Q ` R

Γ, P ∨ Q ` R

(erule disjE)

[A −→ C; B −→ C; A] ` C [A −→ C; B −→ C; B] ` C

[A −→ C; B −→ C; A ∨ B] ` C

(erule disjE)


Two K<strong>in</strong>ds of Elim<strong>in</strong>ation

There are two k<strong>in</strong>ds of elim<strong>in</strong>ation rule. The rules, conjunct1,

conjunct2, mp and spec extract the conclusion from the major premise.

They are easy to use <strong>in</strong> forward proof (destruction rules).

The rules disjE, FalseE and exE work by discharg<strong>in</strong>g assumptions. In

<strong>Natural</strong> <strong>Deduction</strong> this is the most general form of elim<strong>in</strong>ation rule.

To facilitate the use of destruction rules <strong>in</strong> a backward proof, Isabelle

provides a means of transform<strong>in</strong>g them as follows:

ψ 1 . . . ψ m (destruction)

ψ

ψ 1 . . . ψ m

[ψ]

.

ϕ

ϕ

(elim<strong>in</strong>ation)


Rule Application Methods (Tactics): drule & erule

Method drule R

This method comb<strong>in</strong>es the above transformation with elim-resolution (i.e.,

erule).

In other words, it applies a destruction rule to some assumption of the

goal.

Method frule R

Sometimes a (universal) formula has to be kept so that it can be used

aga<strong>in</strong>. Then we use frule.

This method is like drule except that the match<strong>in</strong>g assumption is not

deleted, <strong>in</strong>stead it is copied.


Next Step <strong>in</strong> the Example: rule

Let us cont<strong>in</strong>ue our previous example, and explore various alternatives for

it.

Isabelle

answers: [A −→ C; B −→ C; A] =⇒ C

with rule

Γ ` P −→ Q

Γ ` Q

Γ ` P

(rule mp)

[A −→ C; B −→ C; A] ` P −→ C [A −→ C; B −→ C; A] ` P

[A −→ C; B −→ C; A] ` C

(rule mp)


Next Step <strong>in</strong> the Example: erule & Transformation

Isabelle


with erule

Γ ` P

Γ, P −→ Q ` Q

(erule mp)

[B −→ C; A] ` A

[A −→ C; B −→ C; A] ` C

(erule mp)

Transformation

Γ ` P −→ Q

Γ ` Q

Γ ` P

(dest. mp)

Γ ` P −→ Q Γ ` P Γ, Q ` R

Γ ` R

(elim. mp)


Next Step <strong>in</strong> the Example: drule & frule

Isabelle


with drule

Γ ` P Γ, Q ` R

Γ, P −→ Q ` R

(drule mp)

[B −→ C; A] ` A [B −→ C; A; C] ` C

[A −→ C; B −→ C; A] ` C

(rule mp)

with frule

[A −→ C; B −→ C; A] ` A [A −→ C; B −→ C; A; C] ` C

[A −→ C; B −→ C; A] ` C

(frule mp)


Proof Search

Commands

The by command executes an apply command and then tries to prove all

rema<strong>in</strong><strong>in</strong>g subgoals by assumption. S<strong>in</strong>ce (if successful) it ends the proof,

it also replaces the done symbol.

The back command tries an alternative proof state successor of the

current proof state (e.g., different unifiers).

The undo command returns to the previous proof state.

Methods

The <strong>in</strong>tro method repeatedly applies the given <strong>in</strong>troduction rules.

The elim method repeatedly applies elim<strong>in</strong>ation rules.


Mak<strong>in</strong>g Bigger Steps

Example 5 (impI OF impI)





Alternatives

Us<strong>in</strong>g by


by (rule impI)

A −→ (B −→ A)

A =⇒ B −→ A

[A; B] =⇒ A

No subgoals!

Us<strong>in</strong>g <strong>in</strong>tro

apply (<strong>in</strong>tro impI)




Explicit Substitution

Some methods apply a rule while constra<strong>in</strong><strong>in</strong>g some of its variables. The

general form is:

Instantiat<strong>in</strong>g Variables

rule tac v 1 = t 1 and . . . and v k = t k <strong>in</strong> R

This behaves like rule R, while <strong>in</strong>stantiat<strong>in</strong>g variables v 1 , . . . , v k as

specified.

Note that for the tactics we have seen, there are variants of them:

erule tac,

drule tac and

frule tac.


Work<strong>in</strong>g with Quantifiers I

For all, Exists

lemma “forall-exists”: “(8x. p(x)) −→ (9x. p(x))”

goal: (8x. p x) −→ (9x. p x)

Γ, P ` Q

Γ ` P −→ Q

(rule impI)

goal: 8x. p x =⇒ 9x. p x

Γ ` P[t/x]

Γ ` 9x. P x

(rule exI)

goal: 8x. p x =⇒ p x 1


Work<strong>in</strong>g with Quantifiers II

For all, Exists

Alternatively, rule tac x = t <strong>in</strong> exI will result <strong>in</strong>:

goal: 8x. p x =⇒ p t

Γ ` 8x. P x

Γ ` P[t/x]

(rule spec)

Γ, 8x. P x ` P[t/x]

(erule spec)

No subgoals!


Work<strong>in</strong>g with Negation I

Contrapositive

goal: [¬(P −→ Q); ¬(R −→ Q)] =⇒ R

[¬Q; ¬P =⇒ Q] =⇒ P

(contrapos np)

Γ ` ¬Q Γ, ¬P ` Q

Γ ` P

(rule contrapos np)

goal: 1. [¬(P −→ Q); ¬(R −→ Q)] =⇒ ¬Q

2. [¬(P −→ Q); ¬(R −→ Q); ¬R] =⇒ Q


Work<strong>in</strong>g with Negation II


goal: [¬(P −→ Q); ¬(R −→ Q)] =⇒ R

Γ, ¬P ` Q

Γ, ¬Q ` P

(erule contrapos np)

[¬(R −→ Q); ¬R] ` P −→ Q

[¬(P −→ Q); ¬(R −→ Q)] ` R


[¬(P −→ Q); ¬R] ` R −→ Q

[¬(P −→ Q); ¬(R −→ Q)] ` R



Work<strong>in</strong>g with Negation III


goal: [¬(P −→ Q); ¬(R −→ Q)] =⇒ R

Γ, ¬P ` Q

Γ, ¬Q ` P


Alternatively, erule tac Q = "R −→ Q" <strong>in</strong> contrapos np will produce the

same effect.

goal: [¬(P −→ Q); ¬R] =⇒ R −→ Q

And then apply (rule impI) will result:

goal: [¬(P −→ Q); ¬R; R] =⇒ Q


Work<strong>in</strong>g with Negation IV

Negation Elim<strong>in</strong>ation

goal: [¬(P −→ Q); ¬R; R] =⇒ Q

[¬P; P] =⇒ R

(notE)

Γ ` ¬P Γ ` P

Γ ` R

(rule notE)

Γ ` P

Γ, ¬P ` R

(erule notE)

by (erule notE)


What is Next

It is difficult to prove theorems us<strong>in</strong>g the methods we have studied

(i.e., the proof can be very long).

Proof sequences realise their full potential with Tacticals. These are

operators for comb<strong>in</strong><strong>in</strong>g Tactics. DFS, BFS and Best-FS (heuristics)

return their outcomes as sequences.

Moreover, Isabelle provides enough atomation to tackle substantial

examples. The Classical Reasoner is a family of tools that perform

such <strong>proofs</strong> automatically.

The most important is the blast method, which basically is a generic

tableaux prover <strong>in</strong>tegrated with Isabelle (reasoner).

Natural Deduction in ISABELLE: - ``Single-step proofs based on ...

You also want an ePaper? Increase the reach of your titles

Delete template?

Save as template?
