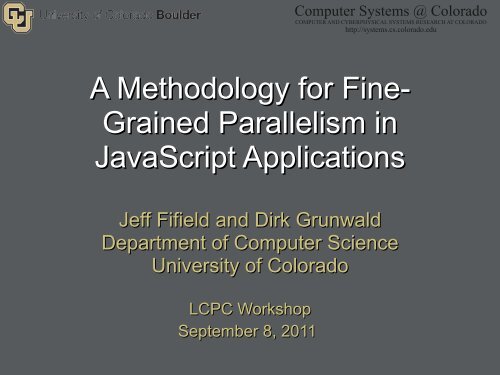

A Methodology for Fine-

Grained Parallelism in

JavaScript Applications

Jeff Fifield and Dirk Grunwald

Department of Computer Science

University of Colorado

LCPC Workshop

September 8, 2011

Modern JavaScript

Most web applications are written using JavaScript

• Email

• Office suites

• Games

• IDEs

Many server side applications use JavaScript

• CommonJS

• node.js, RingoJS, wakanda, many more...

• MongoDB map/reduce, CouchDB views

APIs for Desktop, Mobile

Why is JavaScript Slow

it's not because JavaScript is interpreted,

- current JavaScript engines are JIT compilers

- they perform standard optimizations and code gen

- they can generate good code

it's because JavaScript is untyped,

what does c = a + b mean

if a = 1, b = 2

if a = "cat", b = "dog"

Other reasons too:

object creation, use of eval, sparse arrays, ...

but these things shouldn't be in hot loops anyway

Type Specializing JITs

Luckily, programmers usually write Type-Stable code:

That is,

a = 1;

b = 2;

if (something)

b = 5;

c = a + b;

and not,

a = 1;

b = 2;

if (something)

b = “word”;

c = a + b;

Type specializing, dynamic optimizing, JIT compilers

• Observe types through profiling or tracing (still emit checks)

• Prove types using type inference (no checks, research area)

• Generate code specialized to given types

• Google V8 Crankshaft, Mozilla TraceMonkey, JägerMonkey

Good JS performance requires Type-Stable Code

Go Faster with Parallelism

●

●

●

●

●

JavaScript does not support parallelism

●

●

Lots of concurrent programming models in use

Various multi-threaded implementations

WebWorkers

●

Coming soon, threads with asynchronous message passing

WebCL

●

Coming soon, OpenCL for JavaScript

Other proposals from the Server Side JavaScript community

●

●

Sync and lock – JVM semantics

Fork – as in fork a new process

None of these are appealing for fine-grained parallelism

●

●

Fine-grained parallelism == loop or procedure level

Too low level or too heavy weight

Making Parallelism Easier

Use an Embedded Domain Specific Language (EDSL)

How to put a DSL into a general purpose language:

1. restrict the language to not do things you don't like

2. augment the language to do the things you do like

3. add runtime AST construction + DSL compiler

Get the benefits of the host syntax, compiler, libraries, etc.

Examples:

Copperhead for Python,

Intel Array Building Blocks / Rapidmind / Ct for C++,

Microsoft Accelerator for .NET

Sluice: EDSL for Stream Parallelism

• Kahn Process Network model of computation

• StreamIt style program construction

function Adder(arg) {

Kernel

Split

Kernel

this.a = arg;

this.work = function() {

Kernel

var e = this.pop();

Kernel ... Kernel Kernel

Kernel Kernel

e = e + this.a;

Kernel

this.push(e);

return false;

Join

Kernel

Kernel

}

}

var add0 = new Adder(1);



pipeline split-join data parallel

var sj = Sluice.SplitRR(1, add0, add1, add2).JoinRR(1);

var p = Sluice.Pipeline(new Count(10), sj, new Printer());

> p.run()

1 2 3 4 5 6 7 8 9 10

Default Sluice Execution: Run as

Normal JavaScript

●

●

●

●

●

Sluice uses a pure JavaScript implementation by default

Kernels execute without modification (it's just JavaScript)

Map streams to JavaScript Array with bounded sizes

Simple Scheduling Algorithm:

●

●

●

Single threaded scheduler based on coroutines

yield to the scheduler when blocked on full or empty stream

Choose next kernel to run using round-robin

Requires generators – not yet in the language.

Stream Parallelism Simplifies Program Analysis

function CalculateForces(pos_rd, softeningSquared) {

this.m_pos_rd = pos_rd;

this.m_softeningSquared = softeningSquared;

this.work = function () {

var force = [0.0,0.0,0.0];

var i = this.pop()*4;

var N = this.pop()*4;

for (var j=0; j

Sluice Acceleration

Target a low level representation for stream programs

●

●

Stream and Kernel Intermediate Representation (SKIR)

SKIR = LLVM + Kernels + Streams

Code generation:

●

●

●

Typed kernels only, i.e. type-stable + inference

Generate AST from Sluice kernel at runtime

Translate AST to SKIR-C to SKIR

Currently uses programmer annotation:

Var k = new MyKernel(...);

Sluice.toSkir(k, function(err, ret) {

Sluice.Pipeline(..., ret, ...).run();

});

Kernel Offload

●

●

Offload selected kernels to SKIR runtime

●

These kernels run in parallel with Sluice

SKIR Runtime consists of:

●

●

●

JIT compiler for stream parallel computation

– Standard Synchronous Dataflow optimizations

●

e.g. fusion, fission, batching

– Shared memory multi-core and OpenCL backends

– Support for dynamic optimization

Dynamic scheduling algorithm

– Single threaded or parallel execution

Out of process communication mechanisms

– RPC implemented as protobufs over sockets

– Supports shared memory stream communication

– Supports shared memory for kernel state

Kernel Offload

JavaScript

SKIR

Sluice

Process boundary

1) Compile K2 to SKIR code

K1

shared

memory

input stream

2) Transfer SKIR code

3) Allocate streams

4) Allocate & copy state

5) Call K2

RPC

state

K2

(offloaded)

shared

memory

state copy

K2

SKIR

6) JIT compile K2

shared

memory

output stream

7) Execute K2

K3

Sluice

8) Copy state back to JS

Evaluation

●

●

Set of compute intensive kernels

●

●

Routines from Pixastic image processing library

– Already JavaScript, trivial to port to Sluice

– 5 Megapixel images (2592x1944)

– Task parallelism

n-body particle physics simulation from CUDA SDK

– Ported to JavaScript and Sluice from C++

– Varying number of particles

– Pipeline parallelism, Data parallelism

Compare with V8 (node.js) execution on a 4-core

Intel Nahalem

Pixastic Benchmarks

Ported 4 image processing routines: invert, sepia, sharpen,

and edge detection

Original Invert Code

function invert_ref(params)

{

var data = Pixastic.prepareData(params);

var invertAlpha =

!!params.options.invertAlpha;

}

var rect = params.options.rect;

var p = rect.width * rect.height;

var pix = p*4, pix1 = pix + 1,

var pix2 = pix + 2, pix3 = pix + 3;

while (p--) {

data[pix-=4] = 255 - data[pix];

data[pix1-=4] = 255 - data[pix1];


if (invertAlpha)


}

return true;

Sluice Invert Code

function invert_sluice(data, invert_alpha)

{

this.invertAlpha = invert_alpha;

this.data = data;

}


var w = this.pop();

var h = this.pop();

var p = w * h;

};

var pix = p*4, pix1 = pix + 1;

var pix2 = pix + 2, pix3 = pix + 3;

while (p--) {

this.data[pix-=4] = 255 - this.data[pix];

this.data[pix1-=4] = 255 - this.data[pix1];


if (this.invertAlpha)


}

this.push(w);

this.push(h);

return false;

Results: Pixastic

1800

600

execution time (ms)

1600

1400

1200

1000

800

600

400

200

ref

skir cold

skir warm

time per image (ms)

500

400

300

200

100

edges

sharpen

sepia

invert

0

invert sepia sharpen edges

0

1 2 4 6 8 10

benchmark

number of images

●

●

●

●

●

Test of acceleration due to SKIR

Offload processing of single image to SKIR

ref = ordinary JavaScript

cold = SKIR - includes JIT overhead

warm = SKIR - does not include JIT

overhead

●

●

●

Test of task parallelism

Launch 1 to 10 image

processing kernels in parallel

Shows mean time per image

●

8 worker threads (4 cores / 8

hardware threads)

n-body simulation

function CalculateForces(pos_rd, softeningSquared) {

this.m_pos_rd = pos_rd;

this.m_softeningSquared = softeningSquared;


var force = [0.0,0.0,0.0];

var i = this.pop()*4;

var N = this.pop()*4;

for (var j=0; j

Results: n-body

600

3

500

time per iteration (ms)

400

300

200

100

ref

sluice

skir

speedup

2

4096

3072

2048

1024

0

100 500 1000 1500

1

2 4 8

number of bodies

number of threads

●

●

●

●

●

●

Test of acceleration due to SKIR

Offload CalculateForces kernel to SKIR

Shows mean time per simulation iteration

ref = ordinary JavaScript

sluice = sluice implementation

skir = sluice implementation + SKIR offload

●

●

●

Test of data parallelism

Offload CalculateForces kernel as a data

parallel kernel, use SKIR kernel fission

Shows speedup vs. single thread

● Use 2, 4 or 8 SKIR threads (4 cores / 8

hardware threads)

●

JavaScript also uses one thread

Summary

●

Stream parallelism

● Isolates program state

● Abstracts inter-task communication

●

●

●

Presented a method for making concurrency explicit and

aiding type inference in JavaScript Applications using

Stream Parallelism

Showed how to use these techniques to offload program

kernels for parallel execution using a high performance JIT

and runtime system for streaming computation

Showed significant performance gains for the tested

benchmarks

Blank Slide

extend kernel work function

function createKernel(workfn)

{

var that = workfn;

if (that._sluice_kernel !== true) {

that._sluice_kernel = true;

if (that.work == undefined)

that.work = workfn;

that.ins = [];

that.outs = [];

that.pop = createPop(that,0);

that.popN = createPop(that);

that.push = createPush(that,0);

that.pushN = createPush(that);

that.fiber = Fiber(

function() {

var r = false;

while(r == false)

r = that.work.call(that);

return r;

});

// return a pop operation

function createArrayPop(kernel,stream)

{

var k = kernel;

if (stream != null) {

var s = stream;

return function() {

var a = k.ins[s].data;

while (!a.length) yield(k.ins[s].src == 1);

var e = a.shift();

return e;

};

} else {

return function(s) {

var a = k.ins[s].data;

while (!a.length) yield(k.ins[s].src == 1);

var e = a.shift();

return e;

};

}

}

}

}

return that;

enchmarks['invert'] = {

ref : function (rgba, cb) {

var ret = invert_ref(rgba, 2592, 1944, false);

cb(ret);

},

skir : function (rgba, cb) {

var invert = new invert_sluice(rgba, 0);

toSkir(invert,

function(err, ret) {

var p = new sluice.Pipeline( function(){ this.push(2592); //w

this.push(1944); //h

return true; },

ret,

function() { this.pop();

return true; }

).run(function() { cb(invert.data); });

});

}

};

var rgba = [];

for (var i=0; i
